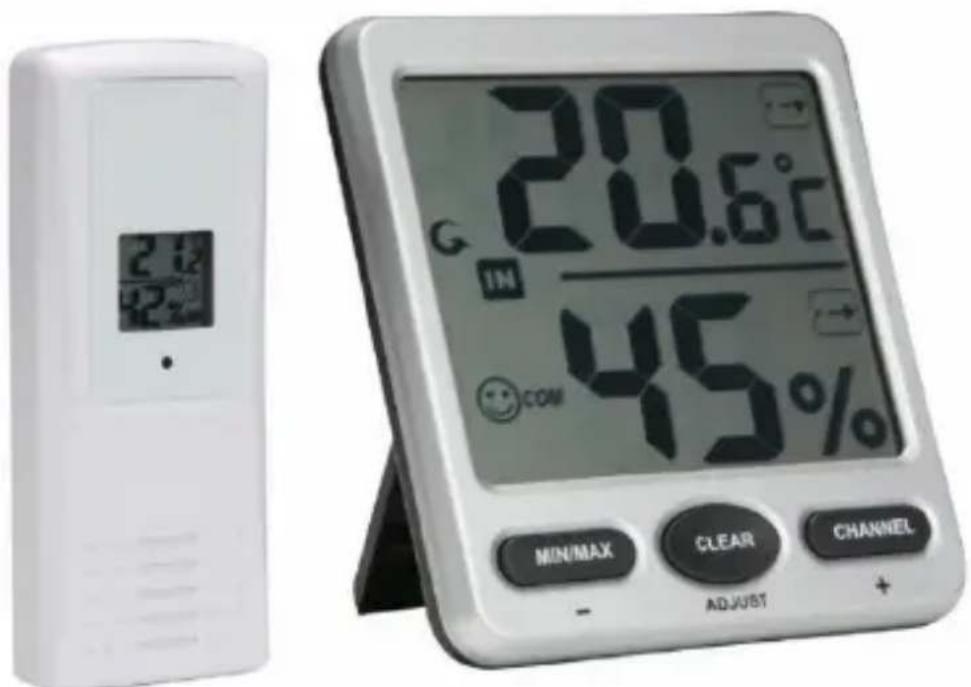

Product type	Weather station
Brand	Velleman
Model	WS8472
Receiver dimensions	115 x 125 x 24 mm
Sensor dimensions	45 x 110 x 21 mm
Display size	95 x 80 mm
Receiver power supply	4 AAA 1.5 V batteries (LR03C, not included)
Sensor power supply	2 AAA 1.5 V batteries (LR03C, not included)
Main functions	Indoor/outdoor thermometer/hygrometer, min/max recording, manual calibration, trend and comfort display, weather forecast, up to 8 channels
Temperature accuracy	±1 °C
Humidity accuracy	±5 %
Indoor temperature range	0 °C to 60 °C (32 °F to 140 °F)
Outdoor temperature range	-40 °C to +60 °C (-40 °F to +140 °F)
Humidity range	10 % to 99 %
Wireless range	100 m with no obstacles, 30 m with obstacles
Transmission frequency	433 MHz
Transmission interval	60 seconds
Included sensor	1 wireless sensor WS8472X
Optional sensor	WS8472S (for additional channels)
Mounting	Wall mount or free-standing
Care and cleaning	Clean with a damp cloth; do not use solvents or harsh detergents
Safety	Keep out of reach of children; do not puncture or throw batteries into fire; do not recharge alkaline batteries
Warranty	24 months for consumer products (EU)
Recycling	Do not dispose of with household waste; follow local regulations

Frequently Asked Questions - WS8472 VELLEMAN

How to pair the thermometer and sensor?

Place the sensor about 2 m from the receiver. Remove the batteries from the receiver, wait 30 seconds, then reinsert them. The receiver automatically searches for sensors. If using multiple sensors, ensure each sensor has a different channel via the DIP switches. Do not press any button during the search.

What to do if the screen shows no values?

Check that the batteries are installed correctly and are sufficiently charged. If the signal is lost, move the sensor closer to the receiver or remove metal obstacles. You can also reset the pairing by removing the receiver's batteries for 30 seconds.

How to calibrate the temperature?

Press CHANNEL to select the sensor to calibrate. Hold ADJUST for 5 seconds until the temperature flashes. Use CHANNEL or MIN/MAX to adjust the value. Press ADJUST once to revert to the initial value or hold it to exit calibration.

How to calibrate the humidity?

Press CHANNEL to select the sensor. Hold ADJUST and MIN/MAX simultaneously for 5 seconds until the humidity flashes. Adjust the value with CHANNEL or MIN/MAX. Press ADJUST once to reset or hold it to exit.

Why do indoor and outdoor temperatures differ?

Wait about 30 minutes after installation for the devices to stabilize. If the difference persists, check that the sensor is placed in the shade and sheltered. You can also calibrate the sensor as described in the manual.

How to change the temperature unit (Celsius/Fahrenheit)?

Hold the MIN/MAX button for 3 seconds to toggle between °C and °F. The selected unit is displayed on the screen.

How to display min/max values?

First select the sensor with CHANNEL, then press MIN/MAX to toggle between normal display and display of recorded minimum and maximum values.

What does the comfort icon mean?

The comfort icon indicates the humidity level: dry (RH < 45%), comfortable (RH between 45% and 65%), or humid (RH > 65%). It is based on the measured humidity.

How to clean the device?

Use a damp cloth to clean the exterior. Do not use harsh chemicals, solvents, or strong detergents. Avoid moisture entering the device.

What batteries to use and how to replace them?

Use AAA 1.5 V batteries (LR03C). The receiver requires 4 batteries, the sensor 2 batteries. Respect the polarity indicated in the compartment. Do not mix old and new batteries. Do not recharge alkaline batteries.

USER MANUAL WS8472 VELLEMAN

WIRELESS THERMO-/HYGROMETER DRAADLOZE THERMOMETER/HYGROMETER THERMOMÈTRE/HYGROMÈTRE SANS FIL TERMÓMETRO/HIGRÓMETRO INALÁMBRICO DRAHTLOSES THERMOMETER/HYGROMETER BEZPRZEWODOWY TERMOMETR/HIGROMETR TERMÓMETRO/HIGRÓMETRO SEM FIOS

212 22 20.6°C IN 45% COM MIN/MAX CLEAR CHANNEL ADJUST +

USER MANUAL 3 GEBRUIKERSHANDLEIDING 11 MODE D'EMPLOI 19 MANUAL DEL USUARIO 27 BEDIENUNGSANLEITUNG 35 INSTRUKCJA OBSŁUGI 43 MANUAL DO UTILIZADOR 51

CE

1 2 3 188.8°E MAX MIN 4 9 IN CH 8 WET 5 8 COM 7 88% DRY 6 1 24.2°C 62%RH 3 4

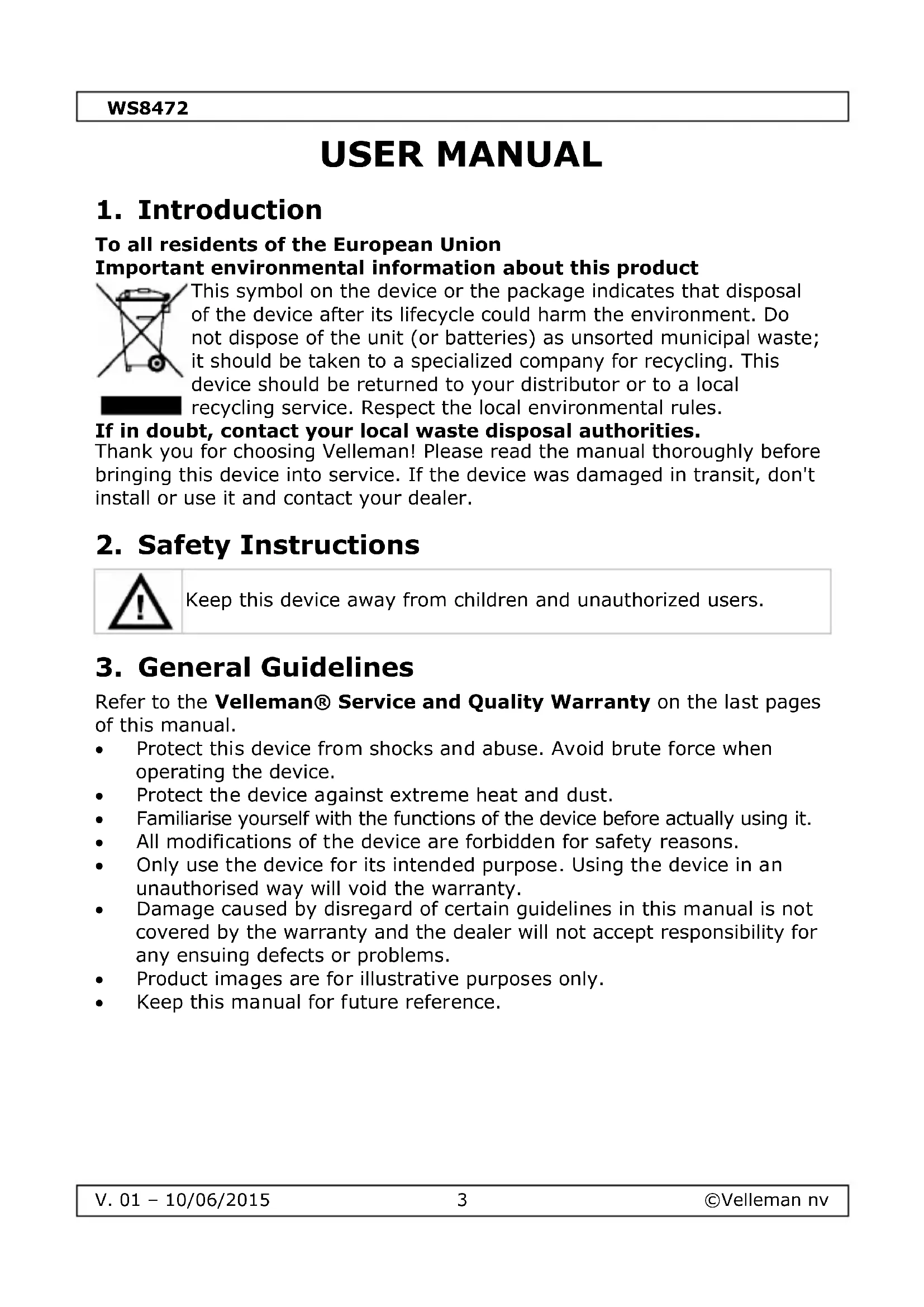

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children and unauthorized users.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

• Protect this device from shocks and abuse. Avoid brute force when operating the device.
• Protect the device against extreme heat and dust.
  • Familiarise yourself with the functions of the device before actually using it.
  • All modifications of the device are forbidden for safety reasons.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
  • Product images are for illustrative purposes only.
• Keep this manual for future reference.

4. Features

• 8-channel thermometer/hygrometer with large display
- easy to use
- wireless measuring of indoor and outdoor temperature and humidity (1 wireless outdoor sensor WS8472S included)
• recording of min. and max. temperature and humidity
• manual calibration of temperature and humidity
• indicates trends in temperature and humidity
• indicates comfort level
• DIP switch to connect up to 8 channels (with optional sensor WS8472S)
- long search function when wireless communication is lost
• wall hanging or free standing

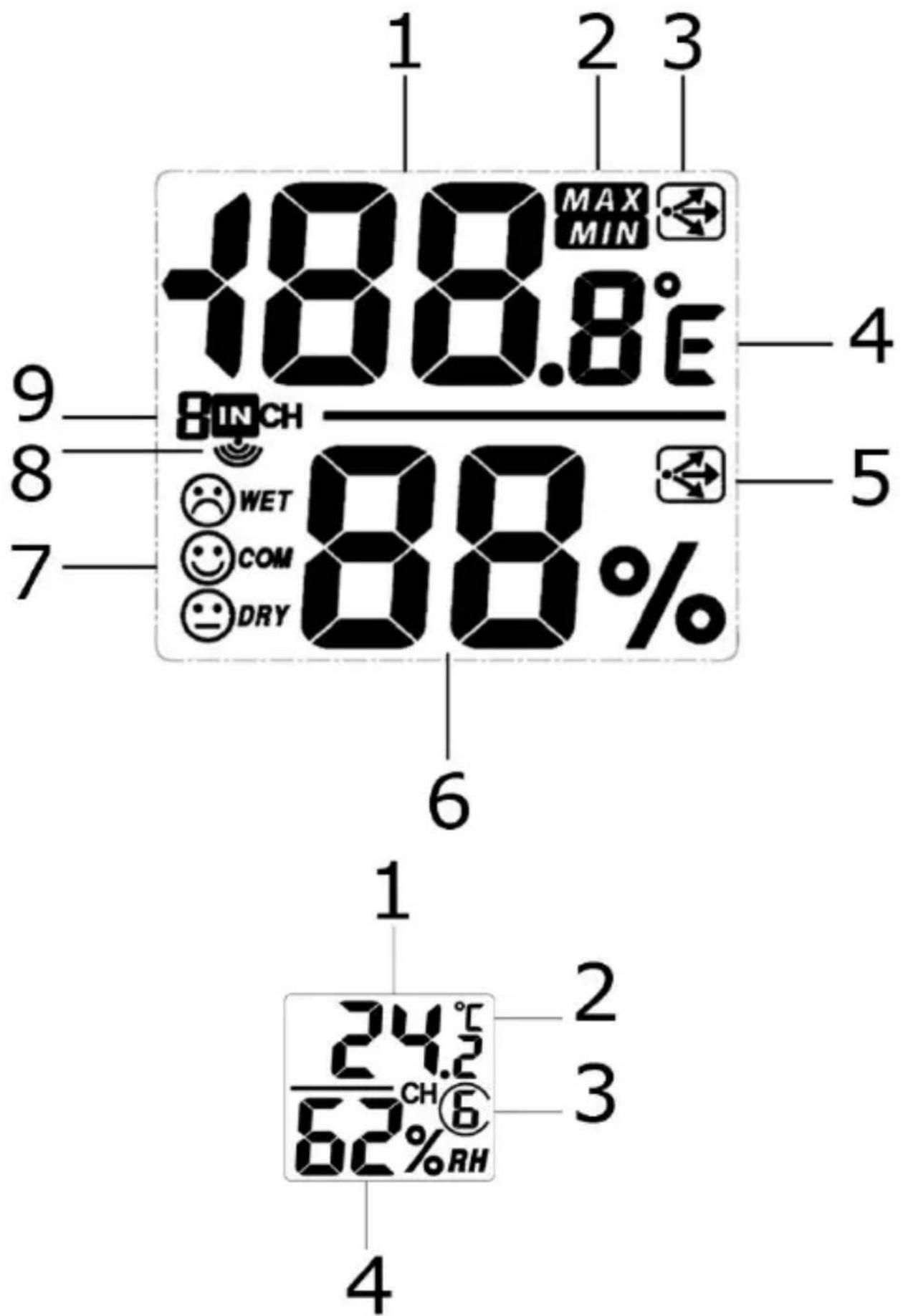

5. Overview

Refer to the illustrations on page 2 of this manual.

Thermo-/hygrometer

1	temperature
2	min/max record mode
3	temp. forecast icon
4	temperature unit
5	humidity forecast icon

6	humidity level
7	humidity comfort
8	reception signal
9	channel number

Sensor

1	temperature
2	temperature unit

3	channel number
4	humidity level

6. Batteries

Open the battery compartment of the sensor and thermo-/hygrometer.

Before inserting the batteries, assign a channel to each sensor and choose the temperature unit through the DIP switches. Install the necessary AAA batteries according to the indicated polarity.

Only then can you install the batteries in the thermo-/hygrometer according to the indicated polarity.

Close the battery compartments.

Warning: Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.

DIP Switch Table

DIP switch				channel
1	2	3	4
down	down	down	/	1
down	down	up	/	2
down	up	down	/	3
down	up	up	/	4
up	down	down	/	5
up	down	up	/	6
up	up	down	/	7
up	up	up	/	8
/	/	/	down	°F
/	/	/	up	°C

7. Installation

We recommend mounting the sensor on a sheltered and shaded, north-facing wall. Use a screw or nail (not included) to affix the sensor as shown in the picture.

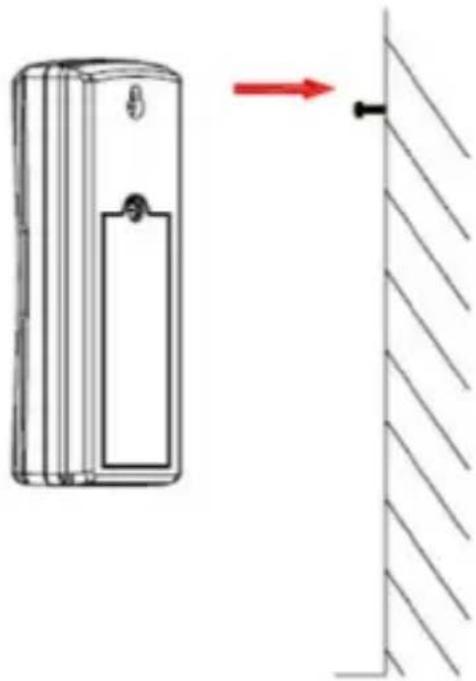

Diagram showing a vertical panel with a red arrow pointing to a wall-mounted component (no text or symbols present)

8. Pairing the Thermo-/Hygrometer with the Sensor

8.1 Pairing

1. Move the sensor about 2 ~m away from the thermo-/hygrometer. If you are using more than one sensor, make sure they are all powered up and transmitting on a different channel.

WS8472

1. Remove the batteries from the thermo-/hygrometer, wait 30 seconds and insert them back into the thermo-/hygrometer.
2. The thermo-/hygrometer will automatically search and pair with the transmitting sensors.

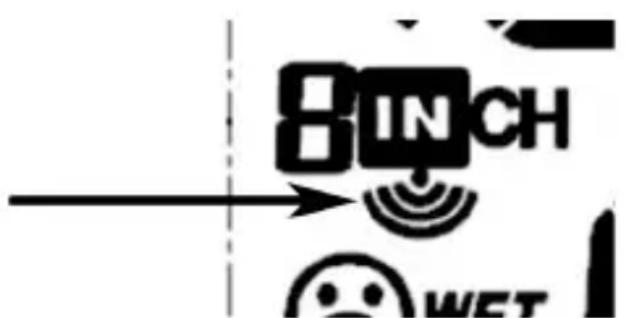

BINCH WET

The thermo-/hygrometer is in search mode.

1. If you are using more than one sensor, the thermo-/hygrometer will automatically toggle between sensors until all sensors have reported in. Do not touch any buttons as long as the search mode is activated.

8.2 Verification

Verify that the indoor and outdoor values on the thermo-/hygrometer and the sensors match within 10 %. Allow about 30 minutes for the thermo-/hygrometer and the sensors to stabilize.

If the values do not match closely, proceed to the calibration of the devices.

8.3 Calibration

Calibration is only useful if you can compare the values against a known calibrated source.

Humidity Calibration

1. Press CHANNEL to select the sensor you wish to calibrate.
2. Press and hold both ADJUST and MIN/MAX for 5 seconds. The humidity value blinks.
3. Increase or decrease the value with CHANNEL or MIN/MAX.
4. Press ADJUST once to go back to the start value; press and hold ADJUST to exit the calibration function.

Temperature Calibration

1. Press CHANNEL to select the sensor you wish to calibrate.
2. Press and hold ADJUST for 5 seconds. The temperature value blinks.
3. Increase or decrease the value with CHANNEL or MIN/MAX.
4. Press ADJUST once to go back to the start value; press and hold ADJUST to exit the calibration function.

9. Operation

9.1 Comfort Icon

The comfort icon is based on the humidity level.

RH < 45 %

dry

RH 45 % \~ 65 %

comfortable

RH > 65 %

wet

9.2 Weather Forecast Icon

The thermo-/hygrometer detects rapid changes in temperature and humidity. According to those changes, the thermo-/hygrometer predicts the weather for the coming hours.

decreasing

stable

increasing

9.3 Indoor/Outdoor Display

Press CHANNEL to toggle between the thermo-/hygrometer or the sensor.

channel number

thermo-/hygrometer

auto toggle

9.4 Selecting the Temperature Unit

The default temperature will be displayed in degrees Celsius. To toggle between units, hold MIN/MAX pressed for three seconds.

9.5 Min/Max Mode

This mode displays the recorded minimum and maximum temperature and humidity values.

1. Select the sensor with CHANNEL.
2. Press MIN/MAX to toggle between the normal display, the minimum and the maximum values.

10. Guidelines for Wireless Devices

Wireless communication is susceptible to interference, distance, walls and metal barriers.

Electro-Magnetic Interference (EMI)

Keep the thermo-/hygrometer away from monitors, computers, etc.

Radio Frequency Interference (RFI)

Keep the thermo-/hygrometer away from other devices using the 433 MHz frequency.

Line of Sight

The thermo-/hygrometer has a range of 100 m (no interference, barriers or walls). Considering all obstacles, the range will be about 30 m.

Metal Barriers

Radio waves will not pass through metal such as aluminium. Consider all metal barriers when installing the sensors.

11. Troubleshooting

The thermo-/hygrometer does not display any value.

• The signal has been lost or is not yet found. Pair the thermo-/hygrometer with the sensors.
• The signal cannot reach the thermo-/hygrometer. Remove all obstacles between the devices or reduce the distance between them.
• The batteries are exhausted. Replace the batteries in the thermo-/hygrometer and/or the sensors.

The indoor and outdoor temperatures do not match.

• The thermo-/hygrometer and/or the sensors are not stabilized yet. Allow 30 minutes for the devices to optimize data transmission.
• The thermo-/hygrometer is not calibrated. Refer to chapter 8.3 Calibration.

12. Cleaning and Maintenance

The thermo-/hygrometer does not need any particular maintenance.

However, occasionally wipe it with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

13. Technical Specifications

range
	temperature	display in °C or °F
	indoor	0°C to 60°C (32°F to 140°F)
	outdoor	-40°C to +60°C (-40°F to +140°F)
	humidity	10% - 99%
accuracy
	temperature	+- 1°C
	humidity	+- 5%
transmission
	frequency	433 MHz
	range	100 m in open area
	interval	60 s
power consumption
	receiver	4 x 1.5 V AAA battery (LR03C, not incl.)
	remote sensor	2 x 1.5 V AAA battery (LR03C, not incl.)
	battery life	min. 12 months
dimensions
	receiver	115 x 125 x 24 mm
	transmitter	45 x 110 x 21 mm
	screen	95 x 80 mm
extra/spare sensor		WS8472S

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

R&TTE Declaration of Conformity

Hereby, Velleman NV declares that the radio equipment type WS8472 is in compliance with Directive 1999/5/EC.

The full text of the EU declaration of conformity is available at the following internet address: www.velleman.eu

R&TTE Declaration of Conformity

Hereby, Velleman NV declares that the radio equipment type WS8472S is in compliance with Directive 1999/5/EC.

WS8472

The full text of the EU declaration of conformity is available at the following internet address: www.velleman.eu

© COPYRIGHT NOTICE The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

Diagram showing a vertical panel with a red arrow pointing to a vertical wall, no text or symbols present

BINCH WET

De thermo-/hygrometer is in zoekmodus.

Diagram showing a vertical wall-mounted device next to a wall-mounted switch, with a red arrow indicating direction (no text or symbols present)

BINCH WET

Diagram showing a vertical wall-mounted device next to a wall-mounted switch, with a red arrow indicating direction (no text or symbols present)

BINCH WET

Diagram showing a door lock and a wall-mounted component with a red arrow indicating direction (no text or symbols)

BINCH WET

Diagram showing a vertical panel with a red arrow pointing to a vertical wall, no text or symbols present

BINCH WET

© INFORMACJA O PRAWACH WŁASNOŚCI

Diagram showing a vertical wall-mounted device with a red arrow indicating direction, next to a diagonal hatched wall (no text or symbols)

8. Emparelhar o Termo-/Higrómetro com o Sensor

8.1 Emparelhamento

BINCH WET

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
  You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;
• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
• damage resulting from an inappropriate packing and shipping of the article;
• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).

NL
