USER MANUAL FWS 2972 CLATRONIC

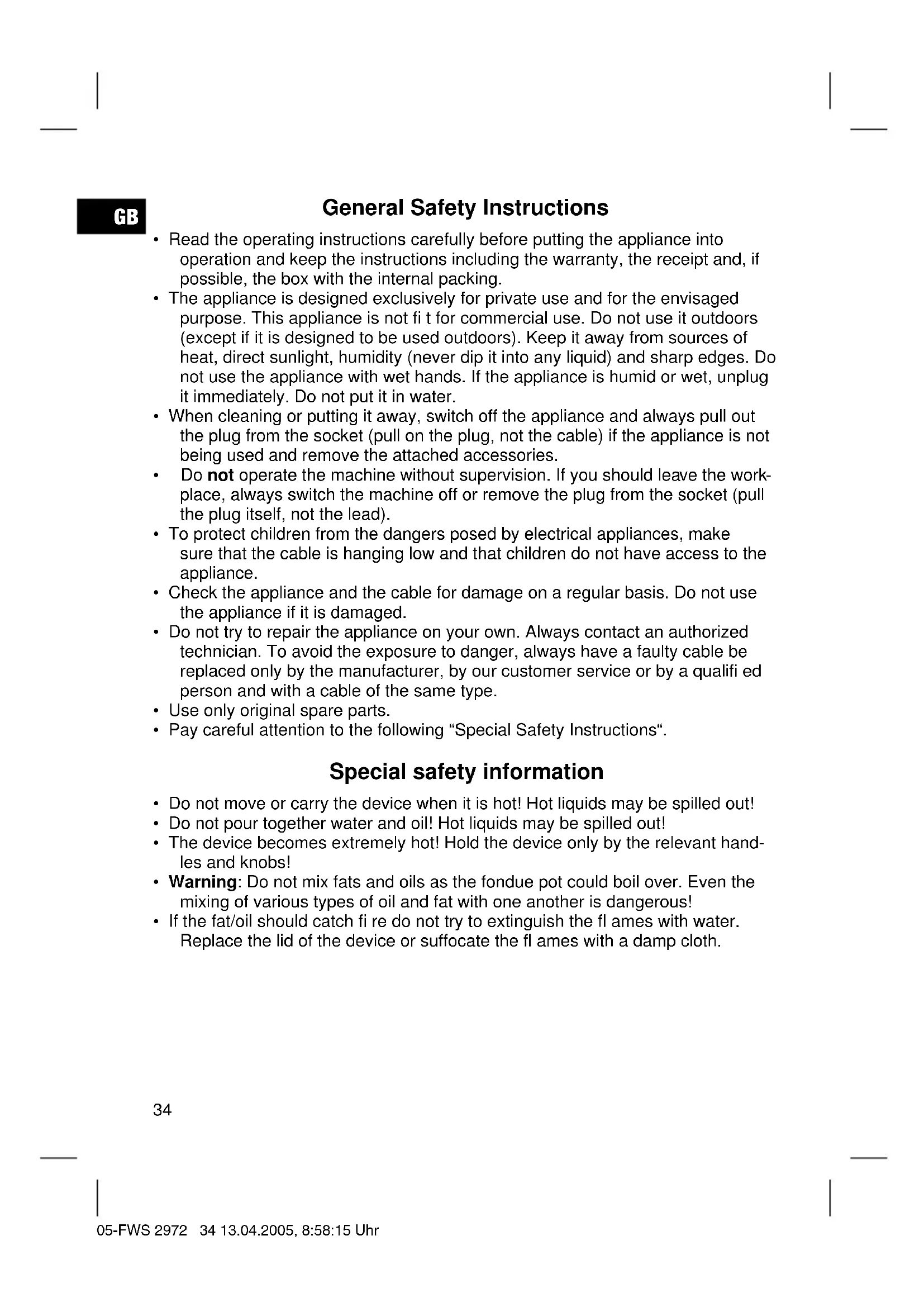

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fi t for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.

• Do not operate the machine without supervision. If you should leave the work- place, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).

• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.

• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualifi ed person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following “Special Safety Instructions“. Special safety information

• Do not move or carry the device when it is hot! Hot liquids may be spilled out!

• Do not pour together water and oil! Hot liquids may be spilled out!

• The device becomes extremely hot! Hold the device only by the relevant hand- les and knobs!

• Warning: Do not mix fats and oils as the fondue pot could boil over. Even the mixing of various types of oil and fat with one another is dangerous!

• If the fat/oil should catch fi re do not try to extinguish the fl ames with water. Replace the lid of the device or suffocate the fl ames with a damp cloth. 05-FWS 2972 34 13.04.2005, 8:58:15 UhrGB

Scope of Supply and Equipment

• Fondue pot made of stainless steel with attachment holder for forks

• Stainless steel wok, non-rusting with heat-insulated handles

• Glass lid with heat-insulated plastic knob

• Stainless steel grid insert for steaming and draining

• Separate stable heating base with robust hotplate and continuously adjustable thermostat

• Wooden spatula and one set of wooden chopsticks

• Control lamp Initial Operation of the Wok Before Initial Use

• Before using the wok for the fi rst time, please clean it as described under „Cleaning and Care“.

• Please select a suitable non-slip base on which to place your wok. Using the Device

• Cooking with a wok stems from Asian cuisine, the main feature of which is that food is cooked for an extremely short time.

• It is therefore advisable to cut all the ingredients which you need for a wok dish beforehand into „mouth-sized“ pieces (cubes/strips). This drastically reduces the cooking time and your food will retain its fresh taste.

• As the temperature of the oil in the wok is higher than normal when food is prepared, please do not use any butter, margarine or olive oil in the wok. The most suitable types of oil are frying oils or vegetable oil. Please do not use any sharp or pointed objects when handling the wok. The most suitable items are wooden utensils. Cooking with the Wok When you have fi nished preparing all the ingredients for your wok dish, unwind the lead completely. Turn the temperature control as far as possible to the left. Only connect the machine to a properly installed 230 V, 50 Hz safety socket.

1. Turn the temperature regulator to approximately 1/4 before the maximum and

let the wok warm up for a few minutes while empty.

2. Put some oil or stock into the wok and add the diced ingredients.

3. Cook these while stirring or turning constantly.

4. If the liquid in the wok evaporates too much and the ingredients start to „roast“,

5. Serve the dish as soon as it is ready.

Steaming with the Wok

1. Pour 2-3 cups of water into the wok and place the grid on it.

2. Put the ingredients on the grid and put the cover on.

3. Turn the wok to the maximum to heat it up quickly. Then set the required

temperature. If you are unsure which setting to choose, begin with a low tem- perature setting and then increase the temperature gradually (also for boiling, frying and fondues).

4. The maximum volume is 1.5 litres.

When steaming add some water if necessary. ATTENTION: hot water vapor may escape from the cover! Danger of burning! Frying with the Wok

1. Place between 1 litre and 1.5 litres of oil in the wok.

2. Switch on the device and set the highest level. Leave the oil to heat.

3. With a wooden stick (e.g. shashlik spit or wooden cooking spoon) you can test

whether the correct temperature has been reached. When this is inserted into the oil, small air bubbles should rise up along the wooden stick. Alternatively, you can place a piece of the food to be fried into the hot oil. If bubbles are formed, the frying fat has reached the right temperature.

4. Place the ingredients carefully into the hot oil. Do not overfi ll the wok. Care is

required as you are frying in an open vessel and it is not possible to avoid oil splashes. ATTENTION: dry the ingredients in advance with a paper towel, to reduce the spattering of the hot oil! Do not put the cover on the wok, as the condensed water may drip into the hot oil. Initial Operation of the Fondue Set

1. Place the fondue equipment on the heating stand.

2. Fill the pot with fat or stock (0.7 litres to 1.5 litres).

3. Preheat the device on level „max“. Test the oil temperature as described

above under point 3 „Frying in the Wok“.

4. Place the pieces of meat on the fondue forks and then dip them into the oil.

Depending on the size of the meat pieces, the cooking process takes between 4 and 7 minutes, i.e. the smaller the pieces of meat or other food are, the faster they are cooked.

5. Adjust the temperature with the regulator such that the oil simmers.

• Before cleaning the machine always remove the mains plug and wait until the machine has cooled down.

• External stains can be removed with a moist cloth without using detergents.

• Clean the wok, cover and accessories in the usual way in water. Only clean the base with a lightly moistened cloth without using detergents. Do not place the base in water.

• Clean the wok bowl with a moist cloth. This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice! Guarantee The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt). During the life of the guarantee any fault of the device or its accessories *) ascri- bable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee! Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out. If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt. *) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge. Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid! The guarantee lapses in case of unauthorized tampering. After the expiry of the guarantee After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs. 05-FWS 2972 37 13.04.2005, 8:58:16 UhrPL
