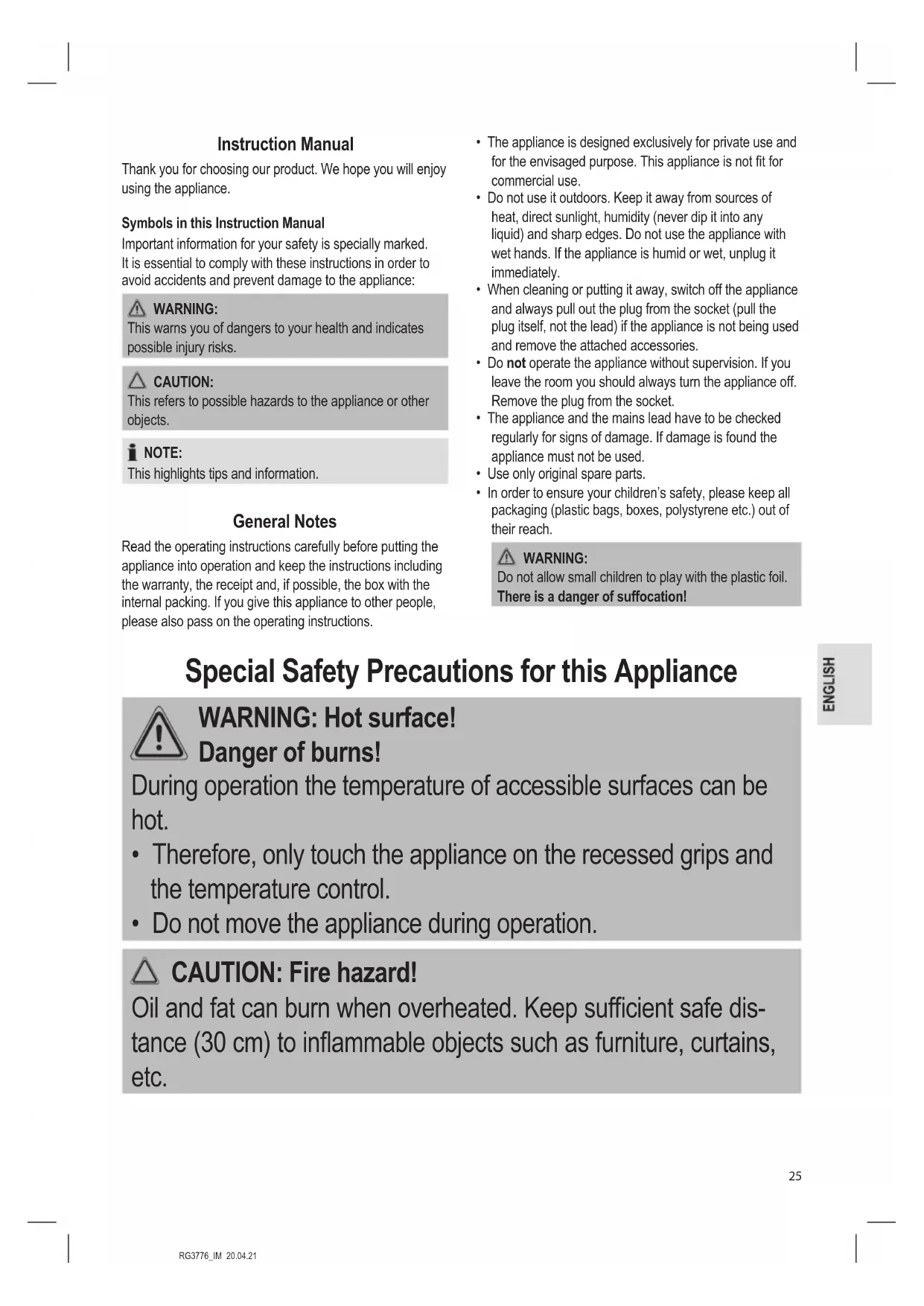

Instruction Manual Thank you for choosing our product. We hope you will enjoy using the appliance. Symbols in this Instruction Manual Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

This warns you of dangers to your health and indicates possible injury risks. CAUTION: This refers to possible hazards to the appliance or other objects. NOTE: This highlights tips and information. General Notes Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not t for commercial use.

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.

• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.

• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.

• Use only original spare parts.

• In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Do not allow small children to play with the plastic foil. There is a danger of suffocation! Special Safety Precautions for this Appliance

WARNING: Hot surface!

Danger of burns! During operation the temperature of accessible surfaces can be hot.

• Therefore, only touch the appliance on the recessed grips and the temperature control.

• Do not move the appliance during operation. CAUTION: Fire hazard! Oil and fat can burn when overheated. Keep sufcient safe dis- tance (30 cm) to inammable objects such as furniture, curtains, etc.RG3776_IM 20.04.21

• Place the appliance on a level, water and heat-resistant surface. The surface should be easy to clean as spattering is unavoidable. If resting on a sensitive surface, place a heat-resistant plate be- neath it.

• Due to rising heat and vapours do not place the appliance under wall cupboards.

• Ensure that the mains cord does not touch hot parts of the appli- ance during operation.

• Do not operate the appliance with an external timer or separate remote control system.

• Do not repair the appliance by yourself. Always contact an au- thorized technician. If the supply cord is damaged, it must be re- placed by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental ca- pabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years. CAUTION: This appliance is not intended to be immersed in water during cleaning. Please observe the instructions that we have included for you in the chapter “Cleaning”.RG3776_IM 20.04.21

Intended Use This appliance serves for heating, grilling and browning of food. It is intended for the use in private households and similar applications. The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries. The manufacturer assumes no liability for damages caused by improper use. Unpacking the Appliance

1. Remove the appliance from its packaging.

2. Remove all packaging materials such as lms, ller

material, cable clips and carton.

3. Check the contents for completeness.

4. In case of incomplete delivery or damage, do not operate

the appliance. Return it to your dealer immediately. NOTE: Production residue or dust may have collected on the ap- pliance. We recommend cleaning the appliance according to chapter “Cleaning”. Scope of Delivery 1 × Grilling appliance 1 × Grill plate 8 × Small pans 8 × Wooden spatulas Notes for Use CAUTION: Avoid damage to the non-stick coated grill surfaces!

• Only use wooden or teon spatula.

• Do not use pointed objects (e.g. knife, fork) on the grill surface.

• Do not use plastic utensils. They can melt.

• The non-stick coated grill surfaces enable dishes to be prepared without the use of fat.

• If you want to use oil ensure that it is highly heatable, such as sunower oil. Do not use olive oil or butter, since they start smoking already at low temperatures. Assembly

• Place the grill plate onto the appliance so that it is held rmly in place.

• Place the small pans underneath. Electrical Connection

1. Please ensure that the temperature control is set to

2. Before you plug the power plug into the power outlet,

ensure that the mains voltage corresponds with that of the appliance. You can nd information about this on the rating plate.

3. Only connect the appliance to a properly installed

earthed socket. Switching On / Off The temperature control is used to switch the appliance on and off. The light on the control shows you the operation. Temperature Control Adjust the temperature control depending on the intended purpose:

• The MAX setting for grilling or roasting

• A small or medium setting for keeping warm or cooking Before Initial Use There is a protective layer covering the heating element, which incinerates when the appliance is heating up. As a result, there may be a small amount of smoke and odor when using the appliance. However, this will subside after a few times of use. This does not constitute a defect.

• You can minimize the smoke development by wiping the heating element with a slightly moistened cloth before using it for the rst time.

• Do not use cleaning agents!

• Then wipe it with a dry cloth.

• Only switch on the appliance when it is in a completely dry state.

• Always ensure adequate ventilation.

1. Slightly grease the small pans and the grill plate.

2. Put all the parts into the appliance.

3. Operate the appliance without food for about 10 minutes

for the protective layers to be removed. To do so, set the temperature control to the position MAX.

4. Set the temperature control to position “0”. Disconnect

the mains plug from the wall socket.

5. Let the appliance cool down completely.

6. Clean all the parts that will come into contact with food

again. Your appliance is now ready to use. Tips for the Raclette Evening

• Cut all ingredients into small pieces or slices.

• Let the appliance preheat for about 10 minutes.

• Place food of your choice onto the grill plate.

• You may use the small pans to bake mushrooms or small open sandwiches topped with cheese.

• Ensure that the ingredients don’t get into contact with the heating element.

• From time to time, remove larger food residues from the grill plate, and the small pans, so that these won’t burn. End of Operation

1. Set the temperature control to position “0”. The light on

the control will go out.

2. Allow the appliance to cool before you clean it.

• Disconnect from mains power supply before cleaning.

• Do not submerge the appliance in water! This may lead to elec- tric shock or re.

• Ensure that no liquid gets inside the appliance! CAUTION:

• Do not use a wire brush or other abrasive utensils for cleaning.

• Do not use aggressive or abrasive cleaning agents. Grill Plate and Small Pan

1. While still warm, remove food residues with a moist towel

2. Clean these parts by hand in a rinsing bath. You may

loosen stronger contaminations with a nylon brush. Casing Clean the casing after use with a slightly damp cloth. Storage

• Only store the appliance clean and after it has cooled down.

• During longer periods of non-use we recommend storing the appliance in its original packaging.

• Always store the appliance in a well-ventilated and dry place out of reach of children. Technical Data Model:....................................................................... RG 3776 Power supply:...........................................220 – 240 V~, 50 Hz Power consumption: ........................................ 1200 – 1400 W Protection class: ..................................................................... Net weight: ..................................................... approx. 2.35 kg The right to make technical and design modications in the course of continuous product development remains reserved. This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and is manufactured according to the latest safety regulations. Disposal Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of elec- trical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment. Information concerning where the equipment can be dis- posed of can be obtained from your local authority.RG3776_IM 20.04.21
