USER MANUAL PO 3146 CLATRONIC

Exterior view of a CMTRONC® microwave oven with a single pie on top (no visible text or symbols on the main subject)

CE

PIZZAOFEN

Pizzaoven • Four à pizza • Horno para pizza • Forno para pizza • Forno per pizza • Pizzaovn Pizza Oven • Piec do pizzy • Pec na Pizzu • Pizzasütő • Печь для пиццы

PO 3146

DEUTSCH

NORSK

Inhalt

Overview of the Components ...... Page 3

7 Instruction Manual...... Page 25

Technical Data Page 27

9 Guarantee Page

FRANÇAIS

JEZYK POLSKI

Sommaire

Labeled diagram of a microwave oven with numbered parts for identification

D-47906 Kempen/Germany

Consommation: 1300 W

Classe de protection: I

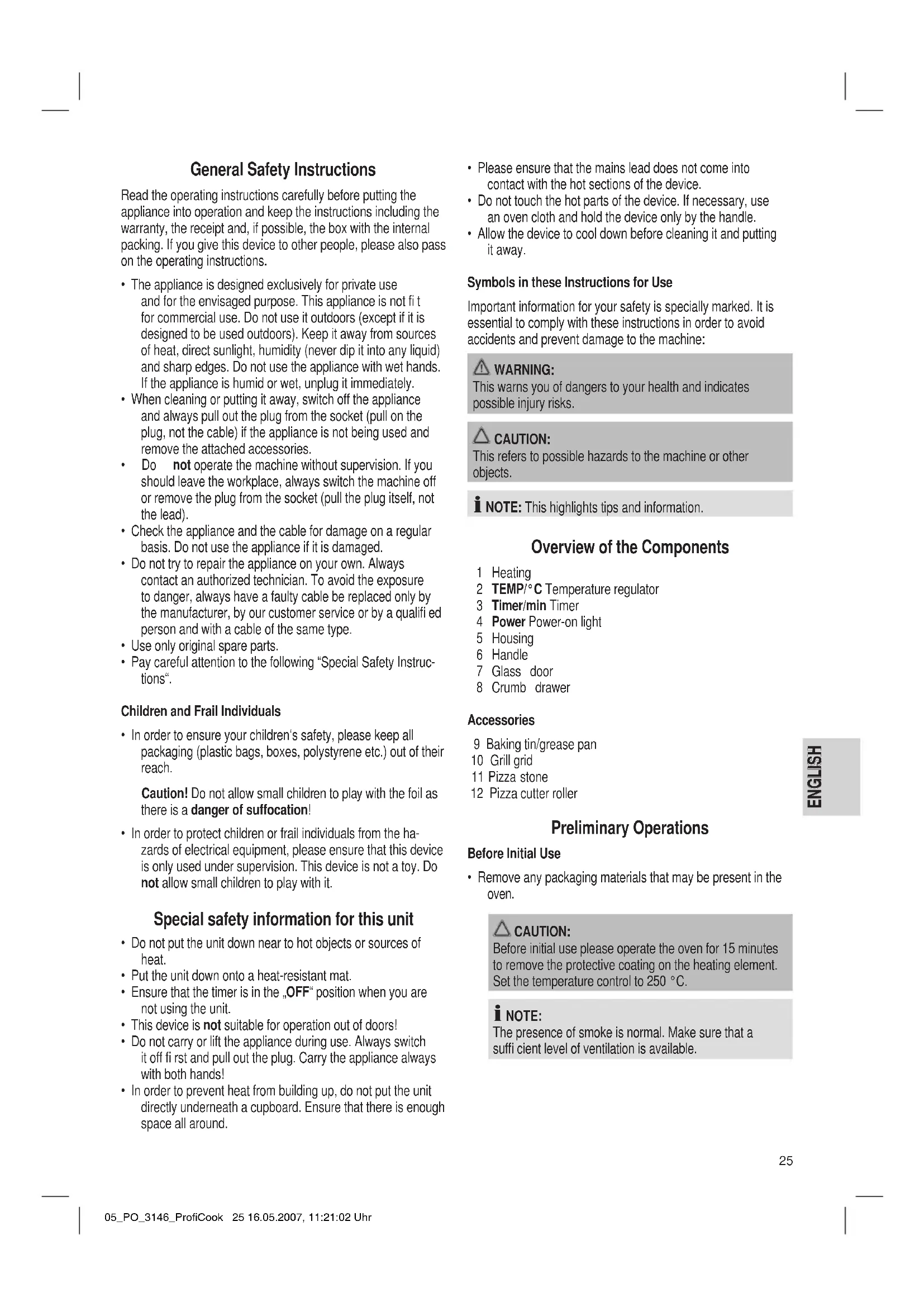

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

- In order to protect children or frail individuals from the hazards of electrical equipment, please ensure that this device is only used under supervision. This device is not a toy. Do not allow small children to play with it.

Special safety information for this unit

• Do not put the unit down near to hot objects or sources of heat.
• Put the unit down onto a heat-resistant mat.
• Ensure that the timer is in the „OFF“ position when you are not using the unit.
• This device is not suitable for operation out of doors!
• Do not carry or lift the appliance during use. Always switch it off first and pull out the plug. Carry the appliance always with both hands!

• In order to prevent heat from building up, do not put the unit directly underneath a cupboard. Ensure that there is enough space all around.

• Please ensure that the mains lead does not come into contact with the hot sections of the device.

• Do not touch the hot parts of the device. If necessary, use an oven cloth and hold the device only by the handle.
• Allow the device to cool down before cleaning it and putting it away.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

i NOTE: This highlights tips and information.

Overview of the Components

1 Heating
2 TEMP/°C Temperature regulator
3 Timer/min Timer
4 Power Power-on light
5 Housing
6 Handle
7 Glass door
8 Crumb drawer

Accessories

9 Baking tin/grease pan
10 Grill grid
11 Pizza stone
12 Pizza cutter roller

Preliminary Operations

Before Initial Use

- Remove any packaging materials that may be present in the oven.

CAUTION:

Before initial use please operate the oven for 15 minutes to remove the protective coating on the heating element. Set the temperature control to 250 °C.

i NOTE:

The presence of smoke is normal. Make sure that a sufficient level of ventilation is available.

Operation

1. The timer must be set to the "OFF" position.

2. Only connect the unit to a properly installed and earthed power socket (230 V, 50 Hz). You can find the details on the type plate. The red mains control lamp (Power) lights up.

3. Put the items to be cooked into the oven. Depending on the type of food to be cooked, place it as close as possible to the centre of the baking tray, the pizza stone or on the grill grid.

4. Set the desired temperature.

5. Use the baking tray for fl at cakes, biscuits, meat, for example.

6. For deep frozen or fresh pizzas please use the pizza stone (max. 30cm).
   • The grill grid is suitable for making toast.

7. If you would like to use other tableware, please ensure that this is sufficiently heat-resistant.

i NOTE:

Always insert the grill grid before you use the pizza stone or the baking tray. Never place the pizza stone or the baking tray directly on the lower heating coils.

1. Close the oven door.
2. Set the timer by turning it clockwise to set the cooking time. Once the time set has come to an end, the unit switches off automatically and a ringing sound is heard.
3. For cooking times of less than 5 minutes, fi rst turn the timer to approx. 20 minutes and then back to 3 minutes, for example. This will make the timer more precise. In this case it is recommended that the oven should be preheated (for approx. 3 minutes).
4. Once the oven has switched off, you can open the door again and remove the food with oven gloves or oven cloths (Take care! Hot!).

Accessories

Grill grid: for toasting; to be placed underneath baking pans an moulds

Baking sheet: to be placed underneath items to be fi nished in the oven, to be used as a drip-tray for fat

Pizza stone: for pizza

Pizza cutter roller: for cutting or dividing up the pizza

Summary of cooking times

Item to be cooked	Temperature /°C	Time/min.
Pizza	180-220	10-20
Meat 200-240	12-18
Toast	120-160	3-5
Baked goods	120-180	10-15
Kebabs	200-240	40-60

These times are only approximations and may vary depending on circumstances.

Please follow the producer's instructions on the packaging. If you would like to bake a cake with the device, please note the restricted height of the interior; rising doughs such as yeast dough are not recommended.

Switching Off

If you would like to interrupt or stop operation, turn the Timer/min to "OFF" and the TEMP/°C temperature control to "O".

Then remove the plug from the socket.

The red control lamp goes off.

Cleaning and storage

• Pull the plug out of the socket.
• ONLY clean or put away the unit when it has cooled down. DANGER OF BURNS!

CAUTION:

• Do not use any wire brush or other abrasive objects.
• Do not use any acidic or abrasive detergents.
• Under no circumstances should the device be immersed in water for cleaning.

- Crumbs or similar residues on the floor of the device fall into the crumb drawer. Empty the drawer regularly. In order to do so, pull it all the way out. After emptying the drawer please reinsert it correctly into the guide mechanism.

Interior

• Keep the interior of the oven clean. Splashes and food residues on the oven walls can be removed with a damp cloth. If the oven is very dirty a mild detergent can also be used. Please do not use any abrasive detergents. Do not wipe the heating elements.
• Wipe the viewing window off on the inside and outside with a damp cloth and remove any splashes and food residues regularly.

External Walls

• The external walls of the microwave should only be cleaned with a damp cloth. Please ensure that no water enters the openings in the housing and therefore inside the device.
• Please only use a damp cloth for cleaning the controls.

Accessories

- Removable parts that have come into contact with food (baking tray, grid, pizza cutter roller), can be rinsed by hand. Do not scratch the protective layer of the baking sheet. The pizza stone is not suitable for putting in the dishwasher; it should be cleaned while it is still warm. Scrub it clean occasionally with a coarse scrubbing brush.

Technical Data

Model: PO 3146

Power supply: 230 V, 50 Hz

Power consumption: 1300 W

Protection class: I

Cavity volume: 12 litres

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
