ATTENTION!

(Configuration: EU; PL; d; EC; U; In).

VOX SET (pression longue)

9/19 (pression breve)

ANL/NB/HICUT (pression brive)

A Alpha H Hotel O Oscar V Victor B Bravo I India P Papa W Whiskey C Charlie J Juliet Q Quebec X X-ray D Delta K Kilo R Romeo Y Yankee

F Foxtrott M Mike T Tango G Golf N November U Uniform

LANGUAGE TECHNIQUE

AM Amplitude Modulation (modulation d'amplitude)

CW : Continuous waves (morse)

DX :Liaisonlonguedistance

DW : Dual watch (double veille)

GP :Ground plane (antenna vertical)

SW :Short waves (ondes courtes)

CITY NUMBER :Code postal

COPIER :Ecouter, capter, recevoir

FB :Fine business (bon,excellent)

QRM: Parasites, brouillage

QRM DX : Parasites Iointains

QRM 22 :Police

QTH: Position de station

QTR:Heure locale

CANAUX D'APPEL

27 AM : appel general en zone urbane

19 AM Routiers

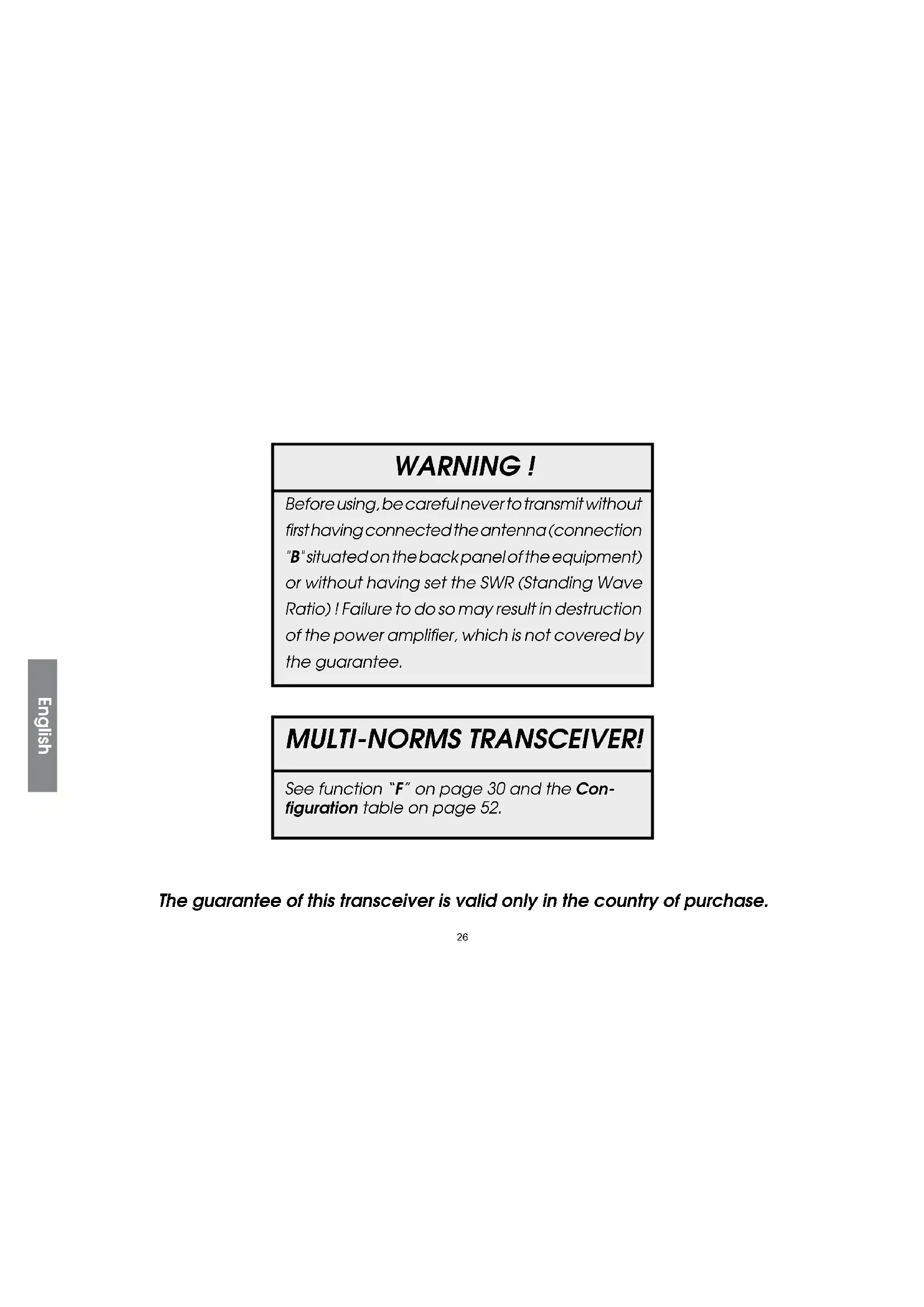

Before using, be careful never to transmit without first having connected the antenna (connection "B" situated on the back panel of the equipment) or without having set the SWR (Standing Wave Ratio)! Failure to do so may result in destruction of the power amplifier, which is not covered by the guarantee.

MULTI-NORMS TRANSCEIVER!

See function "F" on page 30 and the Configuration table on page 52.

The guarantee of this transceiver is valid only in the country of purchase.

Welcome to the world of the new generation of CB radios. The new PRESIDENT range gives you access to top performance CB equipment. With the use of up-to-date technology, which guarantees unprecedented quality, your PRESIDENT GRANT II ASC is a new step in personal communication and is the surest choice for the most demanding of professional CB radio users. To ensure that you make the most of all its capacities, we advise you to read carefully this manual before installing and using your PRESIDENT GRANT II ASC.

A) INSTALLATION

1) WHERE AND HOW TO MOUNT YOUR MOBILE CB RADIO

a) You should choose the most appropriate setting from a simple and practical point of view.
b) Your CB radio should not interfere with the driver or the passengers.
c) Remember to provide for the passing and protection of different wires (e.g. power, antenna, accessory cabling) so that they do not in any way interfere with the driving of the vehicle.

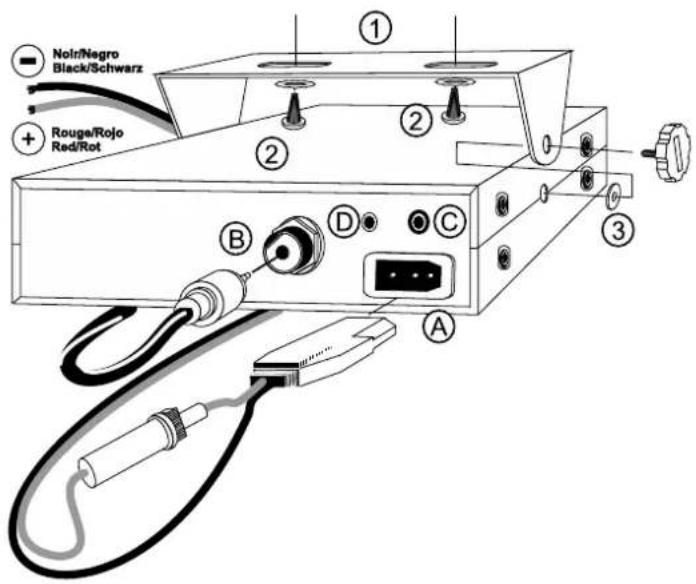

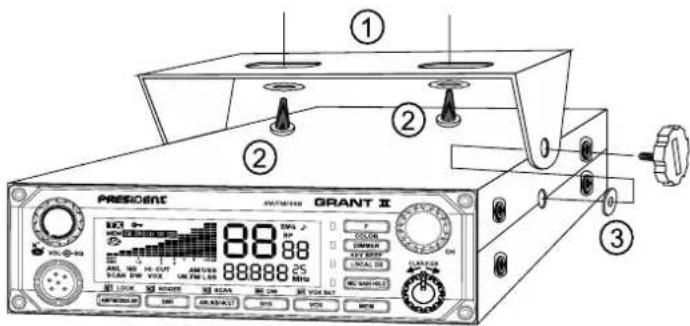

d) To install your equipment, use the cradle (1) and the self-tapping screws (2) provided (drilling diameter 3.2mm ). Take care not to damage the vehicle's electrical system while drilling the dash board.

e) Do not forget to insert the rubber joints (3) between the CB and its support as these have a shock-absorbing effect which permits gentle orientation and tightening of the set.
1) Choose where to place the microphone support and remember that the microphone cord must stretch to the driver without interfering with the controls of the vehicle.

N.B.: As the transceiver has a frontal microphone socket, it can be set into the dash board. In this case, you will need to add an external loud speaker to improve the sound quality of communications (connector EXT.SP situated on the back panel: C). Ask your dealer for advice on mounting your CB radio.

2) ANTENNA INSTALLATION

a) Choosing your antenna

• For CB radios, the longer the antenna, the better its results. Your dealer will be able to help you with your choice of antenna.

b) Mobile antenna

• Must be fixed to the vehicle where there is a maximum of metallic surface (ground plane), away from windscreen mountings.

• If you already have a radio-telephone antenna installed, the CB antenna should be higher than this.

• There are two types of antenna: pre-regulated which should be used on a good ground plane (e.g. car roof or lid of the boot), and adjustable which offer a much larger range and can be used on a smaller ground plane (see § 5, Adjustment of SWR).

• For an antenna which must be fixed by drilling, you will need a good contact between the antenna and the ground plane. To obtain this, you should lightly scratch the surface where the screw and tightening star are to be placed.
• Be careful not to pinch or flatten the coaxial cable (as this runs the risk of break down and/or short-circuiting).
• Connect the antenna (B).

c) Fixed antenna

• A fixed antenna should be installed in a clear space as possible. If it is fixed to a mast, it will perhaps be necessary to stay it, according to the laws in force (you should seek professional advice). All PRESIDENT antennas and accessories are designed to give maximum efficiency to each CB radio within the range.

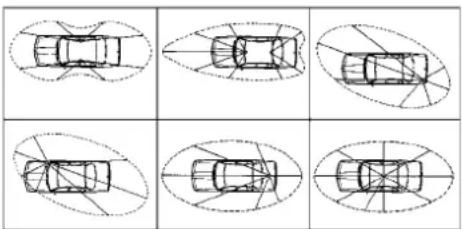

OUTPUT RADIUS PATTERN

3) POWER CONNECTION

Your PRESIDENT GRANT II ASC is protected against an inversion of polarities. However, before switching it on, you are advised to check all the connections. Your equipment must be supplied with a continued current of 12 volts (A). Today, most cars and lorries are negative earth. You can check this by making sure that the negative terminal of the battery is connected either to the engine block or to the chassis. If this is not the case, you should consult your dealer.

WARNING: Lorries generally have two batteries and an electrical installation of 24 volts, in which case it will be necessary to insert a 24/12 volt converter (type CV 24/12 PRESIDENT) into the electrical circuit. The following connection steps should be carried out with the power cable disconnected from the set.

a) Check that the battery is of 12 volts.
b)Locate the positive and negative terminals of the battery (+ is red and - is black). Should it be necessary to lengthen the power cable, you should use the same or a superior type of cable.
c) It is necessary to connect your CB to a permanent (+) and (-) . We advise you to connect the power cable directly to the battery (as the connection of the CB cable to the wiring of the car-radio or other parts of the electrical circuit may, in some cases, increase the likelihood of interference).

d) Connect the red wire (+) to the positive terminal of the battery and the black (-) wire to the negative terminal of the battery.

e) Connect the power cable to your CB radio.

WARNING: Never replace the original fuse (6 A) by one of a different value.

4) BASIC OPERATIONS TO BE CARRIED OUT BEFORE USING YOUR SET FOR THE FIRST TIME (without transmitting and without using the "push-to-talk" switch on the microphone)

a) Connect the microphone
b) Check the antenna connections
c) Turn the set on by turning the volume knob (1) clockwise.
d) Turn the squelch SQ knob (2) to minimum (M position).
e Adjust the volume to a comfortable level.
f) Go to channel 20 by using channel knob or the UP/DN keys(4) on the microphone.

5) ADJUSTMENT OF SWR (Standing wave ratio)

WARNING: This must be carried out when you use your CB radio for the first time (and whenever you re-position your antenna). The adjustment must be carried out in an obstacle-free area.

• Adjustment with a built-in SWR meter or external SWR meter (e.g. TOS-1 or TOS-2 President)
  a) To connect the SWR meter :
• Connect the SWR meter between the CB radio and the antenna as close as possible to the CB (use a maximum of 40 cm cable, type President CA 2C).

b) To adjust the SWR meter:

• Set the CB to channel 20 in FM.
  Put the switch on the SWR meter to position FWD.
• Press the "push-to-talk" switch on the microphone to transmit.
• Bring the index needle to by using the calibration button.
• Change the switch to position REF (reading of the SWR level). The reading on the Meter should be as near as possible to 1. If this is not the case, re-adjust your antenna to obtain a reading as close as possible to 1. (An SWR reading between 1 and 1.8 is acceptable).
• It will be necessary to re-calibrate the SWR meter after each adjustment of the antenna. See SWR page 32.

Warning: In order to avoid any losses and attenuations in cables used for connection between the radio and its accessories, PRESIDENT recommends to use a cable with a length inferior to 3m .

Your CB is now ready for use.

a) To turn the set on, turn the knob (1) clockwise.
b) To increase the sound level, turn the same knob further clockwise.

2) ASC (Automatic Squelch Control)/SQUEELCH

Suppresses undesirable background noises when there is no communication.
Squelch does not affect neither sound nor transmission power, but allows a considerable improvement in listening comfort.

a) ASC: AUTOMATIC SQUEELCH CONTROL

Worldwide patent, a PRESIDENT exclusivity.

Turn the SQ knob (2) anti-clockwise into ASC position. "ASC" appears on the display. No repetitive manual adjustment and a permanent improvement between the sensitivity and the listening comfort when ASC is active. This function can be disconnected by turning the switch clockwise. In this case the squelch adjustment becomes manual again. "ASC" disappears from the display.

b) MANUAL SQUEELCH

Turn the SQ knob clockwise to the exact point where all background noise disappears. This adjustment should be done with precision as, if set to maximum (fully clockwise), only the strongest signals will be received.

3) DISPLAY

It shows all functions:

The BARGRAPH shows the reception level, the output power level and the SWR (Standing Wave Ratio) reading. See § 14 page 32.

TX Indicates transmission
Indicates that front panel is locked except PTT pedal

MEM The active channel is stored in memory, the memory number blinks

Automatic Squelch Control activated

S/RF Bargraph shows reception (RX) and output power level (TX)

SWR Bargraph shows Standing Wave Ratio (SWR)

ANL NB ANL and NB filters activated (NB filter is active only in FM, USB and LSB mode)

HI-CUT HI-CUT filter activated

SCAN Scan function activated

UK Shows the England mode (see table on page 48)

AM AM mode selected

FM FM mode selected

USB USB mode selected

LSB LSB mode selected

DW Dual Watch activated

Vox Vox function activated

88 Shows the channel number

88 Shows the selected configuration.

88888 Indicates the frequency

25 Indicates frequency ending (U configuration and England mode only)

EMG The emergency channel 9 or 19 activated

BP Key Beep function activated

Roger Beep function activated

4) CHANNEL SELECTOR: knob and UP/DN keys of the microphone

These switches allow increasing or decreasing a channel number. A "Beep" sounds each time the channel changes if the KEY BEEP function is activated (see Key Beep Function page 30).

5)CLARIFIER

This function allows a frequency deviation during reception in order to improve the clearness of your correspondent's voice.

The frequency bands have to be chosen according to the country of use. Don't use any other configuration. Some countries need a user's licence. See table page 52.

Proceeding: switch off the transceiver. Keep the key F pressed and switch on again.

"ConF" and the letter corresponding to the configuration are blinking. The F LED turns on.

In order to change the configuration, use the channel selector or the Up / DN key on microphone (4).
- When the configuration is selected, press 1 second on the F key. "CanF" and the letter corresponding to the configuration are continuously displayed, a beep sounds. At this point, confirm the selection by switching off the transceiver and then switching it on again. See the configurations / frequency bands table at page 48 to 50.

7) DIMMER\~COLOR

DIMMER(short press)

The DIMMER function allows adjusting the brightness of the lighting except LED.

When the function is on, the DIMMER LED turns on.

COLOR (long press)

The COLOR function changes the back light color orange and green. Press COLOR key for one second once to change the color.

LOCAL DX (short press)

The LOCAL DX allows the automatic adjustment of the RF Gain for close communication. When LOCAL is selected, it is adjusted RF Gain Down. The LED turns on. When DX is selected, it is adjusted RF Gain Up. The LED turns off.

KEY BEEP (long press)

Keys, changing the channel etc.

Press KEY BEEP key for one second once to enable/disable the KEY BEEP function.

When the function is on, "BP" is displayed on the LCD.

9) MIC GAIN HI/LO

MIC GAIN HI/LO is used to adjust microphone sensitivity (MIC Gain) for transmission.

When the function is on, LO is selected, it is adjusted to MIC Gain Down. The MIC GAIN HI/LO LED turns on.

When the function is off, HI is selected. It is adjusted to MIC Gain Up. The MIC GAIN HI/LO LED turns off.

10) MEM ~ M1 to M5

5 channels can be memorized with following parameters: AM/FM/USB/LSB modulation mode (except for EC and U configurations); NB/ANL On/Off and HI-CUT On/Off; CCEPT/ENG Mode (Only for U Configuration).

To memorize:

• Select the channel and other setting that can be stored.
• Press shortly on MEM, "MEM" blinks
• Press during one second on M1, M2, M3, M4 or M5. The store confirmation tone sounds, "MEM" is displayed continuously and the selected memory number blinks. The channel and other item currently selected are stored in this memory (if becomes Memory Channel Recall Mode).

To recall a memory:

• Press shortly on MEM, "MEM" blinks.
  Press shortly on M1, M2, M3, M4 or M5.
• "MEM" is displayed continuously. The memorized channel is active.

To delete a memory:

• Turn off the transceiver.
• Keep key M1, M2, M3, M4 or M5 pressed and switch on the transceiver.
• The selected memory is deleted.

11) VOX ~ VOX SET ~ M5

VOX(short press)

The VOX function allows transmitting by speaking into the original microphone (or in the optional vox microphone) without pressing the PTT switch (17). In case of the use of an optional vox mike connected to the rear panel of the radio - VOX MIC jack (D), the original microphone doesn't work.

Press shortly the VOX key in order to activate the VOX function. "VOX" is displayed on the LCD. A new pressure on the VOX key switches the function off. "VOX" disappears from the LCD.

VOX SET (long press)

Press during 1 second the VOX SET key in order to activate the VOX SET function (If the VOX function is off, this will turn the function on and display "VOX" on the LCD). The last selected adjust item appears.

Three adjustments are possible: Anti-Vox level (R), Sensitivity level (L), and Vox delay time (L). Press shortly the VOX SET key in order to go to the following adjustment. The display shows the type of adjustment by its first digit and its level by the second digit.

• Sensitivity "L": allows the adjustment of the microphone (original one or optional vox) for an optimum transmission quality. Adjustable level from 1 (high sensibility) to 9 (low sensibility) by rotating the channel knob or with the UP/ DN keys of the original microphone. L corresponds to the Sensitivity Level.
• Anti-Vox 'R': allows disabling the transmission generated by the surrounding noise. The level is adjustable (Off) from 1 (high level) to 9 (low level) by rotating the channel knob or with the UP/DN keys of the original microphone. R corresponds to Anti-Vox.
  Delay Time ^ : allows avoiding the sudden cut of the transmission by adding a delay at the end of speaking. The level is adjustable from 1 (short time delay) to 9 (long time delay) by rotating the channel selector or with the UP/ DN keys of the original microphone. E corresponds to delay time.

Once the adjustments are done, press during 1 second the VOX SET key in order to quit the VOX SET function. If any adjustment have been done during 10 seconds, the transceiver will quit the VOX SET function automatically.

M5

See the MEM function on page 30.

12) 9 / 19 DW M4

9/19 (short press)

Press shortly the 9/19 key to select alternatively, channel 9 / channel 19 / and current active channel. When an emergency channel is selected (9 or 19) "EMG" is displayed on the LCD.

DW(long press)

Push during one second the DW key in order to activate the DW(Dual Watch) function. This function allows to survey between emergency channel (9 or 19) and the selected channel. The first long push activates the DW function between channel 9 and the busy channel. "DW" is displayed.

A new long push activates the DW function between channel 19 and the busy channel. The number of the selected channel and the emergency channel (9 or 19) appears alternately on the display. The "EMG" icon is also displayed at the same time as the emergency channel (9 or 19). The selected channel can be modified during the dual watch.

A new long push on the DW key or pressing the the PTT key (17) disable the DW function.

M4

See the MEM function on page 30.

13)ANL/NB/HICUT SCAN M3

ANL/NB/HICUT (short press)

4 positions switch: Off / ANL and NB filters activated / HI-CUT activated / ANL NB + HI-CUT activated. When active, the filter is displayed on the LCD.

ANL NB: Automatic Noise Limiter / Noise Blanker. These filters allow reducing back ground noises and some reception interferences. In FM and USB/LSB mode, only the NB filter is active.

HI-CUT: Cuts out the high frequency interferences and has to be used in accordance with the reception conditions.

SCAN(long press)

All Channel Scan Mode

Press the SCAN key in order to activate the SCAN function (scanning all the channels) in upward direction. "SCAN" is displayed. The scanning stops as soon as there is a busy channel.

Memory Channel Scan Mode

During the scan, press then MEM key (10) for activate the Memory Channel Scan Mode and scan only the channels stored in memories. A new press in the MEM key (10) return to the All Channel San Mode.

The scanner starts automatically in upward direction 3 seconds after the transmission stops and no key is pressed during 3 seconds. The scanning can restarts also in a downward direction turning the channel selector knob counter clockwise or pressing the DN key on the microphone. In upward direction turning the channel selector knob clockwise or pressing the UP key on the microphone.

Press the PIT pedal (17) to stop the SCAN function.

M3

See the MEM function on page 30.

Use the SWR key to change the meter function:

S/RF: the bargraph indicates the received signal strength and transmitted power. "S/RF" is displayed on the LCD.

SWR: the bargraph indicates the received signal strength and the SWR (Standing Wave Ratio) reading. "S" and "SWR" are displayed on the LCD. (See §5 page 28).

ROGER (long press)

The icon " " appears on the display when the function is active. The Roger Beep sounds when the PIT pedal (17) of the microphone is released in order to let your correspondent speak. Historically as CB is a "simplex" communication mode, it is not possible to speak and to listen at the same time (as it is the case with a telephone). Once someone had finished talking, he said "Roger" in order to prevent his correspondent that it was his turn to talk. The word "Roger" has been replaced by a significant beep. There comes "Roger beep" from.

Note: the ROGER beep also sounds in the loudspeaker if the KEY BEEP function is active. If the KEY BEEP function is not active, only the correspondent can hear the ROGER Beep.

M2

See the MEM function on page 30.

15) AM/FM/USB/LSB LOCK M1

AM/FM/USB/LSB (short press)

This key allows selecting the modulation mode AM, FM, USB or LSB. Your modulation mode has to correspond to the one of your correspondent.

Frequency Modulation / FM: for nearby communications on a flat open field. Amplitude Modulation / AM: communication on a field with relief and obstacles at middle distance (the most used).

Upper and Lower Side Band / USB-LSB: used for long distance communications (according to the propagation conditions).

LOCK (long press)

Allows to lock all the keys on the front panel, the rotary knob and UP/DN keys on the microphone (4). An error beep sounds when a key is used and the LOCK function is activated. A long press on LOCK activates/deactivates the LOCK function. appears on the display when the function is activated. Transmission (mike or vox) and reception remain active.

M1

See the MEM function on page 30.

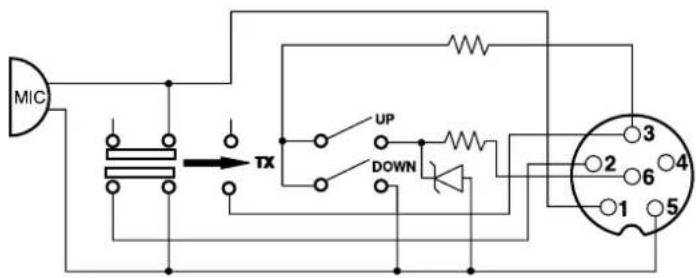

16) 6 PIN MICROPHONE PLUG

The plug is located on the front panel of the transceiver and makes the set

ting of the equipment Into the dashboard easier.

See cabling diagram page 51.

17)PTT

Transmission key, press to transmit a message, displayed and release to listen to an incoming communication.

TOT (Time Out Timer)

If the PTT key (17) is pressed for more than 5 minutes, CHANNEL and Ixz starts blinking, the transmission ends. The TX time out tone will sound until the PTT key (17) is released.

-Channels:40
- Modulation modes : AM / FM / USB / LSB
- Frequency ranges : from 26.965 MHz to 27.405 MHz
- Antenna impedance : 50 ohms
- Power supply : 13.2 V
- Dimensions (in mm) : 185 (W) x 205 (D) x 56 (H)
- Weight : 1,1 kg
- Accessories supplied : microphone UP/DOWN with support, mounting cradle, screws and fused power cord.

2) TRANSMISSION

• Frequency allowance : +/- 300 Hz
• Carrier power : 4W AM / 4W FM / 12W USB / 12 W LSB
  -Transmission interference
• Audio response
• Emitted power in the adj. channel
• Microphone sensitivity : 3.0 mV
  -Drain
  Modulated signal distortion

0.5 μV - 113 dBm (AM/FM)
300 Hz to 3 kHz in AM/FM
:60dB
:3W
: minimum 0.2 V - 120 dBm
：60dB
：70dB
: 400 mA nominal / 1000 mA maximum

D) TROUBLE SHOOTING

1) YOUR CB RADIO WILL NOT TRANSMIT OR YOUR TRANSMISSION IS OF POOR QUALITY

• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• Check that the microphone is properly plugged in.
• Check that the programmed configuration is the correct one (see p. 52).

2) YOUR CB RADIO WILL NOT RECEIVE OR RECEPTION IS POOR

• Check that the Local function is not activated
• Check that the squelch level is properly adjusted.
• Check that the programmed configuration is the correct one (see p. 52).
• Check that the volume is set to a comfortable listening level.
• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• Check that you are using the same modulation mode as your correspondent.

3) YOUR CB WILL NOT LIGHT UP

• Check the power supply.
• Check the connection wiring.
• Check the fuse.

E) HOW TO TRANSMIT OR RECEIVE AMESSAGE

Now that you have read the manual, make sure that your CB Radio is ready for use (i.e. check that your antenna is connected).

Choose your channel (19, 27) or other (USB/LSB).

Choose your mode (AM/FM) which must be the same as that of your correspondent.

Press the "push-to-talk" switch and announce your message "Attention stations, transmission testing" which will allow you to check the cleanness and the power of your signal. Release the switch and wait for a reply. You should receive a reply like, "Strong and clear".

If you use a calling channel (19, 27) and you have established communication with someone, it is common practice to choose another available channel so as not to block the calling channel.

F) GLOSSARY

Below you will find some of the most frequently used CB radio expressions. Remember this is meant for fun and that you are by no means obliged to use them. In an emergency, you should be as clear as possible.

INTERNATIONAL PHONETIC ALPHABET

A Alpha
B Bravo
C Charlie
D Delta
E Echo
F Foxtrott
G Golf

H Hotel
1 India
J Juliett
K Kilo
Limg
M Mike
N November

Oscar
P Papa
Q Queb
R Romeo
Sierra
Tango
Uniform

V Victor
WWhiskey
X X-ray
Y Yankee
Z Zulu

TECHNICAL VOCABULARY

AM	: Amplitude Modulation
CB	: Citizen's Band
CH	: Channel
CW	: Continuous Wave
DX	: Long Distance Liaison
DW	: Dual Watch
FM	: Frequency Modulation
GMT	: Greenwich Meantime
HF	: High Frequency
LF	: Low Frequency
LSB	: Lower Side Band
RX	: Receiver
SSB	: Single Side Band
SWR	: Standing Wave Ratio
SWL	: Short Wave Listening
SW	: Short Wave
TX	: CB Transceiver
UHF	: Ultra High Frequency
USB	: Upper Side Band
VHF	: Very High Frequency

CB LANGUAGE

Advertising
Back off
Basement
Base station
Bear

: Flashing lights of police car
: Slow down
:Channel1
: A CB set in fixed location
: Policeman

Bear bite
Bear cage
Big slab
Big 10-4
Bleeding

Speeding fine
Police station
Motorway
Absolutely
Signal from an adjacent channel interfering with
the transmission

Blocking the channel : Pressing the PTT switch without talking

Blue boys

Break

Breaker

Clean and green

Cleaner channel

Coming in loud and proud : Good reception

Doughnut

Down and gone :

Down one : Go to a lower channel

Do you c

DX

Eighty eights

Eye ball

Good buddy

Hammer

Handle

Harvey wall banger

How am I hitting you?

Keying the mike

Kojac with a kodak

Land line

Lunch box

Man with a gun : Police radar

Mayday
Meat wagon
Midnight shopper
Modulation
Negative copy
Over your shoulder
Part your hair
Pull your hammer back
Rat race
Rubberbander
Sail boat fuel
Smokey dozing
Smokey with a camera
Spaghetti bowl
Stinger
Mayday
Meat wagon
Midnight shopper
Negative copy
Over your shoulder
Part your hair
Pull your hammer back
Rat race
Rubberbander
Sail boat fuel
Smokey dozing
Smokey with a camera
Spaghetti bowl
Stinger

Police
Used to ask permission to join a conversation
A CBer wishing to join a channel
Clear of police
Channel with less interference
Good reception
Tyre
off
Go to a lower channel
Understand?
Long distance
Love and kisses
CBers meeting together
Fellow CBer
Accelerato
CBer's nickname
Dangerous driver
How are you receiving me?
Pressing the PTT switch without talking
Police radar
Telephone
CB set

Man with a gun : Police radar

SOS

Ambulance
Thief
Conversation
No reply
Right behind you
Behave yourself - police ahead
Slow down
Congested traffic

New CBer
Wind
Parked police car
Police radar
Interchange
Antenna

Turkey : Dumb CBer

Up one : Go up one channel

Wall to wall : All over/everywhere

What am I putting to you? : Please give me an S-meter reading.

CERTIFICATE OF CONFORMITY

We, GROUPE PRESIDENT ELECTRONICS, Route de Sète, BP 100 - 34540 Balaruc - FRANCE,

Declare, on our own responsibility that the CB radio-communication transceiver

Brand: PRESIDENT

Model:GRANT II

is in conformity with the essential requirements of the Directive 1999/5/CE (Article 3) adapted to the national law, as well as with the following European Standards:

EN 300 433-1 V1.3.1 (2011-07)

EN 300 433-2 V1.3.1 (2011-07)

EN 301 489-1 V1.9.2 (2011-09)

EN 301 489-13 V1.2.1 (2002-08)

EN 60215 (1996)

and is in conformity with Directive RoHS2: 2011/65/EU (2011/06/08).

Balaruc, the 2013/11/25

Jean-Gilbert MULLER

General Manager

GENERAL WARRANTY CONDITIONS

This device is guaranteed 2 years parts and labour in its country of purchase against any manufacturing defects validated by our technical department. *The After-sales Service of PRESIDENT reserves the right not to apply the warranty if a breakdown is caused by an antenna other than those distributed by PRESIDENT, and if said antenna is at the origin of the breakdown. An extension of 3 years warranty is proposed systematically for the purchase and use of a PRESIDENT antenna, bringing the total duration of the warranty to 5 years. In order to be valid, the warranty certificate must be returned within a period of 30 days after the purchase date to the After-sales Service of the company Groupe President Electronics, or any foreign subsidiary.

It is recommended to carefully read the following conditions and to respect them under penalty of losing their benefit.

• To be valid the warranty certificate must be returned to us at the latest 1 month after the purchase.

• Please duly complete the warranty certificate on the right hand side of the page, detach it (portion to be removed marked by dotted line) and send it back.

• Any repair under warranty will be free and the return delivery costs will be borne by our company.

• A purchase proof must be necessarily included with the device to be repaired.
  The dates listed on the warranty certificate and proof of purchase must match.

• Do not proceed with the installation of the device without reading the user manual.
• No spare part will be sent nor exchanged by our services under warranty. The warranty is only valid in the country of purchase.

Exclusions (are not covered):

• Damages caused by accident, shock or inadequate packaging.
• Power transistors, microphones, lights, fuses and the non respect of the installation and use of specifications (including but not limited to antenna used with too high power, final output power transistors (SWR), inversion of polarities, bad connections, overvoltage,...)
• The warranty cannot be extended due to the non-availability of the device while it is being serviced at our technical services location, nor by a change of one or more components or spare parts.
• Transceivers which have been modified. The warranty application is excluded in case of modification or poor maintenance done by a third party not approved by our company.

If you note malfunctions:

• Check the power supply of your device and the quality of the fuse.

• Check that the antenna, the microphone.... are correctly connected.

• Check that the squelch level is properly adjusted; the programmed configuration is the correct one...

• In case the device is not under warranty, the repair and return of the device will be charged.
• All related documents must be preserved even after the end of the warranty period and if you resell your device, given to the new owner for the After-sales follow-up.
• In case of real malfunction, please contact your dealer first; they will decide action to be taken.
• In case of an intervention not covered by the warranty, an estimate will be established before any repair.

Thank you for your trust in the PRESIDENT quality and experience. We recommend that you read this manual carefully so that you are completely satisfied with your purchase. Do not forget to return the detachable warranty certificate on the right hand side of this page; it is very important for the identification of your device during a possible rendering of our services.

Technical Manager and Quality Manager

Date of the purchase:

Type: CB Radio GRANT II ASC

Serial Number:

NOT COVERED BY THE WARRANTY WITHOUT THE DEALER STAMP

OSTRZEJEZENIE!

A.Alphag.H.HotelO.OscarV.Victor
BBravo I India P Papa W Whiskey
CCharlie J Juliett QQuebec X X-ray
D Delta K Kilo R Romeo Y Yankee
E Echo L Lima S Sierra Z Zulu
F Foxtrott M Mike T Tango
G Golf N November U Uniform

FREQUENCY TABLE for U (ENG)

TABLEA CZESTOTLIWOSCI DLA U (ENG)

N° du canal FréquenceN° Canal FrecuencenChannelKanal Częstotlwośc Kanal Czȩstotlwość		naces N° du canala N° Canal FrecuenciaFrequencyKanal Czȩstotlwość	FréquencesCachanciachannel
1		26,965 MHz	21
2	26,975 MHz	22	27,25 MHz
3	26,985 MHz	23	27,25 MHz
4	27,005 MHz	24	27,25 MHz
5	27,015 MHz	25	27,25 MHz
6	27,025 MHz	26	27,25 MHz
7	27,035 MHz	27	27,25 MHz
8	27,055 MHz	28	27,25 MHz
9	27,065 MHz	29	27,25 MHz
10		27,075 MHz	30
11		27,085 MHz	31
12		27,105 MHz	32
13		27,115 MHz	33
14		27,125 MHz	34
15		27,135 MHz	35
16		27,155 MHz	36
17		27,165 MHz	37
18		27,175 MHz	38
19		27,185 MHz	39
20		27,205 MHz	40

Freq	N° du canal Fréquence N° Canal Frecuence Kanal Czêstotlilwosc	N° du canal a N° Canal Frecuence Frequency Kanal Czêstotlilwosc	Fréquences Channel Frequency
1	27,60125 MHz	21	27,80125 MHz
2	27,61125 MHz	22	27,81125 MHz
3	27,62125 MHz	23	27,82125 MHz
4	27,63125 MHz	24	27,83125 MHz
5	27,64125 MHz	25	27,84125 MHz
6	27,65125 MHz	26	27,85125 MHz
7	27,66125 MHz	27	27,86125 MHz
8	27,67125 MHz	28	27,87125 MHz
9	27,68125 MHz	29	27,88125 MHz
10		27,69125 MHz	30	27,89125 MHz
11		27,70125 MHz	31	27,90125 MHz
12		27,71125 MHz	32	27,91125 MHz
13		27,72125 MHz	33	27,92125 MHz
14		27,73125 MHz	34	27,93125 MHz
15		27,74125 MHz	35	27,94125 MHz
16		27,75125 MHz	36	27,95125 MHz
17		27,76125 MHz	37	27,96125 MHz
18		27,77125 MHz	38	27,97125 MHz
19		27,78125 MHz	39	27,98125 MHz
20		27,79125 MHz	40	27,99125 MHz

FREQUENCY TABLE for d

TABLEA CZESTOTLIWOSCI DLA d

N° du canal Fréque N° Canal Frecuenc Channel Kanal Częstotlwośc Kanal Czȩstotlwość
1 26,965 MHz 21	27,215 MHz
2	26,975 MHz 22	27,225 MHz
3	26,985 MHz 23	27,235 MHz
4	27,005 MHz 24	27,245 MHz
5	27,015 MHz 25	27,25 MHz
6	27,025 MHz 26	27,265 MHz
7	27,035 MHz 27	27,275 MHz
8	27,055 MHz 28	27,285 MHz
9	27,065 MHz 29	27,295 MHz
10	27,075 MHz 30	27,305 MHz
11	27,085 MHz 31	27,315 MHz
12	27,105 MHz 32	27,325 MHz
13	27,115 MHz 33	27,335 MHz
14	27,125 MHz 34	27,345 MHz
15	27,135 MHz 35	27,355 MHz
16	27,155 MHz 36	27,365 MHz
17	27,165 MHz 37	27,375 MHz
18	27,175 MHz 38	27,385 MHz
19	27,185 MHz 39	27,395 MHz
20	27,205 MHz 40	27,405 MHz

Freq	N° du canal Fréque N° Canal Frecuenc Frequency Channel Kanal Czêstotlilwos	nnces N° du canal a N° Canal Frecuencia Frequency Kanal Czêstotlilwos	Fréquences Channel Czêstotlilwos
41		26,565 MHz 61	26,75 MHz
42		26,575 MHz 62	26,75 MHz
43		26,585 MHz 63	26,75 MHz
44		26,595 MHz 64	26,75 MHz
45		26,605 MHz 65	26,805 MHz
46		26,615 MHz 66	26,805 MHz
47		26,625 MHz 67	26,805 MHz
48		26,635 MHz 68	26,805 MHz
49		26,645 MHz 69	26,805 MHz
50		26,655 MHz 70	26,805 MHz
51		26,665 MHz 71	26,805 MHz
52		26,675 MHz 72	26,805 MHz
53		26,685 MHz 73	26,805 MHz
54		26,695 MHz 74	26,805 MHz
55		26,705 MHz 75	26,905 MHz
56		26,715 MHz 76	26,905 MHz
57		26,725 MHz 77	26,905 MHz
58		26,735 MHz 78	26,905 MHz
59		26,745 MHz 79	26,905 MHz
60		26,755 MHz 80	26,905 MHz

TABLEEAU DES FREQUENCES pour PL (AM/FM)

FREQUENCY TABLE for In (AM/FM)

TABLEA CZEESTOTLIWOSCI DLA In (AM/FM)

N° du canal Fréque N° Canal Frecuenc Channel Kanal Częstotlwośc	naces N° du canal a N° Canal Frecuenc y Częstotlwość	Fréquences ciecia y Czȩstowosc	Channel
1	26,960 MHz	21	27,210 MHz
2	26,970 MHz	22	27,220 MHz
3	26,980 MHz	23	27,250 MHz
4	27,000 MHz	24	27,230 MHz
5	27,010 MHz	25	27,240 MHz
6	27,020 MHz	26	27,260 MHz
7	27,030 MHz	27	27,270 MHz
8	27,050 MHz	28	27,280 MHz
9	27,060 MHz	29	27,290 MHz
10	27,070 MHz	30	27,300 MHz
11	27,080 MHz	31	27,310 MHz
12	27,100 MHz	32	27,320 MHz
13	27,110 MHz	33	27,330 MHz
14	27,120 MHz	34	27,340 MHz
15	27,130 MHz	35	27,350 MHz
16	27,150 MHz	36	27,360 MHz
17	27,160 MHz	37	27,370 MHz
18	27,170 MHz	38	27,380 MHz
19	27,180 MHz	39	27,390 MHz
20	27,200 MHz	40	27,400 MHz

Freq	N° du canal Fréquence N° Canal Frecuency Channel Kanal Czěstotlwośc	naces N° du canal a N° Canal Frecuency Frequency Kanal Czěstotlwośc	Fréquences C频道	Channel	Frequen
1	26,965 MHz	2	27,2	15 MHz
2		26,975 MHz	22	27,225 MHz
3		26,985 MHz	23	27,255 MHz
4		27,005 MHz	24	27,235 MHz
5		27,015 MHz	25	27,245 MHz
6		27,025 MHz	26	27,265 MHz
7		27,035 MHz	27	27,275 MHz
8		27,055 MHz
9		27,065 MHz
10		27,075 MHz
11		27,085 MHz
12		27,105 MHz
13		27,115 MHz
14		27,125 MHz
15		27,135 MHz
16		27,155 MHz
17		27,165 MHz
18		27,175 MHz
19		27,185 MHz
20		27,205 MHz

PRISE MICRO6 BROCHES CONEXIONDELMICRO6PINS 6-PINMICROPHONEPLUG WTYKMIKROFONU6-PINOWY

1 Modulation Modulación Modulation Modulación
2RXRXRX
3 TX - UP/DOWN TX - UP/DOWN TX - UP/DOWN TX - GORA/DO
4
5 Masse
6 Alimentation Alimentación Power Supply Zasilanie

NORMES - F - NORMAS - F - NORMS - F - NORMY- F - NORMES - F - NORMAS - F - NORMS - F - NORMY- F

N°	Code	Frequency	FM Channel	AM Channel	USB / LSB	Country	CH 19	CH 9
1	EU	26.965 ~ 27.405	40 Ch (4W)	40 Ch (4W)	40 Ch (12 W)	BE, BG, CH, CY, CZ, DK, EE, ES, FI, FR, GR, HR, IE, IS, IT, LT, LU, LV, NL, NO, PT, RO, SE, SI	AM	AM
2	PL	26.960 ~ 27.400	-5 KHz 40 Ch (4W)	-5 KHz 40 Ch (4W)	-	PL	AM	AM
		26.965 ~ 27.405	-	-	40 Ch (12 W)
3	d	26.565 ~ 27.405	80 Ch (4W)	40 Ch (4W)	40 Ch (12 W)	DE	FM	AM
4	EC	26.965 ~ 27.405	40 Ch (4W)	-	-	AT,HU, MT, SK	FM	FM
5	U	26.965 ~ 27.405	40 Ch (4W)	40 Ch (4W)	40 Ch (12 W)	UK	FM	FM
		27.60125 ~ 27.99125	ENG 40 Ch (4W)	-	-		FM	FM
6	in	26.565 ~ 27.275	27 Ch (4W)	27 Ch (4W)	-	IN	AM	AM

Countries in which there are particular restrictions (Licence / Register)
