USER MANUAL Walker Classic PRESIDENT

Close-up of a black office phone with coiled cord and ventilation grille (no visible text or symbols)

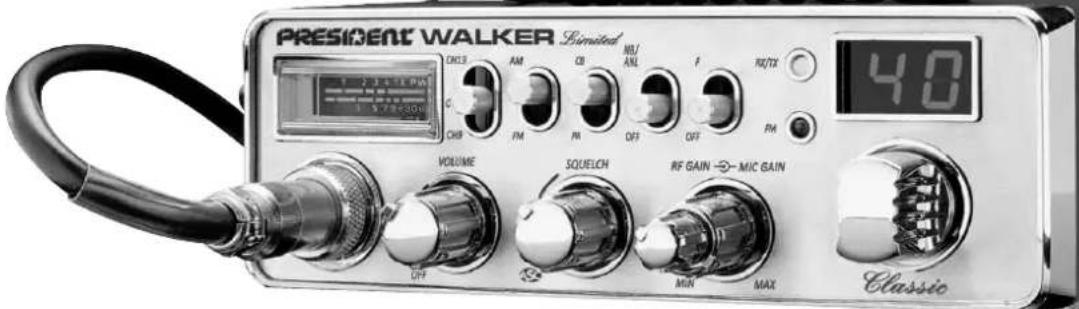

PRESIDENT WALKER Limited 40 VOLUME SQUELCH RF GAIN - MIC GAIN Classic

Manuel d'utilisation / Manual del usuario

DÉCLARATION DE CONFORMITÉ....12

GARANTIE 13

TABLEAU DES FRÉQUENCES....41 \~ 43

NORMES EUROPEENNES....45

SUMARIO

Español

INSTALACIÓN 15

UTILIZACIÓN 17

CARACTERÍSTICAS TÉCNICAS....19

GUÍA DE PROBLEMAS....19

COMO EMITIR O RECIBIR UN MENSAJE 20

LÉXICO 20

HOW TO USE YOUR CB....26

TECHNICAL CHARACTERISTICS......28

TROUBLE SHOOTING....28

HOW TO TRANSMIT OR RECEIVE A MESSAGE 28

GLOSSARY 29

DECLARATION OF CONFORMITY 30

GENERAL WARRANTY CONDITIONS....31

FREQUENCY TABLES....41 \~ 43

EUROPEAN NORMS 45

SPIS TREŚCI

Polski

INSTALACJA....33

SPOSÓB OBSŁUGI RADIA 35

CHARAKTERYSTYKA TECHNICZNA 37

PODSTAWOWE OPERACJE DO WYKONANIA PRZED

PIERWSZYM UŻYCIEM ZESTAWU 37

SPOSÓB NADAWANIA I ODBIERANIA KOMUNIKATÓW

GŁOSOWYCH....37

TERMINOLOGIA....38

DEKLARACJA ZGODNOŚCI 38

ZOBOWIAZANIA GWARANTA....39

TABELA CZESTOTLIWOŚCI 41 \~ 43

NORMY EUROPEJSKIE 45

ATTENTION!

Six identical diagrams of a car viewed from top and side, showing top-down perspective with dashed lines indicating perspective angles (no text or symbols)

LOBE DE RAYONNEMENT

c) Antenne fixe

1) MARCHE/ARRÊT - VOLUME

11) CB/PA (Public Address)

A	Alpha	H	Hotel	O	Oscar	V	Victor
B	Bravo	I	India	P	Papa	W	Whiskey
C	Charlie	J	Juliett	Q	Quebec	X	X-ray
D	Delta	K	Kilo	R	Romeo	Y	Yankee
E	Echo	L	Lima	S	Sierra	Z	Zulu
F	Foxtrott	M	Mike	T	Tango
G	Golf	N	November	U	Uniform

LANGUAGE TECHNIQUE

FB : Fine business (bon, excellent)

DÉCLARATION DE CONFORMITÉ

Nous, GROUPE PRESIDENT ELECTRONICS, Route de Sète, BP 100 – 34540 Balaruc – FRANCE,

EN 300 135-2 V1.2.1 (2008-02)

ETSI EN 301 489-1 V1 9.2 (2011-09)

ETSI EN 301 489-13 V1.2.1 (2002-08)

PRESIDENT WALKER Remitted 40 VOLUME OFF M ON ON OFF ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON On

ESQUEMA GENERAL DE MONTAJE

Nolr/Negro Black/Schwarz Rouge/Rojo Red/Rot ① ② ③ ④ A B C D

Six identical line drawings of a car viewed from top and side, showing different top-down views with dashed outlines (no text or symbols)

LÓBULO DE RADIACIÓN

11) CB/PA (Public Address)

A	Alpha	H	Hotel	O	Oscar	V	Victor
B	Bravo	I	India	P	Papa	W	Whiskey
C	Charlie	J	Juliett	Q	Quebec	X	X-ray
D	Delta	K	Kilo	R	Romeo	Y	Yankee
E	Echo	L	Lima	S	Sierra	Z	Zulu
F	Foxtrott	M	Mike	T	Tango
G	Golf	N	November	U	Uniform

TERMINOS DEL ARGOT CEBEISTA

EN 300 135-2 V1.2.1 (2008-02)

ETSI EN 301 489-1 V1 9.2 (2011-09)

ETSI EN 301 489-13 V1.2.1 (2002-08)

Before using, be careful never to transmit without first having connected the antenna (connection "B" situated on the back panel of the equipment) or without having set the SWR (Standing Wave Ratio)! Failure to do so may result in destruction of the power amplifier, which is not covered by the guarantee.

MULTI-NORMS TRANSCEIVER!

See § 9 on page 27 and the Configuration table on page 45.

The guarantee of this transceiver is valid only in the country of purchase.

Welcome to the world of the new generation of CB radios. The new PRESIDENT range gives you access to top performance CB equipment. With the use of up-to-date technology, which guarantees unprecedented quality, your PRESIDENT WALKER ASC from the new "Classic" line is a new step in personal communication and is the surest choice for the most demanding of professional CB radio users. To ensure that you make the most of all its capacities, we advise you to read carefully this manual before installing and using your PRESIDENT WALKER ASC Classic.

A) INSTALLATION

1) WHERE AND HOW TO MOUNT YOUR MOBILE CB RADIO

a) You should choose the most appropriate setting from a simple and practical point of view.
b) Your CB radio should not interfere with the driver or the passengers.
c) Remember to provide for the passing and protection of different wires (e.g. power, antenna, accessory cabling) so that they do not in any way interfere with the driving of the vehicle.

PASSIDENT WALKER Srinzel VOLUME ON AN ON CS ON F FW PA OFF OFF RF BAIN+ MIC GAIN MIN MAX 40 ① ② ②

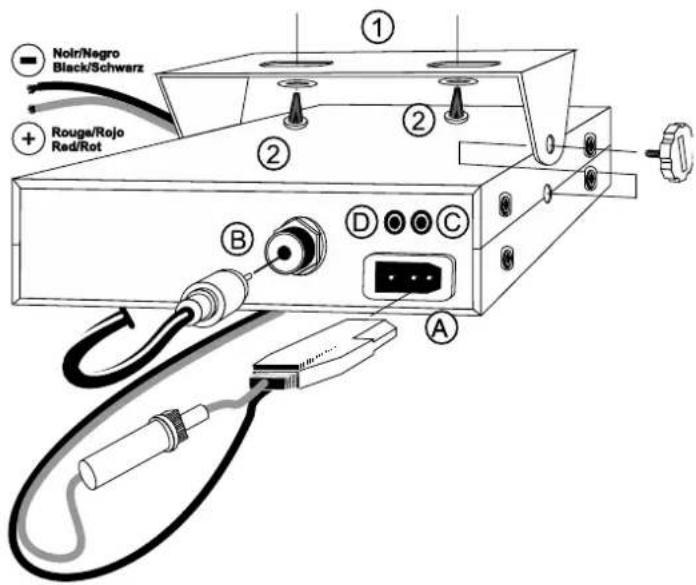

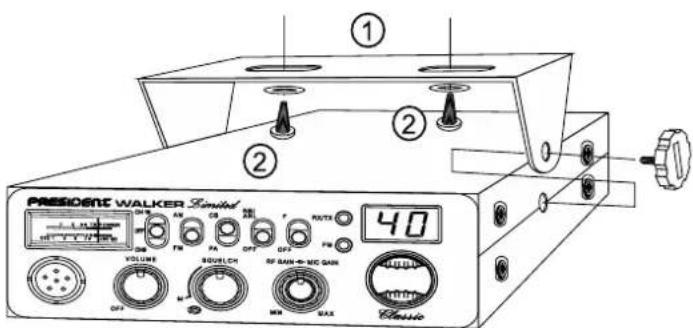

MOUNTING DIAGRAM

Nolr/Negro Black/Schwarz Rouge/Rojo Red/Rot ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉟ ㉟a ㉟b ㉟c ㉟d ㉟e ㉟f ㉟g ㉟h ㉟i ㉟j ㉟k ㉟l ㉟m ㉟n ㉟o ㉟p ㉟q ㉟r ㉟s ㉟t ㉟u ㉟v ㉟w ㉟x ㉟y ㉟z ㉟c ㉟d ㉟e ㉟f ㉟g ㉟h ㉟i ㉟j ㉟k ㉟l ㉟m ㉟n ㉟o ㉟p ㉟q ㉟r ㉟s ㉟t ㉟u ㉟v ㉟w ㉟x ㉟y ㉟z

d) To install your equipment, use the cradle (1) and the self-tapping screws (2) provided (drilling diameter 3.2 mm). Take care not to damage the vehicle's electrical system while drilling the dash board.
e) Do not forget to insert the rubber joints (3) between the CB and its support as these have a shock-absorbing effect which permits gentle orientation and tightening of the set.
f) Choose where to place the microphone support and remember that the microphone cord must stretch to the driver without interfering with the controls of the vehicle.
- N.B.: As the transceiver has a frontal microphone socket, it can be set into the dash board. In this case, you will need to add an external loud speaker to improve the sound quality of communications (connector EXT.SP situated on the back panel: C). Ask your dealer for advice on mounting your CB radio.

2) ANTENNA INSTALLATION

a) Choosing your antenna

- For CB radios, the longer the antenna, the better its results. Your dealer will be able to help you with your choice of antenna.

b) Mobile antenna

• Must be fixed to the vehicle where there is a maximum of metallic surface (ground plane), away from windscreen mountings.
• If you already have a radio-telephone antenna installed, the CB antenna should be higher than this.
• There are two types of antenna: pre-regulated which should be used on a good ground plane (e.g. car roof or lid of the boot), and adjustable which offer a much larger range and can be used on a smaller ground plane (see p. 26 § 5. Adjustment of SWR).
• For an antenna which must be fixed by drilling, you will need a good contact between the antenna and the ground plane. To obtain this, you should lightly scratch the surface where the screw and tightening star are to be placed.
• Be careful not to pinch or flatten the coaxial cable (as this runs the risk of break down and/or short-circuiting).
• Connect the antenna (B).

c) Fixed antenna

- A fixed antenna should be installed in a clear space as possible. If it is fixed to a mast, it will perhaps be necessary to stay it, according to the laws in force (you should seek professional advice). All PRESIDENT antennas and accessories are designed to give maximum efficiency to each CB radio within the range.

Six identical diagrams of a car viewed from top and side, showing front, side, and perspective views with no text or symbols.

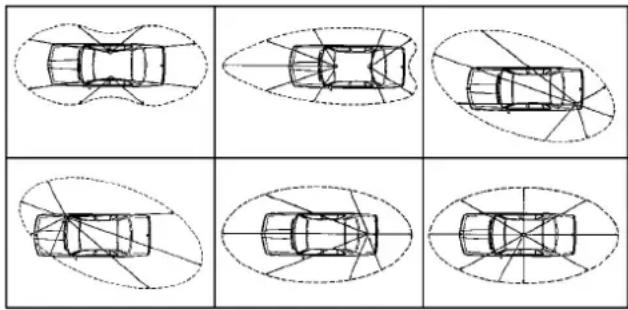

OUTPUT RADIUS PATTERNS

3) POWER CONNECTION

Your PRESIDENT WALKER ASC Classic is protected against an inversion of polarities. However, before switching it on, you are advised to check all the connections. Your equipment must be supplied with a continued current of 12 volts (A). Today, most cars and lorries are negative earth. You can check this by making sure that the negative terminal of the battery is connected either to the engine block or to the chassis. If this is not the case, you should consult your dealer.

WARNING: Lorries generally have two batteries and an electrical installation of 24 volts, in which case it will be necessary to insert a 24/12 volt converter (type CV 24/12 PRESIDENT) into the electrical circuit. The following connection steps should be carried out with the power cable disconnected from the set.

a) Check that the battery is of 12 volts.
b) Locate the positive and negative terminals of the battery (+ is red and - is black). Should it be necessary to lengthen the power cable, you should use the same or a superior type of cable.
c) It is necessary to connect your CB to a permanent (+) and (-). We advise you to connect the power cable directly to the battery (as the connection of the CB cable to the wiring of the car-radio or other parts of the electrical circuit may, in some cases, increase the likelihood of interference).
d) Connect the red wire (+) to the positive terminal of the battery and the black (-) wire to the negative terminal of the battery.
e) Connect the power cable to your CB radio.

WARNING: Never replace the original fuse (2 A) by one of a different value.

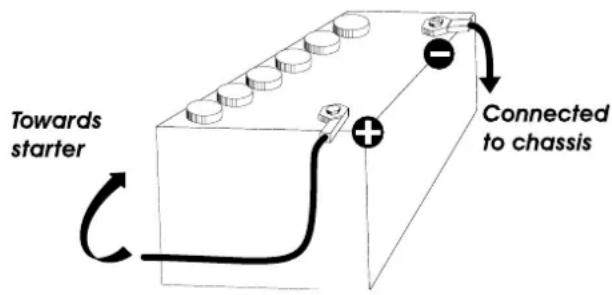

Towards starter Connected to chassis

4) BASIC OPERATIONS TO BE CARRIED OUT BEFORE USING YOUR SET FOR THE FIRST TIME (without transmitting and without using the "push-to-talk" switch on the microphone)

a) Connect the microphone
b) Check the antenna connections
c) Turn the set on by turning the VOLUME knob (1) clockwise.
d) Turn the SQUELCH knob (2) to minimum (anti-clockwise). Adjust the volume to a comfortable level.
e) Go to Channel 20 using either the «UP» «DN» key on the microphone or the rotary knob (5).
5) ADJUSTMENT OF SWR (Standing wave ratio)

WARNING: This must be carried out when you use your CB radio for the first time (and whenever you re-position your antenna). The adjustment must be carried out in an obstacle-free area.

* Using an external SWR meter (e.g. SWR 1)

a) To connect the SWR meter

• Connect the SWR meter between the CB radio and the antenna as close as possible to the CB (use a maximum of 40 cm cable, type President CA 2C).
  b) To adjust the SWR meter

• Set the CB to channel 20.

• Put the switch on the SWR meter to position FWD.
• Press the «push-to-talk» switch on the microphone to transmit.
• Bring the index needle to ▼, ∞ o SET by using the calibration key CAL.
• Change the switch to position REF (reading of the SWR level). The reading on the V.U. meter should be as near as possible to 1. If this is not the case, re-adjust your antenna to obtain a reading as close as possible to 1. (An SWR reading between 1 and 1.8 is acceptable).
• It will be necessary to re-calibrate the SWR meter after each adjustment of the antenna.

WARNING: In order to avoid any losses and attenuations in cables used for connection between the radio and its accessories, PRESIDENT recommends to use a cable with a length inferior to 3m.

Your CB is now ready for use.

a) To turn the set on, turn the knob (1) clockwise
b) To increase the sound level, turn the same knob further clockwise.

2) ASC (Automatic Squelch Control)/SQUELCH

Suppresses undesirable back-ground noises when there is no communication. Squelch does not effect neither sound nor transmission power, but allows a considerable improvement in listening comfort.
a) ASC: Automatic Squelch Control

Worldwide patent, a PRESIDENT exclusivity

No repetitive manual adjustment and a permanent improvement in listening comfort when this function is active. It can be disconnected by turning the switch (2) clockwise, in this case the manual squelch control becomes active again.

b) Manual squelch

Turn the squelch knob clockwise to the exact point where all back-ground noise disappears. This adjustment should be done with precision as, if set to maximum, (i.e. fully clockwise) only the strongest signals will be received.

3) RFGAIN

This knob is for adjusting sensitivity during reception. For long distance communications RF GAIN should be set to maximum. RF GAIN can be reduced to avoid distortion, when your correspondent is close by and when he does not have RF POWER.

The normal setting of this knob is on maximum (fully clockwise).

4) MIC GAIN

Is for regulating microphone sensitivity, when using a microphone other than the one supplied with your PRESIDENT WALKER ASC. (pre-amplified).

The normal setting of this knob is fully clockwise.

5) CHANNEL SELECTOR: Keys «DN» and «UP» on microphone and ROTARY knob

The two keys, «UP» and «DN» on the microphone allow you to go up and down the channels. This can also be done using the channel rotary knob (5). You can select the channel (1 to 40) of reception or transmission.

6) DISPLAY

The display shows selected channel or the frequency band in use.

7) FM LED

This red led is lighted in FM mode.

8) RX/TX LED (bicolor led)

RX Led lights when squelch opens (GREEN). TX Led lights when transmitting mode (RED).

The frequency band must be chosen according to the country where you are going to operate. Do not use another configuration. Some countries require user's licence (see page 46).

a) Radio set switched OFF.
b) Slide the F/OFF switch (9) on F position.
c) Switch ON the radio.
d) Choose the request configuration with the channel rotary switch.
e) Slide the F/OFF switch (9) on OFF position.
1) And then, for final confirmation of the choice before operating in the configuration, switch OFF then ON the radio set. See the chart pages 41 to 45.

10) NB/ANL

Noise Blanker/ Automatic Noise Limiter. These filters allow the reduction of background noise, and some reception interference. Unable on OFF position.

11) CB/PA (Public Address)

An external loud speaker can be connected to your PRESIDENT WALKER ASC Classic by the jack plug situated on the back panel PA.SP (D). By selecting the PA position, the message transmitted into the microphone will be directed towards the external speaker and be amplified. Hold the microphone far enough away from this loud speaker so as to avoid the Larsen effect (acoustic feedback).

PA volume is regulated by the MIC GAIN knob.

12) MODE

Use this key to select AM or FM. The modulation mode must correspond with that of the person with whom you communicate.

AM/ Amplitude Modulation (AM) is for communications in areas where there are obstacles and over medium distances.

FM/ Frequency Modulation (FM) is for nearby communications in flat, open areas (squelch adjustment needs more finesse).

13) CH 19/CH 9

Channels 19 and 9 are automatically selected when you activate this switch. The Mode (AM/FM) of the channel is set according the frequency range in use. See the chart on page 45

OFF position returns to the previous channel.

14) BARGRAPH

Shows reception and the power transmission levels.

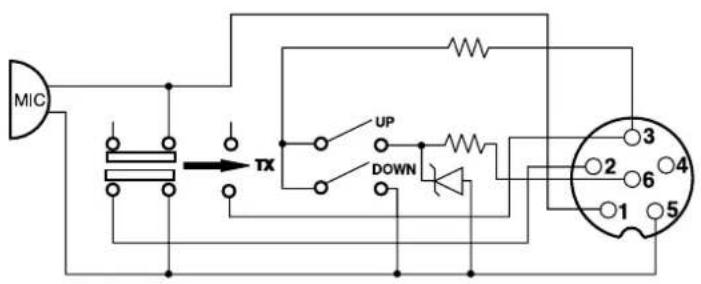

15) 6-PIN MICROPHONE PLUG

This plug is situated on the front panel, thereby making it easier to set the equipment into the dashboard. See the cabling diagram on page 44.

16) PTT (push to talk)

Press this knob to transmit a message and release to listen to an incoming communication.

KEY BEEP

Some functions like changing channels, pressure on keys etc. are confirmed by a beep tone. This beep tone can be activated or deactivated by the user.

To enable/disable Beep tone, turn on the power while pressing the mic "DN" (5) key.

SCAN FUNCTION

In order to activate the SCAN function (research of the channels), press the "UP" (5) (increasing way) or "DN" (5) (decreasing way) key during 2.5 seconds.

The scanning automatically starts 3 seconds after the end of the transmission if no key is activated. The scanning starts again in an increasing way by using the "UP" (5) key of the microphone or in a decreasing way with the "DN" (5) key of the mike.

TOT (Time Out Timer)

If the PTT key (16) is pressed for more than 5 minutes, the transmission ends. RX/TX Led and Channel blink. Released the PTT key (16) and press it again to continue.

A) DC-POWER TERMINAL (13.2 V)
B) ANTENNA CONNECTOR (SO-239)
C) EXTERNAL SPEAKER JACK (8 Ω, ∅ 3.5 mm)
D) PA SPEAKER JACK (8 Ω, ∅ 3.5 mm)

C) TECHNICAL CHARACTERISTICS

1) GENERAL

• Channels
• Modulation modes : AM/FM
• Frequency ranges : from 26.965 MHz to 27.405 MHz
• Antenna Impedance : 50 ohms
• Power supply : 13.2 V
• Dimensions (in mm) : 160 (L) x 160 (H) x 55 (D)
• Weight : 1.1 kg
• Accessories supplied : microphone UP/DOWN with support, mounting cradle, screws and fused power cord.

2) TRANSMISSION

• Frequency allowance
• Carrier power
• Transmission interference
• Audio response
• Emitted power in the adj. channel
• Microphone sensitivity
• Drain
• Modulated signal distortion

3) RECEPTION

• Maxi. sensitivity at 20 dB sinad
• Frequency response

: +/- 300 Hz
: 4 watts AM / 4 W FM
: inferior to 4 nW (-54 dBm)
: 300 Hz to 3 KHz in AM/FM
: inferior to 20 μW
: 3.0 mV
: 2 A (with modulation)
: 1.8%

: 0.5 μV - 113 dBm (AM/FM)

: 300 Hz to 3 kHz in AM/FM

• Adjacent channel selectivity
• Maximum audio power
• Squelch sensitivity
• Frequency Image rejection rate
• Intermediate frequency rej. rate
• Drain

: 60 dB
: 5W
: minimum 0.2 μV - 120 dBm maximum 1 mV - 47 dBm
: 60 dB
: 70 dB
: 400 mA nominal / 1500 mA maximum

D) TROUBLE SHOOTING

1) YOUR CB RADIO WILL NOT TRANSMIT OR YOUR TRANSMISSION IS OF POOR QUALITY

• Check that the PA function is not activated
• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• Check that the microphone is properly plugged in.
• Check that the configuration is the correct one (see table page 45).

2) YOUR CB RADIO WILL NOT RECEIVE OR RECEPTION IS POOR

• Check that the PA function is not activated
• Check that the squelch level is properly adjusted.
• Check that the configuration is the correct one (see table page 45).
• Check that the volume is set to a comfortable listening level.
• Check that the microphone is properly plugged in.
• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• Check that you are using the same modulation mode as your correspondent.

3) YOUR CB WILL NOT LIGHT UP

• Check the power supply.
• Check the connection wiring.
• Check the fuse.

E) HOW TO TRANSMIT OR RECEIVE A MESSAGE?

Now that you have read the manual, make sure that your CB Radio is ready for use (i.e. check that your antenna is connected).

Choose your channel (19, 27).

Choose your mode (AM/FM) which must be the same as that of your correspondent.

Press the «push-to-talk» switch and announce your message «Attention stations, transmission testing» which will allow you to check the clearness and the power of your signal. Release the switch and wait for a reply. You should receive a reply like, «Strong and clear».

If you use a calling channel (19, 27) and you have established communication with someone, it is common practice to choose another available channel so as not to block the calling channel.

F) GLOSSARY

Below you will find some of the most frequently used CB radio expressions.

Remember this is meant for fun and that you are by no means obliged to use them. In an emergency, you should be as clear as possible.

INTERNATIONAL PHONETIC ALPHABET

A	Alpha	H	Hotel	O	Oscar	V	Victor
B	Bravo	I	India	P	Papa	W	Whiskey
C	Charlie	J	Jullett	Q	Quebec	X	X-ray
D	Delta	K	Kilo	R	Romeo	Y	Yankee
E	Echo	L	Lima	S	Sierra	Z	Zulu
F	Foxtrott	M	Mike	T	Tango
G	Golf	N	November	U	Uniform

TECHNICAL VOCABULARY

AM	: Amplitude Modulation
CB	: Citizen's Band
CH	: Channel
CW	: Continuous Wave
DX	: Long Distance Liaison
DW	: Dual Watch
FM	: Frequency Modulation
GMT	: Greenwich Meantime
HF	: High Frequency
LF	: Low Frequency
LSB	: Lower Side Band
RX	: Receiver
SSB	: Single Side Band
SWR	: Standing Wave Ratio
SWL	: Short Wave Listening
SW	: Short Wave
TX	: CB Transceive
UHF	: Ultra High Frequency

USB : Upper Side Band

VHF : Very High Frequency

CB LANGUAGE

Advertising	: Flashing lights of police car
Back off	: Slow down
Basement	: Channel 1
Base station	: A CB set in fixed location
Bear	: Policeman
Bear bite	: Speeding fine
Bear cage	: Police station
Big slab	: Motorway
Big 10-4	: Absolutely
Bleeding	: Signal from an adjacent channel interfering with the transmission
Blocking the channel	: Pressing the PTT switch without talking
Blue boys	: Police
Break	: Used to ask permission to join a conversation
Breaker	: A CBer wishing to join a channel
Clean and green : Clear of police
Cleaner channel	: Channel with less interference
Coming in loud and proud	: Good reception
Doughnut	: Tyre
Down and gone	: Turning CB off
Down one	: Go to a lower channel
Do you copy?	: Understand?
DX	: Long distance
Eighty eights	: Love and kisses
Eye ball	: CBers meeting together
Good buddy	: Fellow CBer
Hammer	: Accelerator
Handle	: CBer's nickname
Harvey wall banger	: Dangerous driver
How am I hitting you?	: How are you receiving me?
Keying the mike	: Pressing the PTT switch without talking
Kojac with a kodak	: Police radar
Land line	: Telephone
Lunch box	: CB set
Man with a gun : Police radar
Mayday	: SOS
Meat wagon	: Ambulance
Midnight shopper	: Thlef
Modulation	: Conversation

Negative copy : No reply

Over your shoulder : Right behind you

Part your hair : Behave yourself - police ahead

Pull your hammer back : Slow down

Rat race : Congested traffic

Rubberbander : New CBer

Sail boat fuel : Wind

Smokey dozing : Parked police car

Smokey with a camera : Police radar

Spaghetti bowl : Interchange

Stinger : Antenna

Turkey : Dumb CBer

Up one : Go up one channel

Wall to wall : All over/everywhere

What am I putting to you? : Please give me an S-meter reading.

DECLARATION OF CONFORMITY

We, GROUPE PRESIDENT ELECTRONICS, Route de Sète, BP 100 – 34540 Balaruc – FRANCE,

Declare, on our own responsibility that the CB radio-communication transceiver

Brand : PRESIDENT

Model : WALKER ASC Classic

Made in Vietnam

is in conformity with the essential requirements of the Directive 1999/5/CE (Article 3) adapted to the national law, as well as with the following European Standards:

EN 60215(96)

EN 300 135-1 V1.1.2 (2000-08)

EN 300 135-2 V1.2.1 (2008-02)

ETSI EN 301 489-1 V1 9.2 (2011-09)

ETSI EN 301 489-13 V1.2.1 (2002-08)

and is in conformity with Directive RoHS2: 2011/65/EU (2011/06/08).

Balaruc, the 2015-05-05

Jean-Gilbert MULLER

General Manager

GENERAL WARRANTY CONDITIONS

This device is guaranteed 2 years parts and labour in its country of purchase against any manufacturing defects validated by our technical department. *The After-sales Service of PRESIDENT reserves the right not to apply the warranty if a breakdown is caused by an antenna other than those distributed by PRESIDENT, and if said antenna is at the origin of the breakdown. An extension of 3 years warranty is proposed systematically for the purchase and use of a PRESIDENT antenna, bringing the total duration of the warranty to 5 years. In order to be valid, the warranty certificate must be returned within a period of 30 days after the purchase date to the After-sales Service of the company Groupe President Electronics, or any foreign subsidiary.

It is recommended to carefully read the following conditions and to respect them under penalty of losing their benefit.

• To be valid the warranty certificate must be returned to us at the latest 1 month after the purchase.
• Please duly complete the warranty certificate on the right hand side of the page, detach it (portion to be removed marked by dotted line) and send it back.
• Any repair under warranty will be free and the return delivery costs will be borne by our company.
• A purchase proof must be necessarily included with the device to be repaired.
• The dates listed on the warranty certificate and proof of purchase must match.
• Do not proceed with the installation of the device without reading the user manual.
• No spare part will be sent nor exchanged by our services under warranty.

The warranty is only valid in the country of purchase.

Exclusions (are not covered):

• Damages caused by accident, shock or inadequate packaging.
• Power transistors, microphones, lights, fuses and the non respect of the installation and use of specifications (including but not limited to antenna used with too high power, final output power transistors (SWR), inversion of polarities, bad connections, overvoltage,...).
• The warranty cannot be extended due to the non-availability of the device while it is being serviced at our technical services location, nor by a change of one or more components or spare parts.
• Transceivers which have been modified. The warranty application is excluded in case of modification or poor maintenance done by a third party not approved by our company.

If you note malfunctions:

• Check the power supply of your device and the quality of the fuse.

• Check that the antenna, the microphone.... are correctly connected.

• Check that the squelch level is properly adjusted; the programmed configuration is the correct one...

• In case the device is not under warranty, the repair and return of the device will be charged.
• All related documents must be preserved even after the end of the warranty period and if you resell your device, given to the new owner for the After-sales follow-up.
• In case of real malfunction, please contact your dealer first; they will decide action to be taken.
• In case of an intervention not covered by the warranty, an estimate will be established before any repair.

Thank you for your trust in the PRESIDENT quality and experience. We recommend that you read this manual carefully so that you are completely satisfied with your purchase. Do not forget to return the detachable warranty certificate on the right hand side of this page; it is very important for the identification of your device during a possible rendering of our services.

Technical Manager and Quality Manager

Date of the purchase: ....

Type: CB Radio WALKER ASC Classic Chrome

Serial Number:

NOT COVERED BY THE WARRANTY WITHOUT THE DEALER STAMP

Ostrzeżenie!

PRESIDENT WALKER Remitted 40 OFF VOLUME ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON On

Six identical diagrams of a car viewed from top and side, showing front, side, and perspective views with dashed outlines (no text or symbols)

A	Alpha	H	Hotel	O	Oscar	V	Victor
B	Bravo	I	India	P	Papa	W	Whlskey
C	Charlie	J	Juliett	Q	Quebec	X	X-ray
D	Delta	K	Kilo	R	Romeo	Y	Yankee
E	Echo	L	Lima	S	Sierra	Z	Zulu
F	Foxtrott	M	Mike	T	Tango
G	Golf	N	November	U	Uniform

TERMINOLOGIA TECHNICZNA

EN 300 135-2 V1.2.1 (2008-02)

ETSI EN 301 489-1 V1 9.2 (2011-09)

ETSI EN 301 489-13 V1.2.1 (2002-08)

FREQUENCY TABLE for U (ENG)

FREQUENCY TABLE for d

N° du canal Fréquences N° du canal Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequicy Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequacy Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequancy Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequncy Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequity Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequery Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequycy Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequyny Channel Frequyny Channel Frequyny Channel Frequyny Channel Frequyny Channel Frequyny Channel Frequyny Channel Frequyny Channel Frequyny Channel Frequyny Channel Frequyny Channel Frequyny Channel Frequyny Channel Frequyny Channel Frequyny Channel Frequyny Channel Frequyny Channel Frequuyny Channel Frequuyny Channel Frequuyny Channel Frequuyny Channel Frequuyny Channel Frequuyny Channel Frequuyny Channel Frequuyny Channel Frequuyny Channel Frequuyny Channel Frequuyny Channel Frequuyny Channel Frequuyny Channel Frequuyny Channel Frequuyny Channel Frequuyny Channel Frequuyny ChannelFrequuyny ChannelFrequuyny ChannelFrequuyny ChannelFrequuyny ChannelFrequuyny ChannelFrequuyny ChannelFrequuyny ChannelFrequuyny ChannelFrequuyny ChannelFrequuyny ChannelFrequuyny ChannelFrequuyny ChannelFrequuyny ChannelFrequuyny ChannelFrequuyny ChannelFrequuyny ChannelFrequuynv	Fréquences
1	26,960 MHz	21	27,210 MHz
2	26,970 MHz	22	27,220 MHz
3	26,980 MHz	23	27,250 MHz
4	27,000 MHz	24	27,230 MHz
5	27,010 MHz	25	27,240 MHz
6	27,020 MHz	26	27,260 MHz
7	27,030 MHz	27	27,270 MHz
8	27,050 MHz	28	27,280 MHz
9	27,060 MHz	29	27,290 MHz
10	27,070 MHz	30	27,300 MHz
11	27,080 MHz	31	27,310 MHz
12	27,100 MHz	32	27,320 MHz
13	27,110 MHz	33	27,330 MHz
14	27,120 MHz	34	27,340 MHz
15	27,130 MHz	35	27,350 MHz
16	27,150 MHz	36	27,360 MHz
17	27,160 MHz	37	27,370 MHz
18	27,170 MHz	38	27,380 MHz
19	27,180 MHz	39	27,390 MHz
20	27,200 MHz	40	27,400 MHz

N° du canal Fréquences N° du canal FréquencesN° Canal Frecuencia N° Canal FrecuenciaChannel Frequency Channel FrequencyKanal Częstotliwość Kanal Częstotliwość
1	26,965 MHz	2	27,2	15 MHz
2	26,975 MHz		22	27,225 MHz
3	26,985 MHz		23	27,255 MHz
4	27,005 MHz		24	27,235 MHz
5	27,015 MHz		25	27,245 MHz
6	27,025 MHz		26	27,265 MHz
7	27,035 MHz		27	27,275 MHz
8	27,055 MHz
9	27,065 MHz
10	27,075 MHz
11	27,085 MHz
12	27,105 MHz
13	27,115 MHz
14	27,125 MHz
15	27,135 MHz
16	27,155 MHz
17	27,165 MHz
18	27,175 MHz
19	27,185 MHz
20	27,205 MHz

PRISE MICRO 6 BROCHES CONEXIÓN DEL MICRO 6 PINS 6-PIN MICROPHONE PLUG WTYK MIKROFONU 6-PIN

MIC TX UP DOWN 3 2 4 6 1 5

1 Modulation
Modulación
Modulation
Modulacja
2
RX
RX
RX
3 TX - UP/DOWN TX - UP/DOWN TX - UP/DOWN TX - UP/DOWN
4
B
Ground
Masa
6 Alimentation Alimentación Power Supply Zasilanie

RX

NORMES • F - NORMAS • F - NORMS • F- NORMY • F • NORMES • F - NORMAS • F - NORMS • F- NORMY • F

N°	Code	Frequency	FM Channel	AM Channel	Country	CH 19	CH 9
1	EU	26.965 ~ 27.405	40 Ch (4W)	40 Ch (4W)	AT, BE, BG, CH, CY, DK, EE, ES, FI, FR, GR, HR, HU, IE, IS, IT, LT, LU, LV, NL, NO, PT, RO, SE, SI	AM	AM
2	PL	26.960 ~ 27.400	-5 KHz 40 Ch (4W)	-5 KHz 40 Ch (4W)	PL	AM	AM
		26.965 ~ 27.405	-	-
3	d	26.565 ~ 27.405	80 Ch (4W)	40 Ch (4W)	CZ, DE, SK	FM	AM
4	EC	26.965 ~ 27.405	40 Ch (4W)	-	MT	FM	FM
5	U	26.965 ~ 27.405	40 Ch (4W)	-	UK	FM	FM
		27.60125 ~ 27.99125	ENG 40 Ch (4W)	-		FM	FM
6	In	26.965 ~ 27.275	27 Ch (4W)	27 Ch (4W)	IN	AM	AM

Remarque : Dans la configuration U : Pour sélectionner la bande de fréquences ENG, mettre le commutateur de mode (12) sur la position «FM». Pour sélectionner la bande de fréquences CEPT, mettre le commutateur de mode (12) sur la position «AM» (voir tableau page 41).
Observación: En la configuración U: Para seleccionar la banda de frecuencia ENG. ponga el conmutador de modo (12) en la posición "FM". Para seleccionar la banda de frecuencia CEPT, ponga el conmutador de modo (12) en la posición "AM" (véase cuadro página 41).
Note: In U configuration: In order to select the frequency band ENG, set the mode switch (12) on "FM" position. In order to select the CEPT frequency band, set the mode switch (12) on position "AM" (see table at page 41).
Uwaga: W konfiguracji U:, aby wybrać pasmo częstotliwości ENG, należy ustawić przełącznik trybu pracy (12) na pozycję „FM”. Aby wybrać CEPT pasma częstotliwości, ustawić przełącznik trybu pracy (12) w pozycji „AM” (patrz tabela na str. 41).

The frequency band and the transmission power of your transceiver must correspond with the configuration authorized in the country where it is used.

Countries in which there are particular restrictions (Licence ^1 / Register ^2 )
