USER MANUAL PCFW 1003 PROFICOOK

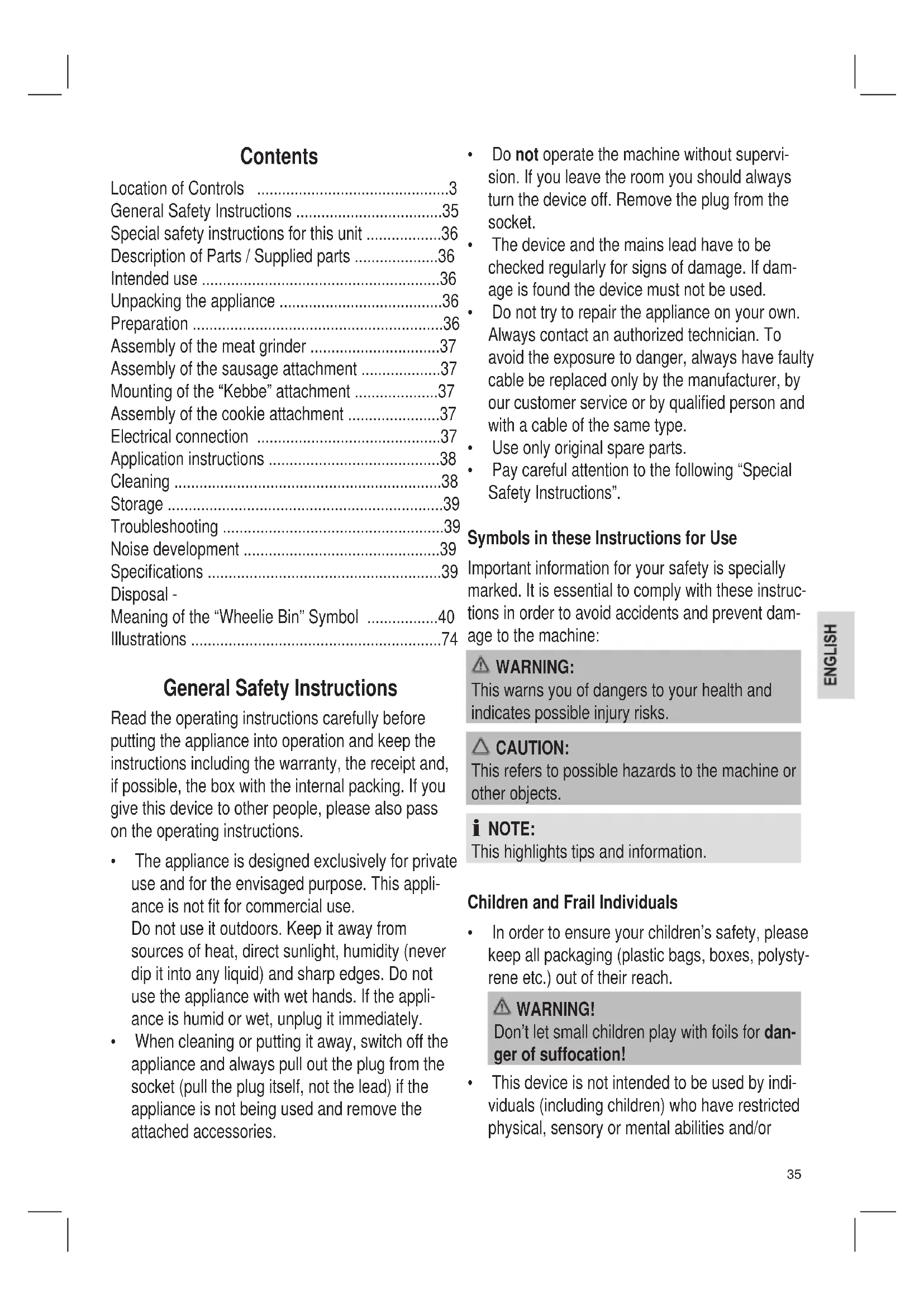

• Theapplianceisdesignedexclusivelyforprivate use and for the envisaged purpose. This appli- ance is not fit for commercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appli- ance is humid or wet, unplug it immediately.

• Whencleaningorputtingitaway,switchoffthe appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.

• Donot operate the machine without supervi- sion. If you leave the room you should always turn the device off. Remove the plug from the socket.

• Thedeviceandthemainsleadhavetobe checked regularly for signs of damage. If dam- age is found the device must not be used.

• Donottrytorepairtheapplianceonyourown. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.

• Useonlyoriginalspareparts.

• Paycarefulattentiontothefollowing“Special Safety Instructions”. Symbols in these Instructions for Use Important information for your safety is specially marked. It is essential to comply with these instruc- tions in order to avoid accidents and prevent dam- age to the machine:

This warns you of dangers to your health and indicates possible injury risks. CAUTION: This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information. Children and Frail Individuals

• Inordertoensureyourchildren’ssafety,please keep all packaging (plastic bags, boxes, polysty- rene etc.) out of their reach. WARNING! Don’t let small children play with foils for dan- ger of suffocation!

• Thisdeviceisnotintendedtobeusedbyindi- viduals (including children) who have restricted physical, sensory or mental abilities and/or36 insufficient knowledge and/or experience, un- less they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.

• Childrenshouldbesupervisedatalltimesin order to ensure that they do not play with the device. Special safety instructions for this unit

WARNING: Risk of injury!

• Beforereplacementofaccessoriesorad- ditional parts which move during operation, the device must be switched off and cut off from the mains.

• Donottouchmovingparts.

• Beforechangingaccessories,waituntilthe knife has come to standstill.

• Beforeswitchingon,makesurethatthe accessories attachment has been installed correctly and is seated securely.

• Alwaysusethesuppliedtamper.Neverinsert your fingers or tools into the filling neck!

• Handletheknifewiththenecessarycarewhen taking out and cleaning it!

• Donotbreakupharditemssuchasbonesor shells.

• Donotmanipulatesafetyswitches. Description of Parts / Supplied parts 1 Filling tray 2 Motor 3 Switch / /R(On/Off/reverses) 4 Screw 5 Scroll housing 6 Pusher Illustrations A to D on the last page: 7 scroll 8 Knife 9 3 Sieve (fine, medium, coarse) 10 Plug 11 Sausage attachment 12 2-part “Kebbe” attachment 13 2-part cookie attachment 14 Rail for biscuits Intended use This appliance serves

• Youcanshapenoodlesordoughwithdifferent attachments. It is exclusively intended for this purpose and may be only used appropriately. It may only be used in the manner described in these operating instructions. Youmaynotusetheapplianceforcommercial purposes. Use for any other purpose is considered improper and not for the intended purpose and can result in damage to property and personal injury. The manufacturer shall not be liable for damages caused by not intended use. Unpacking the appliance

1. Remove the device from its packaging.

2. Remove all packaging materials like foils, filling

materials, cable holders, and carton packaging.

3. Check the scope of deliveries for completeness.

NOTE: There may still be dust or production remains on the device. We recommend that you clean the device as described under “Cleaning”. Preparation Please see the overviews on pages 3 and 74.

1. Openthextureforthespiralhousingwiththe

screw (4) on the device.

2. Place the spiral housing (5) with the filler neck

facing upwards into the spiral drive and turn the screw clockwise until it is closed.

3. Place the filling tray on to the filler neck in such

a way that the fixture for the tray is above the motor block.37

4. Push the spiral (7) into the horizontal section of

the spiral housing until the axle locks in place. See also the sections on assembling the meat grinder, the “Kebbe” attachment, the sausage at- tachment or the biscuit attachment. Assembly of the meat grinder

• Pleasealsoobserveourillustrationsunder“A” (Page 74).

• Pleasefollowpoints1to4asdescribedunder “Preparation ”.

5. Insert the knife with the sharpened edge out-

wards onto the shaft of the scroll.

NOTE: The guide mechanisms on the sieve fit into the recesses of the spiral housing.

7. Rotate the catch clockwise.

8. Put the pieces of meat on to the filling tray (1)

and into the filler neck. See below “Electrical connection”. Assembly of the sausage attachment

• Pleasealsoobserveourillustrationsunder“B” (Page 74).

• Firstproceedasdescribedunder“Preparation” and “Assembly of the Meat Grinder”, points 1 to

7. Position the sausage attachment on the scroll

8. Rotate the catch clockwise.

9. Fill the sausage paste on to the filling tray and

into the filler neck. See below “Electrical connection/Application instructions”. Mounting of the “Kebbe” attachment

NOTE: Tubes of meat or dough paste can be made with the “Kebbe” attachment.

• Pleasealsoobserveourillustrationsunder“C” (Page 74).

• Pleasefollowpoints1to4asdescribedunder “Preparation”.

5. Position the 2-piece Kebbe attachment on the

shaft of the scroll.

NOTE: The guides on attachment are located in the recesses on the scroll housing.

6. Rotate the catch clockwise.

7. Place your meat or dough paste on the filling

tray and into the filler neck. See below “Electrical connection”. Assembly of the cookie attachment

NOTE: Youcanshapedifferentformswiththisattach- ment after preparing a cookie dough. This is particularly suitable for so-called “Spritzgebäck” (cookies).

• Pleasealsoobserveourillustrationsunder“D” (Page 74).

• Pleasefollowpoints1to4asdescribedunder “Preparation”.

5. First, insert the disc onto the extension of the

NOTE: The guides are located in the recesses on the scroll housing.

6. Then mount the shaping disc.

7. Rotate the catch clockwise.

8. Push the rail (14) through the slits of the shaping

disc. See below “Electrical connection/Application instructions”. Electrical connection

• Ensurethatthefunctionswitchissetto“ ” (Off).

• Connecttheappliancetoacorrectlyinstalled and earthed socket 220-240 V AC, 50 Hz.38 Switch Functions Forward/Return The appliance is equipped with a forward and re- turn function. If the scroll should block, you can use the return function, in order to release it. Forward:

WARNING: Risk of injury!

Always use the supplied tamper. Never insert your fingers or tools into the filling neck! CAUTION: Do not use the appliance for longer than 30 con- tinuous minutes. Let it cool for 10 minutes before using it again.

• Cutthemeatintopiecesofabout2.5cm. Please take care that the meat does not con- tain any bones or sinews.

• Inordertocutupthemeatcoarsely,usethe sieve with the slits.

• Inasecondstep,selectthesievewiththener or coarser holes, depending on how finely you want to grind the food.

• Ifyouhavedecidedfornaturalintestines,soak them beforehand for some time in water.

• Makeaknotattheendoftheintestine.

• Pushtheintestineoverthesausageattachment.

• Thesausagemassispressedthroughthe sausage attachment and the sausage intestine is filled.

• Makesurethatthesausageintestineislled “loosely”, since otherwise the intestine could burst because the sausage expands when cooking and/or frying.

• Aftertherstsausagehasachievedtherequire length, press the sausage together at the end of the sausage attachment with your fingers.

• Untilyouhaveacquiredroutine,youcanswitch the appliance off after each sausage section.

• Holdthedoughstrandsattheoutletwithyour hand and cut off the required length. Cleaning

• Alwayspullthepowersupplyplugbefore cleaning and wait until the appliance has cooled down.

• Neverimmersethemotorassemblyinwater for cleaning. It could result in an electric shock or fire. CAUTION:

• Donotuseawirebrushorotherabrasive utensils for cleaning.

• Donotuseaggressiveorabrasivecleaning agents. Motor assembly

• Onlywipethemotorassemblywithadamp cloth and dry with a dry cloth after.39 Filling tray, scroll, scroll housing and all accessories CAUTION: Do not clean these parts in the dishwasher. The surfaces could become lacklustre.

• Cleanthedeviceasdescribed.Lettheacces- sories dry completely.

• Werecommendthatyoustorethedeviceinits original packaging when it is not to be used for a longer period.

• Alwaysstorethedeviceatawellventilatedand dry place outside the reach of children. Troubleshooting Malfunc- tion Possible cause Remedy The device does not function. The device is not supplied with power. - Check the outlet with a dif- ferent device. - Insert the power plug cor- rectly. - Check the mains fuse. The device is defective. - Contact our Service or a specialist. The device is blocked. Meat residue is sticking to the screw.

(3) to “ ” and wait until the motor has stopped.

(3) to “R” to loosen the blocked meat residue. Malfunc- tion Possible cause Remedy The device is blocked. Meat residue is sticking to the screw.

device off and pull the power plug.

any sticking residue. Noise development The sound pressure level in the ear of an opera- tor(LpA)wasmeasuredaccordingtoDINENISO

7. Rotate the catch clockwise.
