USER MANUAL PCHM 1026 PROFICOOK

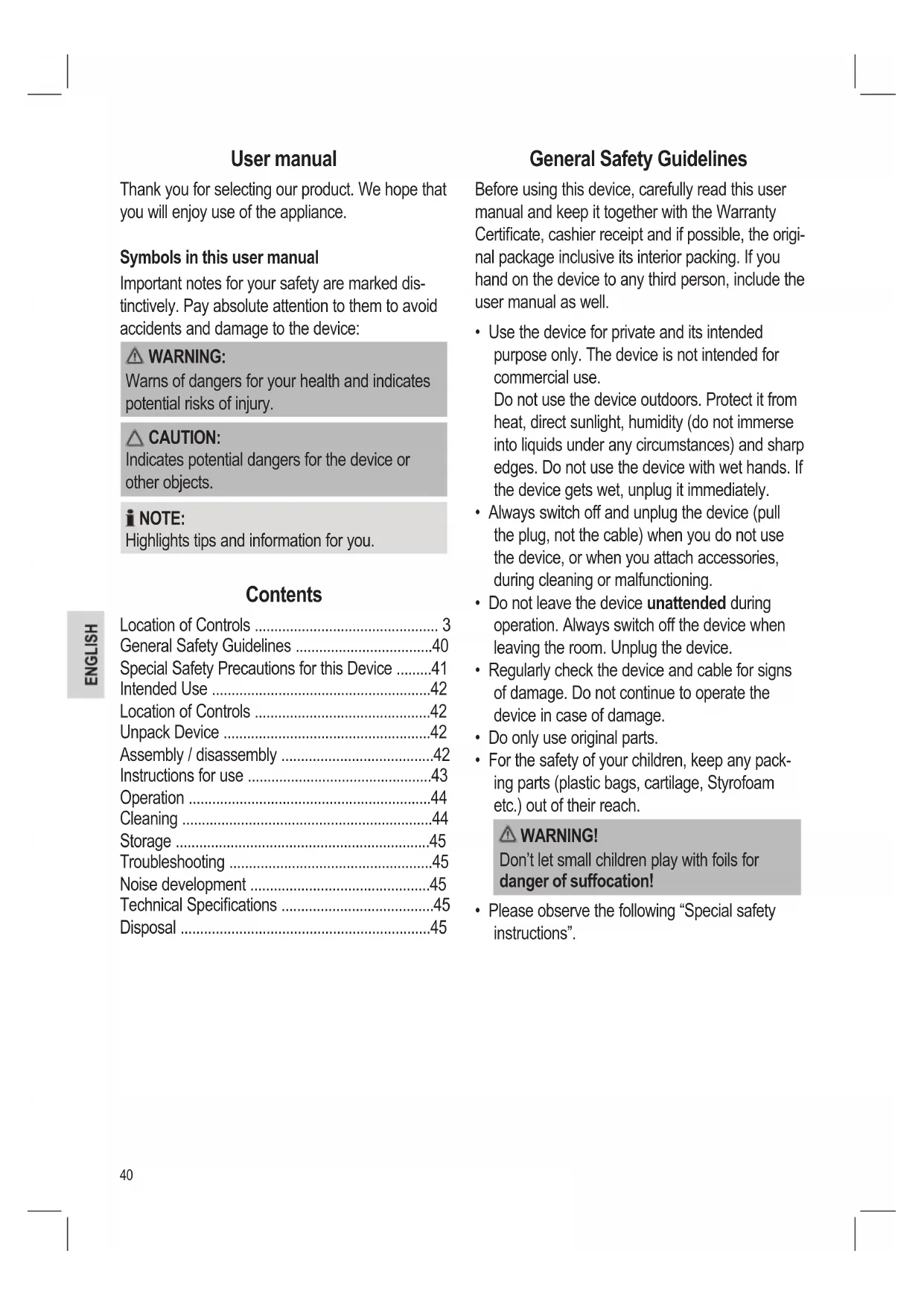

• Use the device for private and its intended purpose only. The device is not intended for commercial use. Do not use the device outdoors. Protect it from heat, direct sunlight, humidity (do not immerse into liquids under any circumstances) and sharp edges. Do not use the device with wet hands. If the device gets wet, unplug it immediately.

• Always switch off and unplug the device (pull the plug, not the cable) when you do not use the device, or when you attach accessories, during cleaning or malfunctioning.

• Do not leave the device unattended during operation. Always switch off the device when leaving the room. Unplug the device.

• Regularly check the device and cable for signs of damage. Do not continue to operate the device in case of damage.

• Do only use original parts.

• For the safety of your children, keep any pack- ing parts (plastic bags, cartilage, Styrofoam etc.) out of their reach. WARNING! Don’t let small children play with foils for danger of suffocation!

• Please observe the following “Special safety instructions”.41 Special Safety Precautions for this Device

WARNING: Risk of injury!

• Switch off and disconnect the appliance from the mains before changing accessories.

• The knife of the blender stick is very sharp. Therefore use extreme caution when handling this part!

• Do not touch moving parts. Always wait until such parts have come to a complete stop.

• Spoons, dough scrapers or similar objects must not be in the con- tainer during operation.

• Make sure to keep long hair away from the appliance during opera- tion.

• Always disconnect the appliance from the supply if it is left unat- tended and before assembling, disassembling or cleaning.

• Do not repair the device by yourself. Please contact authorized personnel. In order to avoid hazards, a damaged mains cable must be replaced with an equivalent cable by the manufacturer, our cus- tomer service or any other qualied specialist.

• This appliance shall not be used by children.

• Keep the appliance and its cord out of reach of children.

• Children shall not play with the appliance.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards in- volved.42 Intended Use This appliance is intended for mixing, stirring, beating, pureeing or cutting food. It is suitable for processing common household quantities. It is only designed for this use and should only be used for this intended purpose. Only use this device as instructed in this user manual. Do not use this device commercially. No other use is intended and can cause damage or personal injuries. The manufacturer is not responsible for any dam- ages incurred due to improper use. Location of Controls 1 Multi-function switch and button

• Switch for speed settings 1 to 5

• Eject button for dough hooks and beaters 2 TURBO button 3 Fixture with cover for attaching the blender stick 4 Ring marking 5 Dough hooks 6 Blender stick 7 Housing 8 Fixture for attaching dough hooks and beaters 9 Beaters Unpack Device

1. Take the device out of its packaging.

2. Remove all packaging materials, such as foils,

lling materials, cable ties and cartons.

3. Check that all accessories are included in the

damage is found, do not operate the appliance. Return it to the dealer immediately. NOTE: Clean manufacturing residues and dust from the device as described under “Cleaning”. Assembly / disassembly CAUTION: Safety mechanisms prevent the simultaneous assembly of the blender stick and the dough hooks / beaters. Do not try to bypass them! Assembly of dough hooks / beaters NOTE:

• For safety reasons, the xtures for the dough hooks / beaters will lock once the blender stick is attached.

• The dough hook with the ring marking on its shaft must only be attached to the right (larger) tting of the mixer. The other dough hook is intended for the left tting. The two dough hooks must not be attached without following these instructions.

1. Make sure the switch (1) is at the “0” posi-

tion and the appliance disconnected from the mains.

2. Push the ends of the dough hooks or beaters

into the respective ttings until they lock into place. Slightly turning the accessories might help facilitate the process of attaching. Disassembly of dough hooks / beaters Press the release button (1) to release the acces- sories. This is only possible, when the switch (1) is set to the “0” position or the blender stick symbol. Assembly of the blender stick NOTE:

• For safety reasons, the blender stick cannot be used once the dough hooks or beaters are attached.

• The xture for attaching the blender stick (3) is located on the bottom of the appliance.

1. Make sure that the switch (1) is set to the “0”

position and that the appliance disconnected from the mains.

2. Slide the protective cover open in order to

3. Push the blender stick (6) into the xture until

it rests completely. Lock the blender stick by turning it counter-clockwise as far as it will go. Disassembly of the blender stick In order to release the blender stick from the hous- ing, turn it clockwise and pull it off. Instructions for use

• For best results, use high-quality containers that are not too big.

• In order to avoid splashing, submerge the dough hooks or beaters into the food to be mixed before switching on the appliance.

• After switching off the appliance, wait until the motor comes to a complete stop before remov- ing the dough hooks or beaters from the food.

• The appliance is suitable for small quantities only! Fill containers with the maximum quanti- ties only as indicated in the table! Blender stick Cut larger size ingredients into smaller pieces (max. Ø 1.5 cm) and add some liquid before pureeing. CAUTION: Do not use the blender stick for cutting hard foodstuff such as coffee beans, nutmeg or ice cubes. This could damage the product. Electric operation

1. Make sure the switch (1) is at the “0” position.

2. Before you plug the mains plug into the outlet,

check whether the system voltage that you want to use, matches the one of the appliance. You will nd information about it on the type plate.

3. Connect the appliance to a correctly installed

grounded outlet. Multi-function switch and button (1) Speed settings for dough hooks or beaters Appliance off Switch position for ejecting the dough hooks or beaters Blender stick mode Turning on/off Using the dough hooks and beaters

• In order to switch on the appliance, set the switch (1) to one of the positions from “1” to “5”.

• When at the “0” position, the appliance is switched off. Using the blender stick

1. Set the switch (1) to the blender stick symbol.

2. Slide the TURBO button (2) downwards and

hold it rmly. The appliance will start operation.

3. When releasing the button, the appliance will

4. Set the switch (1) to the “0” position.

• The control lamp underneath the glass cover shows you the operating mode.

• When assembling the blender stick, a safety switch will deactivate the speed settings. Speed settings Switch position 1: lowest speed setting Switch position 5: highest speed setting (TURBO) Turbo operating mode All speed settings allow you to temporarily switch to the highest speed setting. In order to do so, slide the TURBO button downwards during opera- tion. When activating the button in short intervals, you will achieve a pulse operation.44 Please choose the accessories and speed setting according to the table below: Product / method of preparation Max. quantity Accessories Speed setting / Button Max. operating time Heavy dough (e.g. yeast dough) 500 g Dough hooks 1 – 4 5 min. Cake batter or light crêpes mixture 750 g Beaters 2 – 5 (With TURBO) 5 min. (1 min.) Sponge mixture, wafe mixture, cream 750 g Beaters 2 – 5 (With TURBO) 5 min. (1 min.) Liquids, e.g. dressings, milk shake

1. Place the container with the ingredients on a

2. Make sure the switch (1) is at the “0” posi-

tion and the appliance disconnected from the mains.

3. Attach all accessories.

4. Connect the appliance to a properly installed

5. Immerse the tted attachments into the

container with the ingredients. Immerse the blender stick up to ¾ of its length!

6. When using the dough hooks / beaters, press

the switch (1) to turn on the appliance. Select a speed setting. When using the blender stick, set the switch (1) to the blender stick symbol and press the TURBO button to turn on the appliance. CAUTION: Short-term operation

• In speed setting modes 1 to 5, the maximum operating time of 5 minutes per operating cycle must not be exceeded.

• In TURBO mode, the maximum operating time per operating cycle will be reduced to 1 minute.

• Wait at least 1 minute between two operating cycles. Ending operation

1. Set the switch to “0” position and wait until the

motor has come to a complete stop.

2. Disconnect the plug from the outlet.

3. Detach the accessories from the housing and

clean immediately. Cleaning Preliminary cleaning after use In order to pre-clean the appliance, ll a container with hot water and use the blender stick as de- scribed under “Operation”. Overall cleaning

• Always remove the power cord before clean- ing.

• Do not immerse the appliance in water for cleaning. It could result in an electric shock or re. CAUTION:

• Do not use a wire brush or other abrasive utensils for cleaning.

• Do not use aggressive or abrasive cleaning agents.45

• Immediately clean the appliance after each use.

• Only use a damp cloth for cleaning the hous- ing.

• Dough residue sticking to the mains cable can be removed with a cloth as well. Accessories

WARNING: Risk of injury!

The knife of the blender stick is very sharp. Handle with care. CAUTION: Do not immerse the blender stick shaft com- pletely into water. Make sure no water enters the shaft while cleaning it.

• Rinse the blender stick under warm running water. Leave it in upright position afterwards for water that might have entered to run off.

• Clean the dough hooks and beaters in warm soapy water. They are dishwasher-safe. Make sure not to overdose cleaning agents.

• Dry all parts thoroughly after cleaning. Storage

• Clean the appliance as described and let it dry completely.

• We recommend that you store the appliance in the original packaging, should you not want to use it for a longer period of time.

• Always store the appliance out of the reach of children in a well ventilated and dry location. Troubleshooting The device is not functioning Remedy: Check the mains connection. Other possible cause: Your appliance is equipped with a safety switch. When the blender stick is attached, the speed set- tings will be deactivated. Please refer to. “Instruc- tions for use” “Turning on/off”. Noise development The sound pressure level in the ear of an operator (LpA) was measured according to DIN EN ISO
