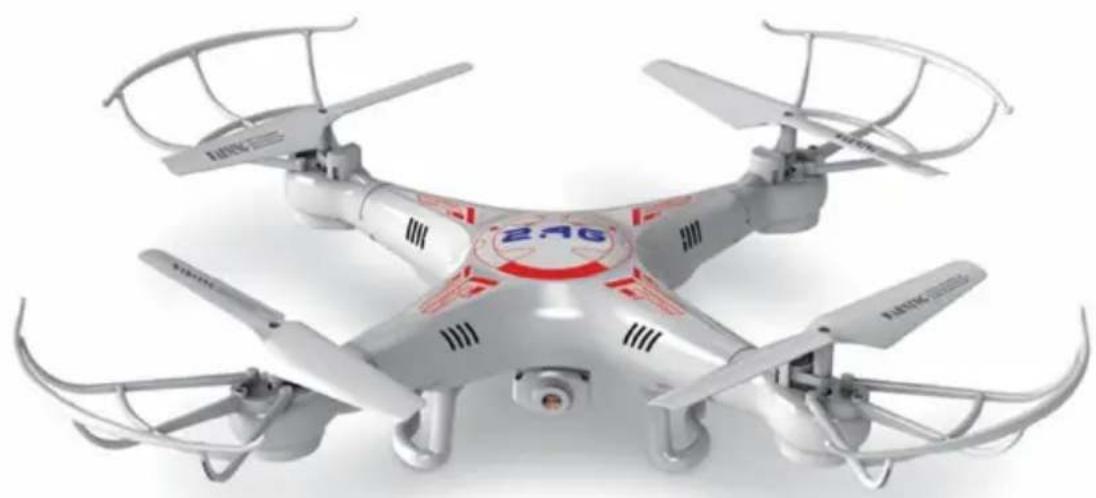

QUADCOPTER WITH 720P WIFI FPV CAMERA
QUADCOPTER MET 720P WIFI FPV-CAMERA
QUADRICOPTÈRE AVEC CAMÉRA WIFI FPV 720P
CUADRICOPTERO CON CÁMARA WIFI Y SISTEMA FPV (720P)
QUADROKOPTER MIT WIFI FPV-KAMERA (720P)
QUADCOPTER Z KAMERA 720P WIFI FPV
QUADRICOPTERO COM CÁMARA FPV 720P WIFI

USER MANUAL 3

HANDLEIDING 13

MODE D'EMPLOI 23

MANUAL DEL USUARIO 33

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children under age 14 and unauthorized users.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children under age 14 shall be supervised to ensure that they do not play with the appliance.

Keep this device away from rain, moisture, splashing and dripping liquids.

DO NOT disassemble or open the cover. There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.

Warning: Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

Keep this device away from dust and extreme temperatures.

Protect this device from shocks and abuse. Avoid brute force when operating the device.

Familiarise yourself with the functions of the device before actually using it.
- All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
- Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
- Nor Velleman NV nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) - of any nature (financial, physical...) arising from the possession, use or failure of this product.
- Due to constant product improvements, the actual product appearance might differ from the shown images. Product images are for illustrative purposes only.
DO NOT use this product to violate privacy laws or perform other illegal activities.

RCQC3

• Only use this product in an area legal for remote control flying and free of interfering radio signals.
• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature.
• Keep this manual for future reference.

4. Features

• 6-axis gyro quadcopter for indoor and outdoor use (please ensure enough flying space)
  with FPV (first person view): wifi live camera 720p (1280*720) with built-in SD-card reader
• smartphone required to control the device with the free app
• supported mobile operating system: Android ® - iOS®
  supports various movements: up-down, forward/backward, turn left-right, left/right side to side fly, hover, 3D flips & rolls, headless easy, 360^ tumbling
• fly mode, one key return, take photo/video record, wifi live video transmission
• stable, easy to control
  2.4 GHz technology reduces interference when flying multiple quadcopters at once
• rechargeable high performance lithium-polymer battery (charges via included USB cable)
  recommended age: 14+
• Important: Always comply with local rules and regulations when using this device.
• included:

O quadcopter
4-channel digital proportional transmitter
3.7V 500 mAh lithium-polymer battery (for quadcopter)
USB charging cable
o wifi camera
- mobile device holder
4 spare blades
multilingual user guide with mounting and flying instructions

5. Remote Control Overview

Refer to the illustrations on page 2 of this manual.

1	antenna
2	indicator
3	high/low speed switch
4	3D flight switch
5	left throttle stick (accelerator-rotation)
6	right cyclic stick (left-right-forward-backward)

6. Remote Control

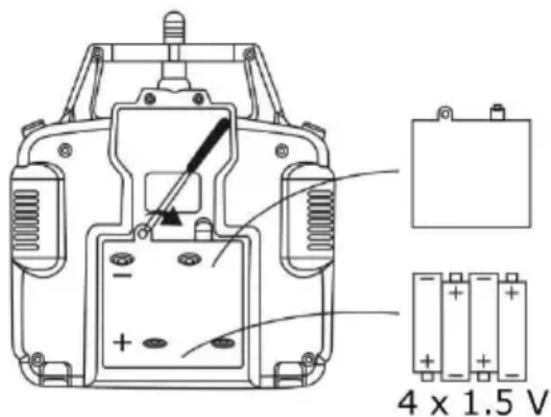

6.1 Installing the Batteries

1. Use a screwdriver to remove the screw on the back of the remote control. Open the battery cover.
2. Install four AA-type batteries (not included) according to the indicated polarity.
3. Close the battery cover and tighten the screw.

7	N/A
8	fine-tune switch forward-backward
9	headless mode switch
10	fine-tune switch accelerator-rotation
11	on-off switch
12	display

Warning: Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.

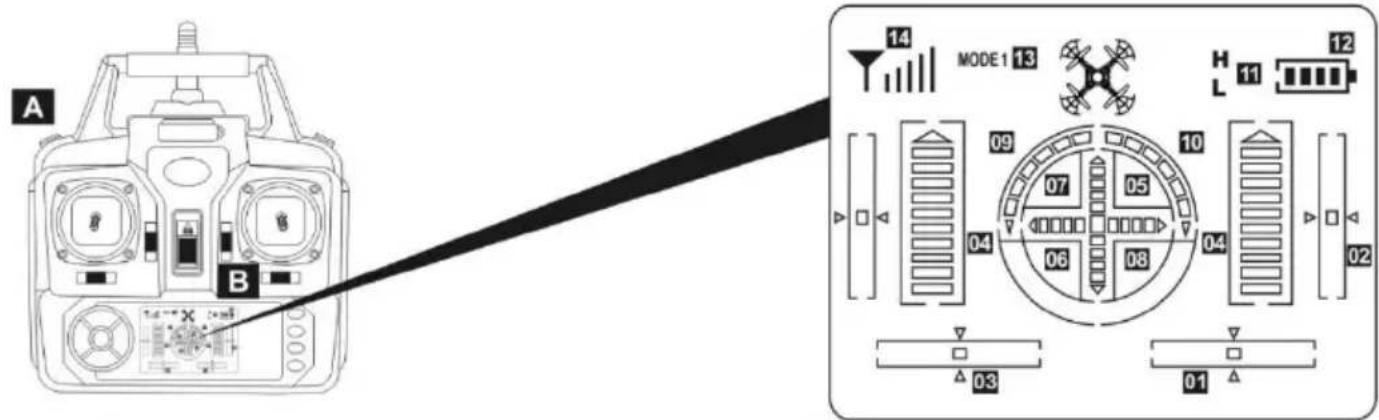

6.2 Explaining the Remote Control's Display

01	fine-tuning lateral flight right/left (mode 1) or rotation right/left (mode 2) -> centred at power-on
02	fine-tuning forward/backward flight -> centred at power-on
03	fine-tuning rotation right/left (mode 1) or lateral flight right/left (mode 2) -> centred at power-on
04	throttle left/right indication -> minimum value at power-on
05	forward indication -> centred at power-on
06	backward indication -> centred at power-on
07	lateral left indication -> centred at power-on
08	lateral right indication -> centred at power-on
09	rotation left indication -> minimum value at power-on; the higher the value, the faster your quadcopter will rotate
10	rotation right indication -> minimum value at power-on; the higher the value, the faster your quadcopter will rotate
11	speed indication -> press button A to toggle between high-speed mode (H) and low-speed mode (L)
12	battery power indication
13	default mode indication
14	radio signal indication

7. Preparing Your Flight

7.1 Charging the Battery

RCQC3

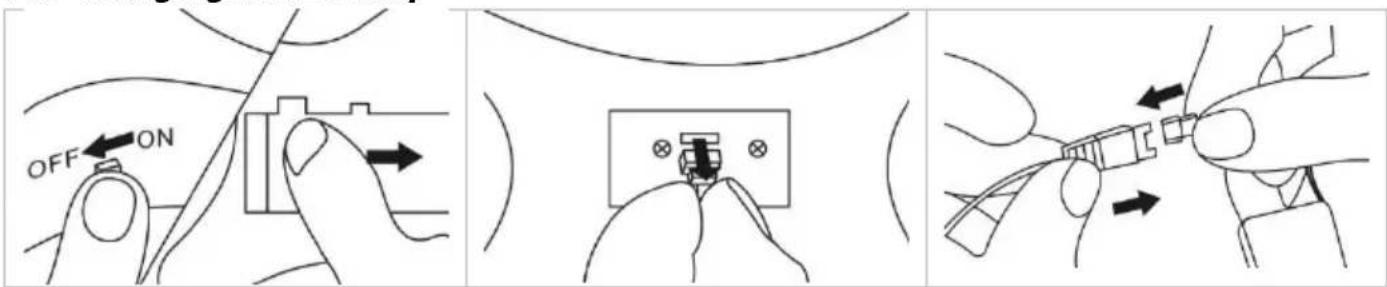

1. Make sure your quadcopter is switched off. Slide the battery cover to open the battery compartment.
2. Disconnect the battery wire and remove the battery from the quadcopter.
3. Connect the battery to the included USB cable and connect to a switched-on USB output. The LED will switch on as soon as the battery is fully charged. Disconnect the battery from the USB output, slide battery into the quadcopter, connect to the power input and close the battery compartment.

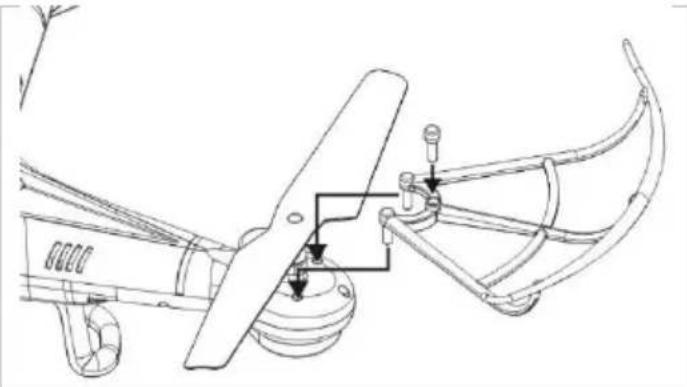

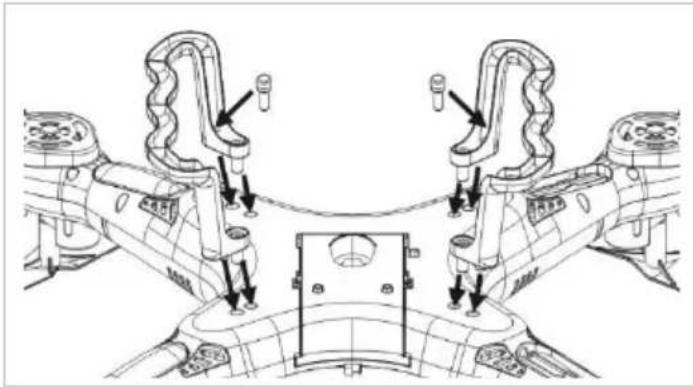

7.2 Installing the Landing Skids and Blade Protectors

1. Place the landing skids on the bottom of the quadcopter and fix with the screws.
2. Place one blade protector onto each arm and fix with the screw.

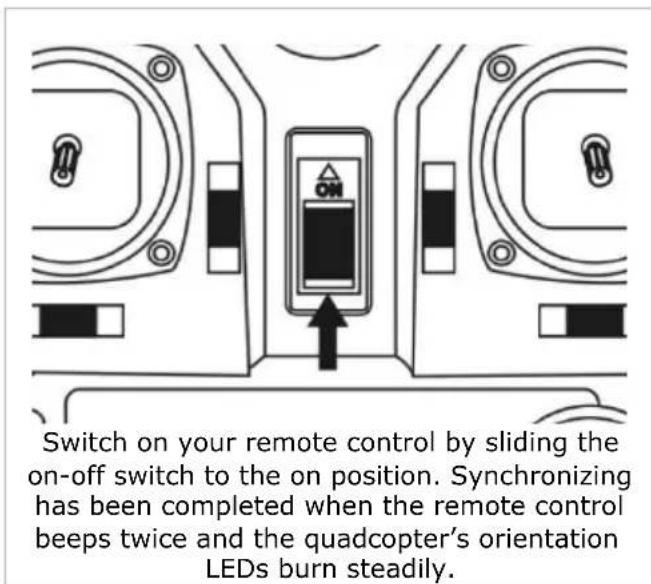

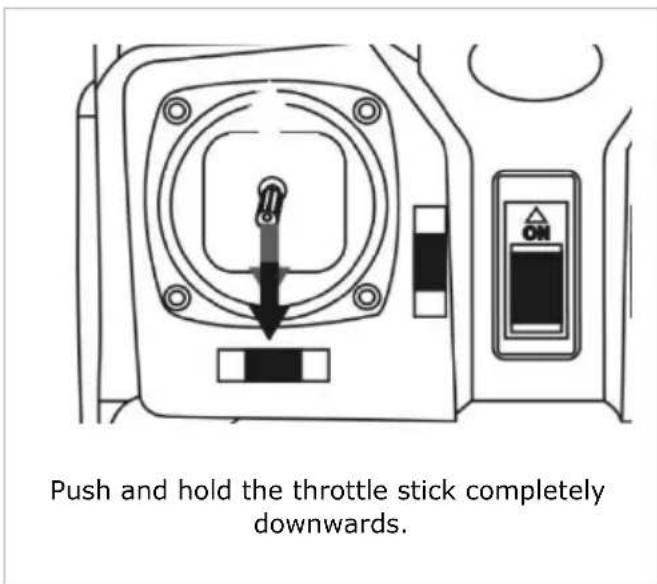

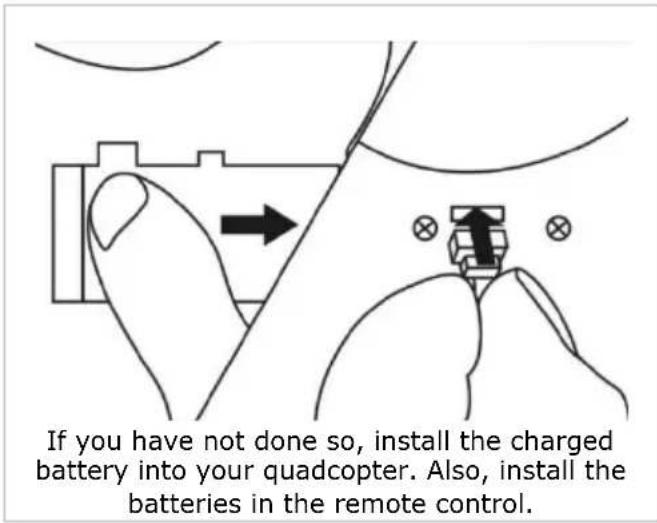

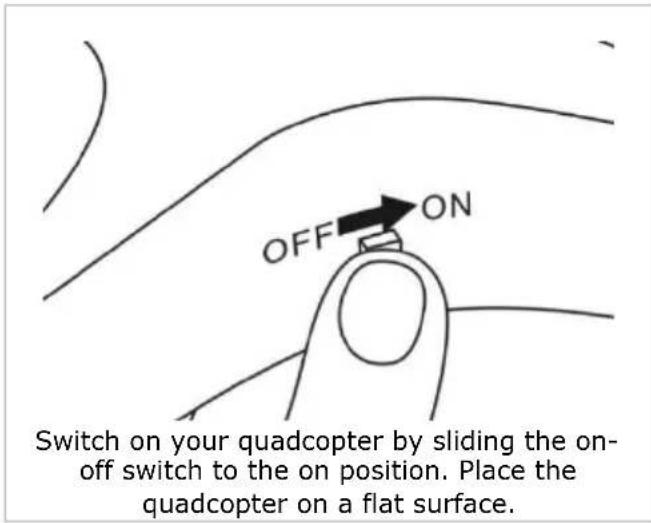

7.3 Synchronizing the Remote Control and Quadcopter

RCQC3

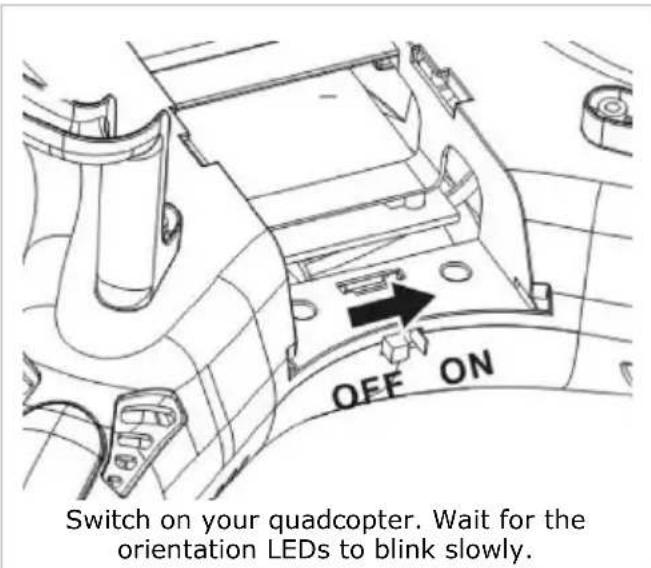

If synchronizing has failed – if the orientation LEDs are still blinking – or if the quadcopter is beyond control, switch off both the quadcopter and the remote control, and start the synchronizing procedure again.

If the orientation LEDs blink slowly, please recharge the quadcopter's battery.

8. Flying Your Quadcopter

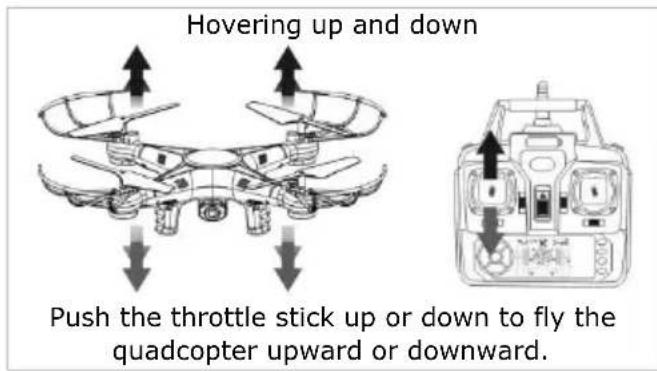

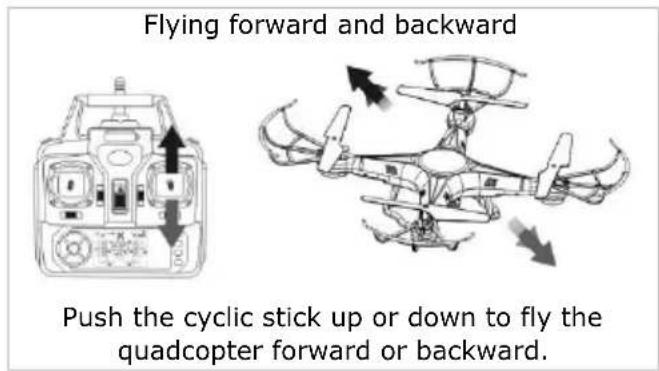

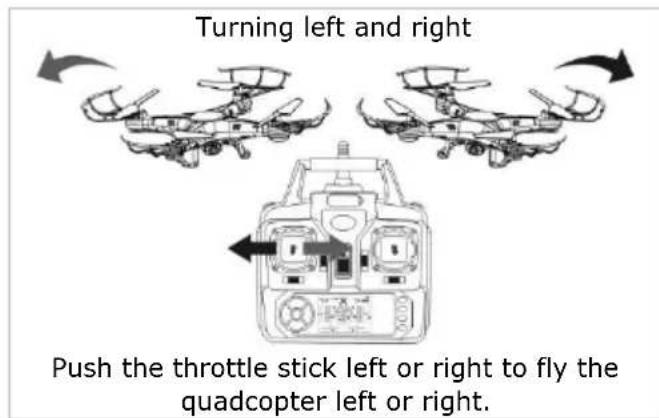

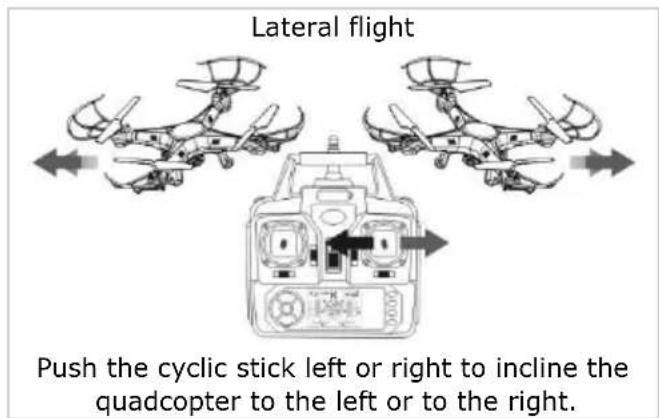

Basic Manoeuvres

8.2 Headless Mode

The headless mode means that, regardless of the orientation of the quadcopter, it will follow your stick movements. This is a handy function should you not be able to see which way the quadcopter is pointing. However, it could impair your ability to learn 3D flying.

Push the headless/RTL mode switch to the left to activate the function.

8.3 Flight Training

Your quadcopter is a fast-reacting aircraft which requires only slight stick movements to manoeuvre. It is recommended to master the quadcopter in the low-speed mode first and switch to the high-speed mode only if feeling enough skilful. Remember that crashing your quadcopter can cause injury, and damage the aircraft and surrounding objects beyond repair.

It is therefore very important to first practice and clock up enough "flying hours" to gradually increase your flying skills. Slowly lift the quadcopter and try to hover 50 to 60~cm above the ground. Land the quadcopter carefully.

The next step is to try and move your quadcopter left/right and forward/backward.

Repeat these exercises until you have mastered them.

8.4 Catapulting Your Quadcopter into the Air

Thanks to the internal gyroscope, you can throw the quadcopter about 3m in the air and immediately push and keep the throttle stick upward. The quadcopter will automatically stabilize in the air and hover.

8.5 3D Flight

After having fully mastered the basic manoeuvres and clocked up enough flying hours, you can now do some spectacular aerobatics!

RCQC3

One of those stunts is the 3D flight or roll. To do so:

1. Keep your quadcopter hovering at a steady height of minimum 3 m.
2. Press the 3D flight button. Move the cyclic stick to the left, the right, forward or backward.
3. You will now have completed a perfect 360^ roll, left, right, forward or backward according to your cyclic stick movement!

Only use the 3D flight with fully-charged quadcopter and remote control batteries, and in an open-space area without obstacles.

9. The Camera Function

9.1 Preparing the Camera

1. Make sure the camera is connected to the quadcopter.
2. Switch on the quadcopter. If the LED inside the camera blinks red and turns green, the camera is ready to be used. If the LED burns red and switches off, check if the camera has an SD card or if the inserted SD card is faulty.

9.2 Preparing the Smartphone

To download the app on your device, please scan the QR code below:

iOS®

Android®

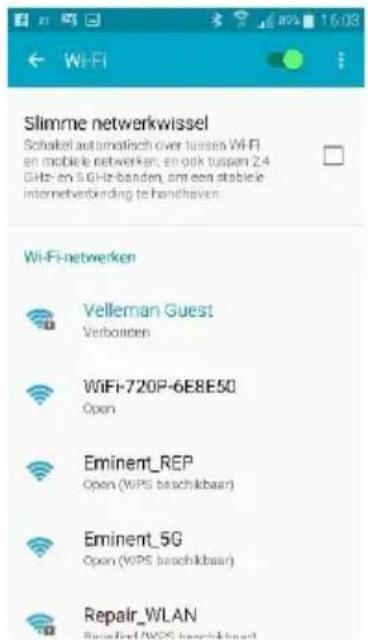

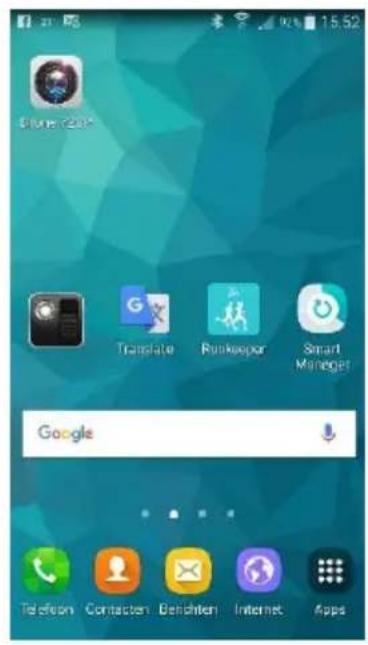

After having installed the app, go the settings menu of your device and tap the wifi option.

At this point, switch on the quadcopter. The quadcopter will appear in the list (WiFi-720P-XXXXXX). Tap the quadcopter code to make the connection. The connection is established as soon as the code is ticked.

RCQC3

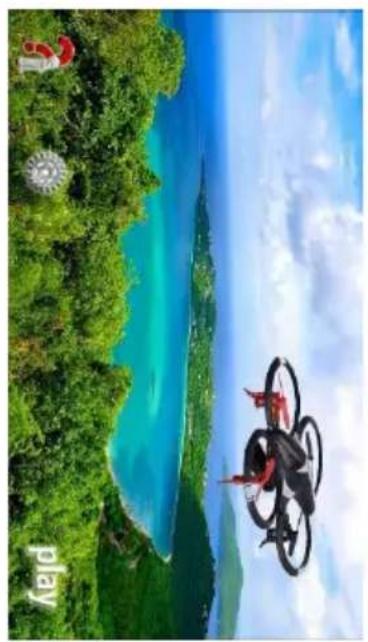

Go back to the main screen on your smartphone and tap the app (Drone 720P) icon. The app will load on your screen. Tap the help icon (question mark) in the left corner to display the app help menu (English only) or the play icon to go to live view.

9.3 Taking Pictures and Recording Video

1. Insert the SD card into the camera.
2. Switch on the quadcopter.
3. Make sure your smartphone is connected to wifi and start the app.
4. Click the photo button to take the picture; click the video button to record video. The picture/video will be saved automatically both on the SD card and smartphone.

Remark

Images on the smartphone can be subject to a slight lag. This is normal.

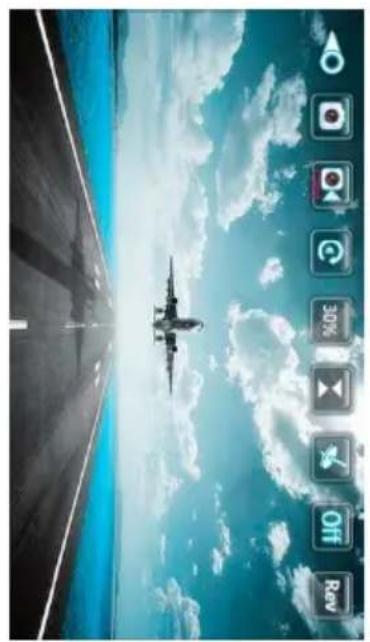

Software images are for illustrative purposes only (Android®). The layout can differ according to used operating system. iOS® version is similar to the example above.

10. Other Functions

Low-Power Protection

The blades automatically stop when the battery power is insufficient.

Over-Current Protection

When the quadcopter's blades jam, the system automatically cuts the power supply to the blades. A power cut-off due to over-current will need a re-synchronization of the remote control and the quadcopter.

RCQC3

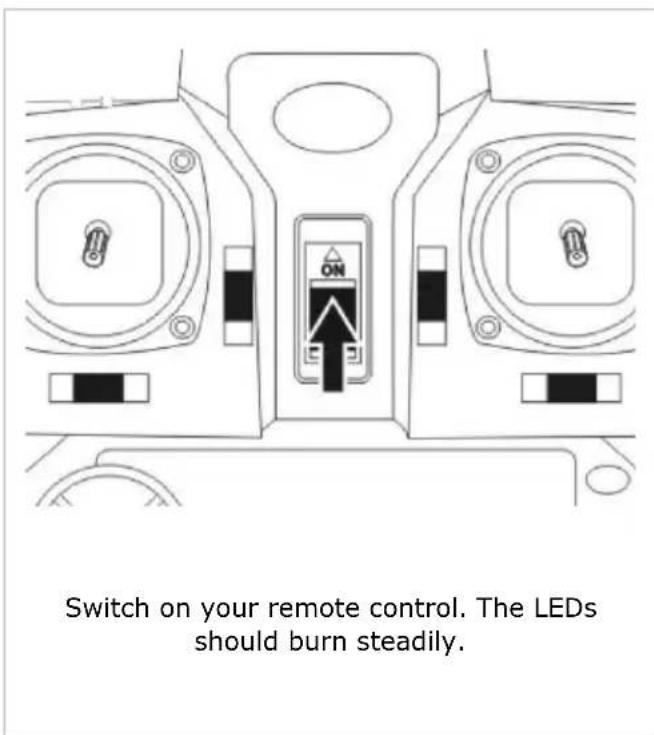

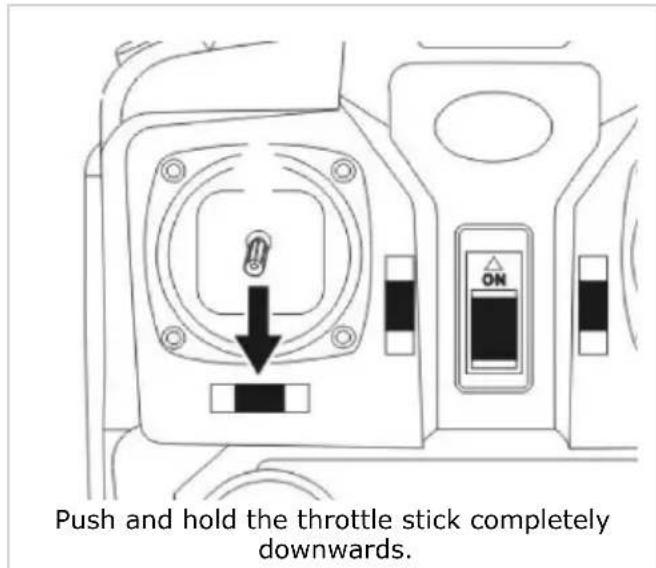

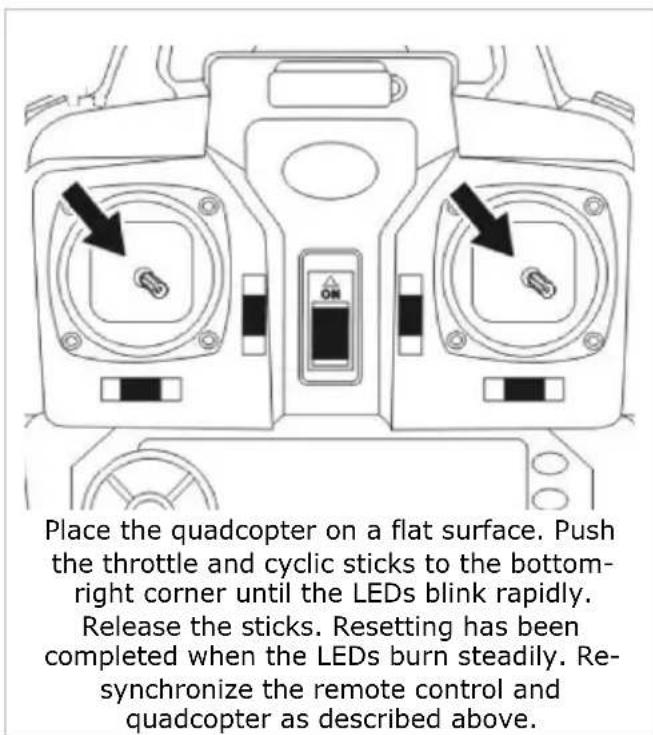

Reset Function

RCQC3

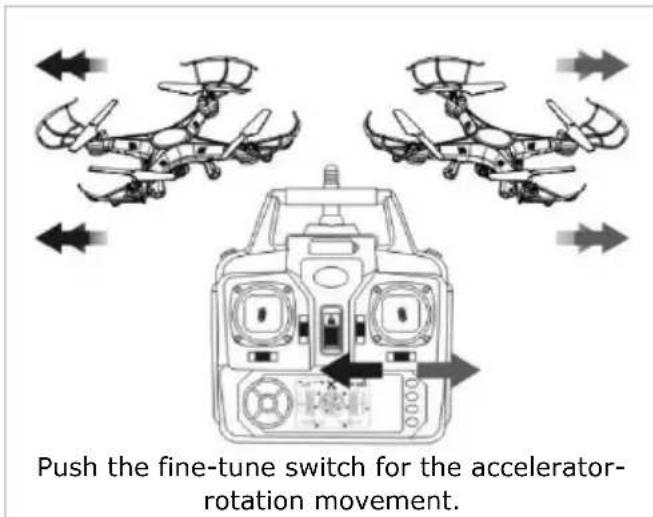

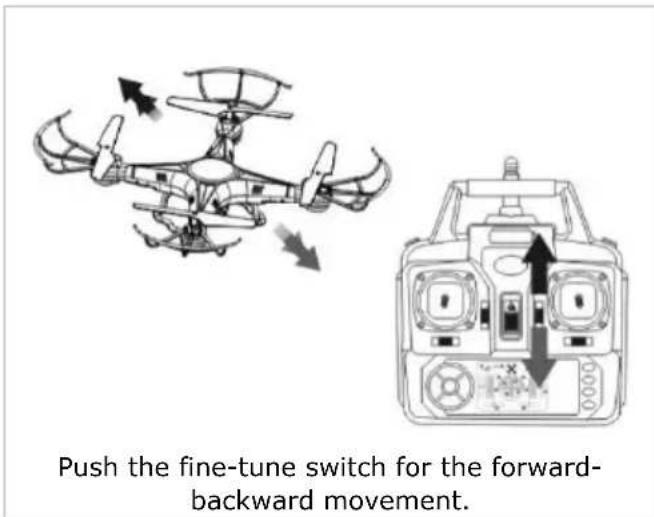

Fine-Tuning the Rotors

You can fine-tune the rotors in the unlikely case they should not turn at the same speed. To do so:

Switch off both the drone and the remote control and switch them on again. The rotors should be synchronized. Please repeat if it is not the case.

11. Troubleshooting

No response from the quadcopter.

The battery of the quadcopter is insufficiently charged. Charge the battery.
The batteries of the remote control are insufficiently charged. Charge or replace the batteries.
- The bandwidths of the remote control and the quadcopter do not correspond. Choose the same bandwidth for both the remote control and the quadcopter by resetting and synchronizing the remote control and the quadcopter.

The quadcopter is slow to respond or difficult to manoeuvre.

The battery of the quadcopter is insufficiently charged. Charge the battery.
The batteries of the remote control are insufficiently charged. Charge or replace the batteries.
- The quadcopter is out of remote control's range. Do not fly the quadcopter too far from the remote control. The range depends on the environment and surrounding objects.

12. Cleaning and Maintenance

The quadcopter does not need any particular maintenance. However, occasionally wipe it with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

13. Technical Specifications

transmitter channels 4

control signal 2.4 GHz

material. plastic and electronic parts power supply

quadcopter . rechargeable 3.7 V, 500 mAh lithium-polymer

(incl., spare battery: RCQC1/SP1)

transmitter 4 x 1.5 V AA/LR6C (not incl.)

charging time 45-60 min.

flying time 6-8 min.

control range. ± 50m

charging mode via USB cable (incl.)

state of assembly ready-to-fly (RTF)

transmitter mode mode 2

quadcopter dimensions 32 x 32 x 8 cm

SD card max. 32 GB (not incl.)

RCQC3

options & spare parts

spare battery for quadcopter RCQC1/SP1
4 blades RCQC1/SP2
4 blade protectors RCQC1/SP3
USB charging cable. RCQC1/SP4
4 spare motors (2× L + 2× R) RCQC1/SP5

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

R&TTE Declaration of Conformity

Hereby, Velleman NV declares that the radio equipment type [RCQC3] is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.velleman.eu.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
