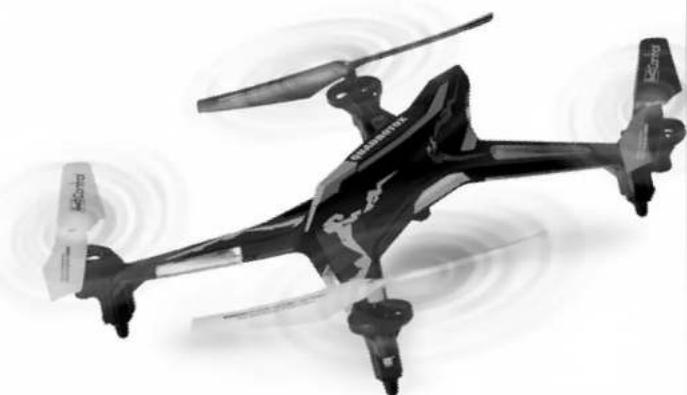

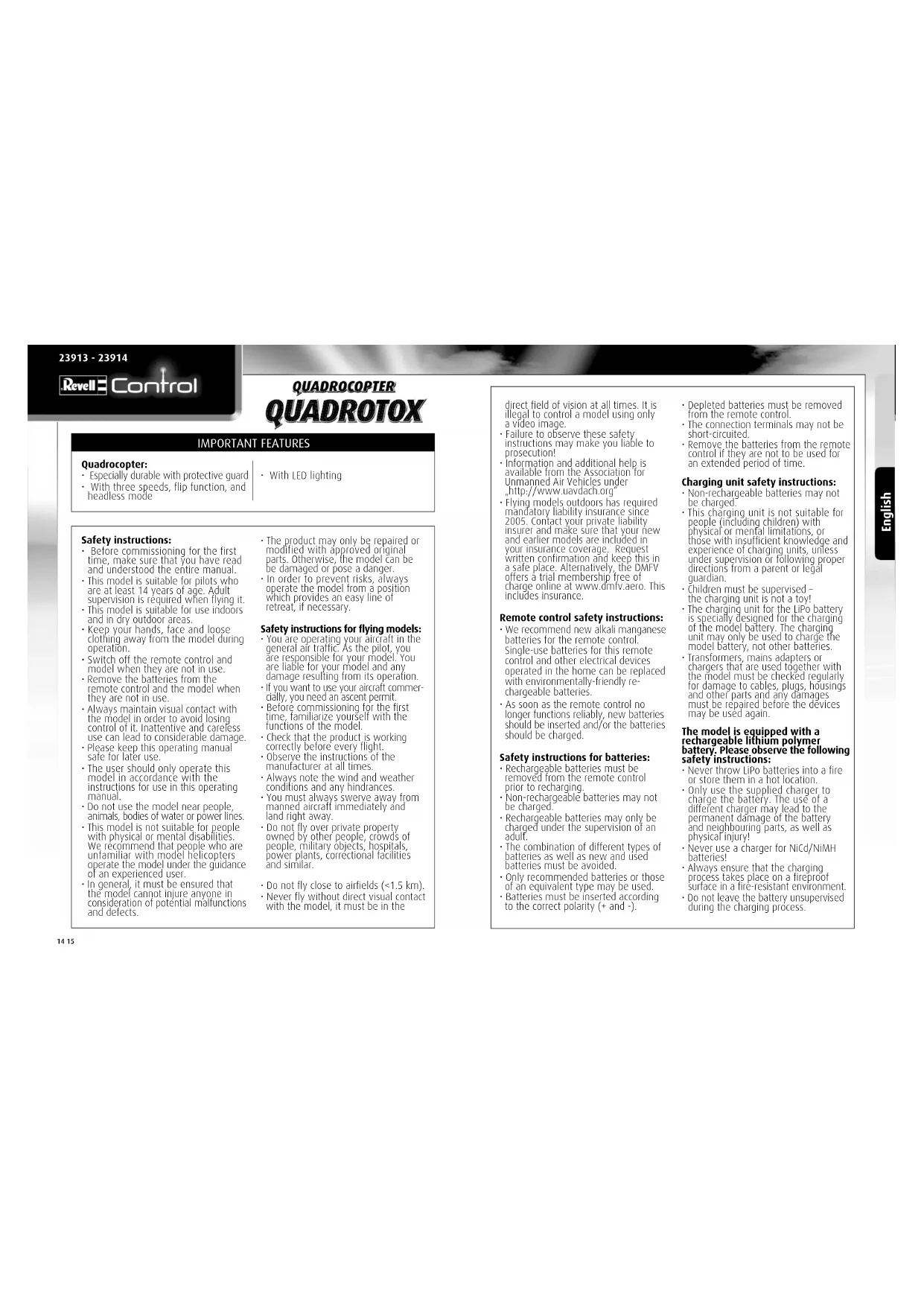

USER MANUAL Quadrotox Revell

• Especially durable with protective guard

• With three speeds, flip function, and headless mode

• With LED lighting

Safety instructions:

Before commissioning for the first time, make sure that you have read and understood the entire manual.
This model is suitable for pilots who are at least 14 years of age. Adult supervision is required when flying it
- This model is suitable for use indoors and in dry outdoor areas.
- Keep your hands, face and loose clothing away from the model during operation.
- Switch off the remote control and model when they are not in use.
- Remove the batteries from the remote control and the model when they are not in use.
- Always maintain visual contact with the model in order to avoid losing control of it. Inattentive and careless use can lead to considerable damage.
- Please keep this operating manual safe for later use.
The user should only operate this model in accordance with the instructions for use in this operating manual.
Do not use the model near people, animals, bodies of water or power lines.
This model is not suitable for people with physical or mental disabilities. We recommend that people who are unfamiliar with model helicopters operate the model under the guidance of an experienced user.
In general, it must be ensured that the model cannot injure anyone in consideration of potential malfunctions and defects.

The product may only be repaired or modified with approved original parts. Otherwise, the model can be damaged or pose a danger.
In order to prevent risks, always operate the model from a position which provides an easy line of retreat, if necessary.

Safety instructions for flying models:

• You are operating your aircraft in the general air traffic. As the pilot, you are responsible for your model. You are liable for your model and any damage resulting from its operation.
• If you want to use your aircraft commercially, you need an ascent permit.
  Before commissioning for the first time, familiarize yourself with the functions of the model.
• Check that the product is working correctly before every flight.
• observe the instructions of the manufacturer at all times.
  Always note the wind and weather conditions and any hindrances.
  You must always swerve away from manned aircraft immediately and land right away.
  Do not (by) over private property owned by other people, crowds of people, military objects, hospitals, power plants, correctional facilities and similar.
• Do not fly close to airfields ( < 1.5km )
• Never fly without direct visual contact with the model, it must be in the

direct field of vision at all times. It is illegal to control a model using only a video image.

Failure to observe these safety instructions may make you liable to prosecution!
Information and additional help is available from the Association for Unmanned Air Vehicles under http://www.uavdach.org.
- Flying models outdoors has required mandatory liability insurance since 2005. Contact your private liability insurer and make sure that your new and earlier models are included in your insurance coverage. Request written confirmation and keep this in a safe place. Alternatively, the DMFV offers a trial membership free of charge online at www.dmfv.aero. This includes insurance.

Remote control safety instructions:

We recommend new alkali manganese batteries for the remote control. Single-use batteries for this remote control and other electrical devices operated in the home can be replaced with environmentally-friendly rechargeable batteries.
As soon as the remote control no longer functions reliably, new batteries should be inserted and/or the batteries should be charged.

Safety instructions for batteries:

• Rechargeable batteries must be removed from the remote control prior to recharging.
  Non-rechargeable batteries may not be charged.
• Rechargeable batteries may only be charged under the supervision of an adult.

• The combination of different types of batteries as well as new and used batteries must be avoided.
  Only recommended batteries or those of an equivalent type may be used. Batteries must be inserted according to the correct polarity (+ and -).

• Depleted batteries must be removed from the remote control.

• The connection terminals may not be short-circuited.
• Remove the batteries from the remote control if they are not to be used for an extended period of time.

Charging unit safety instructions:

Non-rechargeable batteries may not be charged.
This charging unit is not suitable for people (including children) with physical or mental limitations, or those with insufficient knowledge and experience of charging units, unless under supervision or following proper directions from a parent or legal guardian.
Children must be supervised - the charging unit is not a toy!
The charging unit for the LiPo battery is specially designed for the charging of the model battery. The charging unit may only be used to charge the model battery, not other batteries.
- Transformers, mains adapters or chargers that are used together with the model must be checked regularly for damage to cables, plugs, housings and other parts and any damages must be repaired before the devices may be used again.

The model is equipped with a rechargeable lithium polymer battery. Please observe the following safety instructions:

• Never throw LiPo batteries into a fire or store them in a hot location.
  Only use the supplied charger to charge the battery. The use of a different charger may lead to the permanent damage of the battery and neighbouring parts, as well as physical injury!
  Never use a charger for NiCd/NiMH batteries!
  Always ensure that the charging process takes place on a fireproof surface in a fire-resistant environment. Do not leave the battery unsupervised during the charging process.

• Never disassemble or alter the battery contacts. Do not damage or puncture the battery cells. There is a risk of explosion!

The LiPo battery must be kept out of reach of children.

• When disposing of batteries, they must be discharged or their capacity must be fully depleted. Cover exposed terminals with adhesive tape in order to prevent short-circuiting!

Maintenance and care:

Please only use a clean, damp cloth to wipe off the model.
- Protect the model and batteries from direct sunlight and/or direct heat.
- Never allow the remote control and charging unit to come into contact with water, because the electronics will be damaged as a result.

Technical changes and differences in color reserved!

Required batteries for the model: Battery supply
Power supply
Rated output: 1xDC 3.7V/2.9 Wh
rechnable
Rechargeable LiPo battery (included)
BIO battery (included) Capacity: 780 mAh

Battery requirement for the

remotectrl:
Power supply:
DC6V
Batteries:
00（15V"
not included)

1 MODEL

1A Battery port
1B Battery compartment
1C Status LED

10 No function
1E Rotors
1F Gears

2 REMOTE CONTROL

2A Control for thrust and rotation/ press vertically: speeds
28 Control for Forward/ Reverse and Banking/press vertically- looping function
2C Trim for rotation
20 Trim for forwards/backwards
2E Trim for sideways
2F ON/OFF switch

26 No luncion
2H short press: Return to Home
long press: headless mode
21 Power LED
2K Display
2L Fine trimming of thrust
2M Battery compartment cover

3 INSERTING BATTERIES (REMOTE CONTROL)

3A Cover (2M) removal.

3B Insert 4 x 1.5 V AA batteries

and pay attention to the polarity specifications, as indicated in the battery compartment.

3C Close the battery

compartment cover.

4 CHARGING THE MODEL

Attention: The battery and motor must cool down for 15 to 30 minutes before charging and after every flight. Otherwise they can be damaged. The charging process must be constantly monitored. Always ensure that the charging process takes place on a fireproof surface in a fire-resistant environment.

• Remove the battery from the model (4A) Plug the USB charger into an open USB port (4B).
• Insert the battery plug into the charging socket of the charger, making sure that the polarity is correct (4C). Slide the battery plug gently into the charging socket - DO NOT USE FORCE. If the battery is not correctly inserted into the charging socket, the battery may become damaged and, under certain circumstances, cause injury.
  The status LED on the charger will light up red when charging begins.
• The charging process lasts approx. 90 minutes and must be continuously monitored.
• The status LED on the USB charger goes out when the charging process is finished.
• Disconnect the battery from the charger and disconnect the charger from the outlet after the charging is completed.

The model can fly for approx. 8-12 minutes after a charge time of approx. 90 minutes.

Warning notice: The battery does not normally heat up while charging, if it should become warm or even hot and/or changes to the surface begin to appear, immediately discontinue the charging process!

5 START PREPARATION

The model must be switched on first in order to connect it to the remote control. To do this, slide (5A) the battery into the model's battery compartment (1B), insert the battery plug into the battery port (1A) in the model and close the battery compartment. Do not use force and make sure that the polarity is correct (5B). Then place the model on an even, flat and stable surface.

Before switching on the remote control, the control for thrust and rotation (2A) must point down (5c). To switch on the remote control, move the ON/OFF switch (2F) to ON and briefly push the control for thrust and rotation up and then down again. After approx. 3 seconds, the model activates and is ready for use.

Once you have finished flying, switch the model off first and then the remote control. Unplug the battery from the model and remove the battery from the model.

6 TRIM ADJUSTMENT OF THE CONTROL

The model must be switched on first in order to connect it to the remote control. Its adjustment is simple, but it requires some patience and a feel for it. Please observe the following instructions precisely: Carefully move the thrust control up and raise the helicopter approximately 0.5 to 1 metre in altitude.

6A If the model automatically moves slowly or quickly to the left or right ... gradually press the trim for sideways flight (2E) in the opposite direction.

6B If the model moves by itself slowly or quickly around its own axis .. press the trim adjustment for rotation (2C) incrementally in the opposite direction.

6C If the model automatically moves slowly or quickly forwards or backwards ... gradually press the forwards/backwards trim (2D) in the opposite direction.

7 FLIGHT CONTROL

Note: Only minimal corrections of the controls are necessary for a smooth flying behavior of the model. The direction indication applies when the model is viewed from behind. If the model is flying forwards towards the pilot, it must be moved in the opposite direction.
7A Take off or increase altitude by carefully moving the control for thrust and rotation (2A) forward.
7B Land or decrease altitude by moving the control for thrust and rotation (2A) backward.
7C Fly forward by moving the controller for forward/backward and sideways flight (2B) carefully forward.
7D Fly backward by moving the controller for forward/backward and sideways flight (2B) carefully backward.
7E Fly to the left by moving the controller for forward/backward and sideways flight (2B) carefully to the left.
7F Hy to the right by moving the controller for forward/backward and sideways flight (2B) carefully to the right.
7G Turn the model around to the left by moving the control for thrust and rotation (2A) to the left.
7H Turn model around to the right by moving the control for thrust and rotation (2A) to the right.

Button 2H, short press: Quickly pressing button (2H) activates the Return to Home function. This causes the model to move approximately in the direction of the starting point. Please note that this function is merely an enhancement, as the Return to Home direction can be altered by the effects of wind and collisions.

Button 2H, long press: A long press activates Headless mode. Headless mode supports beginners in the initial stages. Regardless of where the quadrocopter turns, the direction of flight always corresponds exactly to the direction specified with the control for forwards/backwards and sideways movement (2B). An example: If the model were to be turned 180^ and flown towards the operator, the operator would have to "convert" the forwards/backwards and sideways movement accordingly. This is no longer necessary if headless mode is activated, as the internal processor always converts the control directions automatically. A long press on button (2H) deactivates the mode.

Attention: The model, notes" the forwards direction during each switch-on. This means that the operator must not turn when controlling the model, as this would change the concept of "forwards" and right/left in relation to the model. If the operator changes position and wants to use headless mode - or if the control direction is no longer correct due to a collision, the model must be restarted.

Quick, vertical press on thrust and rotation controller (2A): Vertically pressing controller (2A) activates the second speed; pressing it again returns it to the first speed. Quick, vertical press on Forward/Reverse and Banking controller (2B): Quickly pressing controller (2B) activates the looping function. The model then performs a loop in the direction steered by the Forwards/Reverse and Banking controller. Long, vertical press on controller (2B): A long press of controller (2B) switches the status LED on the model on and off.

BATTERY STATUS:

The battery is empty if the model begins to lose thrust. Land in order to avoid crashing.

INSTRUCTIONS FOR SAFE FLYING

GENERAL FLYING TIPS:

• Always place the model on a level surface. An inclined surface can, under certain circumstances, have a negative impact on the starting behavior of the model.
• Always operate the controls slowly and with a gentle touch
  Always maintain visual contact with the model and do not look at the remote control!
• Move the thrust control down again somewhat as soon as the model lifts off from the ground. Maintain flying altitude by adjusting the thrust controller.
• if the model lowers, move the thrust control slightly upward again.
• if the model climbs, move the thrust control down slightly.
• To fly along a curve, lapping the directional controller very slightly in the respective direction often suffices.
  There is a general tendency during preliminary attempts at flight to operate the model's controls too aggressively Always operate the controls slowly and carefully. Never fast and fitfully.
• Beginners should first master turning before attempting to master the thrust controller. The model does not necessarily have to fly straight at the beginning - initially, it is more important to maintain a constant height of approximately one meter above the ground by repeatedly tapping the thrust control. Only then should the pilot practice steering (the model left and right).

8 CHANGING THE PROPELLERS

If the rotor blades on the model are damaged, they must be replaced. To do so, proceed as follows:
8A Unscrew the screw of the rotor blade anti-clockwise. Hold the faulty rotor blade with two fingers and pull it off carefully to the top.
8B Place the new rotor blade on the shaft and screw in the fixing screw carefully in clockwise direction. Caution: Do not tighten the screw too tightly, as this could damage the thread.
8C When mounting the rotor blade, please note that there are right turning (A) and left-turning (B) rotor blades.

TROUBLESHOOTING

Problem: The propellers do not move.

Cause: 1. No connection has been established.

1. The battery is too weak or depleted.

Remedy: 1. Switch everything off and switch on again in the correct sequence. 2. Charge the battery.

Problem: The model stops and descends during flight for no apparent reason.

Cause: The battery is too weak.

Remedy: Charge the battery.

Problem: The model cannot be controlled with the remote control.

Cause: 1. The ON/OFF switch is in the "OFF" position.

1. The batteries were not inserted correctly.

2. The batteries do not have enough power.

Remedy: 1. Set the ON/OFF switch to the "ON" position.

1. Check whether the batteries are inserted correctly.

2. Insert new batteries

Problem: The model only turns on its vertical axis or rolls over when started.

Cause: Incorrect arrangement of the propellers.

Remedy: Install the propellers and arms as outlined in the manual.

Problem: The model will no longer fly loops.

Cause: Battery too weak

Remedy: charge the battery.

Additional tips and tricks can be found online at www_REVell-control.de.

SERVICE NOTES

Go to www_REVell-control.de for ordering information and tips on replacing spare parts, plus other useful information on all Revell Control models.

www.revell-control.de

23913-23914

Revell

Control

CHARACTERISTIQUES PRINCIPALES

Quadricoptère:

Alimentation:
Puissance nominale
1xDC3.7V/2.9wh
Batterie Li-Po rechargeable (incluse) Capacite:780mA

INDICATIONS DE SERVICE

1. De accu is te zwak of leeq.

Electrical and electronic waste ordinance: After the end of use, remove all batteries and separately dispose of all electrically operated devices at the communal collection centres for electrical and electronic waste. Dispose of the remaining parts with household waste. Thank you for your cooperation!

Attention: Risk from heat development and rotating pails during operation Adult supervision is required!

Revell GmbH hereby declares that this product conforms with the basic requirements and the additional applicable provisions of Directive 1999/5/EC. The Declaration of Conformity can be found at www_REVelli-control.de.
