USER MANUAL GPS Pulse Revell

USB charger and battery

Micro-SD card (2GB), USB card reader

Carle micro-SD (2GB), lecleur de carle USB

High-resolution camera (1920x1080 pixel)

LED lighting

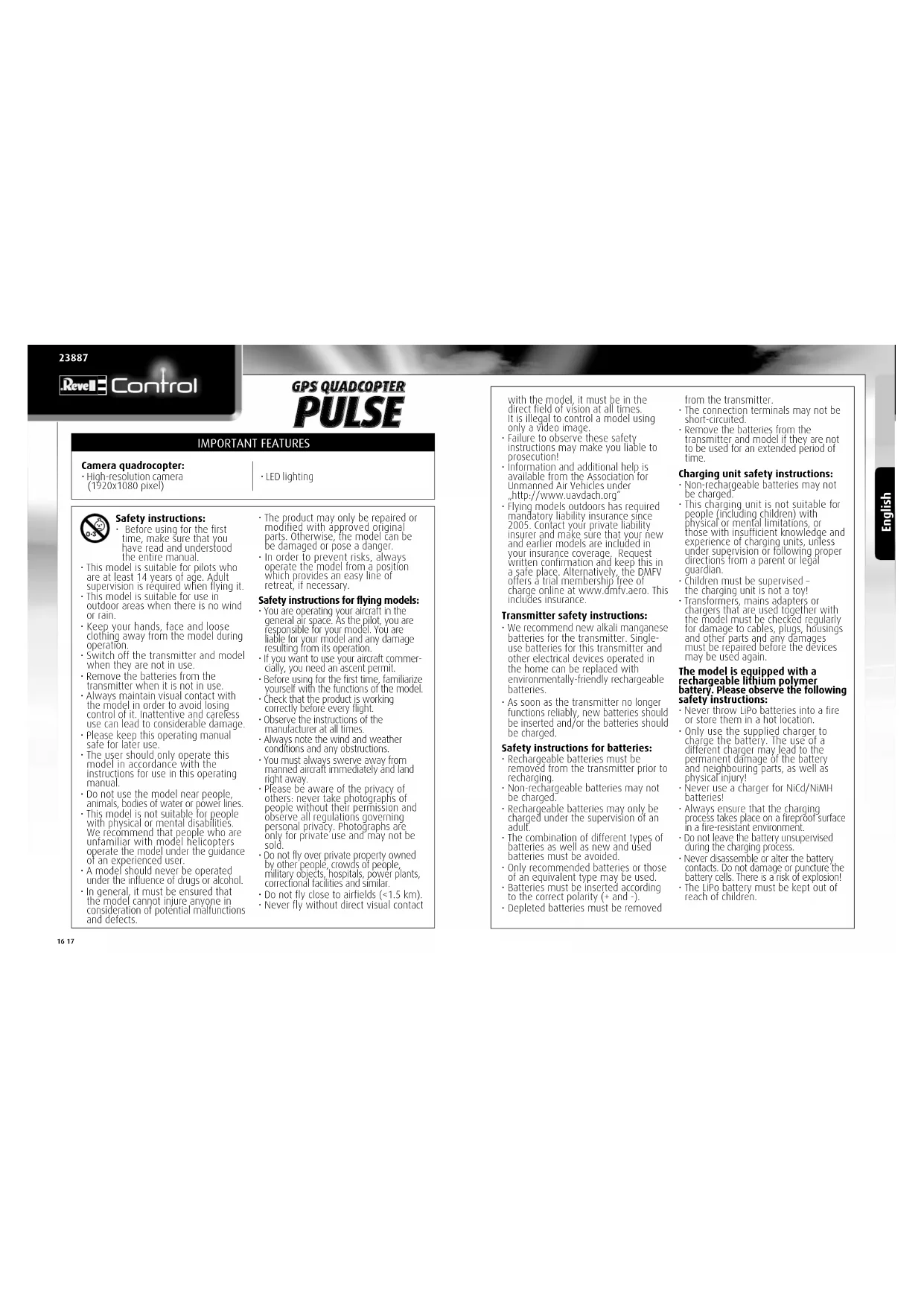

Safety instructions:

Before using for the first time, make sure that you have read and understood the entire manual.

This model is suitable for pilots who are at least 14 years of age. Adult supervision is required when flying it
This model is suitable for use in outdoor areas when there is no wind or rain.
- Keep your hands, face and loose clothing away from the model during operation.
- Switch off the transmitter and model when they are not in use.
- Remove the batteries from the transmitter when it is not in use
Always maintain visual contact with the model in order to avoid losing control of it. Inattentive and careless use can lead to considerable damage.
Please keep this operating manual safe for later use.
The user should only operate this model in accordance with the instructions for use in this operating manual.
Do not use the model near people, animals, bodies of water or power lines.
This model is not suitable for people with physical or mental disabilities. We recommend that people who are unfamiliar with model helicopters operate the model under the guidance of an experienced user.
A model should never be operated under the influence of drugs or alcohol.
In general, it must be ensured that the model cannot injure anyone in consideration of potential malfunctions and defects.

The product may only be repaired or modified with approved original parts. Otherwise, the model can be damaged or pose a danger.
In order to prevent risks, always operate the model from a position which provides an easy line of retreat, if necessary.

Safety instructions for flying models:

You are operating your aircraft in the general air space. As the pilot, you are responsible for your model. You are liable for your model and any damage resulting from its operation.
- If you want to use your aircraft commercially, you need an ascent permit.
Before using for the first time, familiarize yourself with the functions of the model.
- Check that the product is working correctly before every flight.
- observe the instructions of the manufacturer at all times.
- Always note the wind and weather conditions and any obstructions.
You must always swerve away from manned aircraft immediately and land right away.
- Please be aware of the privacy of others; never take photographs of people without their permission and observe all regulations governing personal privacy. Photographs are only for private use and may not be sold.
Do not fly over private property owned by other people, crowds of people, military objects, hospitals, power plants, correctional facilities and similar.
Do not fly close to airfields (< 1.5km) Never fly without direct visual contact

with the model, it must be in the direct field of vision at all times. It is illegal to control a model using only a video image.
Failure to observe these safety instructions may make you liable to prosecution!
Information and additional help is available from the Association for Unmanned Air Vehicles under http://www.uavdech.org
Flying models outdoors has required mandatory liability insurance since 2005. Contact your private liability insurer and make sure that your new and earlier models are included in your insurance coverage, Request written confirmation and keep this in a sale place. Alternatively, the DMFV offers a trial membership free of charge online at www.dmfv.aero, this includes insurance.

Transmitter safety instructions:

We recommend new alkali manganese batteries for the transmitter. Single-use batteries for this transmitter and other electrical devices operated in the home can be replaced with environmentally friendly rechargeable batteries.
As soon as the transmitter no longer functions reliably, new batteries should be inserted and/or the batteries should be charged.

Safety instructions for batteries:

• Rechargeable batteries must be removed from the transmitter prior to recharging.
  Non-rechargeable batteries may not be charged.
• Rechargeable batteries may only be charged under the supervision of an adult.
  The combination of different types of batteries as well as new and used batteries must be avoided.
  Only recommended batteries or those of an equivalent type may be used.
• Batteries must be inserted according to the correct polarity (+ and -).
• Depleted batteries must be removed

from the transmitter.
The connection terminals may not be short-circuited.
- Remove the batteries from the transmitter, and model if they are not to be used for an extended period of time.

Charging unit safety instructions:

Non-rechargeable batteries may not be charged.
This charging unit is not suitable for people (including children) with physical or mental limitations, or those with insufficient knowledge and experience of charging units, unless under supervision or following proper directions from a parent or legal guardian.
Children must be supervised the charging unit is not a toy!. Transformers, mains adapters or chargers that are used together with the model must be checked regularly for damage to cables, plugs, housings and other parts and any damages must be repaired before the devices may be used again.

The model is equipped with a rechargeable lithium polymer battery. Please observe the following safety instructions:

• Never throw LiPo batteries into a fire or store them in a hot location.
  Only use the supplied charger to charge the battery. The use of a different charger may lead to the permanent damage of the battery and neighbouring parts, as well as physical injury!
• Never use a charger for NiCd/NiMH batteries!
  Always ensure that the charging process takes place on a fireproof surface in a fire-resistant environment.
  Do not leave the battery unsupervised during the charging process.

• Never disassemble or alter the battery contacts. Do not damage or puncture the battery cells. There is a risk of explosion!
  The LiPo battery must be kept out of reach of children.

• When disposing of batteries, they must be discharged or their capacity must be fully depleted. Cover exposed terminals with adhesive tape in order to prevent short-circuiting!

Maintenance and care:

Please only use a clean, damp cloth to wipe off the model. Protect the model and batteries from direct sunlight and/or direct heat. Never allow the remote control and charging unit to come into contact with water, because the electronics will be damaged as a result.

Technical changes and differences in color reserved!

Required batteries for the quadrocopter:

Power supply: Rated output: DC 7,4 V/4.51 Wh Batteries: 1 × 3.7V rechargeable LiPo battery (included) Capacity: 610 mAh

Battery requirement for the remote control:

Power supply: DC 6 V Battery: A x 1.5 V "AAA" (not included)

USB charger:

Power supply:
DC 5 V via a 500 mA or higher USB port
Rated output: 5 V / 500 mA max.

1 QUADROCEPTOR

1A Rotors

18 Motor

1C Landing skid

1D Lens

1 Connection cable 1F Battery compartment

16 Micro-SD card slot

1H USB socket (for service only)

2 REMOTE CONTROL

2A Controller for thrust and rotation
2B Trim for rotation
2C ON/OFF switch
2D Trim for forwards and backwards flight 2E Trim for banking
2F Control for forwards/backwards and sideways
26 Display

2H Battery compartment locking screw
21 Battery compartment cover
21 Button for Return to Home function
2K Photo/video button
2L Battery compartment securing screw
2MBatterycompartment

3 DISPLAY OF REMOTE CONTROL

3A Satellite display
38 Number of satellites
3C Remote control battery condition
3D Video symbol
3E Photo symbol
3F Model battery condition
3G. Viewing direction"of the model in degrees (N = 0^, = 90^,S = 180^,W = 270^)
3H „Set Compass" symbol

31 Expert symbol
31 Mode 1/2 display
3K Altitude of the model (relative to the starting point)
3L Altitude" symbol
3M Distance of the model (relative to the
starting point)
3NDistance symbol

NSERTING BATTERIES (REMOTE CONTROL)

4A Unscrew and remove the cover.

4B Insert 4 x 1.5 V AAA batteries and pay attention to the polarity, as shown in the battery compartment.

4C Close the battery cover and secure with the screw.

5 CHARGING THE MODEL

Attention: The battery and motor must cool down for 10 to 15 minutes before charging and after every flight. Otherwise they can be damaged. The charging process must be constantly monitored. Always ensure that the charging process takes place on a fireproof surface in a fire-resistant environment.

• Unplug the model from the battery and switch off the remote control.
• Remove the battery from the battery compartment (do not pull by the cable!).
• Insert the white battery plug into the charging socket of the charger, making sure that the polarity is correct. The battery must be gently inserted into the charging socket - DO NOT USE FORCE. If the battery is not correctly inserted into the charging socket, the battery may become damaged and, under certain circumstances, cause injury. The charger flashes.
  The charging process starts automatically and must be continuously monitored. The charger flashes slowly during the charging process. (quick flashing indicates a malfunction - the charging process must be stopped immediately.) As soon as the charging process is complete, the charger lights up continuously.
• Disconnect the battery from the charger and disconnect the charger from the USB port once charging is complete.

After a charge time of approx. 80 minutes the model can fly for approx. 10-12 minutes.

Warning notice: The battery does not normally heat up while charging. If it should become warm and/or changes to the surface begin to appear, immediately discontinue the charging process!

6 MODE 1 AND MODE 2 SWITCH

The remote control can be switched from Mode 1 (thrust and rotation on the right stick, forwards/backwards and banking on the left stick) to Mode 2 (thrust and rotation on the left stick, forwards/backwards and banking on the right stick).

• Set the ON/OFF switch on the transmitter (2c) to the .Off' position.

For MODE 2 (6A):

1. Press both controls to the top left corner, hold them there and switch on the transmitter.
2. Turn both controls all the way around three times, and then press one of the trims for approx. 2 seconds until the remote control beeps once.

For MODE 1 (6B):

1. Press the left control to the top left corner and the right control to the top right corner, hold them there and switch the remote control on.
2. Turn both controls all the way around three times, and then press one of the trims for approx. 2 seconds until the remote control beeps once.

7 START PREPARATION (MODE 2)

Always observe the sequence when switching on! When switching off, always switch off the model before the transmitter. Go outside as the GPS of your model requires satellite reception.

• Set the ON/OFF switch on the remote control (2C) to the "ON" position.
• Push the battery into the battery compartment (1F). Attach the battery cable to the model's battery cable. The LEDs on the model start to blink.
  After a moment the notification Set Compass 1^ appears on the display - the gyrosopes of the model have to be calibrated (7A).
• Turn the model clockwise on its vertical axis while keeping it as horizontal as possible (7B) ideally place the model on a smooth floor or a table top and turn the model without picking it up), until the display shows Set Compass 2 (7C).
• Now hold the model horizontally, with the camera pointing downwards, and turn it anti-clockwise (70) until the "Set Compass 2" notification disappears. Then the calibration is finished.
• Place the model on the ground so that its tail points toward you. Wait until the model has located six more more satellites, see corresponding display notification (3A). Now switch the motors on by pressing both controls on the transmitter downwards and outwards (7E). Let go of the controls as soon as the motors start - your model is now ready to start.

To stop the motors press the controls outwards and downwards again. Important! Land first!

Important! Always place your model on a horizontal surface - the control electronics aligns its neutral position to the subsurface.

SWITCHING OFF:

disconnect the battery cable from the connection socket on the model. Set the ON/OFF switch on the remote control to the OFF position.

8 CONNECTING THE MODEL TO THE REMOTE CONTROL

The connection of your model to the remote control is already established at the factory. Should it become necessary to re-establish connection, proceed as follows:

• Unplug the battery from the model and switch off the transmitter.
  Press and hold the photo/video button and switch the transmitter on.
• Place the transmitter down next to the model. Insert the battery cable in the connection socket.
  As soon as the model has beeped once the connection is complete.

9 CALIBRATING THE REMOTE CONTROL

If the model drifts or if trimming is difficult while flying, try calibrating the transmitter.

Mode 1: press and hold the left control to the top left and the right control to the top right and switch on the transmitter. Then move both controls in a circle three times and then press one of the trim buttons for two seconds. When the transmitter beeps, the calibration is complete.

Mode 2: Press and hold both controls to the top left and switch on the transmitter. Then move both controls in a circle three times and then press one of the trim buttons for two seconds. When the transmitter beeps, the calibration is complete.

10 TRIM ADJUSTMENT OF THE CONTROL

The correct trim is a basic requirement for fault-free flying behaviour of the model. Its adjustment is simple, but it requires some patience and a feel for it. Please observe the following instructions precisely: Carefully move the thrust control up and raise the model approximately 0.5 to 1 metre in altitude.

10A If the model automatically moves slowly or quickly to the left or right ... gradually press the trim for sideways flight (2E) in the opposite direction.

108 If the model moves by itself slowly or quickly around its own axis ... gradually press the trim for rotation (2B) in the opposite direction.
10C If the model automatically moves slowly or quickly forwards or backwards ... gradually press the forwards/backwards trim (2D) in the opposite direction.
100 Control adjustment: by pressing the controls for forwards/backwards and sideways (2A) the sensitivity of the controls can be set to two levels (Normal and Expert).
Warning! Only switch to a higher level when you have mastered the lower!

11 FLIGHT CONTROL (MODE 2)

Note: Only minimal corrections of the controls are necessary for a smooth flying behaviour of the model. The direction indication applies when the model is viewed from behind. If the model is flying towards the pilot, it must be moved in the opposite direction.

11A Take off or increase altitude by carefully moving the control for thrust and rotation forward.
118 Land or decrease altitude by moving the control for thrust and rotation backward.
11C Fly forward by moving the controller for forward/backward and sideways flight carefully forward.
11D Fly backward by moving the controller for forward/backward and sideways flight carefully backward.
11E Fly to the left by moving the controller for forward/backward and sideways flight carefully to the left.
11F Fly to the right by moving the controller for forward/backward and sideways flight carefully to the right.
116 Turn the model around to the left by moving the control for thrust and rotation to the left.
11H Turn model around to the right by moving the control for thrust and rotation to the right.

HEADLESS MODE

When Headless Mode is activated, the model reacts to control commands, as though the tail of the model always faced the pilot, regardless of the direction of the model. Therefore, it can also be controlled normally without thinking.

By pressing the controls for forwards/backwards and sideways (2F) Headless Mode can be switched off and on.

Attention: To function correctly, Headless Mode must be activated when the tail of the model is pointing directly towards the pilot.

GPS RETURN-TO-HOME FUNCTION

This function moves your model back to its start position (the place where you started the motors). Here your model will first rise or fall to an altitude of approx. 10m , return to its start position and land.

By pressing the button for the Return to Home function (2J) the GPS Return to Home function can be switched on and off. Any movement of the two controls (2A) and (2F) ends the Return to Home function and the model can be normally controlled again.

Important! Always keep your model in view and the transmitter in your hands - you must be able to avoid any obstacles immediately at any time. Having the model fly alone via GPS without continuous visual checks by the pilot is against the law!

12CAMERA FUNCTION

The model has a camera for photos and videos and a slot for MicroSD cards.

Disconnect the model from the battery before inserting or removing a MicroSD card.

If the MicroSD card is inserted correctly, the model is connected correctly and a connection with the transmitter is in place, a blue LED lights up next to the card slot (1G).

Photos: briefly press the photo/video button to take a photo. The transmitter beeps twice, the LED next to the MicroSD card slot briefly lights up red and the photo symbol on the display (3E) briefly flashes.

Videos: hold the photo/video button to record a video. The transmitter beeps once, the LCD next to the MicroSD card slot flashes red and the video symbol on the display (3D) briefly flashes. Hold the photo/video button again to end the recording.

Note: No photos can be taken while a video is being recorded. To download the data from the SD card please follow the instructions of your operating system.

13 CHANGING THE PROPELLERS

Prior to installation, make sure that you do not mix up the propellers. The model has 4 different propellers, which differ in color and direction of rotation. If the propellers are mixed up, the model will not fly.

13A Arrangement of the propellers:

front left grey B

front right grey A

rear left black A

rear right black B

138 Loosen the screw in the centre of the propeller and pull it off the shaft.

13C The shaft has a flat point on its side. The propeller has a matching catch on the inside (see marking, 11C). Position the new propeller on the shaft in such a way that the marking is covered by the flat point. Firmly straighten the screw.

INSTRUCTIONS FOR SAFE FLYING

GENERAL FLYING TIPS:

• Always place the model on a level surface. directional controller very slightly in the An inclined surface can, under certain respective direction often suffices circumstances, have a negative impact on There is a general tendency during the starting behaviour of the model. preliminary attempts at flight to operate
• Always operate the controls slowly and with a gentle touch.
• Always maintain visual contact with the model and do not look at the transmitter!
• Move the thrust control down again somewhat as soon as the model lifts from the ground. Maintain flying altitude by adjusting the thrust controller.
• If the model lowers, move the thrust control slightly upward again.
• If the model climbs, move the thrust control down slightly.
  To fly along a curve, tapping the

BATTERY STATUS:

• If the battery is empty, the LEDs on the model start to flash. Land immediately in order to avoid crashing.

ATTENTION!

Flying model aircraft and helicopters outdoors has required mandatory liability insurance since 2005. Contact your private liability insurer and make sure that your new and earlier models are included in your insurance coverage. Request written confirmation and keep this in a safe place. Alternatively, the DMFV offers a trial membership free of charge online at www.dmfv.aero, which includes insurance.

TROUBLESHOOTING

Problem: Motors do not start.

Remedy: The model requires reception of at least six satellites in order to be able to start the motors.

Problem: The model stops and descends during flight for no apparent reason.

Cause: the battery is too weak.

Remedy: Charge the battery

Problem: The model only turns on its vertical axis or rolls over when started.

Cause: Incorrect arrangement of the propellers.

Remedy: Install the propellers and arms as outlined in the manual (see point 13).

Problem: The model cannot be controlled with the remote control.

Cause: No connection between the model and remote control

Remedy: Reconnect model and remote control as described under point 8.

Additional tips and tricks can be found online at www_REVell-control.de.

SERVICE NOTES

Go to www.revell-control.de for ordering information and tips on replacing spare parts, plus other useful information on all Revell Control models.

23887

Revie

Control

GPS QUADCOPTER

PULSE

CHARACTERISTIQUES PRINCIPALES

Camera haute definition (1920x1080 pixels)

Eclairage diodes

Puisallionomina:DC7.4V/4.51Wh Piles:1batteri Li-Po rechargeable de3.7V (inclusive)

Capacité : 610 mAh

Alimentation: = = DC 6 V

Piles: 4 piles AAA de 1,5 V (non fourneys)

Chargeur USB :

7 PREPARATION AU DEMARRAGE (MODE 2)

INDICATIONS DE SERVICE

2C Interruptor ON/OFF

Electrical and electronic waste ordinance: After the end of use, remove all batteries and separately dispose of all electrically operated devices at the communal collection centres for electrical and electronic waste. Dispose of the remaining part with household waste. Thank you for your cooperation!

Attention: Risk from heat development and rotating parts during operation Adult supervision is required!

Revell GmbH hereby declares that this product conforms with the basic requirements and the additional applicable provisions of Directive 1999/5/LC. The Declaration of Conformity can be found at www.revell-control.de
