USER MANUAL Headliner PEAVEY

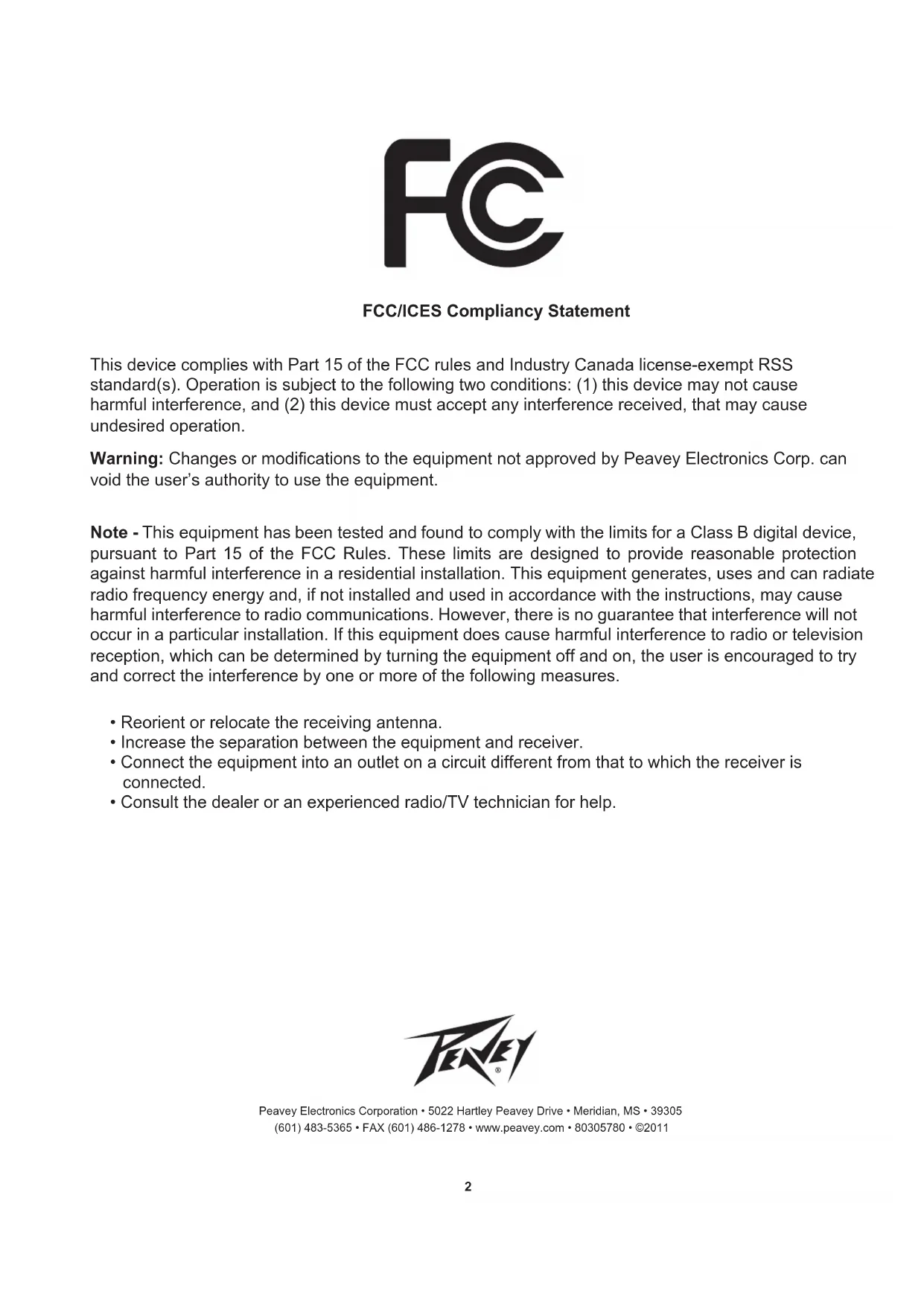

This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, that may cause undesired operation.

Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void the user's authority to use the equipment.

Note - This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Peavey Electronics Corporation • 5022 Hartley Peavey Drive • Meridian, MS • 39305

Welcome to Peavey bass amplification!

Peavey bass guitar amplifiers are legendary for their state of the art features, class-leading power, superb tone, and unmatched reliability. The Peavey Headliner is a 1000-watt bass amplifier head that puts an incredible range of features at players' fingertips. The amp features a seven-band graphic EQ spaced at optimized frequencies, with each slider providing 15 dB of cut and boost, to provide comprehensive tone shaping at precise frequency bands. Players can use the graphic EQ in conjunction with the low and high shelving-type tone controls, or bypass the graphic EQ entirely. A built-in optical Compressor with level control and bypass allows players to add the right amount of compression to the mix, while the Crunch feature adds a vintage tube effect that distorts only the high frequencies, preserving the all-important fat low end. The amp also features Bright and Contour switches, effects loop, master volume and headphone out. The Compressor and Crunch features are footswitch selectable. The Headliner features a built-in XLR direct interface that players can use to route the signal to the house sound system or recording device, and an active/passive pickup switch that compensates for hot inputs. Peavey's DDT" speaker protection circuitry senses the onset of clipping and responds with slight compression that allows the amp to retain the tone, headroom and dynamics.

Please read this guide carefully to ensure your personal safety as well as the safety of your amplifier.

FEATURES:

• 7-band graphic equalizer with push-button bypass
  • Class D Power Section
• DDT ^™ (Distortion Detection Technique) technology
  • Built-in Crunch effect
  • Studio quality balanced DI output
  • Built-in Optical compressor
• Buffered Effects Loop
• Twist-lock combination Powered Speaker Output
  • Active/Passive Instrument Switch
  • Pre and Post Gain controls
• Low & High Shelving EQ
• Contour Control
  COMPRESSOR ON/OFF SWITCH

VENTILATION: For proper ventilation, allow 12" clearance from the nearest combustible surface.

All vents should have a minimum of 2" of free air space so air can flow thru the unit freely for proper cooling.

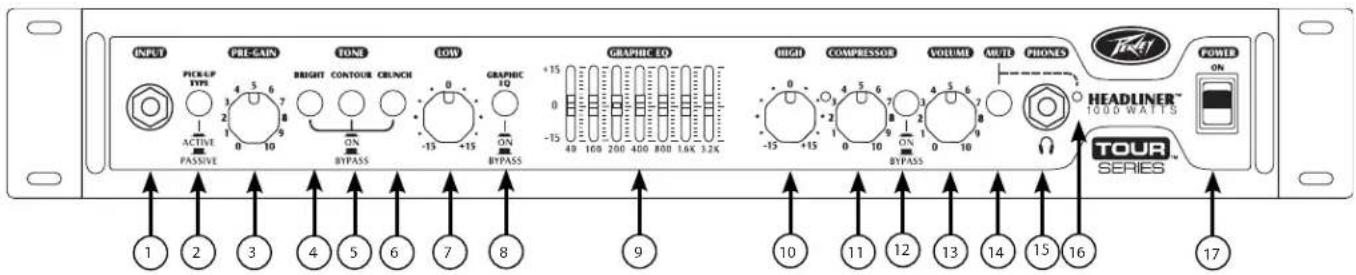

INPUT PRE-GAIN FONE LOW GRAPHIC ED GRAPHIC ED HIGH COMPRESSOR VOLUME MUTE PHONES POWER ON HEADLINER™ 1000 WATTS TOUR SERIES 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 PICKUP TYPE ACTIVE PASSIVE ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS ON BYPASS OF OUT 17

INPUT

1/4" Instrument Input. WARNING: Never plug the output of a power amplifier into the input jacks. Damage may occur to both units.

ACTIVE/PASSIVE PICKUP SWITCH

This switch is included so you can choose the appropriate setting for your instrument. The gain structure of the amplifier is modified to accommodate both active or passive pickup configurations.

PRE GAIN

This knob controls input level of the instrument.

BRIGHT SWITCH

This button provides a 10 dB boost to frequencies above 1kHz. To activate, press the switch to its "ON" position.

CONTOUR

This button boosts highs and lows while simultaneously cutting mid tones, producing a "scooped" sound.

CRUNCH SWITCH

This button engages a crunch effect, simulating the classic overdriven tube amp sound. When using the crunch feature, turning the tweeter off on your cabinet will result in a more authentic overdriven tone.

LOW

This knob provides a shelving tone control for low frequencies and provides cut/boost of +/-15 dB. The center point is flat. The center frequency is 50 Hz. The -3 dB shelf corner frequency is 100Hz.

EQ BYPASS

This button removes the graphic equalizer from the audio chain. When this switch is in the "Bypass" position, the amp will respond as if the graphic equalizer is set flat.

GRAPHIC EQUALIZER

These sliders provide precise tone control through the constant-Q, seven-band equalizer. Each band may be boosted or cut 15 dB.

HIGH

This knob provides a shelving tone control for high frequencies and cut/boost of +/-15dB . The center point is flat and the frequency is 8 KHz. The -3dB; the shelf corner frequency is 5 KHz.

COMPRESSOR

Rotating this knob clockwise will increase the amount of compression in the signal chain.

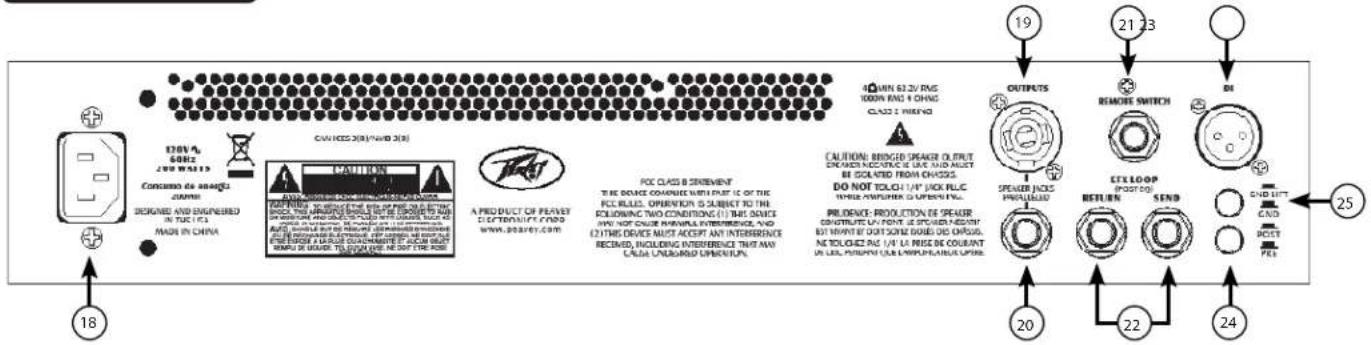

120V A 60Hz Concado de anagra Jumer DESIGNED AND ENGINEER IN THE RCA MAD IN CHINA CAVICES (30/1/98/2018) CAVICUM A PRODUCT OF PEAVET ELECTRONICS COLD www.2024167.com POC CLASS & SEVERNMENT THE DANCE COMPRENT WITH PART IS OF THE PECLULES OPERATOR IS SUBJECT TO THE EQUIRING TWO CONDITIONS (I) THIS SENS APV NOT COUSE PRIORLY INTERFERENCE, NO LETTHIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THIS AND CREAM UNLABIDED INTERFERENCE. 40 MIN 62.2V END 1000N END & ONION CLASS 2 FRIEND CAVICUM SHIKED SPEAKER OUTPUT DEATHEN NECESSIVE IS USE AND MEAT IN SOX AT END FROM CHASS. DO NOT TOUCH UP PACK RLC WHERE PUPPER UP PUPPER PA. PROVIDENCE PRODUCTION OF SPEAR CONSTITUTE UP FONT AS SPRING RESIST BY MOUNT OUT ZONE BONE DES OBLIGS, NOT LOUZEN INC. U/R LI PREISE COUANT UN LUX, PROPERTY U/L SUPPLY UNIBLE UTIME. OUTPUTS SPENDER FACE PRELISHED 20 21 23 REMOTE SWITCH EXEL LOOP POST TO: BERLIN SEND CND LETT CAD POST PES 25

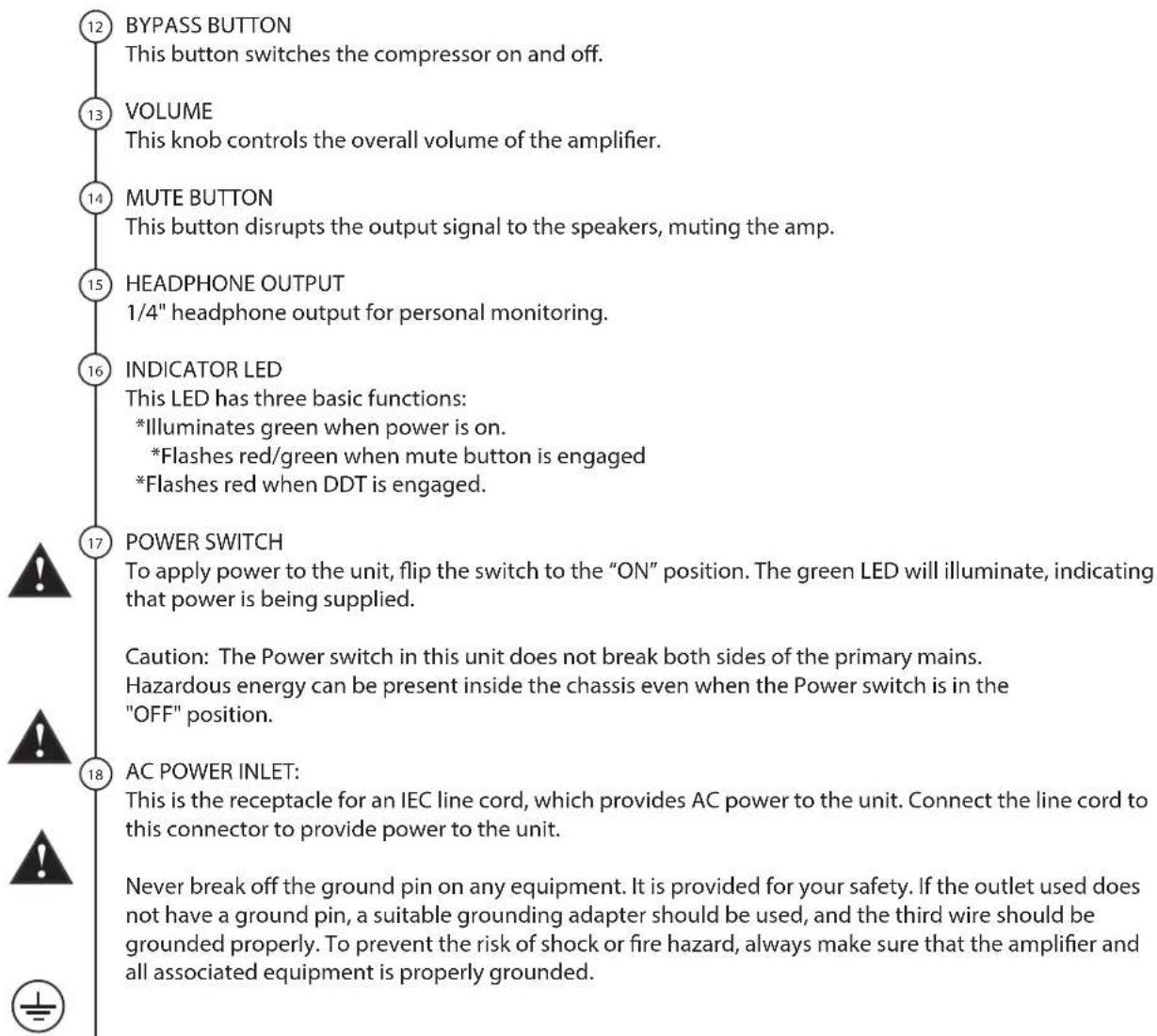

12 BYPASS BUTTON This button switches the compressor on and off. 13 VOLUME This knob controls the overall volume of the amplifier. 14 MUTE BUTTON This button disrupts the output signal to the speakers, muting the amp. 15 HEADPHONE OUTPUT 1/4" headphone output for personal monitoring. 16 INDICATOR LED This LED has three basic functions: *Illuminates green when power is on. *Flashes red/green when mute button is engaged *Flashes red when DDT is engaged. 17 POWER SWITCH To apply power to the unit, flip the switch to the "ON" position. The green LED will illuminate, indicating that power is being supplied. Caution: The Power switch in this unit does not break both sides of the primary mains. Hazardous energy can be present inside the chassis even when the Power switch is in the "OFF" position. 18 AC POWER INLET: This is the receptacle for an IEC line cord, which provides AC power to the unit. Connect the line cord to this connector to provide power to the unit. Never break off the ground pin on any equipment. It is provided for your safety. If the outlet used does not have a ground pin, a suitable grounding adapter should be used, and the third wire should be grounded properly. To prevent the risk of shock or fire hazard, always make sure that the amplifier and all associated equipment is properly grounded.

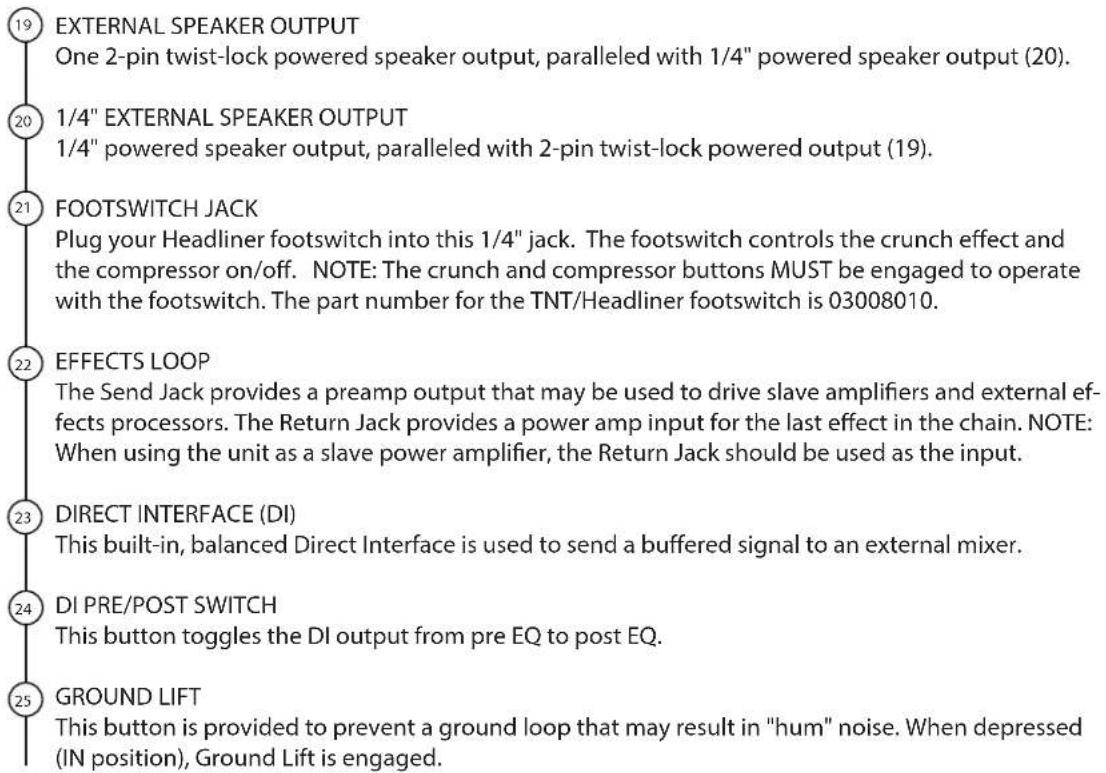

19 EXTERNAL SPEAKER OUTPUT One 2-pin twist-lock powered speaker output, paralleled with 1/4" powered speaker output (20). 20 1/4" EXTERNAL SPEAKER OUTPUT 1/4" powered speaker output, paralleled with 2-pin twist-lock powered output (19). 21 FOOTSWITCH JACK Plug your Headliner footswitch into this 1/4" jack. The footswitch controls the crunch effect and the compressor on/off. NOTE: The crunch and compressor buttons MUST be engaged to operate with the footswitch. The part number for the TNT/Headliner footswitch is 03008010. 22 EFFECTS LOOP The Send Jack provides a preamp output that may be used to drive slave amplifiers and external effects processors. The Return Jack provides a power amp input for the last effect in the chain. NOTE: When using the unit as a slave power amplifier, the Return Jack should be used as the input. 23 DIRECT INTERFACE (DI) This built-in, balanced Direct Interface is used to send a buffered signal to an external mixer. 24 DI PRE/POST SWITCH This button toggles the DI output from pre EQ to post EQ. 25 GROUND LIFT This button is provided to prevent a ground loop that may result in "hum" noise. When depressed (IN position), Ground Lift is engaged.

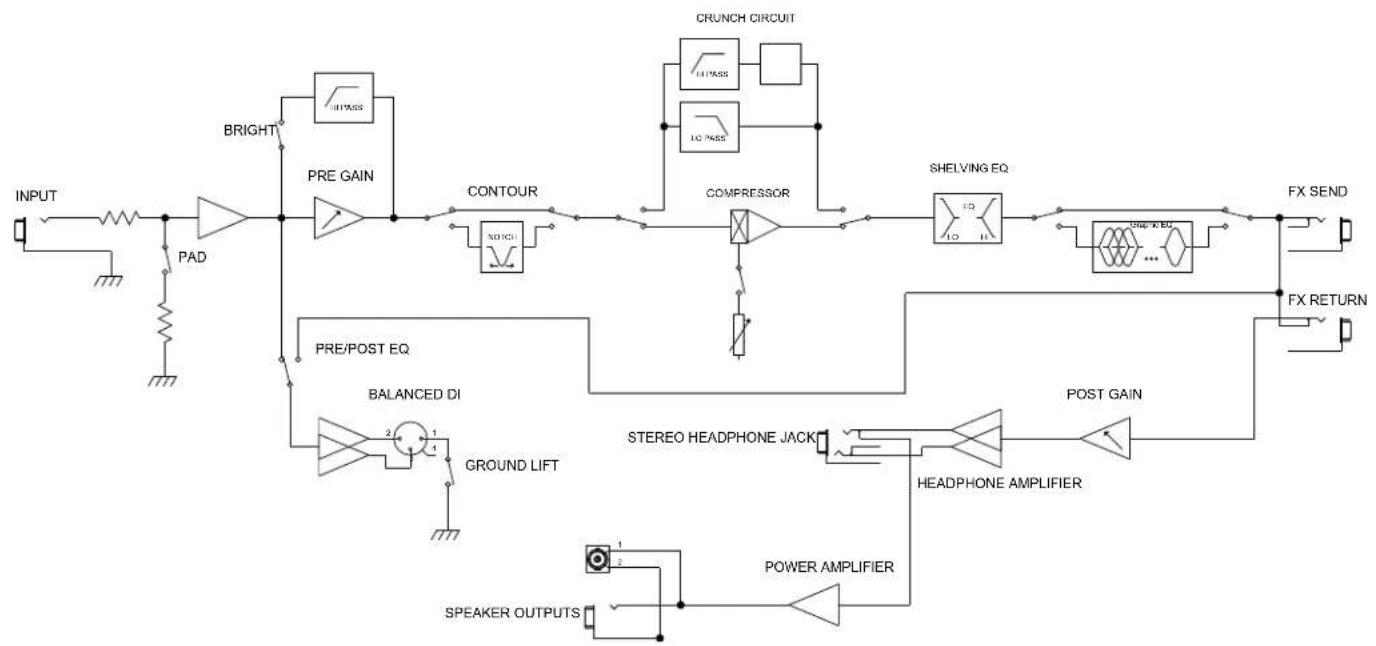

Tour Series Headliner Head Block Diagram

Tour™ Series Headliner™ Head Specifications

Tour Series Headliner Head

NOTE: All specifications tested with mains voltage maintained at nominal level.	8 ohms 700 watts (75.0 VRMS)4 ohms 1000 watts (63.2 VRMS)	Maximum Input = 1.3 dBu (maximum signal at input before clipping)Input Sensitivity (input selector set to active):Nominal Input = -3.80 dBuMinimum Input = -31.3 dBuMaximum Input = 10.2 dBu (maximum signal at input before clipping)D.I. XLR Output:
Line Voltage:120V 60 Hz220V - 240V 50/60 Hz	Headphone Amplifier Specifications:Stereo 8 ohm minimum loadPower Output:All measurements with no more than 1% THD + N8 ohms 250 mW (1.41 VRMS) x 2	Balanced output driven pre-EQ by buffered instrument signal FootSwitch Jack:Ground switching type, TRS phone plug (T = compressor, R = crunch, S = ground)Weight:12 lbs. / 5.4 Kg
Typical Power Consumption = 200W
Power Amplifier Specifications:
Protection:DDTTM speaker protection with defeat switchShort circuit protectionThermal protection circuitCurrent limit protection circuitDC output protection circuit	Preamplifier Specifications:Settings for the Following Measurements (unless stated otherwise):PRE GAIN = 5 (12 o'clock)BRIGHT = outCONTOUR = outCRUNCH = outLOW = 0 (12 o'clock)	Dimensions (h x w x d):(h x w x d): 2.813in / 7.14cm x17.375in / 44.13cm x 12.500in
Input Sensitivity (signal into return jack with master volume set to 5):7.32 dBu	HIGH = 0 (12 o'clock)GRAPHIC EQ = All sliders set to centerGRAPHIC EQ SWITCH = outCOMPRESSION = OUTPOST GAIN = 10 (fully CW)DDTTM = Active
Power Output:All measurements with no more than 1% THD + N	Input Sensitivity (input selector set to passive):Nominal Input = -17.8 dBuMinimum Input = -40.9 dBu

Features and specifications subject to change without notice. All specifications tested with mains voltage maintained at nominal level.

FRANCAIS

Headliner™ Serie Tour™

Features and specifications subject to change without notice.

Peavey Electronics Corporation • 5022 Hartley Peavey Drive • Meridian • MS • 39305

[phone] • FAX [phone] • www.peavey.com • ©2011 • EX000129

PEAVEY ELECTRONICS CORPORATION LIMITED WARRANTY

Effective Date: 09/15/2010

What This Warranty Covers

Your Peavey Warranty covers defects in material and workmanship in Peavey products purchased and serviced in the U.S.A. and Canada.

What This Warranty Does Not Cover

The Warranty does not cover: (1) damage caused by accident, misuse, abuse, improper installation or operation, rental, product modification or neglect; (2) damage occurring during shipment; (3) damage caused by repair or service performed by persons not authorized by Peavey; (4) products on which the serial number has been altered, defaced or removed; (5) products not purchased from an Authorized Peavey Dealer.

Who This Warranty Protects

This Warranty protects only the original purchaser of the product.

How Long This Warranty Lasts

The Warranty begins on the date of purchase by the original retail purchaser. The duration of the Warranty is as follows:

Product Category Duration
Guitars/Basses, Amplifiers, Preamplifiers, Mixers, Electronic Crossovers and Equalizers 2 years *(+ 3 years)
Drums 2 years *(+ 1 year)
Enclosures 3 years *(+ 2 years)
Digital Effect Devices and Keyboards and MIDI Controllers 1 years *(+ 1 year)
Microphones 2 years
Speaker Components(incl. Speakers, Baskets, Drivers, Diaphragm Replacement Kits and Passive Crossovers)	1 year
Tubes and Meters	90 Days
Cables Limited Lifetime
AmpKit Link, Xport, Rockmaster Series, Strum'n Fun, RetroFire, GT & BT Series Amps	1 year

[* Denotes additional Warranty period applicable if optional Warranty Registration Card is completed and returned to Peavey by original retail purchaser within 90 days of purchase.]

What Peavey Will Do

We will repair or replace (at Peavey's discretion) products covered by Warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for Warranty service, the consumer must pay initial shipping charges. If the repairs are covered by Warranty, Peavey will pay the return shipping charges.

How To Get Warranty Service

(1) Take the defective item and your sales receipt or other proof of date of purchase to your Authorized Peavey Dealer or Authorized Peavey Service Center.

OR

(2) Ship the defective item, prepaid, to Peavey Electronics Corporation, International Service Center, 412 Highway 11 & 80 East, Meridian, MS 39301. Include a detailed description of the problem, together with a copy of your sales receipt or other proof of date of purchase as evidence of Warranty coverage. Also provide a complete return address.

Limitation of Implied Warranties

ANY IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.

Some states do not allow limitations on how long an implied Warranty lasts, so the above limitation may not apply to you.

Exclusions of Damages

PEAVEY'S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT, AT PEAVEY'S OPTION. IF WE ELECT TO REPLACE THE PRODUCT, THE REPLACEMENT MAY BE A RECONDITIONED UNIT. PEAVEY SHALL NOT BE LIABLE FOR DAMAGES BASED ON INCONVENIENCE, LOSS OF USE, LOST PROFITS, LOST SAVINGS, DAMAGE TO ANY OTHER EQUIPMENT OR OTHER ITEMS AT THE SITE OF USE, OR ANY OTHER DAMAGES WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE, EVEN IF PEAVEY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If you have any questions about this Warranty or services received or if you need assistance in locating an Authorized Service Center, please contact the Peavey International Service Center at [phone].

Features and specifications are subject to change without notice.
