USER MANUAL Tour Series TKO Combo PEAVEY

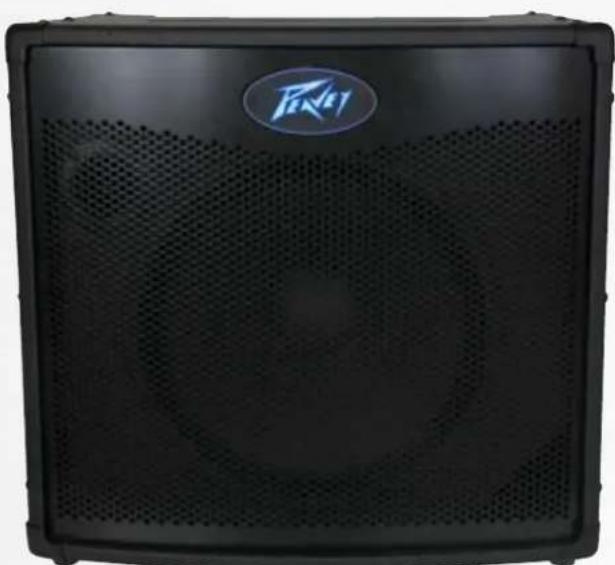

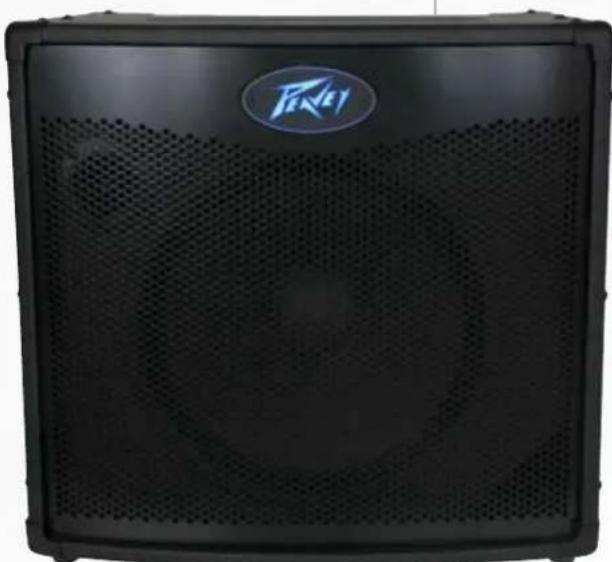

Tour™ Series TNT Combo Tour™ Series TKO Combo

Bass Amplifiers

Operating Manual

Intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: Risk of electrical shock - DO NOT OPEN!

CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: To prevent electrical shock or fire hazard, this apparatus should not be exposed to rain or moisture, and objects filled with liquids, such as vases, should not be placed on this apparatus. Before using this apparatus, read the operating guide for further warnings.

Protective earthing terminal. The apparatus should be connected to a mains socket outlet with a protective earthing connection.

jglgull glaal y jy jy jy jall jall jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay

PbIwOUsUgS. 100000000000000000000000000000000000000000000000

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using electrical products, basic cautions should always be followed, including the following:

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding plug. The wide blade or third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point they exit from the apparatus.
11. Only use attachments/accessories provided by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
    Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14. Never break off the ground pin. Write for our free booklet "Shock Hazard and Grounding." Connect only to a power supply of the type marked on the unit adjacent to the power supply cord.
15. If this product is to be mounted in an equipment rack, rear support should be provided.
16. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug, proceed as follows: a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow. b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black. c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.
17. This electrical apparatus should not be exposed to dripping or splashing and care should be taken not to place objects containing liquids, such as vases, upon the apparatus.
18. The on/off switch in this unit does not break both sides of the primary mains. Hazardous energy can be present inside the chassis when the on/off switch is in the off position. The mains plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
19. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures:

Duration Per Day In Hours Sound Level dBA, Slow Response
8 90
6 92
4 95
3 97
2 100
1 1/2 102
1 105
1/2	110
14 or less	115

According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Earplugs or protectors to the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss, if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.

a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow.
b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.

c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow.
b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.

c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow.
b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.

c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

2. 1
   3.无国
   4.品言之剂者叫拉子职
9. 期元用国
10. 期子用中，自志之和，于国，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，
13. 电
14. 这首诗是《喜马拉雅湖》中最写意的歌之一，它写的是“我”和“你”的关系。
15. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug, proceed as follows: a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow. b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black. c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.
17. 1
18. 1

eall jia jia jie jai jia jia jia jia 5

Aaaiy

aaii 7

8

9

aallll 1y

jll j 10

11

jai jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia j

gill 1000000000000000000000000000000000000000000000000000000000000

aal 2jna jss sall sall a

.16

17

Logo referenced in Directive 2002/96/EC Annex OJ(L)37/38,13.02.03 and defined in EN 50419:2005

The bar is the symbol for marking of new waste and is applied only to equipment manufactured after 13 August 2005

Correct Disposal of this product. This marking indicates that this product should not be disposed with other house hold wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems, or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, that may cause undesired operation.

Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void the user's authority to use the equipment.

Note - This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

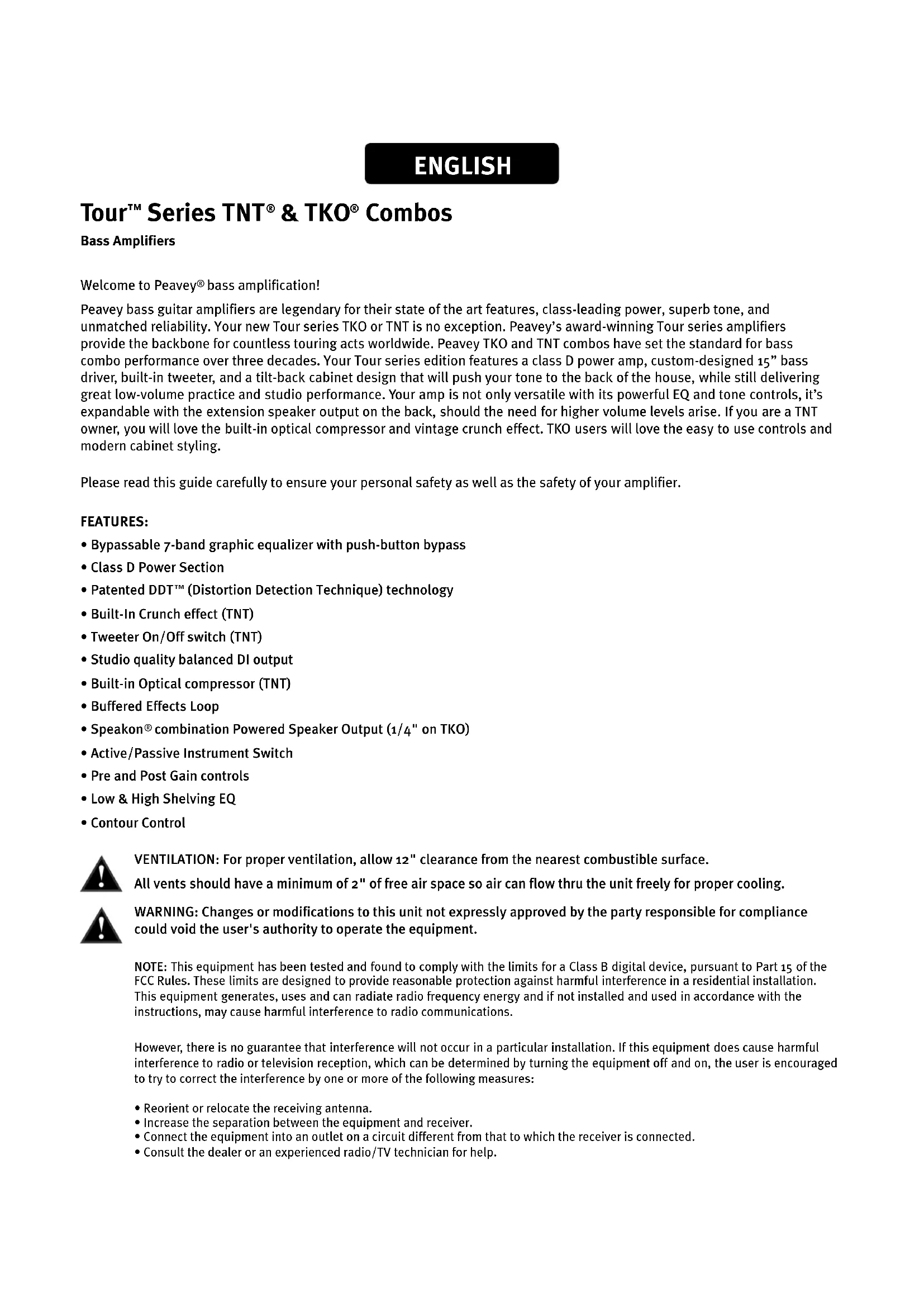

ENGLISH

Tour™ Series TNT® & TKO® Combos

Bass Amplifiers

Welcome to Peavey® bass amplification!

Peavey bass guitar amplifiers are legendary for their state of the art features, class-leading power, superb tone, and unmatched reliability. Your new Tour series TKO or TNT is no exception. Peavey's award-winning Tour series amplifiers provide the backbone for countless touring acts worldwide. Peavey TKO and TNT combos have set the standard for bass combo performance over three decades. Your Tour series edition features a class D power amp, custom-designed 15" bass driver, built-in tweeter, and a tilt-back cabinet design that will push your tone to the back of the house, while still delivering great low-volume practice and studio performance. Your amp is not only versatile with its powerful EQ and tone controls, it's expandable with the extension speaker output on the back, should the need for higher volume levels arise. If you are a TNT owner, you will love the built-in optical compressor and vintage crunch effect. TKO users will love the easy to use controls and modern cabinet styling.

Please read this guide carefully to ensure your personal safety as well as the safety of your amplifier.

FEATURES:

• Bypassable 7-band graphic equalizer with push-button bypass
  Class D Power Section
• Patented DDT™ (Distortion Detection Technique) technology
  Built-In Crunch effect (TNT)
• Tweeter On/Off switch (TNT)
• Studio quality balanced DI output
  Built-in Optical compressor (TNT)
• Buffered Effects Loop
• Speakon® combination Powered Speaker Output (1/4" on TKO)
  Active/Passive Instrument Switch
  Pre and Post Gain controls
• Low & High Shelving EQ
• Contour Control

VENTILATION: For proper ventilation, allow 12" clearance from the nearest combustible surface.

All vents should have a minimum of 2" of free air space so air can flow thru the unit freely for proper cooling.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

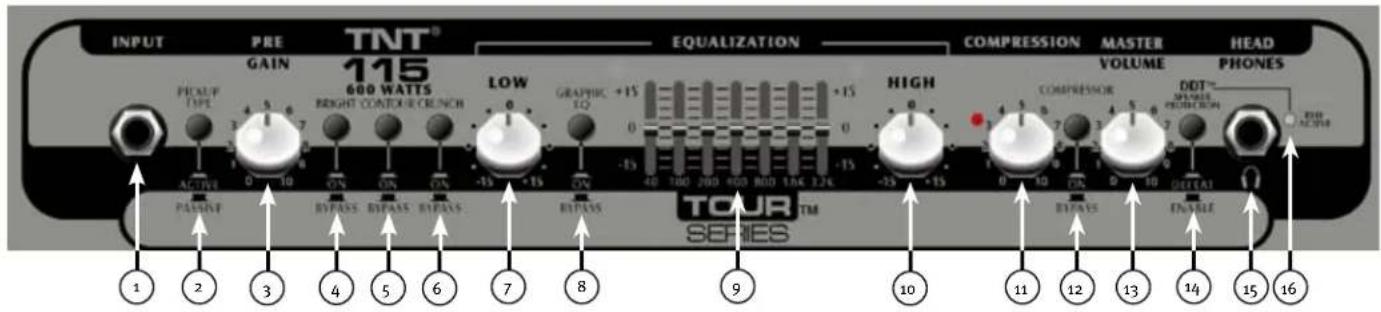

INPUT

1/4" Instrument Input

WARNING: Never plug the output of a power amplifier into the input jacks. Damage may occur to both units.

ACTIVE/PASSIVE PICKUP SWITCH

This switch is included so you can choose the appropriate setting for your instrument. Passive pickups have a lower output, so the gain structure of the amplifier is modified to accommodate the different pickup configurations.

PRE GAIN

This knob the controls input level of the instrument.

BRIGHT SWITCH

This button provides a 10 dB boost to frequencies above 1KHz. To activate, depress the switch to its "IN" position.

CONTOUR

This button boosts highs and lows while simultaneously cutting mid tones, producing a "scooped" sound.

CRUNCH SWITCH

This button engages a crunch effect, simulating the classic overdriven tube amp sound.

LOW

This knob provides a shelving tone control for low frequencies and provides cut/boost of +/-15 dB. The center point is flat. The center frequency is 50 Hz -3 dB; the shelf corner frequency is 100 Hz.

EQ BYPASS

This button removes the graphic equalizer from the audio chain. The "OUT" position of the switch bypasses the EQ, and the amp will respond as if the graphic equalizer is set flat.

GRAPHIC EQUALIZER

These sliders provide precise tone control through the constant-Q, seven band equalizer. Each band may be boosted or cut 15 dB.

HIGH

This knob provides a shelving tone control for high frequencies and cut/boost of +/-15dB . The center point is flat and the frequency is 8 KHz -3 dB; the shelf corner frequency is 5 KHz.

COMPRESSOR

Rotating this knob clockwise will increase the amount of compression in the signal chain.

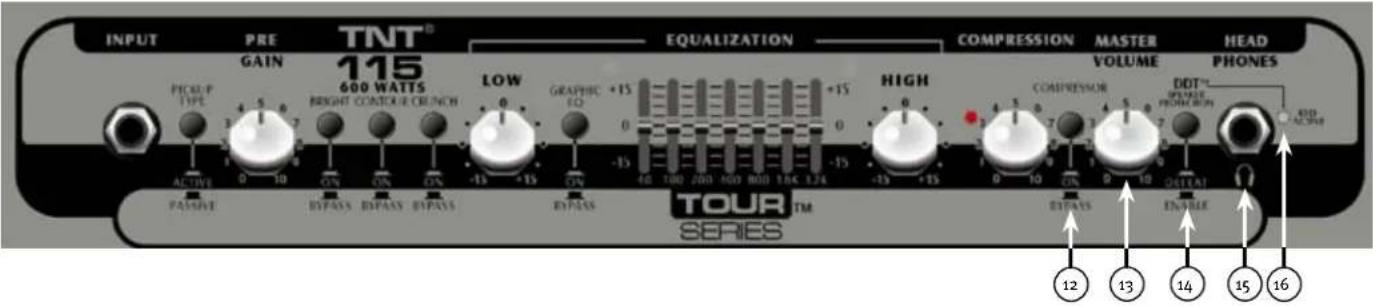

12 COMPRESSOR ON/OFF SWITCH

This button turns the compressor on or off.

VOLUME

This knob controls the overall volume of the amplifier.

This button prevents power amplifier clipping that can sound bad and damage speakers. The "IN" or "DEFEAT" position of the switch bypasses the DDT circuit. However, Peavey recommends the DDT stay enabled for optimum system performance.

15 HEADPHONE OUTPUT

1/4" headphone output for personal monitoring.

DDT INDICATOR LIGHT

When the DDT is enabled, the red Protect/ClipLED will flash when DDT is triggered. It is normal operation for the LED to flash. However, if the LED is constantly illuminated, the gain level needs to be adjusted to prevent possible equipment damage. When the DDT is defeated, the LED becomes a clip indicator.

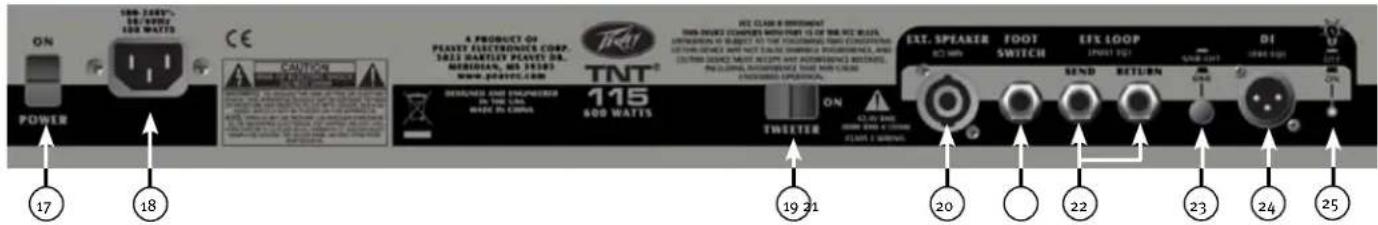

17 POWER SWITCH

To apply power to the unit, flip the switch to the "On" position. The green LED will illuminate, indicating power is being supplied.

CAUTION: The on/off switch in this unit does not break both sides of the primary mains. Hazardous can be present inside the chassis even when the on/off switch is in the OFF position.

AC POWER INLET:

This is the receptacle for an IEC line cord, which provides AC power to the unit. Connect the line cord to this connector to provide power to the unit. Damage to the equipment may result if improper line voltage is used. (See line voltage marking on unit).

Never break off the ground pin on any equipment. It is provided for your safety. If the outlet used does not have a ground pin, a suitable grounding adapter should be used, and the third wire should be grounded properly. To prevent the risk of shock or fire hazard, always make sure that the amplifier and all associated equipment is properly grounded.

NOTE: FOR UK ONLY

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

TWEETER SWITCH

This switch turns the tweeter on/off. Usually when the CRUNCH effect is engaged, this switch would be switched to the OFF position.

EXTERNAL SPEAKER OUTPUT

"Combi" type powered output for powering a passive enclosure.

FOOTSWITCH JACK

Plug your TNT footswitch into this 1/4 '' jack. The footswitch controls the crunch effect and the compressor on/off.

NOTE: The crunch and compressor buttons MUST be pushed in to operate with the footswitch.

EFFECTS LOOP

The Send Jack provides a pre amp output that may be used to drive slave amplifiers and external effects processors. The Return Jack provides a power amp input for the last effect in the chain.

NOTE: When using the unit as a slave power amplifier, the Return Jack should be used as the input.

GROUND LIFT

This button is provided to prevent a ground loop that may result in "hum" noise. When depressed (IN position), Ground Lift is engaged.

DIRECT INTERFACE (DI)

This is a built-in, balanced Direct Interface used to send a buffered, unprocessed signal to an external mixer.

PEAVEY LOGO BACKLIGHT SWITCH

This button turns the backlight on the Peavey Logo on or off.

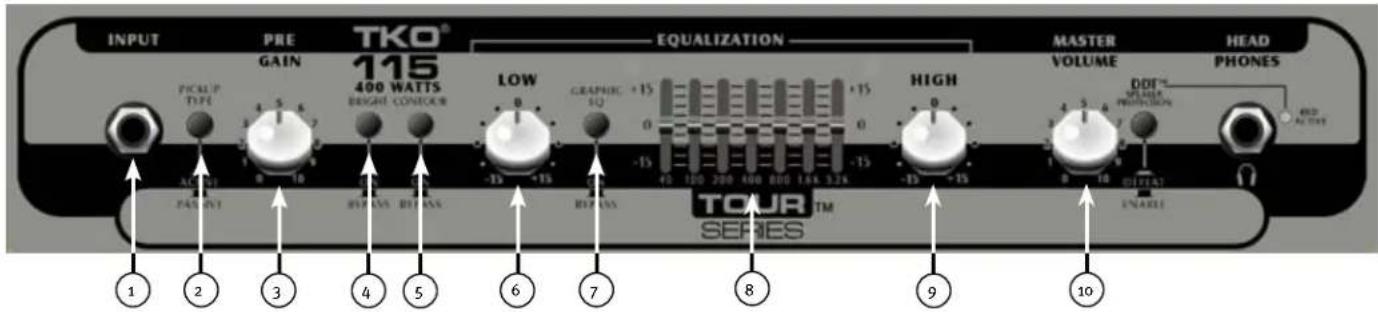

INPUT

1/4" Instrument Input

WARNING: Never plug the output of a power amplifier into the input jacks. Damage may occur to both units.

ACTIVE/PASSIVE PICKUP SWITCH

This switch is included so you can choose the appropriate setting for your instrument. Passive pickups have a lower output, so the gain structure of the amplifier is modified to accommodate the different pickup configurations.

PRE GAIN

This knob controls the input level of the instrument.

BRIGHT SWITCH

This button provides a 10 dB boost to frequencies above 1KHz. To activate, depress the switch to its "IN" position.

CONTOUR

This button boosts highs and lows while simultaneously cutting mid tones, producing a "scooped" sound.

LOW

This knob provides a shelving tone control for low frequencies and provides cut/boost of +/-15 dB. The center point is flat. The center frequency is 50 Hz -3 dB; the shelf corner frequency is 100Hz.

EQ BYPASS

This button removes the graphic equalizer from the audio chain. The "IN" position of the switch bypasses the EQ, and the amp will respond as if the graphic equalizer is set flat.

GRAPHIC EQUALIZER

These sliders provide precise tone control through the constant-Q, nine band equalizer. Each band may be boosted or cut 15 dB.

HIGH

This knob provides a shelving tone control for high frequencies and cut/boost of +/-15dB . The center point is flat and the frequency is 8 KHz -3 dB; the shelf corner frequency is 5 KHz.

MASTER VOLUME

This knob controls the overall volume of the amplifier.

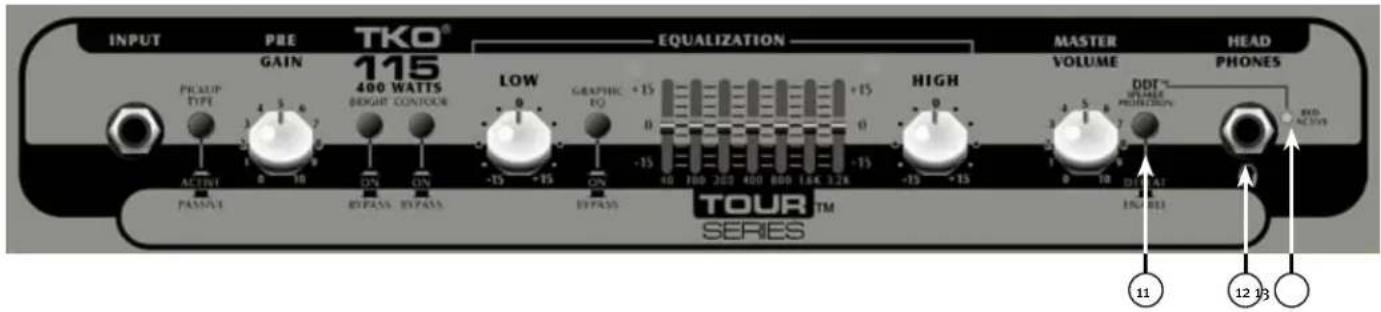

11 DDT™ (Distortion Detection Technique)

This button prevents power amplifier clipping that can sound bad and damage speakers. The "IN" or "DEFEAT" position of the switch bypasses the DDT circuit. However, Peavey recommends the DDT stay enabled for optimum system performance.

HEADPHONE OUTPUT

1 / 4 "headphone output for personal monitoring.

DDT INDICATOR LIGHT

When the DDT is enabled, the red Protect/Clip LED will flash when DDT is triggered. It is normal operation for the LED to flash. However, if the LED is constantly illuminated, the gain level needs to be adjusted to prevent possible equipment damage. When the DDT is defeated, the LED becomes a clip indicator.

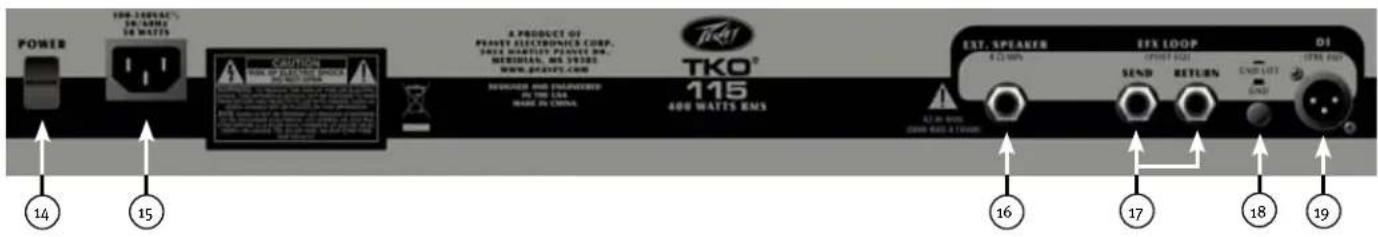

POWER SWITCH

To apply power to the unit, flip the switch to the "On" position. The green LED will illuminate, indicating power is being supplied.

CAUTION: The on/off switch in this unit does not break both sides of the primary mains.

ous energy can be present inside the chassis even when the on/off switch is in the

Off position.

AC POWER INLET:

This is the receptacle for an IEC line cord, which provides AC power to the unit. Connect the line cord to this connector to provide power to the unit. Damage to the equipment may result if improper line voltage is used. (See line voltage marking on unit).

Never break off the ground pin on any equipment. It is provided for your safety. If the outlet used does not have a ground pin, a suitable grounding adapter should be used, and the third wire should be grounded properly. To prevent the risk of shock or fire hazard, always make sure that the amplifier and all associated equipment is properly grounded.

NOTE: FOR UK ONLY

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

EXTERNAL SPEAKER OUTPUT

1/4" powered output for powering a passive enclosure.

EFFECTS LOOP

The Send Jack provides a pre amp output that may be used to drive slave amplifiers and external effects processors. The Return Jack provides a power amp input for the last effect in the chain.

NOTE: When using the unit as a slave power amplifier, the Return Jack should be used as the input.

GROUND LIFT

This button is provided to prevent a ground loop that may result in "hum" noise. When depressed (IN position), Ground Lift is engaged.

DIRECT INTERFACE (DI)

This is a built-in, balanced Direct Interface used to send a buffered, unprocessed signal to an external mixer.

NOTE: The Direct Interface features failsafe circuitry, which runs on standard 48-volt phantom power from the mixer. This allows the DI to continue functioning even in the event of a blown circuit breaker or amplifier shutdown. In the event of a failsafe operation, the mute switch will be bypassed. This circuit is active, even when the power switch is in the "Off" position.

Tour™ Series Specifications

Tour Series TNT® Combo

NOTE: All specifications tested with mains voltage maintained at nominal level.

Line Voltage:

100 VAC to 240 VAC 50/60 Hz universal power supply

CAUTION: Do not switch line voltage while unit is powered on. Doing so may cause damage to unit.

Typical Power Consumption: 100 W

Power Amplifier Specifications:

Protection:

DDT " speaker protection with defeat switch

Short Circuit protection

Thermal protection circuit
Cooling fan failure protection circuit
Current limit protection circuit
DC output protection circuit

Input Sensitivity (signal into return jack with master volume set to 5):

7.32 dBu

Power Output:

All measurements with no more than 1% THD + N

8 ohms 200 watts (4o.o VRMS)
4 ohms 300 watts (34.6 VRMS)

Headphone Amplifier Specifications:

Stereo 8 ohm minimum load

Power Output:

All measurements with no more than 1% THD + N

8 ohms 250 mW (1.41 VRMS) x2

Preamplifier Specifications

Settings for the following Measurements (unless stated otherwise):

PRE GAIN: 5 (12 o'clock)

BRIGHT:Out

CONTOUR:Out

CRUNCH:Out

LOW: 0 (12 o'clock)

HIGH: o (12 o'clock)

GRAPHIC EQ: All sliders set to center

GRAPHIC EQ SWITCH:Out

COMPRESSION:Out

POST GAIN: 10 (fully clockwise)

DDT TM: Active

Input Sensitivity (Input selector set to passive):

Nominal Input: -17.8 dBu

Minimum Input: 40.9 dBu

Maximum Input: 1.3 dBu (maximum signal at input before clipping)

Input Sensitivity (Input selector set to active):

Nominal Input: -3.80 dBu

Minimum Input: -31.3 dBu

Maximum Input: 10.2 dBu

(maximum signal at input before clipping)

D.I. XLR Output:

Balanced output driven pre-EQ by buffered instrument signal Foot Switch jack:

Ground switching type, TRS phone plug (T = compressor, R = CRUNCH, S= ground

Weight:

73.4 lbs.

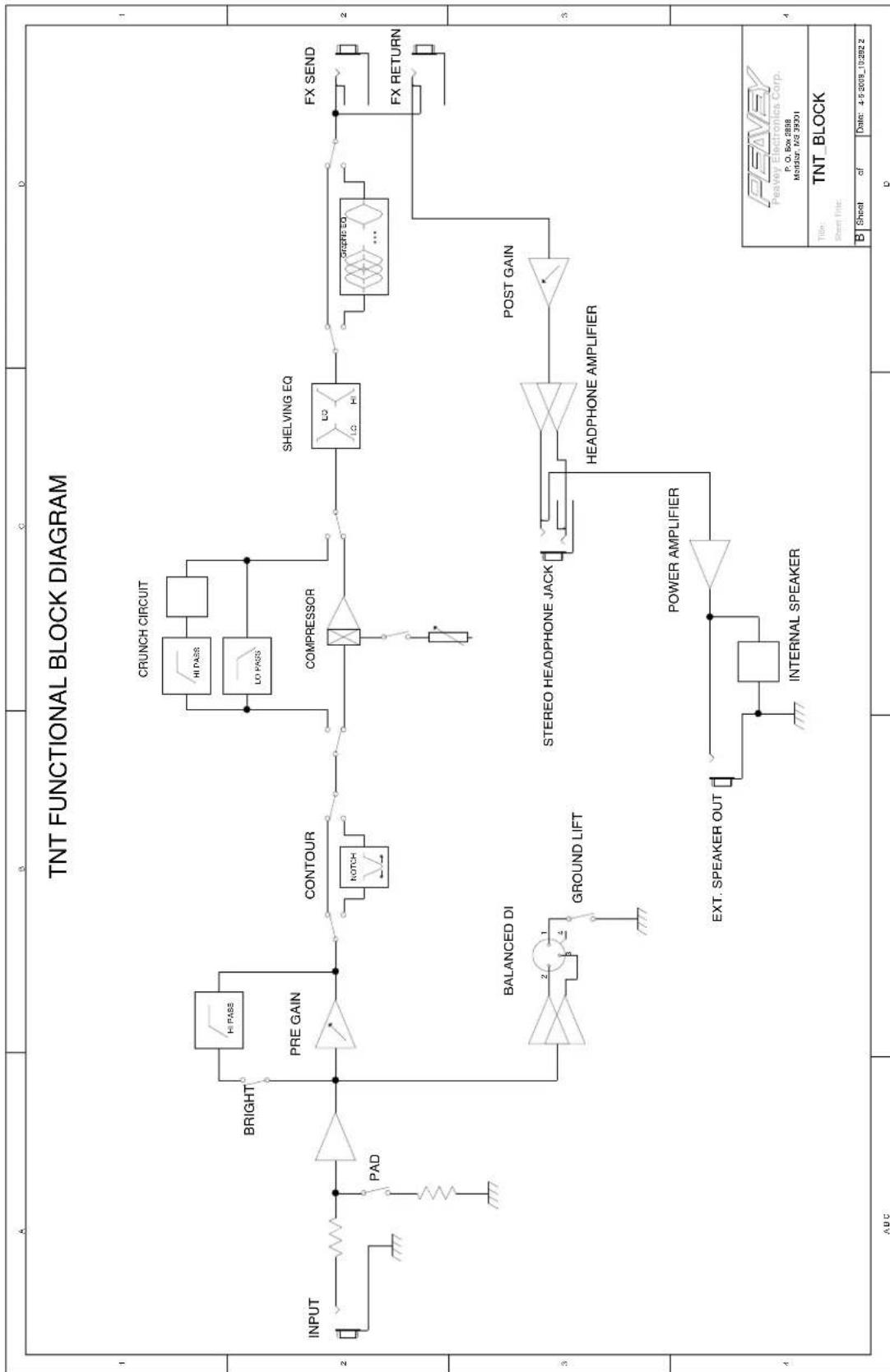

Tour Series TKO® Combo

NOTE: All specifications tested with mains voltage maintained at nominal level.

Line Voltage:

100V·120V/220V-240V 50/60 Hz

CAUTION: Do not switch line voltage while unit is powered on. Doing so may cause damage to unit.

Typical Power Consumption: 25 W Idling / 300 W @ 200 W into 4 ohms

Power Amplifier Specifications:

Protection:

DDT™ speaker protection with defeat switch

Short Circuit prote

Thermal protection circuit

Current limit protection circuit

DC output protection circuit

Minimum Load:

4 ohms (Internal Speaker = 8 ohms)

Input Sensitivity:

(Signal into return jack with master volume set to full CW): 1 V RMS

Extension Speaker Output Jack =

One 1 / 4'' jack in parallel with internal 15'' speaker

CAUTION: Do not use an extension speaker with impedance lower than 8 ohms.

Power Output:

All measurements with no more than 1% THD + N

8 ohms 100 watts (28.4 VRMS)
4 ohms 200 watts (27.0 VRMS)

Headphone Amplifier Specifications:

Stereo 8 ohm minimum load

Power Output:

All measurements with no more than 1% THD + N

8 ohms 250 mW (1.41 VRMS) x2

Preamplifier Specifications

Settings for the following measurements (unless otherwise stated):

PRE GAIN: 5 (12 o'clock)

BRIGHT:Out

CONTOUR:out

LOW: o (12 o'clock)

HIGH: o (12 o'clock)

GRAPHIC EQ: All sliders set to center

GRAPHIC EQ Switch = Out

MASTER GAIN: 10 (fully clockwise)

DDT TM: Active

Input Sensitivity (input selector set to active):

Nominal Input: -3.80 dBu

Minimum Input: -31.3 dBu

Maximum Input: 10.2 dBu

(maximum signal at input before clipping)

D.I. XLR Output:

Balanced output driven pre-EQ by buffered instrument signal.

Weight:

73.4 lbs.

Dimensions (h x w x d):

22.0" × 23.3" × 19.5"

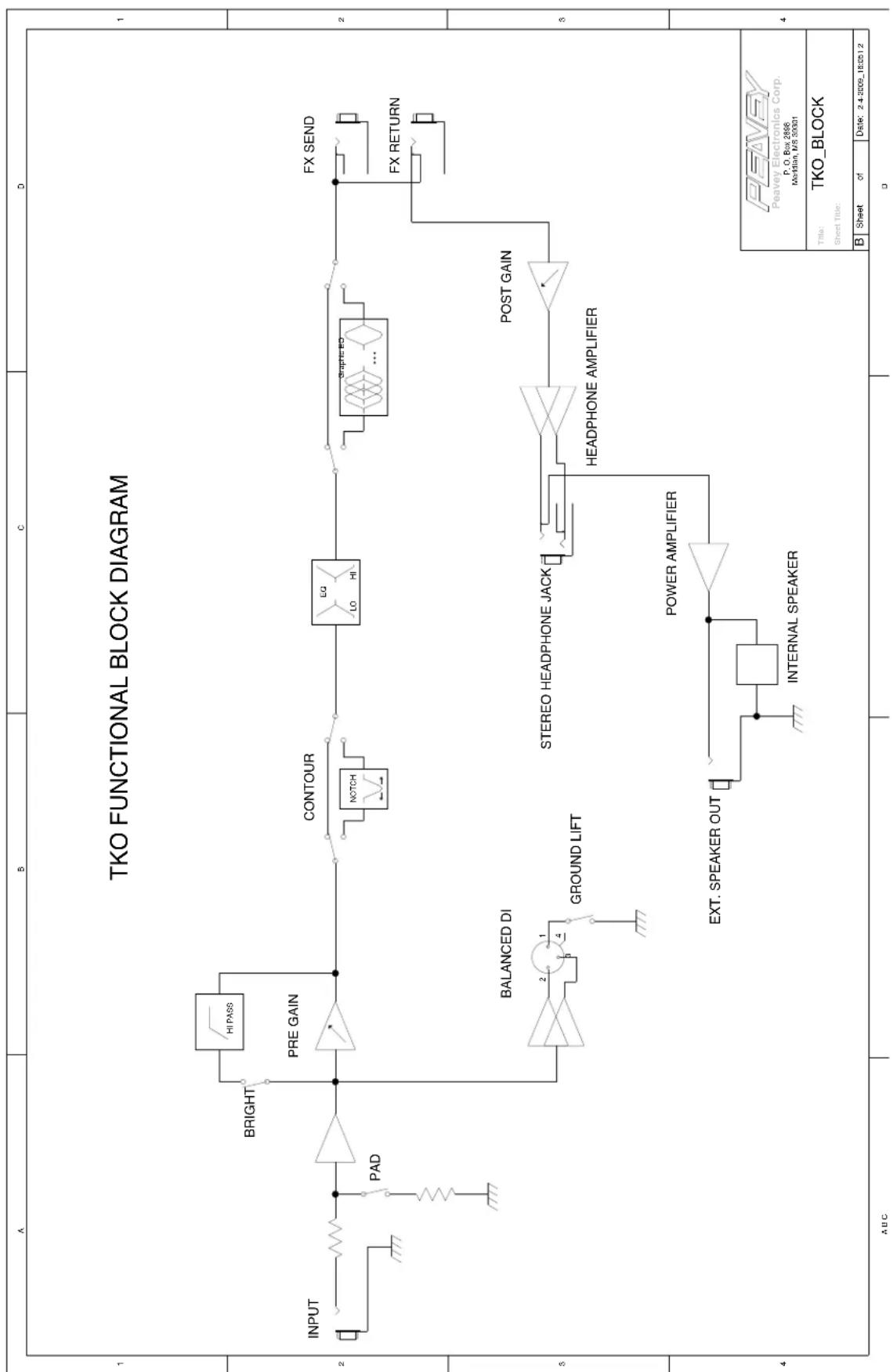

ESPAÑOL

Tour™ Series TNT® & TKO® Combos

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

INTERRUPTOR TWEETER

DIRECT INTERFACE (DI)

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

EXTERNAL SPEAKER OUTPUT

DIRECT INTERFACE (DI)

Tour Series TKO® Combo

4 ohm 200 watts (27,0 VRMS)

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

INTERRUPTEURTWEETER

DIRECT INTERFACE (DI)

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

EXTERNAL SPEAKER OUTPUT

DIRECT INTERFACE (DI)

8 ohms 200 watts (40.0 VRMS)
4 ohms 300 watts (34.6 VRMS)

Charge minimum stereo 8 ohm

22.0" X 23.3" X 19.5"

Charge minimum stereo 8 ohm

WECHSELSTROMEINGANG:

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

TWEETER-SCHALTER

DIRECT INTERFACE (DI)

WECHSELSTROMEINGANG:

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

EXTERNAL SPEAKER OUTPUT

DIRECT INTERFACE (DI)

Tour Series TKO® Combo

4 Ohm 200 Watt (27,0 Ueff)

8 Ohm 250 mW (1,41 Ueff) x2

Dimensions ()

55,8 cm × 59,3 cm × 49,5 cm

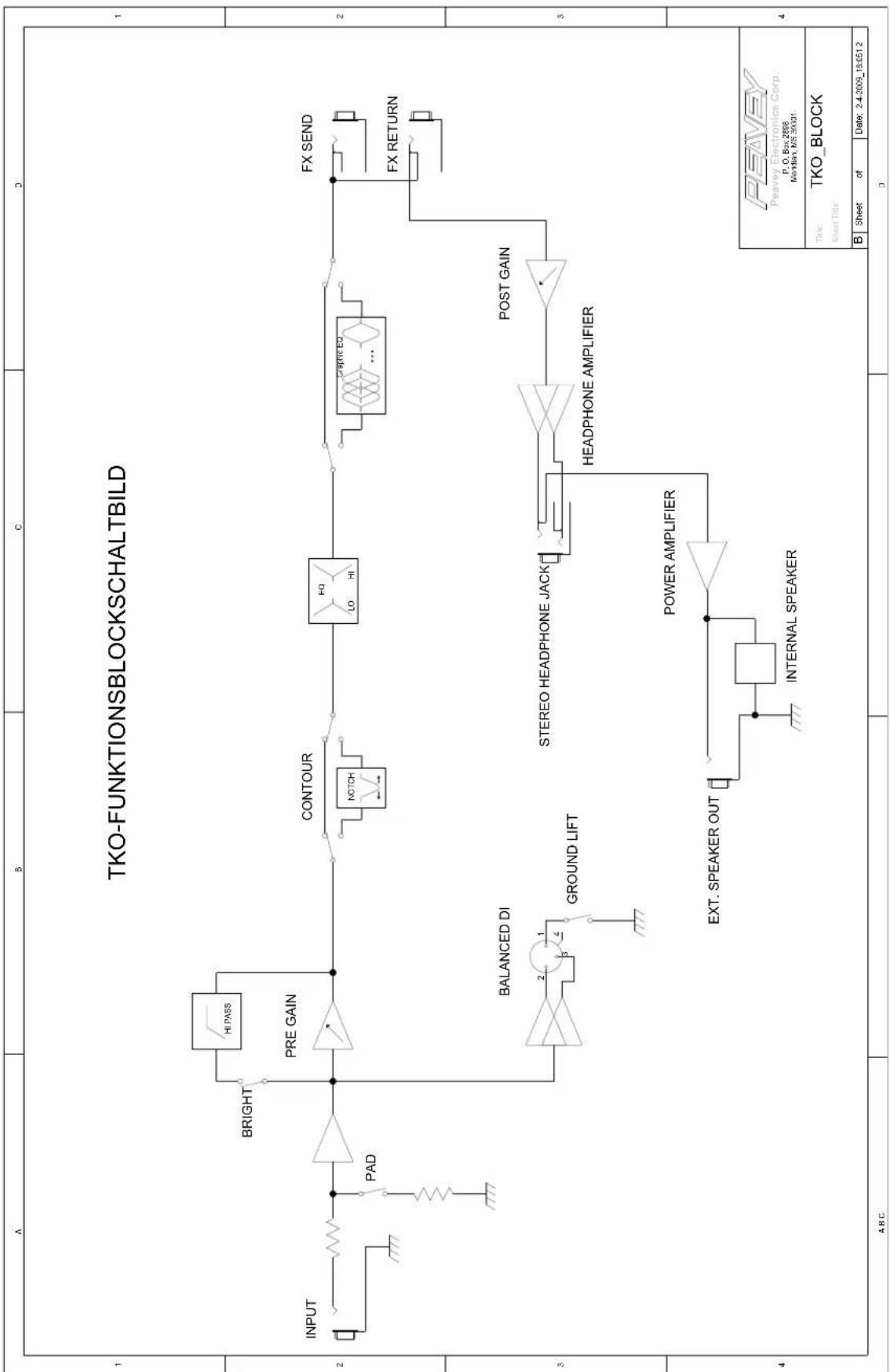

SUOMI

Tour™ Series TNT® & TKO® Combo

Bassovahvistimet

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

TWEETER-KYTKIN

DIRECT INTERFACE (DI)

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

EXTERNAL SPEAKER -LAHTO

DIRECT INTERFACE (DI)

Tour Series TKO® Combo

COMPRESSOR ON/OFF-OMKOPPLARE

Den har knappen satter pa ell er stanger av kompressorn.

VOLUME

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

TWEETER-OMKOPPLARE

DIRECT INTERFACE (DI)

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

EXTERNAL SPEAKER OUTPUT

DIRECT INTERFACE (DI)

Jordkopplartyp, TRS teleplugg

(T = kompressor, R = crunch, S = jord)

Vikt:

33.3 kg

Matt(hxbxd):

55,9×59,2×49,5cm

Tour-serien TKO® Combo

OBS: Alla specifikationer ar testade med natspaffeningen pa nominell niva.

Natspanning:

100V-120V/220V-

240V50/60Hz

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

TWEETER SCHAKELAAR

DIRECT INTERFACE (DI)

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

EXTERNAL SPEAKER OUTPUT

DIRECT INTERFACE (DI)

22,0" X 23,3" X 19,5"

Tour Serie TKO® Combo

25 W Stand-by / 300 W @ 200 W in 4 ohm

Vermogenversterker Specificities:

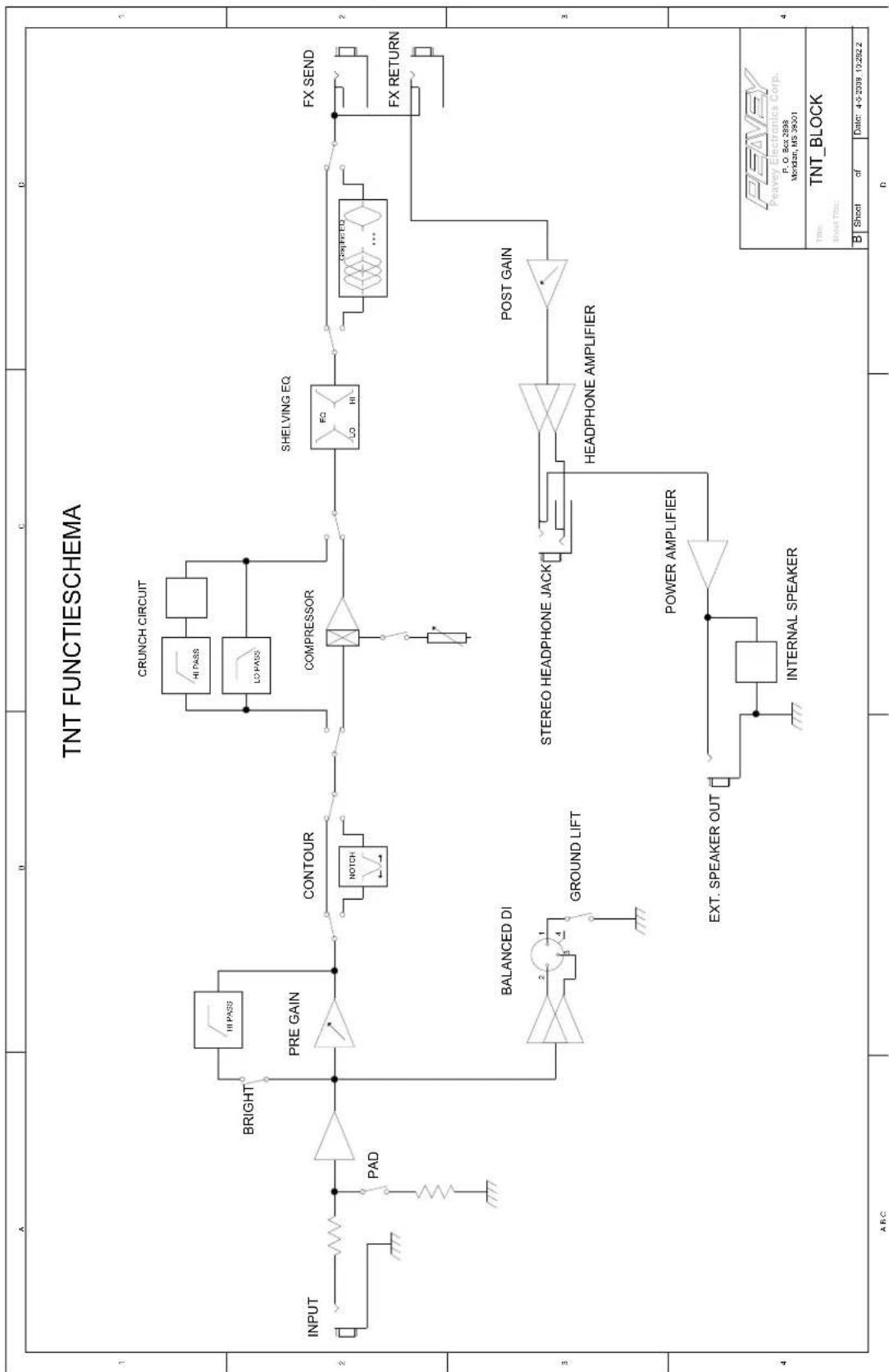

Beveiliging:

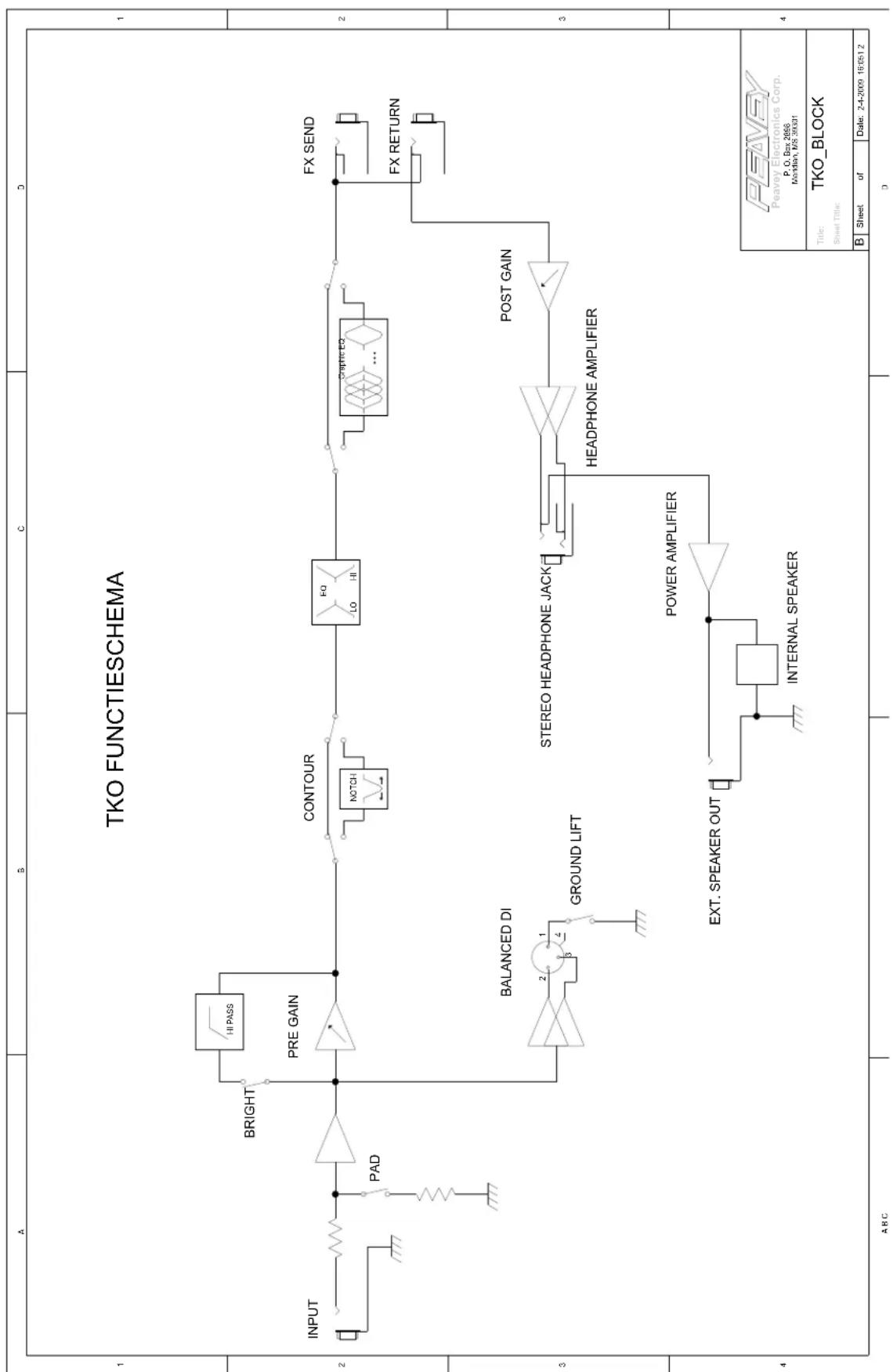

22,0" X 23,3" X 19,5"

PORTUGUES

Tour™ Series TNT® & TKO® Combos

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

INTERRUPTOR TWEETER

SAIDA EXTERNAL SPEAKER

DIRECT INTERFACE (DI)

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

SAIDA EXTERNAL SPEAKER

DIRECT INTERFACE (DI)

PRE-GANHO: 5 (12 o'clock)

BRILHO: Saïda

CONTORNO: Saida

CRUNCH: Saida

BAXIO: 0 (12 o'clock)

ALTO: o (12 o'clock)

EQUALIZADOR GRÁFICO: Todos os 控roles deslizantes no centro

INTERRUPTOR DO EQUALIZADOR GRÁFICO: Sáida

COMPRESSão: Saída

POS-GANHO: 10 (sentido horario completeness)

DDTTM:Ativo

Tour Series TKO® Combo

4 ohms 200 watts (27,0 VRMS)

BAXIO: 0 (12 o'clock)

ALTO: o (12 o'clock)

EQUALIZADOR GRÁFICO: Todos os

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

TWEETER

DIRECT INTERFACE (DI)

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

EXTERNAL SPEAKER OUTPUT

DIRECT INTERFACE (DI)

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

TWEETER SWITCH

iSwchn th wrrr h n.

EXTERNAL SPEAKER 曾国

DIRECT INTERFACE (DI)

上云

PEAVEY豆立明拉瓦兰斯

iBvTeuuePeaveyfoHoueJfNnBraIeTtoFerwna

1 INPUT

1/4"기기일CJK

卫：海的安法力用自贝到中，

2 ACTIVE/PASSIVE PICKUP

此S的则为承用他之的，其在上，即当且

3 PRE GAIN

这不但是他的启事的，他要到他

BRIGHT SWITCH

i1KHz 1KHz iHg of 10dB B.

5 CONTOUR

i

6 LOW

i 15dB.

7 EQ BYPASS

i 8KHz·3dB, shelf corner frequency)5KHz.

10 MASTERCVOLUME

这不但是“的”

_11 DDT™ (Distortion Detection Technique)

i 1

12 HEADPHONE

[1/4" 1

DDT亚司

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

EXTERNAL SPEAKER OUTPUT

则日贝斯云式原京到的1/4"京

EFFECTS LOOP

前通默是的，如：

中：

GROUND LIFT

i 1000000000000000000000000000000000000000000000000000000

DIRECT INTERFACE (DI)

上之，

查：naiiEeIeIeHcHsNnB48VvTaeWJWUeL1HbAaHnAnKtHtQwHJUe.

TourTM

Tour ロリズ TNT® 核実

相：多在人是国里

拉氏定理：

100VAC-240VAC50/60Hz

月

基本词典全词典：

100W

并别曾

旦立：

口贝三士贝DTD

T

国

国

DC鲁明曼王朝豆

日

7.32 dBu

刘钊香明：

10%THD+N

8 ohms 200 W (40.o VRMS)

4ohms 300W(34.6VRMS)

三芒盟亚科

sTeIHO8ohm刘土

韩真音：

多種類型的1%THD+N等基本相交

8 ohms 250 mW (1.41 VRMS) x2

三

daii

ERI:5(12A)

出：Out

导句：Out

[ \text{h x w x d} ]

22.0" x 23.3" x 19.5"

Tour ロリズ TKO® 格布

相：多在人是国里

拉氏定理：

100V·120V/220V-240V

50/60 Hz

主的：当朝安在汉人京

基本准则

25 W /300 W @ 200 W, 4 ohms

四别

旦立：

贝巨S司DDTMD

T

日

国

DC备与互交列

同全早：

4ohms（山半云习泽 = 8 ohms)

J

（SA斯贝普CW罗列期的

外早山列

15" 14

奉的日

刘钊香明：

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

TWEETER开关

DIRECT INTERFACE (DI)

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L, or the color red.

EXTERNAL SPEAKER OUTPUT

DIRECT INTERFACE (DI)

22.0" X 23.3" X 19.5"

TourTM系列技术规格

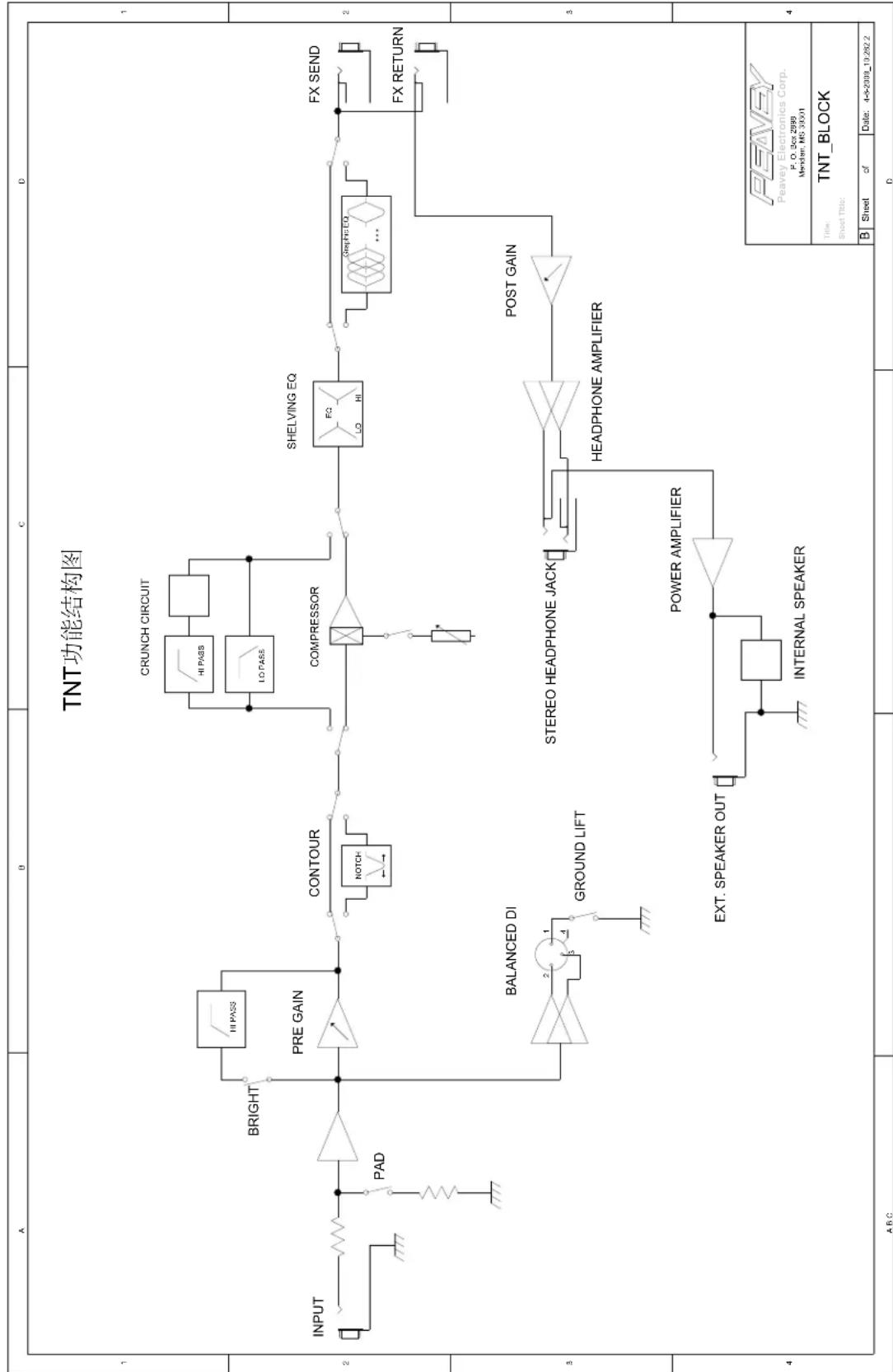

Tour系列TKO®组合

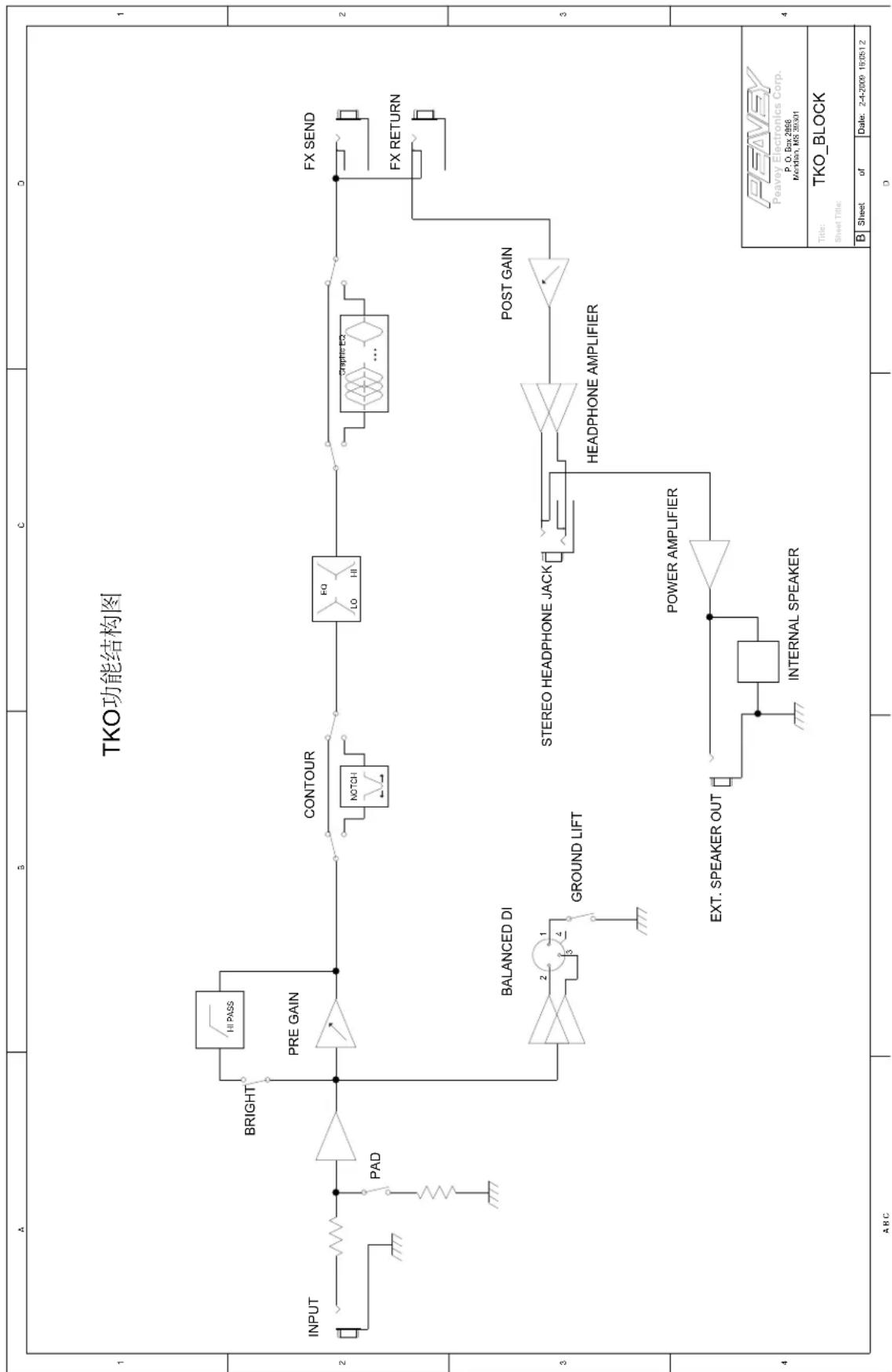

22.0" X 23.3" X 19.5"

U.S. CUSTOMER WARRANTY REGISTRATION

Optional Product Extended Warranty Registration

Give us some information and put your extended warranty into effect!

Please take a few minutes to fill out this information/survey sheet to help us get to know and serve you better.

To save time, submit your warranty registration online at www.peavey.com/support/warrantyregistration

1.

First Name Initial Last Name

Street Address

City State/Province Postal Code

（

Telephone Number

E-mail Address

（

Fax Number Date of birth

Gender

M

2.

Model

8-Digit Serial Number

Date of Purchase

Price Paid

3.

Name of store where purchased

City

State

1. Top two (2) reasons why you purchased from this store/dealer:

Availability of product

Past favorable experience

Friend/Relative's recommendation

Best price

Store credit card

□Advertised special

Knowledgeable staff

Convenient location

Availability of lessons

Received as a gift

Technical instruction

□Other—

1. Where do you most often shop for music and sound products?

□Independent retailer

□ Newspaper ads

Mass market retailer

Internet/Web sites

Mail order magazines

Other.

1. What two (2) factors most influenced your purchase of this product?

Peavey brand name

Product appearance

Craftsmanship

Durability

Features for price

Prior experience with Peavey

Bundled accessories

□ Packaging

Sound quality

Other.

1. How did you learn about this Peavey product? (select best answer)

Magazine review

Teacher's recommendation

Newspaper review

Catalog or flyer

Radio advertisement

7 Saw in store

Advertised special

Use by professional

Friend/Relative's recommendation

Other

Salesperson's recommendation

1. Which other brands/models did you consider?

2. How would you describe your level of musicianship/technical expertise?

Beginner - Never played or taken less than one (1) year of lessons

Intermediate-One (1) to five (5) years of lessons or playing

Advanced - More than five (5) years of lessons or playing; play professionally

1. Education: (select best answer)

High school

Some college

Completed college

Graduate school

1. Which best describe your family income? (select best answer)

Under $15,000

75,000 - 99,999

15,000 -24,999

□100,000 -149,999

25,000 -34,999

Over - \$150,000

35,000 -49,999

50,000 -74,999

1. Which of the following is your primary source of information on musical products: (select best answer)

Television

Mail order catalogs

7 Radio

Direct mail

Internet

Literature from manufacturer

7 Newspaper

Other

Magazines

1. What is your main motivation for buying new equipment?

Replacing old product

Impulse

Want new and leading edge equipment

Need for improved performance

Fullfill a specific need

New technology

Supplement existing products

Availability of product

Value

1. In your opinion, what could Peavey do to improve its products and/or service? Please use the space below to tell us your answer.

8019-2086sw'ueipnW

80g xog O'd

nennnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne

C

sssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss

eJeh

aBebosd

eel

PEAVEY ELECTRONICS CORPORATION LIMITED WARRANTY

Effective Date: 09/15/2010

What This Warranty Covers

Your Peavey Warranty covers defects in material and workmanship in Peavey products purchased and serviced in the U.S.A. and Canada.

What This Warranty Does Not Cover

The Warranty does not cover: (1) damage caused by accident, misuse, abuse, improper installation or operation, rental, product modification or neglect; (2) damage occurring during shipment; (3) damage caused by repair or service performed by persons not authorized by Peavey; (4) products on which the serial number has been altered, defaced or removed; (5) products not purchased from an Authorized Peavey Dealer.

Who This Warranty Protects

This Warranty protects only the original purchaser of the product.

How Long This Warranty Lasts

The Warranty begins on the date of purchase by the original retail purchaser. The duration of the Warranty is as follows:

Product Category Duration
Guitars/Basses, Amplifiers, Preamplifiers, Mixers, Electronic Crossovers and Equalizers 2 years *(+3 years)
Drums 2 years *(+1 year)
Enclosures 3 years *(+2 years)
Digital Effect Devices and Keyboards and MIDI Controllers 1 years *(+1 year)
Microphones 2 years
Speaker Components 1 year(incl. Speakers, Baskets, Drivers, Diaphragm Replacement Kits and Passive Crossovers)
Tubes and Meters	90 Days
Cables Limited Lifetime
AmpKit Link, Xport, Rockmaster Series, Strum'n Fun, RetroFire, GT & BT Series Amps	1 year

* Denotes additional Warranty period applicable if optional Warranty Registration Card is completed and returned to Peavey by original retail purchaser within 90 days of purchase.

What Peavey Will Do

We will repair or replace (at Peavey's discretion) products covered by Warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for Warranty service, the consumer must pay initial shipping charges. If the repairs are covered by Warranty, Peavey will pay the return shipping charges.

How To Get Warranty Service

(1) Take the defective item and your sales receipt or other proof of date of purchase to your Authorized Peavey Dealer or Authorized Peavey Service Center.

OR

(2) Ship the defective item, prepaid, to Peavey Electronics Corporation, International Service Center, 412 Highway 11 & 80 East, Meridian, MS 39301. Include a detailed description of the problem, together with a copy of your sales receipt or other proof of date of purchase as evidence of Warranty coverage. Also provide a complete return address.

Limitation of Implied Warranties

ANY IMPLIED WARRANTY, INCLUDING WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.

Some states do not allow limitations on how long an implied Warranty lasts, so the above limitation may not apply to you.

Exclusions of Damages

PEAVEY'S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT, AT PEAVEY'S OPTION. IF WE ELECT TO REPLACE THE PRODUCT, THE REPLACEMENT MAY BE A RECONDITIONED UNIT. PEAVEY SHALL NOT BE LIABLE FOR DAMAGES BASED ON INCONVENIENCE, LOSS OF USE, LOST PROFITS, LOST SAVINGS, DAMAGE TO ANY OTHER EQUIPMENT OR OTHER ITEMS AT THE SITE OF USE, OR ANY OTHER DAMAGES WHEATHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE, EVEN IF PEAVEY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If you have any questions about this Warranty or services received or if you need assistance in locating an Authorized Service Center, please contact the Peavey International Service Center at [phone].

Features and specifications are subject to change without notice.

Features and specifications subject to change without notice.

Peavey Electronics Corporation • 5022 Hartley Peavey Drive • Meridian • MS • 39305

[phone] • FAX [phone] • www.peavey.com
