| Brand | Targus |
| Model | Mobile docking station with video |
| Category | Docking station |
| Product type | Portable docking station with video |
| Power supply | Power adapter (included), mandatory for operation |
| Video connectivity | 1 VGA 15-pin port (max resolution 1280 x 1024, 16-bit) |
| Audio connectivity | 2 3.5mm ports: stereo output (green) and microphone input (pink) |
| Serial connectivity | 1 RS232 serial port |
| Network connectivity | 1 Ethernet 10/100 RJ-45 port |
| USB connectivity | 4 USB 2.0 ports: 2 white (500 mA), 2 black (up to 1 A with Always On) |
| Always On function | Continuous power on black USB ports even when the PC is off or disconnected |
| Display modes | Primary, Extended, Mirror, Off |
| Compatible operating systems | Windows 2000 SP2, Windows XP SP1, Windows Vista |
| Minimum configuration | Intel Pentium or equivalent processor, CD-ROM drive, USB 2.0 port |
| Thermal dissipation | Natural convection thanks to rubber stand |
| Comfort of use | Raised platform for better hand position and air flow |
| LED indicators | Green LED (network connected), red LED (network activity), LED for each USB port |
| Electrical protection | Surge protection on each USB port |
| Box contents | Docking station, high-speed USB cable, installation CD, power adapter |
| Warranty | 2 years against material and workmanship defects |
| Compliance | FCC Class B, R&TTE Directive 99/5/EC |
| Recycling | Take to an appropriate recycling center (Targus policy: www.targus.com/recycling) |
Frequently Asked Questions - Mobile docking station with video TARGUS
User questions about Mobile docking station with video TARGUS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Docking station in PDF format for free! Find your manual Mobile docking station with video - TARGUS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Mobile docking station with video by TARGUS.
USER MANUAL Mobile docking station with video TARGUS
mobile docking station with video
USERGUIDE
Table of Contents
Targus Mobile Docking Station with Video
Introduction 7
Installing the Device and Drivers - - - - - - - - 9
Connecting New Devices - - - - - - - - - 11
Video Menu Options 14
Global Suspend Mode 15
Targus Always On 15
Using USB Devices That Require More Power 16
Product Limitations - - - - - - - - - - - 16
Troubleshooting 16
Technical Support 19
Warranty - - - - - - - - - - - - - - - - 20

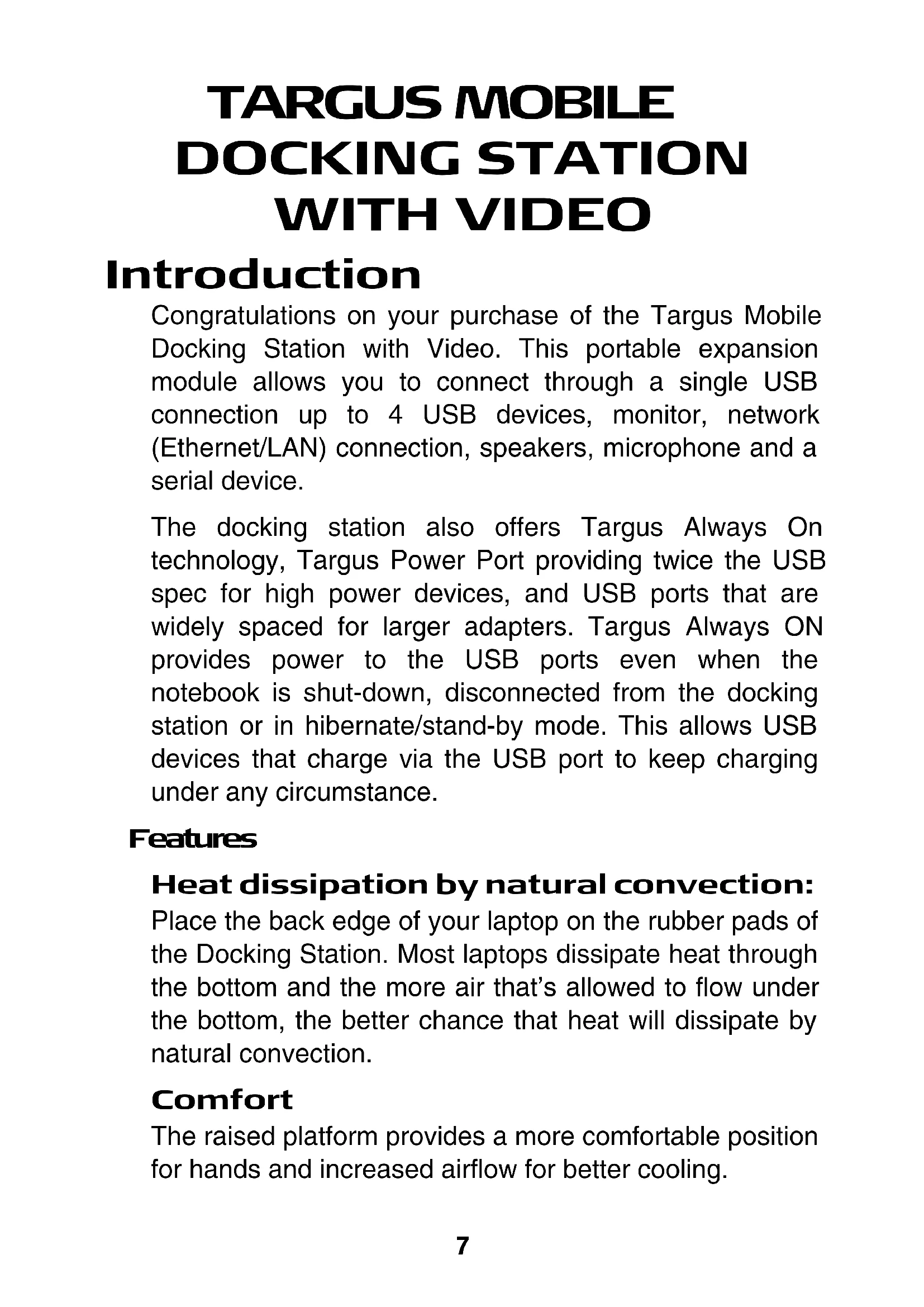

Congratulations on your purchase of the Targus Mobile Docking Station with Video. This portable expansion module allows you to connect through a single USB connection up to 4 USB devices, monitor, network (Ethernet/LAN) connection, speakers, microphone and a serial device.
The docking station also offers Targus Always On technology, Targus Power Port providing twice the USE spec for high power devices, and USB ports that are widely spaced for larger adapters. Targus Always ON provides power to the USB ports even when the notebook is shut-down, disconnected from the docking station or in hibernate/stand-by mode. This allows USB devices that charge via the USB port to keep charging under any circumstance.
Features
Heat dissipation by natural convection:
Place the back edge of your laptop on the rubber pads of the Docking Station. Most laptops dissipate heat through the bottom and the more air that's allowed to flow under the bottom, the better chance that heat will dissipate by natural convection.
Comfort
The raised platform provides a more comfortable position for hands and increased airflow for better cooling.
The Docking Station provides the following ports:
15-pin VGA (Supports 1280 x 1024 at 16 bit colour)
- Two 3.5 mm Audio: (1) stereo out and (1) microphone in
- RS232 Serial
- RJ-45 Ethernet 10/100
- Two USB 2.0 (White)
- Two USB Power Ports (Black) - Providing up to 1Amp
Package Contents
In addition to this user's guide, the package contains:
- Targus Mobile Docking Station with Video
- High-speed USB 2.0 upstream cable
- Driver software CD
- AC power adapter (Required)
System Requirements Hardware
- PC with an Intel® Pentium® processor or equivalent
- CD-ROM drive
- USB version 2.0 port
- AC power source (AC adapter required)
NOTE: When connected to a USB version 1.1 port on your computer, the Docking Station's performance level will be less than optimal and the video port will not function properly. For best results, connect it to a USB version 2.0 port.
Operating System
- Windows® 2000 - Service Pack 2 or greater
- Windows®XP - Service Pack 1 or greater
- Windows Vista™
NOTE: To download latest service packs, please visit your computer manufacturer's website or Microsoft's download centre:
http://support.microsoft.com/ default.aspx?scid=fh%3BEN-US%3Bsp
Installing the Device and Drivers
To use the Targus Docking Station, you must first install the driver onto your computer. Connect the docking station to your computer and Windows plug-and-play will install the hardware drivers for each port.
WARNING: You must install the Docking Station software BEFORE connecting it to your computer. Otherwise, the Docking Station will not work properly.
Installing the Docking Station Driver
Installing the docking station driver enables your operating system to recognize the docking station and its ports once it's connected.
1 Turn on your computer.
2 Insert the driver software CD into your computer's CD-ROM drive.
3 If setup does not begin automatically, click Start, Run, then enter D:\Setup.exe (where D: is the path of your CD-ROM drive) and then click OK.
4 Follow any on-screen instructions to complete the installation.
5 C l i c k Finish and restart your computer when prompted.
Connecting the Docking Station to Your Computer
After installing the docking station software, you are ready to connect the docking station to your computer. To do this:
1 Connect the supplied AC power adapter to the AC power jack on the docking station.
2 Connect one end of the USB cable to the docking station and the other end into an available USB 2.0 port on your computer.
NOTE: The docking station will not function properly without the AC adapter plugged into an AC outlet.
Do not connect any devices to the docking station until the installation is completed.
Installing the Default Device Drivers
Once you connect the docking station to your computer, the default drivers begin installing for each of the ports.
Some hardware devices may prompt you to install the drivers.
To install the drivers:
1 Select Install the software automatically (Recommended) and click Next.
The Found New Hardware Wizard program begins installing the hardware drivers.
The Completing the Found New Hardware Wizard screen appears.
2 C l i c k Finish and repeat as needed for each device
3 Restart your computer.
LED Status Indicator Lights
Once all device drivers are installed, the USB LED status indicator lights on the back of the docking station glow and you can connect devices to the docking station.
- Green Tx light illuminates when connected to a network and the yellow Rx light flashes when data is transmitting to or from the network.
NOTE: The docking station supports hot swapping of the network cable.
-
USB lights will glow when the docking station is connected to your computer.
-
Always ON LED glows green when button is depressed.

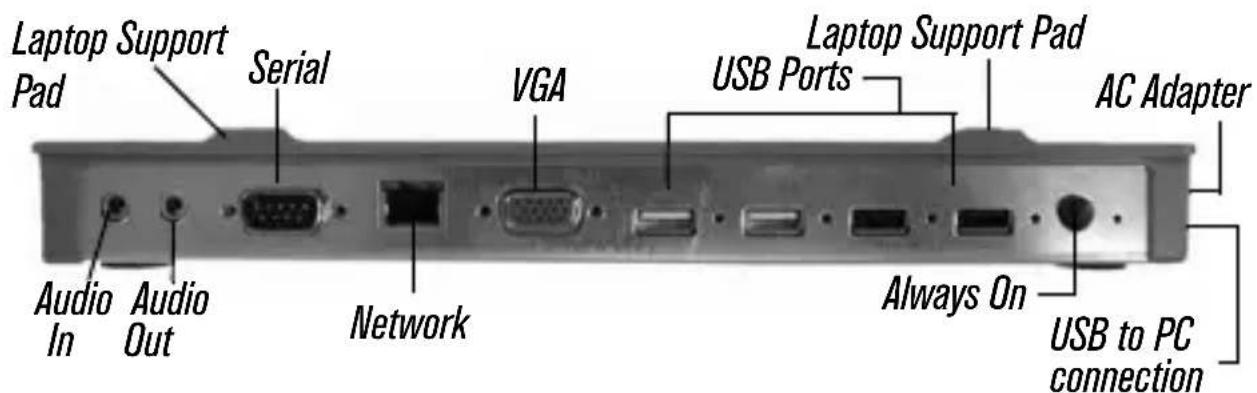

DOCKING STATION PORTS
Connecting New Devices
To avoid possible damage when connecting a new device, do not force the cable connector into the port on the docking station. If the cable connector does not attach smoothly, turn the connector over and try attaching it again.
Connecting a Serial Mouse
To connect a serial mouse, attach the cable connector to the serial port on the docking station.
Connecting and Configuring a Serial Modem
To connect a serial modem:
1 Attach the cable connector to the serial port on the docking station.
2 Install the modem software driver according to the instructions that come with the device.
3 When prompted to select the port, choose the Serial USB (COMx), where x is the COM port number assigned by your operating system.
Connecting a PDA
1 Attach the cable connector to the serial port on the docking station.
2 Verify that the COM port setting, in either your HotSync® or ActiveSync® software, matches the setting on the docking station.
To verify the COM port setting on the docking station, refer to "Verifying Devices are Installed" on page 17.
To verify the COM port setting on your PDA, refer to the documentation that came with it.
Connecting to a Local Area Network
To connect an ethernet cable with RJ-45 connect, attach the cable connector to the ethernet/network port on the docking station. Additional procedures to connect to an actual network depend on the type of network you are using. Contact your network administrator for detailed instructions.
Connecting a USB Device
To connect a USB device, plug it into a USB port on the docking station and follow the additional instructions provided with the device.
All four USB ports meet USB hi-speed requirements by providing 480Mbps through-put and 500mA of power. However, the two black USB ports have two unique features. See "Targus Always On" on page 15 for more details.
The white USB ports are high-speed ports that provide standard 500mA of power. The black USB power ports are high-speed ports that provide up to 1Amp.
Connecting and Configuring an Audio Device
1 Plug your headphones or speakers into the green 3.5mm Audio Out port on the docking station.
2 To connect a microphone, plug it into the mono Audio In port.
3 To enable your headphones or speakers, you must first choose USB Audio in the Properties Settings.
a For Windows® 2000, click Start, Settings, Control Panel, and then open the Sounds and Multimedia folder. Select the Audio tab. Under Sound Playback, change Preferred Device to USB Audio from the drop down list.
- Click Apply, then click OK.
b For Windows® XP, go to the Control Panel and choose Sound and Audio. Select the Audio tab. Under Sound Playback, change Preferred Device to USB Audio from the drop down list.
Targus Mobile Docking Station with Video
- Click Apply, then click OK.
4 Make sure the volume is not set to MUTE.
NOTE: Audio devices will not work simultaneously on the port station and the host computer.
CAUTION: All audio or multimedia applications must be terminated before switching between the port station audio output and the host computer audio output.
Connecting to a Monitor or LCD
Any monitor or LCD connected to the video port of the docking station will be limited to a maximum resolution of 1280 x 1024, 16-bit colour.
Video Menu Options
Video menu options can be accessed by right-clicking on the Targus Display icon in the system tray or through Windows Display Properties.
The only menu option not accessible through Windows Display Properties is Mirror. This must be accessed through the Targus Display icon.
Primary: You are using a monitor or LCD (notebook screen) as your primary screen.
Extended: You are using your notebook screen your primary display and your monitor or LCD is a secondary screen.
Mirror: You are using your notebook screen as primary display and your monitor or LCD replicat notebook screen.
Off: You are using your notebook screen as your primary display and your monitor or LCD is turned off.
| Notebook Screen | Secondary Monitor or LCD | |
| Primary: Off On | — | — |
| Extended: On On | — | — |
| Mirror: On On | — | — |
| Off: On Off | — | — |
Resolution: Changing resolution from the Targus utility will only affect the monitor connected to the docking station video port.
NOTE: Some LCDs have been optimised for a specific resolution. If the optimum resolution is not 1280 × 1024 , the results may not be as desired.
Close: Removes the Targus video utility icon from the system tray. The icon can be replaced from the Start Menu or from the shortcut on your desktop.
Global Suspend Mode
When your computer is in suspend mode, the docking station also enters suspend mode to avoid power consumption. When your computer wakes up, the docking station wakes up automatically.
Targus Always On
Press the Targus Always On button to enable the black USB ports to continue providing power even when the laptop is powered down or disconnected from the docking station. This allows you to charge the batteries of any USB rechargeable accessory you may have connected.
Using USB Devices That Require More Power
Some devices, which use large amounts of power, such as printers and optical drives, should be plugged into the USB Power Ports. These ports will provide up to 1000mA of power - double the power on standard USB ports.
Product Limitations
Some devices may halt temporarily when a high data transfer is occurring. For example, your mouse may respond slowly while a graphic print job is printing or while you are experiencing heavy network traffic.
We recommend the following guidelines:
- Do not transfer data to or from multiple high-speed devices, such as a digital camera or scanner, at the same time.
- If speed degradation does occur, close other programs that use a USB device to improve device performance.
Troubleshooting
Device Not Working
- Make sure that the device is fully inserted into the correct port on the docking station.
- Plug the device into a different port on the docking station. If it still doesn't work, test the device by connecting it directly to your computer.
- Verify that you ran the Setup or Install program for the device.
- Make sure that the device appears in Device Manager. For more information refer to "Verifying Devices are Installed" on page 17.
Targus Mobile Docking Station with Video
- Disconnect all devices from the docking station and reconnect them, one at a time. Check that each device works before plugging in the next one.
- Each USB port is equipped with over-current protection. Should a USB device draw more current than the USB port can supply, the port will shut down. To re-enable the port, unplug the device and go to Device Manager or to the message in the system tray and choose the Reset option. You can then plug the device back into the USB port. If a shut down reoccurs, check the power requirements of the device.
Verifying Devices are Installed
You can view the devices installed on the docking station from the Device Manager window in System Properties.
Right-click My Computer, Properties, then click the Hardware tab, and then the Device Manager button.
From the Device Manager window, expand the following:
- Display Adapters — displays Targus USB 2.0 VGA dock device
- Human Interface Devices — displays keyboards and pointing devices: mice, trackballs, and joysticks
- Network Adapters — displays ADM851X USB to fast ethernet adapter
- Ports (COM & LPT) — Serial on USB [COM x]
- Sound, Video and Game Controllers — displays USB audio device
- Universal Serial Bus controllers — displays the other devices installed for the docking station and generic hub.
Verifying a Serial Modem Connection
When attaching a modem to the serial (RS232) port, verify that the port assigned to your modem is Serial USB (COMx), where x is the number of the COM port.
If the operating system does not detect automatically that your modem is assigned to Serial USB (COMx), run the Hardware Wizard again and choose Select from the list instead of Autodetect. Then, select Serial USB (COMx) as the COM port.
Error Message on Your PDA
If the error message "Connection Not Established" appears on your PDA, check that the COM port setting in either your HotSync or ActiveSync software matches the setting on the docking station. See "Verifying Devices are Installed" on page 17 to verify the COM port setting on the docking station.
Some older versions of the Palm ® Desktop software are not compatible with the USB to Serial conversion. Please contact your PDA vendor for software updates.
Video
Can I get a higher resolution on my monitor?
- No, resolution is set at 1280 × 1024 , 16-bit colour.
Can disk I/O functions such as, extensive reading and writing to an external hard drive or DVD, degrade video functionality?
- Yes. Since all data has to pass through a single USB connection, you may notice some degradation of your video performance. Video performance will return when disk read/write decreases or stops.
Technical Support
For technical questions, please visit:
Internet http://www.targus.com/support.asp
English http://www.targus.com/uk/support.asp
German http://www.targus.com/de/support.asp
Spanish http://www.targus.com/sp/support.asp
Italian http://www.targus.com/it/support.asp
Our knowledgeable staff is also available to answer your questions through one of the following telephone numbers.
Austria 01 795 676 42
Belgium 02-717-2451
Denmark 45 35-25-87 51
Finland 922948016
France 01-6453-9151
Germany 0211-6579-1151
Italy 02-4827-1151
Netherlands 02 0504 0671
Norway 022577729
Portugal +351 21 415 4123
Spain 91 745 6221
Sweden 08-751-4058
Switzerland 01-212-0007
United Kingdom 020-7744-0330
Eastern Europe & others +31 0 20 5040671
Product Registration
Targus recommends that you register your Targus accessory shortly after purchasing it. To register your Targus accessory, go to: http://www.targus.com/registration.asp
You will need to provide your full name, email address, phone number, and company information (if applicable).
Warranty
Targus warrants this product to be free from defects in materials and workmanship for two years. If your Targus accessory is found to be defective within that time, we will promptly repair or replace it. This warranty does not cover accidental damage, wear and tear, or consequential or incidental loss. Under no conditions is Targus liable for loss of, or damage to a computer; nor loss of, or damage to, programs, records, or data; nor any consequential or incidental damages, even if Targus has been informed of their possibility. This warranty does not affect your statutory rights.
Regulatory Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
FCC Statement
Tested to Comply
This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
Targus Mobile Docking Station with Video
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna;
- Increase the separation between the equipment and receiver;
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected;
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not authorized by the party responsible for compliance could void the user's authority to operate this product
Declaration of Conformity
Hereby, Targus, declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Targus Recycling Directive
At the end of this product's useful life please dispose at an appropriate recycling collection point provided in your country. Targus recycling policy is available for viewing at:
www.targus.com/recycling
Microsoft, Windows, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All trademarks and registered trademarks are the properties of their respective owners. All rights reserved.
TARGUS MOBILE DOCKINGSTATION MIT VIDEO
Einführung
default.aspx?scid=fh%3BEN-US%3Bsp
English http://www.targus.com/uk/support.asp
Italian 02 4827-1151
Niederlande 02 0504 0671
Norwegen 022577729
www.targus.com/recycling
Italian http://www.targus.com/it/support.asp
Connette la docking station al vostro computer
Inglese http://www.targus.com/uk/support.asp
default.aspx?scid=fh%3BEN-US%3Bsp
Targus Recycle Policy
Para instalar as drivers:
1 Sezione Install the software automatically (Recommended) e clique Next.
O programa de Found New Hardware Wizard Começa a instalar as drivers do hardware.
O écran de Completing the Found New Hardware Wizard aparece.
Alemão http://www.targus.com/de/support.asp
Espanhol http://www.targus.com/sp/support.asp
Italiano http://www.targus.com/it/support.asp
Visit our Website at www.targus.com/emea
Features and specifications subject to change without notice.
© 2007 Targus Group International, Inc. and Targus Group (UK) Ltd.
