CB 316 - Mixer BOMANN - Free user manual and instructions

Product type	Mixer / Blender
Brand	Bomann
Model	CB 316
Dimensions (approx.)	20 x 20 x 40 cm
Weight (approx.)	1.5 kg
Power supply	230 V ~ 50 Hz
Power (approx.)	400 W
Bowl capacity	1.5 liters
Bowl material	Glass
Speeds	2 speeds (low, high) + pulse function
Continuous operation	Yes, positions 1 and 2
Pulse function	Yes, position P (hold)
Safety	Safety switch preventing operation without bowl
Cleaning	Bowl and lid dishwasher safe (top rack)
Motor base maintenance	Wipe with a damp cloth
Warranty	24 months from date of purchase
Repairability	Paid repairs after warranty by a qualified professional
Spare parts available	Yes, bowl, lid, motor unit
Usage	Household use only

Frequently Asked Questions - CB 316 BOMANN

How to use the pulse function?

Turn the selector to position P and hold it. Release to stop. The appliance automatically returns to 0.

Can I blend hot foods?

No, never pour liquid above 60 °C into the bowl to avoid risk of burns or damage.

How to clean the blender?

Disassemble the appliance. The bowl and lid are dishwasher safe (top rack). Wipe the motor base with a damp cloth.

Can I blend ice cubes or hard foods?

No, this may damage the blade. Avoid ice cubes, nutmeg, or large pieces of chocolate.

The blender does not start, why?

Check that the bowl is properly screwed onto the motor unit. The appliance is equipped with a safety switch that prevents operation without the bowl.

What is the bowl capacity?

The bowl has a capacity of about 1.5 liters, ideal for household preparations.

What to do in case of failure during warranty?

Return the complete appliance with original packaging and receipt to your retailer. The warranty is 24 months.

Can I use the blender without the lid?

No, the lid must be firmly installed during operation to avoid splashes and ensure safety.

How to adjust the speed?

Turn the selector to position 1 (low) or 2 (high) for continuous operation. Turn to 0 to stop.

Can the bowl go in the dishwasher?

Yes, all parts of the jar (bowl and lid) can be washed in the top rack of the dishwasher.

USER MANUAL CB 316 BOMANN

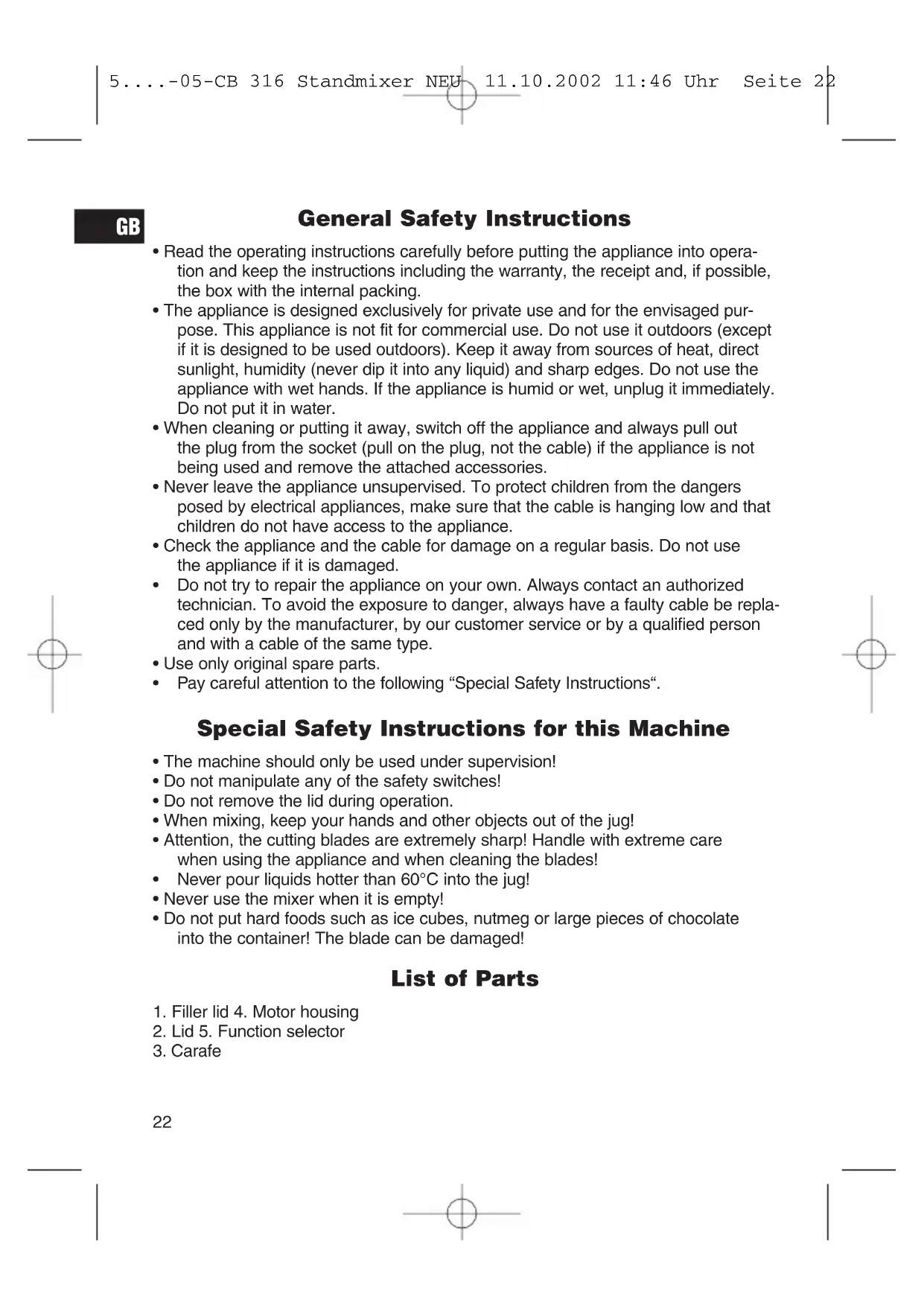

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Never leave the appliance unsupervised. To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
  Pay careful attention to the following "Special Safety Instructions".

Special Safety Instructions for this Machine

• The machine should only be used under supervision!
• Do not manipulate any of the safety switches!
• Do not remove the lid during operation.
• When mixing, keep your hands and other objects out of the jug!
• Attention, the cutting blades are extremely sharp! Handle with extreme care when using the appliance and when cleaning the blades!
• Never pour liquids hotter than 60^ C into the jug!
• Never use the mixer when it is empty!
• Do not put hard foods such as ice cubes, nutmeg or large pieces of chocolate into the container! The blade can be damaged!

List of Parts

1. Filler lid 4. Motor housing
2. Lid 5. Function selector
3. Carafe

Putting into operation

GB

1. Before starting, make sure that the knob is in 0 position and that the plug is not inserted.
2. Screw the carafe on the motor casing.
3. Insert the plug in a duly installed 230V/50Hz protective contact socket.
4. Put the ingredients in the carafe and put the lid on. The lid must be closed properly. Hold the carafe during the mixing.
5. For constant mixing (continuous mode): When operating in levels 1 or 2 snap the selector into the desired position:

Level 1 = low rpm

Level 2 = high rpm

Shift the selector to .0" to switch off the appliance.

1. For pulse mode (mixing at brief intervals) shift the switch to 0^ position. The switch snaps into place. The appliance is off now. Turn the switch now to position P^ . The switch must be kept in this position for the desired interval. When the switch is released, it returns automatically to 0^ position.

Cleaning

Always disassemble the mixer after use. Wash and dry all the parts of the decanter.

Warning: The electric plug must be removed before the mixer is taken apart!

All the parts of the decanter can be washed in the uppermost rack of the dishwasher.

Dry the external surface of the mixer base with a moist cloth.

Important notice on the safety switch

The all-purpose mixer is equipped with a safety switch that avoids that the motor run without the decanter mounted on it (danger of injury!).

The universal mixer can be switched on only if the carafe is screwed correctly on the drive shaft.

This appliance conforms with the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements.

Subject to technical changes without prior notice!

Guarantee

We undertake to guarantee the appliance sold by our company for 24 months as of the date of purchase (cash receipt).

During the life of the warranty we shall provide for the repair or replacement of the appliance owing to material or manufacturing defects absolutely free of charge.

GB

Proof for the warranty is provided by the purchase document. The replacement and repair will not be performed free of charge without this proof of purchase.

Should the warranty be valid, please consign the complete appliance in its original packing together with the cash receipt to your local dealer.

You are not entitled to the replacement of the appliance owing to broken glass parts and faulty accessories. However, said parts will be replaced free of charge. In this case only the faulty accessory needs to be ordered without sending back the whole appliance!

The cleaning, servicing and replacement of wear parts are not covered by this warranty and hence are to be paid for.

The warranty is terminated in case of handling on the part of Third parties.

After the warranty

Once the warranty has expired, repairs can be carried out by specialized technicians or repair services against the payment of the service.

Pa36nToe CTeKIO IINI DeΦeKTHbIE npHAnDJIeXHOCTN He ABJIAOTcN NOBOOM JIa 3AmHeI npi6Opa, a 6yDt 6ecnIaTHO npicNaHb B3aMeH Na DeΦeKTHbIe. B TaKnx Clyuax Heo6xOdIMO 3aKa3bIBaTb TOLbKO DeΦeKTHbIe npHAnDJIeXHOCTN, a He NocblaTb BeCb npi6Op Ha 3aMeHy!

Iod rapaHTIO He nonaIoT: YnCTKa, TexOCMOTp Nn 3aMeHa TpyuXxCraTeTaeN npibopa, OHn DeLaIOTCs 3a DOnoHInTeJbHyO ONlaTy.

TapaHTnA TepaETc npB BCKpbITn np6opa nOCTOpHHmN JIuaMn.

ПО OKOHЧАнг rapaHTиN

IIO nCTeHn Cpoka rapaHTn npi6op MOxHO cdaTb Ha peMOHT B CneuaJIIN3InPOBaHHbIMaRa3IN HIIpeMOHTHyO MaCTepCKyIO 3a ONlaTy.
