USER MANUAL AE 1901 CB BOMANN

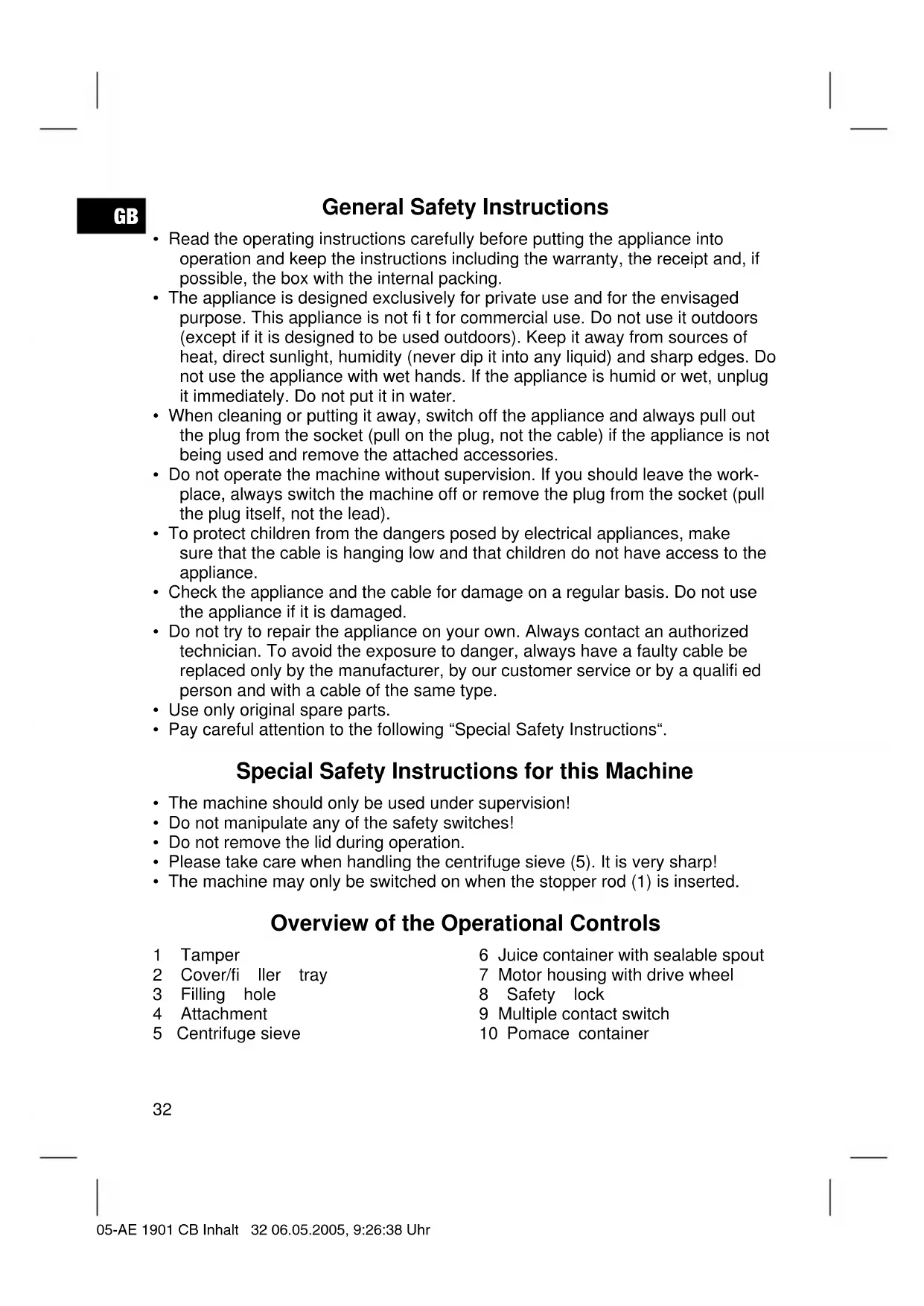

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fi t for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.

• Do not operate the machine without supervision. If you should leave the work- place, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).

• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.

• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualifi ed person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following “Special Safety Instructions“. Special Safety Instructions for this Machine

• The machine should only be used under supervision!

• Do not manipulate any of the safety switches!

• Do not remove the lid during operation.

• Please take care when handling the centrifuge sieve (5). It is very sharp!

1. Please attach the juice container (6) to the motor unit in such a way that the

spout is located in the recess and fl ush with it. Now insert the centrifuge sieve (5) into the juice container. WARNING! This is sharp!

2. Please put the attachment (4) in place and lock the two safety catches (8) on

the sides in place so that they engage into the housing accordingly.

3. Push the pomace container (10) on to the device. Ensure that the pomace

container locks into place.

4. Connect the machine to a properly installed power socket, 230 V, 50 Hz.

5. Please ensure that the multiple contact switch (9) is set to „O“.

6. Place a glass or other suitable vessel under the spout of the juice container.

Press the spout downwards in order to open the outlet aperture.

7. If necessary peel, stone and cut the fruits from which the juice is to be

extracted into strips or pieces. Please note that this device is not suitable for removing the juice from bananas, peaches, apricots etc, as these fruits contain only very little juice. Fruits which are very hard, such as coconuts, cannot be placed in this machine as the centrifuge sieve or the motor may be damaged.

8. Push the fruits into the fi lling aperture and insert the stopper (1). In order to make it

easier to fi ll the machine, attach the fi lling tray (2) to the fi lling aperture (3).

9. Switch on the device. Press the fruits lightly with the stopper.

10. There are 2 speeds available.

11. For removing the juice at an even speed (continuous operation):

During operation on levels 1 and 2 the switch locks in the respective position. Level 1 = low speed Level 2 = high speed In order to switch off the device, turn the switch back to „O“. CAUTION: Do not use the device for more than 5 minutes!

12. The juice now fl ows into the vessel. The fl esh of the fruit is collected in the

pomace container (10). In order to avoid malfunctions please do not overfi ll the juice container.

13. Before removing the vessel, press the spout upwards in order to close the

outlet of the juice container and avoid drips.

14. In order to release the attachment (4), press the two safety catches at the

same time and then lift the attachment off. Cleaning and storage

1. Before cleaning remove the mains lead from the socket.

2. For cleaning the outside of the machine use only a damp washing-up cloth.

Never immerse the housing with motor in water!

3. Do not use any sharp or abrasive detergents.

4. Both accessories can be cleaned in soapy water.

5. In order to clean the centrifuge sieve, please use a brush.

6. Allow the parts to dry thoroughly before reassembling the device.

7. If the fi ller tray (2) is turned around it covers the attachment in order to save

space when the device is stored. This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice! Guarantee The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt). During the life of the guarantee any fault of the device or its accessories *) ascri- bable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee! Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out. If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt. *) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge. Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid! The guarantee lapses in case of unauthorized tampering. After the expiry of the guarantee After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs. 05-AE 1901 CB Inhalt 34 06.05.2005, 9:26:39 UhrGB

Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority. In many EU countries the disposal of electrical and electronic equipment in the domestic waste is prohibited from August 13, 2005 on. In Germany from March 23, 2006 on. 05-AE 1901 CB Inhalt 35 06.05.2005, 9:26:39 UhrPL
