CB 994 - Vacuum Cleaner BOMANN - Free user manual and instructions

Brand	Bomann
Model	CB 994
Product type	Bagless vacuum cleaner
Power supply	230 V ~ 50 Hz
Collection type	Bagless (dust bin)
Main filter	Washable filter
Outlet filter	Washable filter
Included accessories	Small brush attachment, large brush attachment, crevice nozzle, combined upholstery/brush nozzle, floor tool (2 positions), shoulder strap, hose, suction tubes
Features	Air regulator on handle, adjustable shoulder strap
Usage	Dry vacuuming only
Maintenance	Washable filters with water, do not use abrasive detergents
Safety	Do not vacuum liquids, hot ashes, sharp objects; do not use outdoors
Warranty	24 months
Repairability	Do not repair yourself, call a qualified professional
Use	Household

Frequently Asked Questions - CB 994 BOMANN

How to clean the filter of my Bomann CB 994 vacuum cleaner?

Make sure the appliance is unplugged. Open the dust bin by pressing the closure button (2). Remove the filter and shake it. You can wash it under running water. Do not use abrasive detergent. Let it dry completely before reinstalling. Do the same for the outlet filter at the back.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed for dry vacuuming only. Never vacuum liquids, damp areas, hot ashes, or sharp objects. This could damage the device and pose a hazard.

How to assemble the accessories?

Attach the small or large brush directly to the vacuum or to the crevice nozzle. To use the hose, insert the handle onto the hose then add the desired accessory. The convex side of the hose should face downward. To release accessories, unscrew them gently.

How to adjust the shoulder strap?

Attach the shoulder strap fixings into the holes at the front (6) and back (4). Ensure it is not twisted. Adjust the length by moving the buckle on the strap. Thanks to its light weight, you can carry the vacuum with full mobility.

What to do if the vacuum cleaner does not turn on?

First check that the appliance is properly plugged into a functioning 230 V outlet. Ensure the dust bin is securely closed and the filter is correctly installed. If the problem persists, do not attempt to repair yourself, contact a qualified professional.

How to empty the dust bin?

Press the closure button (2) to open the appliance. Remove the dust bin and empty its contents into a trash can. No bags are necessary, the bin is reusable. Close by clipping the upper tab.

Can I use the vacuum cleaner without a filter?

No, never use the vacuum cleaner without a filter. Always check that the filter is properly installed before each use. Vacuuming without a filter can damage the motor and reduce performance.

What is the power of the vacuum cleaner?

The manual does not specify the power in watts. The device operates on 230 V ~ 50 Hz. For more details, check the rating plate or contact Bomann customer service.

How to use the floor tool (2 positions)?

For smooth floors, press down with your foot on the lever with a brush icon – the brushes appear. For carpets and rugs, push the opposite lever. Adapt the position according to the floor type.

Where can I get spare parts?

Contact BOMANN customer service or your authorized dealer. Use only original accessories to ensure safety and performance. The warranty does not cover wear parts like brushes.

USER MANUAL CB 994 BOMANN

Silver hand vacuum cleaner with a mesh handle and black base (no text or symbols visible)

CB 994

CE

BOMANN®

Inhalt

Inhoud • Sommaire • Indice • Índice • Indice

Contents • Spis treści • Obsah • Tartalom • Continut • Содержание

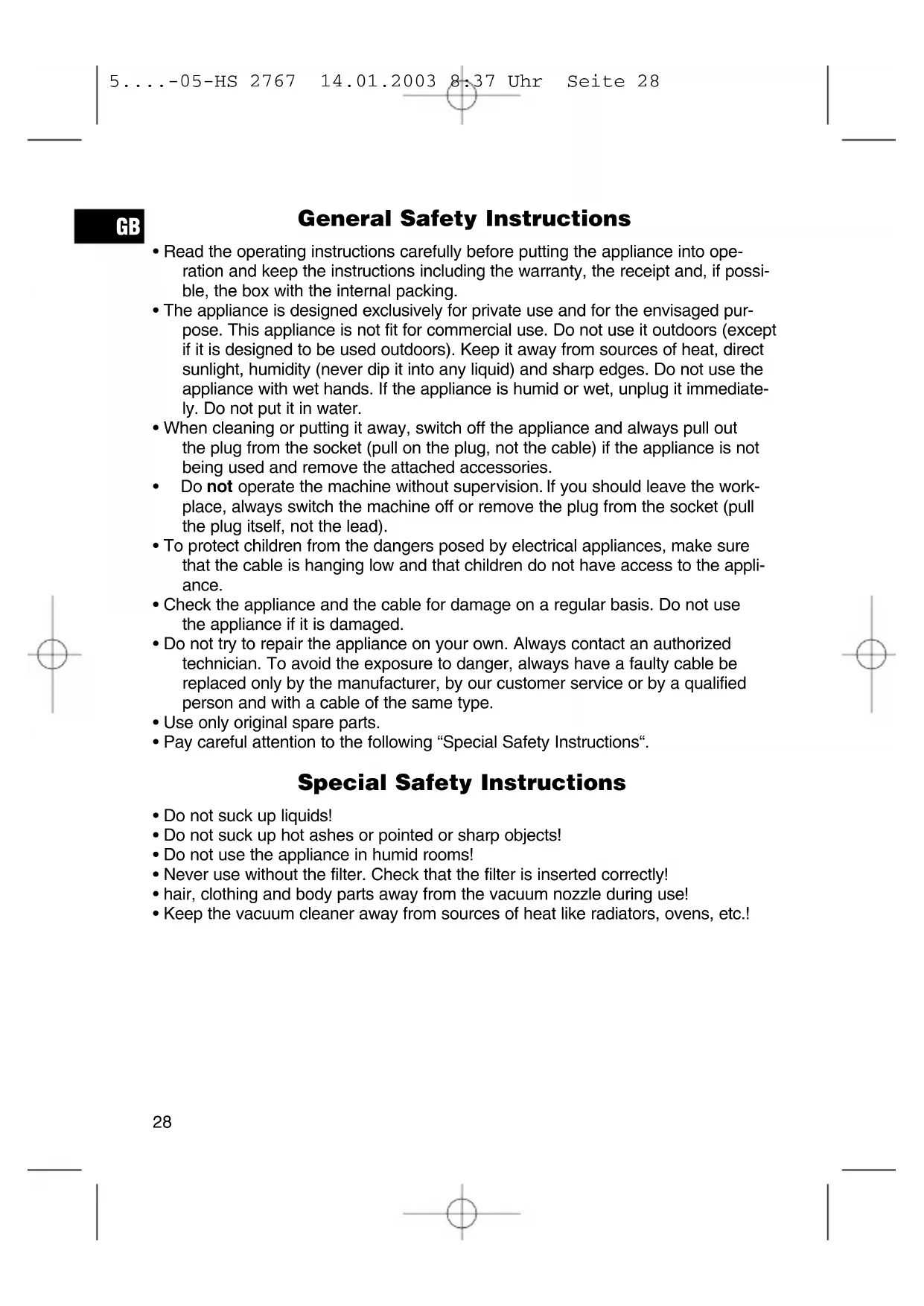

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special Safety Instructions

• Do not suck up liquids!
• Do not suck up hot ashes or pointed or sharp objects!
• Do not use the appliance in humid rooms!
• Never use without the filter. Check that the filter is inserted correctly!
• hair, clothing and body parts away from the vacuum nozzle during use!
• Keep the vacuum cleaner away from sources of heat like radiators, ovens, etc.!

Overview of Components

GB

1 On/off switch 8 Crevice nozzle
2 Locking button for the dust container 9 Large brush nozzle
3 Handle 10 Floor nozzle
4 Eye for the hooking 11 Handle with air slide of the shoulder strap (rear) 12 Upright hoses
5 Dust container 13 Upholstery/brush combination nozzle
6 Eye for the hooking 14 Small brush nozzle of the shoulder strap (front) 15 Shoulder straps
7 Suction hose 16 Exhaust filter

Attachment of the Accessories

• The large and the small brush nozzle can be attached to the vacuum cleaner and - with the help of the crevice nozzle - to the suction hose.
• The crevice nozzle can only be attached to the suction hose.
• If you would like to use the suction hose together with the floor nozzle, the upholstery/brush combination nozzle or the upright hoses, please attach the handle to the hose first and then choose the desired accessory.

Putting the Appliance into Operation

1. Check whether the filter is inserted correctly on the front of the device.
2. Open the vacuum with the fastener (2).
3. Close the vacuum again by inserting the flap on the front in the relevant slot.
4. Close the vacuum by locking into place the upper flap.
5. Mount the desired accessory with or without the hose on the front of the vacuum. When using the hose make sure that the curved side is facing down.

Connect the device to a duly installed 230V, 50Hz protective contact socket.

To start the vacuuming, press only the On/Off (I/O) switch.

Since the device has a removable and washable filter, there is no need to buy spare dust bags.

Nozzles:

Small brush nozzle: For the vacuuming of narrow surfaces and corners.

Large brush nozzle: For the vacuuming of large surfaces.

Hose with crevice nozzle: Perfect for vacuuming the interior of cars.

Upholstery/brush

combination nozzle: These nozzles are perfect for furniture, upholstery, frames and plenty more.

Floor nozzle, switchable: For cleaning carpets or smooth surfaces.

For smooth floors: Press down the lever with the brush symbol with your foot. The brush is now visible.

For carpets: Press down the opposite lever.

GB

Releasing the accessories: Pull them apart while turning slightly.

Damper:

Open the damper on the hose handle to adjust the airflow or to release objects clinging to the nozzle.

Shoulder straps:

Hook the ends of the shoulder strap with the snap-link in the eyes (4 and 6). Make sure that the shoulder straps are not wound up.

The length of the shoulder strap can be adjusted with the buckle on the strap by simply pulling one side of the strap. Thanks to its light weight the hand vacuum can be hung without problems and used anywhere.

Cleaning

1. Make sure that the vacuum is unplugged.
2. To clean the filter, press the button (2) to open the device.
3. Remove the filter and knock it. The filter can be cleaned under running water. Do not use any aggressive or abrasive detergent. Make sure that the filter is perfectly dry.
4. Proceed in the same way with the motor protection filter, which is located behind the dust filter.
5. In order to clean the exhaust filter, please remove the cap nut at the back of the device first and then remove the cover. Clean this filter as described above.
6. Please reinsert the cover and the dust container and close the device as described in „Initial Operation of the Device“.

After use

Always pull the plug out once you have finished using the vacuum. The vacuum can be stored vertically without wasting any space.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repai-

ring or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.
