USER MANUAL Steamium DW30 ROWENTA

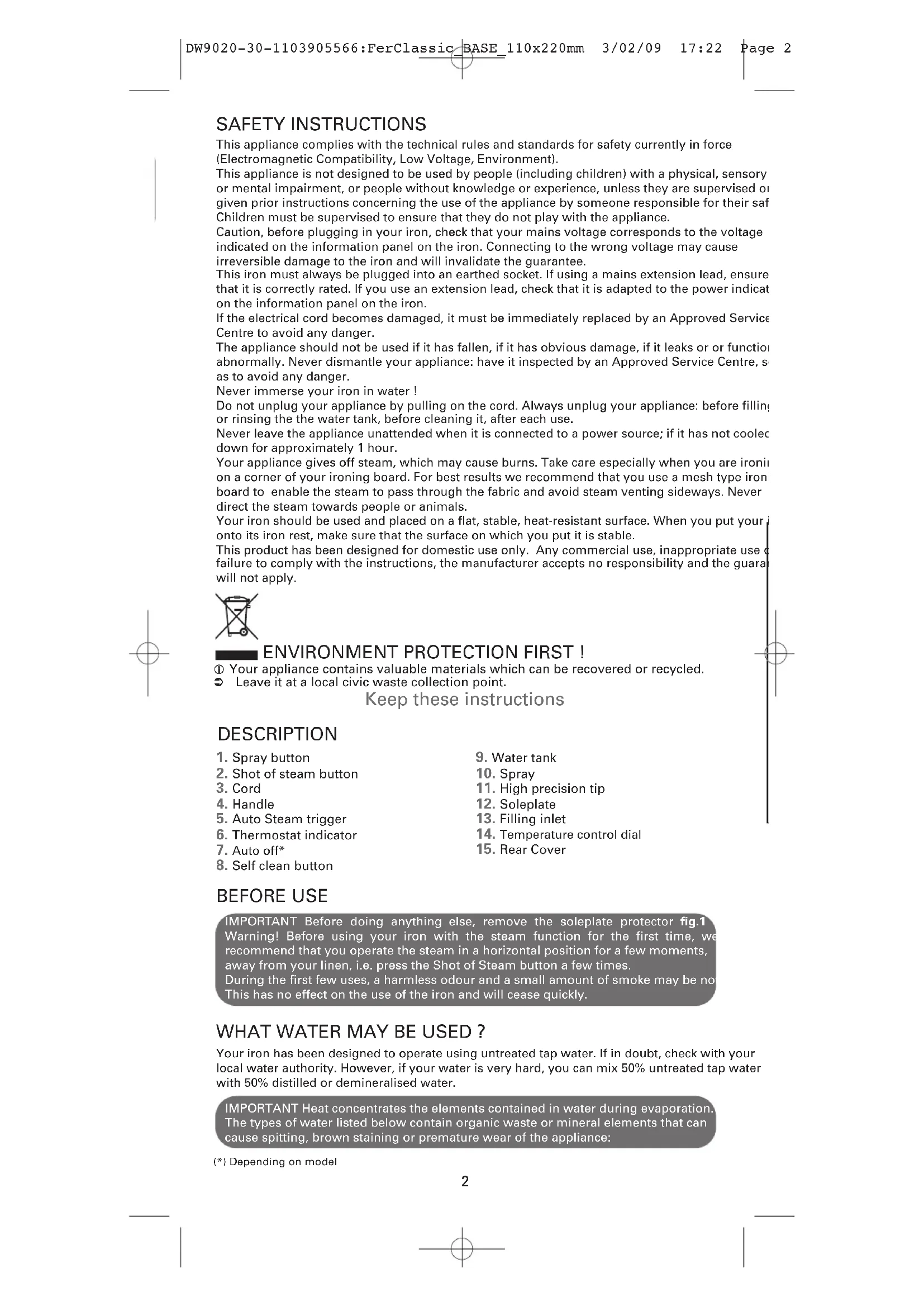

• Ó¿ÏÔÁ· Ì ÙÔ ÌÔÓÙ¤ÏÔ - в зависимости от модели - залежно вiд моделi DW9020-30-1103905566:FerClassic_BASE_110x220mm 3/02/09 17:21 Page C2fig.14 fig.15 fig.1 fig.4 fig.3fig.2 fig.6 fig.7 fig.8 fig.9 fig.10 fig.11 fig.12 fig.5 fig.13 DW9020-30-1103905566:FerClassic_BASE_110x220mm 3/02/09 17:22 Page 12 This appliance complies with the technical rules and standards for safety currently in force (Electromagnetic Compatibility, Low Voltage, Environment). This appliance is not designed to be used by people (including children) with a physical, sensory or mental impairment, or people without knowledge or experience, unless they are supervised or given prior instructions concerning the use of the appliance by someone responsible for their safety. Children must be supervised to ensure that they do not play with the appliance. Caution, before plugging in your iron, check that your mains voltage corresponds to the voltage indicated on the information panel on the iron. Connecting to the wrong voltage may cause irreversible damage to the iron and will invalidate the guarantee. This iron must always be plugged into an earthed socket. If using a mains extension lead, ensure that it is correctly rated. If you use an extension lead, check that it is adapted to the power indicated on the information panel on the iron. If the electrical cord becomes damaged, it must be immediately replaced by an Approved Service Centre to avoid any danger. The appliance should not be used if it has fallen, if it has obvious damage, if it leaks or or functions abnormally. Never dismantle your appliance: have it inspected by an Approved Service Centre, so as to avoid any danger. Never immerse your iron in water ! Do not unplug your appliance by pulling on the cord. Always unplug your appliance: before filling or rinsing the the water tank, before cleaning it, after each use. Never leave the appliance unattended when it is connected to a power source; if it has not cooled down for approximately 1 hour. Your appliance gives off steam, which may cause burns. Take care especially when you are ironing on a corner of your ironing board. For best results we recommend that you use a mesh type ironing board to enable the steam to pass through the fabric and avoid steam venting sideways. Never direct the steam towards people or animals. Your iron should be used and placed on a flat, stable, heat-resistant surface. When you put your iron onto its iron rest, make sure that the surface on which you put it is stable. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. DESCRIPTION Your iron has been designed to operate using untreated tap water. If in doubt, check with your local water authority. However, if your water is very hard, you can mix 50% untreated tap water with 50% distilled or demineralised water. IMPORTANT Before doing anything else, remove the soleplate protector fig.1 Warning! Before using your iron with the steam function for the first time, we recommend that you operate the steam in a horizontal position for a few moments, away from your linen, i.e. press the Shot of Steam button a few times. During the first few uses, a harmless odour and a small amount of smoke may be noticable. This has no effect on the use of the iron and will cease quickly. BEFORE USE

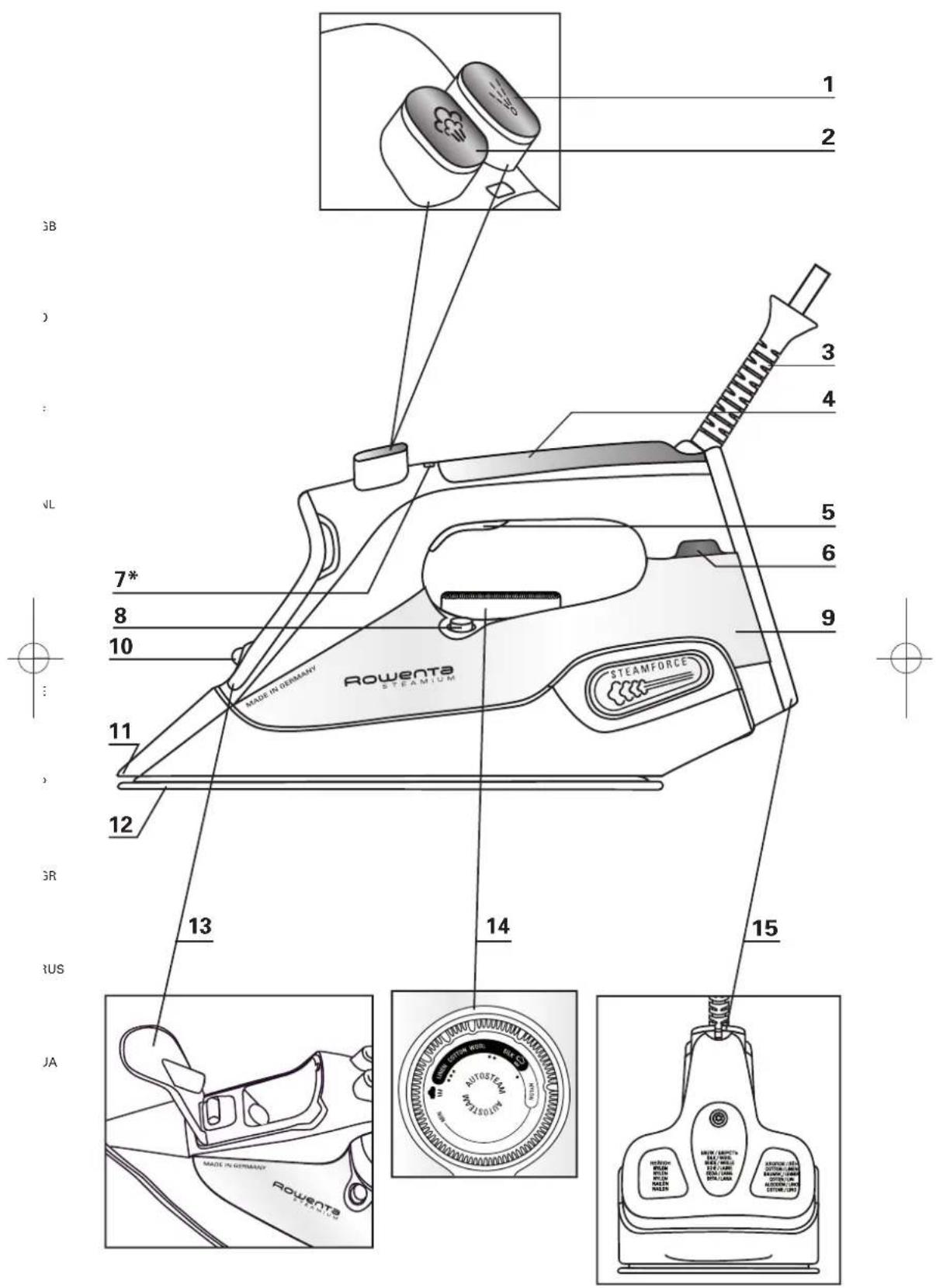

2. Shot of steam button

Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point. Keep these instructions IMPORTANT Heat concentrates the elements contained in water during evaporation. The types of water listed below contain organic waste or mineral elements that can cause spitting, brown staining or premature wear of the appliance: (*) Depending on model DW9020-30-1103905566:FerClassic_BASE_110x220mm 3/02/09 17:22 Page 23

3 • Dry ironing Set the temperature to suit the type of material without pushing the autosteam trigger and shot of steam button. 4 • Steam ironing (Autosteam & Steamforce) Your iron is equipped with the Autosteam function. The steam quantity and the temperature will adjust automatically to the selected fabric. To get continuous steam squeeze the autosteam trigger fig.8. Your iron is equipped with a pump called Steamforce Technology which pushes 30 % more steam into the heart of the fibres. The pump may cause a slight noise. This is not a technical fault! A few seconds are necessary to produce or to stop the steam. 5 • Shot of steam Press the shot of steam button to generate a powerful jet of steam fig.9. water from tumble dryers, scented or softened water, water from refrigerators, batteries or air conditioners, pure distilled or demineralised water or rain water should not be used in your iron. Also do not use boiling, or bottled mineral water. 1 • Filling the water tank

• Before filling the water tank, unplug the iron fig.2.

• Set the temperature control dial fig.3 on position (Min.)

• Open the filling inlet fig.4. Fill in water up to the Max. mark. fig.5. Close the filler inlet and return the iron to the horizontal position.

• You can plug in your iron fig.6. 2 • Setting the temperature Your iron is equipped with the Autosteam Electronic Control function, it automatically adjusts the steam amount and the temperature based on the selected fabric for optimum results. Select the fabric to be ironed on the thermostat dial. For perfect results, an optimum position for each fabric has been pre-defined. This position is marked on the dial and also represented with a louder “click” sound. You can also set your iron based on the international temperature measurements •, ••, •••. Ensure your thermostat dial is positioned on these settings. When your iron reaches the required temperature, the thermostat indicator turns off fig.7. You can start ironing. USE IMPORTANT The iron takes longer to cool down than to heat up. We recommend that you start with fabrics to be ironed at a low temperature. For mixed fabrics set the temperature for the most delicate fabric. TIP Always spray starch onto the reverse side of the fabric to be ironed. FABRIC THERMOSTAT THERMOSTAT INDICATION IRONING LABEL Nylon (Synthetic fibres, e.g. viscose, polyester) NYLON silk SILK wool WOOL cotton COTTON linen LINEN IMPORTANT Leave an interval of a few seconds between each shot and wait until the flow of steam has finished before standing the iron on its heel. DW9020-30-1103905566:FerClassic_BASE_110x220mm 3/02/09 17:22 Page 312 • Anti-scale system Your iron contains an anti-scale cartridge to reduce scale deposits. This considerably prolongs the operational life of your iron. The anti-scale cartridge is an integral part of the water tank and does not need to be replaced. 13 • Cleaning the iron When the appliance has cooled down, wipe it down with a damp cloth or sponge, as required. 14 • Self Clean (prolongs the life of the iron) The Self Clean function flushes dirt and scale particles out of the steam chamber. Fill the water tank with untreated tap water up to the max mark and heat the iron to the ••• temperature. Unplug the iron and hold it over a sink horizontally. Push the self clean button for 1 minute fig.14 : steam will now begin to build up. After a few seconds water will emerge from the soleplate, rinsing dirt and scale particles out of the steam chamber. Plug in the iron and allow the iron to heat up again. Wait until the remaining water has evaporated. Unplug from the mains and allow the iron to fully cool down. When cool, the soleplate can be wiped with a damp cloth. 6 • Vertical shot of steam (from temperature setting (••) upwards) Hold the iron vertically and press the shot of steam button to remove creases from suits, jackets, skirts, hanging curtains etc. fig.10. 7 • Spray Press the spray button to dampen difficult creases fig.11. 8 • Anti-Drip system * It prevents water escaping from the soleplate when the temperature is too low.

AFTER USE 10 • Emptying Unplug the iron. fig.2 Pour away remaining water fig.13. Set the temperature control dial fig.3 on position Min. 11 • Storing Allow the appliance to cool down before storing the iron standing on its heel. IMPORTANT Do not wind the cord around the hot soleplate fig.15. Never store your iron placed down on the soleplate.

MAINTENANCE AND CLEANING

IMPORTANT Unplug and allow the iron to fully cool down before maintenance and cleaning. IMPORTANT Do not use sharp or abrasive cleaning agents or objects to clean the soleplate and other parts of the iron.

WARNING : Do not use descaling agents even if advertised for steam irons. They will

permanently damage your iron. TIP Use the Self Clean function approx. every 2 weeks. If the water is very hard, clean the iron weekly. (*) Depending on model 9 • Auto Off function*

TISSU THERMOSTAT INDICATIONS
