USER MANUAL Chrome Joie

Accessories (May not be included in purchase)

Accessories may be sold separately or may not be available depending on region.

Care and Maintenance

Welcome to Joie

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the Joiechrome™, you are using a high quality, fully certified stroller, approved to European safety standards EN 1888-2012 and can be used with Joie Chrome carry cot which approved to EN 1466:2014/AC 2015. This product is suitable for use with children weighing under 15kg. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

IMPORTANT - Keep these instructions for future reference.

Visit us at Joiebaby.com to download manuals and see more exciting Joie products!

Contents

Figures 1-10

WARNING 13

Stroller Assembly 14

Open Stroller 14

Assemble Front Wheels 14

Assemble Rear Wheels 14

Assemble Ambar 15

Assemble Hoop 15

Stroller Operation 15

Use Hood 15

Switch Seat 15

Adjust Recline 15

Use Buckle 15

Use Shoulder & Waist Harnesses 16

Use Crotch Harness 16

Adjust Calf Support 16

Use Front Swivel Lock 18

Use Brake

Adjust Handle 17

Fold Stroller 17

Use Accessories 17

Care and Maintenance 18

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

Read all the instructions in this manual before using this product. If you have any further questions, please consult the retailer. Some features may vary depending on model.

Product
Suitable for Child weighing under 15kg (birth - 36 months)
Materials Plastics, metal, fabrics
Patent No. Patents pending
Made in China Board of Directors
Branding Name 0016Website www.joebabycom
Manufacturer: Joie Children's Products (UK) Limited

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1 Stroller Frame
2. Front Wheel (X2)
3 Bear Wheel (X2)
4. Brake Assembly 10 Seat Mount
5.Ambay
6 Calf Support

13 Folding Button
14. Handle Adjustment
Button
15. Recline Handle
16. Storage Basket
17 Brake Lever

18 Storage Latch
19. Storage Latch Mount
20 Handle

Accessories

(May not be included)

1 Hnoi

2 Crotch Harness Pad Cover
3 Shoulder Harness Pad Cover
4 Rain Cover
S Footmuff Apron
6 Carry Co
7 Adapter
8 Seat Liner
Accessories may be sold separately or may not be available depending on region.

WARNING

WARNING Always use the crotch combination with the waist belt. It is suggested that the shoulder harnesses be used as well.
!WARNING Ensure that all the locking devices are engaged before use.
!WARNING Do not let your child play with this product.
!WARNING Check that the pram body or seat unit attachment devices are correctly engaged before use.
! Adult assembly required.
! Use the stroller with a child weighing less than 15 kg . It will cause damage to the stroller with an unfitted child.
To prevent a hazardous, unstable condition, do not place more than 4.5kg in the storage basket.
! Never leave child unattended. Always keep child in view while in stroller.
! Use the stroller with only one child at a time. Never place purses, shopping bags, parcels or accessory items on the handle or hood.
! Overloading, folding incorrectly, or using component parents from other manufacturers may cause the stroller to be damaged, broken or unsafe. Please read the instruction manual carefully.
! Never use it along with component parts from other manufacturers.
Please read all the instructions in the manual before using the product. Please save instruction manual for future use. Failure to follow these warnings and instructions may result in serious injury or death.
! Safety belts and restraint systems must be used correctly.
To avoid serious injury from falling or sliding out, always use seat belt.
! Make sure your child's body is clear from the moving parts when adjusting the stroller.
! Child may slip into leg openings and be strangled if the harness is not used.
! Never use stroller on stairs or escalators.
! Keep away from high temperature objects, liquids, and electronics.
I Never allow your child to stand on the stroller or sit in the stroller with head toward front of stroller.
! Never place the stroller on roads, slopes or dangerous areas.
! Do make sure all mechanisms are fixed before using the stroller
! To avoid strangulation,DO NOT place items with a string around your child's neck,suspend strings from this product,or attach strings to toys.
! To prevent tipping DO NOT put anything on the handle.
DO NOT lift stroller while child is in stroller.
! DO NOT use storage basket as a child carrier.
! To prevent tipping, never let child climb the stroller. Always lift the child in and out of the stroller.
To avoid injury, ensure that your child is kept away when unfolding and folding this product.
! Be sure the stroller is fully open or folded before allowing child near the stroller.
To ensure your child's safety, please make sure all parts are assembled and fastened properly before using the stroller.
! To avoid strangulation, do make sure your child is clear from the hood.
! Always engage the brakes when parking the stroller.

! Discontinue using stroller if it is damaged or broken.
! Stroller to be used only at walking speed. This product is not intended for use while jogging.
! To avoid suffocation, remove plastic bag and packaging materials before using this product. The plastic bag and packaging materials should then be kept away from babies and children.
! This product is not suitable for running or skating.
! Pushchair designed to be used from birth shall recommend the use of the most reclined position for new born babies.
The parking device shall be engaged when placing and removing children.
! Carry cot is only suitable for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees. Maximun weight of the child: 9kg.
! Do not let other children play unattended near the carry cot.
! Carry cot is NOT to be used for long term sleeping.
I DO NOT use or add any mattress other than the one supplied with the carry cot.
! For child restraints used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.
Please make sure that the head of the child in the carry cot should never be lower than the body of the child.
! Please make sure that the handle is in the correct position of use before carrying or lifting.
! The handles and the bottom of the carry cot should be inspected regularly for signs of damage and wear.

Stroller Assembly

Please read all the instructions in this manual before assembling and using this product.

Open Stroller

Separate storage latch from storage latch mount 1, and then lift the handle upwards 2, a click sound means the stroller is open completely. Press the recline handle on the back of backrest to rotate the backrest to vertical position.

Check that the stroller is completely open before continuing.

Assemble Front Wheels

Assemble front wheels to front legs. Check that wheels are securely attached by pulling on wheel assemblies.

To disassemble front wheel, detach front wheel from front leg 5 - 2 while pressing the release button. 5 - 1

Assemble Rear Wheels

Assume brake assembly to rear legs, assemble rear wheels to brake assembly. Pull the basket tube backward and wrap the connecting tube of rear legs with the flap of the storage basket, and then snap the three buttons 3-1.

! Check that wheels are securely attached by pulling on wheel assemblies.

To disassemble rear wheel, detach rear wheel from rear wheel mount 2 while pressing the release button.

7-1

Assemble Armbar

Align the armbar ends with the armbar mounts, and then insert to lock.

To disassemble armbar, press armbar release button -1, and then pull out the armbar. -2

Assemble Hood

To assemble hood, insert clips into mount, then attach 2 pairs of buttons.

The completely assembled stroller is shown as

Stroller Operation

Use Hood

Open the zipper, then push the Hood forwards to open the Hood.

To fold the hood, pull hood toward back.

To remove hood, detach clips from mount while pressing the fixing tab, then detach 2 pairs of buttons (used

to attach the hood fabric to the seat) now lift of the hood.

Once fitted, removing the hood on a regular basis is not recommended.

Switch Seat

The seat can be switched, which makes mother and child can face to face with each.

Squeeze the seat release buttons while lifting the seat. 10 Turn the seat to reverse direction, and then insert the seat to seat mounts.

Adjust Recline

There are 5 positions for the backrest.

To recline the backrest, squeeze the adjustment button -1, and then adjust the backrest to a desired angle.

-2

To raise the backrest, push up.

Make sure the recline is set properly for use.

Use Buckle

Release Buckle

Press the center button to release the buckle.

Lock Buckle

Match the waist belt buckle with the shoulder buckle 15 - 1, and click into the center buckle. 10 - 2
A "click" sound means the buckle is locked completely.
To avoid serious injury from falling or sliding out, always secure your child with harness.
Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand.
Do not cross the shoulder belts. This will cause pressure on child's neck.

Use Shoulder & Waist Harnesses

In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder and waist harnesses are at proper height and length.

-1 Shoulder harness anchor A
-2 Shoulder harness anchor B
3 Slide adjuster

For larger child, use shoulder harness anchor A and the highest shoulder slots. For smaller child, use shoulder harness anchor B and the lowest shoulder slots.

To adjust the position of the shoulder harness anchor, turn the anchor to be level with the side facing forward. Thread it through the shoulder harness slot from back to front. Retrhead it through the slot that is closest to child's shoulder height.

Use slide adjuster to change the harness length. 20 - 1

Press the button -2, while pulling the waist harness to proper length.

Use Crotch Harness

There are 2 positions the crotch strap can be adjusted to according to the requirements of the child.
Position 1 Smaller babies use this position
Position 2 Larger babies use this position
I. Pull the croton harness out and place it to be level. -18-2
ii. Rotate the crotch harness anchor to make the short side forwards, then thread it through the crotch harness slot: -3 & -4
iii. Rethread it through the slot that is closest to child's crotch from the front of the crotch harness.

Adjust Calf Support

The calf support has 2 positions.

Raise Calf Support

To raise the calf support, just push it upwards.

Lower Calif Support

Press the adjustment buttons on both sides of the calf support +1 and rotate the calf support downwards.

Use Front Swivel Lock

Push up the front swivel locks to maintain the moving direction. 27

Tip It is recommended to use swivel locks on uneven surfaces.

Use Brake

To lock wheels, step the brake lever downwards.
To release wheels, just lift the brake lever upwards.
Tip Always apply brake when stroller is in stopped position.

Adjust Handle

The handle has 3 positions.

To adjust the height of the handle, pull the handle upward or downward - 2 while pressing the handle adjustment button.

Fold Stroller

Please fold the hood before folding the stroller.

Press the recline handle on the back of backrest to rotate the backrest to horizontal position.

Lift the folding button , step the folding pedal downwards , push the stroller forward to fold

The storage latch will automatically hook onto the storage mount, then the stroller is folded and locked completely.

Use Accessories

Accessories may be sold separately or may not be available depending on region.

Use with Joie Child Restraint

When using with Joie child restraint gemm, please refer to the following instructions.

1. To attach adapter, place adapter onto mounts as show. A click sound means the adapter is locked completely.

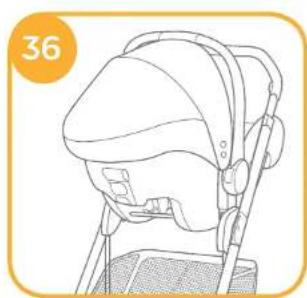

2. To attach child restraint, place child restraint onto adapter as shown. A "click" sound means the child restraint is locked completely.

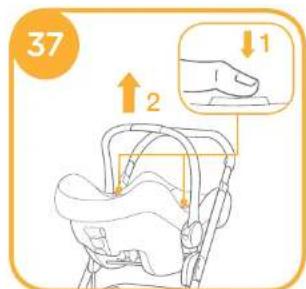

3. To remove child restraint, lift the child restraint upwards 1~s~ - 1 while pressing the two stroller fix release buttons A.
   If you have any problems about using the stroller and the adapter, please refer to their own instruction manuals.
   To remove adapter, lift the adapter upwards -2 while pressing the two release buttons. 1
   Remove the adapter show as
   ! Please don't fold stroller when attaching the child restraint.

Use Carry Cot

Carny Got Assembly

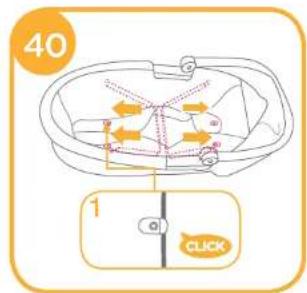

1. Open the wire support on both side of the carry cot . Then click the wire into the four plastic parts, A "Click" sound means the wire support is secure.
   Place the mattress into the carry cot, and smooth it down.
   Always use the mattress when using the carry col.
   Mattress cover can easily be removed to wash.
2. Adjust carry cat hood
   Open the hood and pull the front end to secure. Close the hood by pressing the folding buttons on either side.
3. Assembly cany cot apron
   Place the apron over the carry cot, then attach the 5 pairs of hook and loop fasteners. -1 Carry cot assembled completely as
   Attach Carry Col onto Chassis
   Align the sides of the carry cot with the adapters on the frame.
   Place the carry cot directly down until it clicks into place. Click sound means carry cot assembled completely.

Always remove the adapters before using the carry cot.
Please don't fold stroller when attaching the carry cot.
Remove Carry Cot

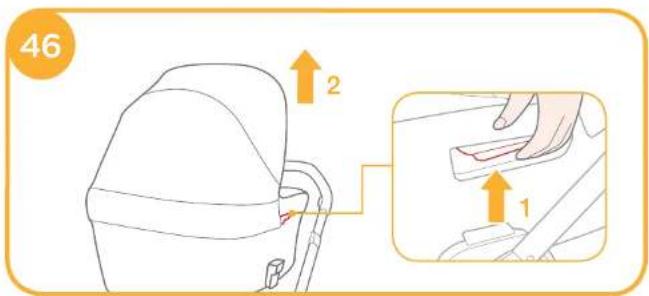

Press release buttons on both side of carry cot -1, and then lift it upwards.

Use Footmuff Apron

The soft footmuff apron can provide your child with a warm and comfortable sleeping environment.

Assemble the footmuff apron by following these steps.

1. Adjust the calf support and backrest to level position and recline position respectively before assembling footmuff apron.

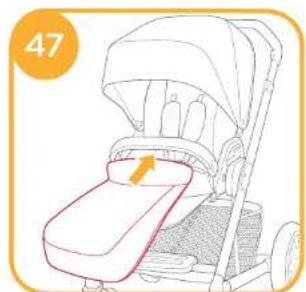

2. Cover the calf support with footmuff apron.

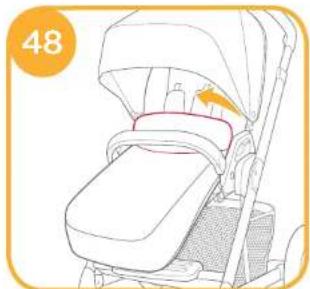

   The assembled footmuff apron is shown as

Use Rain Cover

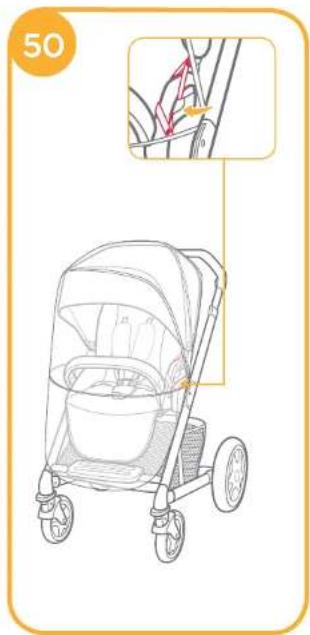

To assemble the rain cover, place it over the stroller, and then attach it on the armrest by 4 pairs of hook and loop fasteners.

Before using the rain cover, to be make sure the seat has been fastened.
! When using the rain cover, please always check its ventilation.
! When not in use, please check that the rain cover has been cleaned and dried before folding.
Do not fold the stroller after assembling the rain cover.
Do not place your child into the stroller assembled with rain cover during hot weather.
To be used under adult supervision. Do not use on a pushchair without a canopy.

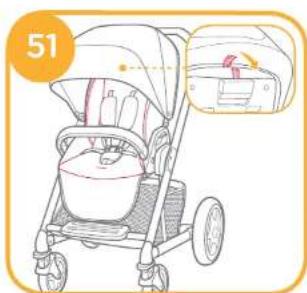

Use Seat Liner

see images

Use Shoulder Harness Pad Cover and Crotch Harness Pad Cover

The shoulder harness pad cover or crotch harness pad cover can be removed from the webbing. Simply reverse these steps to re-assemble shoulder harness and crotch harness pad cover.

Care and Maintenance

! Removable seat pad may be washed in cold water and drip-dried. No bleach.
To clean stroller frame, use only household soap and warm water. No bleach or detergent.
From time to time, check your stroller for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed.
Excessive exposure to sun or heat could cause fading or warping of parts.
If stroller becomes wet, open hood and allow to dry thoroughly before storing.
If wheels squeak, use a light oil (e.g., Silicon Spray, antirust oil, or sewing machine oil). It is important to get the oil into the axle and wheel assembly.
When using your stroller at the beach, completely clean your stroller after use to remove sand and salt from mechanisms and wheel assemblies.

JoieChildren's Product (UK) Limited

Joie Children's Product (UK) Limited

Lista de piezas

Markename Joie Mortgage Bank

Weedene www.jolababy.com
Hutnate Jole Childrens Proyect (UK) Limited

Herstler oolie Childrens Product (OK) Limited

Teileliste

Name:Marla Jole Site:www.ajejabby.com

Fabbricante JoieChildren's Product UK) Limited

Joins Childre's Prochst llg Limited

OIECILINER'S PROECT (ON) LIMITED

m - 1 0 ;

1

Parca listesi

Montal jin tum parcalan kullaniabillr odugundan emin olun. Parcalari eksik olursa, yerei tucarin ie itibat kurun. Montal jin aleit gerekmaz

1 Bebek arabsai

cercevesi

2 On tekerlek X2

3 Arka tekerlek (X2)

4.1010102

S E CUBUG

6 Ayak destegi

1. Mll

B On tekeek

9AKskeKek

10.2016年1月1日

Joie Children's Products UK) Limited

晋晋引申

I Iapakai Sinwate ty koukoua npiv kieote to kaotal.

Pte 103 aaiiaonco nioi npoc nnc yia vnpnepnpey nnnn nn no

KaieioaotuaotavnagaaeiaKaeidawatcKaeioepe to kain aopaeiof

Xiponaeouap

Ta oedouap npoei va nauovrtaexupoia npopel va npv elvaioa cdooya tvnpoiy

Xipn o Joie Kaiaua autokivntou

Orav to xnoiounoate me to kdoa uotokwou Joie Gemm npakaw axokawonrntic npakatow obrylc.

1. Iua xpv ananrpoae tue aovntapoc npokalau vou too nroeepa eao uco aodoxy cno gai nei 0xnv EkoA Evoc nyck ska kaoakeoi kuo autovnoeoi oia auvtopoc cquoy kaukdo
   2.1a vto aotnroe to kaiokia oalae to ouao avanotoc oae qaiwotei eon yekovai Evoc nyog 0kakg aokoukei kai ouo naioue ooi to kaiokia eei kaiokia oowot
2. Tia va lyoale to kioaopa crA tpoBne 10oc to naw -1 meovic ta koumio aneepwoc 2
   Aevge nno npnnae pe to aioa kau cavntropeacvupzte oia 6kau eepia o
   1 Fiva dipapeceitou avartoperme npor to nov 38-2 movtac ta ooukupna aneepwone 38
   HApalpeon Tovavntapow spovotaroyekov,
   I npakaka kiv kshvete to kapotot atov undpoxravu to kokpa

Xipion npctmuemr

Tuvapaoynon noptune

1. Avolles to oupd mpiqck kai and tic 600 mkepe c an to npt pnepe acn Meta bAte to ot npdyatot
   Teepa nataka.Evoc ngkKaKbBaakoutel noorpoiveonxovKaeBOWOwot
   Tonoetto oto atpwa oto nopntnne 1 kai note eappa, -1
   Flavva va xponoiponotte to otpupa orav xponoiponotte to nopt pnept
   To npaaopanao to atpupaumopei va apapeecl ekoala yia v no
2. Publote nKoukoula to npn pprene
   Avolte Tny Koukoula Kar npahtte To nppootwo dkpo yia aokpala
   KAEOTETYKOUKOaTaKoumnnKaaioTc6ooNaeupc
3. Tuaapauaooynty noiaou npotnepne
   Ttoeotnre tno nroa rana oto noo-tne, stn ovege, ovoetse to 5 eyn hovhav ta Bekac.
   Tono0ctnto npntmupeo 0ealeto
   Tonoerntote noopnmupe evdo kawpvi aaoaiae

EvacnKAKNTOBgAkaouteIOnualeToTtoptneEeyaoa

VvvaBpyteToucavrantopec npiv Tnv xpon Tou pnpne

Papoxoayn keltene to kapotot otav exete to nppt pne

Acppeon tou nptune

Pto kouptineevepoanqk aod tic do nvepuoc tou npot pene 1 ka petaovonkote -2

XpiHnPi6oKaou

O eotoc noo000c e0aPAAe o to aol c evc eToepiBdAov.

UvoaoyoteovnooakagokouuuytaTnapakatwBmuata.

1.Pubioe to rtono o eneron Oen kalnt ne Aanr n eonn anot aonrnnn onou

2.KaJUPToTunonδioeTovnoδaKa

Houapnaynnrnnrnnn rannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Xipon KauaBpoxic

Tia va xpoiounoepre to oidipoyo pale to novw ono to kopoai kal aote unoooyc tic aopeae.

I Ppv xpnnoonnoeTo kaVya paBawOte On Ocon elavowot aoopaoepy
1OraV npouonouohtoi to kaiuua va eayctai nva tv oecipio
Oav dev to xnpouoioi va to nVvete kai va to oeywoee kaia npiv to snawaet.
I Mny kAevte To KpOTo paCi Me To kAunmu
MnV BcTe to naiol oac oTo kapotoi uicu To Kdauu aov a kaipoc elvai Ceotoc.
Nn npnpnpooreite o ntrnntiAynrnnn Ayn npnpnponeie to kaporoi xipic nykouko

Xipon Yipaoqutow

BLeene wtoypapia

Xipon maEapakia Wovkai KaBao

Tu naiapao qawqia qai kai taaiapao toov kajaoov paoi va npaeBow eno no aoeBauo any tvv evayooa lauio.

Φpovtida kai ZuvtnipnON

Taupapata mopow va nauovkai voteywoMny xnpoiponotie xwipn
Tnva nivte to ekeiO gponpoanolute euro vepo kao nanov Mny xponononee xkwn
KATI KAPUPOV,VA EYEVEK TAPORIO OAC YI TAVOY XeAepeBIEc BIEc Bnpuva EApriyraa Okioueva papeC Na To AVKATKATPRAE VXpHETAE
H Umepeokn k Eekmow mnaon n Bepomra Tba unpoopne w npokakte rge eaeBovn n tpekauuTu
Av to kapotai ppaey-avolte thy koukua kai dpneote va otaywospi npiv to klaicete
Avpikouv oipoxoi npoiponoe tva hdi n opei hiaov Eiva onnayko va to exetepaoc
Otroy npoioiote to kopoioi ot npaia pae npre, va to kaoipoeite nko kdo t o wte vay npy eoi apoi

Joie Children's Products (UK) Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ
