USER MANUAL RXA2070 YAMAHA

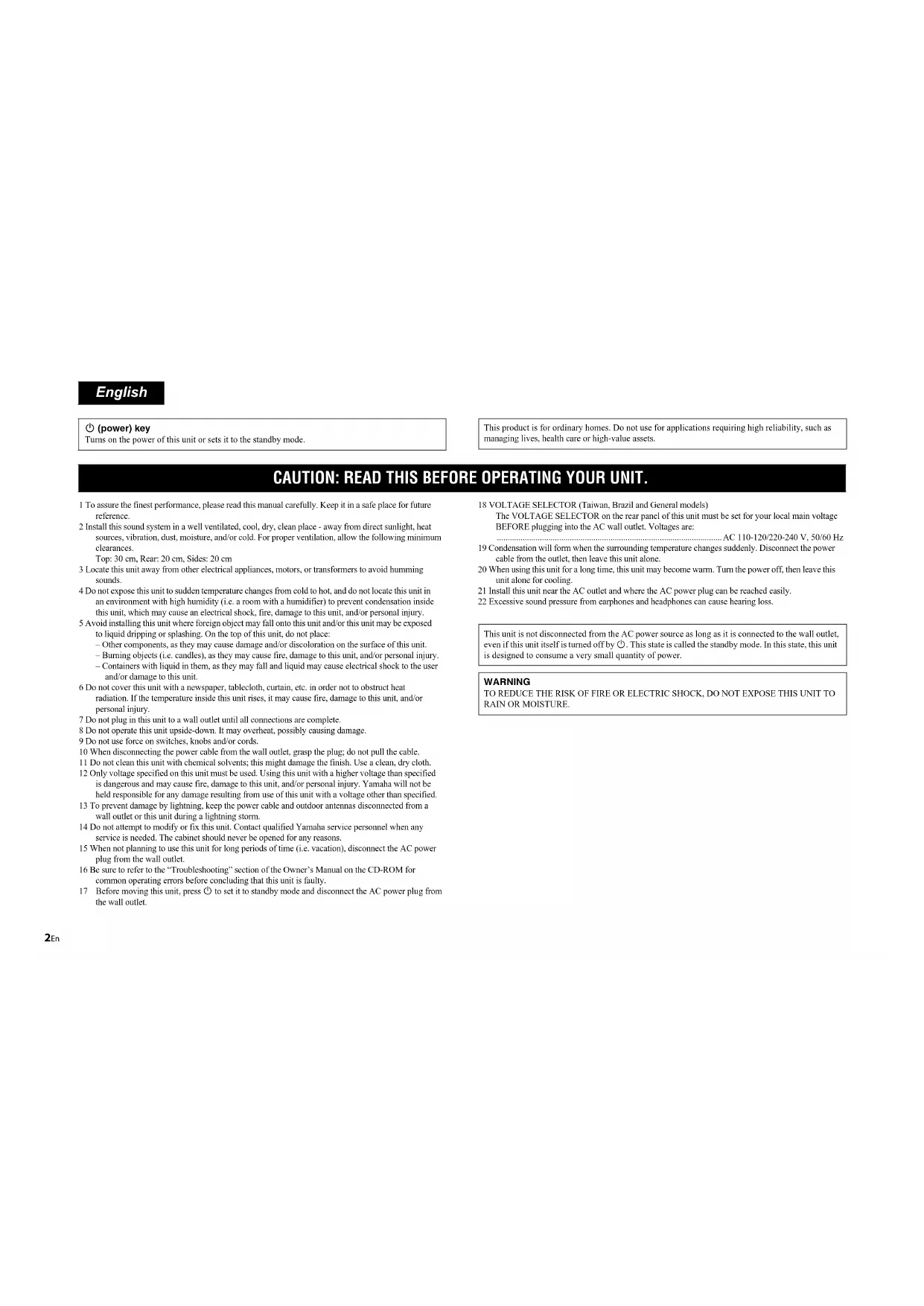

GFS AV Receiver Ampli-tuner audio-vidéo2 En 1 To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference. 2 Install this sound system in a well ventilated, cool, dry, clean place - away from direct sunlight, heat sources, vibration, dust, moisture, and/or cold. For proper ventilation, allow the following minimum clearances. Top: 30 cm, Rear: 20 cm, Sides: 20 cm 3 Locate this unit away from other electrical appliances, motors, or transformers to avoid humming sounds. 4 Do not expose this unit to sudden temperature changes from cold to hot, and do not locate this unit in an environment with high humidity (i.e. a room with a humidifier) to prevent condensation inside this unit, which may cause an electrical shock, fire, damage to this unit, and/or personal injury. 5 Avoid installing this unit where foreign object may fall onto this unit and/or this unit may be exposed to liquid dripping or splashing. On the top of this unit, do not place: – Other components, as they may cause damage and/or discoloration on the surface of this unit. – Burning objects (i.e. candles), as they may cause fire, damage to this unit, and/or personal injury. – Containers with liquid in them, as they may fall and liquid may cause electrical shock to the user and/or damage to this unit. 6 Do not cover this unit with a newspaper, tablecloth, curtain, etc. in order not to obstruct heat radiation. If the temperature inside this unit rises, it may cause fire, damage to this unit, and/or personal injury. 7 Do not plug in this unit to a wall outlet until all connections are complete. 8 Do not operate this unit upside-down. It may overheat, possibly causing damage. 9 Do not use force on switches, knobs and/or cords. 10 When disconnecting the power cable from the wall outlet, grasp the plug; do not pull the cable. 11 Do not clean this unit with chemical solvents; this might damage the finish. Use a clean, dry cloth. 12 Only voltage specified on this unit must be used. Using this unit with a higher voltage than specified is dangerous and may cause fire, damage to this unit, and/or personal injury. Yamaha will not be held responsible for any damage resulting from use of this unit with a voltage other than specified. 13 To prevent damage by lightning, keep the power cable and outdoor antennas disconnected from a wall outlet or this unit during a lightning storm. 14 Do not attempt to modify or fix this unit. Contact qualified Yamaha service personnel when any service is needed. The cabinet should never be opened for any reasons. 15 When not planning to use this unit for long periods of time (i.e. vacation), disconnect the AC power plug from the wall outlet. 16 Be sure to refer to the “Troubleshooting” section of the Owner’s Manual on the CD-ROM for common operating errors before concluding that this unit is faulty. 17 Before moving this unit, press z to set it to standby mode and disconnect the AC power plug from the wall outlet. 18 VOLTAGE SELECTOR (Taiwan, Brazil and General models) The VOLTAGE SELECTOR on the rear panel of this unit must be set for your local main voltage BEFORE plugging into the AC wall outlet. Voltages are: .........................................................................................................AC 110-120/220-240 V, 50/60 Hz 19 Condensation will form when the surrounding temperature changes suddenly. Disconnect the power cable from the outlet, then leave this unit alone. 20 When using this unit for a long time, this unit may become warm. Turn the power off, then leave this unit alone for cooling. 21 Install this unit near the AC outlet and where the AC power plug can be reached easily. 22 Excessive sound pressure from earphones and headphones can cause hearing loss. English z (power) key Turns on the power of this unit or sets it to the standby mode. This product is for ordinary homes. Do not use for applications requiring high reliability, such as managing lives, health care or high-value assets. CAUTION: READ THIS BEFORE OPERATING YOUR UNIT. This unit is not disconnected from the AC power source as long as it is connected to the wall outlet, even if this unit itself is turned off by z. This state is called the standby mode. In this state, this unit is designed to consume a very small quantity of power. WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.En 3 ■ Notes on remote controls and batteries

• Do not spill water or other liquids on the remote control.

• Do not drop the remote control.

• Do not leave or store the remote control in the following conditions: – places of high humidity, such as near a bath – places of high temperatures, such as near a heater or stove – places of extremely low temperatures – dusty places

• Insert the battery according to the polarity markings (+ and -).

• Change all batteries if you notice the following conditions: – the operation range of the remote control narrows – the transmit indicator does not flash or is dim

• If the batteries run out, immediately remove them from the remote control to prevent an explosion or acid leak.

• If you find leaking batteries, discard the batteries immediately, taking care not to touch the leaked material. If the leaked material comes into contact with your skin or gets into your eyes or mouth, rinse it away immediately and consult a doctor. Clean the battery compartment thoroughly before installing new batteries.

• Do not use old batteries together with new ones. This may shorten the life of the new batteries or cause old batteries to leak.

• Do not use different types of batteries (such as alkaline and manganese batteries) together. Specification of batteries may be different even though they look the same.

• Before inserting new batteries, wipe the compartment clean.

• If the remote control is without batteries for more than 2 minutes, or if exhausted batteries remain in the remote control, the contents of the memory may be cleared. In such a case, install new batteries and set the remote control code.

• Dispose of batteries according to your regional regulations.

• Keep batteries away from children. If a battery is accidentally swallowed, contact your doctor immediately.

• When not planning to use the remote control for long periods of time, remove the batteries from the remote control.

• Do not charge or disassemble the supplied batteries.

• The batteries shall not be exposed to excessive heat such as sunshine, fire or like. Information for Users on Collection and Disposal of Old Equipment and Used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. [Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. Note for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. For more detailed information, refer to the Owner’s Manual on the CD-ROM. Caution: Do not attempt to play this CD-ROM in an audio player. To view the Owner’s Manual, click on “English” in the screen displayed automatically when you insert the CD-ROM into your PC, or click on the model name if the screen to select models is displayed, and then click on “English” in the next screen. Then, follow the onscreen instructions. If the screen is not displayed automatically, open the “index.html” in the CD-ROM. The Owner’s Manual contained in the CD-ROM can be downloaded from the following website: URL : http://download.yamaha.com/ Do not use this unit within 22 cm (9 inches) of persons with a heart pacemaker implant or defibrillator implant. Caution Do not touch the surface marked with this label. The surface may become hot during operation.4 En This document explains 7.1-channel system setup, 7.1.2-channel system setup using the front presence speakers, and unit configuration, followed by step-by-step instructions. Basic operations, such as playing Blu-ray Discs, DVDs, and radio content, are also explained. In this document, the RX-A3070 is used for illustration purposes. Some parts or components, such as jacks or remote control keys, may vary by specific model. Such differences are indicated as required. The unit is equipped with a number of other functions not described in this booklet. For more information about this product, refer to the Owner’s Manual included on the supplied CD-ROM. The latest Owner’s Manual can be downloaded from the following website. http://download.yamaha.com/ The Owner’s Manual in HTML format can be viewed on your smartphone, tablet, or PC. Visit the following website. RX-A3070/RX-A2070 http://avpro.global.yamaha.com/manual/avr/rxa3070/ [For U.S. customers only] Visit the following website for additional information, FAQ’s, downloads such as “Owner’s Manual” and product updates. http://usa.yamaha.com/support/ Opening and closing the front panel door Press the bottom of the door gently to open it when using controls or jacks behind the front panel door. Keep the door closed when controls or jacks behind the front panel door are not in use. (Be careful not to trap your fingers.)

AV SETUP GUIDE is an app that guides you through the process of connecting a TV or playback device, such as a BD/DVD or CD player, and speakers to the AV receiver. Search “AV SETUP GUIDE” on the App Store or Google Play for details.En 5

Preparation Confirming package contents Preparing cables The following cables (not supplied) are required to build the system described in this document.

• Speaker cables (depending on the number of speakers)

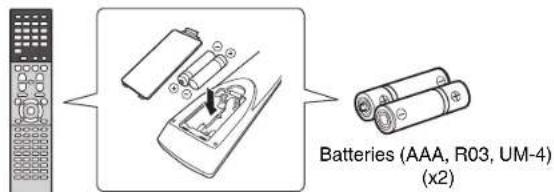

• Network cable (x1) (when connecting to a router via a network cable) Remote control Batteries (AAA, R03, UM-4) (x2) CD-ROM (Owner’s Manual) Quick Start Guide (this booklet) YPAO microphone AM antenna (except for U.K., Europe, Australia and Russia models) Power cable The supplied power cable varies depending on the region of purchase. FM antenna (except for U.K., Europe, Australia and Russia models) One of the above is supplied depending on the region of purchase. DAB/FM antenna (U.K., Europe, Australia and Russia models) Microphone base Pole Use to measure angle/height during YPAO.6 En

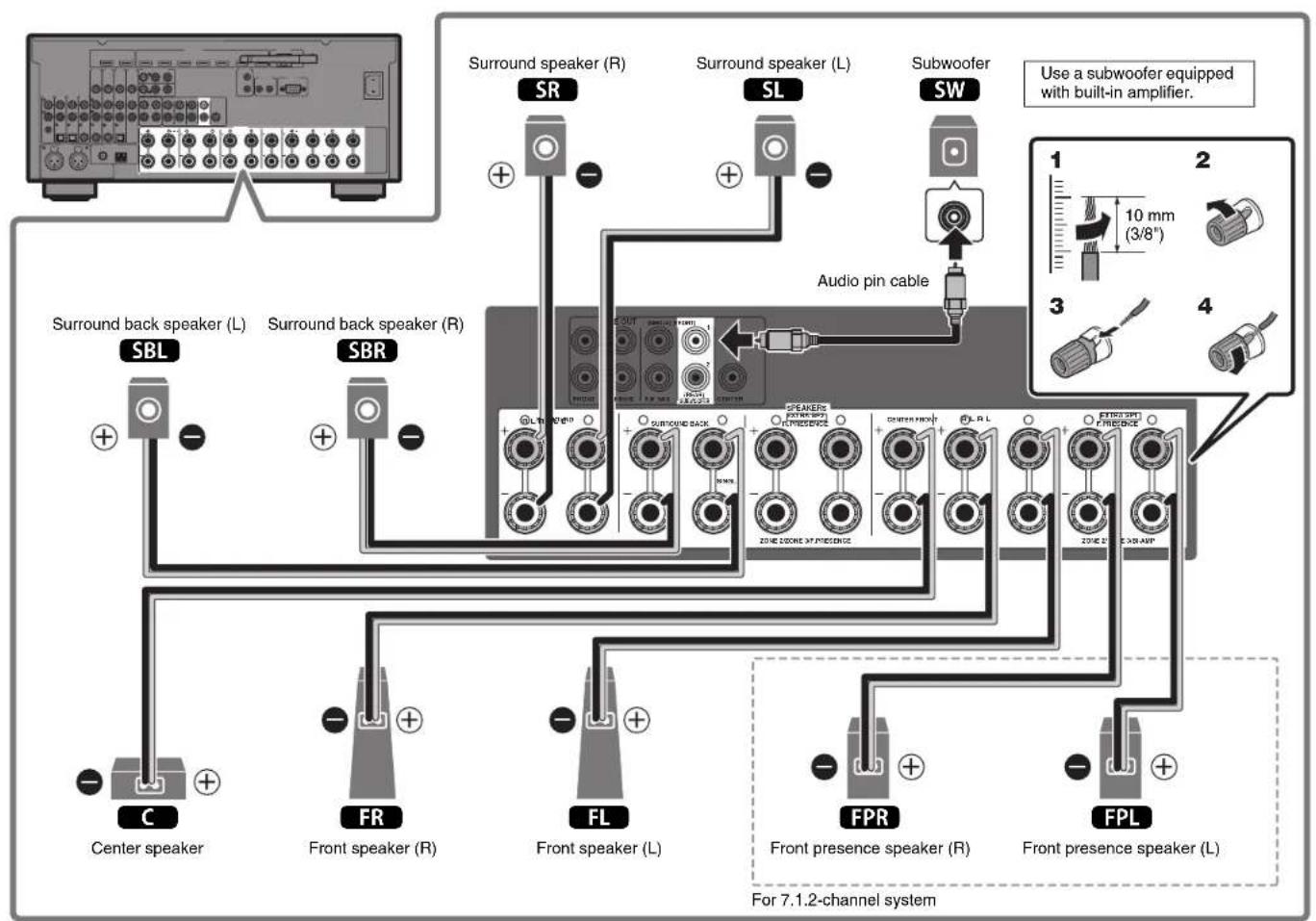

Connecting speakers/subwoofer When connecting 6-ohm speakers Set the unit’s speaker impedance to “6 Ω MIN”. For details, see “Setting the speaker impedance” in the Owner’s Manual. Precautions for connecting speaker cables

• Be sure that the unit and subwoofer are turned off.• Prepare speaker cables in a place away from the unit, to avoid accidentally dropping wire strands into the unit's interior which could result in a short circuit or malfunction of the unit.• Improper connection of speaker cables could cause a short circuit resulting in damage to, or malfunctioning of, the unit or speakers.– Carefully remove approximately 10 mm (3/8") of insulation from the speaker-connection ends of the cables, and twist the bare wires of each speaker cable together firmly.– Do not allow the bare wires of separate speaker cables to come into contact with one another.– Do not allow speaker cable bare wires to come into contact with metal parts on the unit (rear panel and screws).If “Check SP Wires” is shown on the front display when the unit is turned on, turn off the unit and be sure that speaker cables have not caused a short circuit. Positioning speakers Use the diagram as a reference for positioning speakers.1 Front speaker (L)2 Front speaker (R)3 Center speaker4 Surround speaker (L)5 Surround speaker (R)6 Surround back speaker (L)7 Surround back speaker (R)E Front presence speaker (L)*R Front presence speaker (R)*9 Subwoofer* For 7.1.2-channel system

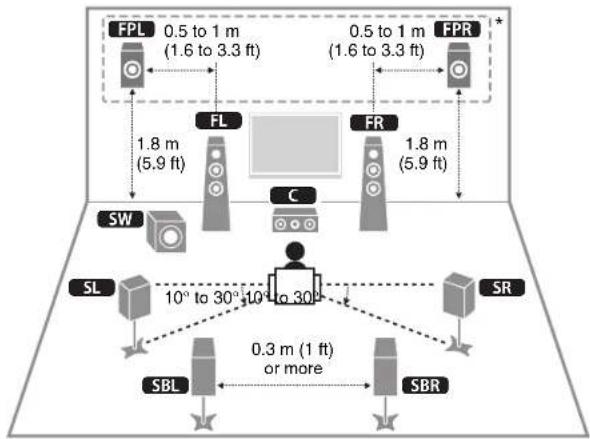

10° to 30° 10° to 30°0.5 to 1 m(1.6 to 3.3 ft)0.5 to 1 m(1.6 to 3.3 ft)1.8 m(5.9 ft)1.8 m(5.9 ft)0.3 m (1 ft) or more 10 mm(3/8")En 7 R L R L

Front speaker (R) 10 mm (3/8")

Center speaker Surround speaker (R)

Surround speaker (L)

Use a subwoofer equipped with built-in amplifier. Audio pin cable

Front presence speaker (R)

Front presence speaker (L) For 7.1.2-channel system Surround back speaker (R)

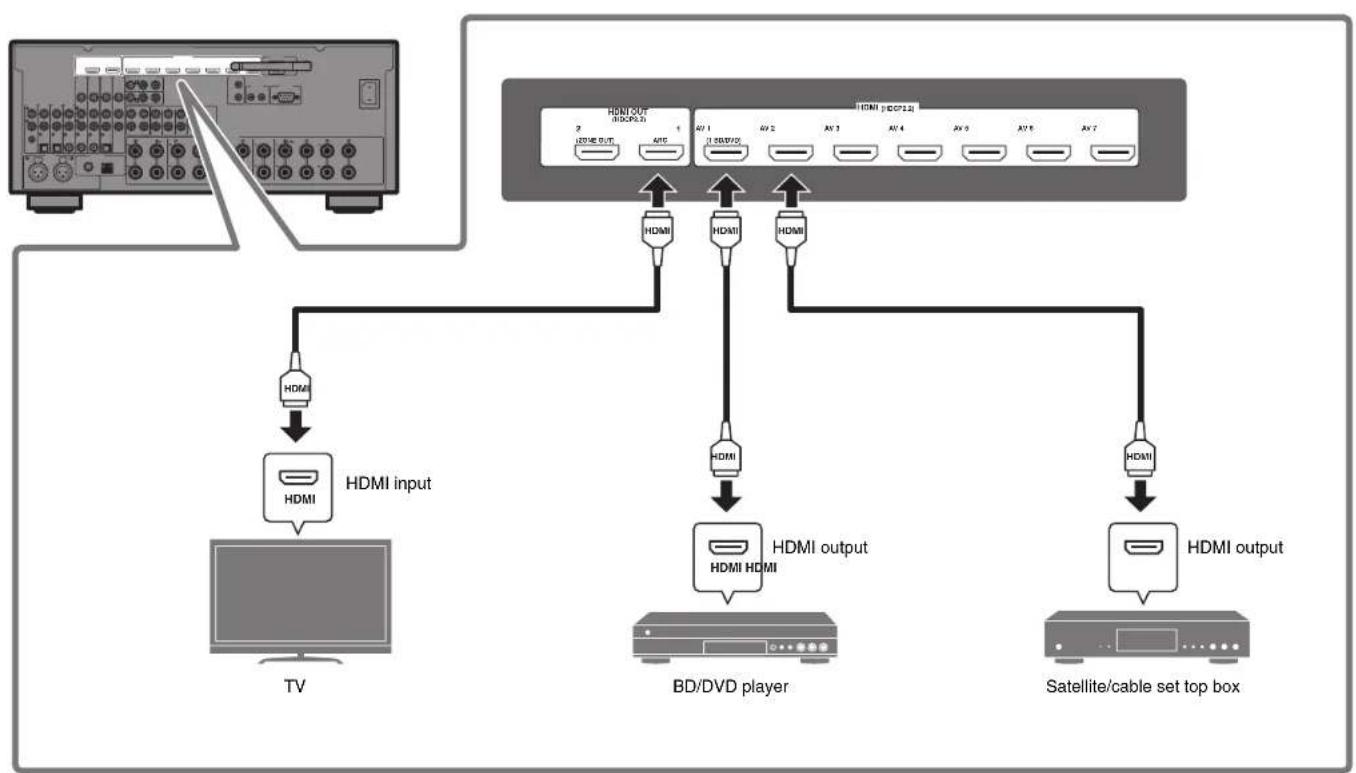

Connecting external devices R L R L

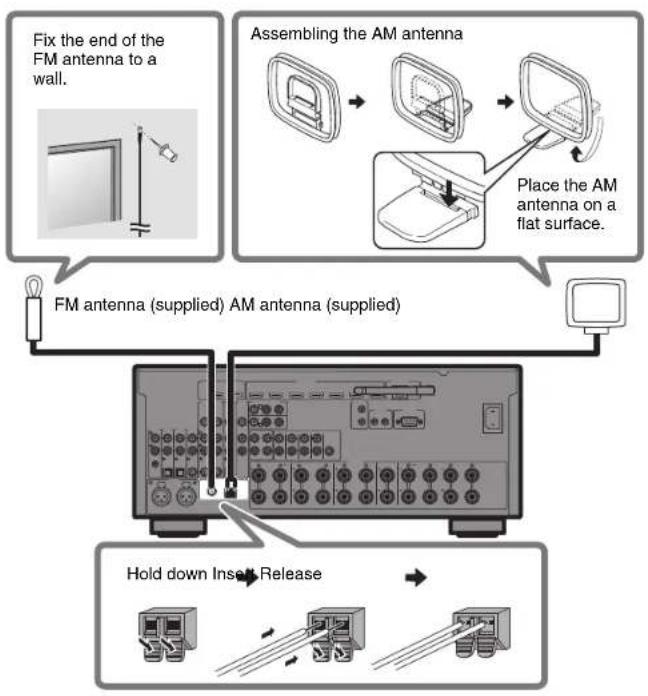

Connecting the radio antennas FM/AM antennas (except for U.K., Europe, Australia and Russia models) DAB/FM antenna (U.K., Europe, Australia and Russia models) R L R L

FM antenna (supplied) AM antenna (supplied)Hold down Insert ReleaseAssembling the AM antennaPlace the AM antenna on a flat surface.Fix the end of the FM antenna to a wall. R L R L

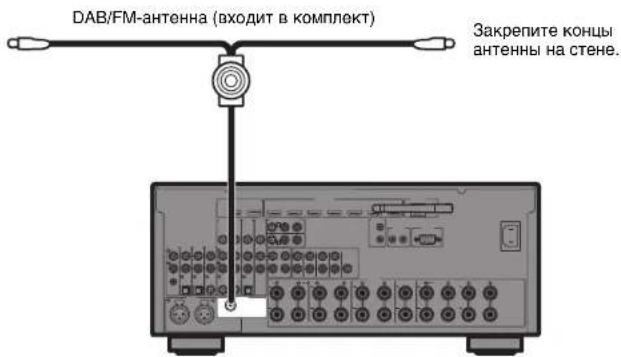

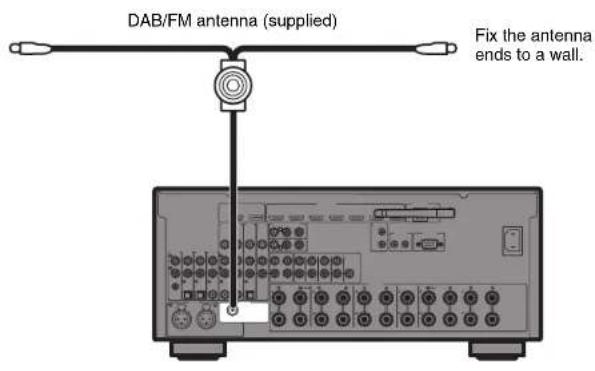

DAB/FM antenna (supplied)Fix the antenna ends to a wall.10 En

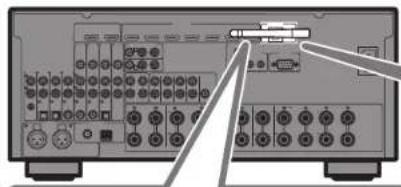

Preparing a network connection Prepare a wired or wireless network connection in accordance with your network environment. Note The wireless antenna must be raised if the unit will be connected to a Bluetooth device. R L R L

LAN Raise the wireless antenna so that it is standing up straight. (Procedures for connecting the unit to a wireless router are described in step

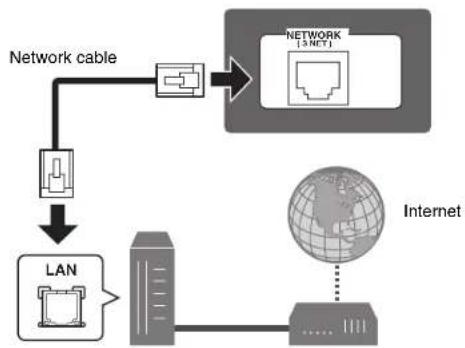

Notice Do not apply excessive force on the antenna. Doing so may damage it. Wireless network connection Internet Network cable Router Modem Wired network connectionEn 11

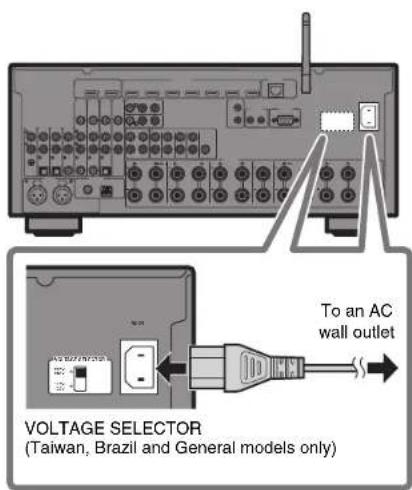

Connecting the power cable to an AC wall outlet, and turning on the unit 1 Plug the power cable into an AC wall outlet. 2 Press RECEIVER z to turn on the unit. 3 Turn on the TV and switch the TV input to display video from the unit (HDMI OUT jack). The Network Setup screen shown below will be displayed on the TV when the unit is turned on for the first time after purchase. It may take several tens of seconds for the screen to be displayed (WAC: Wireless Accessory Configuration).See “Sharing the iOS device setting” under “Connecting the unit to a wireless network” in the Owner’s Manual when using this function to connect the unit to a network.This document explains wireless connection using methods other than this function. Follow the procedure described under “Connecting the unit to a network” on the next page. Note This screen will not be displayed if the unit is connected to a router via its NETWORK jack (wired connection).Before connecting the power cable (Taiwan, Brazil and General models only)Set the switch position of VOLTAGE SELECTOR according to your local voltage.Voltages are AC 110–120/220–240 V, 50/60 Hz. R L R L

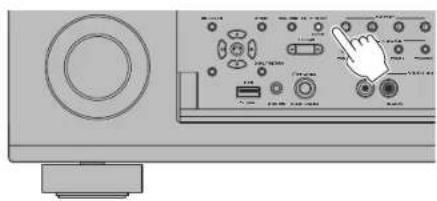

Connecting the unit to a network Connecting the unit to a wireless network• The unit can be connected to a wireless network using the MusicCast CONTROLLER app* installed on your smartphone or other mobile device. Follow procedure A .• If a mobile device will not be used, follow procedure B to connect the unit to a wireless router (access point) that supports WPS. Refer to the Owner’s Manual for details on other wireless connection methods.Connecting the unit to a router via a network cable• Follow procedure A to use the MusicCast CONTROLLER app* installed on your smartphone or other mobile device to connect to the MusicCast network to play music over a network.• If a mobile device will not be used, skip this step and proceed to step

• MusicCast CONTROLLER, an app for mobile devices, can be used to easily configure network settings for not only this unit, but also for other MusicCast-enabled devices. This app allows you to listen to music stored on your smartphone or other mobile device, or on servers, and to listen to Internet radio stations. It also allows you to play this rich variety of music content on all devices in the MusicCast network at the same time.Visit the following website for details.http://www.yamaha.com/musiccast/ A Connecting with the MusicCast CONTROLLER app Connect the unit to a network and register it as a MusicCast-enabled device. Note
• Confirm that your mobile device is connected to your home router before beginning.• You will need the router’s SSID and security key to connect the unit to a wireless network.• The MusicCast CONTROLLER app screens in this section show the English interface. The screen appearance may vary depending on the app version. 1 Install the MusicCast CONTROLLER app on your mobile device, and open the app. Search for “MusicCast CONTROLLER” on the App Store or Google Play. 2 Tap “Setup”.En 13 3 Confirm that the unit is turned on, and tap “Next”. 4 Press and hold the CONNECT button on the front panel of the unit for 5 seconds, as instructed by the app. 5 Follow the app’s on-screen instructions to configure network settings. When a connection has been established, “Completed” will be displayed in the front display of the unit. Network connection with the MusicCast CONTROLLER app is now complete, and the unit has been registered as a MusicCast-enabled device. B Using WPS push-button configuration Wireless connection can be configured with one push of the WPS button on the wireless router (access point). 1 Press and hold INFO (WPS) on the unit’s front panel for more than 3 seconds. “Press WPS button on Access Point” will be displayed in the front display. 2 Push the WPS button on the wireless router. When a connection has been established, “Completed” will be displayed in the front display. Note If “Not connected” is displayed, repeat the process from step 1 or try another connection method.ENTEROPTIONON SCREENDISPLAYRETURNYPAO MICPHONESUSBSILENT CINEMATONE CONTROL STRAIGHT PROGRAM MULTI ZONE VIDEO AU

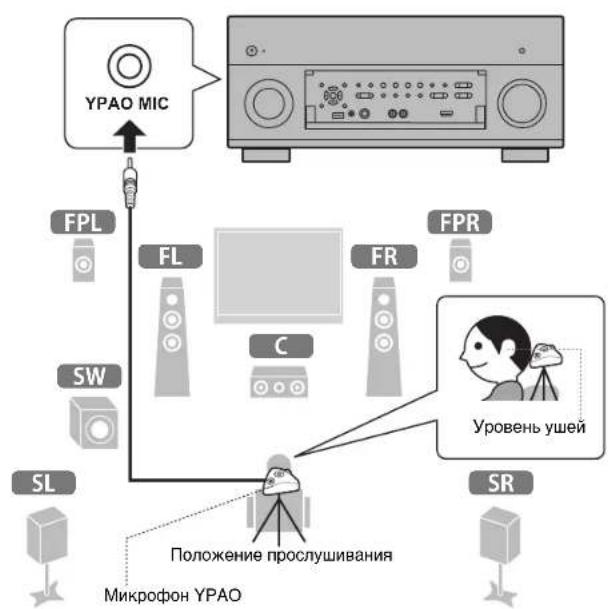

Optimizing the speaker settings automatically (YPAO) The Yamaha Parametric room Acoustic Optimizer (YPAO) function detects speaker connections, measures the distances from them to your listening position(s), and then automatically optimizes the speaker settings, such as volume balance and acoustic parameters, to suit your room. YPAO MIC

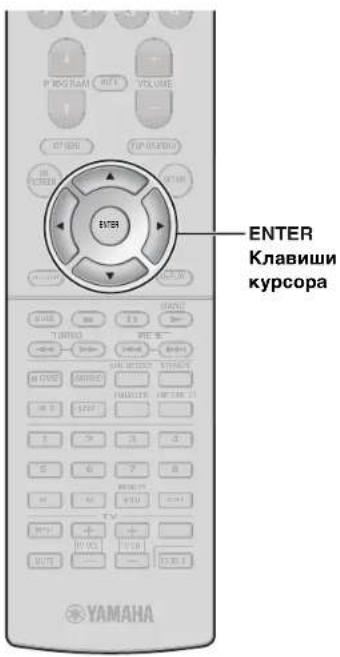

ENTER Note the following regarding YPAO measurement

• Test tones are output at high volume and may surprise or frighten small children.

• Test tone volume cannot be adjusted.

• Keep the room as quiet as possible.

• Stay in a corner of the room behind the listening position so that you do not become an obstacle between speakers and the YPAO microphone.

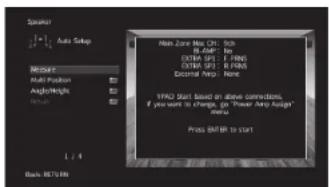

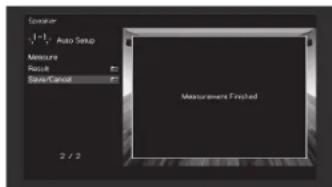

• Do not connect headphones. Ear height Listening position YPAO microphone Cursor keysEn 15 1 Turn on the subwoofer and set the volume to half. If the crossover frequency is adjustable, set it to maximum. 2 Place the YPAO microphone at your listening position and connect it to the YPAO MIC jack on the front panel. The screen below appears on the TV. Note Place the YPAO microphone at your listening position (same height as your ears). We recommend the use of a tripod as a microphone stand. You can use the tripod screws to stabilize the microphone. 3 Use the cursor keys to select “Measure” and press ENTER. The measurement will start in 10 seconds. It takes about 3 minutes to measure. The screen below appears on the TV when the measurement finishes. Note If an error message (such as E-1) or warning message (such as W-2) appears, see “Error messages” or “Warning messages” under “Optimizing the speaker settings automatically (YPAO)” in the Owner’s Manual. 4 Use the cursor keys to select “Save/Cancel” and press ENTER. 5 Use the cursor keys to select “SAVE” and press ENTER. 6 Use the cursor keys to select “YES” to enable YPAO Volume and press ENTER. 7 Disconnect the YPAO microphone from the unit. This completes optimization of the speaker settings. VOLUMECROSSOVER/HIGH CUTMIN MAXMIN MAX16 En Basic operations This section describes basic operations such as playing Blu-ray Discs and DVDs, and tuning into radio stations. Most operations can be performed using the remote control. Operating the remote control POP-UP/MENU TOP MENU

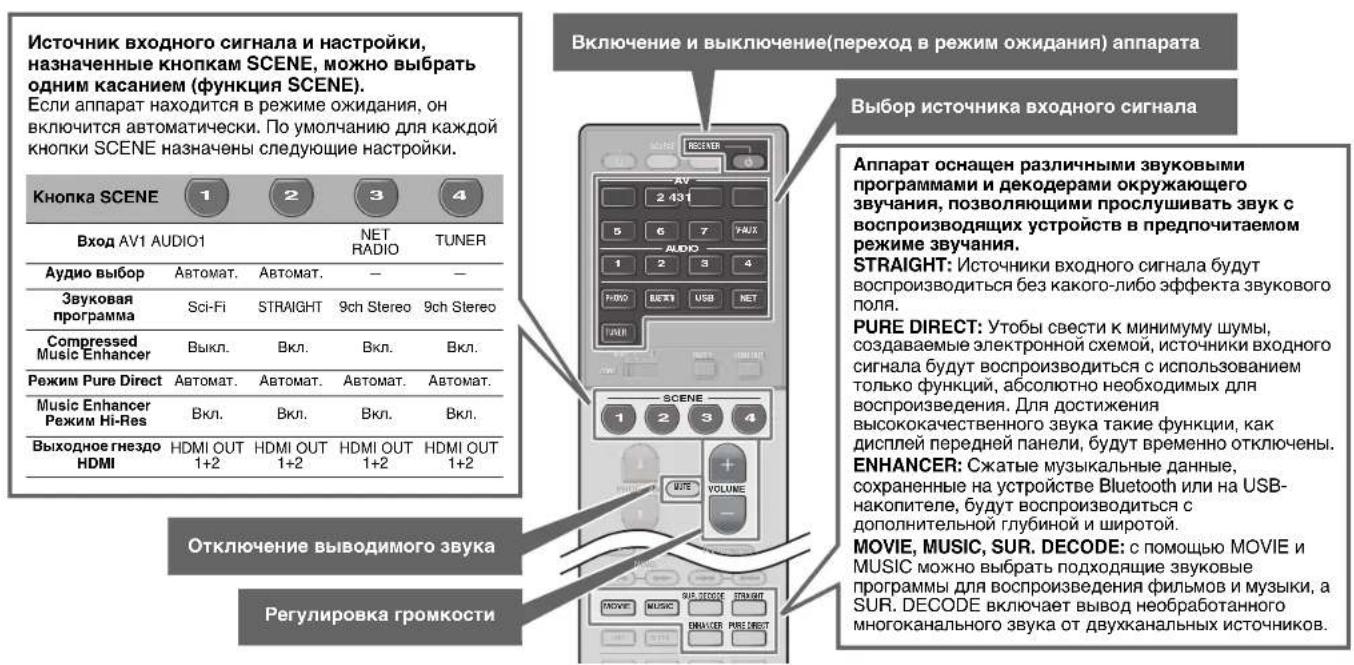

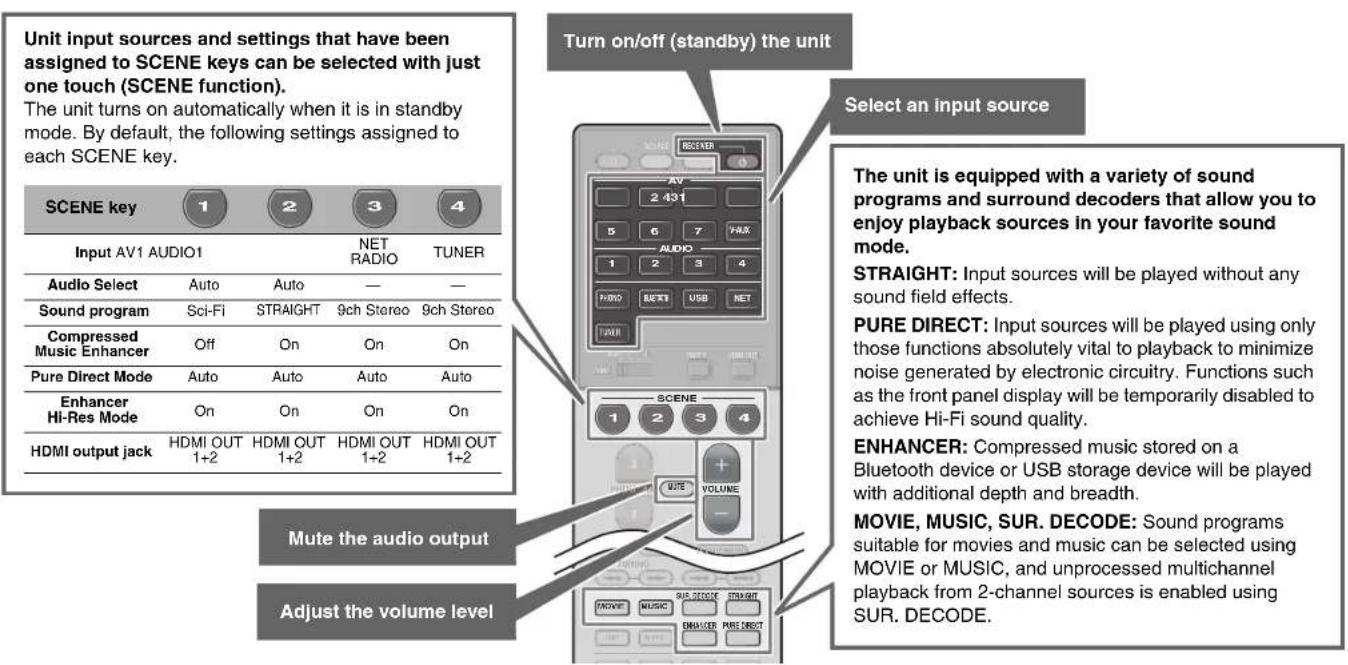

MODE INFO SLEEP TUNING The unit is equipped with a variety of sound programs and surround decoders that allow you to enjoy playback sources in your favorite sound mode. STRAIGHT: Input sources will be played without any sound field effects. PURE DIRECT: Input sources will be played using only those functions absolutely vital to playback to minimize noise generated by electronic circuitry. Functions such as the front panel display will be temporarily disabled to achieve Hi-Fi sound quality. ENHANCER: Compressed music stored on a Bluetooth device or USB storage device will be played with additional depth and breadth. MOVIE, MUSIC, SUR. DECODE: Sound programs suitable for movies and music can be selected using MOVIE or MUSIC, and unprocessed multichannel playback from 2-channel sources is enabled using SUR. DECODE. Unit input sources and settings that have been assigned to SCENE keys can be selected with just one touch (SCENE function). The unit turns on automatically when it is in standby mode. By default, the following settings assigned to each SCENE key. SCENE key Input AV1 AUDIO1 NET RADIO TUNER Audio Select Auto Auto — — Sound program Sci-Fi STRAIGHT 9ch Stereo 9ch Stereo Compressed Music Enhancer OffOnOnOn Pure Direct Mode Auto Auto Auto Auto Enhancer Hi-Res Mode On On On On HDMI output jack HDMI OUT 1+2 HDMI OUT 1+2 HDMI OUT 1+2 HDMI OUT 1+2

Mute the audio output Adjust the volume level Select an input source Turn on/off (standby) the unitEn 17 Playing a BD/DVD We recommend playing back multichannel audio (5.1-channel or more) to feel surround sound produced by the unit. 1 Turn on the BD/DVD player. 2 Press AV 1. The name of the connected device such as “BD player” may be displayed. 3 Start playback on the BD/DVD player. 4 Press STRAIGHT to select “STRAIGHT”. Note When “STRAIGHT” (straight decode) is enabled, each speaker produces each channel audio signal directly (without sound field processing). 5 Press VOLUME to adjust the volume. Note When sound is not heard, or no sound is output from a specific speaker, see “Troubleshooting” in the Owner’s Manual. Listening to FM/AM radio (except for U.K., Europe, Australia and Russia models) 1 Press TUNER to select “TUNER” as the input source. 2 Press BAND to select FM or AM. 3 Use the following keys to set a frequency. TUNING: Increase/decrease the frequency. Hold down the key for about a second to search stations automatically.Numeric keys: Enter a frequency directly. For example, to select 98.50 MHz, press “9”, “8”, “5” and “0” (or ENT).“TUNED” lights up when the unit is receiving an FM/AM radio station signal.“STEREO” lights up when the unit is receiving a stereo FM radio signal. Blu-ray STRAIGHT VOL.

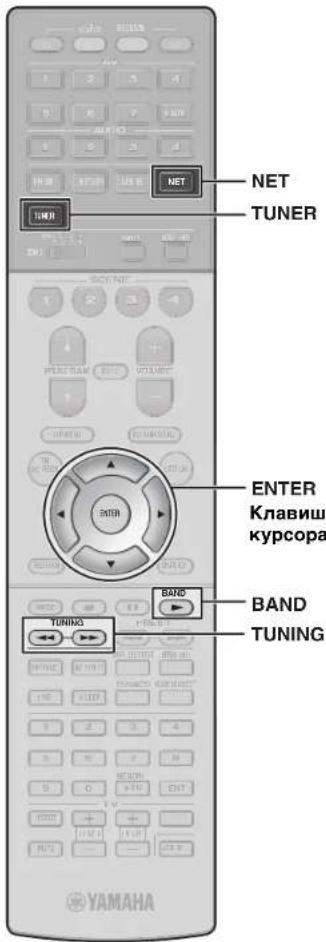

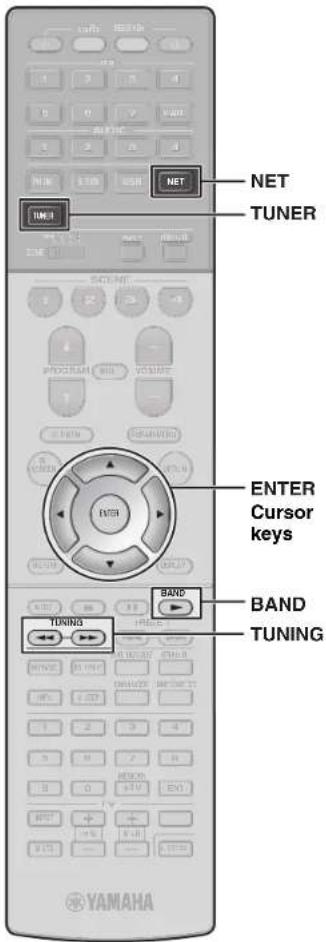

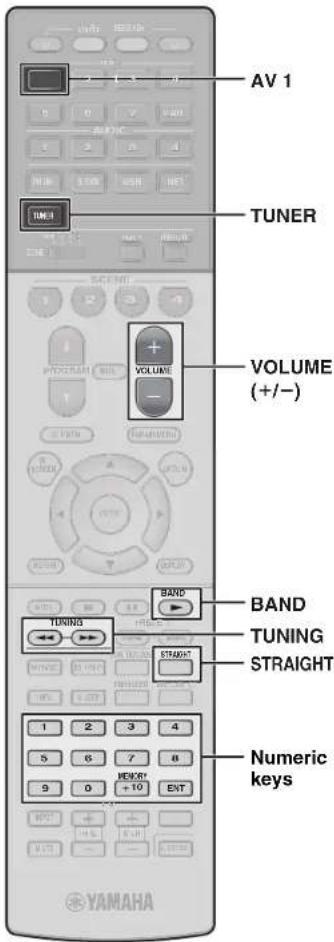

AV 1 STRAIGHT TUNER BAND TUNING Numeric keys18 En Listening to DAB radio (U.K., Europe, Australia and Russia models) 1 Press TUNER to select “TUNER” as the input source. 2 Press BAND to select the DAB band. The following message appears on the front panel if you have not performed an initial scan yet. 3 Press ENTER to start an initial scan. When the initial scan finishes, the unit automatically tunes into the first DAB radio station as stored in station order. 4 Press TUNING repeatedly to select a DAB radio station. Listening to Internet radio 1 Press NET repeatedly to select “NET RADIO” as the input source. The browse screen is displayed on the TV. 2 Use the cursor keys to select an item and press ENTER. When an Internet radio station is selected, playback starts and the playback screen is displayed. Note Internet radio stations can also be selected using the MusicCast CONTROLLER app installed on your mobile device.Setting the frequency steps (Asia and General models only)At the factory, the frequency step setting is set to 50 kHz for FM and 9 kHz for AM.Depending on your country or region, set the frequency steps to 100 kHz for FM and 10 kHz for AM.1 Set the unit to standby mode.2 Hold down STRAIGHT on the front panel and press MAIN ZONE z.3 Press PROGRAM on the front panel repeatedly to select “TUNER FRQ STEP”.4 Press STRAIGHT on the front panel to select “FM100/AM10”.5 Press MAIN ZONE z to set the unit to standby mode and turn it on again. FM50/AM9

Press [ENTER] Init Scan VOL. The MusicCast CONTROLLER app installed on your mobile device can be used to play music from streaming services. Refer to documentation included on the supplied CD-ROM for more information.

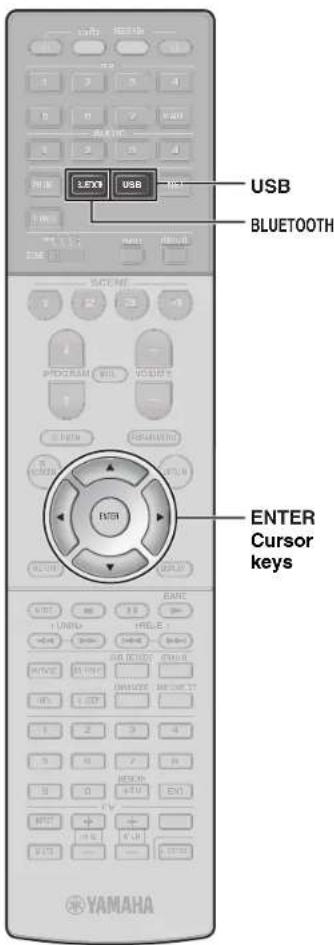

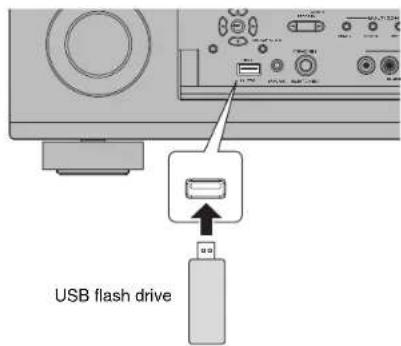

device 1 Press BLUETOOTH to select “Bluetooth” as the input source. 2 Select the unit (network name of the unit) from the available device list on the Bluetooth device. If the pass key is required, enter the number “0000”.When the connection is established, the indicator will glow in the front display. 3 Select a song and start playback on the Bluetooth device. Note Audio playing on the unit can be transmitted to Bluetooth wireless speakers or headphones (except when Bluetooth is selected as the unit’s input source). See “Enjoying audio using Bluetooth speakers/headphones” in the Owner’s Manual for more information. Playing music stored on a USB flash drive 1 Connect the USB flash drive to the USB jack. Note Connect the USB flash drive directly to the USB jack. Do not use an extension cable. 2 Press USB to select “USB” as the input source. The browse screen is displayed on the TV. 3 Use the cursor keys to select an item and press ENTER. When a song is selected, playback starts and the playback screen is displayed.ENTERDISPLAYRETURNYPAO MICPHONESUSB SILENT CINEMA PROGRAM MULTI ZON ZONE 2ZONE 3

Hereby, Yamaha Music Europe GmbH declares that the radio equipment type [RX-A3070, RX-A2070] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://europe.yamaha.com/en/support/compliance/doc.html

Important Notice: Guarantee Information for customers in EEA* and Switzerland For detailed guarantee information about this Yamaha product, and Pan-EEA* and Switzerland warranty service, please either visit the website address below (Printable file is available at our website) or contact the Yamaha representative office for your country.
