N30AEB - Media player PIONEER - Free user manual and instructions

Product type	Network Audio Player
Power supply	Mains 220 - 240 V, 50 Hz/60 Hz
Power consumption	19.0 W (operation), 0.2 W (standby), 1.9 W (wired network standby), 2.5 W (Wi-Fi network standby)
Analog audio output	RCA jack (ANALOG OUT), output level not specified
USB input	1 x USB front (5 V / 0.5 A), 1 x USB rear (5 V / 1 A), USB 2.0 High Speed
Network connectivity	Ethernet 10BASE-T/100BASE-TX, Wi-Fi IEEE 802.11 a/b/g/n (2.4 and 5 GHz bands)
Supported audio formats	MP3, WMA, WAV, AIFF, AAC, FLAC, Apple Lossless, DSD (DSF/DSDIFF), LPCM
Main functions	USB playback, Internet Radio (TuneIn), Spotify Connect, AirPlay, Music Server (via network), shuffle and repeat
Firmware update	Via network or via USB
Remote control	Supplied, with navigation, playback, settings keys
Display	Backlit screen displaying source name, track, artist, album, format, etc.
Maintenance and cleaning	Use a dry, soft cloth. Do not use chemical or abrasive products.
Safety	Do not expose to moisture, heat sources, or shocks. Disconnect before cleaning.
Spare parts and repairability	Not specified. Contact Pioneer customer service for any repairs.

Frequently Asked Questions - N30AEB PIONEER

How to connect the Pioneer N30AEB to my Wi-Fi network?

During the first power-on, the initial setup screen appears. Select 'Wi-Fi' then choose the connection method: 'Scan Networks', 'Use iOS Device' or 'Enter SSID'. Follow the on-screen instructions to enter the password or use the automatic setup button (WPS).

What audio formats are supported by the N30AEB?

The device supports MP3, WMA, WAV, AIFF, AAC, FLAC, Apple Lossless, DSD (DSF/DSDIFF) and LPCM formats. Copyright-protected files are not playable.

How to update the firmware of the Pioneer N30AEB?

Press SETUP on the remote, go to 'Update' then choose 'via Network' (Internet connection required) or 'via USB' (file downloaded to a USB drive formatted in FAT16/FAT32). Follow the on-screen instructions.

Can I use Spotify with the N30AEB?

Yes, the device supports Spotify Connect. Make sure your smartphone/tablet and the N30AEB are on the same network. Open Spotify, click on the Connect icon and select 'Pioneer N-30AE'. You must have a Spotify Premium account.

How to play files from a USB drive?

Plug the USB drive into the front or rear port. Press USB FRONT or USB REAR on the remote. Navigate with the cursor keys and ENTER to select a folder or file. The drive must be in FAT16/FAT32.

What to do if the device does not turn on?

Unplug the power cord from the wall outlet, wait 5 seconds, then plug it back in. If the problem persists, check the outlet and the fuse (if applicable).

How to reset the Pioneer N30AEB to factory settings?

Press SETUP, select 'Factory Reset', then 'Start'. Confirm with ENTER. The device will go into standby and all settings will be reset.

Internet radio doesn't work, what to do?

Check that the device is connected to the Internet. Make sure the router and modem are on. If the TuneIn service is unavailable, it may come from the provider. Try restarting the router and the device.

How to use AirPlay with the N30AEB?

Connect your iOS device to the same Wi-Fi network. Open the Control Center, touch the AirPlay icon and select 'Pioneer N-30AE'. You can also use iTunes on a computer.

The display is off, how to turn it back on?

Press the DISPLAY button on the remote to turn the display on or off. If the problem persists, check that the device is powered on.

USER MANUAL N30AEB PIONEER

N-30AE Instruction Manual

Before Start

What's in the box 2

Part Names

Front Panel 3

Rear Panel 4

Remote Controller 5

Display 6

Install

Connections with an amplifier 7

Connecting the power cord, etc. 9

Initial Setup

Power On & Initial Setup 10

Playback

USB Storage Device/HDD 12

Internet Radio 14

Spotify 15

AirPlay ^® 16

Music Server 17

Entering text 19

Advanced Setup

Advanced Settings.... 20

Firmware Update

Firmware Update 23

Others

Troubleshooting 25

General Specifications 27

License and Trademark Information 28

> Before Start > Part Names > Install > Initial Setup > Playback

Advanced Setup | Firmware Update | Others

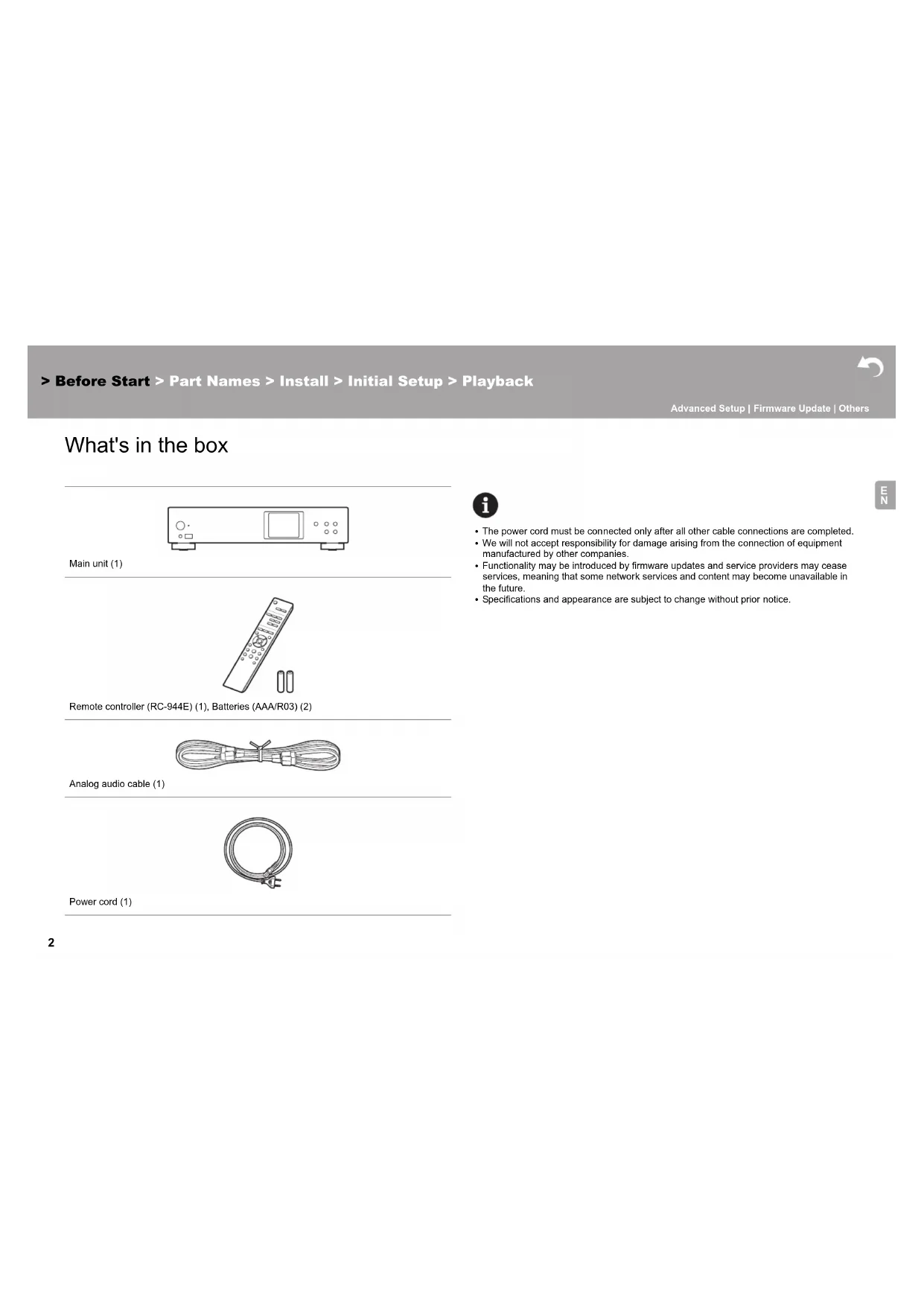

What's in the box

Main unit (1)

Remote controller (RC-944E) (1), Batteries (AAA/R03) (2)

Analog audio cable (1)

Power cord (1)

i

• The power cord must be connected only after all other cable connections are completed.
• We will not accept responsibility for damage arising from the connection of equipment manufactured by other companies.
• Functionality may be introduced by firmware updates and service providers may cease services, meaning that some network services and content may become unavailable in the future.
• Specifications and appearance are subject to change without prior notice.

Before Start

Part Names

Install

Initial Setup

Playback

Advanced Setup | Firmware Update | Others

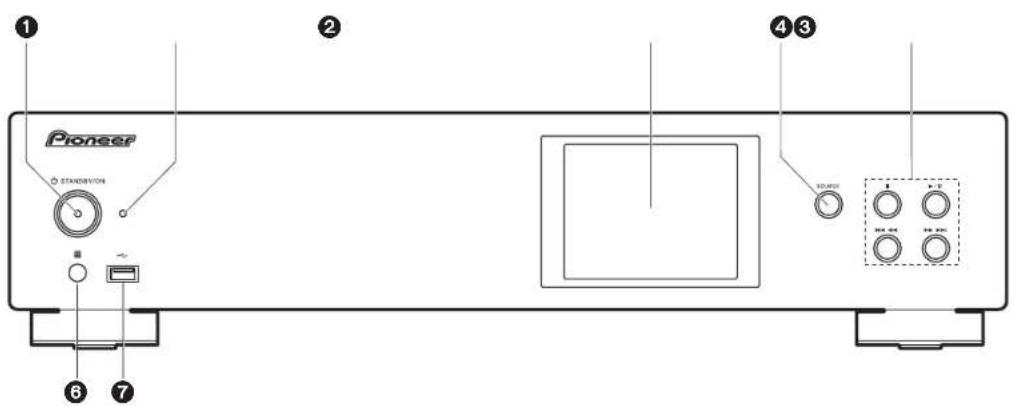

Front Panel

Pioneer STANDARD 1 2 3 4 5 6 7 10.000 10.000 10.000 10.000

1. ⏻ STANDBY/ON button: Turns the unit on or to standby mode.
2. STANDBY/ON indicator: This lights red when this unit is on standby and blue when it is on.
3. Display (→P6)
4. SOURCE button: Switches the input to be played.
5. Play button:

■ : This button stops playback.
▶/II: This button pauses the playback.
: Move to the previous track.
▶▶▶▶: Move to the next track.
• Depending on the input, the operation may not start.

1. Remote control sensor

2. USB port: Connect a USB storage device or HDD (hard disk drive) to play music files. You can also supply power (maximum 5 V/0.5 A) to USB devices with a USB cable.

- When connecting a HDD that requires more than 5 V/0.5 A, connect to the USB port

(maximum 5 V/1 A) on the rear of the unit.

Before Start

Part Names

Install

Initial Setup

Playback

Advanced Setup | Firmware Update | Others

Rear Panel

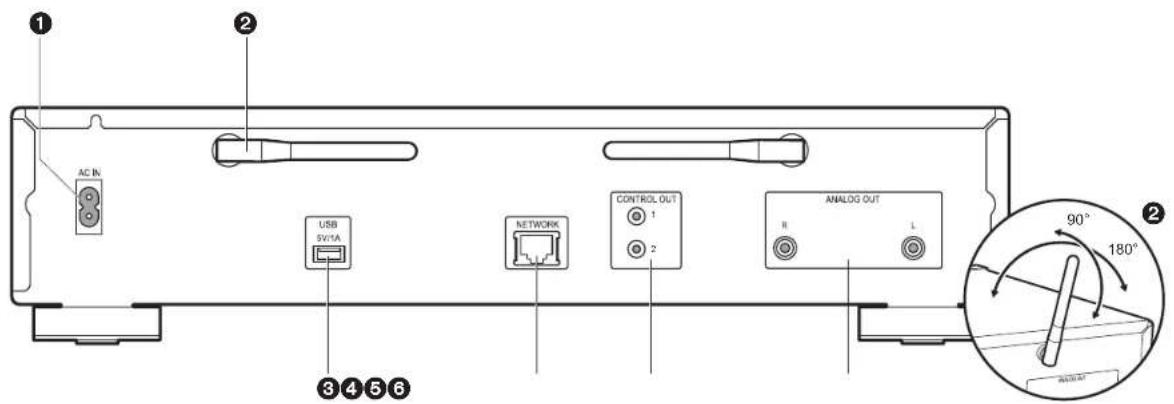

1 2 AC In USB 5V/1A NETWORK CONTROL OUT 1 2 ANALOG OUT II L 3 4 5 6 90° 180° AUTO AT

1. AC IN: Connect the supplied power cord.
2. Wireless antenna: Used for Wi-Fi connection. Adjust their angles according to the connection status.
3. USB port: Connect a USB storage device or HDD (hard disk drive) to play music files. You can also supply power (maximum 5 V/1 A) to USB devices with a USB cable.
4. NETWORK jack: Connect to the network with an ethernet cable.
5. CONTROL OUT jack: By connecting Pioneer brand amplifiers and CD players, centralized control is possible, for example you can control the amplifiers and CD players from the Pioneer Remote App.
6. ANALOG OUT jacks: Use the supplied analog audio cable to connect an integrated amplifier, for example.

Before Start

Part Names

Install

Initial Setup

Playback

Advanced Setup | Firmware Update | Others

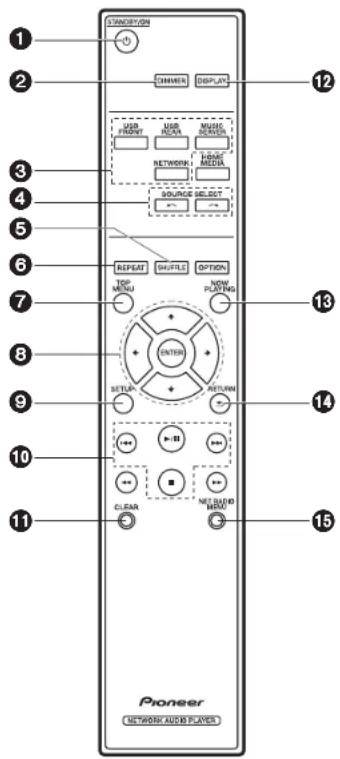

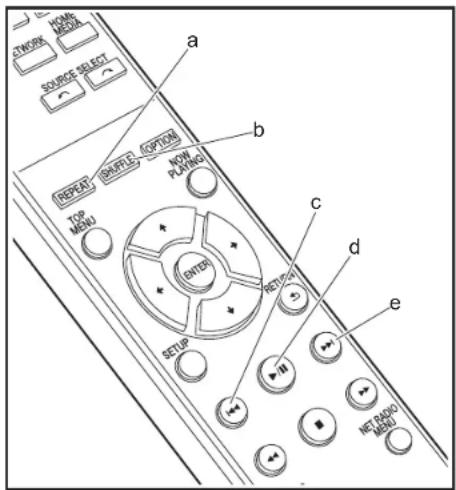

Remote Controller

STANDARD 0 CHINNER DISPLAY 12 3 4 5 6 7 8 9 10 11 Pioneer NETWORK AUDIO PLAYERS 12 TOP FROM ADD MAIN DISPLAY LINK/ NETWORK LOAD/ MEDIA SOURCE SELECT REPEAT SHIFT OPTION TOP MENU NON PLAYING ENTER SETLIP RETURN CLEAR NETWORKS 13 14 15

1. ⏻ STANDBY/ON button: Turns the unit on or into standby mode.

2. DIMMER button: Switch the display off or adjust the brightness of the display in three steps.

3. INPUT SELECTOR buttons: Switches the input to be played.

4. button Input source played switches each time you press one of these buttons.

5. SHUFFLE button: Set shuffle play

6. REPEAT button: Set repeat play.

7. TOP MENU button: Move to the top menu of the selected input.

8. Cursors, ENTER button: Select the item with the cursors and press ENTER to confirm.

9. SETUP button: Displays the Setup menu.

10. Play buttons:

◀: Move to the track before the one being played.

▶/II: Play or pause play.

▶▶: Move to the next track.

■: Stop playback.

Depending on the input, the operation may not start.

1. CLEAR button: Used when entering text, etc.

12.DISPLAY button: Press to turn off the display of this unit. Press again to turn the display on.

1. NOW PLAYING button: When you have changed the display during play, for example, this button returns the display to show information about the file being played.

2. RETURN button: Returns the display to the previous state.

15.NET RADIO MENU button:Use this when playing the internet radio.

• HOME MEDIA, OPTION, ◀◀, and ▶▶ are not used.

30° 30° Approx.7 m

Before Start

Part Names

Install

Initial Setup

Playback

Advanced Setup | Firmware Update | Others

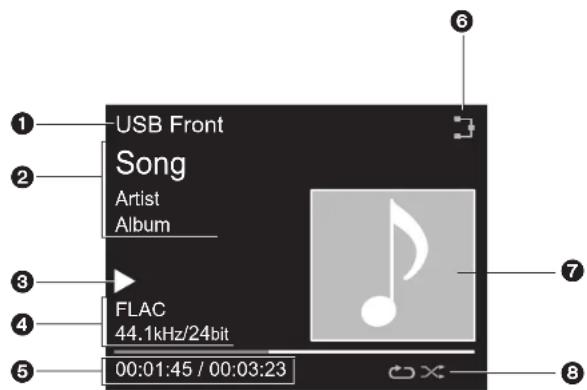

Display

USB Front Song Artist Album FLAC 44.1kHz/24bit 00:01:45 / 00:03:23

1. The input mode is displayed.
   (USB Front / USB Rear / Music Server / Network)
2. The name of the file, artist, album, etc., is displayed.
3. Displays the play status.
4. Displays file format, sampling frequency, and quantization bit information.
5. The file play status is displayed. This may not be displayed depending on the input or file.
6. Lights in the following conditions.
   ☐: When the connection setting on the unit is "Wired" and the unit is connected to the network.
   X: When the connection setting on the unit is "Wired" and the unit is not connected to the network.
   : When the connection setting on the unit is "Wi-Fi" and the unit is connected to the network.
   : When the connection setting on the unit is "Wi-Fi" and the unit is not connected to the network.
7. If an album jacket is recorded for the file being played, it is displayed here.
8. Lights in the following conditions.
   ☐: When all track repeat play is on
   : When one track repeat play is on

×: When shuffle play is on

- When DISPLAY on the remote controller is pressed to turn off the display, the unit may appear the same as if you had unplugged the unit from the power outlet, but electricity is still being supplied to the unit. To completely cut the unit off from the power supply, you need to unplug the power plug (shutoff device) unit from the power outlet.

Before Start

Part Names

Install

Initial Setup

Playback

Advanced Setup | Firmware Update | Others

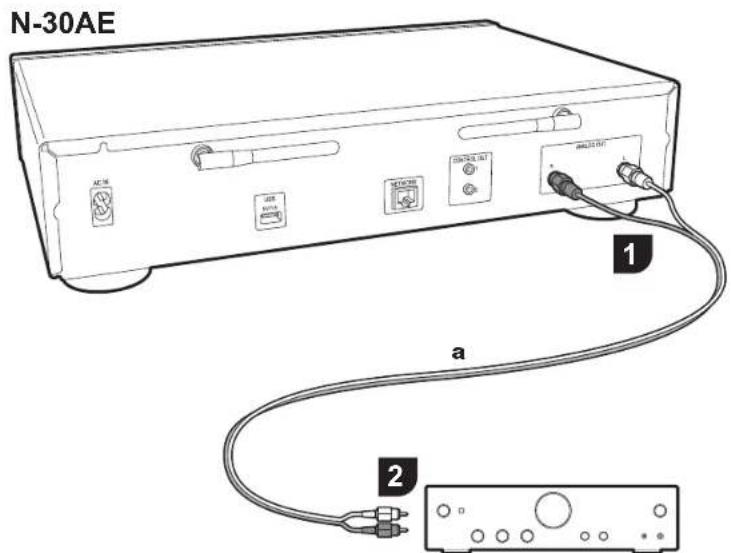

Connections with an amplifier

N-30AE 1 a 2

Integrated amplifier, AV receiver, etc.

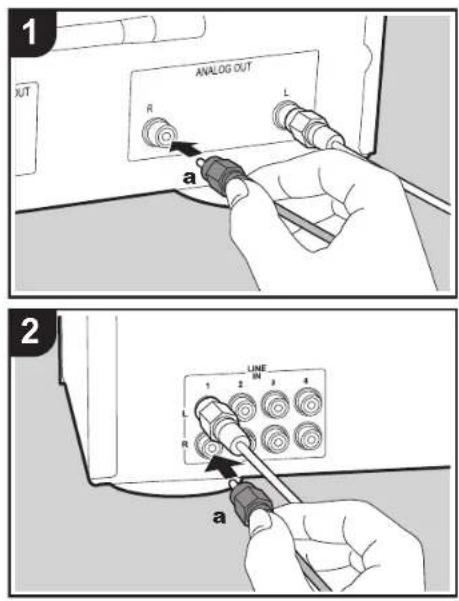

Connection with an analog audio cable

You can play the audio from network features such as internet radio through speaker systems connected to integrated amplifiers or AV receivers. To connect, use the supplied analog audio cable to connect from the ANALOG OUT jack on this unit to the LINE IN input on an integrated amplifier, AV receiver, etc.

a Analog audio cable

Before Start > Part Names > Install > Initial Setup > Playback

Advanced Setup | Firmware Update | Others

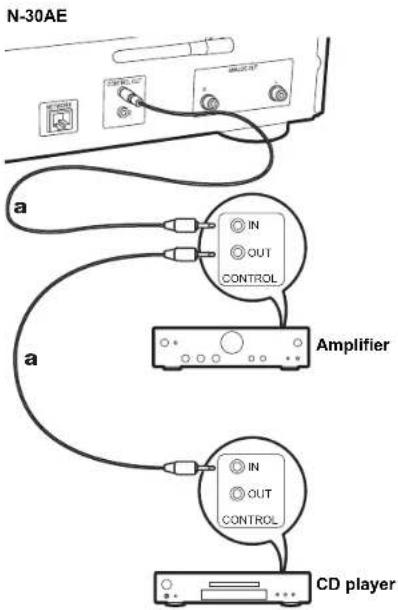

The control jack

By connecting Pioneer brand amplifiers or CD players, for example, that have control jacks using monaural miniplug cables (without resistors), you can centralize control of the devices using the Pioneer Remote App.

Furthermore, even when the other devices are put in places where the remote control signal is unable to reach, you can enable operation of the other components through the remote control sensor of this unit.

• Also make sure to connect with the analog audio cable. Centralized control cannot work correctly with only the control jack connection.
• With this connection, the remote control sensors on the amplifier and CD player stop working. Point the remote controller at remote control sensor of this unit.

a Monaural miniplug cables (without resistors)

Before Start

Part Names

Install

Initial Setup

Playback

Advanced Setup | Firmware Update | Others

Connecting the power cord, etc.

1 AC IN USB N/A a

2 a

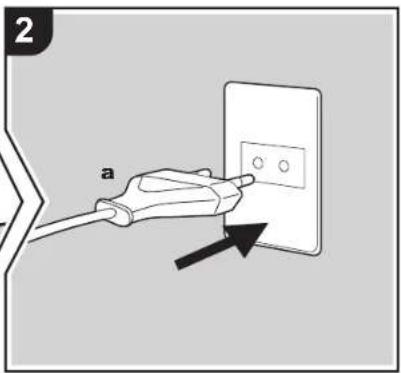

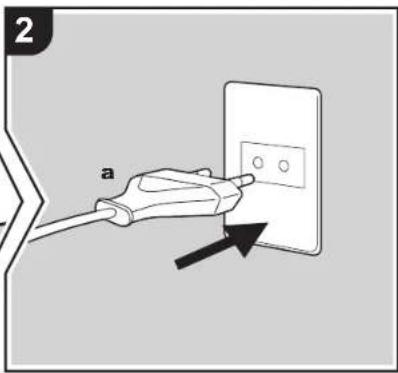

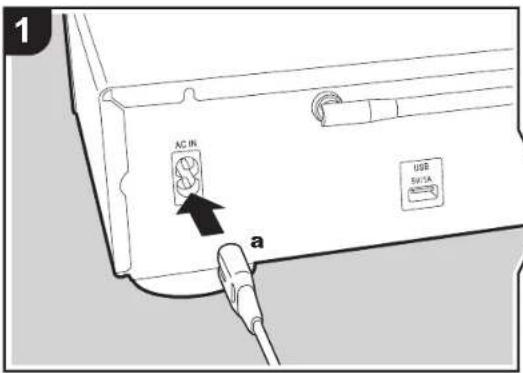

Power cord connection

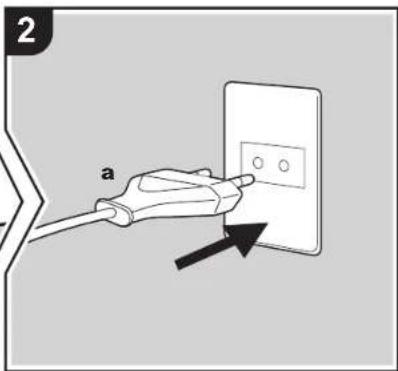

This model includes a removable power cord. The power cord must be connected only after all other connections are completed. Make sure you first connect the power cord to AC IN terminal of the unit and then connect to the outlet. Always disconnect the outlet side first when disconnecting the power cord.

Ethernet cable connection

To connect to the network with an ethernet cable, use the NETWORK jack. When using Wi-Fi connection, make settings in initial settings (→P10). You can enjoy features such as internet radio and AirPlay by connecting to the network.

NETWORK CONTROL

Before Start

Part Names

Install

Initial Setup

Playback

Advanced Setup | Firmware Update | Others

Power On & Initial Setup

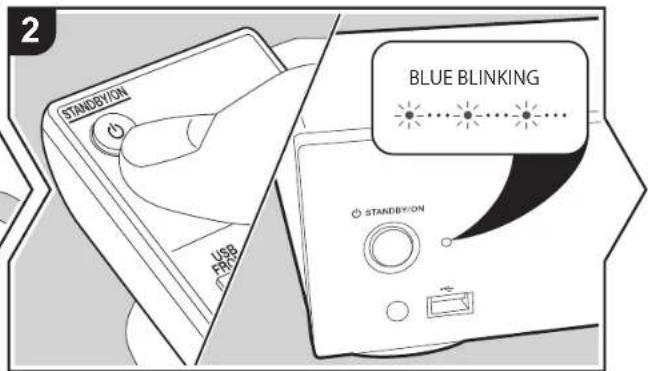

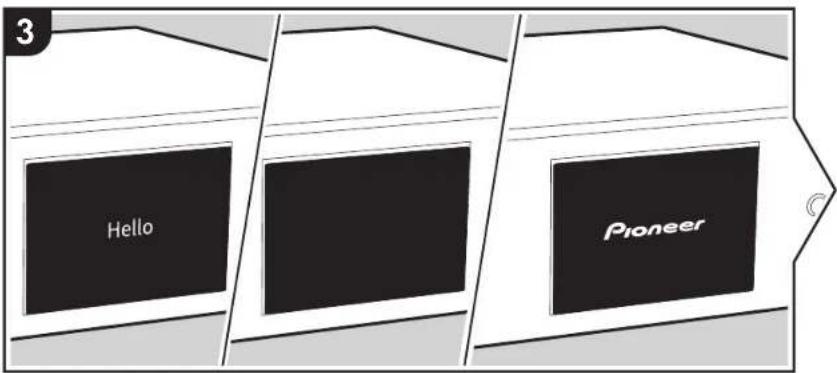

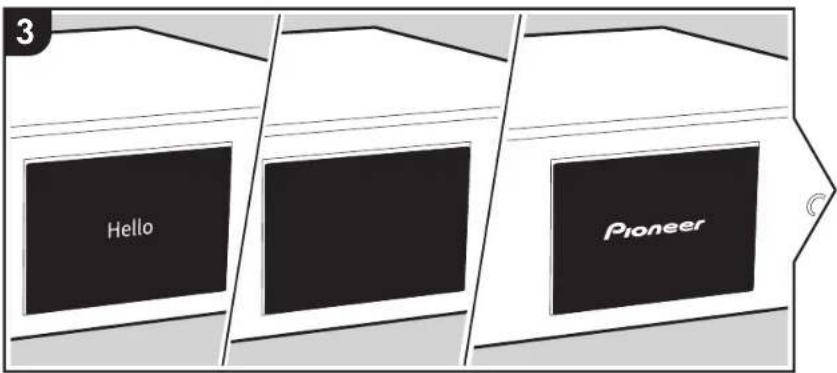

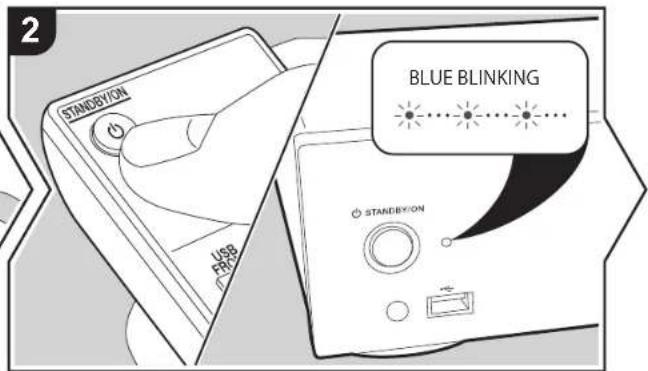

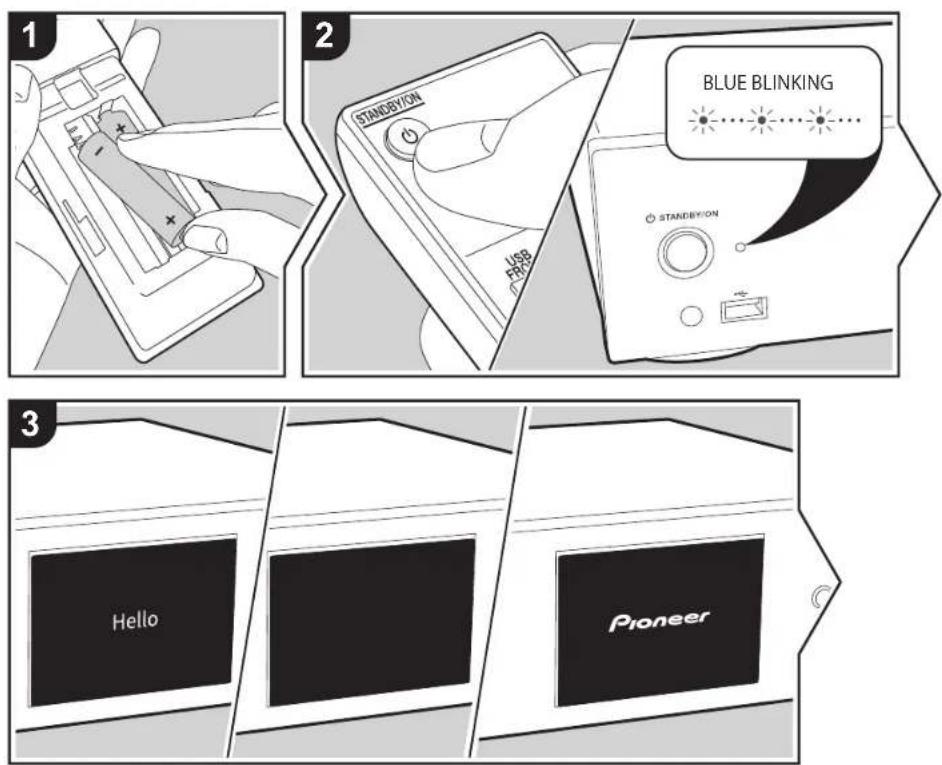

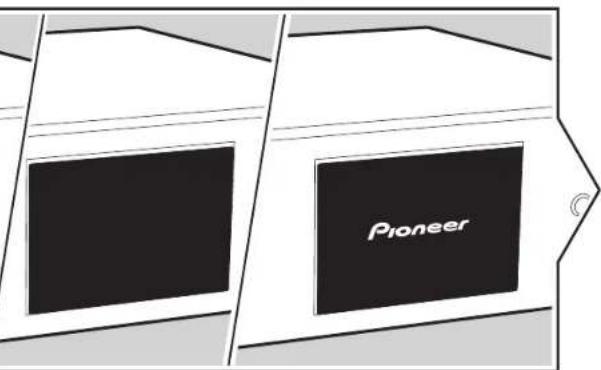

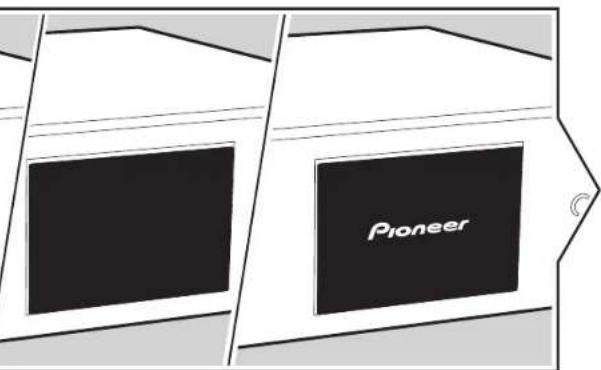

Starting up: When you press ⏻ STANDBY/ON, the power indicator on the main unit slowly blinks blue, then "Hello" is displayed on the display about 20 seconds later. After this, the display goes blank, then after the Pioneer logo is displayed, you can start operating the unit.

Wi-Fi connection settings

When you first turn the power on, the initial setup screen is displayed automatically, allowing you to easily make Wi-Fi connection settings.

To set, select the item with the cursors on the remote controller and press ENTER to confirm. To return to the previous display, press RETURN.

To make Wi-Fi settings, select "Wi-Fi". If you have connected with an ethernet cable, select "Wired(Exit)" and confirm. If you select "Wi-Fi", select the method for setting in the next screen (for example "Scan Networks").

Before Start

Part Names

Install

Initial Setup

Playback

Advanced Setup | Firmware Update | Others

- To redo the initial settings, press SETUP on the remote controller, select "Wi-Fi" in "Network Setting" - "Connection", then select "Wi-Fi Setup".

■ Scan Networks

From the list of SSID for access points such as wireless LAN routers, select the required SSID and make the settings.

1. Select the SSID of the access point you want to connect and then confirm.

1. Select either "Enter Password" or "Push Button" and confirm. If the access point has an automatic setting button, by selecting "Push Button" you can connect without entering a password.

1. If you select "Enter Password", enter the password of the access point and press ENTER. For details on how to enter text, refer to "Entering text" (→P19).

If you select "Push Button", then after pressing and holding the automatic setting button on the access point for the required amount of time, press ENTER on the remote controller.

1. 📄 displayed when the settings are complete.

■ Use iOS Device

Set by sharing the iOS device's Wi-Fi settings with this unit.

1. Connect the iOS device by Wi-Fi.

2. Select this device in the "SET UP NEW AIRPLAY SPEAKER..." item on the screen of the iOS device and select "Next".

• This unit is displayed as "Pioneer N-30AE XXXXXX".

1. After establishing the connection, select "Done" on the screen of the iOS device.

2. 📄 displayed on the display of the unit when the settings are complete.

■ Enter SSID of the access point

Set by entering the SSID of the access point you want to connect.

1. Enter the SSID. For details on how to enter text, refer to "Entering text" (→P19).

1. Select and confirm the authentication method.

- If you select "None", proceed to step 3. If you select "WEP", "WPA", or "WPA2", enter the password and confirm.

1. 📄 displayed when the settings are complete.

Before Start > Part Names > Install > Initial Setup > P I a y b a c k

Advanced Setup | Firmware Update | Others

USB Storage Device/HDD

USB FRONT USB REAR MUSIC SERVER NETWORK HOME MEDIA SOURCE SELECT

2 USB 0118 NATIONAL OFF

50Hz RESET SHIFT, OPTION NOOR POWER a TOP MENU (btop) d b TIP RETURN

ENTER RETURN e f SETUP H NET RADIO MARE GAR

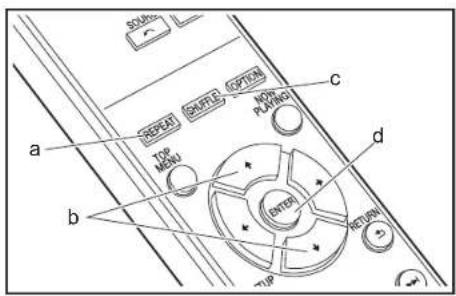

Basic operations

You can play music files by connecting a USB storage device or HDD (hard disk drive) to the USB port on the front or rear of the unit.

• The USB port on the front supports a maximum 5 V/0.5 A power supply. If the HDD requires more than this, connect to the USB port (maximum 5 V/1 A) on the rear of the unit.
• Turn the unit on

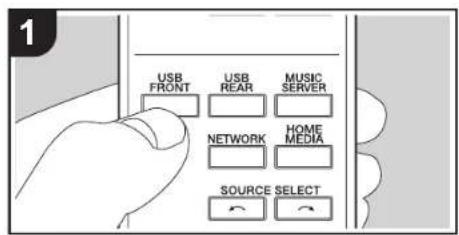

• Press USB FRONT or USB REAR.

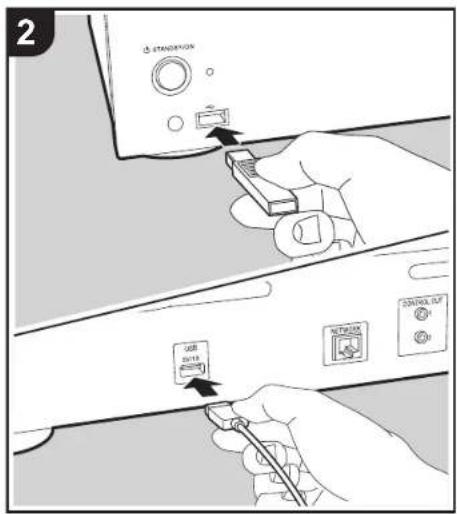

1. Plug your USB storage device or HDD into the USB port on the front or rear.
2. Folders and music files are displayed on the display when loading is complete.

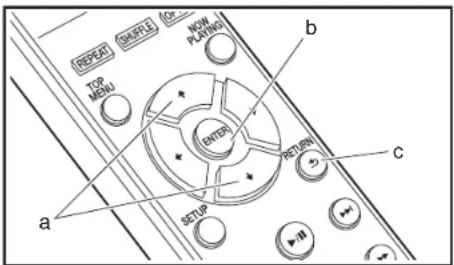

1. Select the folder or music file with the cursors (b) of the remote controller and press ENTER (d) to confirm. To return to the previous display, press RETURN (e).

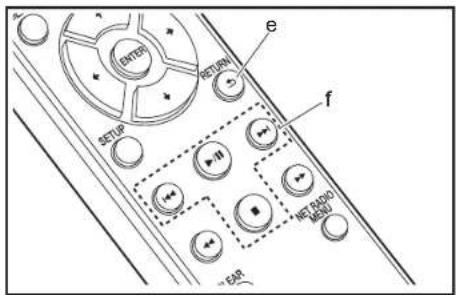

2. Use play buttons (f) to stop play or choose tracks to play. • The display of album name, artist name, and album art is supported with MP3/WMA/Apple Lossless/FLAC/AAC/

> Before Start > Part Names > Install > Initial Setup > P I a y b a c k

Advanced Setup | Firmware Update | Others

DSD (DSF only) format music files. The formats for embedded images are JPEG and PNG.

• Characters that cannot be displayed by this unit appear as "*".
• The USB port of this unit conforms with the USB 2.0 standard. The transfer speed may be insufficient for some content you play, which may cause some interruption in sound.

Repeat play

1. Repeatedly press REPEAT (a) during play to display or on the display.

: Repeat play of all tracks.
: Repeat play of the selected individual track.
To cancel repeat play, press REPEAT (a) several times until the icons disappear.

Shuffle play

1. Repeatedly press SHUFFLE (c) during play to display × on the display.

× : Play tracks in a folder randomly.

To cancel shuffle play, press SHUFFLE (c) several times until the icon disappears.

USB Storage / HDD Device Requirements

• Note that operation is not guaranteed with all USB storage devices or HDD.
• This unit can use USB storage devices that comply with the USB mass storage device class standard. (However, there are still devices that cannot be played by this unit even if they comply with the USB mass storage class standard.)
• The unit is also compatible with USB storage devices using the FAT16 or FAT32 file system formats. Other formats such as exFAT, NTFS, and HFS cannot be

played by this unit.

• If the USB storage device has been partitioned, each section will be treated as an independent device.
• Up to 20,000 tracks per folder can be displayed, and folders may be nested up to 16 levels deep.
• USB hubs and USB storage devices with hub functions are not supported. Do not connect these devices to the unit.
• USB storage devices with security function are not supported on this unit.
• If the USB storage device or HDD comes with an AC adapter, we recommend that you use its AC adapter to power it.
• Media inserted to the USB card reader may not be available in this function. Furthermore, depending on the USB storage device, proper reading of the contents may not be possible.
• We accept no responsibility whatsoever for the loss or damage to data stored on a USB storage device when that device is used with this unit. We recommend that you back up your important music files beforehand.

Supported Audio Formats

For server playback and playback from a USB storage device, this unit supports the following music file formats. Note that sound files that are protected by copyright cannot be played on this unit.

MP3 (.mp3/.MP3):

• Supported formats: MPEG-1/MPEG-2 Audio Layer 3
• Supported sampling rates: 44.1 kHz, 48 kHz
  • Supported bitrates: Between 8 kbps and 320 kbps and VBR.

WMA (.wma/.WMA):

• Supported sampling rates: 44.1 kHz, 48 kHz
• Supported bitrates: Between 5 kbps and 320 kbps and VBR.

- WMA Pro/Voice/WMA Lossless formats are not supported

WAV (.wav/.WAV):

WAV files include uncompressed PCM digital audio.

• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
• Quantization bit: 8 bit, 16 bit, 24 bit

AIFF (.aiff/.aif/.aifc/.afc/.AIFF/.AIF/.AIFC/.AFC):

AIFF files include uncompressed PCM digital audio.

• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
• Quantization bit: 8 bit, 16 bit, 24 bit

AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/.3G2):

• Supported formats: MPEG-2/MPEG-4 Audio
• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Supported bitrates: Between 8 kbps and 320 kbps and VBR.

FLAC (.flac/.FLAC):

• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
• Quantization bit: 8 bit, 16 bit, 24 bit

Apple Lossless (.m4a/.mp4/.M4A/.MP4):

• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
• Quantization bit: 16 bit, 24 bit

DSD (.dsf/.dff/.DSF/.DFF):

• Supported formats: DSF/DSDIFF
• Supported sampling rates: 2.8 MHz, 5.6 MHz, 11.2 MHz

> Before Start > Part Names > Install > Initial Setup > Play back

Advanced Setup | Firmware Update | Others

Internet Radio

USB FRONT USB REAR MUSIC SERVER NETWORK HOME MEDIA ORCE SELECT

REPER SHEELE OP-IN DOWN PLAYING TOP MENU GATOR PATTERN a SETUP d MET RADIOM MENU a b CLEAR

Basic operations

When this unit is connected to a network, you can listen to TuneIn or other preregistered Internet radio services.

Depending on the internet radio service, the user may need to register from their computer first.

1. Turn the unit on.

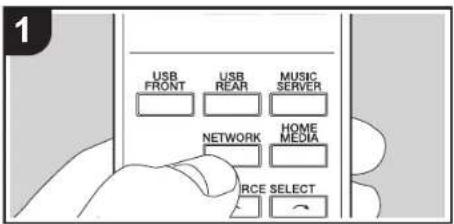

2. Press NETWORK.

1. Select "Tuneln Radio" with the cursors (a) of the remote controller and press ENTER (c) to confirm. After switching the display to the internet radio service, you can select stations with the cursors (a) on the remote controller and press ENTER (c) to confirm. To return to the previous display, press RETURN (d).

Tuneln

You can register a station you have played as a favorite.

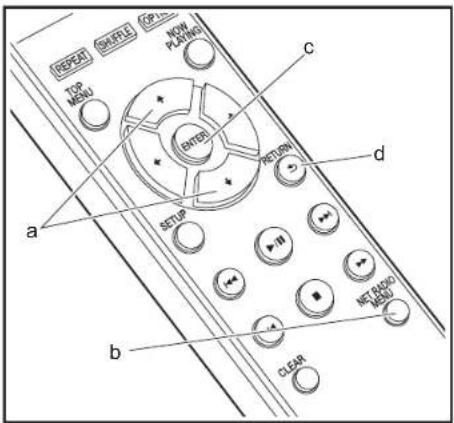

1. Press NET RADIO MENU (b) while playing Tuneln.
2. Select "Add to My Presets" on the display and confirm.
3. To play a favorite, in the top screen of TuneIn, select the registered station in "My Presets" and confirm. To delete favorites, press NET RADIO MENU (b) during play, select "Remove from My Presets" and confirm.

> Before Start > Part Names > Install > Initial Setup > P I a y b a c k

Advanced Setup | Firmware Update | Others

Spotify

1 Wi-Fi

Spotify

Illustration of a finger pressing a speaker icon on a screen (no text or symbols)

Pioneer N-30AE xxxxx

HOME MEDIA C:\WORK SOURCE SELECT → a b RESET SINRUE OPTION NOW PLAYING c d ENTER SETUP e NO. RADIO MENU

Basic Operation

Spotify Connect play is possible by connecting this unit to the same network as a smart phone or tablet. To enable Spotify Connect, install the Spotify application on your smartphone or tablet and create a Spotify premium account.

1. Connect the smartphone to the network that this unit is connected to.
2. Click the Connect icon in the track play screen of the Spotify app.
3. Select this unit.

• This unit is displayed as "Pioneer N-30AE XXXXXX"

1. This unit turns on automatically and the input selector changes to NETWORK and streaming of Spotify starts.

- If "Option Setting" - "Power Off Setting" - "Network Standby" is set to "Off" in the Setup menu, manually turn the unit on and then press NETWORK on the remote controller.

• Refer to the following for Spotify settings: www.spotify.com/connect/
- The Spotify software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses

The following remote controller operations are also possible.

(a) This button starts repeat play.
(b) This button starts shuffle play.
(c) This button plays the previous track.
(d) Pressed during play this button pauses playback. Pressed while paused, and it restarts play.
(e) This button plays the next track.

Before Start > Part Names > Install > Initial Setup > P I a y b a c k

Advanced Setup | Firmware Update | Others

AirPlay®

iPhone Pioneer N-30AE

Illustration of a hand pressing a play button on a square (no text or symbols)

Basic Operation

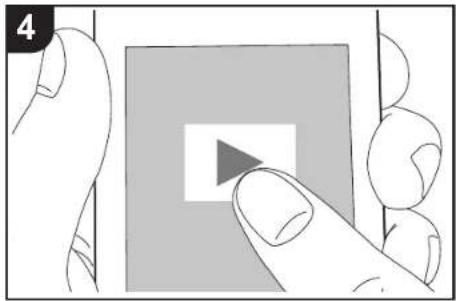

You can wirelessly enjoy the music files on an iPhone ^® , iPod touch ^® , or iPad ^® connected to the same access point as this unit. Update the OS version on your iOS device to the latest version.

1. Turn the unit on.

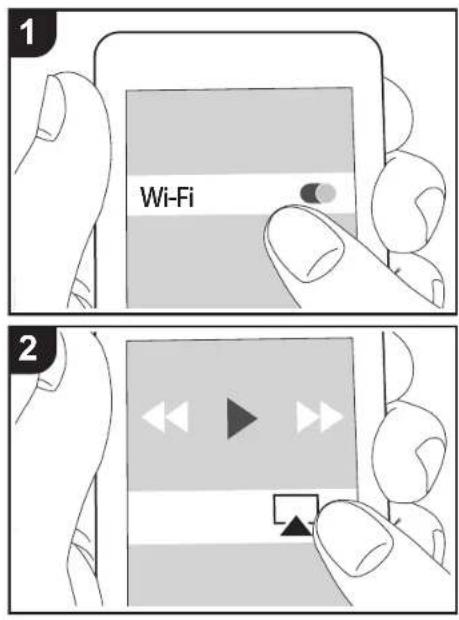

2. Connect the iOS device to the same network as this unit.

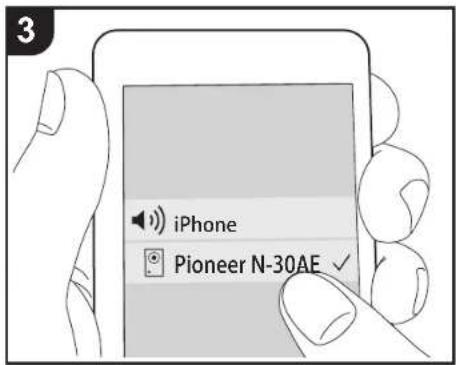

3. Tap the AirPlay icon ☑ in the control center of the iOS device and select this unit from the list of devices displayed, and tap "Done".

• This unit is displayed as "Pioneer N-30AE XXXXXX".

- If an "AirPlay Password" has been set on this unit, enter the password you set.

1. Play the music files on the iOS device.

2. In the Setup menu displayed by pressing SETUP on the remote controller, when "Option Setting" - "Power Off Setting" - "Network Standby" is set to "On", when play of AirPlay starts, this unit turns on automatically and play starts.

3. Due to the characteristics of AirPlay wireless technology, the sound produced on this unit may slightly be behind the sound played on the AirPlay-enabled device.
4. SHUFFLE and REPEAT on the remote controller do not work. Operate from the iOS device.

You can also play the music files on a computer with iTunes (Ver. 10.2.2 or later). Make sure this unit and the computer are connected to the same network, click the AirPlay icon in iTunes, select this unit from the list of devices displayed, and start play of a music file.

> Before Start > Part Names > Install > Initial Setup > P I a y b a c k

Advanced Setup | Firmware Update | Others

Music Server

USB FRONT USB REAR MUSIC SERVER ME IA SELECT

REPEAT SIMPLE 40% TOP MENU NOW PLAYING b ENTER RETURN c a SETUP W

It is possible to stream music files stored on PCs or NAS devices connected to the same network as this unit. The network servers this unit is compatible with are those PCs with players installed that have the server functionality of Windows Media® Player 11 or 12, or NAS that are compatible with home network functionality. You may need to make some settings in advance to use Windows Media® Player 11 or 12. Note that only music files registered in the library of Windows Media® Player can be played.

Configuring Windows Media ^® Player

■ Windows Media® Player 11

1. Tum on your PC and start Windows Media® Player 11.
2. In the "Library" menu, select "Media Sharing" to display a dialog box.
3. Select the "Share my media" check box, and then click "OK" to display the compatible devices.
4. Select this unit, and then click "Allow"

- When it is clicked, the corresponding icon is checked.

1. Click "OK" to close the dialog.

- Depending of the version of Windows Medi Player, there may be differences in the names of items you can select.

■ Windows Media® Player 12

1. Turn on your PC and start Windows Media ^® Player 12.
2. In the "Stream" menu, select "Turn on media streaming" to display a dialog box.

- If media streaming is already turned on, select "More streaming options..." in the "Stream" menu to list players in the network, and then go to step 4.

1. Click "Turn on media streaming" to list players in the network.
2. Select this unit in "Media streaming options" and check that it is set to "Allow".
3. Click "OK" to close the dialog.
   • Depending of the version of Windows Media Player,

there may be differences in the names of items you can select.

Playing

1. Turn the unit on.
2. Start the server (Windows Media® Player 11, Windows Media® Player 12, or NAS device) containing the music files to play.
3. Make sure that the PCs and/or NASs are properly connected to the same network as this unit.

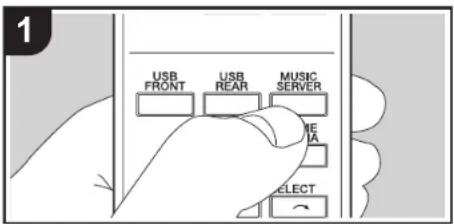

4. Press MUSIC SERVER.

1. Select the server and music file with ♦/♦ (a) and press ENTER (b) to confirm. To return to the previous display, press RETURN (c).
2. If "No Server" is displayed, check whether the network is properly connected.
3. Depending on the server being used and the files played, elapsed play time and remaining play time may not be displayed.
4. For music files on a server, there can be up to 20,000 tracks per folder, and folders may be nested up to 16 levels deep.

> Before Start > Part Names > Install > Initial Setup > P I a y b a c k

Advanced Setup | Firmware Update | Others

Controlling Remote Playback from a PC

You can use this unit to play music files stored on your PC by operating the PC inside your home network. The unit supports remote playback with Windows Media® Player 12. 1. Turn on your PC and start Windows Media® Player 12.

1. Open the "Stream" menu and check that "Allow remote control of my Player..." is checked. Click "Turn on media streaming" to list players in the network.
2. Select and right-click the music file to play with Windows Media® Player 12. To remotely play a music file on another server, open the target server from "Other Libraries" and select the music file to play.
3. Select this unit in "Play to" to open the "Play to" window of Windows Media® Player 12 and start playback on the unit. If your PC is running on Windows® 8.1, click "Play to", and then select this unit. If your PC is running on Windows® 10, click "Cast to Device", and select this unit. Operations during remote playback are possible from the "Play to" window on the PC.
4. Remote playback is not possible when using a network service or playing music files on a USB storage device.
5. Depending of the version of Windows Media Player, there may be differences in the names of items you can select.

Supported Audio Formats

For server playback and playback from a USB storage device, this unit supports the following music file formats.

• Note that playback via wireless LAN of sampling rates of 88.2 kHz or higher, and DSD are not supported.
  • Remote play of FLAC, and DSD is also not supported.
• Variable bit-rate (VBR) files are supported. However, playback times may not be displayed correctly.
• Remote playback does not support the gapless playback.

MP3 (.mp3/.MP3):

• Supported formats: MPEG-1/MPEG-2 Audio Layer-3
• Supported sampling rates: 44.1 kHz, 48 kHz
• Supported bitrates: Between 8 kbps and 320 kbps and VBR.

WMA (.wma/.WMA):

• Supported sampling rates: 44.1 kHz, 48 kHz
• Supported bitrates: Between 8 kbps and 320 kbps and VBR.
- WMA Pro/Voice/WMA Lossless formats are not supported.

WAV (.wav/.WAV):

WAV files include uncompressed PCM digital audio.

• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
• Quantization bit: 8 bit, 16 bit, 24 bit

AIFF (.aiff/.aif/.aifc/.afc/.AIFF/.AIF/.AIFC/.AFC):

AIFF files include uncompressed PCM digital audio.
• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
• Quantization bit: 8 bit, 16 bit, 24 bit

AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/.3G2):

• Supported formats: MPEG-2/MPEG-4 Audio
• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Supported bitrates: Between 8 kbps and 320 kbps and VBR.

FLAC (.flac/.FLAC):

• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
• Quantization bit: 8 bit, 16 bit, 24 bit

LPCM (Linear PCM):

• Supported sampling rates: 44.1 kHz, 48 kHz
• Quantization bit: 16 bit
• Supported sampling rates: 44.1 kHz, 48 kHz
• Quantization bit: 16 bit

Apple Lossless (.m4a/.mp4/.M4A/.MP4):

• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
• Quantization bit: 16 bit, 24 bit

DSD (.dsf/.dff/.DSF/.DFF):

• Supported formats: DSF/DSDIFF
• Supported sampling rates: 2.8 MHz, 5.6 MHz, 11.2 MHz

> Before Start > Part Names > Install > Initial Setup > P I a y b a c k

Advanced Setup | Firmware Update | Others

Entering text

SOLUTION a REPEAT SHIFTLE OPTION KON PLATING TOP MOVAL ENTER RETURN f b SETUP c CLEAR d e

Text entry, for passwords, etc., uses the following remote controller buttons.

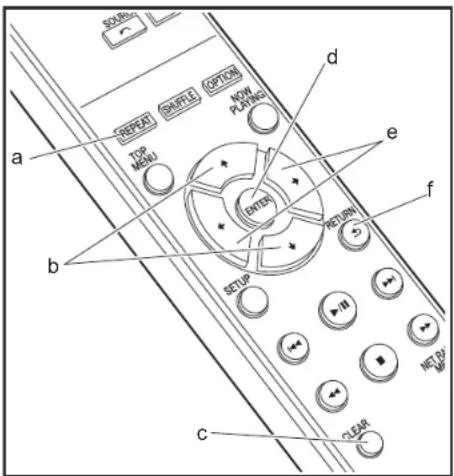

REPEAT button (a): Each press changes text type in the order upper case → lower case → numbers → symbols.

←/→ buttons (b): Move the position (cursor position) where the character is to be entered.

+/▼ buttons (e): Each press changes the character.

ENTER button (d): Confirms the entered content.

RETURN button (f): Cancels input and returns you to the previous display.

CLEAR button (c): Deletes the character in the cursor position.

> Before Start > Part Names > Install > Initial Setup > Playback

Advanced Setup | Firmware Update | Others

Advanced Settings

1 ENTER RETURN SETUP

The unit allows you to configure advanced settings to provide you with an even better experience.

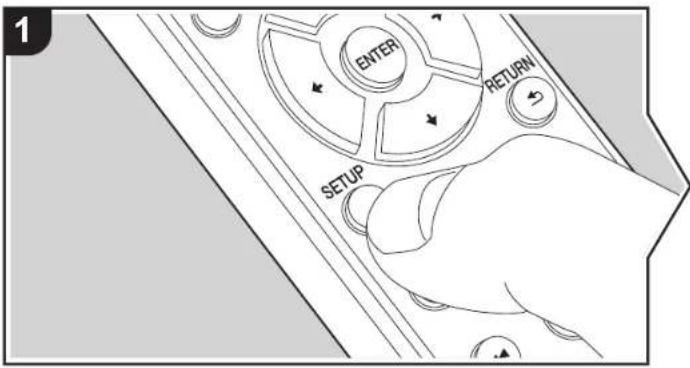

1. Press SETUP on the remote controller.

1. After the Setup screen is displayed, select the content or the setting with the cursors on the remote controller and press ENTER to confirm your selection. To return to the previous screen, press RETURN.
2. To exit the settings, press SETUP.

Network Setting

■ Connection

Select the type connection to the network.

"Wi-Fi": To connect via wireless LAN

"Wired" (Default Value): To connect via wired LAN

Perform "Wi-Fi Setup" if you select "Wi-Fi".

■ Wi-Fi Setup

Make Wi-Fi connection settings. (→P10)

This can be set only when "Wi-Fi" is selected in "Connection".

> Before Start > Part Names > Install > Initial Setup > Playback

Advanced Setup | Firmware Update | Others

- You can make Wi-Fi connection settings using a web browser on a computer. For details, refer to "Web Setup" (→P22).

DHCP

"On (Default Value)": Auto configuration by DHCP "Off": Manual configuration without DHCP

If selecting "Off", you must set "IP Address", "Subnet Mask", "Gateway", and "DNS Server" manually.

IP Address

Displays/Sets the IP address.

■ Subnet Mask

Displays/Sets the subnet mask.

■ Gateway

Displays/Sets the gateway.

DNS Server

Displays/Sets the primary DNS server.

■ Proxy URL

Displays/Sets the proxy server URL.

■ Proxy Port

Displays/Sets the proxy server port number when you enter "Proxy URL".

■ Friendly Name

Change the device name for this unit which is shown on other devices connected to the network to an easily recognized name. You can input up to 31 characters. For details on how to enter text, refer to "Entering text" (→P19). After finishing input, press ENTER.

AirPlay Password

You can set a password of up to 31 characters so that only registered users can use AirPlay. For details on how to enter text, refer to "Entering text" (→P19). After finishing input, press ENTER.

Network Check

You can check the network connection.

Option Setting

■ Power Off Setting

Auto Standby	This setting places the unit on standby automatically after 20 minutes of inactivity without any audio input."On" (Default Value): The unit will automatically enter standby mode."Off": The unit will not automatically enter standby mode.
Network Standby	When this feature is turned "On", you can turn on the power of the unit via the network using an application that can control this unit .Setting to "On" (Default Value) increases the power consumption even when the unit is on standby."Network Standby", which suppresses power consumption, may be disabled when the network connection is lost.

Digital Filter

"Slow": Soft and fluid sound

"Sharp" (Default Value): Sound with more structure and firmness

"Short": Sound that starts quick and seems to move forward "Short"

Language

Select the language displayed on the display.

English (Default Value), German, French, Spanish, Italian, Dutch, Swedish, Russian, Chinese

System Info

The MAC address of this unit and the current firmware version will be displayed.

> Before Start > Part Names > Install > Initial Setup > Playback

Advanced Setup | Firmware Update | Others

Factory Reset

Reset the settings of this unit to the status at the time of shipment. We recommend that you take a note of the settings you have changed before going ahead with a factory reset. Select "Start" and confirm to go ahead. The unit will be placed on standby automatically when initializing is completed.

Update

"Update" is not displayed if there are no firmware updates.

■ via Network

Press ENTER to select when you want to update the firmware via network.

■ via USB

Press ENTER to select when you want to update the firmware via USB.

Web Setup

You can make Wi-Fi connection settings using a web browser on a computer. Be sure your computer is connected to the router wirelessly.

If this unit is connected to the router using ethernet cable, you can not do this setting.

1. Turn the unit on.
2. Press SETUP on the remote controller, select "Wi-Fi" in "Network Setting" - "Connection", then select "Wi-Fi Setup".
3. Press ♦/▼ to select "Use iOS Device" and press ENTER.
4. In the list of wireless LAN connections on your computer, select SSID of this unit (softap_0009B0xxxxxx).
5. "xxxxxx" in SSID is the lower three bytes of the MAC address.
6. Open the web browser on your computer and access http://192.168.200.1.
7. The "Web Setup" menu is displayed. Make network settings for this unit.
8. Depending on the equipment being used or connection environment, this function may not work.
9. Consult the appropriate operating instructions for information regarding operation of the computer.
10. Since this kind of connection is not encoded, a minor security risk may be involved.

> Before Start > Part Names > Install > Initial Setup > Playback

Advanced Setup | Firmware Update | Others

Firmware Update

The updating function on this unit

This unit has functionality to update the firmware (the system software) over a network or by the USB port. This enables us to make improvements to a variety of operations and to add features.

For details about the updated play features, see here.

How to update

There are two methods for updating the firmware: via network and via USB. The update may take about 5 minutes to complete for either method: via network or via USB. Furthermore, existing settings are guaranteed regardless of the method used for update.

• For the latest information on updates, visit our company's website. There is no need to update the firmware on this unit if there is no update available.
• When performed over the network, it may take even more time depending on the connection status.
• During an update, do not
• Disconnect and reconnect any cable or USB storage device, or perform any operation on the component such as turn off its power
• Accessing this unit from a PC or smartphone using an application

Disclaimer: The program and accompanying online documentation are furnished to you for use at your own risk. We will not be liable and you will have no remedy for damages for any claim of any kind whatsoever concerning your use of the program or the accompanying online documentation, regardless of legal theory, and whether arising in tort or contract.

In no event will we be liable to you or any third party for any special, indirect, incidental, or consequential damages of any kind, including, but not limited to, compensation, reimbursement or damages on account of the loss of present or prospective profits, loss of data, or for any other reason whatsoever.

Updating the Firmware via Network

• Check that the unit is turned on, and the connection to the Internet is secured.

• Turn off the controller component (PC etc.) connected to the network.

• Stop any playing Internet radio, USB storage device, or server content.

• The setup screen is displayed on the display when SETUP on the remote controller is pressed.

1. Press ♦/♦ and ENTER to select "Update" - "via Network" in order.

• "Update" is not displayed if there are no firmware updates.
• Press ENTER to start the firmware update.

- "COMPLETE" is displayed when the update is complete.

1. Press ⏻ STANDBY/ON on the main unit to switch the unit to standby. The process is completed and your firmware is updated to the latest version.

> Before Start > Part Names > Install > Initial Setup > Playback

Advanced Setup | Firmware Update | Others

If an error message is displayed: When an error occurs, "*-* * Error!" is displayed on the display of this unit. ("*" represents an alphanumeric character.) Check the following:

• * -01, * -10: Ethernet cable not found. Connect the Ethernet cable properly.
• *-02, *-03, *-04, *-05, *-06, *-11, *-13, *-14, *-16, *-17, *-18, *-20, *-21: Internet connection error. Check the following:
  – The router is turned on

- This unit and the router are connected via the network. Try to disconnect and then connect again the power to the unit and router. This may solve the problem. If you are still unable to connect to the Internet, the DNS server or proxy server may be temporarily down. Check the service status with your ISP provider.

- Others: Disconnect then reconnect the AC power cord, then repeat from the beginning.

Updating via USB

• Prepare a 128 MB or larger USB storage device. FAT16 or FAT32 file system format.
- Delete any data stored on the USB storage device.
- Turn off the controller component (PC etc.) connected to the network.
- Stop any playing Internet radio, USB storage device, or server content.
- Some USB storage devices may take long to load, may not be loaded correctly, or may not be correctly fed depending on the device or their content.
- We will not be liable whatsoever for any loss or damage of data, or storage failure arising from the use of the USB storage device with this unit. Thank you for your understanding.
1. Connect the USB storage device to your PC.
2. Download the firmware file from our company's website to your PC and unzip.

Firmware files are named in the following way:

PIONAP **** ******* *** .zip Unzip the file on your PC. The number of unzipped files and folders varies depending on the model.

1. Copy all unzipped files and folders to the root folder of the USB storage device.

• Make sure to copy the unzipped files.

1. Connect the USB storage device to the USB port of this unit.

2. If you connect a USB hard disk drive to the USB port of the unit, we recommend that you use its AC adapter to power it.

3. If the USB storage device has been partitioned, each section will be treated as an independent device.

4. The setup screen is displayed on the display when SETUP button on the remote controller is pressed.

1. Press ♦/♦ and ENTER to select "Update" - "via USB" in order.

• "Update" is not displayed if there are no firmware updates.

• Press ENTER to start the firmware update.

• "COMPLETE" is displayed when the update is complete.

• Press ⏻ STANDBY/ON on the main unit to switch the unit to standby. The process is completed and your firmware is updated to the latest version.
• Remove the USB storage device from this unit.

If an error message is displayed: When an error occurs, "* - * * Error!" is displayed on the display of this unit.

Check the following:

• * -01, * -10: USB storage device not found. Check whether the USB storage device or USB cable is correctly inserted to the USB port of this unit. Connect the USB storage device to an external power source if it has its own power supply.
• * -05, * -13, * -20, * -21: The firmware file is not present in the root folder of the USB storage device, or the firmware file is for another model. Retry from the download of the firmware file.
• Others: Disconnect then reconnect the AC power cord, then repeat from the beginning.

Troubleshooting

Before starting the procedure

When operation is unstable, problems may be solved by simply turning the power on or to standby or disconnecting/connecting the power cord, rather than reviewing settings and operations. Try the simple measures on both the unit and the connected device. If the problem isn't fixed after referring to "Troubleshooting", resetting the unit to the status at the time of shipment may solve the problem. Note that your settings will also be initialized when you reset, so we recommend that you note down your settings before doing the following.

Resetting the unit (this resets the unit settings to the default)

1. Press SETUP on the remote controller, select "Factory Reset" - "Start" in the Setup screen and press ENTER.
2. Press ENTER.
3. The unit switches to standby and the settings are reset.

Power

Cannot turn on the unit

- Unplug the power cord from the wall outlet, wait 5 seconds or more, then plug it in again.

The unit turns off unexpectedly

- The unit automatically switches to standby when the "Option Setting" - "Power Off Setting" - "Auto Standby" setting in the Setup menu functions.

■ The display doesn't light

- It is possible that the display has been turned off by pressing DISPLAY. Press DISPLAY to turn the display on.

■ Wi-Fi Connection

- Try plugging/unplugging the power supply of wireless LAN router and the unit, check the wireless LAN router power-on status, and try reboot of the wireless LAN router.

Cannot connect to the access point

• Check that the setting of SSID and encryption (WEP, etc.) is correct. Make sure the network settings of the unit is properly set.
• Connection to an SSID that includes multi-byte characters is not supported. Name the SSID of the wireless LAN router using single-byte alphanumeric characters only and try again.
• When the wireless LAN router setting is at stealth mode (mode to hide the SSID key) or when ANY connection is off, the SSID is not displayed. Change the setting and try again.

Connected to an SSID different to the SSID selected

- Some access points allow you to set multiple SSIDs for one unit. If you use the automatic setting button on such a router, you may end up connecting with a different SSID from the SSID you wanted to connect to. Use the connection method requiring you to enter a password if this happens.

Playback is interrupted and communication does not work

• Shorten the distance from the access point or remove obstacles to improve visibility, and try again. Place the unit away from microwave ovens or other access points. It is recommended to place the access point and the unit in the same room.
• If there is a metallic object near the unit, wireless LAN connection may not be possible as the metal can effect on the radio wave.
• When other access point are used near the unit, several issues such as interrupted playback and communication

may occur. You can avoid these issues by changing the channel of the access point. For instructions on changing channels, see the instruction manual provided with the access point.

■ Cannot Play USB storage device / HDD

• Check whether the USB storage device or USB cable is correctly inserted to the USB port of the unit.
• Disconnect the USB storage device from the unit, and then try reconnecting.
• This unit may not recognize USB storage devices and HDDs as proper devices sometimes. Try switching this unit to standby and then turning it on again.
• Depending on the type of format, the playback may not be performed normally. Check the type of the file formats that is supported. (→P13)
• Cautions regarding USB and HDD devices (→P13)

■ Network function

• If you cannot select a network service, it will become selectable when the network function is started.
• Try plugging/unplugging the power supply of this unit and the router, and try rebooting the router.

Cannot access the Internet radio

• Certain network service or contents available through the unit may not be accessible in case the service provider terminates its service.
  • Make sure that your modem and router are properly connected, and make sure they are both turned on.
• Depending on ISP, setting the proxy server is necessary.
• Make sure that the used router and/or modem is supported by your ISP.

Cannot access the network server

- This unit needs to be connected to the same router as the network server.

> Before Start > Part Names > Install > Initial Setup > Playback

Advanced Setup | Firmware Update

Others

- This unit is compatible with Windows Media Player 11 or 12 network servers or NAS that are compatible with home network functionality. Furthermore, when using a PC, only music files registered in the Windows Media Player library can be played.

Playback stops while listening to music files on the network server

• When the PC is serving as the network server, try quitting any application software other than the server software (Windows Media® Player 12, etc.).
• If the PC is downloading or copying large files, the playback may be interrupted.

The album names and artist names for the Music Server are not displayed

• Meta data, such as album names and artist names, needs to be recognized on the server for distribution to this unit, so this depends on the specifications of the NAS or server you are using.
• The file formats supported depend on the NAS or server software. For details, contact the manufacturer of NAS or the server software.

Album art in Music Server is displayed sometimes but not other times

• Music Server depends on the specifications of the server software.
  • The formats supported depend on the server software.
• For details, contact the manufacturer of the server software.

> Before Start > Part Names > Install > Initial Setup > Playback

Advanced Setup | Firmware Update | Others

General Specifications

■ Analog audio output

Rated Output Level and Impedance

• RCA OUT : 2 Vrms (1 kHz, 0 dB)/500 Ω

Frequency Response

• 4 Hz - 70 kHz (-3 dB)

Signal to Noise Ratio

• 110 dB (A-weighting/RCA OUT)

Dynamic Range

• 100 dB (24 bit, 32 bit)

THD+N

• 0.002 %

Channel Separation

• 100 dB (1 kHz)

■ Digital Audio Input

Front/Rear USB

• Type A, USB2.0 High Speed

DC Output

• 5 V 1 A (Rear)/5 V 0.5 A (Front)

■ Network Section

Wired LAN

- Ethernet Jack

• 10BASE-T/100BASE-TX

Wireless LAN (Wi-Fi)

• IEEE 802.11 a/b/g/n standard

• 5 GHz/2.4 GHz band

Others

Control out

• 1.9 W (in standby, Network Standby: On/Network Setting: Wired)

• 2.5 W (in standby, Network Standby: On/Network Setting:

Wi-Fi)

Auto standby

- On (20 minutes)/Off

Dimensions (W× H× D)

- 435 mm × 103 mm × 300 mm

Mass (main unit only)

• 3.4 kg

> Before Start > Part Names > Install > Initial Setup > Playback

Advanced Setup | Firmware Update

Others

License and Trademark Information

CERTIFIED

The Wi-Fi CERTIFIED Logo is a certification mark of Wi-Fi Alliance ^® .

AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

iPad Air and iPad mini are trademarks of Apple Inc.

"Made for iPod", "Made for iPhone" and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later.

BLACKFIRE

This Mark Certifies that this product is compliant with the BLACKFIRE ALLIANCE Standard. Please refer to WWW.BLACKFIREALLIANCE.COM for more information. BLACKFIRE™ is a Registered Trademark (No. 85,900,599) of BLACKFIRE RESEARCH CORP. All rights reserved.

FireConnect ^TM is technology powered by BlackFire Research.

The product with this logo is conformed to Hi-Res Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Windows and the Windows logo are trademarks of the Microsoft group of companies.

DSD and the Direct Stream Digital logo are trademarks of Sony Corporation.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

"All other trademarks are the property of their respective owners."

Anteros Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4 6QQ United Kingdom

Tel: [phone]

6, Avenue de Marais F - 95816 Argenteuil Cedex FRANCE

Tel: [phone]

Корпорация О энд Пи

Register your product on http://www.pioneer.eu (Europe)

© 2016 Onkyo & Pioneer Corporation. All rights reserved.

Onkyo group has established its Privacy Policy, available at [http://www.pioneer-audiovisual.com/privacy].

"Pioneer" is a trademark of Pioneer Corporation, and is used under license.

SN 29402667A

F1701-1

Appareil principal (1)

Télécommande (RC-944E) (1), Piles (AAA/R03) (2)

Câble audio analogique (1)

1 AC IN a USB DV/TA

2 a

Illustration of hands inserting a battery into a device (no text or symbols visible)

STANDBY/ON USB R88 BLUE BLINKING STANDBY/ON

3 Hello

Pioneer

- Bits de quantification: 8 bits, 16 bits, 24 bits

AIFF (.aiff/.aif/.aifc/.afc/.AIFF/.AIF/.AIFC/.AFC):

- Bits de quantification: 8 bits, 16 bits, 24 bits

AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/.3G2):

- Bits de quantification: 8 bits, 16 bits, 24 bits

Apple Lossless (.m4a/.mp4/.M4A/.MP4):

- Bits de quantification: 16 bits, 24 bits

DSD (.dsf/.dff/.DSF/.DFF):

iPhone Pioneer N-30AE ✓

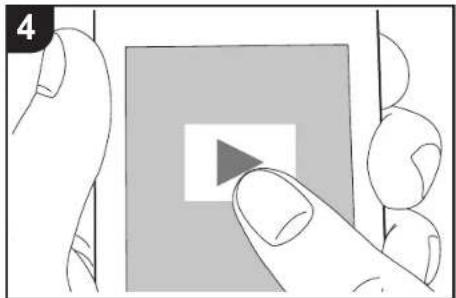

Illustration of a hand pressing a button on a gray square with a play triangle icon (no text or symbols)

- Bits de quantification: 8 bits, 16 bits, 24 bits

AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/.3G2):

DSD (.dsf/.dff/.DSF/.DFF) :

• RCA OUT : 2 Vrms (1 kHz, 0 dB)/500 Ω

• 110 dB (A-weighting/RCA OUT)

Plage dynamique

• 100 dB (24 bits, 32 bits)

THD+N

• 0,002 %

Séparation canal

• 100 dB (1 kHz)

Dimensions (L × H × P)

• 435 mm × 103 mm × 300 mm

Poids (appareil principal uniquement)

• 3,4 kg

The Wi-Fi CERTIFIED Logo is a certification mark of Wi-Fi Alliance®.

AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

iPad Air and iPad mini are trademarks of Apple Inc.

"Made for iPod". "Made for iPhone" and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later.

BLACKFIRE

This Mark Certifies that this product is compliant with the BLACKFIRE ALLIANCE Standard. Please refer to WWW.BLACKFIREALLIANCE.COM for more information. BLACKFIRE™ is a Registered Trademark (No. 85,900,599) of BLACKFIRE RESEARCH CORP. All rights reserved.

FireConnect ^TM is technology powered by BlackFire Research.

The product with this logo is conformed to Hi-Res Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Windows and the Windows logo are trademarks of the Microsoft group of companies.

DSD and the Direct Stream Digital logo are trademarks of Sony Corporation.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

"All other trademarks are the property of their respective owners."

Anteros Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4 6QQ United Kingdom

Tel: [phone]

6, Avenue de Marais F - 95816 Argenteuil Cedex FRANCE

Tel: [phone]

Корпорация О энд Пи

© 2016 Onkyo & Pioneer Corporation. All rights reserved.

Onkyo group has established its Privacy Policy, available at [http://www.pioneer-audiovisual.com/privacy].

"Pioneer" is a trademark of Pioneer Corporation, and is used under license.

SN 29402667A

F1701-1

30° 30° Aprox.7 m

N-30AE 1 a 2

Amplificador integrado, receptor de AV, etc.

1 AC IN a USB RV/1A

2 a

Diagram showing two views of a switch mechanism: one with a 'NETWORK' switch and the other with a 'CONTROL' switch, both enclosed in a circle.

Illustration of hands inserting a battery into a device (no text or symbols visible)

STANDBY/ON d USB PUB BLUE BLINKING STANDBY/ON

3 Hello

Pioneer

AIFF (.aiff/.aif/.aifc/.afc/.AIFF/.AIF/.AIFC/.AFC):

AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/.3G2):

DSD (.dsf/.dff/.DSF/.DFF):

• Formatos compatibles: DSF/DSDIFF
• Tasas de muestreo compatibles: 2,8 MHz, 5,6 MHz, 11,2 MHz

www.spotify.com/connect/third-party-licenses

iPhone Pioneer N-30AE ✓

Illustration of a hand pressing a button on a gray square with a play triangle icon (no text or symbols)

AIFF (.aiff/.aif/.aifc/.afc/.AIFF/.AIF/.AIFC/.AFC):

AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/.3G2):

- Formatos compatibles: Audio MPEG-2/MPEG-4

DSD (.dsf/.dff/.DSF/.DFF):

• Formatos compatibles: DSF/DSDIFF
• Tasas de muestreo compatibles: 2,8 MHz, 5,6 MHz, 11,2 MHz

SOLUTION a REPEAT SHIFTLE OPTION KON PLATING TOP MOVAL ENTER RETURN f b SETUP c CLEAR d e

English (Valor predeterminado), German, French, Spanish, Italian, Dutch, Swedish,

Russian, Chinese

• RCA OUT : 2 Vrms (1 kHz, 0 dB)/500 Ω

• 110 dB (A-weighting/RCA OUT)

Rango dinámico

• 100 dB (24 bit, 32 bit)

THD+N

• 0,002 %

Separación de canal

• 100 dB (1 kHz)

The Wi-Fi CERTIFIED Logo is a certification mark of Wi-Fi Alliance®.

AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

iPad Air and iPad mini are trademarks of Apple Inc.

"Made for iPod", "Made for iPhone" and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later.

BLACKFIRE

This Mark Certifies that this product is compliant with the BLACKFIRE ALLIANCE Standard. Please refer to WWW.BLACKFIREALLIANCE.COM for more information. BLACKFIRE ^™ is a Registered Trademark (No. 85,900,599) of BLACKFIRE RESEARCH CORP. All rights reserved.

FireConnect™ is technology powered by BlackFire Research.

The product with this logo is conformed to Hi-Res Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Windows and the Windows logo are trademarks of the Microsoft group of companies.

DSD and the Direct Stream Digital logo are trademarks of Sony Corporation.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

"All other trademarks are the property of their respective owners."

Anteros Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4 6QQ United Kingdom

Tel: [phone]

6, Avenue de Marais F - 95816 Argenteuil Cedex FRANCE

Tel: [phone]

Корпорация О энд Пи

© 2016 Onkyo & Pioneer Corporation. All rights reserved.

Onkyo group has established its Privacy Policy, available at [http://www.pioneer-audiovisual.com/privacy].

"Pioneer" is a trademark of Pioneer Corporation, and is used under license.

SN 29402667A

F1701-1

30° 30° Circa 7 m

1 AC IN a USB BV/1A

2 a

Illustration of hands inserting a battery into a device (no text or symbols visible)

STANDBY/ON USB R88 BLUE BLINKING STANDBY/ON

3 Hello

Pioneer

AIFF (.aiff/.aif/.aifc/.afc/.AIFF/.AIF/.AIFC/.AFC):

AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/.3G2):

DSD (.dsf/.dff/.DSF/.DFF):

iPhone Pioneer N-30AE ✓

Illustration of a hand pressing a button on a gray square with a play triangle icon (no text or symbols)

Operazione base

AIFF (.aiff/.aif/.aifc/.afc/.AIFF/.AIF/.AIFC/.AFC):

AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/.3G2):

DSD (.dsf/.dff/.DSF/.DFF):

English (Valore predefinito), German, French, Spanish, Italian, Dutch, Swedish, Russian, Chinese

The Wi-Fi CERTIFIED Logo is a certification mark of Wi-Fi Alliance ^15 .

AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

iPad Air and iPad mini are trademarks of Apple Inc.

"Made for iPod", "Made for iPhone" and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later.

BLACKFIRE

This Mark Certifies that this product is compliant with the BLACKFIRE ALLIANCE Standard. Please refer to WWW.BLACKFIREALLIANCE.COM for more information. BLACKFIRE™ is a Registered Trademark (No. 85,900,599) of BLACKFIRE RESEARCH CORP. All rights reserved.

FireConnect ^TM is technology powered by BlackFire Research.

The product with this logo is conformed to Hi-Res Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Windows and the Windows logo are trademarks of the Microsoft group of companies.

DSD and the Direct Stream Digital logo are trademarks of Sony Corporation.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

"All other trademarks are the property of their respective owners."

Anteros Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4 6QQ United Kingdom

Tel: [phone]

6, Avenue de Marais F - 95816 Argenteuil Cedex FRANCE

Tel: [phone]

Корпорация О энд Пи

© 2016 Onkyo & Pioneer Corporation. All rights reserved.

Onkyo group has established its Privacy Policy, available at [http://www.pioneer-audiovisual.com/privacy].

"Pioneer" is a trademark of Pioneer Corporation, and is used under license.

SN 29402667A

F1701-1

30° 30° Ca.7 m

1 AC IN USB N/VTA a

2 a

Illustration of hands inserting a battery into a device (no text or symbols visible)

STANDBY/ON USB R88 BLUE BLINKING

3 Hello Pioneer

2 USB ACCA

a b c d TOP MENU ENTER TIP REPEAT SAMPLI OPTION ONION PLAYING

EATES RETURN e f SETUP H NET RADI MINT CAR

88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

AIFF (.aiff/.aif/.aifc/.afc/.AIFF/.AIF/.AIFC/.AFC):

AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/.3G2):

DSD (.dsf/.dff/.DSF/.DFF):

iPhone Pioneer N-30AE ✓

Illustration of a hand pressing a button on a gray square with a play triangle icon (no text or symbols)

AIFF (.aiff/.aif/.aifc/.afc/.AIFF/.AIF/.AIFC/.AFC):

AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/.3G2):

DSD (.dsf/.dff/.DSF/.DFF):

SOLUTION a REPEAT SHIFTLE OPTION KON PLATING TOP MOVAL ENTER RETURN f b SETUP c CLEAR d e

English (Standardwert), German, French, Spanish, Italian, Dutch, Swedish, Russian, Chinese

System Info

• RCA OUT: 2 Vrms (1 kHz, 0 dB)/500 Ω

Frequenzgang

• 4 Hz - 70 kHz (-3 dB)

Signal-/Rauschabstand

The Wi-Fi CERTIFIED Logo is a certification mark of Wi-Fi Alliance®.

AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

iPad Air and iPad mini are trademarks of Apple Inc.

"Made for iPod", "Made for iPhone" and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later.

BLACKFIRE

This Mark Certifies that this product is compliant with the BLACKFIRE ALLIANCE Standard. Please refer to WWW.BLACKFIREALLIANCE.COM for more information. BLACKFIRE™ is a Registered Trademark (No. 85,900,599) of BLACKFIRE RESEARCH CORP. All rights reserved.

FireConnect ^TM is technology powered by BlackFire Research.

The product with this logo is conformed to Hi-Res Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Windows and the Windows logo are trademarks of the Microsoft group of companies.

DSD and the Direct Stream Digital logo are trademarks of Sony Corporation.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

"All other trademarks are the property of their respective owners."

Anteros Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4 6QQ United Kingdom

Tel: [phone]

6, Avenue de Marais F - 95816 Argenteuil Cedex FRANCE

Tel: [phone]

Корпорация О энд Пи

© 2016 Onkyo & Pioneer Corporation. All rights reserved.

Onkyo group has established its Privacy Policy, available at [http://www.pioneer-audiovisual.com/privacy].

"Pioneer" is a trademark of Pioneer Corporation, and is used under license.

SN 29402667A

F1701-1

30° 30° Ca.7 m

N-30AE 1 a 2

1 AC IN USB N/1A a

2 a

Verbinding netsnoer

Illustration of hands inserting a battery into a device (no text or symbols visible)

STANDBY/ON USB R88 BLUE BLINKING STANDBY/ON

3 Hello

Pioneer

AIFF (.aiff/.aif/.aifc/.afc/.AIFF/.AIF/.AIFC/.AFC):

48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

• Kwantiseringsbit: 8 bit, 16 bit, 24 bit

AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/

.3G2):

• Ondersteunde formaten: MPEG-2/MPEG-4 Audio

- Ondersteunde bemonsteringsfrequencies: 44,1 kHz, 48 kHz, 88,2 kHz, 96 kHz

DSD (.dsf/.dff/.DSF/.DFF):

• Ondersteunde formaten: DSF/DSDIFF

- Ondersteunde bemonsteringsfrequencies: 2,8 MHz, 5,6 MHz, 11,2 MHz

iPhone Pioneer N-30AE ✓

Illustration of a hand pressing a play button on a square screen (no text or symbols)

Basisbediening

AIFF (.aiff/.aif/.aifc/.afc/.AIFF/.AIF/.AIFC/.AFC):

AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/.3G2):

DSD (.dsf/.dff/.DSF/.DFF):

• Ondersteunde formaten: DSF/DSDIFF
- Ondersteunde bemonsteringsfrequencies: 2,8 MHz, 5,6 MHz, 11,2 MHz

SOLUTION a REPEAT SHIFTLE OPTION VIEW PLAYING TOP MOVAL ENTER RETURN f b SETUP c CLEAR d e

"Wired" (Fabrieksinstelling): Verbinden via bedraden LAN

English (Fabrieksinstelling), German, French, Spanish, Italian, Dutch, Swedish, Russian, Chinese

• RCA OUT : 2 Vrms (1 kHz, 0 dB)/500 Ω

Frequentie reactie

• 4 Hz - 70 kHz (-3 dB)

• 110 dB (A-weging/RCA OUT)

Dynamisch bereik

• 100 dB (24 bit, 32 bit)

THD+N

• 0.002 %

Kanaalscheiding

• 100 dB (1 kHz)

■ Digitale audio-ingang

• 1,9 W (in stand-by, Network Standby: On/Network

Setting: Wired)

• 2,5 W (in stand-by, Network Standby: On/Network

Setting: Wi-Fi)

Auto stand-by

The Wi-Fi CERTIFIED Logo is a certification mark of Wi-Fi Alliance ^® .

AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

iPad Air and iPad mini are trademarks of Apple Inc.

"Made for iPod", "Made for iPhone" and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later.

BLACKFIRE

This Mark Certifies that this product is compliant with the BLACKFIRE ALLIANCE Standard. Please refer to WWW.BLACKFIREALLIANCE.COM for more information. BLACKFIRE™ is a Registered Trademark (No. 85,900,599) of BLACKFIRE RESEARCH CORP. All rights reserved.

FireConnect ^TM is technology powered by BlackFire Research.

The product with this logo is conformed to Hi-Res Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Windows and the Windows logo are trademarks of the Microsoft group of companies.

DSD and the Direct Stream Digital logo are trademarks of Sony Corporation.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

"All other trademarks are the property of their respective owners."

Anteros Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4 6QQ United Kingdom

Tel: [phone]

6, Avenue de Marais F - 95816 Argenteuil Cedex FRANCE

Tel: [phone]

Корпорация О энд Пи

© 2016 Onkyo & Pioneer Corporation. All rights reserved.

Onkyo group has established its Privacy Policy, available at [http://www.pioneer-audiovisual.com/privacy].

"Pioneer" is a trademark of Pioneer Corporation, and is used under license.

SN 29402667A

F1701-1

N-30AE 1 a 2

1 AC IN USB N/1A a

2 a

Illustration of hands inserting a battery into a device (no text or symbols visible)

STANDBY/ON USB RUB BLUE BLINKING STANDBY/ON

3 Hello Pioneer

AIFF (.aiff/.aif/.aifc/.afc/.AIFF/.AIF/.AIFC/.AFC):

AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/.3G2):

DSD (.dsf/.dff/.DSF/.DFF):

Illustration of a finger pressing a speaker icon on a screen (no text or symbols)

Pioneer N-30AE xxxxx

HOME MEDIA CWORK SOURCE SELECT → a b RESET SUPPORT OPTION ON PLAYING c d e TOP MENU ENTER SETUP W NET RADIO MENU

Основные функции

iPhone Pioneer N-30AE ✓

Illustration of a hand pressing a button on a gray square with a play triangle icon (no text or symbols)

Основные функции

AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/.3G2):

DSD (.dsf/.dff/.DSF/.DFF):

SOLUTION a REPEAT SHIFTLE OPTION VIEW PLAYING TOP MOVAL ENTER RETURN f b SETUP c CLEAR d e

English (значение по умолчанию), German, French, Spanish, Italian, Dutch, Swedish, Russian, Chinese

System Info

The Wi-Fi CERTIFIED Logo is a certification mark of Wi-Fi Alliance ^15 .

AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

iPad Air and iPad mini are trademarks of Apple Inc.

"Made for iPod", "Made for iPhone" and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later.

BLACKFIRE

This Mark Certifies that this product is compliant with the BLACKFIRE ALLIANCE Standard. Please refer to WWW.BLACKFIREALLIANCE.COM for more information. BLACKFIRE™ is a Registered Trademark (No. 85,900,599) of BLACKFIRE RESEARCH CORP. All rights reserved.

FireConnect ^TM is technology powered by BlackFire Research.

The product with this logo is conformed to Hi-Res Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Windows and the Windows logo are trademarks of the Microsoft group of companies.

DSD and the Direct Stream Digital logo are trademarks of Sony Corporation.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

*All other trademarks are the property of their respective owners."

Anteros Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4 6QQ United Kingdom

Tel: [phone]

6, Avenue de Marais F - 95816 Argenteuil Cedex FRANCE

Tel: [phone]

Корпорация О энд Пи

© 2016 Onkyo & Pioneer Corporation. All rights reserved.

Onkyo group has established its Privacy Policy, available at [http://www.pioneer-audiovisual.com/privacy].

"Pioneer" is a trademark of Pioneer Corporation, and is used under license.

SN 29402667A

F1701-1
