USER MANUAL N-50 PIONEER

WARNING IMPORTANT This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. CAUTION

RISK OF ELECTRIC SHOCK

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION:

TO PREVENT THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. D3-4-2-1-1_A1_En D3-4-2-1-3_A1_En WARNING Before plugging in for the first time, read the following section carefully. The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel. D3-4-2-1-4*_A1_En

Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by

12) Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. WARNING To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment. D3-4-2-1-7a_A1_En VENTILATION CAUTION When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10 cm at top, 10 cm at rear, and 10 cm at each side). WARNING

13) Unplug this apparatus during lightning storms

or when unused for long periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed. D3-4-2-1-7b*_A1_En D3-7-13-69_En IMPORTANT NOTICE THE MODEL NUMBER AND SERIAL NUMBER OF THIS EQUIPMENT ARE ON THE REAR OR BOTTOM. RECORD THESE NUMBERS ON YOUR ENCLOSED WARRANTY CARD AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE. D36-AP9-1_A1_En Information to User Alterations or modifications carried out without appropriate authorization may invalidate the user’s right to operate the equipment. D8-10-2_A1_En N-50-K_En.book 3 ページ

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation). D8-10-1-2_A1_En

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Name: NETWORK AUDIO PLAYER Model Number: N-50 Responsible Party Name: PIONEER ELECTRONICS (USA) INC.

SERVICE SUPPORT DIVISION

Address: 1925 E. DOMINGUEZ ST. LONG BEACH, CA 90810-1003, U.S.A. Phone: [phone] URL: http://www.pioneerelectronics.com D8-10-4*_C1_En This Class B digital apparatus complies with Canadian ICES-003. D8-10-1-3_A1_En

WARNING: Handling the cord on this product or

cords associated with accessories sold with the product may expose you to chemicals listed on proposition 65 known to the State of California and other governmental entities to cause cancer and birth defect or other reproductive harm. D36-P5_B1_En CAUTION The /I STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation). D3-4-2-2-2a*_A1_En This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period. K041_A1_En Operating Environment Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light) D3-4-2-1-7c*_A1_En D3-4-2-2-1a_A1_En The Safety of Your Ears is in Your Hands Get the most out of your equipment by playing it at a safe level – a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time, your hearing “comfort level” adapts to higher volumes of sound, so what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. ESTABLISH A SAFE LEVEL:

• Set your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, without distortion.
• Once you have established a comfortable sound level, set the dial and leave it there.

BE SURE TO OBSERVE THE FOLLOWING

• Do not turn up the volume so high that you can’t hear what’s around you.
• Use caution or temporarily discontinue use in potentially hazardous situations.
• Do not use headphones while operating a motorized vehicle; the use of headphones may create a traffic hazard and is illegal in many areas. S001a_A1_En WARNING Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately. N-50-K_En.book 4 ページ

Thank you for buying this Pioneer product. Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference. Contents

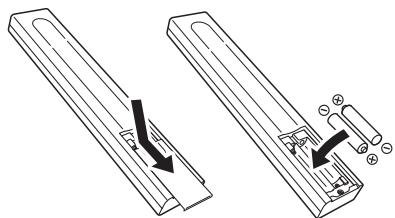

What’s in the box 1 Open the rear lid and load the batteries as illustrated below.

• Operation via LAN is possible from an iPod touch, iPhone or iPad by downloading a Pioneer original application from the iTunes Store. This special application may be changed or discontinued without notice. Español Loading the batteries in the remote control Remote operation on an iPod touch/ iPhone/iPad Français Please confirm that the following accessories are in the box when you open it.
• RCA audio cable (red/white plugs)
• AAA batteries (R03) x 2
• Operating instructions (this document) Caution
• When inserting the batteries, make sure not to damage the springs on the battery’s terminals.
• Do not use any batteries other than the ones specified. Also, do not use a new battery together with an old one.
• When loading the batteries into the remote control, set them in the proper direction, as indicated by the polarity marks ( and ).
• Do not heat batteries, disassemble them, or throw them into flames or water.
• Batteries may have different voltages, even if they are the same size and shape. Do not use different types of batteries together.
• To prevent leakage of battery fluid, remove the batteries if you do not plan to use the remote control for a long period of time (1 month or more). If the fluid should leak, wipe it carefully off the inside of the case, then insert new batteries. If a battery should leak and the fluid should get on your skin, flush it off with large quantities of water.
• When disposing of used batteries, please comply with governmental regulations or environmental public institution’s rules that apply in your country/ area.
• WARNING Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries. English Before you start Keep in mind the following when using the remote control:
• Make sure that there are no obstacles between the remote and the remote sensor on the unit.
• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit’s remote sensor.
• Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.
• Replace the batteries when you notice a fall off in the operating range of the remote. Using the remote control The remote has a range of about 7 m (23 ft.) at an angle of about 30º from the remote sensor. /I STANDB Y/ON STANDB

PURE AUDIO Hi-Bit32 iPod/USB 5V 2.1A 30° 30° The batteries included with the unit have been provided to allow you check product operation and may not last long. We recommend using alkaline batteries that have a longer life. 7 m (23 ft.)

• Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.
• Connect the power cord after all the connections between devices have been completed. About the audio connection Types of cables and terminals Transferable audio signals Digital (Coaxial) Conventional digital audio Digital audio input connections Digital audio connections Digital audio output connections Analog audio output connections By connecting this unit’s analog audio output to the analog audio input of an amplifier, you can use the amplifier to enjoy analog audio produced from this unit. By connecting this unit’s digital audio output to the digital audio input of an AV receiver or D/A converter, etc, you can use the amplifier to enjoy digital audio produced from this unit. N-50 only: By connecting a digital audio component’s audio output to this unit’s digital audio input, this unit can be used as a D/A converter. For details regarding the audio output of signals input to the DIGITAL IN connectors, see the section Using the D/A converter on page 18. DIGITAL OUT OPTICAL DIGITAL IN COAXIAL AUDIO INPUT Digital audio equipment, etc.

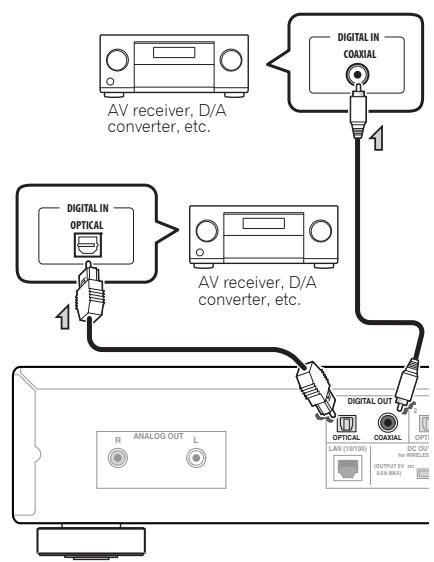

AV receiver, D/A converter, etc. Amplifier DIGITAL OUT COAXIAL DIGITAL IN OPTICAL Digital (Optical)

OPTICAL LAN (10/100) Digital audio equipment, etc. AV receiver, D/A converter, etc. DIGITAL OUT COAXIAL

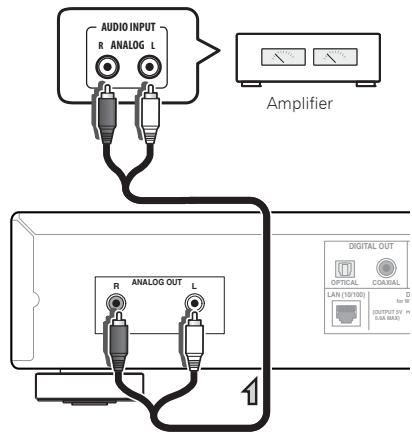

for W (OUTPUT 5V 0.6A MAX) RCA (Analog) (White/Red) Conventional analog audio DIGITAL OUT

OPTICAL COAXIAL ADAPTER PORT AC IN (OUTPUT 5V 0.1A MAX) OPTI DC OUT for WIRELES (OUTPUT 5V 0.6A MAX) COAXIAL DC OUTPUT for WIRELESS LAN DIGITAL IN (OUTPUT 5V 0.6A MAX) USB Note

• Digital signal formats that can be output from this unit include linear PCM signals with sampling rate and quantitative bits up to 192 kHz/24 bits (Depending on the connected device and environment, operation may not be successful).
• Digital audio signals that can be output from this unit’s DIGITAL OUT connectors include the following inputs: iPod, Internet Radio, USB, Music Server, Digital In 1 and Digital In 2.

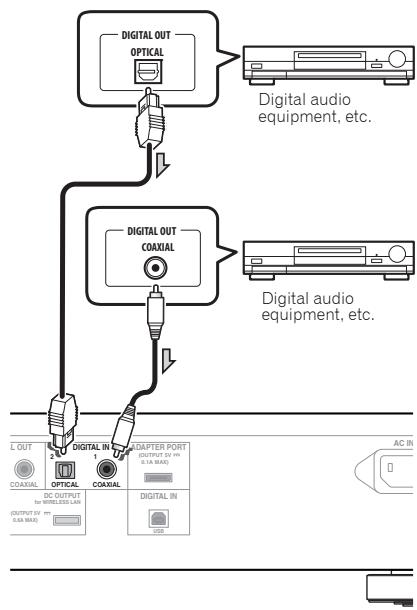

• Digital signal formats that can be input to this unit include linear PCM signals with sampling rate and quantitative bits up to 192 kHz/24 bits. (Depending on the connected device and environment, operation may not be successful). N-50-K_En.book 7 ページ

Connect the Bluetooth® adapter (Pioneer Model No. AS-BT200) to ADAPTER PORT terminal on the rear panel. Important Bluetooth® adapter (commercially available) AL OUT DIGITAL IN COAXIAL

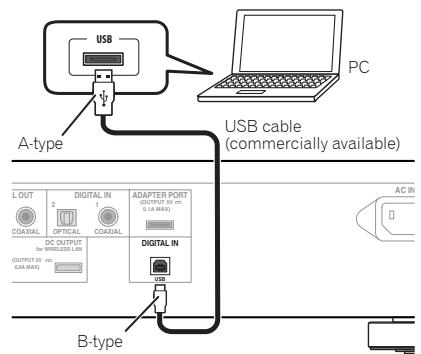

OPTICAL COAXIAL AC IN (OUTPUT 5V 0.1A MAX) N-50 only: By using a USB cable (sold separately) to connect this unit’s DIGITAL IN USB port to the USB port on a computer, this unit can be used as a D/A converter. For details regarding the output of signals input to the DIGITAL IN USB port, see section Playing music from a computer on page 18. By connecting this unit to the network via the LAN interface, you can play back audio files stored on components on the network, including your PC, and listen to Internet radio stations. Important

• When using this connection to input audio files from a computer to this unit, it may be necessary to install a special driver on the computer. For details, see the website of Pioneer. DIGITAL IN USB (OUTPUT 5V 0.6A MAX) USB

USB cable (commercially available) A-type

• For instructions on playing the Bluetooth wireless technology device, see Bluetooth® Audio playback (optional) on page 13. AL OUT DIGITAL IN COAXIAL

OPTICAL COAXIAL DC OUTPUT for WIRELESS LAN ADAPTER PORT AC IN (OUTPUT 5V 0.1A MAX) Connect the LAN terminal on this unit to the LAN terminal on your router (with or without the built-in DHCP server function) with a straight LAN cable (CAT 5 or higher). Turn on the DHCP server function of your router. If your router does not have a built-in DHCP server function, you have to set up the network manually. For details, see page 19. Connecting using LAN cable Internet Modem Router LAN LAN cable (commercially available)

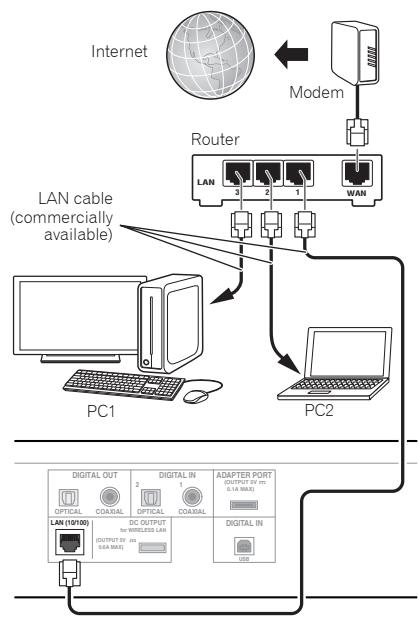

• In order to connect to the Internet, you must conclude a contract with an Internet Service Provider (ISP).

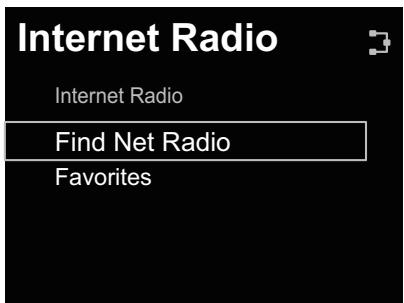

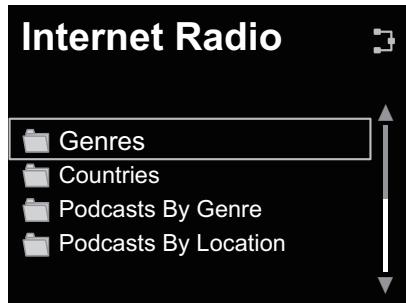

• To listen to Internet radio stations, you must sign a contract with an ISP (Internet Service Provider) beforehand.
• Photo or video files cannot be played back.
• With Windows Media Player 11or 12, you can even play back copyrighted audio files on this unit. PC2 PC1 DIGITAL OUT OPTICAL LAN (10/100) DIGITAL IN COAXIAL

• Do not move the unit with the Bluetooth ADAPTER connected. Doing so could cause damage or faulty contact. Using a USB cable to connect to a computer English Connecting optional Bluetooth® adapter DIGITAL IN (OUTPUT 5V 0.6A MAX) USB DIGITAL IN (OUTPUT 5V 0.6A MAX) USB B-type Note
• This unit cannot be used to play audio files from a computer unless Media Player is installed on the connected computer.

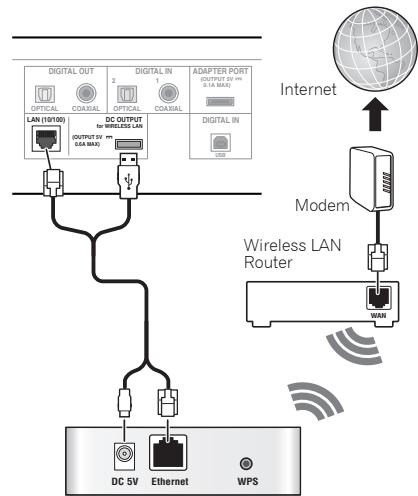

Connections Connecting using wireless LAN Wireless connection to the network is possible through a wireless LAN connection. Use the separately sold wireless LAN converter (Pioneer Model No. AS-WL300) for connection. DIGITAL OUT OPTICAL DIGITAL IN COAXIAL LAN (10/100)

• Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet. ADAPTER PORT (OUTPUT 5V 0.1A MAX) Caution Internet

• Do not use any power cord other than the one supplied with this unit.
• Do not use the supplied power cord for any purpose other than that described below. After you’ve finished making all connections, plug the unit into an AC outlet. DIGITAL IN for WIRELESS LAN Plugging in (OUTPUT 5V 0.6A MAX) USB Modem Wireless LAN Router To AC outlet AC IN WAN DC 5V Ethernet Note
• Use only the furnished accessory connecting cable.
• For instructions on setting the wireless LAN converter, refer to the operating instructions for the AS-WL300.

Power cord WPS Wireless LAN converter (AS-WL300) (commercially available) 1 Plug the supplied power cord into the AC IN socket on the back of the unit.

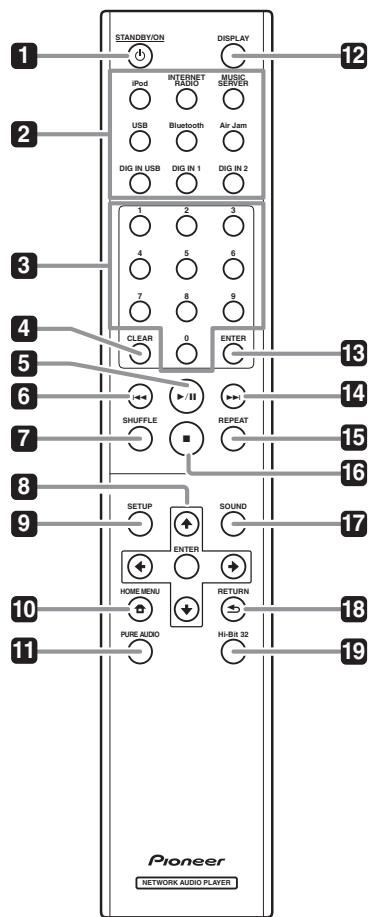

Part names and functions

Remote control DISPLAY

Function buttons Press this button to activate the PURE AUDIO mode. In this mode, audio playback is performed with greatest fidelity to the original sounds (page 18). 12 DISPLAY Press to turn the display off when you do not need it. When an action is performed on the unit, the display will automatically light, then turn off again after ten seconds. Press the button once again to cancel the Display OFF mode. iPod INTERNET RADIO MUSIC SERVER USB Bluetooth Air Jam

These are used to input numbers for network and other settings. Press during playback to skip ahead to the beginning of the next file.

Use to change the input source.

• DIG IN 1, DIG IN 2 and DIG IN USB functions are supported only by the N-50.

CLEAR Press to clear the selected item. Use this for example if you input the wrong number. REPEAT

Press to start playback. During playback, pause/ unpause playback. 13 ENTER Press to enter the selected item.

Perform repeat play of files on the selected iPod/iPhone/ iPad, USB storage device or Music Server (page 11, 12, 17).

Press to stop playback.

17 SOUND (N-50 only) Press to return to the beginning of the currently playing file.

• Depending on the input function selected, it may not be possible to return to the beginning of the currently playing file. Turns Auto Sound Retriever, Auto Level Control, Hi-Bit 32 and Sound Retriever Air on and off (page 18).
• Sound Retriever Air can be set only when the Bluetooth or Air Jam functions have been selected.

STANDBY/ON This button operates when the unit’s main /I STANDBY/ON button is set to ON. Each time this button is pressed, the unit’s status alternates between ON and STANDBY modes. Select and play the file from the menu screen. English Part names and functions ENTER HOME MENU RETURN PURE AUDIO Hi-Bit 32

Perform shuffle play of files on the selected iPod/iPhone/ iPad, USB storage device or Music Server (page 11, 12, 17).

Use these to select items, change settings and move the cursor. ENTER Use this to implement the selected item or enter a setting that you have changed.

Press to return to the previous screen. Also, use to cancel the sound setting. 19 Hi-Bit 32 (N-50 only) Press this button to turn on the SOUND mode’s Hi-Bit 32 function. This expands the dynamic range (and frequency direction band) for digital audio signals, producing smoother and more detailed playback (page 18). SETUP Use this to change the settings such as Display Setting (page 19), Network Setting (page 19), Option Setting (page 20) and see System Info (page 19). This button is also used to reinitialize unit settings as described in the section Reset (page 20).

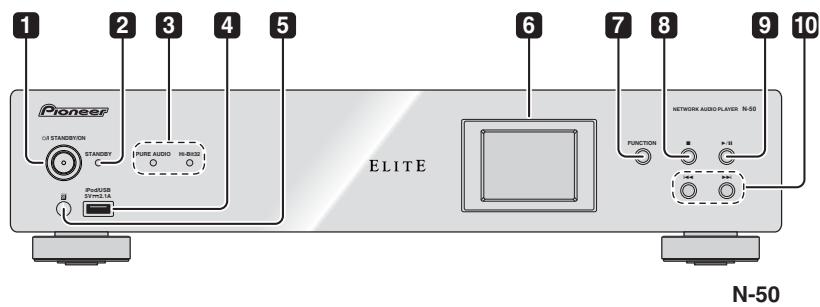

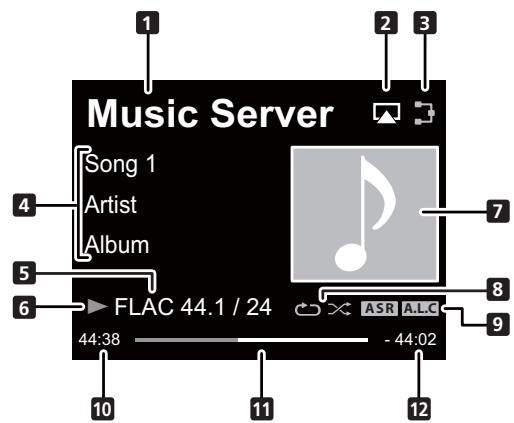

Part names and functions Display Font panel

Press to turn the power on and off. The button’s center power indicator lights when power is on.

STANDBY indicator Lights when the power is standby.

PURE AUDIO indicator (N-50 only) Lights when the PURE AUDIO mode switched on. Hi-Bit 32 indicator (N-50 only) Lights when the Hi-Bit 32 mode switched on.

iPod/USB port Use to connect your Apple iPod/iPhone/iPad (page 11) or connect a USB device (page 12).

Remote sensor Receives the signals from the remote control (page 5).

FUNCTION Use to change the input source. The source changes as below. iPod Internet Radio Music Server USB BT Audio Air Jam Digital In USB Digital In 1 Digital In 2 Return to the beginning (Undisplayed).

• To use BT Audio and Air Jam function, you need to connect the commercially available Bluetooth® adapter: AS-BT200 to the unit. See Connecting optional Bluetooth® adapter on page 7 for details.
• Digital In 1, Digital In 2 and Digital In USB functions are supported only by the N-50.

Press to start playback. During playback, pause/ unpause playback.

Press to return to the beginning of the currently playing file. (Depending on the input function selected, it may not be possible to return to the beginning of the currently playing file.) A S R A.L.C 44:38 Press to stop playback.

Repeat and Shuffle Repeat all files. Network connection status Repeat a file.

Press to skip to the beginning of the next file. When the unit is connected to the network, this indicator lights. Shuffle Tip When an input function other than iPod is selected and the display does not show the playback status, the following buttons on the main unit can be used to perform item select, enter, and return.

This appears during AirPlay operation.

When the unit is not connected to the network, this indicator lights. 4 Name of folder/file/artist/album/ station, etc.

SOUND feature indicator ASR Lights when the Auto Sound Retriever switched on. A.L.C Lights when the Auto Level Control switched on. Displays file format, sampling rate and quantization bitrate. 10 Elapsed playing time

Artwork The bar becomes longer together with the elapsed playback time. Displayed when the currently playing file includes an album jacket image, etc. 11 Play bar 12 Remaining playing time 04_Getting_started.fm 11 ページ ２０１１年１１月１１日

Basic Playback 2 Use / to select the menu language of this unit, then press ENTER. Getting started 1 Press the /I STANDBY/ON button on the front panel. Language

The screen below will automatically appear after the screen in step 1. English Français Deutsch Nederlands Merely by connecting your iPod/iPhone/iPad to this unit, you can enjoy high-quality sound from your iPod/iPhone/ iPad. Confirm what iPod/iPhone/iPad models are supported The iPod/iPhone/iPad playable on this unit are shown below. iPod/iPhone/iPad Audio Control iPod nano 2/3/4/5/6G

• Pioneer does not guarantee that this unit plays iPod/iPhone/iPad models other than the ones specified.
• Some functions may be restricted depending on the model or software version.
• iPod/iPhone/iPad is licensed for reproduction of non-copyrighted materials or materials the user is legally permitted to reproduce.
• Features such as the equalizer cannot be controlled using this system, and we recommend switching the equalizer off before connecting.
• Pioneer cannot under any circumstances accept responsibility for any direct or indirect loss arising from any inconvenience or loss of recorded material resulting from iPod/iPhone/iPad failure.

Starts playback. During playback, pause/ unpause playback.

Press to skip to the start of the current file, then previous files.

Press to skip to the next file. SHUFFLE The currently selected iPod/iPhone/iPad files are played back in random order (shuffle play). REPEAT The currently selected iPod/iPhone/iPad files are played back repeatedly.a Select “Settings” from the top menu. When using iPod touch or iPhone, select “General” after selecting “Settings”. iPod/iPhone/iPad playback What it does

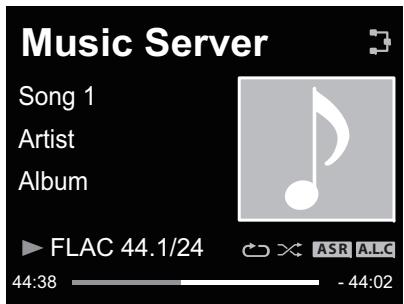

Select About. The software version will be displayed. Playing your iPod/iPhone/iPad 1 Press iPod on the remote control to select iPod as the input source. You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly. iPod is shown on the display.

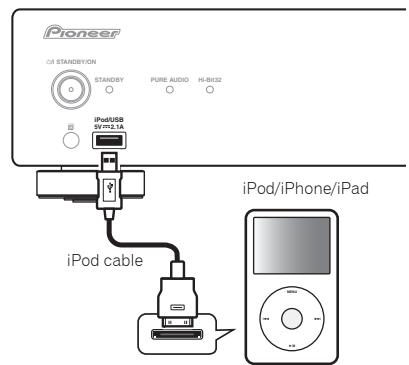

Connect your iPod/iPhone/iPad. Connect your iPod/iPhone/iPad to the USB port on the unit’s front panel. Use the iPod cable supplied with your iPod/iPhone/iPad for the connection.

• For the cable connection, also refer to the operating instructions for your iPod/iPhone/iPad.

a Each time you press REPEAT the repeat modes changes as below. Repeat 1 Repeat all Normal playback Repeat 1: Repeats a file currently played back. Repeat all: Repeats all files. When no iPod/iPhone/iPad is connected to the unit, or if connected, is not played, the unit will automatically turn Off after 30 minutes of no operation.

• Only when Auto Power Off is selected in On (page 20). Español The unit turns on. The button’s central power indicator will flash slowly. About twenty seconds after turning on the power, the following screen appears. About one minute is required between turning the power on and completion of startup. Setting Quick Start Mode to On will allow faster startup (page 20).

Button Français When you use the unit for the first time, the following screens will be displayed. Set up the following items to customize the unit. The setting is done. The following operations are possible for iPod/iPhone/ iPad. English

• For detailed instructions on using the iPod/iPhone/ iPad, please refer to the manual supplied with the iPod/iPhone/iPad.
• This system has been developed and tested for the software version of iPod/iPhone/iPad indicated on the website of Pioneer.
• Installing software versions other than indicated on the website of Pioneer to your iPod/iPhone/iPad may result in incompatibility with this system. Important If this unit cannot play your iPod/iPhone/iPad, perform the following troubleshooting checks:
• Check whether the iPod/iPhone/iPad is supported by this unit.
• Reconnect the iPod/iPhone/iPad to the unit. If this doesn’t seem to work, try resetting your iPod/ iPhone/iPad.
• Check the iPod/iPhone/iPad software is supported by this unit. If the iPod/iPhone/iPad cannot be operated, check the following items:
• Is the iPod/iPhone/iPad connected correctly? Reconnect the iPod/iPhone/iPad to the unit.
• Is the iPod/iPhone/iPad experiencing a hangup? Try resetting the iPod/iPhone/iPad, and reconnect it to the unit.

• iPod/iPhone/iPad recharging occurs whenever an iPod/iPhone is connected to this unit. (Recharging is enabled only when the unit’s power is turned On.)
• When input is switched from iPod to another function, the iPod/iPhone/iPad’s playback will be stopped automatically. Playing files stored on USB storage devices 1 Press USB to select USB as the input source. You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly. USB is shown on the display.

Button What it does SHUFFLE The currently selected files are played back in random order (shuffle play). REPEAT The currently selected files are played repeatedly.a

When pressed during use of the file selection menu, the screen for the currently playing file will be displayed. RETURN If button is pressed during display of the currently playing menu, the file selection menu will appear. Connect the USB storage device. Connect your USB storage device to the USB port on the unit’s front panel.

STANDBY PURE AUDIO Hi-Bit32 iPod/USB 5V 2.1A a Press repeatedly to switch between repeat play options. ‘ ’ plays the currently playing file repeatedly. ‘ ’ plays all the files repeatedly. When a USB storage device is not playing and the unit has not been operated for 30 minutes or more, the power will automatically turn off.

• Only when Auto Power Off is selected in On (page 20). Note USB storage device (commercially available) The folders/files stored on the connected USB storage device appear on the display automatically. 3 Use / to select the file, then press ENTER. Playback starts.
• To return to the previous screen, press RETURN.
• Turn the power off before removing the USB storage device. You can perform the following operations. Note that some buttons are not available for operation depending on the category currently being played back.

Starts playback. During playback, pause/ unpause playback.

Press to skip to the previous files.

Press to skip to the next file.

• This unit may not recognize the USB storage device, play files or supply power to the USB storage device. For details, see When a USB storage device is connected on page 22.
• Pioneer does not guarantee that any file recorded on a USB storage device will play or that power will be supplied to a USB storage device. Also note that Pioneer will accept no responsibility whatsoever for loss of files on USB storage devices caused by connection to this unit.
• This unit does not support use of a USB hub. N-50-K_En.book 13 ページ

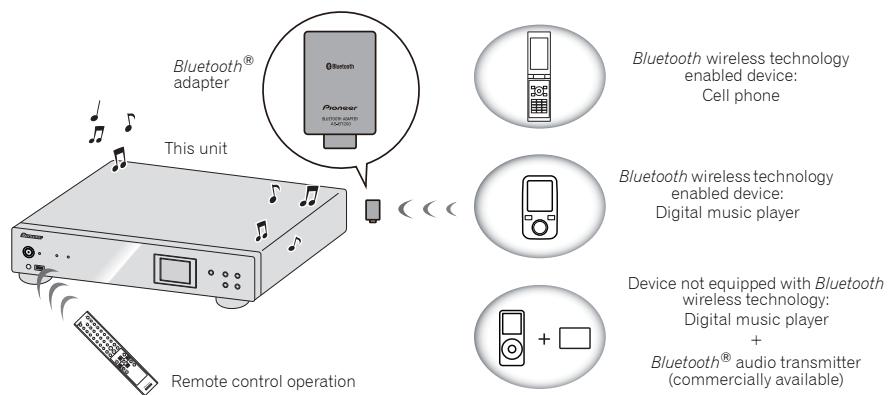

Bluetooth Audio playback (optional) Bluetooth wireless technology enabled device: Cell phone This unit Bluetooth wireless technology enabled device: Digital music player 1 Press Bluetooth on the remote control to select BT Audio as the input source. 1 Press Bluetooth on the remote control to select BT Audio as the input source.

PLAYE ORK NETW Remote control operation Music playback using Bluetooth wireless technology Note

• The Bluetooth wireless technology enabled device must support A2DP profiles.
• Pioneer does not guarantee proper connection and operation of this unit with all Bluetooth wireless technology enabled devices.
• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.

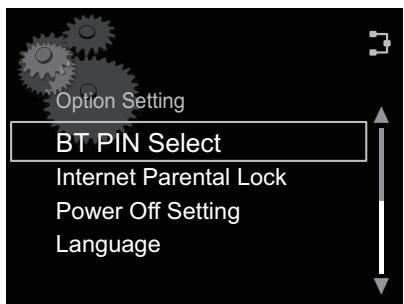

Press SETUP. 3 Use / to select Option Setting BT PIN Select, then press ENTER. 2 Turn on the Bluetooth wireless technology device that you want to make pairing, place it near the system and set it into the pairing mode. Pairing starts. Remote control operation The remote control supplied with this unit allows you to play and stop media, and perform other operations.

• The Bluetooth wireless technology enabled device must support AVRCP profiles.
• Remote control operations cannot be guaranteed for all Bluetooth wireless technology enabled devices. Option Setting BT PIN Select Internet Parental Lock Power Off Setting Language

Connecting optional Bluetooth adapter 1 Connect the Bluetooth® adapter to the unit when the unit is in the standby mode.

When the Bluetooth® adapter (Pioneer Model No. ASBT200) is connected to this unit, a product equipped with Bluetooth wireless technology (portable cell phone, digital music player, etc.) can be used to listen to music wirelessly. Also, by using a commercially available transmitter supporting Bluetooth wireless technology, you can listen to music on a device not equipped with Bluetooth wireless technology. The AS-BT200 model supports SCMS-T contents protection, so music can also be enjoyed on devices equipped with SCMS-T type Bluetooth wireless technology. Device not equipped with Bluetooth wireless technology: Digital music player Bluetooth® audio transmitter (commercially available)

iPod You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly. BT Audio is shown on the display. Español

DBY STAN You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly. BT Audio is shown on the display. Français Set this unit’s PIN code to the same setting as that for the Bluetooth wireless technology device used. Supported PIN code setting values include 0000, 1234 or

• Default setting: 0000 “Pairing” must be done before you start playback of Bluetooth wireless technology content using Bluetooth® adapter. Make sure to pair devices the first time you operate the system or any time pairing data is cleared. “Pairing” is the step necessary to register Bluetooth wireless technology device to enable Bluetooth communications. For more details, see also the operating instructions of your Bluetooth wireless technology device. Setting the PIN code Bluetooth® adapter Pairing Bluetooth® adapter and Bluetooth wireless technology device English

• When the Bluetooth® adapter is not connected and BT Audio is selected as the input source, the error message BT Adapter Not Connected will be shown on the display.

4 Use / to select the PIN code, then press ENTER. 3 Check to see that the Bluetooth® adapter is detected by the Bluetooth wireless technology device.

• If the Bluetooth wireless technology device cannot be connected to the unit, perform the connection operation from the Bluetooth wireless technology device. Note
• Pairing is required when you first use Bluetooth wireless technology device and Bluetooth® adapter.
• To enable Bluetooth communication, pairing should be done with both of your system and Bluetooth wireless technology device. The PIN code is stored.

• To connect the Bluetooth® adapter, see Connecting optional Bluetooth® adapter on page 7. 2 Press STANDBY/ON to turn the power on. 3 Press Bluetooth on the remote control to select BT Audio as the input source. You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly.

Bluetooth® Audio playback(optional) Listening to Music Contents of Bluetooth wireless technology device 1 Press Bluetooth on the remote control to select BT Audio as the input source. You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly. BT Audio is shown on the display. 2 Make connection between the Bluetooth wireless technology device and the unit.

• See Pairing Bluetooth® adapter and Bluetooth wireless technology device on page 13. Press to start playback.

The following operations are now possible for Bluetooth wireless technology devices, using the remote control. Button What it does

Starts playback. During playback, pause/ unpause playback.

Press to skip to the start of the current file, then previous files.

Press to skip to the next file. When no Bluetooth wireless technology device is connected and no operation has been done for 30 minutes or more, the power will automatically turn off.

• Only when Auto Power Off is selected in On (page 20). Note
• The Bluetooth wireless technology enabled device must support AVRCP profiles.
• The operation of some Bluetooth wireless technology devices may differ from what is shown in the above table.

AIR JAM Air Jam – a Pioneer-exclusive application and available for free. Air Jam lets you connect multi compatible devices to this unit using Bluetooth wireless technology. With it, you can make a group playlist directly on a supported device to play in your home theater through the unit. You and your friends can add songs from your devices to the playlist. Also Air Jam lets you delete the song before anyone has to hear it. 1 Press Air Jam on the remote control to select Air Jam as the input source. You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly. Air Jam is shown on the display. For more details of using Air Jam, access to our website. http://pioneer.jp/product/soft/iapp_airjam/en.html N-50-K_En.book 15 ページ

4 Use / to select the station, then press ENTER. Connecting to a LAN network Listening to the internet radio for the first time You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly. Internet Radio is shown on the display. 2 Use / to select Find Net Radio, then press ENTER. Internet Radio Internet Radio Find Net Radio Favorites Genres 1 Tune into the station from Find Net Radio.

• Follow the instructions Tune into a station on page 15.
• The information of the station is displayed on the display. Countries Podcasts By Genre Podcasts By Location

3 Use / to select the station you want to delete, then press ENTER. 4 Use / to select Delete, then press ENTER. Select OK to confirm.

• To cancel deleting the station, press RETURN. Note
• Using the operation in step 4 (above), the Move Up or Move Down can be selected, followed by the ENTER button, to move the position of recorded stations. Press and hold ENTER for a few seconds.

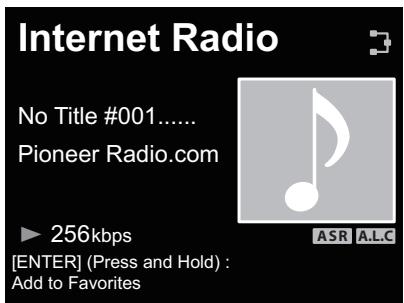

1 Press INTERNET RADIO to select Internet Radio as the input source. You can register up to 20 of your favorite Internet radio stations in the Favorites folder. 2 Use / to select Favorites, then press ENTER. Internet Radio Advanced operations for the internet radio Note

• When is pressed during use of the station select menu, the screen for the currently playing track will be displayed. No Title #001...... Pioneer Radio.com Registering broadcast stations not on the vTuner list from the special Pioneer site Tune into a station 256 kbps 1 Press INTERNET RADIO to select Internet Radio as the input source. You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly.
• The information of the station you last selected is displayed on the display. 2 Press HOME MENU to display the Internet Radio menu screen. 3 Use / to select Find Net Radio or Favorites, then press ENTER.
• Select Find Net Radio when you want to tune into the station which has not been added to Favorites.
• Select Favorites when you want to tune into a station which has been added to Favorites already.
• To add the stations to the Favorites, see Adding the stations to the Favorites on page 15. A S R A.L.C [ENTER] (Press and Hold) : Add to Favorites

Español When you listen to the internet radio fist time, follow the instructions below to tune into your desired station. Internet Radio 1 Press HOME MENU to display the internet radio menu screen. Français Connect to the network using the LAN interface. For the details of the connections, see Connecting to the network through the LAN interface on page 7. Adding the stations to the Favorites

Listening to the internet radio 3 Use / to select the station, then press ENTER. Playback starts.

• When you select Find Net Radio, you also can select the available stations from the internet radio menu. English Internet radio To delete the stations from the list Press ENTER again. The station information is recorded in the Favorites folder. When 20 stations have already been recorded, the “Favorites already full. Item cannot be added.” error message will appear, and further recording to favorites will not be possible. With this unit, broadcast stations not included on the list of station distributed by vTuner can be registered and played. Check the access code required for registration on this unit, use this access code to access the special Pioneer Internet radio site and register the desired broadcast stations in your favorites. The address of the special Pioneer Internet radio site is: http://www.radio-pioneer.com

Display Find Net Radio screen. To display the internet radio list screen, perform steps 1 to 3 at Listening to the internet radio for the first time on page 15. 2 Use / to select Help, then press ENTER. 3 Use / to select Get Access Code, then press ENTER. The access code required for registration on the special Pioneer Internet radio site is displayed. Make a memo of this address.

Internet radio The following can be checked on the Help screen:

• Get Access Code - The access code required for registration on the special Pioneer Internet radio site is displayed.
• Show Your WebID/PW - After registering on the special Pioneer Internet radio site, the registered ID and password are displayed.
• Reset Your WebID/PW - Resets all the information registered on the special Pioneer Internet radio site. When reset, all the registered broadcast stations are also cleared. If you want to listen to the same stations, re-register after resetting. 4 Access the special Pioneer Internet radio site from your computer and perform the registration process. Access the above site and use the access code in step 3 to perform user registration, following the instructions on the screen. 5 Register the desired broadcast stations as your favorites, following the instructions on the computer’s screen. Both broadcast stations not on the vTuner list and stations on the vTuner list can be registered. In this case they are registered on the unit as favorite broadcast stations and can be played.

Authorizing this unit This unit can play the audio files stored on the PCs or other components on a Local Area Network (LAN). Introduction This unit allows you to play music on media servers connected on an identical Local Area Network (LAN) as the unit. This unit allows you to play files stored on the following devices:

• PCs running Microsoft Windows Vista or XP with Windows Media Player 11 installed
• PCs running Microsoft Windows 7 with Windows Media Player 12 installed
• DLNA-compatible digital media servers (on PCs or other components) Files stored in a PC or DMS (Digital Media Server) as described above can be played via command from an external Digital Media Controller (DMC). Devices controlled by this DMC to play files are called DMRs (Digital Media Renderers). This unit supports this DMR function. When in the DMR mode, such operations as playing and stopping files can be performed from the external controller. The DMR mode is canceled if the remote control unit is operated while in the DMR mode (aside from certain button, including the DISPLAY). Using AirPlay on iPod touch, iPhone, iPad and iTunes This unit supports AirPlay audio streaming from iPod touch (2nd, 3rd and 4th generations), iPhone 4, iPhone 3GS, iPad, iPad 2 with iOS 4.2 or later, and iTunes 10.1 (Mac and PC) or later. Note
• It may not be displayed other than song name. Tip
• A network environment is required to use AirPlay.
• The unit’s name that shows up in the AirPlay UI on iPod touch, iPhone, iPad and iTunes can be changed by Friendly Name from Network Setting.
• AirPlay provided on this unit has been developed and tested based on the software versions for the iPod touch, iPhone, iPad and the software versions for iTunes that are indicated on the Pioneer website. AirPlay may not be compatible with iPod touch, iPhone, iPad or iTunes software versions other than those indicated on the Pioneer website. About the DHCP server function To play back audio files stored on components on the network, you must turn on the DHCP server function of your router. In case your router does not have the built-in DHCP server function, it is necessary to set up the network manually. Otherwise, you cannot play back audio files stored on components on the network or listen to Internet radio stations. See Network setting on page 19 for more on this. Music Server Song 1 Artist Playing audio files stored on PCs or other components Album Connecting to the LAN network Be sure to connect the PC or other components to the network using the LAN interface before you use this function. For the details of the connections, see page 7. Playback with Music Server Important
• You cannot access a PC on a network while you are logged onto a domain that is configured in a Windows network environment. Instead of logging onto the domain, log onto the local machine.
• There are cases where the time elapsed may not be correctly displayed. FLAC 44.1/24 44:38 A S R A.L.C - 44:02

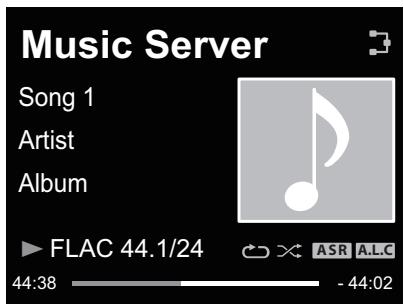

• When the file you want to play is in the folder, select folder first.
• If you press RETURN during playback, the previous (folders/files) screen will be displayed. You can perform the following operations. Note that some buttons are not available for operation depending on the category currently being played back. Button What it does

Starts playback. During playback, pause/ unpause playback. 1 Press MUSIC SERVER to select Music Server.

Press to skip to the previous files. You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly. All available servers are shown on the display.

• When no sever is available to play, “Empty” will be displayed.

Press to skip to the next file. SHUFFLE The currently selected files are played back in random order (shuffle play). REPEAT The currently selected files are played back repeatedly.*

When pressed during use of the file selection menu, the screen for the currently playing file will be displayed. 2 Use / to select the server that the file you want to play is stored on, then press ENTER. The folders/files stored on the server are shown on the display. Español About playable DLNA network devices Note

• For more information, see the Apple website (http://www.apple.com). Input to the unit will switch automatically when AirPlay is in use. The following operations can be performed when in AirPlay mode:
• Pause/resume, next/previous file, and shuffle/ repeat from the remote control of the unit.
• Display of the currently playing file information on the unit’s main display, including artist, song/ album name and album artwork. Playback starts. Français This unit allows you to listen to audio files or listen to Internet radio stations on a computer or other component connected to the unit via LAN interface. This chapter describes the setup and playback procedures required to enjoy these features. It is advisory that you also refer to the operation manual supplied with your network component.
• Photo or video files cannot be played back.
• With Windows Media Player 11 or Windows Media Player 12, you can even play back copyrighted audio files on this unit. To use AirPlay, select your unit on your iPod touch, iPhone, iPad or in iTunes and start playback. 3 Use / to select the file you want to play, then press ENTER. English Music server This unit must be authorized to enable playback. The unit is automatically authorized when it is connected to a PC over a network. If not, please authorize this unit manually on the PC. The authorization (or permission) method for access varies depending on the type of server currently being connected. For more information on authorizing this unit, refer to the instruction manual of your server. *. Press repeatedly to switch between repeat play options. ‘ ’ plays the currently playing file repeatedly. ‘ ’ plays all the files repeatedly.

Playing music from a computer Using other functions Using the Sound mode N-50 only: This function allows you to utilize various sound modes during playback.

• This function cannot be used when the PURE AUDIO mode is on.
• This function is effective only when playing analog audio. 1 Press SOUND to show the Sound option menu. 2 Use / to select the setting, then press ENTER. 3 Use / to select On or Off, then press ENTER.
• The factory default settings are Off. Settings What it does Auto Sound Retriever With the Auto Sound Retriever function, DSP processing is used to compensate for the loss of audio data upon compression, improving the sound’s sense of density and modulation. When On is selected, the Auto Sound Retriever effect is optimized based on the bitrate information of the contents input to the USB, Music Server and Internet Radio to achieve high sound quality. Auto Level In the Auto level control mode, this unit Control equalizes playback sound levels.

Hi-bit 32 Creates a wider dynamic range with digital sources. Smoother, more delicate musical expression can be achieved by requantizing 16 bit to 24 bit audio signals to 32 bit. Sound Retriever Air Suitable for listening to the sound from a Bluetooth wireless technology device. The Sound Retriever Air mode can only be selected when the BT Audio or Air Jam input. For greatest fidelity to the original sound N-50 only: The PURE AUDIO mode allows audio signals to be played via the shortest playback circuit without passing through the DSP, thus reducing noise and producing playback sound with greatest fidelity to the original. 1 Press PURE AUDIO to switch the Pure Audio mode on or off. Using the D/A converter N-50 only: Digital signals input to the rear-panel DIGITAL IN or DIGITAL IN USB connectors are converted to analog signals and output from the ANALOG OUT connectors. Playing music from a digital audio component Outputs digital signals input to the DIGITAL IN (COAXIAL or OPTICAL) connectors.

Make a digital input connection.

• See Digital audio input connections on page 6. 2 Press DIG IN 1 or DIG IN 2 to select Digital In 1 or Digital In 2 as the input source. You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly. When Digital In 1 is selected, digital input signals from the COAXIAL connector are played; when Digital In 2 is selected, digital input signals from the OPTICAL connector are played. Note
• Digital signal formats that can be input to this unit include linear PCM signals with sampling rates and quantitative bits up to 192 kHz/24 bits (Depending on the connected device and environment, operation may not be successful). Use this function to play digital audio input to the unit's rear panel DIGITAL IN USB port. 1 Connect the unit to a computer via USB cable
• See Using a USB cable to connect to a computer on page 7. 2 Press DIG IN USB select Digital In USB as the input source. You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly.

Begin playback on the computer. Note

• When using a USB cable to connect this unit to a computer for playing music files, the following linear PCM digital signals are supported: - Quantitative bits: 16 bit, 24 bit, 32 bit - Sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 192 kHz
• Output from the DIGITAL OUT connectors is not supported during Digital In USB input.
• Playback cannot be controlled from this unit during use of this function; use your computer to control playback.
• When disconnecting the USB cable, always stop playback on the computer first.
• Sound may not be produced if your computer does not support USB 2.0 HS.
• This unit does not support use of a USB hub. Always use a USB cable to connect the unit directly to the computer. Important
• When using the DIGITAL IN USB port to input audio files from a computer to this unit, it may be necessary to install a special driver on the computer. For details, see the website of Pioneer. N-50-K_En.book 19 ページ

Changing the settings The factory default settings are indicated in italic. Press SETUP to show the Initial Setup screen.

Follow the descriptions on the main display to change the setting. What it does Dims or brightens the display. Network setting, see page 19.

Friendly Name The name of this system displayed on a computer or other device connected to the network can be changed. The Initial Setup screen is shown on the main display. BT PIN Select (0000/1234/8888) Use this to set up the Bluetooth PIN code. (page 13) Internet Parental Lock (Change Password/Internet Parental Lock) Restricts usage of internet radio using password. Select Internet Parental Lock to On/ Off. (page 20) You can set up the password from Change Password. (page 20) Static IP Address

• Using / increase or decrease the values. Static IP Address Change the language of the operation messages displayed on the main display. Other languages: French, German, Netherlands, Italian, Spanish, Russian, Japanese Software Update Use this to update this unit software. Subnet Mask Power Off Setting Auto Power Off, see page 20. (Auto Power Off/Quick Start Quick Start Mode, see page 20. Mode) Use this to check this unit information details. Please check the following items: LAN connection status, MAC Address, IP Address, Gateway Address, Proxy Server setting, Subnet Mask. Also confirm that this unit’s software version (Release ID) is up to date. Reset Use this procedure to reset all settings to the factory default. Network Configuration Friendly Name

Language (English/Other languages) The IP address to be entered must be defined within the following ranges. If the IP address defined is beyond the following ranges, you cannot play back audio files stored on components on the network or listen to Internet radio stations. Class A: 10.0.0.1 to 10.255.255.254 / Class B:

172.16.0.1 to 172.31.255.254 / Class C: 192.168.0.1

to 192.168.255.254 Network Setting Español Network Setting Option Setting Network Configuration 4 Use /// or number buttons to adjust the numbers, then press ENTER.

Settings Display Setting (Level3/Level2/Level1) The IP address setting screen is displayed. Français

If a broadband router (with built-in DHCP server function) is connected to this unit, you can simply turn on the DHCP server function without having to set up the network manually. A broadband router without a DHCP server function connected to this unit must be set up as described below. Before you set up the network, consult with your ISP or the network manager for the required settings. It is advised that you also refer to the operation manual supplied with your network component.

• Any changes made to a router without the DHCP server function must be reflected to unit network settings. English Changing the settings 3 Use / to select DHCP Off, then press ENTER. Network setting

If an xDSL modem or a terminal adapter is directly connected to this unit, enter the subnet mask listed in your ISP documentation. In most of the cases, enter 255.255.255.0. Gateway address In case a gateway (router) is connected to this unit, enter the corresponding IP address. Preferred DNS/Alternate DNS If there is only one DNS server address listed in your ISP documentation, enter Preferred DNS. In case there are more than two DNS server addresses, enter Alternate DNS in the other DNS server address field.

Changing the settings Proxy Setup Select Use Proxy Server when you connect this unit to the Internet via a proxy server. Enter the IP address of your proxy server in the Proxy Server Address field. Also, enter the port number of your proxy server in the ‘Proxy Port’ field. Friendly Name

/ : Moves the adjusting digit. / : Changes displayed character. SOUND : Switches character types. CLEAR : Deletes one characters at a time. 4 Use / to select On or Off, then press ENTER. Restrict internet radio access for children. When Internet Parental Lock is set to On, you cannot listen to internet radio without entering the password. Note

• Even if Internet Parental Lock is set to On, automatic clock adjustment using network will work. Turn on/off the parental lock

Changing the Quick Start Mode Press SETUP. The Initial Setup screen is displayed on the main display.

/ : Moves the adjusting digit. / : Increase or decreases the numbers. CLEAR : Deletes one characters at a time. The factory default setting is "0000". Software Update Start 2 Select Option Setting Internet Parental Lock Change Password. Cancel 3 Use /// or number buttons to enter the current password, then press ENTER. 4 Use /// or number buttons to enter the new password, then press ENTER.

• If you press RETURN, the previous screen will be displayed. Use this procedure to update the unit’s software. You can update the software via a USB storage device. Updating via a USB storage device is performed by downloading the update file from a computer, reading this file onto a USB storage device then inserting the USB storage device into the USB port on the unit’s front panel.
• If an update file is provided on the Pioneer website, download it onto your computer. When downloading an update file from the Pioneer website onto your computer, the file will be in ZIP format. Unzip the ZIP file before saving it on the USB storage device. If there are any files or folders on the USB storage device, delete them. Important
• DO NOT unplug the power cord during updating.
• When updating via a USB storage device, do not disconnect the USB storage device. 2 Select Option Setting Internet Parental Lock Internet Parental Lock.

Use / to select On or Off.

Press SETUP. The Initial Setup screen is displayed on the main display. When this is set to On, the time required for bootup will be shortened. In addition, power-on will occur simultaneously when AirPlay or DMR is performed. The unit’s factory default setting for this mode is Off, to reduce electrical consumption in the STANDBY mode.

Press SETUP. The Initial Setup screen is displayed on the display. 2 Select Option Setting Power Off Setting Quick Start Mode.

To update, press ENTER. The display will temporarily disappear, and after about twenty seconds, the update menu will be displayed and update will begin.

• When the update is completed, the unit will automatically reboot.

Resetting the system Use this procedure to reset all system settings to the factory default. Software Update error messages Status messages Descriptions File Not Found. No update file was found on the USB storage device. Store the file in the USB storage device’s root directory. Use / to select On or Off. Important

• Disconnect all components connected to this unit before the operation.

Press SETUP. The Initial Setup screen is displayed on the display. 2 Select Reset from the Initial Setup screen, then press ENTER. Power Off settings The display shows Reset?. Make settings to control the power ON/OFF mode.

Changing the Auto Power Off function setting The factory default setting for the Auto Power Off function is On. As a result, when no action is performed for thirty minutes, the unit will automatically turn Off. This setting can be changed as follows:

Press SETUP. The Initial Setup screen is displayed on the display. To reset settings, press SETUP. The unit turns off (standby mode). All the settings will be reset to the factory default next time the unit is turned on. N-50-K_En.book 21 ページ

Additional information

When an iPod/iPhone/iPad is connected Problem Check Sound not produced from Is sound being produced from the iPod/iPhone/iPad. speaker of the iPod/iPhone/iPad? Disconnect power to the unit, then turn on again. After setting for iPod input, connect the iPod/iPhone/iPad. Power is not supplied to the Pod/iPhone/iPad. General problem Check The power does not turn on. When Quick Start Mode is set to Wait at least one minute, then press /I STANDBY/ON on the front panel. On, if the power cord is disconnected, the next time the power cord is connected the unit will not respond for about one minute. Long time required before In its factory default status, the unit power is supplied. requires about 20 seconds before power is supplied. Remedy To shorten the time required until power is supplied, change the Power Off Setting so as to turn Quick Start Mode On. However, when Quick Start Mode is On, power consumption during STANDBY mode will increase (page 20). The unit automatically turns off. Is Auto Power Off set to On? Change the setting of Auto Power Off to Off (page 20). The unit suddenly switches off and the STANDBY indicator blinks. This unit may have a serious problem. Do not try switching the unit on. Disconnect from the power and call a Pioneer authorized independent service company. Settings you have made have been cleared. Did you suddenly turn off the power? Be sure to press STANDBY/ON on the remote control, then press /I STANDBY/ON on the front panel and wait for the STANDBY indicator on the front panel display to turn off before unplugging the power cord. Difference in volume between MP3, WMA and iPod/iPhone/iPad. This is not a problem with this unit. This unit cannot be operated with the remote control. Are you operating from far away? The volume may sound differently depending on the input source and recording format. Operate from within a distance of Operate within 7 m (23 ft.), 30° of the remote sensor on the front panel (page 5). When an Bluetooth adapter is connected Problem Check The Bluetooth wireless technology device cannot be connected or operated. Sound from the Bluetooth wireless technology device is not emitted or the sound is interrupted. Check that no object that emits If such an object is near the unit, set the unit far from it. Or, electromagnetic waves in the 2.4 GHz stop using the object emitting the electromagnetic waves. band (microwave oven, wireless LAN device or Bluetooth wireless technology apparatus) is near the unit. Remedy Español Problem Does an error message appear in the Turn the power off then back on. front panel display? Turn the power off, then disconnect and reconnect the iPod/ No power is supplied if the power iPhone/iPad. consumption is too high. Français Make sure the iPod/iPhone/iPad is connected correctly (refer to iPod/iPhone/iPad playback on page 11). Also, try disconnecting the iPod/iPhone/iPad then reconnecting it. If the iPod/iPhone/iPad is experiencing a hangup, try resetting the iPod/iPhone/iPad, and reconnect it to the unit. Troubleshooting Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

• If the unit does not operate normally due to external effects such as static electricity disconnect the power plug from the outlet and insert again to return to normal operating conditions. Remedy Can’t operate the iPod/ iPhone/iPad. English Additional information Check that the Bluetooth wireless Set the Bluetooth wireless technology device and the unit so technology device is not too far from that the distance between them is less than about 10 m and the unit and that obstructions are not no obstructions exist between them. set between the Bluetooth wireless technology device and the unit. The Bluetooth wireless technology Check the setting of the Bluetooth wireless technology device may not be set to the device. communication mode supporting the Bluetooth wireless technology. BT Error 5 is displayed and the unit cannot be operated. Check that pairing is correct. The pairing setting was deleted from this unit or the Bluetooth wireless technology device. Reset the pairing. Check that the profile is correct. Use a Bluetooth wireless technology device that supports A2DP profile and AVRCP profile. The Bluetooth adapter may be damaged. Turn the unit’s power off, disconnect the Bluetooth adapter, then try turning the power on again. If the symptom is corrected, the Bluetooth adapter may have been damaged and should be serviced. Is the remote control sensor exposed The remote control signals may not be received properly if to direct sunlight or strong artificial the remote control sensor is exposed to direct sunlight or light from a fluorescent bulb, etc.? strong artificial light from a fluorescent bulb, etc. Are the batteries dead? Replace the batteries (page 5).

Additional information When a USB storage device is connected Problem Check USB storage device is not Is the USB storage device properly recognized. connected? Remedy Connect the device securely (all the way in). Problem Check Remedy No sound is produced when attempting to play files on a computer. Are volume settings correct for the OS and application program? Raise the volume settings as required. Is the OS audio output set to MUTE? Cancel the MUTE setting. Is the USB storage device connected This unit does not support USB hubs. Connect the USB via a USB hub? storage device directly. Are multiple applications running simultaneously? Try closing applications that are not in use. This is not a problem with this unit. Are volume settings correct for the OS and application program? For audio device select “Pioneer USB Audio Device”. Turn the power off then back on. Some USB storage devices may not be recognized properly. This unit only supports USB mass storage class devices. Network Only the FAT16 and FAT32 file systems are supported. Other file systems (ex. FAT, NTFS, etc.) are not supported. Problem Check Remedy This device does not support the use of external hard disc drives. Cannot access to the network. The LAN cable is not firmly connected. Firmly connect the LAN cable (page 7). A USB storage device is The audio files are copyrighted. connected and displayed, but the audio files stored on the USB storage device cannot be played The file format cannot be properly back. played back on this unit. Copyrighted audio files stored on a USB storage device cannot be played back. Attempting to import music data from a CD, etc., to a computer may cause the invocation of copy protection, depending on the settings. The router is not switched on. Switch on the router. Cannot access to the component or PC connected via network. Much time is required to recognized the USB storage device. What is the USB storage devices capacity? Some time may be required to load the data when large capacity USB storage devices are connected (this could take several minutes). Power is not supplied to the USB storage device. Does an error message appear in the Turn the power off then back on. front panel display? Turn the power off, then disconnect and reconnect the USB No power is supplied if the power storage device. consumption is too high. See the list of file formats that can be played back on this receiver (page 25). Press FUNCTION to switch to the other mode, then switch again to the USB mode. (When the input is switched back to USB.)

The audio component on the network Switch on the audio component on the network before which has been switched off is switching on this unit. switched on. Playback does not start. The component connected to the network is not properly set. If the client is automatically authorized, you need to enter the corresponding information again. Check whether the connection status is set to “Do not authorize”. There are no playable audio files on the component connected to the network. Check the audio files stored on the component connected to the network. The component is currently disconnected from this receiver or the power supply. Check whether the component is properly connected to this receiver or the power supply. The PC or Internet radio is The corresponding IP address is not not properly operated. properly set. When computer is connected via USB cable

Internet security software is currently There are cases where a component with Internet security installed in the connected software installed cannot be accessed. component. Problem Check Remedy When the DIGITAL IN USB port is connected to a computer via USB cable, audio files on the computer cannot be played. Has the proper device driver been installed on the computer? When using a USB cable to connect the unit’s DIGITAL IN USB port to a computer in order to play audio files on the computer, the proper device driver must be downloaded from the Pioneer website and installed on your computer. Consult the Pioneer website for instructions on installing the driver. Switch on the built-in DHCP server function of your router, or set up the network manually according to your network environment (page 19). The IP address is being automatically The automatic configuration process takes time. Please configured. wait. N-50-K_En.book 23 ページ

Additional information

Remedy Problem Check Remedy Windows Media Player 11 or Windows Media Player 12 is not currently installed on your PC. Install Windows Media Player 11 or Windows Media Player 12 on your PC (page 17). Audio playback is undesirably stopped or disturbed. The audio file currently being played back was not recorded in a format playable on this unit. Audio files were recorded in formats other than MP3, WAV (LPCM only), MPEG-4 AAC, FLAC, and WMA. Play back audio files recorded in MP3, WAV (LPCM only), MPEG-4 AAC, FLAC, or WMA. Note that some audio files recorded in these formats may not be played back on this unit. Check whether the audio file was recorded in a format supported by this unit. Check whether the folder has been damaged or corrupted. Even audio files listed as playable on this unit may sometimes not be played back or displayed (page 25). The LAN cable is currently disconnected. Connect the LAN cable properly (page 7). Audio files recorded in MPEG-4 AAC or FLAC are being played back on Windows Media Player 11 or Windows Media Player 12. Audio files recorded in MPEG-4 AAC or FLAC cannot be played back on Windows Media Player 11 or Windows Media Player 12. Try using another server. Refer to the operation manual supplied with your server. There is heavy traffic on the network with the Internet being accessed on the same network. Use 100BASE-TX to access the components on the network. The component connected to the network is not properly operated. Check whether the component is affected by special circumstances or is in the sleep mode. Try rebooting the component if necessary. There is a connection routed through There may be a shortage of bandwidth on the 2.4 GHz band a wireless LAN on the same network. used by the wireless LAN. Make wired LAN connections not routed through a wireless LAN. The folder stored on the component connected to the network has been deleted or damaged. Check the folder stored on the component connected to the network. Network connections could be restricted due to the computer’s network settings, security settings, etc. Check the computer’s network settings, security settings, etc. Cannot access Windows In case of Windows Media Player 11: Instead of logging onto the domain, log onto the local Media Player 11 or You are currently logged onto the machine (page 17). Windows Media Player 12. domain through your PC with Windows XP or Windows Vista installed. In case of Windows Media Player 12: You are currently logged onto the domain through your PC with Windows 7 installed. Cannot listen to Internet radio stations. The firewall settings for components on the network are currently in operation. Check the firewall settings for components on the network. You are currently disconnected from the Internet. Check the connection settings for components on the network, and consult with your network service provider if necessary (page 7). The broadcasts from an Internet radio station are stopped or interrupted. Some Internet radio stations on the list of Internet radio stations for this unit may occasionally not be available for listening. Español Install away from any devices emitting electromagnetic waves on the 2.4 GHz band (microwave ovens, game consoles, etc.). If this does not solve the problem, stop using other devices that emit electromagnetic waves. The component connected to the Try changing the settings for the component connected to network does not permit file sharing. the network. Français Check The audio files stored on components on the network, such as a PC, cannot be played back. English Problem

Additional information Wireless LAN Problem Check Remedy Network cannot be accessed via wireless LAN. Wireless LAN converter’s power is not on. (Wireless LAN converter’s Power, WPS and Wireless indicators are not all lit.) Check that the USB cable connecting the wireless LAN converter to the player’s DC OUTPUT for WIRELESS LAN terminal is properly connected (page 8). Error 8 is displayed on the unit’s display window. There is a problem with the wireless LAN converter’s power supply. Turn the unit’s power off, then disconnect the USB cable, reconnect the USB cable and turn the unit’s power back on. Problem Check Remedy Network cannot be accessed via wireless LAN. The IP address settings of the player and wireless LAN converter do not match the settings of the wireless LAN router, etc. Check the IP address settings of the player and wireless LAN converter (including the DHCP setting). If the player’s DHCP setting is on, turn the player’s power off, then turn the power back on. Check that the IP address of the player and wireless LAN converter matche the settings of the wireless LAN router, etc. If the player’s DHCP setting is off, set an IP address matching the network of the base unit (wireless LAN router, etc.). For example, if the wireless LAN router’s IP address is “192.168.1.1”, set the player’s IP address to “192.168.1.XXX” (*1), the subnet mask to “255.255.255.0”, the gateway and DNS to “192.168.1.1”. Next, set the wireless LAN converter’s IP address to “192.168.1.249” (*2). (*1) Set the “XXX” in “192.168.1.XXX” to a number between 2 and 248 that is not assigned to other devices. (*2) Set the “249” in “192.168.1.249” to a number between 2 and 249 that is not assigned to other devices. Try making the wireless LAN converter’s advanced settings. The wireless LAN converter can be connected to a computer to make the advanced wireless LAN settings. For details, see the CD-ROM included for the wireless LAN converter. Check the settings of the wireless LAN router, etc., then change the settings of the wireless LAN converter. Note, however, that making the advanced wireless LAN settings will not necessarily improve the wireless LAN environment. Be careful when changing the settings. If Error 8 is still displayed after repeating the above procedure several times, there is a problem with the unit or the USB cable. Unplug the unit from the wall and call a Pioneer authorized independent service company. The LAN cable is not firmly connected. Firmly connect the LAN cable (page 7). Wireless LAN converter and base unit (wireless LAN router, etc.) are too far apart or there is an obstacle between them. Improve the wireless LAN environment by moving the wireless LAN converter and base unit closer together, etc. There is a microwave oven or other device generating electromagnetic waves near the wireless LAN environment. Use the system in a place away from microwave ovens or others device generating electromagnetic waves. Avoid using devices generating electromagnetic waves as much as possible when using the system with the wireless LAN. Multiple wireless LAN converters When connecting multiple wireless LAN converters, their IP are connected to the wireless LAN addresses must be changed. router. Wireless LAN connections cannot be The wireless LAN converter must be set in order to establish established between the wireless wireless LAN connections. See Connecting using wireless LAN converter and base unit LAN on page 8. (wireless LAN router, etc.).

The access point is set to conceal the In this case, the SSID may not be displayed on the access point list screen. If not, set the SSID, etc., by making the SSID. wireless LAN converter settings on the receiver manually. The access point’s security settings use WEP 152-bit length code key or shared key authentication. The player does not support WEP 152-bit length code key or shared key authentication. Network connections cannot be established even when the above measures are taken. Reset the wireless LAN converter. After this, redo the wireless LAN converter’s settings. About resetting

1. Check that the wireless LAN converter’s power is on.

2. Press the wireless LAN converter’s reset button for at

When the wireless LAN converter is restarted, the resetting procedure is completed. N-50-K_En.book 25 ページ

Additional information Category Playable file formats Stream LPCM

<*2> 16 bit, 24 bit, 32 bit (Digital In USB) Channel MPEG-1 Audio Layer-3 Channel 2 ch Bitrate 8 kbps to 320 kbps Sampling 32 kHz to frequency 48 kHz AAC .m4a .aac .3gp .3g2 Quantizat 16 bit MPEG-4 ion bitrate AAC MPEG-4 Channel 2 ch HE AAC (AAC Plus Bitrate 16 kbps to v1/2) 320 kbps VBR/CBR Supported/ Supported WAV .wav 32 kHz to 96 kHz (USB) LPCM Quantizat 16 bit, ion bitrate 20 bit, 24 bit Channel VBR/CBR Supported/ Supported 2 ch Sampling 32 kHz to frequency 48 kHz Quantizat 16 bit ion bitrate WMA .wma WMA2/7/ 8/9/10 Sampling 32 kHz to frequency 192 kHz (Music Server) FLAC .flac Channel 2 ch Bitrate 5 kbps to 320 kbps VBR/CBR Supported/ Supported 32 kHz to 96 kHz (USB) FLAC 2 ch Sampling 32 kHz to frequency 192 kHz (Music Server) Place of installation Stream

• Choose a stable place near the TV or stereo system being used with this unit.
• Do not place this unit on top of a TV or color monitor. Also install it away from cassette decks and other devices easily affected by magnetic forces. Avoid the following types of places:

Places exposed to direct sunlight Humid or poorly ventilated places Extremely hot places Places exposed to vibrations Places in which there is much dust or cigarette smoke

• Places exposed to soot, steam or heat (kitchens, etc.) Do not place objects on this unit Do not place any objects on top of this unit. Do not obstruct the ventilation holes. Quantizat 16 bit, 24 bit ion bitrate Do not use this unit on shaggy rugs, beds, sofas, etc., or wrapped in cloth, etc. Doing so will prevent the heat from dispersing, leading to damage. Channel Do not expose to heat. 2 ch *1 ”MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson multimedia.” *2 Only streaming data from servers is concerned, so there is no extension. Cautions on use When moving this unit When moving this unit, be sure to first disconnect the iPod/iPhone, USB storage device, LAN cable or any other equipment connected to the unit. Then press STANDBY/ON on the remote control, then press /I STANDBY/ON on this unit, wait for the STANDBY indicator on the front panel display to turn off, then unplug the power cord. If a iPod/USB or other device is left connected during transport, damage or malfunction may result. Español .mp3 Extension Quantizat 16 bit ion bitrate (Internet Radio) Sampling 32 kHz to frequency 48 kHz MP3 <*1>

96 kHz, 192 kHz (Digital In USB) LPCM Stream Quantizat 16 bit ion bitrate Category Sampling 32 kHz to frequency 48 kHz (Internet Radio) Français Extension Extension English This unit supports the following file formats.

• Note that some file formats are not available for playback although they are listed as playable file formats.
• If an attempt is made to play files with unsupported formats, the sound may be intermittent or be accompanied by noise. In such cases, confirm that the file format is compatible with this unit.
• The compatibility of file formats varies depending on the type of server. Check with your server to ensure the compatibility of file formats supported by your server.
• Depending on the server, some file types not supported by this unit may be converted and output. For details, consult the server’s operating instructions.
• Internet radio playback may be affected by the Internet communications environment, and in this case playback may not be possible even with the file formats listed here Category

Do not place this unit on top of an amplifier or other component that generates heat. When rack mounting it, to avoid the heat given off by the amplifier or other audio component, place it on a shelf below the amplifier.

• Turn off the unit’s power when not using it.
• Depending on signal conditions, striped patterns may appear on a TV screen and noise may enter the sound of radio broadcasts when the unit’s power is on. If this happens, turn the unit’s power off. Cleaning the product
• Unplug the power cord from the power outlet when cleaning this unit.
• Clean this unit using a soft cloth. For tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe again with a soft, dry cloth.
• Alcohol, thinner, benzene, insecticides, etc., could cause the print or paint to peel off. Also, leaving rubber or vinyl products in contact with this unit for long periods of time could mar the cabinet.
• When using chemical-impregnated wipes, etc., read the cautions included with the wipes carefully.

Additional information About network playback The network playback function such as Internet Radio or Music Server of this unit uses the following technologies: Windows Media Player See Windows Media Player 11/Windows Media Player 12 on page 17 for more on this. Windows Media DRM Microsoft Windows Media Digital Rights Management (WMDRM) is a platform to protect and securely deliver content for playback on computers, portable devices and network devices. Music Server functions as a WMDRM 10 for networked devices. WMDRM protected content can only be played on media servers supporting WMDRM. Content owners use WMDRM technology to protect their intellectual property, including copyrights. This device uses WMDRM software to access WMDRM protected content. If the WMDRM software fails to protect the content, content owners may ask Microsoft to revoke the software’s ability to use WMDRM to play or copy protected content. Revocation does not affect unprotected content. When you download licenses for protected content, you agree that Microsoft may include a revocation list with the licenses. Content owners may require you to upgrade WMDRM to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade. This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft. DLNA DLNA CERTIFIED® Audio Player

The Digital Living Network Alliance (DLNA) is a crossindustry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through a wired or wireless network in the home. The DLNA certification logo makes it easy to find products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5. When a PC running DLNA server software or other DLNA compatible device is connected to this player, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information. DLNA®, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certification marks of the Digital Living Network Alliance. Content playable over a network

• Even when encoded in a compatible format, some files may not play correctly.
• Movie or Photo files cannot be played back.
• There are cases where you cannot listen to an Internet radio station even if the station can be selected from a list of radio stations.
• Some functions may not be supported depending on the server type or version used.
• Supported file formats vary by server. As such, files not supported by your server are not displayed on this unit. For more information check with the manufacturer of your server. Disclaimer for Third Party Content ACCESS TO THIRD PARTY CONTENT SERVICES,

INCLUDING ALL ASSOCIATED FEATURES AND

FUNCTIONALITIES, IS PROVIDED “AS IS,” “AS

AVAILABLE” AND AT THE USER’S OWN RISK,

WITHOUT WARRANTY OF ANY KIND. PIONEER

DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, IN CONNECTION WITH ACCESS TO AND USE OF CONTENT SERVICES THROUGH THIS DEVICE,

INCLUDING WITHOUT LIMITATION WARRANTIES OF

MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS

HACKING, OR OTHER SECURITY INTRUSION, AND

PIONEER DISCLAIMS ANY LIABILITY IN CONNECTION

WITH THE FOREGOING. PIONEER IS NOT LIABLE OR RESPONSIBLE FOR ANY LOSS OR DAMAGE ARISING FROM ACCESS TO OR USE OF CONTENT. NO ORAL OR

PIONEER OR ITS CUSTOMER SERVICES

WARRANTY. IN NO EVENT WILL PIONEER, ITS AFFILIATES, OR THEIR

KIND, INCLUDING WITHOUT LIMITATION DAMAGES

FOR ATTORNEY’S FEES, LOST DATA OR LOST PROFITS, REGARDLESS OF THE THEORY OF LIABILITY AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL PIONEER’S TOTAL LIABILITY TO YOU FOR ALL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIRD PARTY CONTENT SERVICES (OTHER THAN AS MAY BE REQUIRED BY LAW IN CASES INVOLVING PERSONAL

INJURY) EXCEED $10.00. THE FOREGOING

LIMITATIONS WILL APPLY EVEN IF THE ABOVE REMEDY FAILS OF ITS ESSENTIAL PURPOSE. IF ANY

APPLICABLE AUTHORITY HOLDS ANY PORTION OF

THIS SECTION TO BE UNENFORCEABLE, THEN

LIABILITY WILL BE LIMITED TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW. About playback behavior over a network

• Playback may stall when the PC is switched off or any media files stored on it are deleted while playing content.
• If there are problems within the network environment (heavy network traffic, etc.) content may not be displayed or played properly (playback may be interrupted or stalled). For best performance, a 100BASE-TX connection between player and PC is recommended.
• If several clients are playing simultaneously, as the case may be, playback is interrupted or stalled.
• Depending on the security software installed on a connected PC and the setting of such software, network connection may be blocked. Pioneer is not responsible for any malfunction of the player and/or the Music Server features due to communication error/malfunctions associated with your network connection and/or your PC, or other connected equipment. Please contact your PC manufacturer or Internet service provider. Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc. Microsoft®, Windows®7, Windows®Vista, Windows®XP, Windows®2000, Windows®Millennium Edition, Windows®98, and WindowsNT® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Authorizing this unit In order to be able to play with Music Server, this unit must be authorized. This happens automatically when the unit makes a connection over the network to the PC. If not, please authorize this unit manually on the PC. The authorization (or permission) method for access varies depending on the type of server currently being connected. For more information on authorizing this unit, refer to the instruction manual of your server. aacPlus The AAC decoder uses aacPlus developed by Coding Technologies (www.codingtechnologies.com). FLAC FLAC Decoder Copyright c 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/ or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. 10_additional_info.fm 27 ページ

Additional information About iPod/iPhone/iPad Specifications

Analog audio output Note

• Specifications and the design are subject to possible modifications without notice, due to improvements.
• This product is not designed for use in Japan. © 2011 PIONEER CORPORATION. All rights reserved. Español

EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT

for W (OUTPUT 5V 0.6A MAX) DIGITAL OUT

PURE AUDIO CLEAR REPEAT

IN CANADA For additional information on this warranty, please call or write:

PIONEER ELECTRONICS OF CANADA, INC. 300 ALLSTATE PARKWAY

[phone] 1-877-283-5901 http://www.pioneerelectronics.ca KEEP THIS INFORMATION AND YOUR SALES RECEIPT IN A SAFE PLACE Purchased From _______________________________________________________________________________________________________________________________ Model No. ____________________________________________ Serial No. _________________________________________ Purchase Date _______________________ RECORD THE PLACE AND DATE OF PURCHASE FOR FUTURE REFERENCE IN CANADA - Call the Customer Satisfaction Manager at [phone] to discuss your complaint and to obtain a prompt resolution. IN THE U.S.A. - Following our response to any initial request to Customer Support, should a dispute arise between you and Pioneer, Pioneer makes available its Complaint Resolution Program to resolve the dispute. The Complaint Resolution Program is available to you without charge. You are required to use the Complaint Resolution Program before you exercise any rights under, or seek any remedies, created by Title I of the Magnuson-Moss Warranty-Federal Trade Commission Improvement Act, 15 U.S.C. 2301 et seq. To use the Complaint Resolution Program call 1-800-421-1404 and explain to the customer service representative the problem you are experiencing, steps you have taken to have the product repaired during the warranty period and the name of the authorized Distributor/Dealer from whom the Pioneer product was purchased. After the complaint has been explained to the representative, a resolution number will be issued. Within 40 days of receiving your complaint, Pioneer will investigate the dispute and will either: (1) respond to your complaint in writing informing you what action Pioneer will take, and in what time period, to resolve the dispute; or (2) respond to your complaint in writing informing you why it will not take any action. DISPUTE RESOLUTION PIONEER ELECTRONICS SERVICE, INC.

LONG BEACH, CALIFORNIA 90801

1-800-421-1404 http://www.pioneerelectronics.com IN THE U.S.A. For hook-up and operation of your unit or to locate an Authorized Service Company, please call or write: PUSA and POC have appointed a number of Authorized Service Companies throughout the U.S.A. and Canada should your product require service. To receive warranty service you need to present your sales receipt or, if rented, your rental contract showing place and date of original owner’s transaction. If shipping the unit you will need to package it carefully and send it, transportation prepaid by a traceable, insured method, to an Authorized Service Company. Package the product using adequate padding material to prevent damage in transit. The original container is ideal for this purpose. Include your name, address and telephone number where you can be reached during business hours. On all complaints and concerns in the U.S.A. call Customer Support at 1-800-421-1404, or, in Canada, call Customer Satisfaction at 1-877-283-5901.

Shorter limited warranty periods apply to some models. Please refer to the limited warranty document enclosed with the product for a definitive statement of the warranty period. The warranty period for retail customers who rent the product commences upon the date product is first put into use (a) during the rental period or (b) retail sale, whichever occurs first. Labor 1 Year 90 Days Parts 1 Year 90 Days

PRODUCT WARRANTY PERIOD

THIS LIMITED WARRANTY APPLIES TO THE ORIGINAL OR ANY SUBSEQUENT OWNER OF THIS PIONEER PRODUCT DURING THE WARRANTY PERIOD PROVIDED THE PRODUCT WAS PURCHASED FROM AN AUTHORIZED PIONEER DISTRIBUTOR/DEALER IN THE U.S.A. OR CANADA. YOU WILL BE REQUIRED TO PROVIDE A SALES RECEIPT OR OTHER VALID PROOF OF PURCHASE SHOWING THE DATE OF ORIGINAL PURCHASE OR, IF RENTED, YOUR RENTAL CONTRACT SHOWING THE PLACE AND DATE OF FIRST RENTAL. IN THE EVENT SERVICE IS REQUIRED, THE PRODUCT MUST BE DELIVERED WITHIN THE WARRANTY PERIOD, TRANSPORTATION PREPAID, ONLY FROM WITHIN THE COUNTRY OF PURCHASE AS EXPLAINED IN THIS DOCUMENT. YOU WILL BE RESPONSIBLE FOR REMOVAL AND INSTALLATION OF THE PRODUCT. PUSA OR POC, AS APPROPRIATE, WILL PAY TO RETURN THE REPAIRED OR REPLACEMENT PRODUCT TO YOU WITHIN THE COUNTRY OF PURCHASE. Pioneer Electronics (USA) Inc. (PUSA), and Pioneer Electronics Of Canada, Inc. (POC), warrant that products distributed by PUSA in the U.S.A., and by POC in Canada that fail to function properly under normal use due to a manufacturing defect when installed and operated according to the owner’s manual enclosed with the unit will be repaired or replaced with a unit of comparable value, at the option of PUSA or POC, without charge to you for parts or actual repair work. Parts supplied under this warranty may be new or rebuilt at the option of PUSA or POC. WARRANTY LIMITED WARRANTY PIONEER ELECTRONICS OF CANADA, INC. 29 ページ WARRANTY VALID ONLY IN COUNTRY OF PRODUCT PURCHASE PIONEER ELECTRONICS (USA) INC. N-50-K_En.book

http://www.pioneerelectronics.com PIONEER ELECTRONICS SERVICE, INC.
