USER MANUAL Eco Power 6422 ARIETE

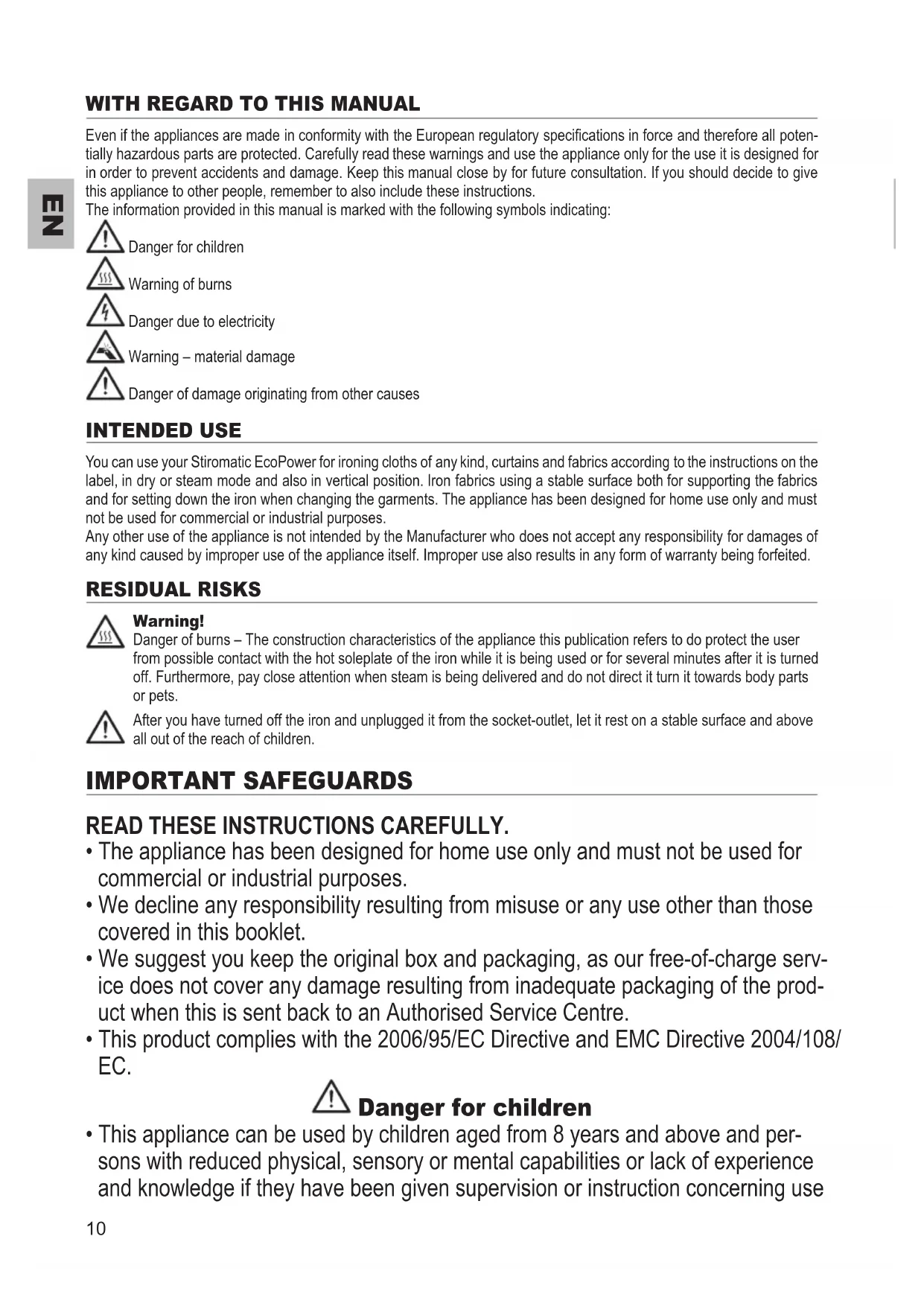

WITH REGARD TO THIS MANUAL

Even if the appliances are made in conformity with the European regulatory specications in force and therefore all poten- tially hazardous parts are protected. Carefully read these warnings and use the appliance only for the use it is designed for in order to prevent accidents and damage. Keep this manual close by for future consultation. If you should decide to give this appliance to other people, remember to also include these instructions. The information provided in this manual is marked with the following symbols indicating: Danger for children Warning of burns Danger due to electricity Warning – material damage Danger of damage originating from other causes INTENDED USE You can use your Stiromatic EcoPower for ironing cloths of any kind, curtains and fabrics according to the instructions on the label, in dry or steam mode and also in vertical position. Iron fabrics using a stable surface both for supporting the fabrics and for setting down the iron when changing the garments. The appliance has been designed for home use only and must not be used for commercial or industrial purposes. Any other use of the appliance is not intended by the Manufacturer who does not accept any responsibility for damages of any kind caused by improper use of the appliance itself. Improper use also results in any form of warranty being forfeited. RESIDUAL RISKS Warning! Danger of burns – The construction characteristics of the appliance this publication refers to do protect the user from possible contact with the hot soleplate of the iron while it is being used or for several minutes after it is turned off. Furthermore, pay close attention when steam is being delivered and do not direct it turn it towards body parts or pets. After you have turned off the iron and unplugged it from the socket-outlet, let it rest on a stable surface and above all out of the reach of children. IMPORTANT SAFEGUARDS READ THESE INSTRUCTIONS CAREFULLY.

• The appliance has been designed for home use only and must not be used for commercial or industrial purposes.

• We decline any responsibility resulting from misuse or any use other than those covered in this booklet.

• We suggest you keep the original box and packaging, as our free-of-charge serv- ice does not cover any damage resulting from inadequate packaging of the prod- uct when this is sent back to an Authorised Service Centre.

• This product complies with the 2006/95/EC Directive and EMC Directive 2004/108/ EC. Danger for children

• This appliance can be used by children aged from 8 years and above and per- sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use11

of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervi- sion.

• Do not leave the packaging near children because it is potentially dangerous.

• In the event that this appliance is to be disposed of, it is suggested that the power chord is cut off. It is also recommended that all potentially dangerous components are rendered harmless to prevent children hurting themselves when playing with the apparatus. Danger due to electricity

• Do not leave the iron and the power cord within the reach of children under the age of 8 years if the iron is connected to the outlet or while it is cooling.

• Always turn off the appliance and remove the power cable plug from the socket- outlet before lling the tank with water.

• The use of extension leads, which have not been authorised by the appliance manufacturer, may cause damage and accidents.

• If the electric cable is damaged it must be replaced by the manufacturer or its Technical Assistance Service, or in any case by a person with similar qualica- tions, in order to avoid any risk.

• Unplug before any cleaning or maintenance operations.

• Before plugging the appliance into the mains socket, ensure that the voltage shown on the rating plate matches the local voltage supply.

• Always connect the iron to an earthed socket.

• Do not immerse the appliance in water or other liquids.

• Do not start ironing if your hands are wet or if you are barefoot. Danger of damage originating from other causes

• Never leave the appliance unattended when it is connected to the power supply.

• The appliance must be used and rested on a stable surface.

• The appliance is not to be used if it has been dropped, if there are visible sign of damage or if it is leaking. Do not use the appliance if the power cord or the plug are damaged, or if the appliance is faulty. To prevent any accident, all repairs, in- cluding the replacement of the power cord, must be carried out by an Authorised Service Centre or, in any case, by qualied personnel.

• Fill up the tank with water before starting up the appliance.

• Avoid putting excessive quantities of water into the tank.

• Choose a sufciently well lit and clean environment, with an easily accessible electric socket.

• Turn on the appliance only when it is in working position.

• The appliance may give out a little smoke when used for the rst time; This tran- sitory effect is perfectly normal and is due to the fact that some of components12

have been slightly lubricated.

• During use, rest the appliance onto a horizontal surface.

• Never leave the appliance unattended when it is connected to the power supply.

• When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

• Before leaving the iron unattended, even for a short time, turn off the appliance, always unplug it and place it on support base (E).

• Pressing the steam button before the boiler has reached the optimum tempera- ture or the iron has heated up may cause water to leak from the steam holes.

• Do not use the appliance if the power cord appears to be damaged, with parts bearing burns, etc.; an authorised Ariete service centre must repair and replace the power cable; under penalty of the warranty being forfeited. Warning of burns

• Never try to iron garments being worn.

• Do not touch the metal parts of the iron when in operation and for several minutes after it is turned off since it could cause burns.

• Do not aim the jet of steam towards parts of the body or pets. Warning – material damage

• Place the appliance on a stable surface where it can not tip over.

• Place the appliance on a work surface that bears a temperature of at least 90°C. Do not place on delicate surfaces.

• Remove any labels and protections from the soleplate before using the appliance for the rst time.

• Always unwind the power cord before use.

• Using the appliance with no water in the tank may damage the pump.

• Do not use sparkling (carbonated) water. If your water supply is very hard, we suggest you use demineralised water instead.

• When the iron is hot, do not rest it onto the connecting cable or the power cord. Take special care in ensuring that the cable and the cord do not come into contact with the soleplate when it is hot.

• Do not pull the power cord to unplug the appliance.

• The appliance must only be cleaned with a soft, slightly damped, cloth after un- plugging the iron and allowing all its parts to cool down. Never use solvents which may damage the plastic parts.

• Do not pour vinegar, descalers or other scented substances into the tank; Other- wise, the warranty may be revoked.

• Do not wrap the power cord around the soleplate when the iron is hot.

• Do not put the soleplate in contact with metal surfaces.

• Put the thermostat knob (I) on MIN before storing the appliance. Always unplug the power cord from the socket. Wait for it to cool down and completely empty the tank.13

• Do not leave the appliance exposed to atmospheric agents (rain, sun, etc ...).

• For proper disposal of the product pursuant to the European Directive 2002/96/EC please read the relevant leaet enclosed with the product.

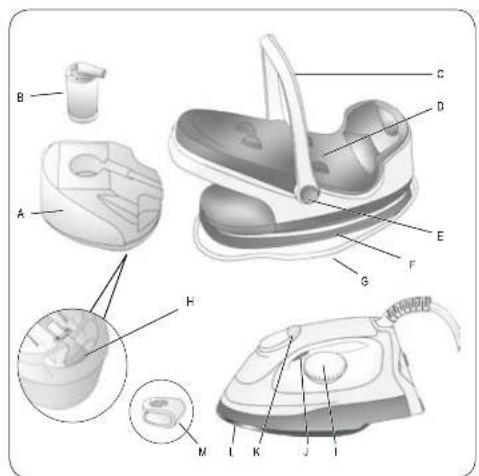

A - Removable water tank B - Anti-scale cartridge C - Appliance carrying handle D - Iron stand E - Handle release buttons F - Cord storage device G - Power cord and plug H - Tank release lever I - Thermostat knob J - Steam button K - Iron temperature control indicator light L - Soleplate M - Cable clip

INSTRUCTIONS FOR USE

Warning! Remove any labels and protections from the soleplate before using the appliance for the rst time. Place the appliance on a horizontal and stable surface. Use the handle (C) for moving the appliance (Fig. 2). After transport- ing the appliance, put the handle in its housing (Fig. 3). To release and lift the handle simultaneously press the buttons (E) on the sides (Fig. 4). The possible presence of water, condensate or moisture in the tank indicates only that the appliance has been tested. The product functions with normal tap water. The anti-scale cartridge puries water from substances harmful to the iron, therefore it allows to use ordinary tap water. The anti-scale cartridge must be replaced when the resins contained therein have completely changed colour. The replacement cartridges are available at the sale points or in Authorized Service Centers. Filling the tank before use Warning! Make sure the appliance is unplugged from the supply mains before lling the tank with water. Press the release lever (H) under the handle and remove the tank (Fig. 5). Remove the anti-scale cartridge (B) from the tank (Fig. 6). Fill the tank with cool tap water up to the level indicated by MAX (Fig. 5). Reinsert the anti-scale cartridge (Fig. 8). NEVER ll the tank beyond the MAX level. Never use pure demineralised water with the anti-scale cartridge inserted. Warning! Do not add any additives or chemicals (such as for example, amides, starches, perfume or other); Otherwise, the warranty may be revoked. Insert back the tank (Fig. 9). Press rmly until the tank is completely inserted, until it clicks, conrming the correct installation. Switching on the appliance and rst use Before you turn on the appliance, make sure there is sufcient water inside the tank. Totally unwind the power cord. Connect the appliance to the mains. On rst use, after lling the tank, adjust the thermostat knob (I) over the symbol (

and wait that the indicator light (K) turns off. Press the steam output button (J) Fig. 12 until the iron produces steam (it will take about one minute) Fig. 13. When rst used, the iron may give out a little smoke: This transitory effect is perfectly normal and will disappear very soon. On rst use of the iron, try it on an old piece of cloth to remove any manufacturing residues. Warning! Do not release steam when the iron is standing on its grille rest (B).14

The iron is fed automatically by means of a pump that at each lling is activated for a few seconds by generating a normal operation sound (vibration). Immediately after the vibration, a decrease of the steam emission could occur. This is perfectly normal, and a after a few seconds the steam output will be normal again. If the iron is left inactive for a long time, before ironing it is recommended to hold it level and deliver a few shots of steam into the ground to stabilize the jet and eliminate any condensation. Steam ironing Set the ironing temperature by turning the adjustment knob (I) past the symbol (

). Wait for the indicator lamp (K) of the iron to turn off. The iron is now ready for use. Before applying a jet of steam to the article to be ironed, release two or three good jets of steam towards the oor to stabilise the steam ow. When you press the steam button (J) from 3 to 5 seconds, a heavy steam jet is dispensed. The steam jet stops when the button is released. If the steam supply button (J) is operated continuously for more than 30 seconds, drops of water may come from the steam holes in the plate of the iron. It is recom- mended that the button (J) is used for shorter periods. Filling the boiler during use Warning Always check the water level in the tank during ironing. If the tank remains without water, you will notice a vibration and a louder noise. Disconnect the plug from the electrical outlet to turn off the appliance. Remove the tank. Fill the tank directly beneath the tap with cool tap water (Fig. 7). Warning Fill the tank up to the level marked MAX. Always turn off the appliance and remove the power cable plug from the socket-outlet before lling the tank with water. Warning! The anti-scale cartridge must be replaced when the resins contained therein have completely changed colour. If the cartridge is empty, you can ll the tank with demineralized water, after removing the cartridge from its housing. DRY IRONING In order to dry iron, i.e. without steam, after connecting the appliance to the mains supply, simply set the thermostat knob (I) to the desired temperature without pressing the steam button (J). Warning! To avoid damaging the pump, never operate the appliance without any water in the tank, even for dry ironing. VERTICAL IRONING You can use the jet of continuous steam for ironing hanging fabrics. This special ironing procedure serves to remove creases from curtains, fabrics, etc. Set the ironing temperature by turning the adjustment knob (I) past the symbol (

Put the curtain or fabric in the position you want to iron it vertically and press the steam button. Warning! Do not iron fabrics held by other people.

TEMPERATURE SELECTION AND SUGGESTIONS FOR USE

Temperature selection First check whether the fabric has a label containing ironing instructions and compare the symbol with the instructions which follow. If there is no label with instructions, but you know the type of material, follow the instructions below. Note that the table refers to fabrics not treated with sizing agents or similar products; if they have been, you can also iron at a lower temperature. When you change the temperature by turning the thermostat knob (I), the indicator light (K) will light on and remain lit until the iron has reached the new temperature. Divide the articles to be ironed according to the types of material: wool with wool, cotton with cotton, etc. Because the iron heats up much more quickly than it cools down, it is advisable to start with those fabrics which require lower temperatures and move on to those which require progressively higher temperatures. If the material is made up of more than one type of bre, always set the temperature to the bre which requires less heat. For example, if the material is made up of 70% synthetics and 30% cotton, set the temperature control to position (

) (see table) without steam, that is, the temperature for synthetic fabrics.15

The mark on the label means do not iron If you do not know the composition of the article to be ironed, choose a part of the article which will not be seen. Do a test ironing on this part to establish the appropriate temperature (always start with a relatively low temperature and work up until the ideal temperature is reached). Pure (100%) wool articles can be ironed with the iron set to one of the steam positions. To avoid pure wool, silk and synthetic materials becoming shiny, it makes good sense to iron them on the reverse side. For other materials, especially velvet, which can become shiny very easily, cover them with a cloth and iron in one direction only, using light pressure. The iron must be kept constantly moving over the fabric. AFTER IRONING Turn the temperature control knob (I) to “MIN”. Disconnect the power supply cable from the power point. Let the iron cool down on its stand, taking care not to touch the power cables and connection with the hot parts of the appliance. Empty the water tank completely so as to prevent the water from stagnating, which may form lime deposit (Fig. 14). Put the appliance back on top of a stable surface and out of the reach of children.

CLEANING AND MAINTENANCE

Warning! Before cleaning, always disconnect the plug from the power point and allow the iron to cool down on its stand grille. Warning! Never immerse the appliance in water or other liquids. Warning! Check the state of the power cable of your iron on a regular basis before using it, and if it is damaged, take it to the service centre closest to you to have it replaced only by specialised personnel. Cleaning the soleplate Any deposits and other residue material on the soleplate can be removed using a cloth soaked in a water and vinegar solu- tion. Always dry the soleplate with a dry cloth. Warning! Do not use abrasives for cleaning the soleplate. Try and keep the soleplate smooth: avoid contact with metal objects. Cleaning the tank Clean the water tank from time to time by putting fresh water in it. Rinse and empty (Fig. 14). Warning! Do not put vinegar, decalcifying products or other additives in the tank; Otherwise, the warranty may be revoked. Cleaning the iron Clean plastic parts with a damp, non-abrasive cloth and dry them with a dry cloth. NOTE: it is quite normal that after a certain period of use at high temperatures, the white plastic parts of the iron undergo small variations of colour and/or yellowing.16
