USER MANUAL SKM 350 A1 SILVERCREST

KÜCHENMASCHINE SKM 350 A1 FOOD PROCESSOR SKM 350 A1 ROBOT MÉNAGER SKM 350 A1

DE AT CH

KUCHENMASCHINE

Bedienungsanleitung

FR BE

ROBOT MÉNAGER

Mode d'emploi

ES

Operating instructions

NL BE

KEUKENMACHINE

Gebruksaanwijzing

1

ROBOT DA CUCINA

1. Overview 16
2. Intended purpose 17
3. Safety information 17
4. Items supplied 20
   5.How to use 20
5. Installation 21
6. Operation 21
7. Cleaning 24
   9.Storage 24
   10.Troubleshooting 25
8. Recipes 25
9. Disposal 27
10. Technical specifications 27
11. Warranty of the HOYER Handel GmbH 28

1. Overview

Food pusher for food chute

2 日 lid pssitioned

B:lidlocked

3 Lid

4 Slicing insert

5 Grating disk

6 Insert holder

7 Dough blade

8 Blade insert

9 Drive axle

10 Top marking on the bowl

11 Bowl (holding capacity: 1000 ml)

12 Bottom marking on the bowl

13 Spindle

14 Power cable with mains plug

15 Motor block

16a/Abowbattached

B: bowl locked

17P012 Control dial

P: pulse button / 0: switched off / 1: low speed / 2: high speed

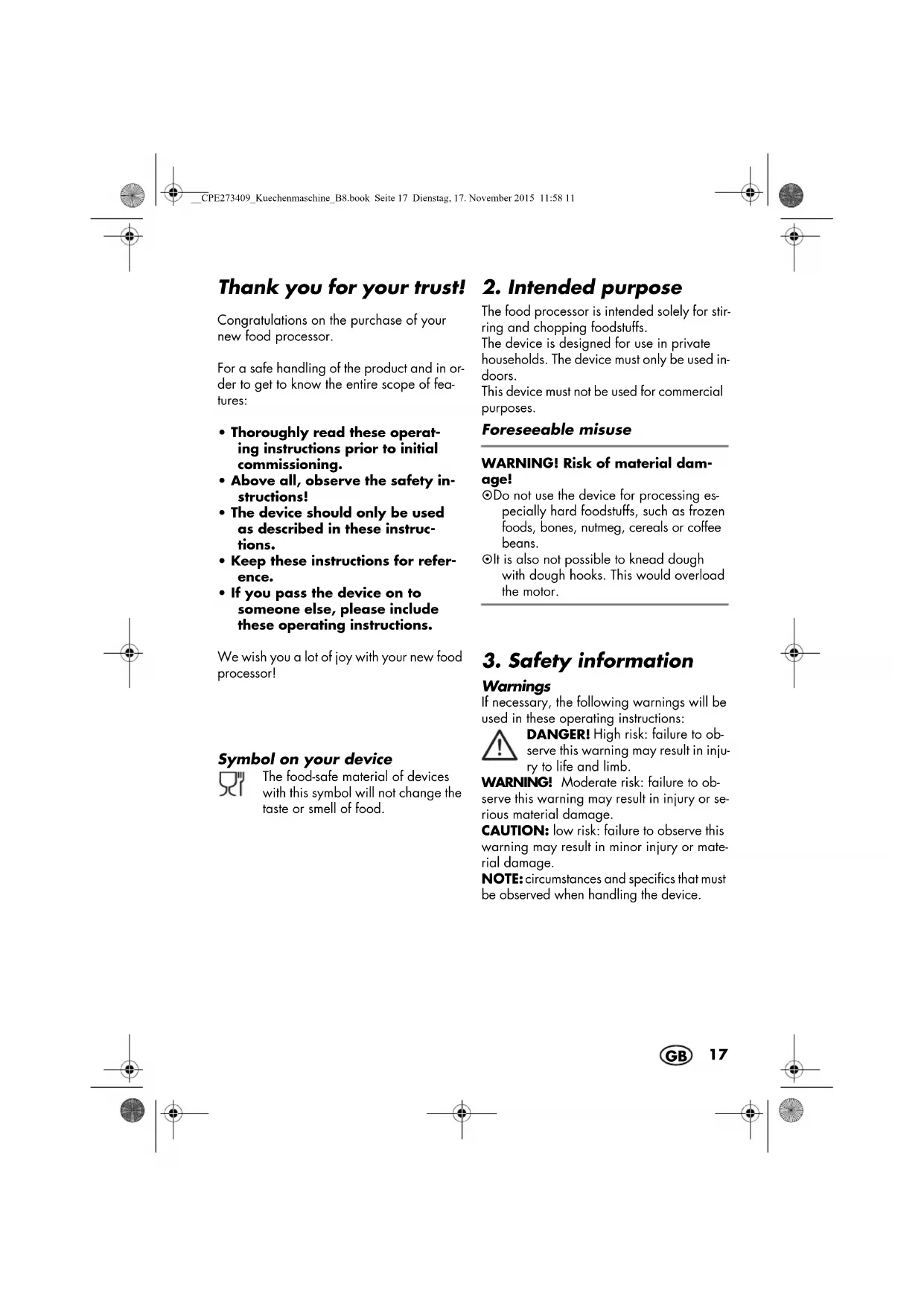

Thank you for your trust!

Congratulations on the purchase of your new food processor.

For a safe handling of the product and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to initial commissioning.
• Above all, observe the safety instructions!
  The device should only be used as described in these instructions.
• Keep these instructions for reference.
• If you pass the device on to someone else, please include these operating instructions.

We wish you a lot of joy with your new food processor!

Symbol on your device

The food-safe material of devices with this symbol will not change the taste or smell of food.

2. Intended purpose

The food processor is intended solely for stirring and chopping foodstuffs.

The device is designed for use in private households. The device must only be used indoors.

This device must not be used for commercial purposes.

Foreseeable misuse

WARNING! Risk of material damage!

Do not use the device for processing especially hard foodstuffs, such as frozen foods, bones, nutmeg, cereals or coffee beans.
It is also not possible to knead dough with dough hooks. This would overload the motor.

3. Safety information

Warnings

If necessary, the following warnings will be used in these operating instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

Instructions for safe operation

Children must be prevented from using this device.
This device with its power cable must be stored out of the reach of children.
Cleaning and user maintenance must not be performed by children.
Children must be supervised to ensure that they do not play with the device.
This device can be used by people with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding if they are supervised or instructed on how to use this device safely and if they are aware of the resulting risks.
The device must be disconnected from the mains if left unattended and prior to assembly, disassembly or cleaning.
- The blade insert and the grating and slicing inserts are sharp. Handle with care. When washing manually, the water should be sufficiently clear that you can see the blades easily.
- The insert holder, the blade insert and the dough blade keep on turning after the device has been turned off. Please wait until all parts have come to a standstill before unlocking the bowl and opening the lid.
This device is not intended to be operated using an external timer clock or a separate remote control system.
- If the power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or a similarly qualified specialist, in order to avoid any hazards.
- Prior to replacement of parts or attachments which move when in operation, the device must be switched off and disconnected from the mains.
- Please take note of the chapter on cleaning (see "Cleaning" on page 24).

DANGER for children

Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: there is a risk of suffocation.

DANGER to and from pets and livestock

Electrical devices can represent a hazard to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times.

DANGER! Risk of electric shock due to moisture

The device must never be operated in the vicinity of a bathtub, a shower, a filled hand basin or similar.

The motor block, the power cable and the mains plug must not be immersed in water or any other liquids.

Protect the motor block against moisture, drips and splashes.

If liquid gets into the motor block, remove the mains plug immediately. Have the device checked before reusing.

• Never touch the device with wet hands.

If the device falls into water, disconnect the mains plug immediately. Only then is it safe to retrieve the device.

Fill the bowl with a maximum of 600~ml of liquid in order to prevent liquid from getting into the motor block.

DANGER! Risk of electric shock

Only plug the mains plug into the wall socket after the device has been completely assembled.

Only connect the mains plug to a properly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must continue to be eas

ily accessible after the device is plugged in.

Ensure that the power cable cannot be damaged by sharp edges or hot points. Do not wrap the power cable around the device.
The device is not fully disconnected from the power supply, even after it is switched off. In order to fully disconnect it, pull out the mains plug.
When using the device, ensure that the power cable cannot be trapped or crushed.
When removing the mains plug, always pull the plug and never the cable.
Disconnect the mains plug from the wall socket....
...if there is a fault,
... when you are not using the food processor,
... prior to assembling or disassembling the food processor,
... prior to cleaning the food processor and
... during thunderstorms.
Do not use the device if there is visible damage to the device or the power cable.
To avoid any risk, do not make modifications to the product.

DANGER! Risk of injury from cutting

The device must never be operated without the bowl.
- Never reach into the rotating blades. Do not touch rotating parts with spoons or similar utensils. Keep long hair or loose clothing away from rotating parts as well.

WARNING! Risk of material damage

The maximum filling level for solid food is 500ml
The maximum filling volume for liquids is 600ml

In order to prevent damage to the device, interrupt the blending process immediately if the insert holder, the blade insert and the dough blade are not turning or are turning with difficulty. Pull out the mains plug and check whether there is something in the bowl blocking movement or whether the food is too tough. Also check whether the device is assembled correctly.
Do not operate the device when it is empty, as this causes the motor to overheat and may result in it being damaged.
Only use the original accessories.
Do not use any astringent or abrasive cleaning agents.
The device is equipped with non-slip synthetic suction feet. As furniture is coated with a wide array of varnishes and synthetics, and is also treated with different care products, it cannot be fully ruled out that some of these materials contain ingredients that could attack and soften the non-slip plastic bases. If necessary, place a non-slip mat under the device.

NOTE:

• Do not store foodstuffs in the bowl 11 or in contact with other product parts for longer than 24 hours. This also applies to storage in the refrigerator.

4. Items supplied

1 Motor block 15
1BoV11
1 Drive9axle
1 Li3i
1 Food pusher for food chute 1
1 Blade insert 8
1 Dough blade 7
Insert holder 6
1 Slicing insert
1 Gr atin5g disk
1 Set of operating instructions

5. How to use

• Remove all packing material.
• Check to ensure that all parts are present and undamaged.
  Clean the device prior to its first use! (see "Cleaning" on page 24)

6. Installation

DANGER! Risk of injury from cutting!

The blade insert 8, the grating disk 5 and slicing insert 4 are sharp. Handle with care.
Only plug the mains plug 14 into the wall socket after the food processor has been completely assembled.

NOTE:

• The device is equipped with a safety switch. The bowl 11 can only be locked with a closed lid 3 and can only be put into operation once it's locked.

• Figure A: place the bowl 11 on the motor block 15. The symbol 16 points to the bottom marking on the bowl 12 Do not turn the bowl.

• Place the drive axle 9 in the bowl.
• Figure E: if required, place the slicing insert 4 / grating disk 5 into the insert holder 6.
• Place the dough blade 7, the blade insert 8 or the insert holder 6 with attached slicing insert 4 / grating disk 5 on the drive axle 9.
• Dough blade 7 / Blade insert 8: Fill the prepared foodstuffs into the bowl 11, as desired.
• Figure A+B: place the lid 3 on the bowl 11. The symbol 2 points to the top marking on the bowl 10.
• Figure B+C: turn the lid 3 in a clockwise direction as far as it will go, until the symbol A 2 points to the top marking on the bowl 10.
• Figures C+D: turn the bowl 11 in a clockwise direction as far as it will go, until the symbol A 16 points to the bottom marking on the bowl 12.
• Insert the mains plug 14 into a wall socket corresponding to the technical data.

7. Operation

DANGER! Risk of injury from cutting!

T he insert holder 6, the blade insert 8 and the dough blade 7 keep on turning after the device has been turned off. Please wait until all parts have come to a standstill before unlocking the bowl 11 and opening the lid 3.
The device must never be operated without the bowl.

WARNING! Risk of material damage!

In order to prevent damage to the device, interrupt the blending process immediately if the insert holder 6, the blade insert 8 and the dough blade 7 are not turning or are turning with difficulty. If this happens, pull out the mains plug 14 and check whether there is something in the bowl 11 blocking movement or whether the food is too tough. Also check whether the device is assembled correctly.

CAUTION:

Depending on the hardness and consistency of the foodstuffs, do not fill the bowl 11 to the maximum, as the insert holder 6, the blade insert 8 and the dough blade 7 could get blocked. Pay attention here to the guideline values for various foods in the Processing table section.

NOTE:

• For chopping harder foodstuffs, use the setting P. Work with short pulses (1 pulse: turn on P for approx. 1 second). The number and length of the pulses will depend on the quantity and consistency of the food.

Uses

Blade insert: the blade insert 8 is suitable for chopping solid foods, e.g. meal, onions and cheese.

Dough blade: the dough blade 7 is suitable for e.g. mixing eggs.

Slicing insert / Grating disk:

With the slicing insert 4 you can cut e.g. cucumbers into slices. The grating disk 5 is suitable for e.g. processing apples or carrots.

Processing table

Foodstuff	Recommended quantity	Recommended speed setting	Inserts
Diced lean beef (ap- prox. 2 cm edge length)	300 g	2	Blade insert 8
Onions (quartered) 300 g		1-2
		or P (short pulses) until the de-sired result is achieved
Eggs 6		1-2	Dough blade 7
Cucumber One cucumber		1-2	Slicing insert 4
Carrots 300 g		2	Grating disk 5
Apples (peeled, without pips)	300 g	1	Grating disk 5

NOTE:

The processing times and speeds specified here are guidelines.
- Depending on the quantities and consistency of the foods, the actual values may differ.
- Repeatedly check the results, depending on how small you want to chop the food.
Work with short pulses (1 pulse: rotates for approx. 1 second).

Preparing food

Use ...

... no more than the maximum filling level of 500 ml of solid food, or

... a maximum of 600 ml liquids.

• Rinse or wash the food.
• Chop the foodstuffs so small that they fit through the food chute.
• Remove the outer shell from nuts. The inner shell can be used if so desired, e.g. with almonds.
  Free herbs from their stems.
• Separate the bones from meat and remove sinews and skin.

Chopping / Mixing

To chop foodstuffs, turn the control dial 17 to position 1 or 2.

• For chopping harder foodstuffs, use the setting P. Work with short pulses (1 pulse: turn on P for approx. 1 second). The number and length of the pulses will depend on the quantity and consistency of the food. See the specifications given in the Processing table section.

• Repeatedly check the result. If the food is not being chopped evenly:

• Pull out the mains plug 14, remove the bowl 11 and shake it vigorously.

• If food is sticking to the inside wall of the bowl, rotate the lid 3 anti-clockwise and remove it. Push the pieces downwards using a spatula.

• Put all the pieces back together before you reinsert the mains plug 14 into a wall socket and resume work.

• When using the insert holder 6 with attached slicing insert 4 / grating disk 5, fill the foodstuffs into the food chute of the lid 3. If necessary, use the food pusher 1 to carefully push the foodstuffs down.

Remove food

NOTE:

• Do not store foodstuffs in the bowl 11 or in contact with other product parts for longer than 24 hours. This also applies to storage in the refrigerator.
• Disconnect the mains plug 14 from the wall socket.
• Turn the bowl 11 anti-clockwise, until the symbol 16 points to the bottom marking on the bowl 12.
• Hold the bowl 11 tightly. Turn the lid 3 anti-clockwise, until the symbol 2 points to the top marking on the bowl 10. Remove the lid.
• Carefully remove the insert holder 6 with attached slicing insert 4 / grating disk 5 or the drive axle 9 with the dough blade 7 / the blade insert 8.
• Empty the bowl 11. Remove the food, e.g. using a spatula.
• Clean the device as soon as possible after use.

8. Cleaning

Clean the device prior to its first use!

DANGER! Risk of electric shock!

Pull the mains plug 14 out the wall socket before cleaning the food processor.

The motor block 15, the power cable and the mains plug 14 must not be immersed in water or any other liquids.

DANGER! Risk of injury from cutting!

When washing manually, the water should be sufficiently clear that you can see the blades 4, 5 and 8 easily.

WARNING! Risk of material damage!

Do not use any astringent or abrasive cleaning agents.

Dismantling the device

1.Pull out the mains plug 14.
2. Turn the bowl 11 anti-clockwise, until the symbol 16 points to the bottom marking on the bowl 12.
3. Hold the bowl 11 tightly. Turn the lid 3 anti-clockwise, until the symbol b 2 points to the top marking on the bowl 10. Remove the lid.
4. Carefully remove the dough blade 7, the blade insert 8 or the insert holder 6 with attached slicing insert 4 / grating disk 5. Remove the drive axle 9.
5. Figure F: turn the insert holder 6 around and hold it over a washable, scratch-proof surface. Press the extending edges of the slicing insert 4 / grating disk 5 inwards and press it out.

How to clean properly

1. If necessary, wipe down the motor block 15 and the power cable 14 with a damp cloth. Ensure that the motor block 15 is completely dry before the next time it is used.
2. Wash all other parts by hand in warm water and a little detergent.
3. Allow all parts to dry completely before you put them away or use the device again.
4. Wash all other parts by hand in warm water and a little detergent.
5. Allow all parts to dry completely before you put them away or use the device again.

Some cleaning tips

• Clean the device as soon as possible after use in order to prevent food remnants from drying on.
  After processing very salty or acidic foodstuffs, the dough blade 7 / blade insert 8, the insert holder 6 and the slicing insert 4 / grating disk 5 should be washed thoroughly and right away.
• Clean the device as soon as possible after use in order to prevent food remnants from drying on.
  After processing very salty or acidic foodstuffs, the dough blade 7 / blade insert 8, the insert holder 6 and the slicing insert 4 / grating disk 5 should be washed thoroughly and right away.

9. Storage

DANGER for children!

Keep the device out of the reach of children.

DANGER!

In order to avoid accidents, the mains plug 14 must never be connected to a wall socket while in storage.
- Assemble the food processor for storage. This allows the blade insert 8 to be stored safely.
- Select a location where neither high temperatures nor moisture can affect the device.
Figure G: the power cable 14 can be wound up on the cable spool in the housing cover of the motor block 15.

Some cleaning tips

10. Troubleshooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

DANGER! Risk of electric shock!

Do not attempt to repair the device yourself under any circumstances.

Fault	Possible causes/Action
No function	Has the device been connected to the power supply? C h e c k t h tion. A r e 3 dande l bowl 11 locked?
Insert holder 6,blade insert 8 or doughblade 7 are turning with difficuly or are not turning at all	Switch off immediatel-ly, pull out mains plug 14 and check:- Blockage in the bowl?- Food too tough or too hard?- Device not assembléd correctly?
Bowl 11 looks cloudy due to hard food	This is normal and does not affect the function.

11. Recipes

HEALTH HAZARD!

Depending on the ingredients used, foodstuffs may have to be consumed soon after preparation and cannot be stored for longer periods of time, not even in the refrigerator.

NOTES:

The preparation time depends on the recipe used.
- The ingredients used should be at room temperature.

Herb quark

250 g quark 40% fat in dry matter (FDM)

925g natralnyoghuff

2-4 finely chopped cloves of garlic

100g cucumber

Salt to taste

Pepper to taste approx. 30 g mixed herbs (deep-frozen) Dough blade

1. Remove the pips (the core) of the cucumber and dice the cucumber.
2. Put all ingredients into the bowl 11. Place the lid 3 on the bowl and mix well.
3. Season with some more salt and pepper to taste.

NOTE:

If you want to add fresh herbs, use the blade insert 8 first to chop the herbs. You can also chop the pieces of cucumber and the garlic cloves with the blade insert 8 first. Then, add the quark and the yoghurt.

Guacamole dip

2 avocados (very ripe)

2 cloves of garlic

1/2 lemon

1/2 teaspoon mustard

1 teaspoon oil

1-2 tomatoes (quartered)

1 tablespoon cream cheese

Sugar

Salt

Pepper

Tabasco

Blade insert 8

1. Peel the avocados, remove the stones and place in the bowl 11.
2. Combine the garlic, lemon juice, mustard, oil, tomatoes and cream cheese in the bowl 11. Put on the lid 3 and chop finely.
3. Season with sugar, salt and pepper and finally with tabasco.

Yoghurt dressing

150 g natural yoghurt
3 tablespoons white wine vinegar
3 tablespoons sunflower oil
1-2 teaspoons mustard
1 pinch salt / 1 pinch sugar

Dough blade 7

• Combine the natural yoghurt, the white wine vinegar, the sunflower oil, mustard, salt and sugar in the bowl 11. Place the lid 3 on the bowl and mix well.

Finely chopped garlic, chives or mixed herbs can also be added to the yoghurt dressing to give it the final touch.

Rostis

4 potatoes, large, floury

Salt

Pepper, ground

Nutmeg, ground

80 g butter or margarine

1. Cut the peeled potatoes into strips with the grating disk 5.
2. Place the potato mass into a cloth and press out the liquid.
3. Sprinkle the seasoning into the potato mixture and mix everything together.
4. Heat the butter or margarine in a pan.
5. Add the potato mass in portions into the hot oil with a small ladle and press flat with a spatula.
6. Now brown the rostis from both sides until they are crisp.
7. Cut the peeled potatoes into strips with the grating disk 5.
8. Place the potato mass into a cloth and press out the liquid.
9. Sprinkle the seasoning into the potato mixture and mix everything together.
10. Heat the butter or margarine in a pan.
11. Add the potato mass in portions into the hot oil with a small ladle and press flat with a spatula.
12. Now brown the rostis from both sides until they are crisp.

Pesto (red)

150 g tomatoes (dried)
1 bunch basil
1 onion, red (quartered)
2 tablespoons pine kernels
1-2 cloves of garlic
2 teaspoons balsamic vinegar
100 ml olive oil
150 g tomatoes (dried)
1 bunch basil
1 onion, red (quartered)
2 tablespoons pine kernels
1-2 cloves of garlic
2 teaspoons balsamic vinegar
100 ml olive oil

Salt

Pepper

Blade insert 8

1. Mix the tomatoes, plucked basil leaves, pine kernels, garlic, onions, vinegar and oil in the bowl 11. Close with the lid 3 and blend well for 1 minute on level 2.
2. Season with salt and pepper.
3. Mix the tomatoes, plucked basil leaves, pine kernels, garlic, onions, vinegar and oil in the bowl 11. Close with the lid 3 and blend well for 1 minute on level 2.

NOTE:

Rostis

4 potatoes, large, floury

Salt

Pepper, ground

Nutmeg, ground

80 g butter or margarine

Pesto (red)

Salt

Pepper

Blade insert 8

• Store the pesto in a screw-top jar, covered with a layer of olive oil. It will last for approx. 4 weeks in the refrigerator.
• Store the pesto in a screw-top jar, covered with a layer of olive oil. It will last for approx. 4 weeks in the refrigerator.

Pesto (green)

1-2 bunch fresh basil

1-2 cloves of garlic

2 tablespoons pine kernels

150 ml olive oil

2 tablespoons parmesan, grated

Salt + freshly ground black pepper

Blade insert 8

1. Mix basil, garlic, pine kernels, parmesan and olive oil in the bowl 11. Close with the lid 3 and blend well for 1 minute on level 2.

2. Season with salt and pepper.

NOTE:

• Store the pesto in a screw-top jar, covered with a layer of olive oil. It will last for approx. 4 weeks in the refrigerator.

Barbecue-Sauce

200 g tomatoes (quartered)

2 tablespoons vegetable oil

Salt

Garlic salt or fresh garlic

50 ml tomato sauce

30 g tomato paste

2 tablespoons vinegar

2 tablespoons lemon juice

1 teaspoon sugar

Cinnamon

Blade insert 8

1. Mix the quartered tomatoes, oil, sugar, salt and garlic in the bowl 11. Close with the lid 3 and blend with 2-3 short pulses.

2. Remove lid 3 and taste. The garlic taste should be very intense.

3. Add tomato sauce, tomato paste, vinegar, lemon juice, sugar and a pinch of cinnammon. Replace the lid 3 and blend the sauce to a smooth paste.

4. Remove lid 3 and taste.

5. Pour the sauce into a saucepan. Simmer for approx. 45 minutes at a low temperature until it thickens.

NOTE:

If you like, you can pep up the sauce with some chilli powder.

12. Disposal

The symbol showing a wheelie bin crossed through indicates that the product

requires separate refuse collection in the European Un

ion. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. Recycling helps to reduce the consumption of raw materials and protect the environment.

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

13. Technical specifications

Model: SKM 350 A1
Mains voltage: 230 V ~ 50 Hz
Protection class: II	☐
Power rating: 350 W

Subject to technical modification

14. Warranty of the HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us - at our discretion - free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects. This warranty does not include product parts that are subject to standard wear and therefore can be considered wear parts; the same applies to damages at fragile parts, e.g. switches, rechargeable batteries or parts made of glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number

IAN: 273409 and the purchase receipt as a purchase verification for all inquiries.

If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.
- Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.

Service Centre

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., {peak})

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail]

Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

IAN: 273409

Supplier

Please note that the following address is no

service address. First contact the afore

mentioned Service Centre.

HOYER Handel GmbH

Kühnehoe 5

22761 Hamburg

Germany

Sommaire

RISQUE POUR LA SANTÉ !

Chere cliente, cher client,

125 g naturally yoghurt
