USER MANUAL SDBK 2400 E4 SILVERCREST

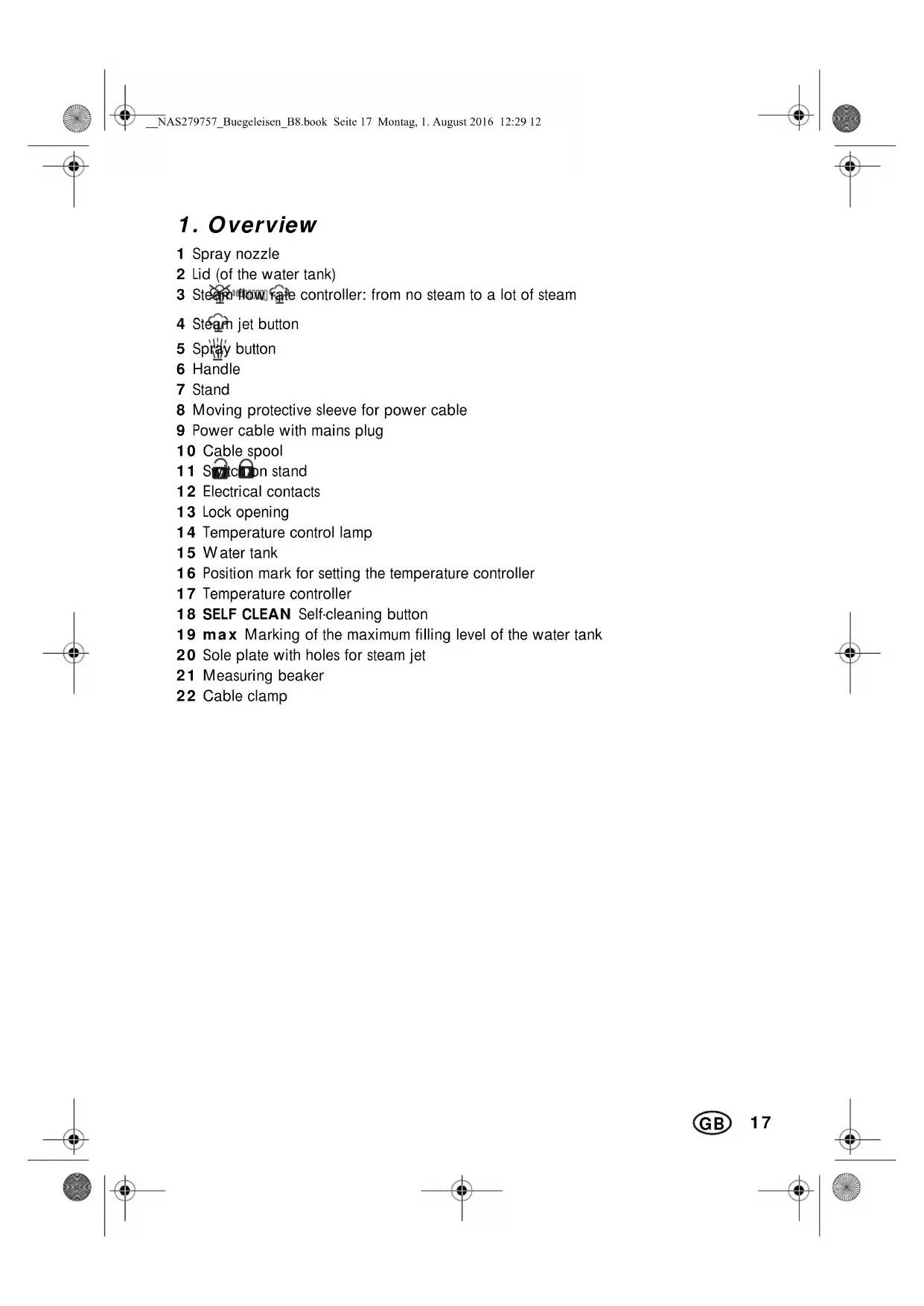

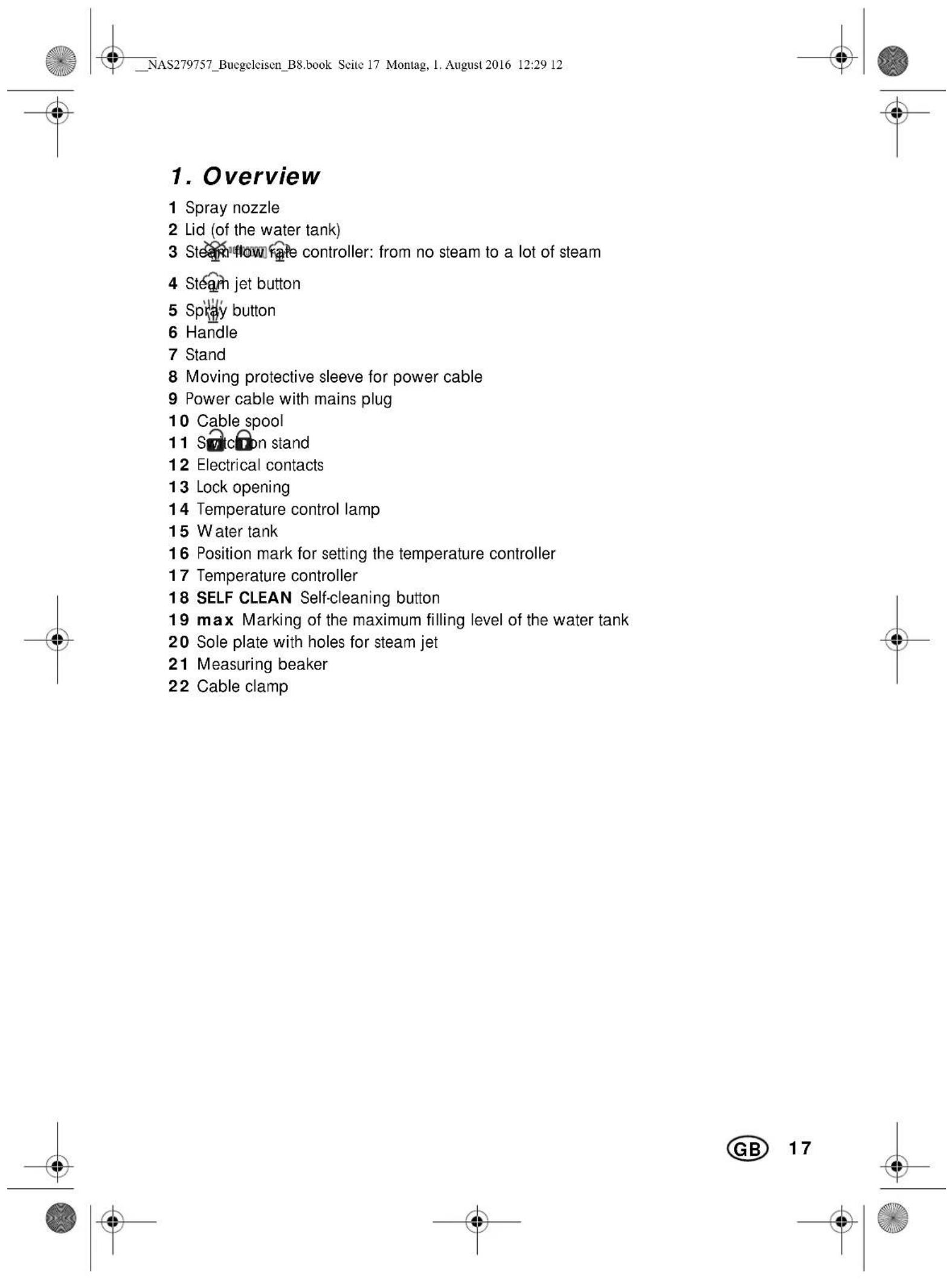

1 Spray nozzle 2 Lid (of the water tank) 3 Steam flow rate controller: from no steam to a lot of steam 4 Steam jet button 5 Spray button 6 Handle 7 Stand 8 Moving protective sleeve for power cable 9 Power cable with mains plug 10 Cable spool 11 Switch on stand 12 Electrical contacts 13 Lock opening 14 Temperature control lamp 15 Water tank 16 Position mark for setting the temperature controller 17 Temperature controller 18 SELF CLEAN Self-cleaning button 19 max Marking of the maximum filling level of the water tank 20 Sole plate with holes for steam jet 21 Measuring beaker 22 Cable clamp BB1$6B%XHJHOHLVHQB%ERRN6HLWH0RQWDJ$XJXVW18

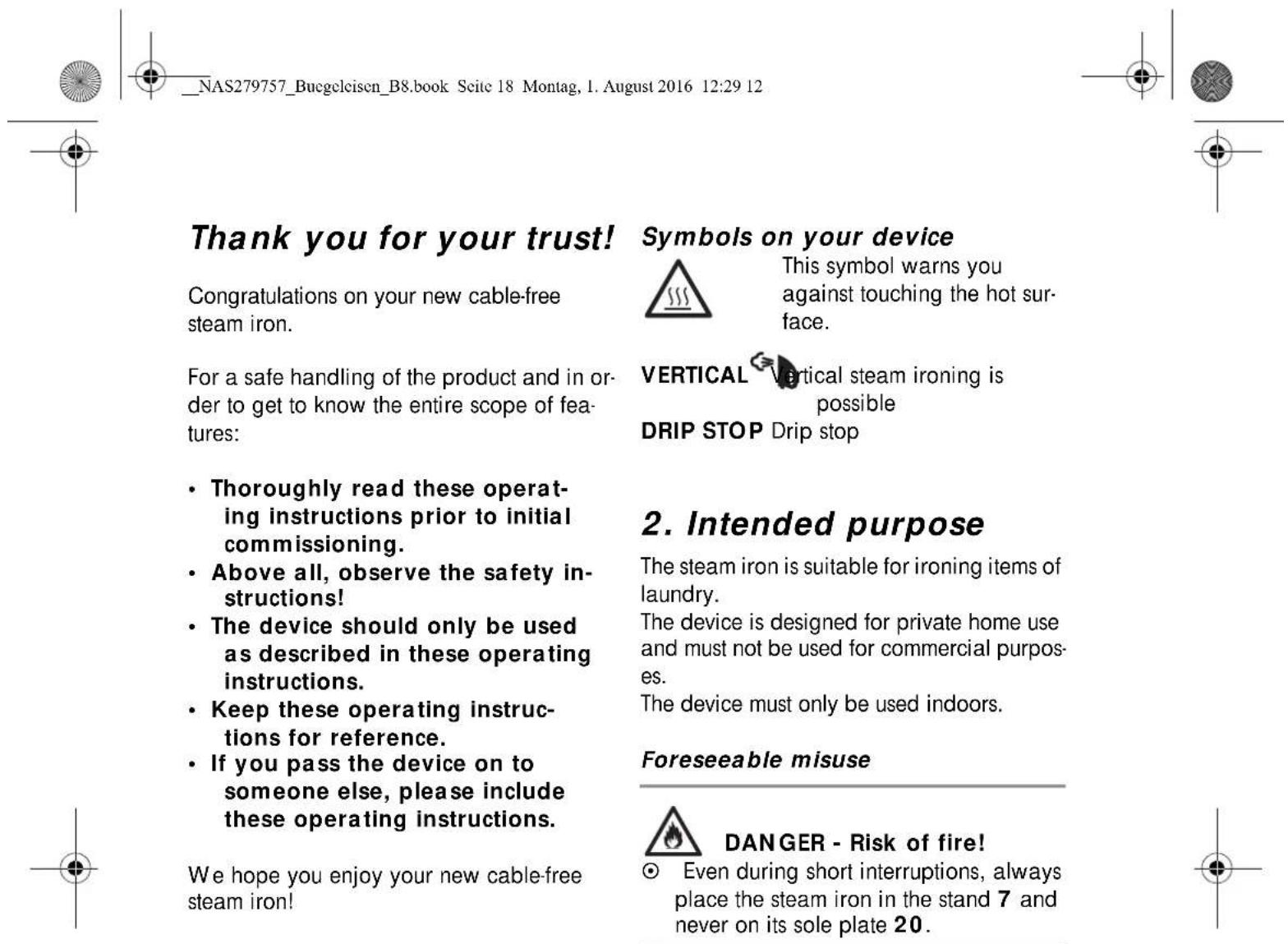

Thank you for your trust! Congratulations on your new cable-free steam iron

For a safe handling of the product and in or- der to get to know the entire scope of fea- tures:

• Thoroughly read these operat- ing instructions prior to initial commissioning.

• Above all, observe the safety in- structions!

• The device should only be used as described in these operating instructions.

• Keep these operating instruc- tions for reference.

• If you pass the device on to someone else, please include these operating instructions. We hope you enjoy your new cable-free steam iron! Symbols on your device This symbol warns you against touching the hot sur- face. VERTICAL Vertical steam ironing is possible DRIP STOP Drip stop

The steam iron is suitable for ironing items of laundry. The device is designed for private home use and must not be used for commercial purpos- es. The device must only be used indoors. Foreseeable misuse DANGER - Risk of fire! ~ Even during short interruptions, always place the steam iron in the stand|7 and never on its sole plate|20.

3. Safety information

Warnings If necessary, the following warnings will be used in these operating instructions: DANGER! High risk: failure to observe this warning may result in injury to life and limb. WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage. CAUTION: Low risk: failure to observe this warning may result in minor injury or material damage. NOTE: Circumstances and specifics that must be observed when handling the device. BB1$6B%XHJHOHLVHQB%ERRN6HLWH0RQWDJ$XJXVW19

Instructions for safe operation ~ This device can be used by children from the age of 8 and peo- ple with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding, if they are supervised or instructed on how to use this device safely and if they are aware of the resulting risks. Children must not play with the device. Cleaning and maintenance by the user must not be performed by children without supervision. ~ While switched on or cooling down, the iron and its power ca- ble must be kept out of the reach of children younger than 8 years. ~ The iron must not be left unattended when it is connected to the power mains. ~ The plug must be pulled out of the socket before the water con- tainer is filled with water. ~ The filling opening must not be opened during operation. ~ The iron must be used on a flat surface. ~ The iron must only be used together with the corresponding stand. ~ Ensure that the stand is always placed on a level, stable surface. ~ The iron must not be used if it has been dropped, if visible dam- age can be seen, or if it leaks. ~ If the power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's custom- er service department or a similarly qualified specialist, in order to avoid any hazards. DANGER for children ~ Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: there is a risk of suffocation. DANGER to and from pets and livestock ~ Electrical devices can represent a haz- ard to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times. DANGER! Risk of electric shock due to moisture ~ Never place the device anywhere that it could fall into water while plugged in. ~ Protect the device from moisture, water drops and water spray. ~ The device, the cable and the mains plug must not be immersed in water or any other liquids. BB1$6B%XHJHOHLVHQB%ERRN6HLWH0RQWDJ$XJXVW20

~ If liquid gets into the device (except in the water tank), pull out the mains plug immediately. Have the device checked before reusing. ~ If the device (steam iron or stand) never- theless falls into water, pull out the pow- er plug immediately and only then remove the device from the water. Do not use the device again, and have it checked by a specialist. ~ The water tank must not be filled with water above the max marking, other- wise it may overflow. ~ Never touch the device with wet hands. DANGER! Risk of electric shock ~ Lay the power cable such that no one can step on it, get caught on it, or trip over it. ~ Only connect the mains plug to a prop- erly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must continue to be eas- ily accessible after the device is plugged in. ~ Ensure that the power cable cannot be damaged by sharp edges or hot points. Do not wrap the power cable around the device (risk of cable damage!). ~ Ensure that the power cable cannot be trapped or crushed. ~ To pull the mains plug out of the wall socket, always pull on the mains plug, and never on the power cable. ~ Disconnect the mains plug from the wall socket… … after every use … if there is a fault, … when you are not using the device, … before you clean the device, and … during thunderstorms. ~ If the power cable or the device is dam- aged, immediately pull the mains plug out of the wall socket. DANGER! Fire hazard! ~ Use the device on a stable, level and heat-resistant surface. ~ Even during short interruptions, always place the steam iron in the stand and never on its sole plate. It must be placed on a stable and heat-resistant surface. Pull out the mains plug during longer in- terruptions or if you leave the room. DANGER! Risk of injury through burning! ~ Do not touch the hot surfaces of the de- vice. ~ Allow the device to cool down com- pletely before you clean it or put it away. ~ Danger due to sudden evaporation. Al- low the device to cool down completely before you refill it with fresh water. ~ Warning: risk of burns from steam and sprayed hot water when using the steam burst button. When using the steam burst, always point the sole plate towards the item of laundry or ironing board. ~ The sole plate becomes very hot during operation. Only touch the handle and control elements of the steam iron dur- ing operation. Never iron items of clothing on a per- son's body. WARNING! Risk of material damage ~ Only use the original accessories. ~ Do not use any astringent or abrasive cleaning agents. ~ Do not iron over e.g. zippers, metal but- tons or applications that could damage the sole plate. ~ Do not put vinegar, limescale remover or any other additives into the water tank. Additives can damage the device. BB1$6B%XHJHOHLVHQB%ERRN6HLWH0RQWDJ$XJXVW21

1 steam iron 1 stand|7 1 measuring beaker|21 1 set of operating instructions

5. Normal or cable-free

ironing The steam iron can be operated cable-free. This makes the steam iron a little lighter, and the cable is no longer in the way during iron- ing. As soon as the steam iron is replaced on the stand|7, the sole plate is heated up again. The temperature control lamp|14 lights up until the set temperature is reached. Settings on the stand The switch|11 on the stand|7 allows you to choose between 2 options: = cable-free ironing = ironing with cable and Storage Cable-free ironing Figure A: lift the steam iron out upwards. The stand|7 will remain standing without the steam iron. Ironing with cable Figure B: raise the steam iron. The stand|7 will stay on the steam iron. NOTE:

• If you want to work with a great many bursts of steam in quick succession, ironing with the cable is recommended. This is bet- ter because the sole plate|

may fall be- low the set temperature faster than normal as a result of the many steam bursts. Storage Figure B: the steam iron is locked in place on the stand|7.

6. Before using for the

1. Ensure that you have pulled out the

2. The switch|11 is in the position . Re-

move the steam iron from the stand|7.

3. Open the lid|2 (of the water tank).

4. Pour water into the measuring beaker |21

and half-fill the water tank|15.

5. Place the steam iron in the stand|7.

6. To lock the iron, set the switch|11 to the

7. Insert the mains plug into a wall socket

corresponding to the technical data.

8. Set the temperature controller|17 to

MAX. The temperature control lamp|14 lights up.

9. When the device has reached the de-

sired temperature (temperature control lamp|14 goes out), iron an old cotton cloth in steam mode until the water tank|15 is empty. BB1$6B%XHJHOHLVHQB%ERRN6HLWH0RQWDJ$XJXVW22

DANGER! ~ The sole plate|20 becomes very hot during operation. During operation touch only the handle|6 and the control elements of the steam iron. ~ Even during short interruptions, always place the steam iron in the stand|7 and never on its sole plate|20. There is a fire hazard! NOTE:

• You may notice an odour when using for the first time. This is a result of the manufacturing process and is not a de- fect with the device. Ensure adequate ventilation. The sole plate|20 cools down slightly during ironing. In order to reach the set temperature again, the device heats the sole plate|20 up again, during which the temperature control lamp|14 is lit. The temperature control lamp|14 goes out again when the set tem- perature is reached. This process repeats it- self during ironing. Ironing with cable: simply continue iron- ing during the heating phase. If you wish to shorten the power cable some- what, press it into the cable clamp|22 at the desired point. Cable-free ironing: the steam iron stands on the stand|7. Wait until the temperature control lamp|14 goes out. For purposes of heating up, regu- larly place the steam iron on the stand|7.

7.1 Filling the water tank

DANGER! ~ Pull the mains plug out of the socket be- fore you fill up the water tank|15.

• Use clean tap water without any addi- tives (e.g. vinegar, limescale remover, starch, perfume, softener).

• The integrated anti-limescale protection reduces limescale deposits for average water hardness, and thus extends the service life of the device. If your tap wa- ter is hard, use distilled water. Where the water is moderately hard, mix dis- tilled water and tap water at a ratio of 1:1.

1. Disconnect the mains plug from the wall

2. Set the steam flow rate controller|3 to

3. The switch|11 is in the position . Re-

move the steam iron from the stand|7.

4. Open the lid|2 (of the water tank) and

tilt the iron forwards slightly to fill it.

5. Use the measuring beaker|21 to pour in

water up to the mark|19 max, but at least up to one quarter. Hold the steam iron upright to check.

6. Close the lid|2 (of the water tank).

7. Place the steam iron on the stand|7 and

set the steam flow rate controller|3 to the desired position.

• The steam iron must be connected to the stand|7 in order to heat up.

1. Figure C: Set the desired temperature

using the temperature controller|17: - MIN the device is not getting hot BB1$6B%XHJHOHLVHQB%ERRN6HLWH0RQWDJ$XJXVW23

- ÷ temperature: up to approx. 110 °C (synthetic materials)

÷÷ temperature: up to approx. 150 °C (Silk, wool)

2. The temperature control lamp|14 is lit

for as long as the steam iron is heating. It goes out when the set temperature has been reached. You can then begin iron- ing.

Use the spray function in order to dampen dry items of laundry. This option is available irrespective of the set temperature. For this purpose, the water tank|15 must be at least one quarter full.

• Repeatedly press the spray button|5 . While doing so, hold the steam iron horizontally with the tip over the item of laundry. Ensure that no water sprays onto the ground.

7.4 Ironing without steam

Sensitive fabrics are ironed at lower temper- atures and without steam. In order to damp- en them, the spray function is available.

1. Set the steam flow rate control|3 to

and set the temperature controller|17 to MIN.

3. Place the steam iron in the stand|7.

4. Connect the mains plug with the wall

temperature controller|17. The tempera- ture control lamp|14 lights up.

6. Start ironing as soon as the ironing tem-

perature has been reached and the tem- perature control lamp|14 goes out.

7. Finish ironing, set the temperature con-

troller|17 to MIN and pull out the mains plug.

8. Allow the steam iron to cool down, and

pour off any remaining water from the water tank|15 through the filling open- ing in the water tank (under the lid|2).

7.5 Ironing with steam

Steam ironing requires a high temperature, at least the temperature setting for . In or- der to additionally dampen items of cloth- ing, the spray function is also available.

1. Set the steam flow rate control|3 to

and set the temperature controller|17 to MIN.

2. Fill the water tank|15.

3. Place the steam iron in the stand|7.

4. Connect the mains plug with the wall

5. Set the temperature controller|17 to the

desired temperature (at least ). The temperature control lamp|14 lights up.

6. As soon as the ironing temperature has

been reached and the temperature con- trol lamp|14 goes out, adjust the steam flow rate controller|3 to the desired steam flow rate and start ironing. The steam will ... … start to come out as soon as you hold the steam iron horizontal, and … stop as soon as: - you hold the steam iron vertically, - you place the steam iron into the stand|7, - the temperature is too low, - the water tank|15 is empty

7. Finish ironing, set the temperature con-

troller|17 to MIN, set the steam flow rate controller|3 to and pull out the mains plug.

8. Allow the steam iron to cool down, and

pour off any remaining water from the water tank|15 through the filling open- ing in the water tank (under the lid|2).

7.6 Steam jet function

The steam jet function requires a high tem- perature. Select a temperature setting be- tween and MAX. For this purpose, the water tank|15 must be at least one quarter full. The steam flow rate controller|3 is locat- ed to the left on the symbol .

• Press the steam jet button while the steam iron glides over the item of laun- dry|4 .

• Wait a few seconds before you press the steam jet button|4 again. NOTE:

• For smoothing items of clothing that are hanging up, you can use the steam jet Button in a vertical position.

DANGER! ~ Pull the mains plug out of the wall socket before you clean the steam iron. ~ Allow the device to cool down before cleaning. CAUTION: ~ Do not use any astringent or abrasive cleaning agents. Cleaning the device

• For cleaning the device, use a soft, moistened cloth.

• Dirt can be removed from the sole plate|20 using commercially available cleaning agents for chrome, silver or stainless steel.

• Residues that have melted on can be re- moved by heating the steam iron up to the MAX setting and then ironing an old cotton cloth. Self-cleaning CAUTION: ~ Do not put vinegar, limescale remover or any other additives into the water tank|15. Additives can damage the de- vice. If you use tap water, you should run the self- cleaning cycle after every use. Otherwise use the self-cleaning cycle at least twice per month.

1. Fill the water tank|15.

2. Place the steam iron in the stand|7.

3. Connect the mains plug with the wall

4. Set the steam flow rate controller|3 to

and set the temperature control- ler|17 to MAX.

5. Wait until the temperature control

6. The switch|11 is in the position . Pick

up the steam iron together with the stand|7.

7. While doing so, hold the device hori-

zontally over a heat-resistant household dish.

|18 SELF CLEAN button and hold it down. Limescale residues will now be ejected with steam and hot water from the steam outlet holes in the sole plate|

9. Repeat steps 1 to 8 until no more resi-

dues are coming out. 10.Pull out the mains plug, allow the device to cool down, and pour off any remain- ing water.

Store the steam iron out of the reach of children.

1. Set the temperature controller|17 to

2. Place the steam iron on the stand|7.

3. Allow the device to cool down.

4. Set the steam flow rate controller|3 to

6. Remove the iron from the stand|

and pour off any remaining water through the filling opening of the water tank (under the lid|

7. Place the iron on the stand|7 and set the

switch|11 to the position .

8. FIGURE D: wind the power cable|9

around the cable spool|10 and fix it in place using the cable clamp|22.

Store the iron and the stand|

in an up- right position.

This product is subject to the provisions of European Direc- tive 2012/19/EC. The sym- bol showing a wheelie bin crossed through indicates that the product requires sep- arate refuse collection in the European Un- ion. This applies to the product and all accessories marked with this symbol. Prod- ucts identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recy- cling electric and electronic appliances. Re- cycling helps to reduce the consumption of raw materials and protect the environment. Packaging When disposing of the packaging, make sure you comply with the environmental reg- ulations applicable in your country.

11. Trouble-shooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself. DANGER! Risk of electric shock! ~ Do not attempt to repair the device your- self under any circumstances. Fault Possible causes/Action

• Connect the device to the mains power supply.

• Use the temperature control- ler|17 to turn up the temper- ature. Little or no steam

• Fill the water tank|15 to at least one quarter full.

• Switch on the steam flow rate controller|3

• Run the self-cleaning cycle. Steam burst is not work- ing.

• Fill the water tank|15 to at least one quarter full.

• Set the right temperature.

• Leave a pause of a few sec- onds between steam bursts. BB1$6B%XHJHOHLVHQB%ERRN6HLWH0RQWDJ$XJXVW26

specifications Subject to technical modification

HOYER Handel GmbH Dear Customer, your device is provided with a 3 year war- ranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our war- ranty presented in the following. Warranty conditions The warranty period starts with the purchase date. Please keep the original purchase re- ceipt in a safe place. This document is re- quired to verify the purchase. If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or re- placed by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are present- ed, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product. Warranty period and statutory claims for defects The warranty period is not extended when the warranty has been claimed. This also ap- plies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immedi- ately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge. Warranty coverage The device was produced carefully according to strict quality guidelines and tested diligent- ly prior to delivery. The warranty applies to material or factory defects. Spray burst is not work- ing.

• Fill the water tank|15 to at least one quarter full.

• For the first spray burst, you need to pump several times. Model: SDBK 2400 E4 Mains voltage: 220-240 V ~50/60 Hz Protection class: I Power rating: 2,000 - 2,400 W Fault Possible causes/Action BB1$6B%XHJHOHLVHQB%ERRN6HLWH0RQWDJ$XJXVW27

Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, batteries, lamps or other parts manufactured from glass. This warranty expires if the product is dam- aged, not used as intended or not serviced. For the proper operation of the product, all in- structions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided. The product is only intended for private and not for commercial use. In the case of incor- rect and improper treatment, use of force and interventions not performed by our author- ised Service Centre, the warranty shall cease. Handling in case of a warranty claim In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 279757 and the purchase receipt as a purchase verification for all inquiries.

• The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or under- side of the device.

• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

• Then, you are able to send a product re- ported as defective free of charge to the service address specified to you, includ- ing the purchase receipt and the infor- mation on the defect and when it occurred. Please visit www.lidl-service.com to download this and many other manuals, product videos and soft- ware. Service Centre Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: hoyer@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: hoyer@lidl.ie Service Malta Tel.: 80062230 E-Mail: hoyer@lidl.com.mt Service Cyprus Tel.: 8009 4409 E-Mail: hoyer@lidl.com.cy IAN: 279757 Supplier Please note that the following address is no service address. First contact the afore- mentioned Service Centre. HOYER Handel GmbH Tasköprüstraße 3 22761 Hamburg Germany
