SDB 2400 F4 - Iron SILVERCREST - Free user manual and instructions

Product type	Steam iron
Model	SDB 2400 F4
Brand	SilverCrest
Supply voltage	220-240 V ~, 50/60 Hz
Power consumption	2020-2400 W
Temperature adjustment	Thermostat with ranges for synthetics, silk/wool, cotton/linen
Steam function	Variable steam, steam shot, spray
Anti-drip function	Yes (DRIP STOP)
Anti-scale filter	Yes (ANTI CALC), permanent
Auto shut-off	Yes, after 30 s on soleplate or 8 min on heel
Self-cleaning function	Yes (SELF-CLEAN)
Tank capacity	Approx. 300 ml (estimation)
Soleplate	Smooth soleplate, material not specified
Power cord	With anti-kink protection
Weight	Approx. 1.5 kg (estimation)
Warranty	3 years
Included accessories	Measuring cup
Maintenance	Clean the soleplate with a soft cloth and non-abrasive cleaner
Safety	Auto shut-off, overheat protection, anti-drip function

Frequently Asked Questions - SDB 2400 F4 SILVERCREST

How to fill the water tank?

Hold the iron tilted, open the filling hole cover and pour tap water using the measuring cup up to the MAX mark. Close the cover.

What type of water to use?

Use only tap water or distilled water. For very hard water, mix with distilled water according to the proportions indicated in the instructions to avoid scaling.

How to adjust the ironing temperature?

Turn the thermostat to the position corresponding to the fabric type: synthetics, silk/wool or cotton/linen. Wait for the temperature indicator to turn off before ironing.

How to use the steam function?

Place the steam regulator on the desired intensity. For the steam shot, press the dedicated button. The thermostat must be at least on the steam range.

What to do if the iron does not produce steam?

Check that the tank has enough water and that the thermostat is set to a sufficient temperature (at least the steam range). If the problem persists, the iron may be defective.

How to clean the iron?

Use the self-cleaning function: fill the tank, heat to maximum, hold the iron over a basin and press the SELF-CLEAN button. Then wipe the soleplate with a damp non-abrasive cloth.

How does the auto shut-off work?

If the iron remains stationary on the soleplate for 30 seconds or on the heel for 8 minutes, the heating stops. To reactivate, lift and tilt the iron slightly.

Can I dry iron with this iron?

Yes, dry ironing is possible at all temperatures. Simply set the steam regulator to the off position.

How to store the iron after use?

Empty the water tank, clean the soleplate, let it cool completely and store it upright on its base in a dry, clean place.

What is the warranty of this product?

The warranty is 3 years from the date of purchase, covering material and manufacturing defects. Keep the receipt as proof of purchase.

USER MANUAL SDB 2400 F4 SILVERCREST

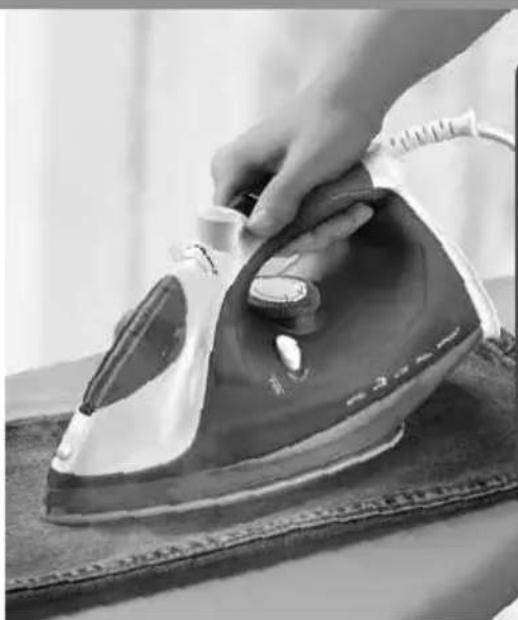

Close-up of a hand using a steam iron on a patterned cloth (no visible text or symbols)

Close-up of a hand using a power iron to press down a small piece of iron on a textured surface (no text or symbols visible)

STEAM IRON / DAMPFBÜGELEISEN / FER À REPASSER VAPEUR SDB 2400 F4

GB IE

STEAM IRON

Operating instructions

FR BE

FER À REPASSER VAPEUR

Mode d'emploi

CZ

NAPAŘOVACÍ ŽEHLIČKA

Návod k obsluze

SK

NAPAROVACIA ŽEHLIČKA

Návod na obsluhu

DK

DAMPSTRYGEJERN

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE Operating instructions Page 1

Contents

Introduction 2

Intended use 2

Package contents 2

Safety information 2

Operating elements 6

Before first use ....6

Filling the water tank....7

Plugging in and ironing 7

Steam ironing....8

Ironing with steam blast 9

Pausing operation of the steam iron 9

After use 9

Drip-stop function 9

Anti-scale filter 10

Automatic switch-off 10

Cleaning....11

Self-cleaning function 11

Housing and sole of the iron 11

Storage 11

Troubleshooting 12

Technical data 12

Disposal....12

Kompernass Handels GmbH warranty 13

Service 14

Importer 14

Introduction

Congratulations on the purchase of your new appliance!

You have chosen a modern, high-quality product. These operating instructions are part of the product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. This appliance may only be used as described and for the purposes indicated. Please also pass these operating instructions on to any future owner.

Intended use

The steam iron is intended exclusively for the ironing of textiles. The iron may only be used indoors and in domestic households. All other use is deemed to be improper use. It is not suitable for commercial use!

Package contents

• Steam Iron
• Measuring beaker
• Operating instructions

Safety information

The voltage of the power source must correspond with the details given on the type plate of the appliance.

▶ To avoid potential risks, arrange for a defective appliance to be checked and possibly repaired by qualified technicians, or contact our Customer Service Department.

To prevent accidents, have defective plugs and/or power cables replaced immediately by an authorised specialist, or our Customer Service or a similarly qualified person.

- When disconnecting the appliance from the power source, pull only on the plug itself, never on the cable.

▶ Never bend (kink) or crush the power cable, always route it in such a way that it cannot come into contact with hot surfaces and such that no one can step on or trip over it.

▶ After every use, before cleaning and when refilling with tap water, always remove the plug from the mains power socket.
▶ Always unroll the power cable fully before switching on and do not use an extension cable.
▶ Never touch the power cable or the plug with wet hands.
▶ Never use the steam iron adjacent to water contained in a bath, shower, wash basin or other vessels. The proximity of water is hazardous, even if the appliance is switched off.
▶ Under no circumstances should you immerse the steam iron in any liquid or permit liquids to penetrate into the housing of the steam iron. Do not expose the appliance to humidity and do not use it outdoors. If any liquid gets into the housing, disconnect the appliance from the mains power socket immediately and have it repaired by a qualified technician.
▶ Do not open the steam iron housing. Have a defective steam iron repaired only by an authorised technician.
▶ Do not use the appliance if it shows visible signs of damage, has fallen or leaks water. Arrange for it to be repaired by qualified specialists.
- Stop using the appliance if the anti-kink protection on the power cable is damaged!
▶ You must always pull the plug out of the power socket before filling the water tank with water.
This appliance may be used by children aged 8 years or more and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised, or have been instructed in the safe use of the appliance and have understood the potential risks. Do not allow children to use the appliance as a plaything. Cleaning and user maintenance may not be carried out by children unless they are supervised.

RISK OF INJURY!

Caution, hot surfaces!

▶ When the steam iron is hot, hold it only by the handle.
▶ Children should be supervised to ensure that they do not play with the appliance.
▶ Never place your hands in the steam spray or on hot metal parts.
▶ Do not open the filler opening for the water tank while the iron is in use. Allow the steam iron to cool down first and remove the plug from the power socket.
The iron and its connecting cable must be kept out of the reach of children under the age of 8 while the iron is switched on or cooling down.
This steam iron should only be used and set down on stable surfaces.
- Place the steam iron only on level and heat-resistant surfaces. The steam iron must be stable.
- When you want to put the steam iron down, always stand it on its base.

RISK OF FIRE!

▶ Never leave a hot steam iron unattended if it is switched on or connected to the mains power supply.
▶ Do not put the steam iron away until it has cooled down completely.

CAUTION! PROPERTY DAMAGE!

If the clothing care instructions forbid ironing (图标 symbol), the clothing item must not be ironed. Ignoring this warning could lead to permanent damage to the clothing item.
▶ Use only the ironing temperatures stated in the care instructions as suitable for the material. Otherwise, you could damage the textiles. If you do not know the correct care instructions, start with the lowest temperature setting.
The water tank should be filled only with mains or distilled water. Otherwise you will damage the steam iron.

NOTE

▶ No user action is required to switch the product between 50 and 60 Hz. The product adapts automatically to either 50 or 60 Hz.

Operating elements

① Water jet
② Filler opening for the water tank
③ Steam control
4 Steam blast button
⑤ Spray button
⑥ Control lamp for the automatic switch-off
⑦ Temperature control lamp
8 Temperature regulator
⑨ Power cable with anti-kink protection
10 Base
⑪ Sole of the iron
12 SELF-CLEAN button

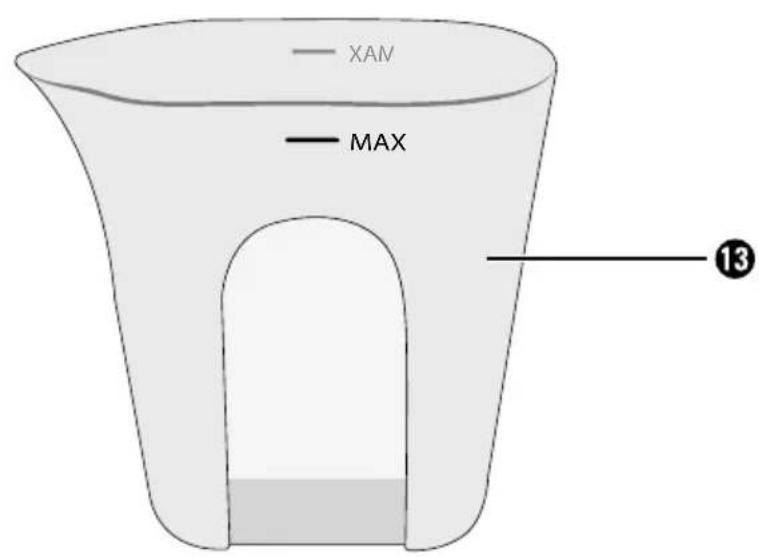

⑬ Measuring beaker

Before first use

RISK OF SUFFOCATION!

▶ Plastic bags may pose a risk. To avoid the risks of asphyxiation, keep plastic bags out of the reach of toddlers and small children.

1) Remove the steam iron from the packaging.
2) Fill the water tank with water (See the section Filling the water tank).
3) Insert the plug into a mains power socket supplying an electrical current as detailed on the rating plate.
4) Move the temperature regulator ⑧ to the "MAX 🔊" position.
5) Heat the steam iron up for several minutes at the highest setting.
6) Activate the steam blast button ⚪ ④ a couple of times so that steam comes out of the sole of the iron ⑪.
7) Then iron over a piece of old piece of material to remove any residues that may remain on the sole of the iron ⑪.

Filling the water tank

1) Hold the iron in your hand at an angle.

2) Open the cover of the filler opening for the water tank ②.

3) Using the measuring beaker ⑬, fill the water tank with water to the "MAX" marking, but no further.

4) Close the cover of the filler opening for the water tank ②.

NOTE

If the mains water in your location is rated as hard, we recommend that you mix the mains water with some distilled water. Otherwise, the jets for the steam blast function could become blocked with limescale prematurely. To extend the optimal steam blast function, mix mains water with distilled water according to the table.

Water hardness Ratio of distilled water to tap water

very soft/soft 0

medium 1:1

hard 2:1

very hard 3:1

The water hardness level can be queried at your local water works.

Plugging in and ironing

Dry ironing without steam is possible at all temperatures, steam ironing is only possible from the setting range 🐘 on the temperature regulator ⑧.

1) Insert the plug into a mains power socket.

CAUTION! PROPERTY DAMAGE!

If the clothing care instructions forbid ironing, the garment must not be ironed. Ignoring this warning could lead to permanent damage to the clothing item.

2) Check the care instructions on the labels in garments to see if they are suitable for being ironed, and at which temperature setting.

Temperature regulator symbol 8	Material type
	Synthetics
	Silk, wool
	Cotton, linen

3) Select the appropriate temperature setting with the temperature regulator 8.

NOTE

▶ Always place the iron on the base ⑩ while it heats up. If you place the iron on the sole of the iron ⑪ and do not move it, the automatic switch-off will be activated after 30 seconds (see section Automatic switch-off) and the appliance stops heating up.

■ The temperature control lamp 🎨 ⑦ lights up. When the set temperature has been reached, the temperature control lamp 🎨 ⑦ goes out.

4) Wait until the temperature control lamp 🎨 ⑦ goes out.

■ To moisten the laundry, press the spray button. ⑤.

This function is suitable for very dry and very crumpled garments.

Steam ironing

1) Set the steam control ③ to the desired steam setting (♀ = no steam, ♕ = maximum steam).

2) The temperature regulator ⑧ must be set to at least the ⚠️ setting. Otherwise no steam will be produced.

Ironing with steam blast

The steam blast function is especially suitable for smoothing difficult-to-reach parts of a garment.

NOTE

The temperature regulator ⑧ must be turned to at least the setting range ⚠️. Otherwise no steam will be produced. To generate the maximum quantity of steam, the temperature regulator ⑧ must be set to the highest level (MAX 📋)

1) Raise the steam iron slightly.
2) For a steam blast, press the steam blast button ⚪ 4.
3) You can also use the steam blast function to smooth hanging textiles.
Hold the iron vertically and press the steam blast button 🌐 4.

Pausing operation of the steam iron

WARNING! RISK OF FIRE!

▶ Never leave a hot steam iron unattended if it is switched on or connected to the mains power supply.

1) Move the temperature regulator ⑧ to the "MIN" position.
2) Stand the steam iron only on the base ⑩.

After use

■ Remove the plug from the mains power socket.
■ Empty the water tank and clean the sole of the iron ⑪.
Place the cooled-down steam iron on the base 10.

Drip-stop function

With conventional steam irons, water can drip from the sole of the iron ⑪ at low temperatures. This iron however, possesses a new feature, the DRIP-STOP function DRIP-STOP temperatures, the iron automatically switches off the steam-blast function. When this happens, you will hear a "CLICK". Then set a suitable temperature with the temperature regulator ⑧. As soon as this is reached, steam production is resumed.

NOTE

▶ Wait until the set temperature has been reached before pressing the steam blast button ≈ 4 again. Otherwise, water could drip from the sole of the iron.

Anti-scale filter

The iron has an anti-scale filter (ANTI CALC). This is a permanent water filter. It does not need to be replaced or maintained.

To preserve the function of the water filter, fill the water tank only with tap water or distilled water. Do not use any additives. These could damage the water filter.

Automatic switch-off

This steam iron is fitted with an automatic switch-off system. This stops the iron from heating up.

If the iron is resting on the sole of the iron ⑪ and is not moved for about 30 seconds, you will hear a warning beep and the control lamp for the automatic switch-off ⚙ ⑥ will flash. The iron will stop heating up. To deactivate the automatic switch-off, lift up the iron and move it gently from side to side. The control lamp for the automatic switch-off ⚙ ⑥ goes out and the iron will heat up again.

If the iron is on its base ⑩ and is not moved for about 8 minutes, there will be a warning beep and the control lamp for the automatic switch-off ⑥ flashes. The iron will stop heating up. To deactivate the automatic switch-off, lift up the iron and move it gently from side to side. The control lamp for the automatic switch-off ⑥ goes out and the iron will heat up again.

NOTE

The automatic switch-off is not intended as a substitute for removing the plug from the mains power! This is merely intended to reduce the fire hazard if you forget to switch off the iron!

Cleaning

Self-cleaning function

1) Fill the water tank to the "MAX" marking.
2) Insert the plug into the mains power socket.
3) Move the temperature regulator ⑧ to the "MAX 🔊" position.
4) Set the steam control ③ to maximum steam power.
5) Allow the steam iron to heat up until the temperature control lamp 🎨 ⑦ goes out and then lights up again.
6) Hold the steam iron horizontally over a suitable container.
7) Press the SELF-CLEAN button ⑫ and keep it pressed. Move the steam iron back and forth a little. Steam and boiling water will flow from the steam exit holes in the sole of the iron ⑪. Any impurities that may be present are flushed out.
8) Release the SELF-CLEAN button ⑫ as soon as all of the water in the water tank is used up.
9) Dry the sole of the iron ⑪ thoroughly. To do this, move the sole of the iron ⑪ back and forth several times over a towel or an old piece of material.
10) Allow the steam iron to cool down before placing it in storage.

Housing and sole of the iron

RISK OF ELECTROCUTION!

▶ Remove the plug before cleaning the device. There is a risk of electric shock!

RISK OF INJURY!

▶ Allow the appliance to cool down before cleaning it. Otherwise, there is risk of burns!

CAUTION! PROPERTY DAMAGE!

▶ Do not use abrasive, aggressive or chemical cleaning agents. They can damage the surface and also lead to irreparable damage to the appliance.

■ Clean the housing with a soft, dry cloth only.

- Clean the sole of the iron ⑪ using a damp cloth and a mild, non-scouring detergent.

Storage

■ Store the cooled-down appliance in a clean, dust-free and dry location.

Troubleshooting

Problem Cause Solution
The steam iron blasts out no steam/very little steam.	The reserves of tap water in the steam iron are depleted.	Fill the water tank with tap water (See Filling the water tank).
The steam iron does not get hot.	The steam iron is not plugged in or is not switched on.	Insert the plug into a wall power socket and adjust the temperature regulator 8 to the desired ironing temperature.
	The steam iron is defective.	Arrange for the steam iron to be repaired by qualified specialists.

Technical data

Supply voltage 220 - 240 V \~ (AC), 50/60 Hz

Power consumption 2020 - 2400 W

Disposal

Never dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispose of the appliance through an approved disposal facility or your municipal waste facility. Please observe the currently applicable regulations. Please contact your waste disposal facility if you are in any doubt.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The product is recyclable, subject to extended producer responsibility and is collected separately.

Dispose of all packaging materials in an environmentally friendly manner.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7: Plastics, 20-22: Paper and cardboard, 80-98: Composites.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 412019_2110 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 412019_2110.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE ServiceIreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 412019_2110

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einleitung 16

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Table des matières

Introduction 30

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding 48

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Spis treści

W step 62

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Úvod....76

POZOR! HMOTNÉ ŠKODY!

POZOR! HMOTNÉ ŠKODY!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Obsah

Úvod....90

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Índice

Introducción....104

Uso previsto 104

Volumen de suministro....104

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Indholdsfortegnelse

Indledning....118

Anvendelsesområde 118

Pakkens indhold....1 1 8

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Indice

Introduzione....132

Uso conforme 132

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Tartalomjegyzék

Bevezető 146

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

Kazalo

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMČIJA

www.kompernass.com

Pooblaščeni serviser

SI ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN 412019_2110

Garancijski list

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie

Stav informaci · Stan informacji · Stav informacií · Estado de las informaciones · Tilstand af information:

02 / 2022 · Ident.-No.: SDB2400F4-122021-2
