USER MANUAL SDRB 1000 B1 SILVERCREST

BROSSE A VAPEUR AVEC PIED SDMF 1100 A1

1. Overview 15
2. Intended purpose 16
3. Safety instructions 16
4. Items supplied 19
   5.Before using for the first time 19
5. Operation 20

6.1 Care instructions 20
6.2 Tips on smoothing 20
6.3 Filling the water tank 20
6.4 Steam jet function 20
6.5 Smoothing using the clothes brush 21

7.Cleaning 22
8.Storage 22
9. Troubleshooting 22
10. Disposal 23
11. Technical specifications 23
12. Warranty of the HOYER Handel GmbH 24

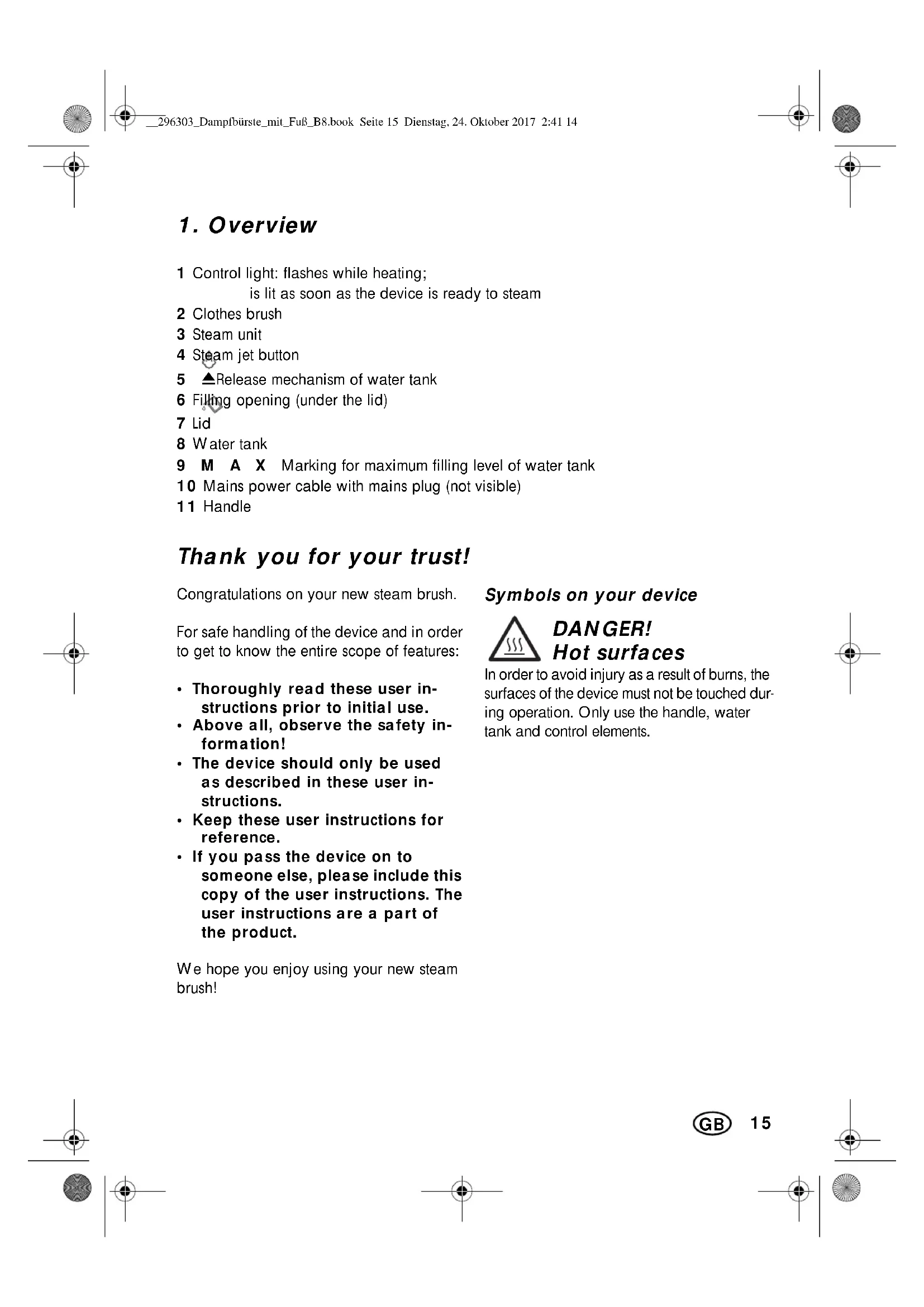

1. Overview

1 Control light: flashes while heating; is lit as soon as the device is ready to steam
2 Clothes brush
3 Steam unit
4 Steam jet button
5 Release mechanism of water tank
6 Filling opening (under the lid)
7 Lid
8 Water tank
9 MAX Marking for maximum filling level of water tank
10 Mains power cable with mains plug (not visible)
11 Handle

Thank you for your trust!

Congratulations on your new steam brush.

For safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these user instructions prior to initial use.
• Above all, observe the safety information!
  The device should only be used as described in these user instructions.
• Keep these user instructions for reference.
• If you pass the device on to someone else, please include this copy of the user instructions. The user instructions are a part of the product.

We hope you enjoy using your new steam brush!

Symbols on your device

DANGER! Hot surfaces

In order to avoid injury as a result of burns, the surfaces of the device must not be touched during operation. Only use the handle, water tank and control elements.

DANGER for children

Children must not play with packing material. Do not allow children to play with plastic bags. There is a risk of suffocation.
- Keep the device out of the reach of children.

DANGER to and from pets and livestock

• Electrical devices can represent a hazard to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times.

DANGER! Risk of electric shock due to moisture

• Never use this device in the vicinity of water in bathtubs, showers, washbasins or other containers. The proximity of water represents a hazard even when the device is switched off.
  The device, the mains power cable and the mains plug must not be immersed in water or any other liquids.
• Protect the device from moisture, water drops and water splashes: failure to observe this instruction may result in an electrical shock hazard.
• If liquid gets into the device, remove the mains plug immediately. Have the device checked before reusing.
• If the device has fallen into water, pull out the mains plug immediately, and only then remove the device from the water. Do not use the device again, and have it checked by a specialist workshop.
• Never touch the device with wet hands.

DANGER! Risk of electric shock

• Lay the mains power cable such that no one can step on it, get caught on it, or trip over it.
• Never put the device into operation if there are visible damages to the device or the mains power cable, if the device has been dropped before or is leaking.
• Only connect the mains plug to a properly installed and easily accessible earthed wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must continue to be easily accessible after the device is plugged in.
• Ensure that the mains power cable cannot be damaged by sharp edges or hot points.
• When using the device, ensure that the mains power cable cannot be trapped or crushed.
  To pull the mains plug out of the wall socket, always pull on the plug, and never on the mains power cable.
  Disconnect the mains plug from the wall socket...

...if there is a fault,
...when you are not using the device,
...before you clean the device and
...during thunderstorms.

To avoid any risk, do not make modifications to the product.

FIRE HAZARD

Always place the steam brush back on the base, even during short interruptions. Never place it on its side or on the steam unit. It must be placed on a level, stable, dry and heat-resistant surface. Pull out the mains plug during longer interruptions or if you leave the room.

DANGER! Risk of injury through burning

Do not touch the hot surfaces of the device.
- Allow the device to cool down completely before you clean it or put it away.
- Warning, risk of burns from steam and splashes of hot water when using the steam jet button! when using the steam jet, always point the steam unit towards the item of laundry.
The steam unit becomes very hot during operation. Only touch the handle and control elements of the device during operation.
- Never smooth clothes while they are being worn.
- Only transport the device when it has cooled down.
- Wait for the device to cool down before cleaning.
Please wait until the device has cooled down before you attach and remove the clothes brush.
- Allow items of clothing to cool down on a clothes hanger before you wear them.

WARNING! Risk of material damage

Only use the original accessories.
Do not use any sharp or abrasive cleaning aids.
Do not use the device on e.g. zips, metal buttons or applications that could damage the steam unit.
- Never fill the water tank with chemical substances, cleaning agents – with the exception of descaling agents – or other liquids. Do not use chemically demineralised water. This may result in irreparable damage to the device.

4. Items supplied

1 steam brush
1 clothes brush 2
1 copy of the user instructions

Please observe the illustrations on the fold-out page.

Unpacking

1. Remove all parts from the packaging.
2. Check that all parts are present and intact.
3. Remove any stickers or films from the device.

5. Before using for the first time

NOTE: you may notice an odour when using for the first time. This is a result of the manufacturing process and is not a defect with the device. Ensure adequate ventilation.

1. Ensure that you have pulled out the mains plug 10.
2. Figure A: press both release buttons 5 of the water tank 8 and pull the tank straight outwards.
3. Open the lid 7 over the filling opening 6.
4. Fill the water tank 8 to about halfway and then close the lid 7.
5. Place the water tank 8 onto the device. The water tank must audibly click into place with the release mechanism 5.
6. Insert the mains plug 10 into an earthed wall socket corresponding to the technical data. The control light 1 flashes.
7. When the device is ready to steam, the control light 1 will be lit continuously.

6. Operation

6.1 Care instructions

.

All materials marked with the iron symbols do be treated using the steam brush.

.

Materials marked with the crossed-out iron symbol must not be treated using the steam brush.

• Do not treat leather, velvet, impregnated furniture, or materials that are sensitive to steam. Otherwise you could damage the textiles/ furniture.
• Caution is required in the case of materials that are sensitive to heat, such as synthetic materials (e.g. polyamide or rayon). With these materials you should test beforehand in a spot that is not visible (e.g. the inside of a seam) to determine whether the hot steam damages the material. Do not touch these materials directly with the hot steam unit3. You should only use the steam jet function.

6.2 Tips on smoothing

The best results can be obtained if you hang the items of clothing after washing, e.g. on a clothes hanger. The material thus dries with fewer creases.
To support this process, you can pull the material smooth. However, be careful not to steam your hand.
- Very strong folds or a smooth, ironed appearance cannot be produced using the steam brush. In such cases, we recommend using an iron.
- During steam smoothing, the material absorbs moisture. Allow the materials to dry completely before you put them away, e.g. in a wardrobe.

6.3 Filling the water tank

• Use clean tap water without any additives (e.g. vinegar, starch, perfume, softener).
  If your tap water is of medium hardness or higher, mix in some distilled water:

Hardness of the tap water	Distilled water : tap water
very soft/soft 0
medium 1:1
hard 2:1
very hard	3:1

• Your local waterworks will inform you of the hardness of your water.
• Figure A: press both release buttons 5 of the water tank 8 and pull the tank straight outwards.
• Open the lid 7 over the filling opening 6.
• Hold the water tank 8 under a tap and fill it no higher than the MAX marking and then close the lid 7.
• Place the water tank 8 onto the device. The water tank must audibly click into place with the release mechanism 5.

6.4 Steam jet function

DANGER! Risk of injury through burning!

• Warning, risk of burns from steam and splashes of hot water when using the steam jet button 4! When using the steam jet, always point the steam unit 3 towards the item of laundry.

NOTE: the steam jet function can be used with or without the clothes brush 2.

1. Insert the mains plug 10 into an earthed wall socket corresponding to the technical data. The control light 1 flashes.
2. When the device is ready to steam, the control light 1 will be lit continuously. Start smoothing.
3. Hold down the steam jet button 4 while moving the steam brush smoothly over the item of laundry.
4. If water drips out of the steam unit 3, release the steam jet button 4 so that the device can heat up.

6.5 Smoothing using the clothes brush

DANGER! Risk of injury through burning!

• Please wait until the device has cooled down before you attach and remove the clothes brush 2.
• Never smooth clothes while they are being worn.
• Allow the items of clothing to cool down on a clothes hanger before you wear them.

Removing the clothes brush

To release the clothes brush 2, pull lightly on the small wing 12 on the underside of the clothes brush. The clothes brush then comes loose very easily.

Caring for your garments

1. Figure B: hang the crumpled item of laundry on a clothes hanger.
2. Pull the item of laundry flat with one hand, applying the steam from top to bottom. Apply slight pressure using the clothes brush 2 and move the device over the item of laundry from top to bottom. The combination of steam and the clothes brush 2 gently removes all of the creases.

Caring for curtains and upholstery

1. Remove creases and wrinkles from drapery by hanging them over a rail.
2. Follow the instructions under "Caring for your garments".
3. Always carry out a test beforehand on a spot which is not visible.
4. If you use the device horizontally, hold it vertically from time to time in order to obtain the maximum steam power.

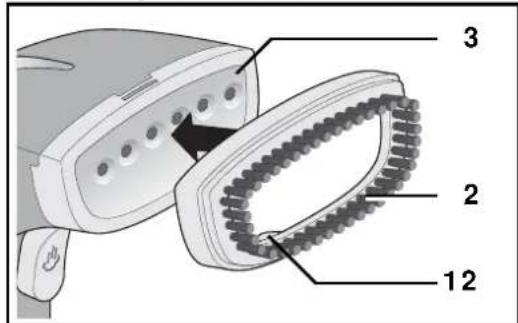

Attaching the clothes brush

• Slide the clothes brush 2 over the steam unit 3 and press it firmly into position. The small wing 12 must be on the underside.

7. Cleaning

DANGER! Risk of electric shock!

Pull the mains plug 10 out of the wall socket before you clean the device.

DANGER! Risk of injury through burning!

• Allow the device to cool down before cleaning.

WARNING! Risk of material damage!

Do not use any sharp or abrasive cleaning aids.

Cleaning the device

• For cleaning the device, use a soft, moistened cloth.
• Dirt can be removed from the steam unit 3 using commercially available cleaning agents for chrome, silver or stainless steel.

Dscaling

If the steam power is reduced after a certain time, please descale the device.

• For descending, you should use a commercially available descending agent based on citric acid. Please follow the instructions for the descending agent.
• Place the descending agent into the water tank 8.
• Connect the mains plug 10 with the wall socket. The control light 1 flashes.
• Allow the descending agent to work.
• Press the steam jet button 4 and use the steam brush to steam an old cotton cloth.

8. Storage

1. Pull out the mains plug 10.
2. Allow the device to cool down.
3. Remove the water tank 8 and open the lid 7.
4. Pour any remaining water out of the water tank 8 through the filling opening 6.
5. Replace the water tank 8.

9. Troubleshooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

DANGER! Risk of electric shock!

Do not attempt to repair the device yourself under any circumstances.

Fault	Possible causes / Action
No function	Connect the device to the mains power supply.
Little or no steam	Fill the water tank 8 . Descale the device.
Steam jet is not working.	Fill the water tank 8 . It may be necessary to hold down the button for a longer time to trigger the first steam jet. Leave a pause of a few seconds between steam jets.
Water is dripping out of the steam unit 3 .	Descale the device.

10. Disposal

This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelix bin crossed through indicates that the product requires sep

arate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. Recycling helps to reduce the consumption of raw materials and protect the environment.

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

11. Technical specifications

Model: SDMF 11	00 A1
Mains voltage: 220 - 240 V~ 50/ 60 Hz
LED: RG 0
Length of mains power cable: approx. 2.2 m
Protection class: I
Power rating: 900 - 1100 W

Technical Symbols

GS	Certified Safety. Devices must comply with the generally acknowledged rules of technology and the German Product Safety Act (Produktssicherheitsgesetz - ProdSG).
CE	With the CE marking, HOYER Handel GmbH declares the con-formity with EU guidelines.
	This symbol reminds you to dis-pose of the packaging in an environ-mentally friendly manner.
21PAP	Recyclable materials: cardboard (except corrugated cardboard)

Subject to technical modifications.

12. Warranty of the HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us - at our discretion - free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects.

Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, batteries, lamps or other parts manufactured from glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

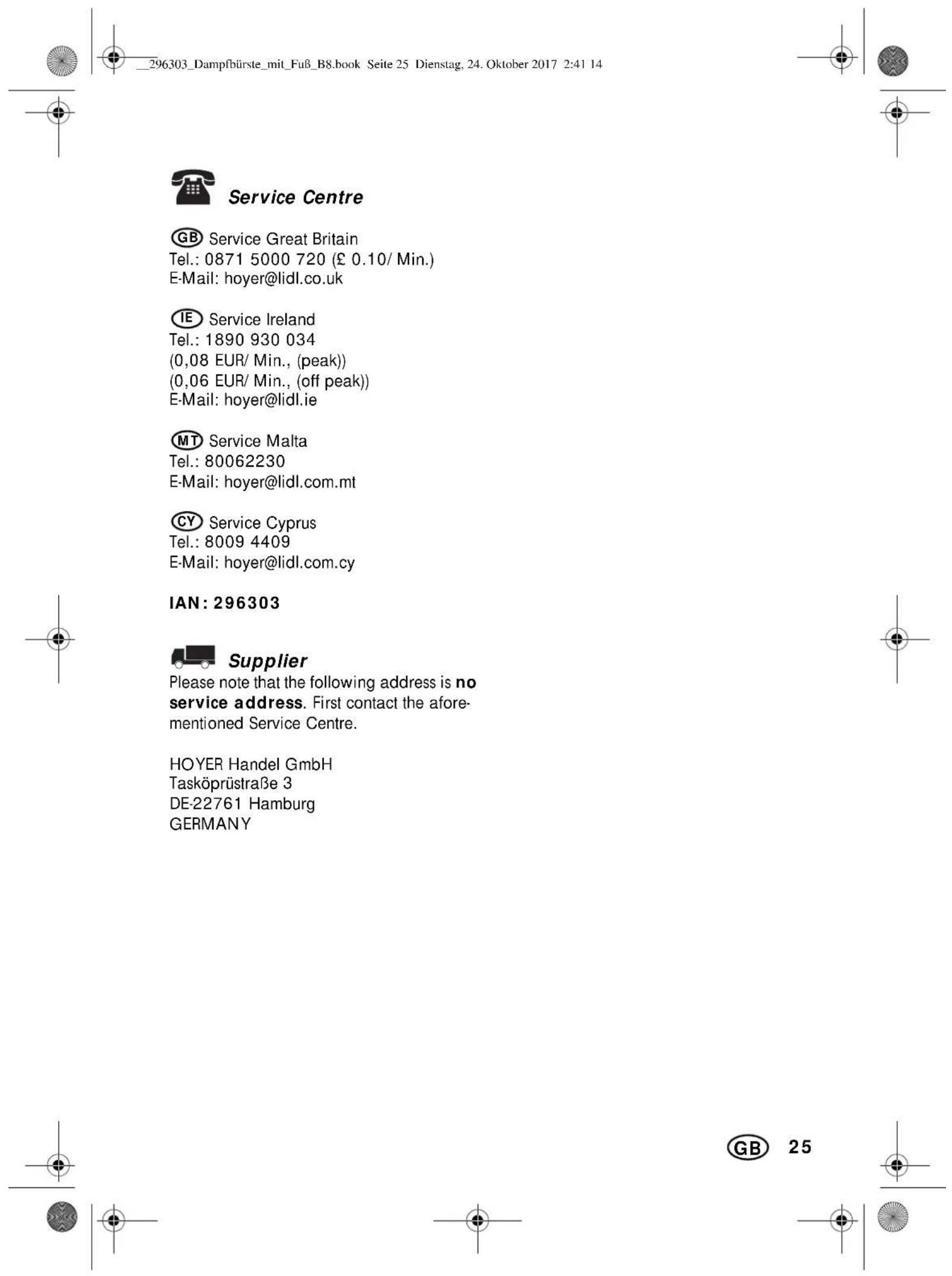

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number

IAN: 296303 and the purchase receipt as a purchase verification for all inquiries.

• The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or underside of the device.
• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.
• Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.
