Product Type	Wireless Weather Station
Brand	Oregon Scientific
Model	BAR826HG
Main unit dimensions	120 x 67 x 205 mm
Main unit weight	364 g (without batteries)
Probe dimensions (RTGR328N)	70 x 24.5 x 116 mm
Probe weight	108 g (without batteries)
Main unit power supply	3 UM-3 (AA) 1.5 V batteries
Probe power supply	2 UM-3 (AA) 1.5 V batteries
Indoor temperature	-5°C to 50°C
Outdoor temperature	-20°C to 60°C
Temperature resolution	0.1°C
Humidity	25% to 95%
Humidity resolution	1%
Barometer	Units: mb/hPa or inHg; resolution 1 mb
Weather forecast	Icons: sunny, partly cloudy, cloudy, rainy, snowy
Radio-controlled time	DCF (Europe) / MSF (United Kingdom)
Alarms	Daily alarm and snow pre-alarm
Snooze function	8 minutes
Transmission range	Up to 70 m (without obstacles)
RF frequency	433 MHz
Number of channels	5 (additional probes sold separately)
Display	LCD with backlight (8 seconds)
Maintenance and cleaning	Damp cloth and alcohol-free detergent
Safety	Do not immerse; do not use rechargeable batteries
Spare parts and repairability	Additional probes available; replaceable batteries
General information	Manual available in multiple languages at notice-facile.com

Frequently Asked Questions - BAR826HG OREGON SCIENTIFIC

How to set the time manually?

To set the time manually, first disable the radio-controlled time by pressing the MODE button to access the Clock area, then press the SNOOZE/LIGHT button for 2 seconds. Next, press MODE for 2 seconds to enter setting mode. Use the +/∇ buttons to change values (time offset, 12/24h format, hour, minutes, year, date format, month, day, language) and MODE to confirm.

How to enable or disable the radio-controlled time?

Access the Time display area by pressing MODE. Then press the SNOOZE/LIGHT button for 2 seconds to enable or disable reception of the radio-controlled signal. The corresponding icon displays according to the status.

How to add an additional probe?

You can add up to 5 probes. For each new probe (compatible model like RTGR328N), insert the batteries, select a unique channel (1-5) with the selector, then press RESET. On the main unit, press MODE to go to the Temperature/Humidity area, then hold MEM CH for 2 seconds to start searching for the probe.

What to do if the screen displays "LLL" or "HHH"?

These indications mean that the temperature is out of the measurement range. LLL indicates a temperature that is too low, HHH a temperature that is too high. Check that the probe is placed in a suitable environment (indoor: -5°C to 50°C, outdoor: -20°C to 60°C).

How to perform a probe search?

Press MODE to access the temperature and humidity display area. The ∇ icon appears next to it. Then hold the MEM CH button for 2 seconds. The device will search for all available probes. Check the batteries if no probe is detected.

How to set the altitude for accurate pressure measurement?

Access the Barometer area by pressing MODE. Hold MODE for 2 seconds, then use the + or ∇ buttons to adjust the altitude in 10-meter steps (from -100 m to 2500 m). Confirm with MODE. A correct altitude setting ensures accurate barometric readings.

How to use the snooze function?

When the alarm sounds, press the SNOOZE/LIGHT button to activate snooze. The alarm will stop for 8 minutes, then sound again. The SNOOZE or LIGHT icons flash during this period. To stop the alarm completely, press any other key.

How to interpret the weather forecast icons?

The animated icons indicate the forecast for the next 12 to 24 hours. Sunny (day/night), Partly cloudy (day/night), Cloudy, Rainy and Snowy. The night icon displays from 6 PM to 6 AM. If the outdoor temperature (channel 1) is ≤ 2°C, the rainy icon becomes snowy.

How to clean the weather station?

Use a damp cloth and a mild alcohol-free detergent. Never immerse the device in water. Avoid scratching the LCD screen. Remove the batteries if the device is not used for a long period.

What to do if the device does not receive the radio-controlled signal?

Check that the probe is within 1500 km of the transmitter (Frankfurt or Rugby). Make sure the probe is properly installed and the batteries are new. You can force a manual search by pressing the SEARCH button on the probe for 2 seconds. If the problem persists, disable the radio-controlled time and set the time manually.

USER MANUAL BAR826HG OREGON SCIENTIFIC

Wireless Weather Station

Model: BAR826HG

USER MANUAL

CONTENTS

Introduction 2

Product Overview 3

Front View. 3

Back View 4

Table Stand and Wall Mount 5

Remote Sensor (RTGR328N) 7

Getting Started 8

Batteries 8

Change Settings 9

Remote Sensor 9

Set Up Thermo / Hygro Sensor (RTGR328N) 9

Sensor Data Transmission 10

Search for Sensor 11

Clock and Calendar 11

Radio-Controlled Clock 11

Turn Radio-Controlled Clock ON/OFF 12

SetClock 12

SwitchClockDisplay 12

Alarms 13

Set Daily Alarm 13

Set Pre-Alarm 13
Activate Alarm 14
Snoopze 14

Barometer 14

View Barometer Area 14
Select Measurement Unit 14
View Barometer History 14
Set Altitude 14

Weather Forecast 15

Weather Forecast Icons 15

Temperature and Humidity 15

View Temperature and Humidity Area 16
Select Measurement Unit 16
Select Sensor Channel 16
Minimum / Maximum Records 16
Temp, Humidity & Pressure Trend 16
Comfort Zone 17

Backlight 17

Reset System 17
Safety and Care 17
Warnings 17
Troubleshooting 18
Specifications 18
About Oregon Scientific 20
EC-Declaration of Conformity 20

INTRODUCTION

Thank you for selecting the Oregon Scientific™ Wireless Weather Station (BAR826HG). This powerful device bundles time keeping, weather monitoring, indoor and outdoor temperature and humidity readings, barometric pressure trends and altitude adjustment, into a single tool you can use from the convenience of your home.

In this box, you will find:

• Main unit
  Remote sensor (RTGR328N)
• Batteries

NOTE The main unit is compatible with the following sensors:

THGR228N, THGR328N, THR228N, THR328N, THWR288.

Additional sensors are sold separately. Please contact your local retailer for more information.

Keep this manual handy as you use your new product. It contains practical step-by-step instructions, as well as technical specifications and warnings you should know.

PRODUCT OVERVIEW

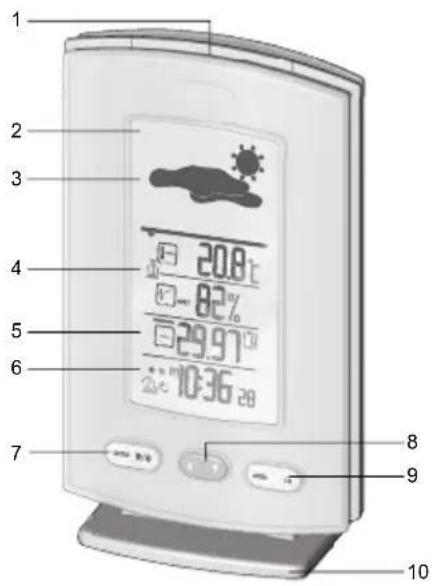

FRONT VIEW

1. SNOOZE / LIGHT: Activate 8-minute snooze or backlight
2. LCD display
3. Weather Forecast Area: Animated weather forecast
4. Temperature / Humidity Area: Readings and trend lines; sensor channel number
5. Barometer Area: Barometric pressure readings and trend lines
6. Clock / Alarm / Calendar Area: Radio-controlled clock; alarms; calendar
7. MODE: Switch areas; change settings / display

View alarm status; set alarm

1. Increase setting; toggle between display modes :Decrease setting; toggle between display modes
2. MEM: View current, maximum and minimum temperature / humidity readings and historical barometer readings

CH: Switch remote sensor display

1. Table stand

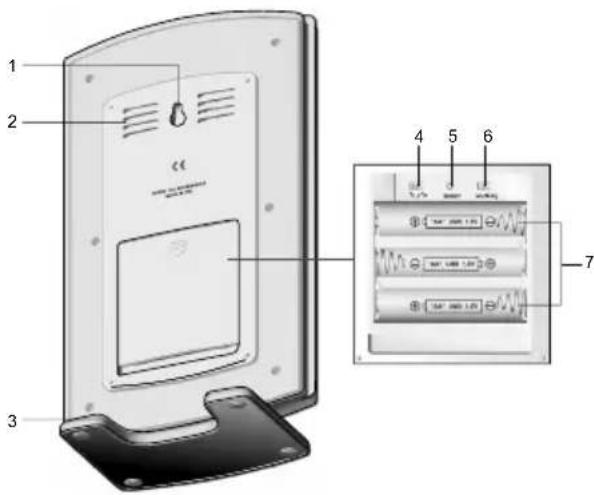

1. Wall mount
2. Ventilation holes
3. Table stand
4. ^ C / ^ switch
5. RESET button
6. mb / inHg switch
7. Battery compartment (cover off)

TABLE STAND AND WALL MOUNT

To fix the table stand on to the base of the main unit:

To mount the unit on the wall:

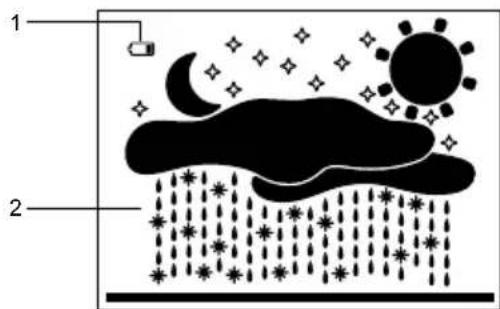

Weather Forecast Area

1. Low battery icon for main unit
2. Weather display

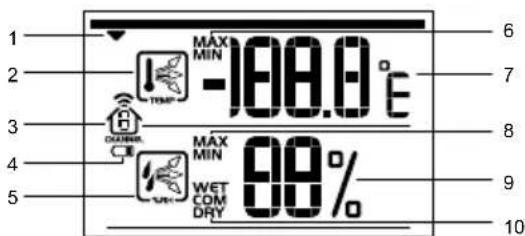

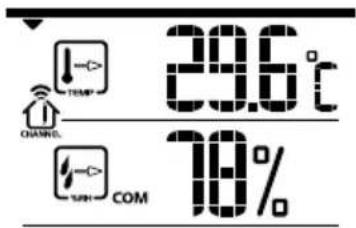

Temperature / Humidity Area

1. Selected Area icon
2. Temperature trend
3. Channel number (1-5) / reception status
4. Low battery icon for remote sensor
5. Humidity trend
6. MAX / MIN temperature
7. Temperature - °C / °F
8. MAX / MIN humidity
9. Humidity
10. Comfort levels

Barometer Area

1. Barometric pressure trend
2. Barometric pressure reading
3. Barometric pressure history

e.g., -1 means barometric pressure value one hour ago, -2 means 2 hours ago etc

1. Barometric unit

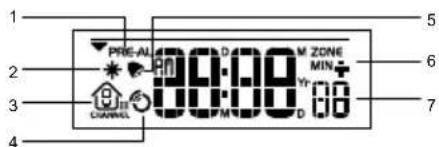

Clock / Alarm / Calendar Area

1. Pre-Alarm / Alarm display or setting
2. Pre-Alarm is set
3. Channel with RF clock reception is locked
4. RF clock reception icon
5. Daily Alarm is set
6. Offset time-zone
7. Time / date / calendar

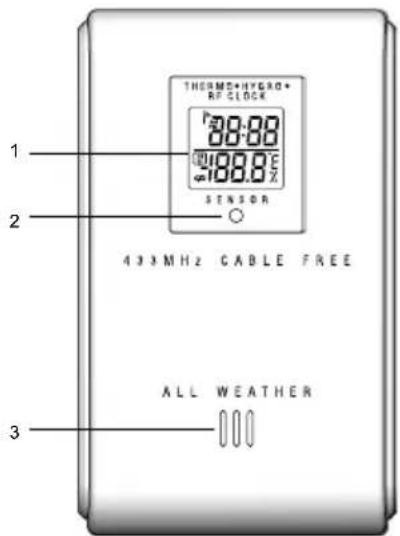

REMOTE SENSOR (RTGR328N)

1. LCD display
2. LED status indicator
3. Ventilation duct

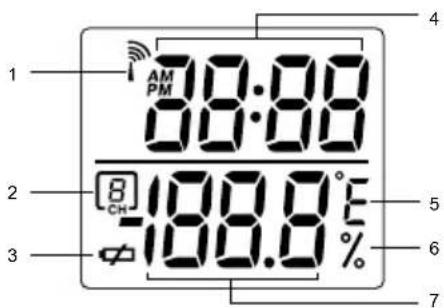

1. Signal reception
2. Channel number
3. Low battery icon
4. Time
5. Temp (°C or °F)
6. Humidity %
7. Temp / Humidity

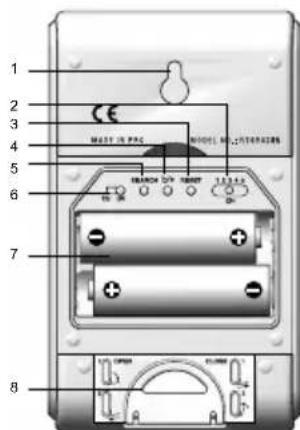

1. Wall mount
   2.CHANNEL switch (1-5)
2. RESET
3. ^ C / ^
   5.SEARCH
4. EU/UK radio signal format switch
5. Battery compartment
6. Fold-out stand

GETTING STARTED

BATTERIES

Batteries are supplied with this product:

• Main unit 3 × UM-3 (AA) 1.5V
• Remote unit 2 × UM-3 (AA) 1.5V

Insert batteries before first use, matching the polarity as shown in the battery compartment. For best results, install batteries in the remote sensor before the main unit. Press RESET after each battery change.

To install the main unit batteries:

NOTE

Do not use rechargeable batteries.

shows when batteries are low.

NOTE It is recommended that you use alkaline batteries with this product for longer performance.

UNIT LOCATION

Main Weather Forecast Area

Remote Temperature / Humidity Area

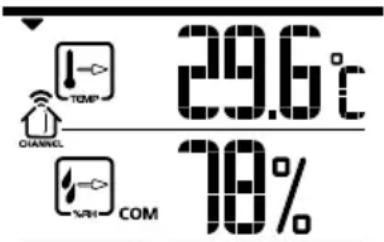

CHANGE SETTINGS

1. Press MODE to switch between Areas. indicates the selected Area.

1. Most Areas have alternate display options (for example, Clock / Calendar). Press or to switch options, or to switch between clock and alarm.
2. Press and hold MODE for 2 seconds to enter setting mode.
3. Press or to change settings.
4. Press MODE to confirm.

REMOTE SENSOR

This product is shipped with the RTGR328N Thermo / Hygro Sensor. The main unit can collect data from up to 5 Thermo / Hygro Sensors. The main unit is compatible with the following sensors:

THGR228N, THGR328N, THR228N, THR328N, THWR288.

(Additional sensors are sold separately. Contact your local retailer for more information.)

The RTGR328N Sensor collects temperature and humidity readings, and signals from official time-keeping organizations for the radio-controlled clock.

SET UP THERMO / HYGRO SENSOR (RTGR328N)

1. Open the battery compartment with a small Phillips screwdriver.
2. Insert the batteries.
3. Set the channel and radio signal format. The switches are located in the battery compartment.

SWITCH OPTION
Channel If you are using more than one sensor, select a different channel for each sensor.
Radio Signal EU Format	DCF) / UK (MSF)

1. Press RESET. Then set the temperature unit.

SWITCH OPTION
Temp °C / °F

1. Close the battery compartment.

To fold out the stand:

For best results:

• Insert the batteries and select the unit, channel, and radio signal format before you mount the sensor.
• Place the sensor out of direct sunlight and moisture.
• Do not place the sensor more than 70 metres (230 feet) from the main (indoor) unit.
• Position the sensor so that it faces the main (indoor) unit, minimizing obstructions such as doors, walls, and furniture.

• Place the sensor in a location with a clear view to the sky, away from metallic or electronic objects.

• Position the sensor close to the main unit during cold winter months as below-freezing temperatures may affect battery performance and signal transmission.

NOTE The transmission range may vary and is subject to the receiving range of the main unit.

You may need to experiment with various locations to get the best results.

SENSOR DATA TRANSMISSION

Data is sent from the sensor(s) every 60 seconds. The reception icon shown in the Temperature / Humidity Area indicates the status.

NOTE ICON DESCRIPTION
→ →	Main unit is searching for sensors.
→ →	At least 1 channel has been found.
	Sensor 1 is sending data. (The number shows which sensor is selected.)
— shows in Temp / The selected humidity Area cannot be found.	Search for the sensor or check batteries.

SEARCH FOR SENSOR

To search for a Thermo / Hygro sensor, press MODE to navigate to the Temperature/Humidity Area. will show next to the Area. Then, press and hold MEM CH for 2 seconds.

NOTE If the sensor is still not found, check the batteries.

CLOCK AND CALENDAR

This product tracks the time and date based on radio-controlled signals from the RTGR328N remote sensor, or manual settings that you enter.

RADIO-CONTROLLED CLOCK

The time and date are automatically updated by radio-controlled clock signals from official time-keeping organizations in Frankfurt (Germany) and Rugby (England) unless you disable this feature. The signals are collected by the remote sensor (RTGR328N) whenever it is within 1500km (932 miles) of a signal.

Initial reception takes 2-10 minutes, and is initiated when you first set up the unit, and whenever you press RESET. Once complete, the reception icon will stop blinking.

The ICON shown in the Clock Area indicates 2 factors:

• Connection between the main unit and the sensor that collects RF signals (11)
  RF signal reception (

How these signals work together:

ICON MEANING
CHANNEL	The unit has contact with the sensor and has synchronized the time.
CHANNEL	The unit has contact with the sensor but the time has not been synchronized.
CHANNEL	The unit has lost contact with the remote sensor but the time is synchronized.
CHANNEL	The unit has lost contact with the remote sensor and the time is not synchronized.
CHANNEL	The unit cannot reach the remote sensor.

NOTE To force a manual search for RF clock reception, press and hold SEARCH on the sensor (RTGR328N) for 2 seconds.

TURN RADIO-CONTROLLED CLOCK ON / OFF

If you wish to manually set the clock, you must first disable the radio-controlled feature. To do this, navigate to the Clock / Alarm Area. Then, press and hold on the main unit for 2 seconds. To enable it, navigate to the Clock / Alarm Area, then press and hold for 2 seconds.

RF clock enabled:

RF clock disabled:

SET CLOCK

You only need to do this if you have disabled the radio-controlled clock, or if you are too far from a RF signal.

1. Press MODE to navigate to the Clock Area. will show next to the Area.
2. Press and hold MODE for 2 seconds.
3. Select the time zone offset hour (+/-23 hours), 12/24 hour format, hour, minute, year, date / month format, month, date and display language.
4. Press or to change the setting.
5. Press MODE to confirm.

NOTE The language options are (E) English, (F) French, (D) German, (I) Italian, and (S) Spanish. The language you select determines the weekday display.

SWITCH CLOCK DISPLAY

Press MODE to navigate to the ClockArea. will show next to the Area.

Press or to toggle between:

• Clock with seconds
  Clock with day
• Clock with time-zone offset
  Calendar

ALARMS

This product has 2 alarms: The Daily Alarm and a Pre-Alarm for snowy weather. The Daily Alarm can be set to go off at the same time every day. The Pre-Alarm sounds only when the Daily Alarm is activated and the recorded temperature from Channel 1 Sensor falls to 2^ (35.6^) or below.

SET DAILY ALARM

1. Press MODE to navigate to the Clock Area. will show next to the Area.
2. Press / to view the alarm. (AL will show at the top.)
3. Press and hold / for 2 seconds.
4. Select the hour and minute. Press or to change settings.
5. Press / * to confirm.
6. The Daily Alarm icon will appear when the alarm is set.

SET PRE-ALARM

The Pre-Alarm can be set to sound 15, 30, 45, or 60 minutes before the Daily Alarm. It will sound whenever the recorded temperature from Channel 1 Sensor falls to 2^ (35.6^) or below.

For example, if you set the alarm to 7:00 AM, and the Pre-Alarm to 45 minutes, the Pre-Alarm will sound at 6:15 AM provided the outdoor temperature at Channel 1 Sensor is 2^ or below.

1. Set up and activate the Daily Alarm.
2. Press to switch to Pre-Alarm view. (PRE-AL will show at the top.)
3. Press and hold / for 2 seconds.
4. Press or to select 15, 30, 45 or 60 minutes. This is the amount of time the Pre-Alarm will sound BEFORE the Daily Alarm. The Pre-Alarm is automatically activated when you select a time.

5. Press / to confirm.

6. shows when the Pre-Alarm is set.

NOTE The Daily Alarm will NOT function until the next day if the Pre-Alarm has been triggered. Also, if you deactivate the Daily Alarm, the Pre-Alarm is automatically deactivated.

ACTIVATE ALARM

Navigate to the Clock Area, then press / to switch to Daily Alarm or Pre-Alarm view. To activate or deactivate the alarm, press or .

When the alarm time is reached, the backlight will be on for 8 seconds and crescendo alarm will sound for 2 minutes. Press any key (except snooze) to silence the alarm. It will sound at the same time the next day.

SNOOZE

Press SNOOZE/LIGHT to temporarily disable the alarm for 8 minutes. or will blink while snooze is on.

BAROMETER

This product tracks fluctuations in barometric pressure to provide the weather forecast, and the current and past 24 hours barometric pressure history measurements are recorded by the main (indoor) unit.

VIEW BAROMETER AREA

Press MODE to navigate to the Barometer Area.

SELECT MEASUREMENT UNIT

Slide the mb / inHg switch (in the clock battery compartment), to change the display unit.

VIEW BAROMETER HISTORY

Navigate to the Barometer Area. Then press MEM repeatedly to scroll through the measurements. The number shown in the HR box indicates how long ago each measurement was taken (e.g. 2 hours ago, 3 hours ago, etc.).

SET ALTITUDE

Set the altitude to match how far above or below sea level you are living. This ensures that the barometric pressure readings are accurate.

1. Navigate to the Barometer Area.
2. Press and hold MODE for 2 seconds.
3. Press or to set the altitude in 10-metre increments (-100m to 2500m).
4. Press MODE to confirm.

WEATHER FORECAST

This product forecasts the next 12 to 24 hours of weather within a 30 - 50km (19-31 mile) radius. The forecast is based on barometric pressure trend readings.

The top area shows an animated icon indicating the forecasted weather.

WEATHER FORECAST ICONS

ICON	DESCRIPTION
Day / Night	Clear
Day / Night	Partly cloudy
	Cloudy

ICON	DESCRIPTION
	Rainy
	Snowy

NOTE The night time icon displays from 6 PM to 6 AM. When the Channel 1 sensor records a temperature of 2^ (35.6^) or lower, the RAINY icon becomes SNOWY.

TEMPERATURE AND HUMIDITY

The weather station can display the following information from any of the 5 remote sensors:

• Current, minimum, and maximum temperatures and relative humidity percentages.
• Comfort level indicator and trend line (rising, falling, or steady).

Data is collected and displayed approximately every 60 seconds.

VIEW TEMPERATURE AND HUMIDITY AREA

Press MODE to navigate to the Temperature and Humidity Areas.

Temperature data is given at the top; Humidity is below.

SELECT MEASUREMENT UNIT

Slide the ^ C / ^ F switch (inside the clock battery compartment), to the setting you want.

SELECT SENSOR CHANNEL

Press CH to switch between sensors 1-5.

The house icon shows the selected remote sensor.

T o auto-scan between sensors, press and hold CH for 2 seconds. Each sensor's data will be displayed for 3 seconds.

To end auto-scan, press CH or MEM with the Temperature / Humidity Area selected.

NOTE If you select a sensor that collects only temperature data, the humidity will not be shown.

• Press MEM repeatedly to view current, maximum and minimum records for the selected sensor.
• To clear the records, press and hold MEM for 2 seconds. A beep will sound to confirm that the memory has been cleared.

TEMP, HUMIDITY & PRESSURE TREND

TREND RISING $STEADY FALLING
TEMPERATURE
HUMIDITY
PRESSURE

COMFORT ZONE

The Comfort Zone indicates how comfortable the climate is, based on current temperature and humidity measurements.

ZONE TEMPERATURE HUMIDITY
WET Any >70%
COM 20-25°C 40	-70% (68-77°F)
DRY Any <40%

NOTE This information is shown in the Humidity Area when the current measurement is displayed.

BACKLIGHT

Press SNOOZE / LIGHT to illuminate the backlight for 8 seconds.

RESET SYSTEM

The RESET button is located in the main unit battery compartment. Press RESET when you change the batteries and whenever performance is not behaving as expected (for example, unable to establish radio frequency link with remote unit or radio-controlled clock).

NOTE When you press RESET, all settings will return to default value, and you will lose all stored information.

SAFETY AND CARE

Clean the product with a slightly damp cloth and alcoholfree, mild detergent. Avoid dropping the product or placing it in a high-traffic location.

WARNING

This product is designed to give you years of service if handled properly. Oregon Scientific will not be responsible for any deviations in the usage of the device from those specified in the user instructions or any unapproved alterations or repairs of the product. Observe the following guidelines:

• Never immerse the product in water. This can cause electrical shock and damage the product.
• Do not subject the main unit to extreme force, shock, or fluctuations in temperature or humidity.
• Do not tamper with the internal components.
• Do not mix new and old batteries or batteries of different types.
• Do not use rechargeable batteries with this product.
• Remove the batteries if storing this product for a long period of time.
• Do not scratch the LCD display.

NOTE The technical specification of this product and contents of this user guide are subject to change without notice. Images not drawn to scale.

TROUBLESHOOTING

PROBLEM	SYMPTOM REMEDY
Barometer Strange readings		Set altitude / unit
Calendar Strange date / month		Change language
Clock	Cannot adjust clock	Disable radio-controlled clock
	Cannot auto-synch	1. Adjust batteries 2. Press RESET 3. Manually activate radio-controlled clock
Temp	Shows "LLL" or "HHH"	Temperature is out-of-range
Remote sensor	Cannot locate remote sensor	Check batteries

SPECIFICATIONS

Main Unit Dimensions

L×W×H120×67×205mm

(4.7 x 2.6 x 8.1 inches)

Weight 364 grams (12.8 ounces)

without battery

Remote Unit Dimensions

L×W×H70×24.5×116mm

(2.76 × 0.96 × 4.57 inches)

Weight 108 grams (0.24 lbs)

without battery

Temperature

Unit ^ C or ^ F

Indoor Range -5 °C to 50 °C

(23°F to 122°F)

Outdoor Range -20 °C to 60 °C

(-4^ to 140^)

Resolution 0.1^ (0.2^)

Memory Min / Max

Relative Humidity

Range 25% to 95%

Resolution 1%

Memory Min / max

Barometer

Unit mb / hPa or inHg

Resolution 1 mb (0.03 inHg)

Altitude -100 to 2500 metres

(-328 to 8202 feet)

Display Sunny (day / night),

partly cloudy (day / night), cloudy, rainy, snowy

Remote Unit (RTGR328N)

RF frequency 433 MHz

Range Up to 100 metres (328 feet)

with no obstructions

Transmission Approx. every 1 minute

Channel No. 1, 2, 3, 4 or 5

Unit ^ C or ^ F

Radio-Controlled Clock

Synchronization Auto or disabled

Clock display HH:MM:SS

Hour format 12hr AM/PM (MSF format)

24hr (DCF format)

Calendar DD/MM or MM/DD;

Day of the week in 1 of

5 languages (E, G, F, I, S)

Alarm Daily & Pre-Alarm;

2-minute crescendo

Snoopze 8-minute snooze

Power

Main Unit

Batteries 3 x UM-3 (AA) 1.5V

Thermo / Hygro Remote Unit

Batteries 2 x UM-3 (AA) 1.5V

NOTE It is recommended that you use alkaline batteries with this product for longer performance.

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientific.com) to learn more about Oregon Scientific products such as digital cameras; MP3 players; children's electronic learning products and games; projection clocks; health and fitness gear; weather stations; and digital and conference phones. The website also includes contact information for our customer care department in case you need to reach us, as well as frequently asked questions and customer downloads.

We hope you will find all the information you need on our website, however if you're in the US and would like to contact the Oregon Scientific Customer Care department directly, please visit:

www2.oregonscientific.com/service/support

OR

Call 949-608-2848.

For international enquiries, please visit: www2.oregonscientific.com/about/international/default.asp

EC-DECLARATION OF CONFORMITY

Hereby, Oregon Scientific, declares that this Wireless Weather Station (BAR826HG) is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

A copy of the signed and dated Declaration of Conformity is available on request via our Oregon Scientific Customer Service.

COUNTRIES RTTE APPROVAL COMPLIED

All EC countries, Switzerland CH and Norway N

SCIENTIFIC

Wireless Weather Station

Model: BAR826HG

USER MANUAL

© 2005 Oregon Scientific. All rights reserved.

086-003808-011

Uber Oregon Scientific 20

THGR228N, THGR328N, THR228N, THR328N, THWR288.

SCHALTER OPTION
Temp °C/°F

THGR228N, THGR328N, THR228N, THR328N, THWR288.

THGR228N, THGR328N, THR228N, THR328N, THWR288.

Paraocular reflex responses of the eye after a 10-second pulse.

THGR228N, THGR328N, THR228N, THR328N, THWR288.

VUE D'ENSEMBLE DU PRODUIT

FACE AVANT

THGR228N, THGR328N, THR228N, THR328N, THWR288.

Altitude -100 à 2500 metres

THGR228N, THGR328N, THR228N, THR328N, THWR288.

THGR228N, THGR328N, THR228N, THR328N, THWR288.

DE SENSOR DETECTEREN

KLOK WEERGAVE WISSELEN

Apparaat mb / hPa of inHg

Resolutie 1 mb (0,03 inHg)

Hoopte-100 tot 2500 meter

(-328 tot 8202 feet)

Schem Zonnig (dag / tonight),

Half bewolkt (dag /

Nacht),bewolkt,

regenachtig, sneeuw

Buitensor sensor (RTGR328N)

RF frequentie 433 MHz

Bereik Tot 70 meter (230 feet)

zonder obstakels

Kanaal No. 1, 2, 3, 4 of 5

Apparaat ^ C of F

Radiogesturde Klok

Snoopze 8-minute snooze

Stroom

Het apparatus

Batterijen 3× UM-3 (AA) 1,5V

Thermo / Hygro Buitensensor

Batterijen 2 x UM-3 (AA) 1,5V

THGR228N, THGR328N, THR228N, THR328N, THWR288.

THGR228N, THGR328N, THR228N, THR328N, THWR288.

THGR228N, THGR328N, THR228N, THR328N, THWR288.

FOR VAGG OCH BORDSPLACERING

THGR228N, THGR328N, THR228N, THR328N, THWR288.

(Extra fjärrenheter saljs separat. Kontakta din narraste aterförsäljare for mer information.)
