Product Type	Weather Station
Model	BAR 626
Brand	Oregon Scientific
Display Type	LCD with backlight
Indoor Temperature Range	0°C to 50°C (32°F to 122°F)
Outdoor Temperature Range	-20°C to 60°C (-4°F to 140°F)
Humidity Range	20% to 95% RH
Barometric Pressure Range	300 to 1100 hPa (8.85 to 32.5 inHg)
Radio Controlled Clock	DCF (Europe) / MSF (UK) / WWVB (US)
Moon Phase Display	Yes
Weather Forecast Icons	Sunny, Partly Cloudy, Cloudy, Rainy
Alarm	Yes, with snooze
Power Supply Main Unit	2x AA alkaline batteries (not included)
Power Supply Outdoor Sensor	2x AA alkaline batteries (not included)
Dimensions Main Unit	155 x 115 x 42 mm (approx)
Weight Main Unit	400 g (approx)
Wireless Range	30 m (open area)
Number of Channels	1 (expandable up to 3)
Functions	Indoor/outdoor temperature & humidity, barometric pressure, weather forecast, moon phase, atomic clock, alarm, calendar
Maintenance	Clean with soft dry cloth; avoid liquids
Safety	Keep away from direct sunlight, extreme temperatures, and moisture
Spare Parts	Replacement outdoor sensor (e.g., THN132N) available from Oregon Scientific
Repairability	Non-user serviceable; consult qualified technician

Frequently Asked Questions - BAR 626 OREGON SCIENTIFIC

How do I set up the weather station for the first time?

Insert batteries into the main unit and outdoor sensor. Place the sensor within 30 m of the main unit. The units will automatically synchronize and display readings. Set the time zone and clock manually if the radio signal is not received.

How do I change the batteries?

For the main unit, open the battery compartment on the back and replace with 2 new AA alkaline batteries. For the outdoor sensor, open the compartment and replace with 2 new AA batteries. Always use fresh batteries and replace all at once.

How can I reset the weather station?

Remove the batteries from both the main unit and outdoor sensor. Wait 30 seconds, then reinsert them. This will clear all settings and force a resync. Alternatively, use a paperclip to press the reset button on the back of the main unit.

Why is the outdoor sensor not connecting to the main unit?

Check that the sensor is within 30 m of the main unit and there are no large metal objects or walls blocking the signal. Ensure the sensor batteries are fresh and installed correctly. Try resetting both units. If the issue persists, the sensor may need replacement.

How do I set the alarm?

Press the ALARM button to enter alarm setting mode. Use the + or - buttons to adjust the hour and minute. Press ALARM again to confirm. Toggle the alarm on/off by pressing the ALARM ON/OFF button. The snooze function activates when you press SNOOZE.

How do I adjust the time zone?

Press and hold the SET button until the time zone indicator flashes. Use the + or - buttons to select your time zone offset from UTC. For example, Eastern Standard Time is UTC-5. Press SET to confirm.

What does the barometric pressure trend arrow indicate?

The arrow shows whether the pressure is rising, falling, or steady. A rising arrow indicates improving weather, a falling arrow indicates worsening weather. The barometric pressure itself is displayed in hPa or inHg.

How should I clean the weather station?

Use a soft, dry cloth to wipe the main unit and sensor. Do not use any liquids, abrasive cleaners, or chemicals. Avoid cleaning the display with excessive pressure to prevent damage.

Can I add extra sensors to monitor different rooms?

Yes, the BAR 626 supports up to 3 sensors. Add additional Oregon Scientific THN132N sensors. Each sensor must be set to a different channel using the slide switch inside the battery compartment. The main unit will cycle through the channels.

What should I do if the display is blank or shows dashes?

If the display is blank, check that the main unit batteries are installed correctly and have sufficient charge. Replace with fresh batteries if needed. If outdoor readings show dashes, the sensor signal may be lost. Ensure the sensor is powered and within range. A reset may resolve the issue.

USER MANUAL BAR 626 OREGON SCIENTIFIC

Weather Station Model: BAR626 / BAR626U User Manual

CONTENTS

Contents 1

Introduction 2

Product Overview 2

Front View 2

Back View 2

LCD Display 3

Remote Sensor (THN122N) 3

Getting Started 4

Batteries 4

Change Settings 4

Table Stand or Wall Mount 4

Remote Sensor (THN122N) 5

Setup Sensor 5

Data Transmission 5

Search for Sensor 5

Clock 6

Turn Clock ON / OFF 6

Set Clock / Calendar....6

Switch Clock Display 6

Alarms 6

View Alarm Settings 6

Set Alarm 6

Activate Alarm 6

Silence Alarm....6

Weather Forecast 7

Temperature 7

Select Temperature Unit 7

Select Channel Number 7

Minimum / Maximum Records 7

Moon Phase 7

Reset System 7

Safety and Care 7

Warnings 8

Troubleshooting 8

Specifications 8

Main Unit Dimensions 8

Remote Sensor Dimensions 8

Temperature 8

Weather Forecast 8

Remote Sensor (THN122N) 8

Clock 9

Power 9

About Oregon Scientific 9

EC-Declaration of Conformity 9

INTRODUCTION

Thank you for selecting the Oregon Scientific" Weather Station (BAR626 / BAR626U). This device bundles precise time keeping, weather forecast, and indoor and outdoor temperature monitoring features into a single tool you can use from the convenience of your home.

In this box, you will find:

¥ Main unit

¥ Remote sensor (THN122N)

¥ Main unit batteries, 3 x UM-3 (AA) 1.5V

¥ Remote sensor batteries, 2 x UM-4 (AAA) 1.5V

Keep this manual handy as you use your new product. It contains practical step-by-step instructions, as well as technical specifications and warnings you should know.

PRODUCT OVERVIEW

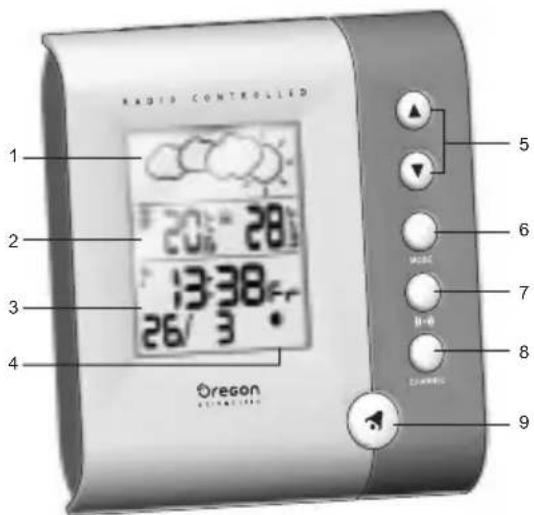

FRONT VIEW

1. Weather Forecast Area
2. Outdoor and Indoor Temperature Area
3. Clock / Alarm / Calendar Area
4. Moon Phase
5. ▲ and ▼: Increase or decrease setting / activate or deactivate RF Clock
6. MODE: Change display / settings
7. ((•)): View alarm status; set alarm
8. CHANNEL: Switch remote sensor
9. : Press to activate or deactivate alarm

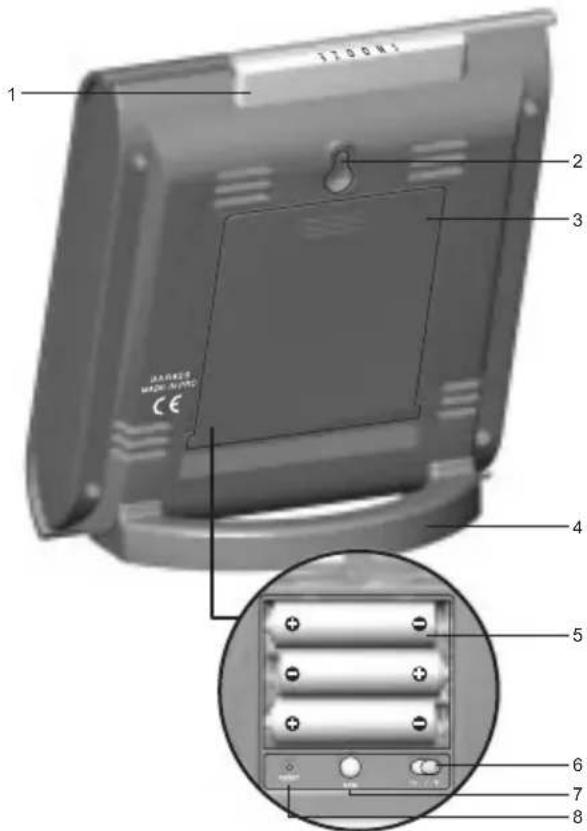

BACK VIEW

1. SNOOZE button
2. Wall mount hole
3. Battery compartment (cover on)
4. Table stand
5. Battery compartment (cover off)
6. °C / °F switch
7. MEM: View current, maximum, and minimum temperature readings
8. RESET hole

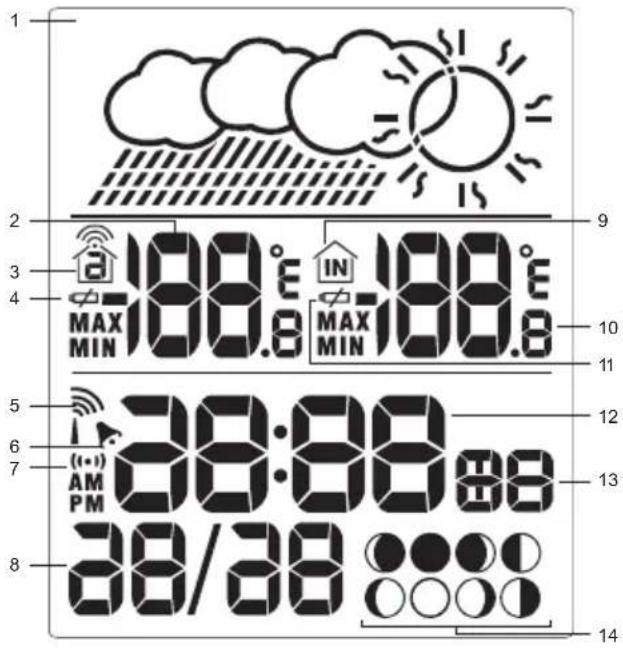

LCD DISPLAY

1. Weather display
2. Outdoor temperature
3. Channel icon with sensor signal
4. Low battery icon for sensor
5. Radio Frequency (RF) reception icon
6. Alarm activated
7. Alarm setting
8. Calendar
9. Indoor icon
10. Indoor temperature
11. Low battery icon for main unit
12. Time
13. Day of the week / seconds
14. Moon phase

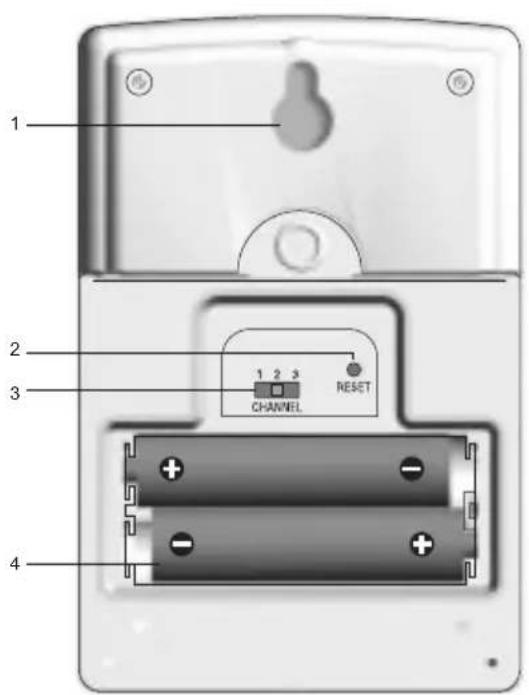

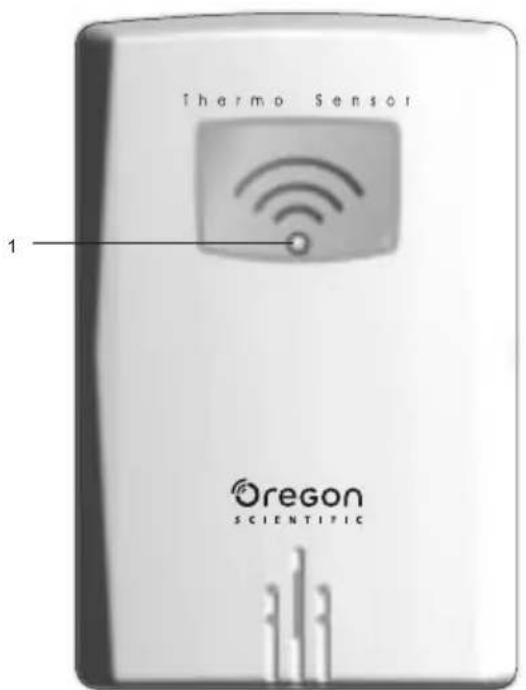

REMOTE SENSOR (THN122N)

1. LED status indicator

1. Wall mount hole
2. RESET hole
3. CHANNEL number (1-3)
4. Battery compartment (Battery compartment cover not shown)

GETTING STARTED

BATTERIES

Batteries are supplied with this product:

Main unit 3 x UM-3 (AA) 1.5V batteries

Remote unit 2 x UM-4 (AAA) 1.5V batteries

Insert batteries before first use, matching the polarity (+ and -) as shown in the battery compartment. For best results, install batteries in the remote sensor before the main unit. Press RESET after each battery change.

NOTE Do not use rechargeable batteries.

shows when batteries are low.

NOTE It is recommended that you use alkaline batteries with this product for longer performance.

Installing the batteries:

Close-up of a mechanical component with a white arrow pointing downward on a square surface (no text or symbols visible)

Close-up of a mechanical component with three vertical slots and mounting holes (no visible text or symbols)

UNIT LOCATION
Main Indoor Temperature Area
Remote Outdoor Temperature Area

CHANGE SETTINGS

To change, time, calendar and language settings:

1. Press and hold MODE for 2 seconds to enter setting mode.
2. Press ▲ or ▼ to change settings. (To reach the setting you want quickly, press and hold ▲ or ▼.)
3. Press MODE to confirm.

TABLE STAND OR WALL MOUNT

Use the stand on the back of the main unit / remote sensor, or mount it on a wall with a nail.

Attaching the stand:

Close-up of a mechanical component with curved arrows indicating motion or force (no text or symbols)

Close-up of a metallic mechanical component with curved surfaces (no visible text or symbols)

Using the wall mount:

Close-up of a metallic mechanical component with curved and angular features (no visible text or symbols)

3D rendering of a rectangular electronic device with a curved arrow pointing to its side (no text or symbols visible)

Using the remote sensor stand or wall mount:

Close-up of a white electronic device with a black connector and a curved arrow pointing to its side (no text or symbols visible)

Exterior view of a door with a curved handle and arrow indicating direction (no text or symbols)

REMOTE SENSOR (THN122N)

This product is shipped with a THN122N Thermometer Sensor that collects Temperature data. Data can be collected from up to 3 sensors. Additional sensors sold separately.

SETUP SENSOR

1. Open the remote sensor battery compartment with a small Phillips screwdriver.
2. Insert the batteries, matching the polarity (+ and -) as shown in the battery compartment.

SWITCH OPTION

Channel Channel 1-3. If you are using more than one sensor, select a different channel for each sensor.

1. Set the channel. The switch is located in the battery compartment.
2. Place the sensor near the main unit. Press RESET on the sensor. Then, press and hold MEM and CHANNEL on the main unit to initiate signal sending between the sensor and the main unit. The reception icon on the main unit will blink for approximately 3 minutes while it is searching for the sensor. (Refer to the Data Transmission section for more information.)
3. Close the remote sensor battery compartment.
4. Secure the sensor in the desired location using the wall mount or table stand.

Installing the batteries:

Close-up of a hand using a screwdriver to apply material to a component with mounting holes (no text or symbols visible)

Close-up of a battery holder with two charging cells and a wall-mounted terminal (no visible text or symbols)

For best results:

¥ Insert the batteries and select the channel before you mount the sensor.
¥ Place the sensor out of direct sunlight and moisture.
¥ Do not place the sensor more than 30 metres (98 feet) from the main (indoor) unit.
¥ Position the sensor so that it faces the main (indoor) unit, minimizing obstructions such as doors, walls, and furniture.

¥ Place the sensor in a location with a clear view to the sky, away from metallic or electronic objects.
¥ Position the sensor close to the main unit during cold winter months as below-freezing temperatures may affect battery performance and signal transmission.

You may need to experiment with various locations to get the best results.

DATA TRANSMISSION

Data is sent from the sensor(s) every 40 seconds. The reception icon shown in the Temperature Area shows the status.

ICON DESCRIPTION
	Main unit is searching for sensors.
	At least 1 Channel has been found.
	Channel 1 is selected (number will change depending on the sensor you select).
--- shows in Outdoor The selected sensor cannot Temp Area be found. Search for the sensor or check batteries.

SEARCH FOR SENSOR

To search for a sensor, press and hold MEM and CHANNEL (on the main unit) for 2 seconds.

NOTE If the sensor is still not found, check the batteries, obstructions, and remote unit location.

NOTE Signals from household devices such as doorbells, electronic garage doors, and home security systems may cause temporary reception failure. This is normal and does not affect general product performance. The reception will resume once the interference ends.

CLOCK

The clock automatically synchronizes the current time and date when it is brought within range of the radio signal DCF77 generated from Frankfurt, Germany for Central Europe (model BAR626) or MSF60 generated from Rugby, England (model BAR626U).

NOTE The signals are collected by the main unit when it is within 1500 km (932 miles) of a signal.

Initial reception takes 2-10 minutes, and is initiated when you first setup the unit, and whenever you press RESET. Once complete, the reception icon will stop blinking. The icon is shown in the Clock Area.

STRONG SIGNAL	WEAK SIGNAL NO	SIGNAL
	(stm)	(sm)

To force a manual search for clock signals, press and hold ▲ for 2 seconds. If no signal is found, check the batteries.

TURN CLOCK ON / OFF

Perform this step if you cannot receive clock signals. Press and hold ▼ for 2 seconds. Then, manually set the clock following the "Set Clock" instructions (below).

The signal icon indicates that the clock feature is No icon means that it is OFF.

SET CLOCK / CALENDAR

You only need to do this if you have disabled the clock feature (for example, if you are too far from or cannot receive a signal).

1. Press and hold MODE for 2 seconds. The Clock Area will blink.
2. Select the hour, minute, year, month, day, and day of the week language. Press ▲ or ▼ to change the setting.
3. Press MODE to confirm.

The language options are (E) English, (F) French, (D) German, (I) Italian, and (S) Spanish.

SWITCH CLOCK DISPLAY

Press MODE to toggle between Clock with Seconds and Clock with Weekday display.

ALARMS

This product is equipped with a 2-minute crescendo alarm.

VIEW ALARM SETTINGS

Press ((·)) . The alarm time and alarm status will show in the Clock Area.

SET ALARM

1. Press ((·)) to switch to alarm display.
2. Press and hold ( · ) again for 2 seconds. The alarm settings will blink.
3. Select the hour and minute. Press ▲ or ▼ to change settings. Press ((•)) to confirm.

ACTIVATE ALARM

Press 🔍 to activate or deactivate the alarm. 🔍 shows in the Clock / Alarm Area when the alarm is activated.

SILENCE ALARM

When the alarm time is reached, the crescendo alarm will sound for 2 minutes. To silence the alarm:

¥ Press SNOOZE to silence it for 8 minutes.

OR

¥ Press any key except SNOOZE to mute the alarm and activate it again after 24 hours.

If no button is pressed, the alarm will automatically silence after 2 minutes. It will then sound again after 8 minutes.

WEATHER FORECAST

This product forecasts the next 12 to 24 hours of weather within a 30-50 km (19-31 mile) radius with 70 to 75 percent accuracy. The weather forecast is always displayed.

SUNNY PARTLY CLOUDY CLOUDY		RAINY

TEMPERATURE

This product can display current, minimum, and maximum temperature information collected by the remote sensors and main (indoor) unit.

Outdoor data is collected and displayed every 40 seconds. Indoor data is collected and displayed every 10 seconds.

SELECT TEMPERATURE UNIT

Slide the °C / °F switch into the desired location. The switch is located in the main unit battery compartment. The setting for the main unit overrides the remote sensor setting.

SELECT CHANNEL NUMBER

Press CHANNEL to switch between sensors 1-3.

The icon shows the selected sensor.

KINETIC-WAVE ICON	Level	Level	Level	Level
Designated Indoor Remote Remote Display Display Display Display Display Channel 1 Channel 2 Channel 3

To auto-scan between sensors, press and hold CHANNEL for 2 seconds. Each sensor's data will be displayed for 3 seconds. To end auto-scan, press CHANNEL or MEM.

NOTE For more information on the sensor see "Remote Sensor THN122N" Section.

The MEM button is located in the main unit battery compartment. Press MEM to toggle between current, maximum (MAX) and minimum (MIN) records. To clear the records, press and hold MEM for 2 seconds. A beep will sound to confirm that the memory has been cleared.

MOON PHASE

The Calendar must be set for this feature to work, see "Set Clock" section.

¥ Press ▲ or ▼ to view the moon phase for the next or previous day.

¥ Press and hold ▲ or ▼ to scan quickly through the years (2001 to 2099).

[407K]	New Moon
	Waxing Crescent
[OWTT]	First Quarter
[727T]	Waxing Gibbous
	Full Moon
[03AH]	Waning Gibbous
[048W]	Last Quarter
[0HX6]	Waning Crescent

RESET SYSTEM

The RESET button is located in the main unit battery compartment. Press RESET when you change the batteries and whenever performance is not behaving as expected (for example, unable to establish radio frequency link with remote sensor or clock).

SAFETY AND CARE

Clean the product with a slightly damp cloth and alcohol-free, mild detergent. Avoid dropping the product or placing it in a high-traffic location.

WARNINGS

This product is designed to give you years of service if handled properly. Oregon Scientific will not be responsible for any deviations in the usage of the device from those specified in the user instructions or any unapproved alterations or repairs of the product. Observe the following guidelines:

¥ Never immerse the product in water. This can cause electrical shock and damage the product.
¥ Do not subject the main unit to extreme force, shock, or fluctuations in temperature or humidity.
¥ Do not tamper with the internal components.
¥ Do not mix new and old batteries or batteries of different types.
¥ Do not use rechargeable batteries with this product.
¥ Remove the batteries if storing this product for a long period of time.
¥ Do not scratch the LCD display.

NOTE The technical specification of this product and contents of this user guide are subject to change without notice. Images not drawn to scale.

TROUBLESHOOTING

PROBLEM	SYMPTOM REMEDY
Calendar Strange date / Changemonth ( 6)		→
Clock Cannot adjust Disable clock ( 6) →clock
Temp Shows "LLL" or " Temperature is HHH" out-of-range
Remote sensor	Cannot locate remote sensor	Check batteries (→5)
		Check location (→5)
	Cannot change channel	Check sensors.Only one sensor is working (→5)
	Data does not match main unit	Initiate a manual sensor search (→5)

SPECIFICATIONS

MAIN UNIT DIMENSIONS

L x W x H	116 x 55 x 127 mm(4.6 x 2.2 x 5 inches)
Weight	170 g (5.9 ounces without battery

REMOTE SENSOR DIMENSIONS

L x W x H	92 x 60 x 20 mm(3.6 x 2.4 x 0.79 inches)
Weight	63 grams (2.22 ounces)without battery

TEMPERATURE

Unit	°C / °F
Indoor range	-5°C to 50°C(23°F to 122°F)
Outdoor range	-20°C to 60°C(-4°F to 140°F)
Resolution	0.1°C (0.2°F)

WEATHER FORECAST

Display

Rainy, cloudy, partly cloudy, sunny

REMOTE SENSOR (THN122N)

RF frequency	433 MHz
Range	30 metres (98 feet) with no obstructions
Transmission	Every 40 seconds
Channel No.	1-3

CLOCK

RF Clock Auto or manual (disabled)

Clock display HH:MM:SS

Hour format 12hr AM / PM

(Model BAR626U)

24hr (Model BAR626)

Calendar DD / MM; weekday in

5 languages (E, D, F, I, S)

Alarm Single alarm with

2-minute crescendo and

8-minute Snooze

POWER

Main unit batteries 3 x UM-3 (AA) 1.5V

Sensor batteries 2 x UM-4 (AAA) 1.5V

NOTE It is recommended that you use alkaline batteries with this product for longer performance.

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientific.com) to learn more about Oregon Scientific products such as digital cameras; MP3 players; children's electronic learning products and games; projection clocks; health and fitness gear; weather stations; and digital and conference phones. The website also includes contact information for our customer care department in case you need to reach us, as well as frequently asked questions and customer downloads.

We hope you will find all the information you need on our website, however if you'd like to contact the Oregon Scientific Customer Care department directly, please visit:

www2.oregonscientific.com/service/support

OR

Call 949-608-2848 in the US.

For international enquiries, please visit: www2.oregonscientific.com/about/international/default.asp

EC-DECLARATION OF CONFORMITY

This product contains the approved transmitter module that complies with the essential requirements of Article 3 of the R&TTE 1999 / 5 / EC Directive, if used as intended and the following standards have been applied:

Safety of information technology equipment

(Article 3.1.a of the R&TTE Directive)

Applied Standard EN 60950: 2000

Electromagnetic compatibility

(Article 3.1.b of the R&TTE Directive)

Applied Standards

ETSI EN 301 489-1-3 (Ver.1.4.1): 2002-08

Efficient use of radio frequency spectrum

(Article 3.2 of the R&TTE Directive)

Applied Standards

ETSI EN 300 220-3 (Ver1.1.1): 2000-09

Additional information:

The product herewith complies with the requirements of the Low Voltage Directive 73 / 23 / EC, the EMC Directive 89 / 336 / EC and carries the CE marking accordingly.

Carmelo Cubito

Agrate Brianza (MI) / Italy January 2004

Manufacturer's EU R&TTE Representative

CE

COUNTRIES RTTE APPROVAL COMPLIED

All EC countries, Switzerland CH

and Norway N

Oregon SCIENTIFIC

Easy Weather Station

Model: BAR626/BAR626U

User Manual

Oregon SCIENTIFIC

Funk-Wetterstation

Close-up of a metallic electronic component with a downward arrow indicating a specific area (no text or symbols visible)

Close-up of a metallic electronic device showing three batteries mounted on a panel (no visible text or symbols)

EINHEIT POSITIO

Close-up of a mechanical component with a curved, textured edge and a metallic clip (no visible text or symbols)

Close-up of a mechanical component with a curved handle and flange (no visible text or symbols)

Close-up of a mechanical component with curved and straight surfaces (no visible text or symbols)

Exterior view of a gray rectangular electronic device with a curved arrow indicating direction (no text or symbols)

White rectangular device with a curved handle and arrow indicating left-side motion (no text or symbols)

Close-up of a hand using a screwdriver to insert a component on a metallic base (no text or symbols visible)

Close-up of a handheld electronic device with two batteries and a lock (no visible text or symbols)

Close-up of a metallic mechanical component with a downward arrow indicating a specific feature (no text or symbols visible)

Close-up of a metallic electronic component with four cylindrical batteries and mounting holes (no visible text or symbols)

Close-up of a mechanical component with a curved, glossy finish (no visible text or symbols)

Close-up of a mechanical component with a curved, flanged part (no visible text or symbols)

Close-up of a mechanical component with a curved handle and internal structure (no visible text or symbols)

Exterior view of a gray cylindrical device with a curved arrow indicating motion or force (no text or symbols)

Illustration of a white rectangular device with a black screw and a black cable inserted, showing a left-pointing arrow (no text or symbols)

Close-up of a white electronic device with a black handle and arrow indicator (no text or symbols)

SENSOR REMOTO (THN122N)

Close-up of a hand using a screwdriver to insert a component on a metallic electronic device (no visible text or symbols)

Close-up of a metallic electronic device with internal components and mounting holes (no visible text or symbols)

Alcance 30 metros (98 pies) sin

obstáculos

¥ Appareil principal

¥ Sonde sans fil (THN122N)

VUE D'ENSEMBLE DU PRODUIT

FACE AVANT

Close-up of a mechanical component with a downward arrow indicating a specific area (no text or symbols visible)

Close-up of a mechanical component with three cylindrical pins and mounting holes (no visible text or symbols)

Close-up of a mechanical component with curved arrows indicating motion or force (no text or symbols)

Close-up of a metallic mechanical component with a curved handle (no visible text or symbols)

Close-up of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols visible)

3D rendering of a rectangular electronic device with a curved arrow pointing to its side (no text or symbols visible)

Two identical electrical components with arrows indicating a cable or connection (no text or symbols visible)

SONDE (THN122N)

Close-up of a hand using a tool to apply material to a component with holes (no visible text or symbols)

Close-up of a handheld electronic device with battery and indicator lights (no visible text or symbols)

SIGNAL FORT SIGNAL FAIBLE AUCUN SIGNAL
	[OEM]	[PE]

Fr quences RF 433 MHz

Distance de transmission 30 m tres (98 pieds) sans obstacle

Transmission Toutes les 40 secondes

Num ro de canal 1 3

HORLOGE

Station M t o Sans Fil

Mod le: BAR626 / BAR626U

Close-up of a metallic mechanical component with a downward arrow indicating a specific feature (no text or symbols visible)

Interior view of a computer case with four battery modules and ventilation slots (no visible text or labels)

Close-up of a mechanical component with a curved arrow-like shape (no visible text or symbols)

Close-up of a mechanical component with curved surfaces and a handle (no visible text or symbols)

Fissaggio a muro:

Close-up of a mechanical component with a zigzag edge and curved internal structure (no visible text or symbols)

Exterior view of a gray cylindrical device with a flame symbol and directional arrow indicating motion (no text or labels)

White rectangular device with a black handle and arrow pointing left, no visible text or symbols

SENSORE REMOTO (THN122N)

Close-up of a hand using a tool to apply a component to a metallic housing (no visible text or symbols)

Close-up of a handheld electronic device with visible ports and buttons (no readable text or symbols)

Close-up of a metallic mechanical component with a downward arrow indicating a specific feature (no text or symbols visible)

Interior view of a battery pack with three batteries and control knobs (no visible text or symbols)

TOESTEL LOCATIE

Close-up of a mechanical component with a curved, zigzag edge and a flat blade (no text or symbols visible)

Close-up of a mechanical component with curved surfaces and a pointed tip (no visible text or symbols)

Close-up of a mechanical component with a curved handle and internal structure (no visible text or symbols)

3D rendering of a cylindrical electronic device with an arrow indicating direction (no text or symbols visible)

Illustration of a remote control panel with a paperclip and cable, no text or symbols visible

Close-up of a white electrical switch with a right-pointing arrow indicating left-side motion (no text or symbols visible)

DE AFSTANDSSENSOR (THN122N)

Close-up of a hand using a screwdriver to insert a component (no visible text or symbols)

Close-up of a handheld electronic device with two batteries and a lock (no visible text or symbols)

Close-up of a metallic mechanical component with a downward arrow indicating a specific feature (no text or symbols visible)

Close-up of a metallic electronic device with four battery modules and ventilation slots (no visible text or symbols)

Close-up of a mechanical component with a curved arrow-like shape (no visible text or symbols)

Close-up of a mechanical component with curved surfaces and a flat blade (no visible text or symbols)

Close-up of a mechanical component with a curved handle and internal structure (no visible text or symbols)

3D rendering of a gray cylindrical device with a directional arrow indicating flow or movement (no text or symbols)

Exterior view of a modern office building (no signage)

Close-up of a white electronic device with a right-pointing arrow and handle (no text or symbols visible)

SENSOR REMOTO (THN122N)

Close-up of a hand using a tool to apply plastic components to a metal bracket (no visible text or symbols)

Close-up of a metallic electronic device with battery and control buttons (no visible text or symbols)

Agrate Brianza (MI) / Italy January 2004

CE

Close-up of a metallic electronic component with a downward arrow indicating a cut or change (no text or symbols visible)

Interior view of a battery pack with three batteries and two terminals (no text or symbols visible)

ENHET PLATS

FÖR VÄGG OCH BORDSPLACERING

Close-up of a mechanical component with a curved handle and internal structure (no visible text or symbols)

Close-up of a mechanical component with curved surfaces and a flat blade (no visible text or symbols)

Att väggmontera

Close-up of a mechanical component with a curved handle and internal structure (no visible text or symbols)

3D rendering of a cylindrical device with a curved arrow indicating direction (no text or symbols)

Close-up of a white electronic device with a handle and cable, showing a left-angle arrow pointing to the side (no text or symbols visible)

White electrical switch with a right-angle arrow indicating left-side motion (no text or symbols)

Close-up of a hand using a tool to apply a component to a metallic housing (no visible text or symbols)

Close-up of a handheld electronic device with two batteries and a lock (no visible text or symbols)

För bästa resultat:
