USER MANUAL Evoglide 1 KIDDY

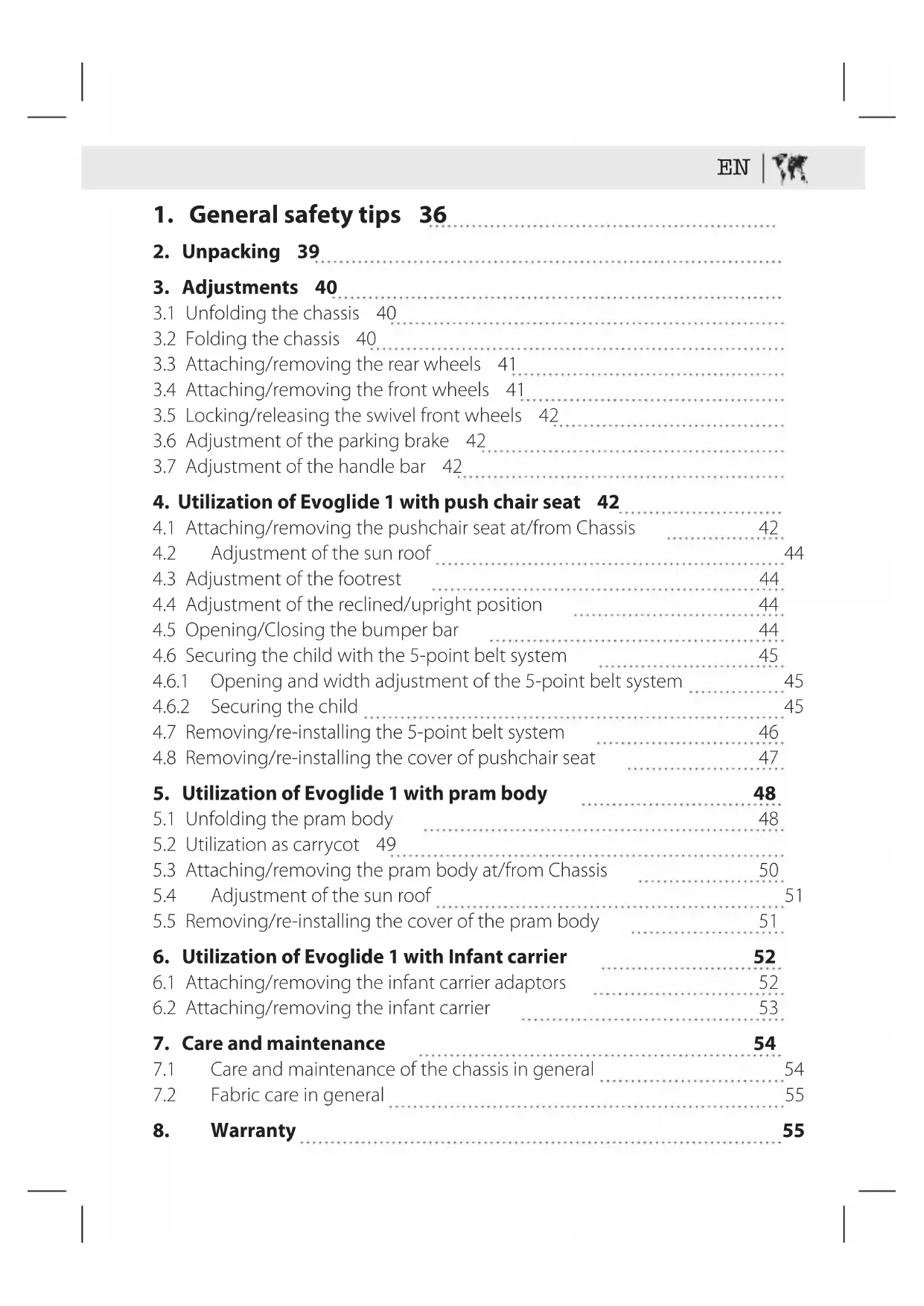

EN Directions for use

1. General safety tips 36

2.Unpacking 39

3. Adjustments 40

3.1 Unfolding the chassis 40
3.2 Folding the chassis 40
3.3 Attaching/removing the rear wheels 41
3.4 Attaching/removing the front wheels 41
3.5 Locking/releasing the swivel front wheels 42
3.6 Adjustment of the parking brake 42
3.7 Adjustment of the handle bar 42

4. Utilization of Evoglide 1 with push chair seat 42

4.1 Attaching/removing the pushchair seat at/from Chassis 42
4.2 Adjustment of the sun roof 44
4.3 Adjustment of the footrest 44
4.4 Adjustment of the reclined/upright position 44
4.5 Opening/Closing the bumper bar 44
4.6 Securing the child with the 5-point belt system 45
4.6.1 Opening and width adjustment of the 5-point belt system 45
4.6.2 Securing the child 45
4.7 Removing/re-installing the 5-point belt system 46
4.8 Removing/re-installing the cover of pushchair seat 47

5. Utilization of Evoglide 1 with pram body

5.1 Unfolding the pram body 48
5.2 Utilization as carrycot 49
5.3 Attaching/removing the pram body at/from Chassis 50
5.4 Adjustment of the sun roof 51
5.5 Removing/re-installing the cover of the pram body 51

6. Utilization of Evoglide 1 with Infant carrier

6.1 Attaching/removing the infant carrier adaptors 52
6.2 Attaching/removing the infant carrier 53

7. Care and maintenance

7.1 Care and maintenance of the chassis in general 54
7.2 Fabric care in general 55

8. Warranty 55

Operation manual Evoglide 1

IMPORTANT

Keep this instructions for future reference.

We're delighted that you have chosen the Evoglide 1 as your preferred travel system.

The Evoglide 1 is the latest innovative product in our stroller line. This stroller is a first-class product that guarantees a long-term useful life, if used correctly. Your Evoglide 1 is EN 1888 and EN 1466 tested and homologated.

Your Evoglide 1 is suitable for children from birth up to the age of approximately 4 years or 20kg . However, the following appropriate specifications for the respective age groups must be applied:

infant carrier (car seat): from birth to max. 13 kg (approx. 1.5 years)
Pram body (carry cot): from birth to max. 9 kg (approx. 6 months)
Seat unit (push chair seat: from 9 kg up to 20 kg (approx. 4 years)

1.General safety tips

Read these instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

WARNING

Never leave your child unattended.

WARNING

Ensure that all the locking devices are engaged before use.

WARNING

To avoid injury ensure that your child is kept away when unfolding or folding this product.

WARNING

Take also care that you don't entrap extremities in moveable parts.

WARNING

Do not let your child play with this product.

WARNING

The pushchair seat is not suitable for children under 6 months.

WARNING

Always use the restraint system.

WARNING

Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

WARNING

This product is not suitable for running or skating.

WARNING

Do not overload the basket, the bag of pushchair seat and cup holder. Maximum weight in basket is 5kg , in the bag of pushchair seat 0,5 kg. Any load could cause hazardous instability of the stroller!

WARNING

Any load attached to the handle and/or on the back of the back rest and/or on the sides of the vehicle will affect the stability of the vehicle.

WARNING

Do not use the stroller with more than one child at a time.

WARNING

Only use accessories and spare parts approved by KIDDY.

WARNING

Always use the crotch strap in combination with the waist belt. Attaching points (D-ring) for a separate belt harness are provided at the outer ends of the crotch restraint.

WARNING

The parking break shall be engaged when placing and removing the children.

WARNING

Periodically monitor the belts, the buckle and if rivets, screws or parts get loose.

WARNING

Never use the stroller on stairs or escalators.

1. Unpacking

WARNING

Remove protective material and plastic bags and dispose of them before assembling the stroller.

WARNING

To avoid suffocation keep the packing material away from children.

WARNING

Adult assembly is required. Keep small children away while assembling the stroller.

3. Adjustments

3.1 Unfolding the chassis

Place the chassis upright. Grasp with your left hand the lower frame at left side (fig. 1; No. 1) and keep the locking button pressed (fig. 1; no. 2). Then lift with your right hand the handle bar upwards (fig. 2; no. 2) until the locking mechanism is released.

Release the lower frame, grasp the hand-grip (fig. 2; no.1) and unfold the chassis completely by lifting the handle bar upwards (fig. 2; no.2) until the fixing mechanism at both sides is closed.

WARNING

Ensure that both locking devices of the chassis are engaged before use.

3.2 Folding the chassis

Keep the releasing button under the right side of the handle pressed (fig. 3, no. 1) and pull both releasing sliders backwards (fig. 3; no. 2) and simultaneously the handle bar downwards (fig. 3; no. 3).

Now pull the hand-grip (fig. 4; no. 1) with your left hand and push the handle bar (fig. 4; no. 2) until the locking button clicks in position.

WARNING

Take care that you don't entrap extremities in moveable parts.

WARNING

The chassis is completely flat foldable, when the push chair seat is mounted in driving direction.

3.3 Attaching/removing the rear wheels

To mount a rear wheel keep the locking button pressed (fig 5; no. 1) and push the axle in the hub of the chassis (fig 5; no. 2).

WARNING

Test whether both rear wheels are locked in place and tightly connected to the chassis by pulling them to the outside.

To remove a rear wheel, keep the locking button pressed (fig. 6; no. 1) and pull the wheel outwards (fig. 6; no. 2).

3.4 Attaching/removing the front wheels

To mount a front wheel keep the locking button pressed (fig. 7; no. 1) push the vertical axle in the holding bracket of the chassis (fig. 7; no. 2).

WARNING

Test whether both front wheels are locked in place and tightly connected to the chassis by pulling them downwards.

To remove a front wheel, keep the locking button pressed (fig. 8; no. 1) and pull the wheel downwards (fig. 8; no. 2)

3.5 Locking/releasing the swivel front wheels

To lock the front wheels, they must be turned in the straight forward position. Then push the fixing lever upwards (fig. 9; no. 1) until the button locks in place.

To release the wheels for free swivel, push the fixing lever downwards (fig. 9; no. 2).

3.6 Adjustment of the parking brake

Press the pedal backwards down to activate the brakes (fig. 10, "STOP").

WARNING

Don't let go off the stroller until you are sure that the parking brake is fully engaged.

To release the brakes, press the pedal frontwards (fig. 10, "GO").

3.7 Adjustment of the handle bar

Keep both release buttons pressed (fig. 11, no. 1) and then turn the handle bar in the desired position (fig. 11; no. 2).

4. Utilization of Evoglide 1 with pushchair seat

4.1 Attaching/removing the pushchair seat at/from Chassis

WARNING

The pushchair seat is intended for children from 6 months (appr. 9kg ) up to 4 years (max. 20kg ).

WARNING

This seat unit is not suitable for children under 6 months.

WARNING

Ensure that the parking brake is activated after unfolding the chassis as described in point 3.1.

If infant carrier adapters were used, they must be removed from the chassis. The pushchair seat can be used front or rear facing the driving direction.

Insert both plugs of the pushchair seat on the left and right support on the chassis until they lock into the place and sit tight (fig.12; no. 1) and the indication at locking button is "green" (fig.12; no. 2).

WARNING

Before using the pushchair seat make sure that both locking buttons indicate "green". When the locking buttons indicate "red", pull these upwards, so that "green" will be indicated. Test by pulling upwards whether the pushchair seat is locked in place and tightly connected to the chassis.

To remove the pushchair seat from the chassis press both locking buttons downwards (fig.13; no.1) so that these indicate "red" (fig.13; no. 2) and pull the push chair seat upwards (fig. 13; no. 3).

4.2 Adjustment of the sun roof

The sun roof can be adjusted freely into the desired position by turning the front bar of the sun roof (fig. 14; no. 1).

If you want to open the sun roof into the maximum position, open both snap fastener inside (fig. 14; no. 2).

4.3 Adjustment of the footrest

Keep both release buttons pressed (fig. 15, no. 1) and then turn the foot rest in the desired position (fig. 15; no. 2).

WARNING

Ensure that both locking buttons are engaged after the adjustment.

4.4 Adjustment of the reclined/upright position

Pull the handle on backside of the backrest to release the locking mechanism (fig. 16; no. 1) and turn the pushchair seat in the desired position (a, b, c, fig. 16; no. 2).

WARNING

Ensure that the reclining mechanism is engaged after losing of the handle.

4.5 Opening/ Closing the bumper bar

To open the bumper bar, press one of the release buttons (fig. 17; no. 1) and tip the bumper bar to the side (fig. 17, no. 2).

To close the bumper bar, plug in the locking button back into the support on the pushchair seat.

WARNING

Make sure by a pulling test that the bumper bar is always closed correctly when seat unit is in use.

WARNING

Never use the pushchair seat without bumber bar.

4.6 Securing the child with the 5-point belt system

WARNING

Avoid serious injury from falling or sliding out. Always use the 5-point belt system in described manner when you use your Evoglide 1 with pushchair seat.

4.6.1 Opening and width adjustment of the 5-point belt system

To open the belt system, press the red button on the buckle.

To widen the belt system, keep the locking button "PRESS" of central adjuster pressed (fig. 18; no. 1) and then pull both shoulder belts out to the front (fig. 18; no. 2).

4.6.2 Securing the child

Place the child in the seat unit and place the shoulder belts over its shoulders.

Now place both belt tongues on top of each other (fig. 19; no. 1) and slide them into the buckle (fig. 19; no. 2) until you hear a clicking noise.

WARNING

Test by pulling on the belts whether the buckle is correctly locked.

Finally, the belt system must be tightened. For this purpose pull the central belt (fig. 20) until the belts touch the child's body.

WARNING

The belt system is adjusted correctly when the belts lay firmly on the child's body.

4.7 Removing/re-installing the 5-point belt system

Open the Velcro behind the back rest and on the lower side of the seat part (fig. 21).

Put one hand under the cover and thread the end clip of buckle belt through the hole of seat plate (fig. 22). Then thread both end clips of hip belts through the lower holes of back rest (fig. 23). Open the 5-point-buckle and thread the shoulder and hip belts together through the upper holes of back rest (fig. 24).

Remove the central adjuster (fig. 25; no. 1) and remove then the belt system frontwards (fig. 25; no. 2).

To re-install the 5 point belt system, follow the steps for removing the belt system in reverse order.

WARNING

Before using the pushchair seat make sure that the 5-Point belt system is correctly re-installed, the buckles match together and work, the belts

are flat routed, the end clips of hip belts are placed flat behind rear plate and the end clip of buckle belt is placed flat under the front slot of seat plate.

4.8 Removing/re-installing the cover of pushchair seat

To remove the sun roof open the snap fastener at upper frame of push chair seat (fig. 26)

Open the snap fastener at both sides of sun roof joint (fig. 27; no. 1).

Press both locking buttons (fig. 27; no. 2).

Remove the sun roof by lifting the frame upwards (fig. 27; no. 3).

To remove the Cover of pushchair seat open the snap fastener (fig. 28) and zipper (fig. 29/30) around the whole frame.

Open both buckles of hip belts and thread it through the cover. (fig. 31; no. 1).

Open the 5 point buckle and thread it through the cover. (fig. 31; no. 2).

Thread the shoulder belts through the cover (fig. 31; no. 3).

Now the cover can removed completely.

To re-install the cover, follow the steps for removing the cover in reverse order.

WARNING

Before using the pushchair seat make sure that the 5-Point belt system is correctly re-installed as explained under point 4.7 that the cover is correctly re-installed and all snap fastener and zippers are correctly closed.

1. Utilization of Evoglide 1 with pram body

WARNING

This product is suitable for a child who cannot sit up unaided, roll over and cannot push itself up on its hands or knees. Maximum weight of the child: 9 kg.

WARNING

Never use the pram body if your child can sit up by itself.

WARNING

Do not add another mattress on top of the existing mattress provided by the manufacturers, so that the thickness of max. 30mm is not exceeded.

5.1 Unfolding the pram body

Pull both support bars outwards (fig. 32; no.1). until they lock into place on the brackets (fig. 32; no. 2).

WARNING

Before each use make sure that the support bars are locked in place.

Keep the locking buttons (fig. 33; no.1) pressed at both plugs and install the extension parts (fig. 33; no.2)

WARNING

Before using as pram body make sure that the extension parts are locked in place

For folding the pram body, follow the steps for unfolding in reverse order.

5.2 Utilization as carrycot

WARNING

This product is only usable for a child who cannot sit up unaided.

WARNING

Never leave your child unattended.

WARNING

Never use this carrycot on a stand.

WARNING

Place this carrycot only on a firm, horizontal level and dry surface.

WARNING

Don't let other children play unattended near the carrycot.

WARNING

Do not use if any part is broken, torn or missing.

WARNING

Inspect the carrying belts and the bottom regularly for signs or damage and wear.

WARNING

Be aware of the risk of open fire and other source of strong heat, such as electric bar fires, gas fires, etc., in the near vicinity of carrycot.

Place both carrying belts on top of each other (fig. 34; no. 1) into the belt pad and close both snap fasteners (fig. 34; no. 2).

WARNING

Never use the sun roof front frame for carrying the carrycot (fig. 35)!

Ensure that the head of the child in the carry cot should never be lower than the body of the child.

5.3 Attaching / removing the pram body at/from chassis

WARNING

Ensure that the parking brake is activated after unfolding the chassis as described in point 3.1.

If infant carrier adapters were used, they must be removed from the chassis.

The pram body can be used front or rear facing the driving direction.

Insert both plugs of the pram body on the left and right support on the chassis until they lock into the place and sit tight (fig. 36; no. 1) and the indication at locking button is "green" (fig. 36; no. 2).

WARNING

Before using the pram body seat make sure that both locking buttons indicate "green". When the locking buttons indicate "red", pull these upwards, so that "green" will be indicated. Test by pulling upwards whether the pram body is locked in place and tightly connected to the the chassis.

WARNING

Do not leave the flexible carrying handles inside the carry cot.

Put these to outwards (fig. 37, no.1) and fix both by the snap fastener (fig.37, no.2), so the child cannot pull it to inside.

To remove the pram body from the chassis press both locking buttons downwards (fig. 38; no.1) so that these indicate "red" and pull the pram body upwards (fig. 38; no.2)

5.4 Adjustment of the sun roof

The sun roof can be adjusted freely into the desired position by turning the front bar of the sun roof (fig. 39).

5.5 Removing/re-installing the cover of the pram body

To remove the sun roof open the snap fastener at frame of pram body (fig. 40; no. 1). Open the snap fastener at both sides of sun roof joint (fig. 40; no. 2). Press both locking buttons (fig. 41; no. 1). Remove the sun roof by lifting the frame upwards (fig. 41; no. 2).

To remove the cover of pram body open the snap fastener (fig. 42) and zipper (fig.

43) around the whole frame.

Remove the mattress.

Now the cover can be removed completely.

To re-install the cover, follow the steps for removing the cover in reverse order.

WARNING

Before using the pram body make sure that: - the cover is correctly re-installed and all snap fastener and zippers are correctly closed -the carrying belts are placed correctly -the mattress is inside

1. Utilization of Evoglide 1 with infant carrier

6.1 Attaching/removing the infant carrier adaptors

WARNING

Ensure that the parking brake is activated after unfolding the chassis as described in point 3.1.

Insert both plugs of the infant carrier adapter on the left and right support on the chassis until they lock into the place and sit tight (fig. 44; no. 1) and the indication at locking button is "green" (fig. 44; no. 2).

WARNING

Before installing of infant carrier seat makesure that both looking buttons indicate "green".

When the locking buttons indicate "red", pull these upwards, so that "green" will be indicated. Test by pulling upwards whether the infant carrier adapters are locked in place and tightly connected to the chassis.

To remove the infant carrier adapters from the chassis press both locking buttons downwards so that these indicate "red" (fig. 45; no. 1) and pull the adapters upwards (fig. 45; no. 2).

6.2 Attaching/removing the infant carrier ADAPTER COMPATIBLE

KIDDY MaxiCosi	Cybex Be safe R	ecaro
Evoluma i-Size Pepple plus Aton Q		Izi go Privia
Evolunafix Cabrio fix Cloud Q
Evolution Pro 2

WARNING

Make sure that your child is secured in the infant carrier like described in it's operating manual.

Attach the infant carrier against the driving direction on the adaptors. Ensure that the Infant carrier will be locked noticeable at both adaptors. Push at both sides the shell downwards (fig.46; no.1) Try to lift up the handle (fig.46; no.2) to check if both sides are locked proper at the adaptors.

Hold both buttons at the handle of the infant carrier pushed (fig. 47; no. 1).

Turn the handle in frontal direction until the handle buttons lock in place (fig. 47, no. 2).

WARNING

Ensure before using that the adaptors and the infant carrier are engaged!

To remove the KIDDY infant carrier push both handle buttons and turn the handle in carrying position.

WARNING

Ensure that both handle buttons are engaged.

Now the infant carrier can be removed from the adaptors by simultaneous pushing of release buttons at both sides of infant carrier.

WARNING

For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.

7. Care and maintenance

7.1 Care and maintenance of the chassis in general

Periodically check the chassis for loose screws, rivets or worn out or defective parts. Check the fabric cover and belts for open seams or other defects.

Don't use the stroller when you noticed a defect. Defective parts have to be changed or repaired before using the stroller again.

After long time of usage the function elements can worsen the sliding properties.

For example add some silicon oil on a cloth and rub it at gliding areas of folding mechanism (fig 48, no.1 and 2)

If a wheel is squeaking, spray some liquid silicone lubricant on the axles. Wipe off unnecessary lubricant.

The chassis can be cleaned with a mild cleanser or with a damp cloth. Never use caustic cleansing agents (e.g. solvents, strong detergents).

7.2 Fabric care in general

All of our fabric meets the highest standards regarding colourfastness against UV radiation. Nevertheless, all fabric fades when exposed to UV radiation. This is not due to defective fabric but to normal wear and tear, which is not covered by the warranty.

When the cover (or the chassis) is wet, allow to dry unfolded at room temperature before storing or using.

The seat cover and the belt pads are machine washable with mild detergent on a delicate cycle. Don't bleach, spin or tumble dry the cover. Allow to dry naturally, ideally on a washing line. Do not iron any part of the cover.

The sunroof is hand washable only. Use a mild detergent and rinse it out with lots of warm water. Allow to dry naturally, ideally on a washing line.

8. Warranty

We provide a 2-year guarantee for manufacturing or material defects.

The guarantee period commences on the day of purchase.

A receipt is required for all claims.

The guarantee is limited to products which have been handled appropriately and are returned in a clean and sound condition.

The guarantee does not extend to:

• Normal wear and tear and damage due to excessive load during use (e.g. wheels).
• Damage caused by inappropriate or improper use.
• Damage and rust caused by road salt.

Fabrics:

All our fabrics meet the highest standards regarding colourfastness against UV radiation. However all materials discolour when they are exposed to UV light. This will be considered as normal wear and tear and not a material defect. No guarantee can be assumed in this case.

Please contact your specialist dealer immediately in the event of a warranty claim.

The KIDDY team wish you and your child a good and safe trip at all times.

Brugsanvising for Evoglide 1

VIGTIGT
