USER MANUAL Tab 900 8GB Sunstech

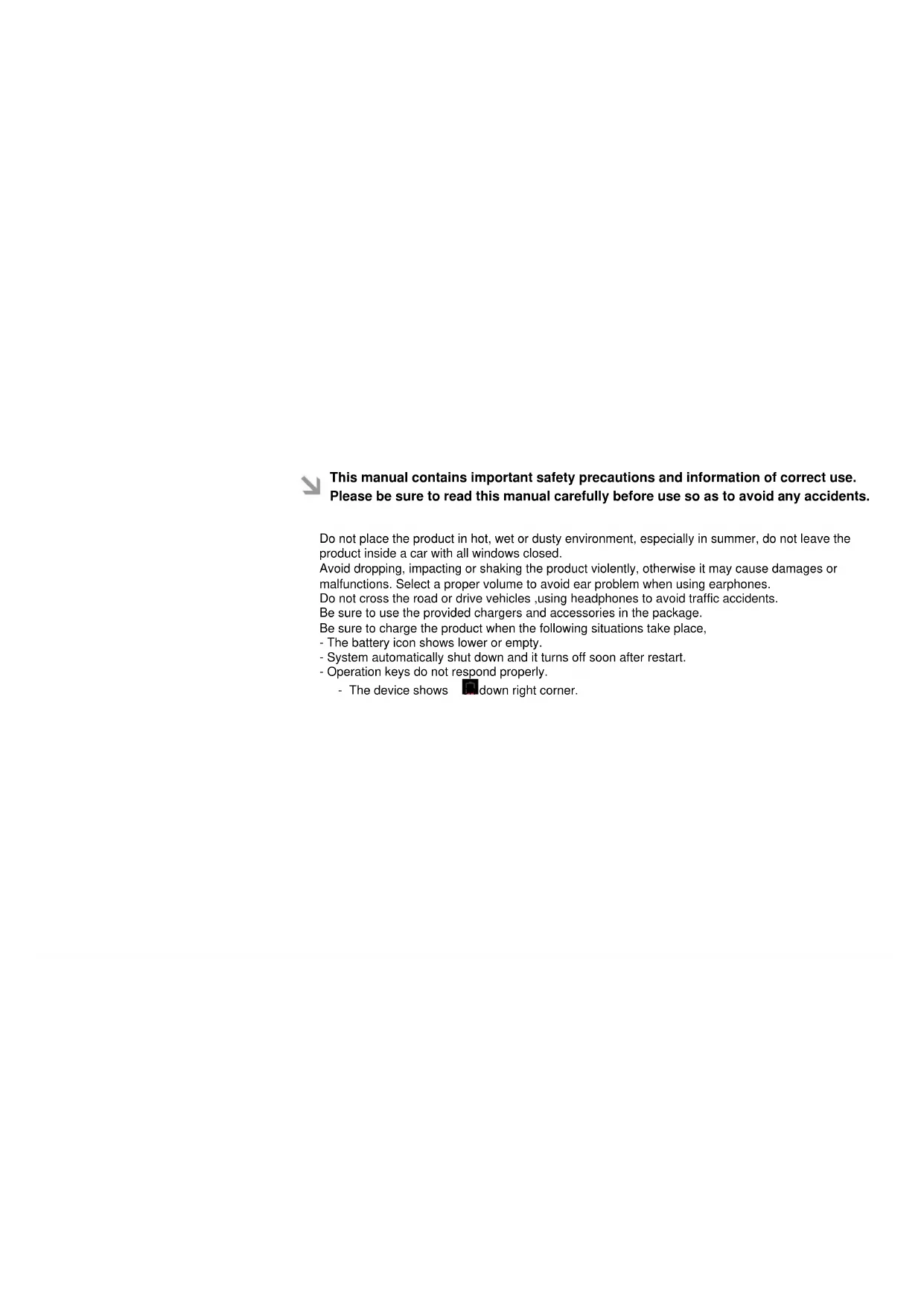

TAB900 8GB User ManualThis manual contains important safety precautions and information of correct use. Please be sure to read this manual carefully before use so as to avoid any accidents.

Do not place the product in hot, wet or dusty environment, especially in summer, do not leave the product inside a car with all windows closed. Avoid dropping, impacting or shaking the product violently, otherwise it may cause damages or malfunctions. Select a proper volume to avoid ear problem when using earphones. Do not cross the road or drive vehicles ,using headphones to avoid traffic accidents. Be sure to use the provided chargers and accessories in the package. Be sure to charge the product when the following situations take place, - The battery icon shows lower or empty. - System automatically shut down and it turns off soon after restart. - Operation keys do not respond properly. - The device shows on down right corner.Page 2

Important Notice - If the device is freezing or stuck, press the reset button(a small hole) or long press power button for 7 seconds. - When the performance is slow after using some applications, it is recommended to close running application in setting menu.

Caution - For charging, be sure to use the power adapter(DC5V) that is provided in the package, otherwise, the device may be damaged and does not work. - The device is equipped with high performance processor. It may heat in case of using long or while charging.1. Power On/Off Long press power button to turn on/off the device. It may take a minute to boot the device. Short press power button to turn on/off the screen.(Standby mode. refer to 3. below)

After turning on the device, desktop displays with shortcut icons and arrow panel at the right side3. Standby mode(Screen off mode) / Unlock the screen Short press the power button to turn on/off the screen (Standby mode on/off). After standby mode , slide the lock icon in order to unlock the screen.4. System settings On the desktop, press menu button and select system settings.Press System Settings

Wi-Fi - Press Wi-Fi to turn on/off Set up each setting as you like. Wi-Fi settings - Press Wi-Fi settings, then the device will automatically search the available Wi-Fi signals. Select the network you want to connect with.3. Display 4. Storage

Set up each setting as you like.

Check device memory and microSD card status. Unmount SD card – Unmount the SD card for safe removal.5. Battery 6. Apps

Check battery usage status. Manage downloaded or running applications. Downloaded All installed application are listing. .Keep pressing an application to manage. Running services Press Uninstall to uninstall the selected application. View and control currently running services.7. Account & sync Create your account. After connecting Wi-Fi network, the e-mailing system synchronizes your account with the device. Emails are automatically downloaded into the device.

8. Location services

Google’s location service - Let apps use data from sources such as WiFi and mobile networks to determine your approximate location9. Security Screen lock – Protect your device from unauthorized use by creating a personal screen unlock pattern. Make passwords visible – Show password as you type. Unknown sources - If you want to allow installation of non-Market Applications, Press Unknown sources and presses OK.

Install from SD card – Install encrypted certificates from SD card.10. Language & input Language – Choose your preferable language. Keyboard & input method – Change keyboard & keyboard settings. On Language & input settings, if you need other languages besides English on keyboard, press the relevant keyboard and enter the chosen Keyboard settings, select Keyboards, press the language you need.11. Date & time Set date & time and format

Set options for application development

See status, legal information, ETCHow to connect/disconnect the device with/from the computer

On main desktop, connect the device with the PC, touch right side of the status bar on the bottom of desktopPress “USB connected”, select “Turn on USB storage”. The device is recognized at Explorer of the computer. Now you can use it as an external storage.

After finishing your work, Press "Turn off USB storage" to unmount it.How to install Applications(.apk file) into the device Method 1.

1. Connect the device with internet. See above [1.Wireless & networks] in order to connect internet.

2. Run “Play Store” and search the applications you want to install.

3. Follow the instruction on the screen for installation.

1. With your computer, search application file(.apk) that you want to install into the device.

2. Download the file(.apk) into your computer.

3. Connect the device with your computer.

See above [How to connect/disconnect the device with/from the computer.]

4. Copy and paste .apk file into the device and disconnect it from your computer.

5. Run “File browser” and .apk file that was copied into the device.

6. Press the file to install and follow the instruction on the screen.

Note You may only download adult applications if you are at least 18 years of age, or at least the age of majority in the jurisdiction where you reside or from which you download adult applications. If you do not meet these requirements, then you do not have permission to download adult applications. In case of any problems including legal issues from the breach by end-user’s own decision, the manufacturer shall not be responsible.How to make desktop icons Press the upper right side icon of desktop, the pop-up disp lays .Shortcuts Long press your desired APK icon and put it on the desktop. Widgets Press Widgets and press your desired icon to put it on the desktop.

Wallpaper Long press the desktop, press Wallpapers and select one of categories of wallpaper. Select one you desire and press Set wallpaper.Change Input Method If your device was installed with other more input method, long press setting icon of keyboard, and the pop-up displays.

Select the installed keyboard, then the keyboard will appear with your desired language you installed.Specification OS Android 4.0 ICS CPU ARM cortex A8 processor SDRAM DDR3 512MB (3D accelerator possible for 4D games) Display 9" TFT 800*480 Capacitive touch panel Multi-touch screen 5 point multi-touch Flash memory 8GB Audio port 3.5ø earphones USB port 1 x 5pin micro USB port (support USB host and OTG) DC port 5V, 2A Micro SD Micro SD card up to 32GB (support SDHC) IO PORTS OTG port Same with micro USB port Button Power, VOL-, VOL+, reset, Speaker 1.5W, Frequency response : 20Hz – 20k Hz, N/S : >85% G-sensor Yes Camera 0.3M pixel (front),2.0M pixel (rear) Wi-Fi 802.11b/g/n Power Adaptor 5V -2A Battery 3.7V Li-Polymer 5500mA Dimension 239.1 x 148.7 x 11.5mm 3G Support external 3G Language MultilingualWarranty conditions - The warranty of this product is for 2 years since the purchase date. - The warranty will exclude breakdowns caused by bad use of the product, wrong installation or installation in not desirable places for a proper maintenance of the product, rips, updates of the products that are not the supplied by the brand, pieces wore away for its use or for not domestic or inappropriate use. Also are excluded breakdowns caused for manipulations of the products by people or companies alien to our company. - For any request regarding the warranty terms, the purchase receipt must be attached.ag
