USER MANUAL Baby Carrier Miracle BabyBjörn

Ergonomic waist belt and flexible carrying provide superior comfort.

All materials in the baby carrier are approved in accordance with Oeko-Tex Standard 100, class 1 for baby products. Guaranteed free from health-hazardous substances.

Fits your baby perfectly from day one.

Extra soft and gentle on baby's sensitive skin. Durable fabric in stylish design.

Once a little older (approx. 4-5 months) you can also carry your child facing forwards.

IMPORTANT! Please read this manual carefully before using the baby carrier. Save it for later reference.

Congratulations on your little miracle!

Correct support and the perfect fit are vital in a baby carrier that embraces the delicate body of a newborn. BABYBJÖRN Baby Carrier Miracle has been specially designed to fit your child from the moment it is born (at least 3.5 kg and 53 cm long) all the way up to 12 kg (approx. 15 months old).

The baby carrier's design ensures you can carry your child in comfort in a variety of ways, even when your child grows and gains weight. Simple adjustments transfer the weight between your waist, hips and shoulders until you find the position that suits you best. You also have the option of carrying the child high on your chest - which we recommend for newborns - or lower down when your child is bigger.

We hope that you and your child will both enjoy using BABYBJÖRN Baby Carrier Miracle. Please do get in touch with us if you have any questions or comments.

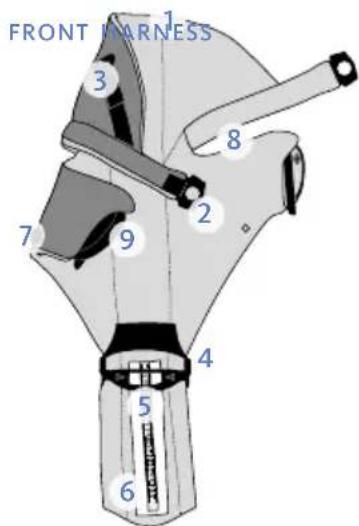

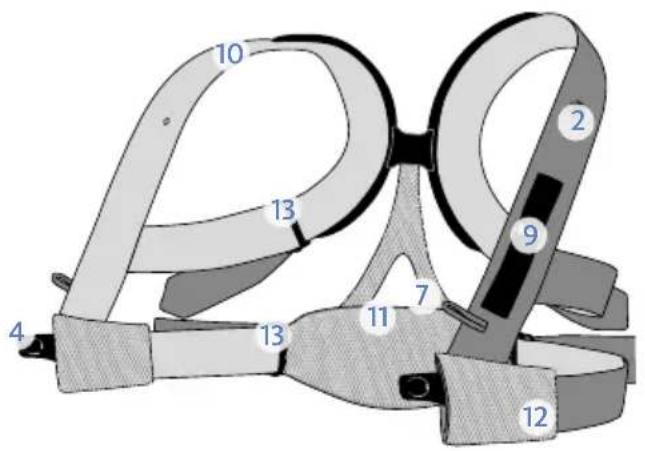

1: Head support · 2: Head support buckle · 3: Head support strap · 4: Double-buckle · 5: Size adjustment
6: Storage bag for baby carrier (only BABYBJÖRN Baby Carrier Miracle in airy mesh). · 7: Leg strap · 8: Armhole
9: Side latch · 10: Shoulder strap · 11: Back support · 12: Waist belt · 13: Adjuster buckle

1. Set the baby carrier to your child's approximate length (in centimetres). You may need to adjust the length setting once the child is in the baby carrier.

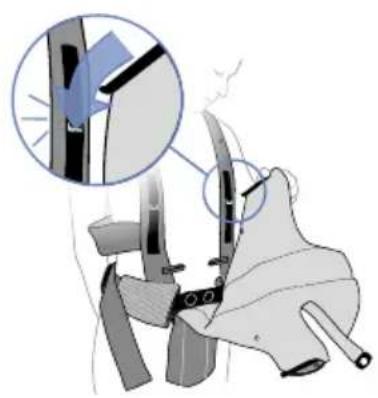

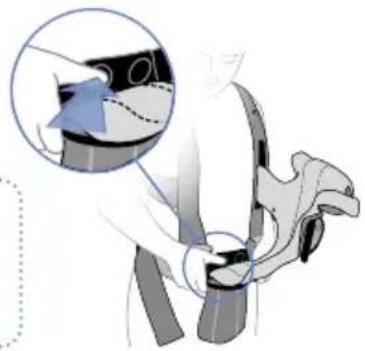

2. Put on the harness and fasten it to the front of the baby carrier by locking the double buckle. It's locked when you hear a click. Leave the shoulder straps loose!

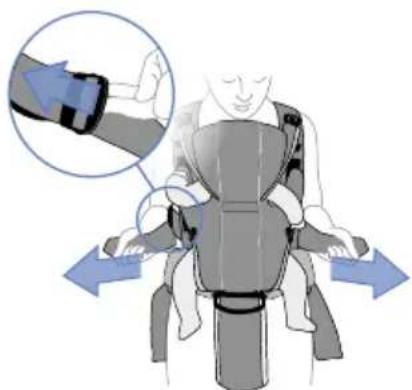

3. Adjust the waist belt by pulling the lower straps. Check that they are the same length so that the back support is centred.

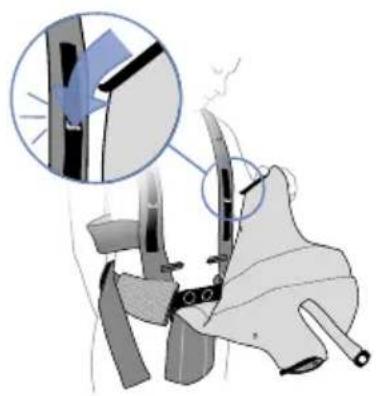

1. Fasten the latch on one side by inserting the hook into the slot. Check that it is firmly locked.

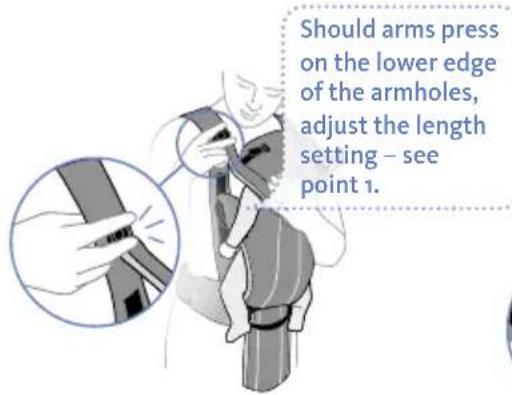

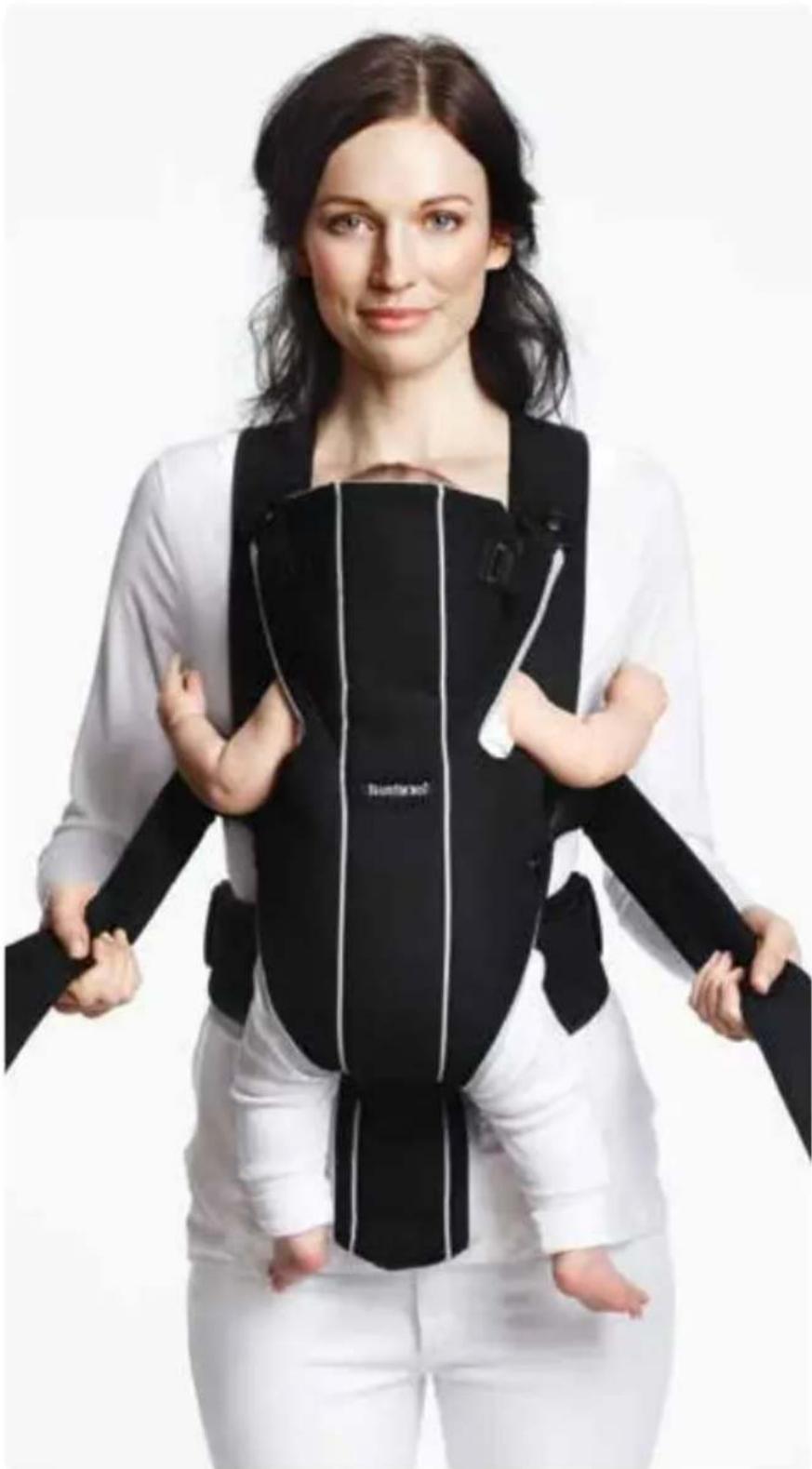

1. Place the child in the baby carrier, facing you. Each leg should be on its respective side of the baby carrier front and the child's arms should be placed through the armholes.

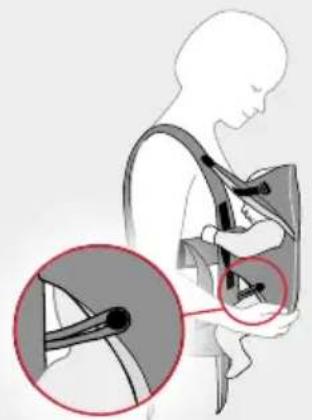

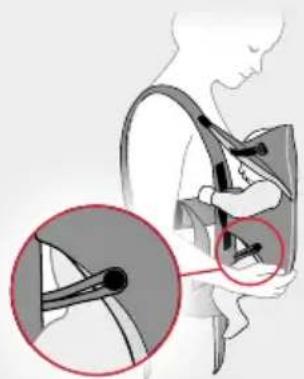

2. Fasten the latch on the other side by inserting the hook into the slot. For smaller children weighing between 3.5 and 4.5kg (8-11 lbs), fasten the leg straps on both sides as well.

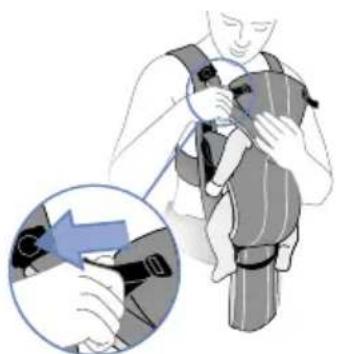

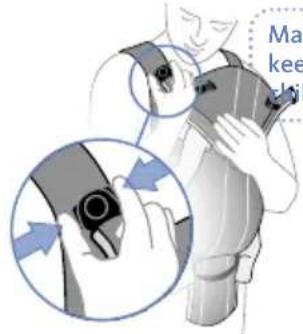

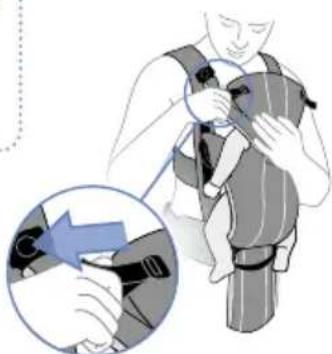

1. Fasten the head support on both sides. Place your thumb behind the knob on the harness. Click into place!

Position the back support lower down to get more support on your hips and lower back.

1. You can adjust the head support by carefully pulling on the head support straps. Make sure that there is enough air space around your child's head.

2. Adjust the back support to a comfortable position.

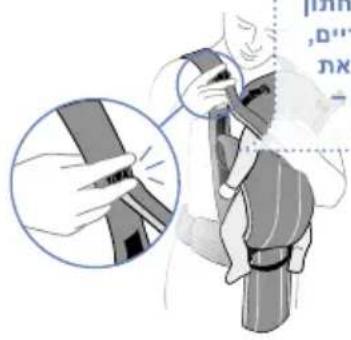

1. Adjust the shoulder straps. The more you tighten them, the more weight you will take on your shoulders. To reduce the load on your shoulders, simply lift the outer edges of the adjuster buckles.

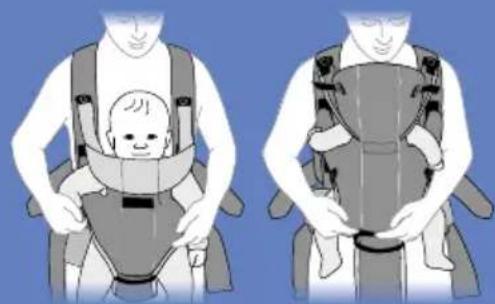

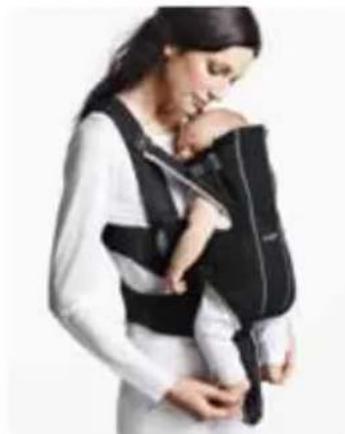

For secure closeness and control of your child, carry your newborn facing you high up on your chest.

Once a bit bigger, your child can be carried lower down to relieve pressure on your shoulders. From approx. 4 months old (or when their neck is strong enough) you can also switch between carrying your child facing you or forwards.

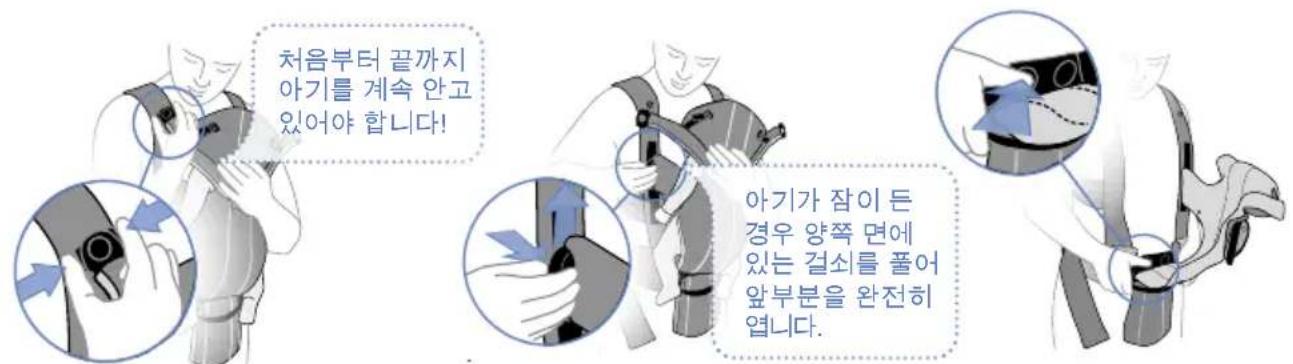

Make sure you keep hold of your child throughout!

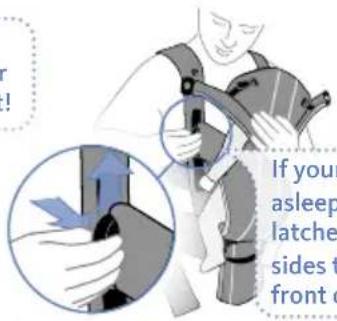

If your child is asleep, open the latches on both sides to open the front completely.

1. Start by unfastening the leg straps, if they are being used. Then unfasten the head support on both sides. Place your thumb and index finger on either side of the button. Press and lift off.

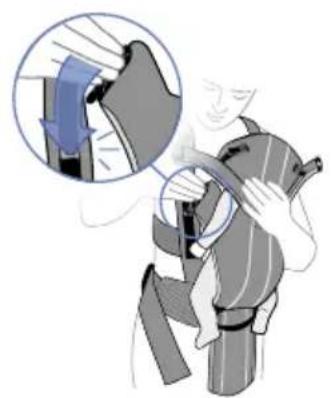

2. Unfasten the latch on one side. Place your thumb on the grooved marking on the coloured back of the hook, press and pull upwards. You can now lift the child out.

3. Unfasten the double buckle. For safety reasons, you must push the buckle together before pressing the button.

VARIATION FOR INCREASEDCARRYING COMFORT

Varying the load points is the best way to optimise carrying comfort and duration. Try out different positions to find out what feels best for you and your child. Try some of the tips below.

• TAKE MORE WEIGHT ON YOUR WAIST/HIPS Loosen the shoulder straps slightly to take the load off your shoulders and transfer it to the waist belt.
• TAKE MORE WEIGHT ON YOUR SHOULDRS
• Loosen the waist belt and tighten the shoulder straps to increase the load on your shoulders. You can also vary the load point on your shoulders by moving the back support up or down.
  CARRY YOUR CHILD HIGHER UP Tighten the shoulder straps while lifting the child from underneath to move the child closer to you and higher up on your chest.
  CARRY YOUR CHILD LOWER DOWN Loosen both the upper and lower straps. Pull the waist belt and back support down until the child is in the desired position. Tighten the straps.

WASHING INSTRUCTIONS

Wash separately. Use an eco-friendly, gentle, bleach-free detergent.

Soft Cotton Mix/Organic Cotton

Airy Mesh

TECHNICAL INFORMATION

Soft Cotton Mix

Main material: 60% cotton, 40% polyester Lining: 100% cotton

Airy Mesh

Main material: 100% polyester

Organic Cotton

Main material and lining: 100% organically grown cotton

All of the materials used in the baby carrier are guaranteed free from harmful and allergenic substances, and comply with the requirements of the Oeko-Tex Standard 100, class 1 for baby products.

Accessory for BABYBJÖRN Baby Carrier Miracle in airy mesh:

Storage bag on the inside of the baby carrier for easy transportation.

SAFETY APPROVAL

BABYBJÖRN Baby Carrier Miracle meets the safety requirements of EN 13209-2:2005.

IMPORTANT! The leg straps should be used for children weighing between 3.5 and 4.5kg (8-11 lbs) in order to reduce the size of the leg openings.

IMPORTANT! The child's arms should always go through the armholes and never hang over the head support.

WARNING! FALL HAZARD!

• Carefully read and follow all instructions before assembling and using the baby carrier.
• This baby carrier is intended for use by adults only.
• Only use this baby carrier for children weighing between 3.5kg and 12kg (8-26 lbs).
• Always adjust the baby carrier to your child's size (minimum 53 cm) according to instructions.
• Adjust the leg openings to fit the baby's legs snugly.
• The leg straps must be used for children weighing between 3.5 and 4.5kg (8-11 lbs).
• Small children can fall through a leg opening.
• The child must face you (inwards) until he/she can hold his/her head upright (approx. 4 months).
• The baby carrier must not be used as a back carrier.

• The baby carrier may only be used when you are walking, sitting or standing.

• The baby carrier is NOT suitable for use during sports or other leisure activities.

• The baby carrier must not be used as a car seat.
• Your balance may be adversely affected by your own or your child's movements.
• To keep the child safe in the baby carrier when you bend over or lean forward, remember to bend at the knees NOT the waist.
• Make sure the child's nose and mouth have sufficient space for breathing in the baby carrier.
• Avoid dressing your child too warmly.
• Check that all buckles are securely buttoned/closed before using the baby carrier.
• Never use a damaged baby carrier.
• Never lie down with baby in the baby carrier.
• Never sleep while your baby is in the baby carrier.

WAARSCHUWING! GEVAAR VOOR VALLEN!

MraKar xlonuato6ymaxKaHaTKaHb OCHOBHO MaTePnA: 60% XIOIOK, 40% non3ep. POKNA: 100% XIONO

DbIauaa CeTka

OCHOBHOM MaTePnaI: 100% NOnIaCTep

Opranuueckn xnonok

OCHOBHO MaTePnA IN NOkNaDKa: 100%
opraHnueckn YnCTO BbIpaeHHbXnONOK

Hn Odn Hn nCnoB3yEmbix B POK3aKe- KeHpy MaTePnaIob He coOpJxN TOnaChbIX IJI 3IOPOBBa NII AnIepReHHbIX BeueCTB. BCE MaTePnaIbI COOTBETCTBYIOT Tpe6OBAHNMA cTaNapTa Oeko-Tex 100,Knacc 1 N3denn dIra rpyNbIx deten.

PnnaIaeXHocTn IaBBYBJORN POK3akaKeHrypy Miracle c dblwaue ceTKoIcymKa IyDIO6HOITpaHCnOpTnpOBKnPOK3aka-KeHrypy, XpAHJUacB BO BHyTppeHHemKapMaHe

БЕЗПАСНСТь ПОДУКТА

BABYBJORN POK3aK-KeHypy Miracle OTBeuaET Tpe6oBaHnM CTaHdApTa 6e3OpaCHOCTN EN 13209-2:2005.

BHIMAHNE! HoXHbIe peMeuKHeo6xOaMo IVcNoJIb3OBaTb IJNeTeBecOMOT 3,5do4,5Kr,TO6bI yMeHbWHTb OTBepCTnA JnHOr.

BHIMAHNE!Pyknpe6eHka BCErdaDOLXhbl6bItb npOeTbI BOTBepCTnI pyk HNKOrda He DOJIKNbICBCaTbHaN NOIDepKkoI JIra FOIOBbl.

BнIMAHNE! PИСК ПАDEHЯ!

-Перед надеванем И NGПОьванем юКЗаKa-KeHypу BнIMaTeЛьНо почиТайт e N BыINОЛНITE Bce ИНСТPyKцИN.
-ДаHHbI pIOK3aK-KeHgpy npeHa3HaueH NCKJIHOuHTeMbHO dJa NCpOJb3OBaHnB B3PocNbIMN.
- POK3aK-KeHypy MOxHO IcNoIb3OBaTb TOIbKO dIe HOseHnI DeTeN BECOM OT 3,5 Do 12 Kf.
Bcerda perynipyTe pOK3ak-KeHrypy B COOTBECTBUN C INHCTpyKUIMN I POCTOM BaIeRo pe6eHka (MHNMaJIbHO DOYCTnMbIPOCTpe6eHka COCTaBnReT 53 CM).
- Perynipyte OTBepCTnJa HOr, UTo6bI OHN PLOTHO O6neraHn HoN pe6eHka.
ДлЯ DeTeH BeCOM OT 3,5do 4,5Kr Heo6xOДIMO IcPOnIb3OBaTb HOxHbIE peMeUKN.
MaIeHbKne IeTn MOyT BbInactbYepe3 OTBepCTne IJr HOr.
- PebeHka HuxkHO Hocntb IINcOM K ce6e Do Tex NOp, NOKa OH He HayuNTcAdepKaTb TOnOBy nprMo (npimepHo Do 4 MecaueB).
- POK3aK-KeHrypy HeIb3a HOCITb Ha cPnHe.
- PHOK3aKOM-KeHgpy MOXHO NOIb3OBA TbC8rTOJIbKO TOIgda, KOrDa Bbl XODNTe, CNDITeNII CTONTe.

• Pók3aK-KeHgpy HE npedHa3HauehДЯ ИСпОЛьЗОВаня BO BpeMЯ 3aHЯТиСПОТOM ИЛN BO BpeMЯ aKTINBHOrO OTДыxa.
• POK3aK-KeHgpy HeIb3a INcNoIb3OBA Tb B KaueCTBe aBTOMo6nIbHOrO cnIeHb.
  BaWe paBHOBeCne MoKet 6bITb HApUSeHO BaUMN DnIXeHnMaN NIn DnIXeHnMaN pe6eHka.
  -ДЯTOrO uTo6bIMlaJeHeuHaJeKHO cnIeB pIOK3aKe-KeHgpy,KoIa Bbl NaKIOHReTeCb,CleNyET npCeDaTb, Cn6aHOrn B KOJIeHx,a HE HaKIOHrTbcB T TaIIu.
• Y6eIITecb, yTO B pHOK3aKe-KeHrpy
• IMeETcA DOCTaTOUHbI N DOCTyN BO3dYxa
• K HOCY n PTy pe6eHka.
  He oIeBaIte pe6eHka cIIuKOM TeIIO.
  -Перед ИспOLTь3ОВанем рЮКЗаКaKeHгу y6eДиТecь,чTO BCE креленЯHaДжХо 3aCTeГнТbl.
• HnKoIa He nCNoIb3yIe NOBpeJdeHbI pIOK3ak-KeHrypy.
• Henb3a loxntbcra, ydepxnbara pe6eHka B pIOK3ake-KeHpy.
• HeIb3a3acbIinaTb, yIepKINBaI pe6EHNka B pIOK3aKe-KeHypy.

yynn nn nyn 6
ynn nn nn nn nn
yynnn nn nn nn nn
nxnnn 4.5.-3.5
TNNnnnnnn

n nn nnn nn nn nn .5 nnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

TnXnNnNn.4
xynnnnnnnnnnnn nn nnnn

nnnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nnn nn nnn nn .9 6.

ywn no nn np 8 nynnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nnnnnnnnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nn

7 1n nn nnnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

7nnn

afo/fofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofo

To find the answers to most questions and contact our customer service, please visit www.babybjorn.com
