Product type	Active speaker (column speaker)
Brand	Madison
Model	MAD-CENTER100
Output power	50W RMS at 4 ohms
Frequency response	60 Hz – 20 kHz
Nominal impedance	4 ohms
Signal-to-noise ratio (line input)	≥75 dB (A-weighted)
Total harmonic distortion (at nominal conditions)	≤2%
FM tuner	87,5 – 108 MHz
Supported audio formats	USB, SD/MMC, Bluetooth, AUX input, MP3 input
Bluetooth name	MAD-CENTER
Power supply	220 – 240 V~, 50/60 Hz
Power consumption	≤50 W
Dimensions (L x P x H)	200 x 120 x 918 mm
Net weight	6,7 kg
Gross weight	7,4 kg
Remote control type	Infrared with basic functions (volume, mode, EQ, etc.)
Equalizer (EQ)	7 presets
Repeat function (USB/SD)	Repeat one track or all tracks
USB charger	Yes (on the rear panel)
Auxiliary input (AUX)	Yes (RCA L/R jacks)
MP3 input	Yes (3.5 mm jack)
Intended use	Indoor use only, dry and enclosed room
Maintenance and cleaning	Unplug before cleaning; use a dry, soft cloth; do not use liquid or abrasive products
Safety	Do not open the casing; avoid moisture and shocks; replace fuse only by a specialist
Remote control batteries	Do not expose to excessive heat; respect polarity
Recycling	Do not dispose of with household waste; take to an appropriate recycling center

Frequently Asked Questions - MADCENTER100 MADISON

How to connect my smartphone via Bluetooth?

Press the MODE button (on the speaker or remote control) until the Bluetooth input is selected. Activate Bluetooth on your smartphone and search for devices. Select MAD-CENTER to pair. Audio playback will start automatically.

What to do if the speaker produces no sound?

Check the cable connections (power and audio source), make sure the volume is not at minimum, the input mode is correct (USB/SD, FM, Bluetooth, AUX), and the audio source is playing. If the problem persists, turn off the device and contact a technician.

Can I use this speaker outdoors?

No, the speaker is designed for indoor use only, in a dry and enclosed room. Do not expose it to water, moisture, or extreme temperatures (<5°C or >35°C).

How to tune FM stations?

Press MODE repeatedly until FM is selected. For auto scan, press the ▶II (Play/Pause) button on the speaker or remote. Use the ◀ or ▶ buttons to browse found stations. Saving is automatic.

What does the power LED indicator mean?

The power LED lights up when the speaker is powered on. If the LED does not light up fully, it indicates a problem; immediately turn off the device and have it checked.

How to use the repeat function on USB/SD?

On the remote, press RPT (Repeat) once to repeat the current track, twice to repeat all tracks. Press a third time to disable repeat.

Can I plug in a large capacity USB flash drive or SD card?

The manual does not specify a capacity limit, but generally such systems support USB drives and SD/MMC cards formatted in FAT32. For very high capacities, there may be limitations.

How to clean the speaker?

Always unplug the speaker before cleaning. Use a dry, soft cloth. Never use liquid products, aerosols, or solvents. Avoid water or objects entering the device.

What to do in case of malfunction?

First consult the troubleshooting table on page 39 of the manual. If the problem persists (distortion, no sound, etc.), immediately unplug the device from the mains and return it to your dealer for repair. Do not open the casing yourself.

How to recycle the speaker at end of life?

In accordance with the WEEE directive, do not dispose of the speaker with household waste. Take it to an approved recycling center for electronic waste. Contact your local authority or dealer for collection points.

USER MANUAL MADCENTER100 MADISON

ACTIVE CENTER COLUMN SPEAKER WITH USB/SD, BLUETOOTH & FM

Vertical white electronic device with three circular speakers and a digital display (no visible text or symbols)

CE

MAD-CENTER100: 13cm / 100W

Imported from China by

LOTRONIC SA – Av. Zénobe Gramme 9 – B-1480 Saintes

IMPORTANT NOTE: You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipment to an appropriate waste disposal centre.

Operating Instructions

Congratulations to the purchase of your new speaker.

Warnings

Explanation of signs

The triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example).

An exclamation mark in a triangle indicates particular risks in handling or operating the appliance.

In circuit diagrams or lists of components, a symbol is used to indicate that a specific component shall be replaced only by the component specified in that documentation for safety reasons.

Important Safety instructions and danger warnings

• Please read the manual carefully and keep it for future reference.
• The unit shall be connected to a power supply only of the type described.
• To reduce the risk of fire or electrical shock, do not expose this unit to rain or moisture.
• Unplug the unit from the wall socket when it is not to be used for a long period of time.
• When the internal batteries are not to be used, remove them to avoid damage caused by battery leakage or corrosion.
• Batteries shall not be exposed to excessive heat like sunshine, fire or the like
• Adequate care shall be taken so that foreign objects do not fall, or liquids are not spilled into the enclosure through openings.

• Do not remove the cover or back, as there are no user-serviceable parts inside.

• All safety instructions and warnings must be adhered to. They are part of the manual and must be kept with the manual.

• Any guarantee claims are rendered invalid if damage occurs due to non-observance of these operating instructions. We assume no liability for any consequent damage.
• We assume no liability for personal injury or damage to property caused by incorrect handling or disrespect of the safety instructions. Any guarantee claims expires in such cases.
• Unauthorized conversions and/or modifications of the appliance are not permitted for safety and licensing reasons (CE).
• The appliance is approved for operation in dry, closed rooms only. Do not operate the device nearby water, such as in bathrooms or nearby swimming pools.
• The appliance may not be exposed to extreme temperatures ( < +5^ircC / > +35^ircC ) in operation.
• The appliance may not be subject to strong vibrations or heavy mechanical strain.
• DISCONNECT DEVICE: Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

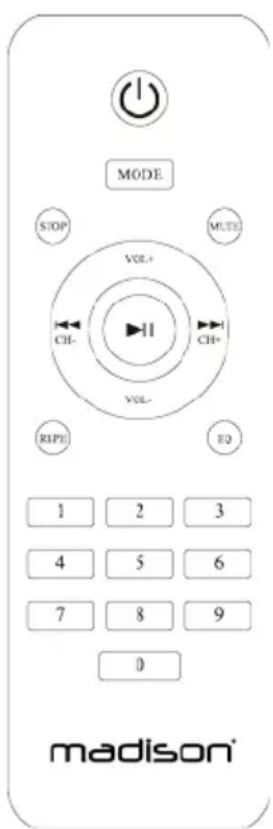

REMOTE CONTROL

Standby/on

Switches the amplifier between on and standby mode.

Mode

Source selector: selects USB/SD, FM, BLUETOOTH, LINE IN.

Stop

Press this button to stop music play back from USB/SD/BLUETOOTH.

Mute

Mute the audio on the amplifier. The mute mode is indicated by VOL 00. Press again to cancel mute.

Repeat

First press repeat current song in USB/SD, second press repeat all the songs in USB/SD.

EQ

Select 7 Pre EQ sets.

Numerical track select

Press the number of the desired track. The track will then play automatically.

VOL+: Press this button to increase volume

VOL-: Press this button to decrease volume

◀: Press this button to select previous song

In FM mode, press to select previous station

▶: Press this button to select next song

In FM mode, press to select next station

▶II Play/pause music from USB/SD/BLUETOOTH

Instructions of Top panel

1. USB stick input
2. Power LED
3. Input selection
4. Press to select 7 Preset EQ.
5. Press to repeat current songs/ all the songs in USB/SD memory

6. Press to select previous song. In FM mode: press to select previous station.
   Long press to decrease volume

7. Press to select next song. In FM mode, press to select next station. Long press to increase volume

8. Play/pause music from USB/SD/BLUETOOTH. In FM mode, press to enter auto searching
9. Remote control window
10. SD/MMC card input

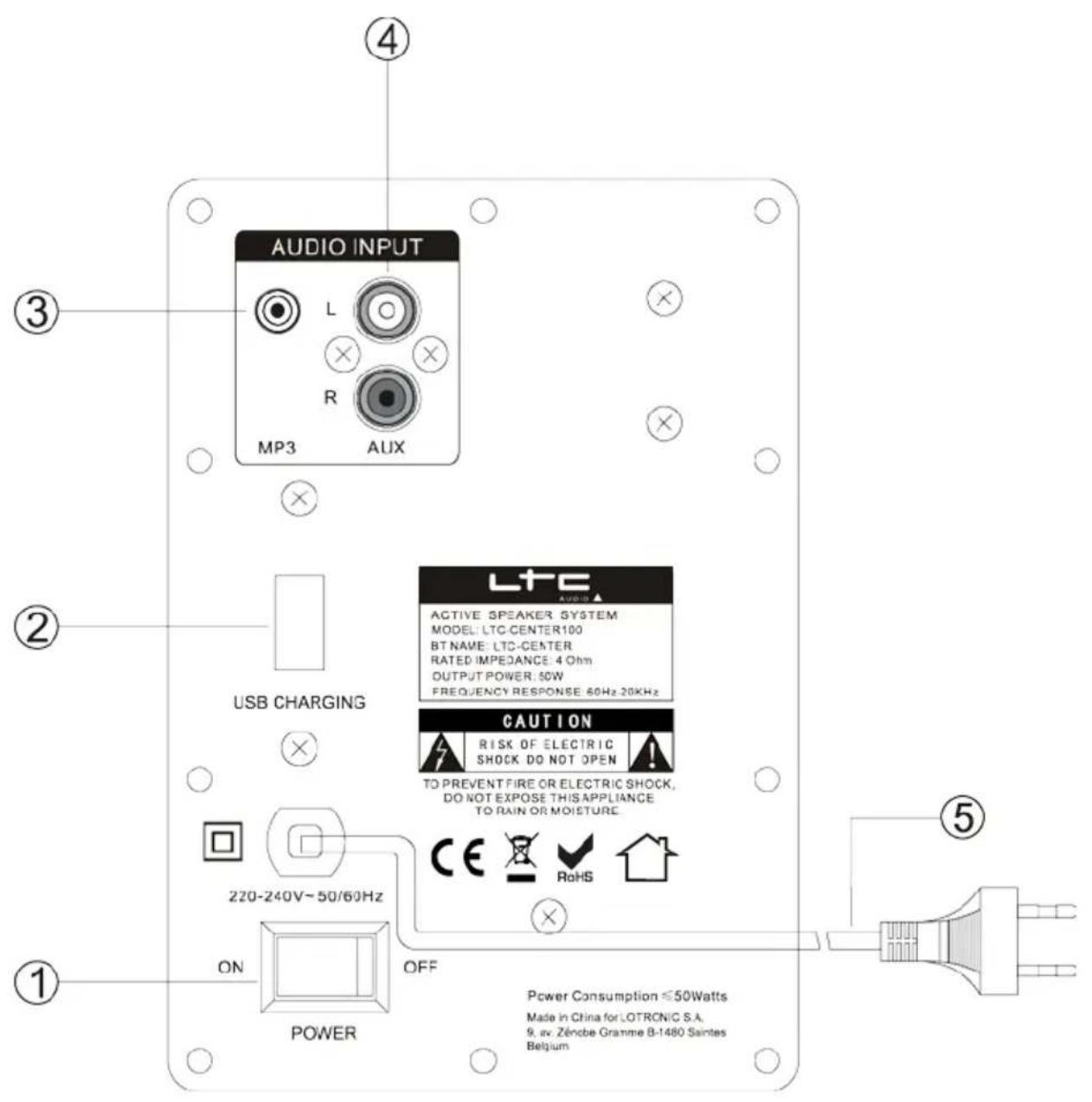

Rear panel of MAD-CENTER100

1. Power switch
2. USB charging
3. MP3 input jack
4. AUX input jack
5. Power cable

Operating Instructions

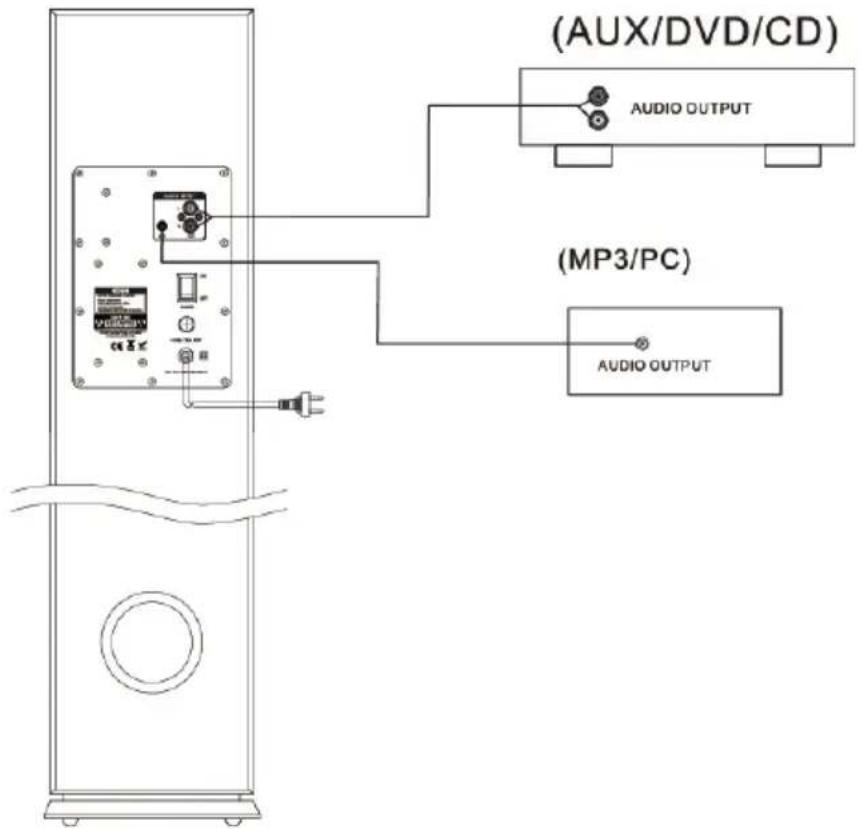

1. Before starting the power, please connect the system properly according to the above chart. Make sure to connect the polarity correctly and turn the volume button to minimum position.
2. Please turn input selector button to correct position and switch the unit on. After a few seconds, the amplifier is in normal working condition. Set the volume to an adequate level and enjoy your music.

1. The power fuse is inside of the set. If it blows, it must be replaced by a trained technician. The new fuse must have the same specifications as the original one.

2. If the LED is not bright once the system is switched on, the set is under abnormal condition. Switch the unit off and solve the problem. Turn power on again.

3. Connection of Bluetooth: Press mode button on the top panel or on the remote control and select the Bluetooth input. Turn the Bluetooth function on your equipment on (such as mobile phone) and search for a Bluetooth device. The Bluetooth name is "MAD-CENTER", pair your mobile to "MAD-CENTER", and connect it. Now you can play your music.

Trouble-Shooting

If the product is not operating properly, make a check of the items in the table below. If the problem persists, a malfunction may be assumed. Disconnect the power immediately and contact the store where the unit was purchased.

Problem	Causes	Corrections
No sound	Insecure speaker lead connection.Audio frequency input terminal connected improperly.Mains plug & AC jack connection is insecureVolume control sets to minimum.Speaker output not in right position	Connect securely.Check the audio frequency terminal.Connect the power properly.Tum volume up to a suitable level.Put the speaker output at right position
Distortion	The volume is too loud.	Reduce volume.

Specifications

Output power RMS	50W @ 4 ohm
THD (at rated conditions)	≤2% (40-20kHz)
S/N ratio (line in)	≥75dB (A-weighted)
FM tuner	87.5 – 108MHz
FM step	0.1MHz
Impedance	4 Ohm
Frequency response	50Hz – 20kHz
Rated input level/impedance	Line in: 500mV
Input voltage	220 – 240Vac 50/60Hz
Consumption	≤50W
Dimensions	200 x 120 x 918mm
Net / Gross weight	6.7kg / 7.4kg

The above specifications are for reference only.

Design and specifications are subject to change for improvement without prior notice.

F

COLONNE CENTRALE AMPLIFIEE AVEC USB/SD/FM & BLUETOOTH

COLUMN CENTRAL AMPLIFICADA CON USB/SD, FM & BLUETOOTH

COLUNA CENTRAL ACTIVA COM BLUETOOTH USB/SD & FM

EC Declaraon of Conformity

Hereby we, LOTRONIC SA

Avenue Zénobe Gramme, 9

1480 SAINTES

Belgique

+32.2.390.91.91

Cerfy and declare under our sole responsibility that the following product:

Trade name: MADISON

Product name: MULTIMEDIA COLUMN WITH USB-SD-BLUETOOTH

Type or model: MAD-CENTER100

Conforms with the essenal requirements of

LVD direcve 2014/35/EU - EMC direcve 2014/30/EU - RTTE 1999/5/EC - ROHS 2011/65/EU

Based on the following specicaons applied:

EN60065: 2014

EN5013:2013

EN55020:2007+A11:2011

EN61000-3-2 :2014

EN61000-3-3 :2013

EN 301 489-1 V1.9.2

EN 62479 :2010

EN 301 489-17 V2.2.1

EN 300 328 V1.8.1

IEC 62321:2013-IEC62321:2008

and therefore complies with the essenals requirements and provisions of the LVD, EMC, RTTE and ROHS Directive.

Place and date of issue: Saintes (Belgium), on May, 25 2016

Guive AKBAR / Technical manager
