Product Type	Car dashcam (Dashcam)
Brand	Philips
Model	ADR810
Dimensions (L × W × H)	106.7 × 50.0 × 32.5 mm
Weight	Approximately 100 g
Power supply	5 V / 1 A via cigarette lighter adapter (12-24 V)
Screen	2.7-inch LCD
Image sensor	2.1-megapixel CMOS
Video resolutions	1920×1080p at 30 fps, 1280×720p at 60 fps, 1280×720p at 30 fps
Lens	Wide angle 156° (diagonal), aperture F/2.0
Night vision	Yes
Collision detection	Yes, with emergency recording (30 s before/after)
EasyCapture function	Yes, button on the device and on the cigarette lighter adapter
Driver fatigue alert	Yes, with fatigue index displayed on the screen
Voice recording	Yes, toggleable
Motion detection	Yes, continuous recording of 20 s on movement
Memory support	Micro SD card (class 6 or higher, up to 32 GB)
Video format	.MOV (H.264 codec, PCM audio)
Interfaces	Micro USB 2.0, HDMI, Micro SD slot
Available languages	French, English, German, Italian, Spanish, Portuguese, Polish, Russian
Included accessories	Car charger with EasyCapture button, mounting bracket, quick guide
Operating temperature	-10 °C to 65 °C
Storage temperature	-20 °C to 70 °C
Maintenance and cleaning	Clean the lens with a soft cloth; format the SD card in the device before first use
Spare parts and repairability	Parts not specified; use only the supplied charger

Frequently Asked Questions - ADR810 PHILIPS

How to install the Philips ADR810 dashcam?

Attach the mounting bracket to the device, remove the protective film and stick it on the windshield by pressing firmly. Plug the cigarette lighter charger into the Micro USB port of the device and into the cigarette lighter socket.

How to format the Micro SD card?

Insert the card into the device, turn it on, press OK to access the menu, select Format (formatting icon) and confirm. It is recommended to format before first use.

How to activate emergency recording?

Emergency recording is automatic in case of collision if the Collision detection function is activated. You can also press the EasyCapture button (⚠) located on the device or on the cigarette lighter adapter to manually create a protected clip.

What to do if the device does not turn on?

Check that the switch is in the ON position. Make sure the charger is properly connected and that the cigarette lighter works. If the problem persists, try another Micro USB cable or contact customer support.

How to set the date and time?

Press OK to open the menu, select Date/Time (clock icon). Use ▲/▼ to change values, OK to move to the next field. Save with the button (lock).

How to play recorded videos?

Press OK to access the menu, select Video then Normal Recording or Emergency. Navigate with ▲/▼, press OK to play. During playback, OK pauses, ▲/▼ fast forwards/rewinds.

How to delete videos?

In the Video menu, select the file to delete, press OK then choose Delete or Delete All. Confirm with YES and OK. Locked files are not deleted.

How to activate the driver fatigue alert?

In the menu, select Driver fatigue alert (fatigue icon) and set it to ON. The fatigue index is displayed on the screen. Audio and visual alerts trigger when the index exceeds 80, and every two hours.

Which memory card to use?

Use a Micro SD card of class 6 or higher, with a capacity of at least 8 GB up to 32 GB. A 16 GB card provides approximately 160 minutes of recording in Full HD.

How to use the EasyCapture function?

During recording, press the EasyCapture button (⚠) located on the device or on the cigarette lighter adapter. This creates a protected emergency clip of 6 minutes (3 min before and 3 min after the press). The file is saved in the Emergency Recording folder.

USER MANUAL ADR810 PHILIPS

Driving Video Recorder

ADR810

Black and white photo of a black handheld device with a circular lens and textured grille (no visible text or symbols)

EN Driving video recorder

2.2 Installing in Vehicles....4

2.3 Automatic Power On/Off 6
2.4 Manual Power On/Off 6
2.5 Manual Record Start/Stop....7
2.6 Manual Voice Recording Off/On 8
2.7 Remove the Memory Card 8
2.8 About Micro SD Card ....8

3 User Interface Overview 9
4 System Setting 10

4.1 Set Date and Time ....10

4.2 Function Settings....10

5 Operating Instructions....12

5.1 Recording Videos....12

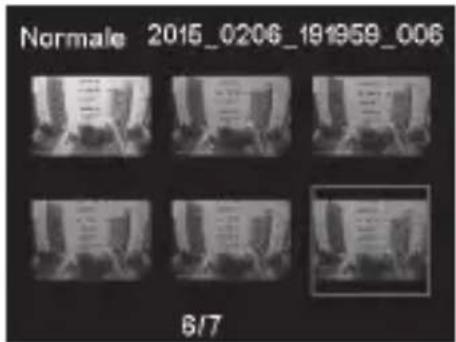

5.2 Playback Videos....12
5.3 Deleting Videos....13
5.4 Protecting Videos....14

6 Add-on Functions ....15

6.1 Driver Fatigue Alert....15
6.2 EasyCapture Function....15

7 Technical Specifications ....17

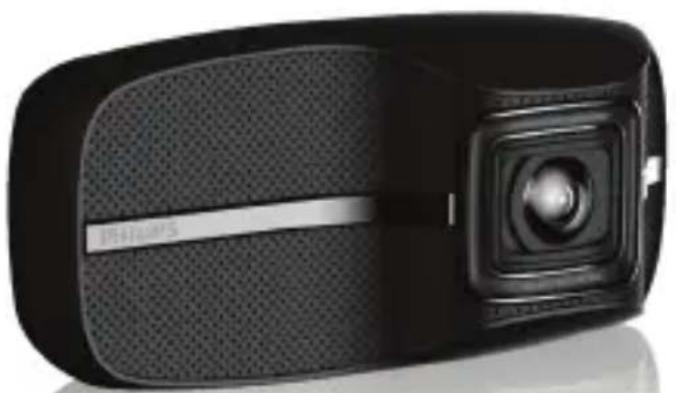

1 Product Overview

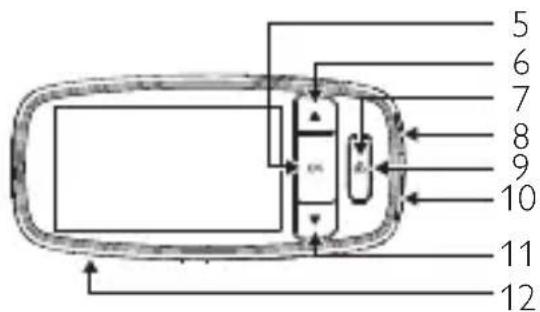

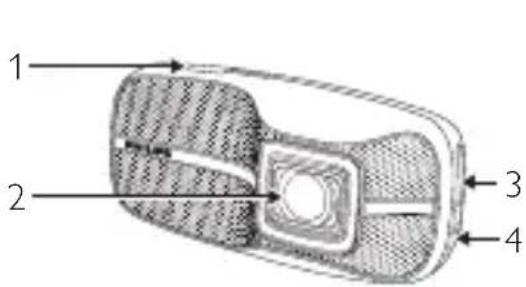

1. Bracket Holder
2. Lens
3. Micro SD card Slot
4. Slide Switch (ON/OFF)
5. Enter Button (OK)
6. Up Button/REC (▲)

7. EasyCapture Button/Return( 🔊)

8. Micro USB Port

9. 3-color LED Indicator
10. HDMI Port
11. Down Button/Voice Recording On/Off (▼)
12. Speaker

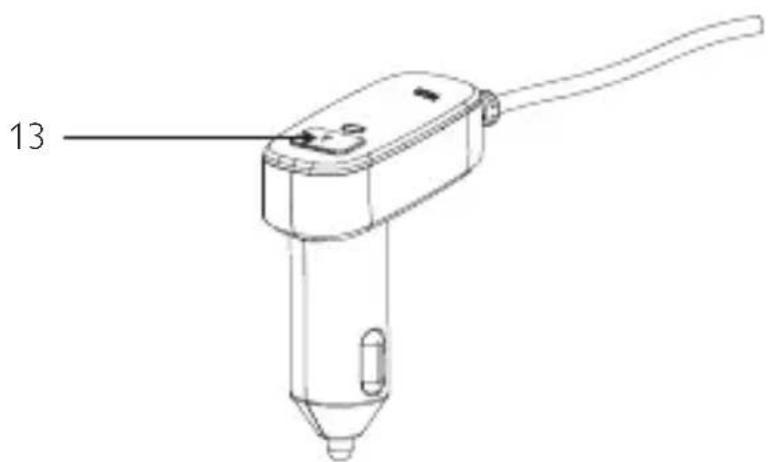

13. Cigarette Lighter with EasyCapture Button

2 Quick Start

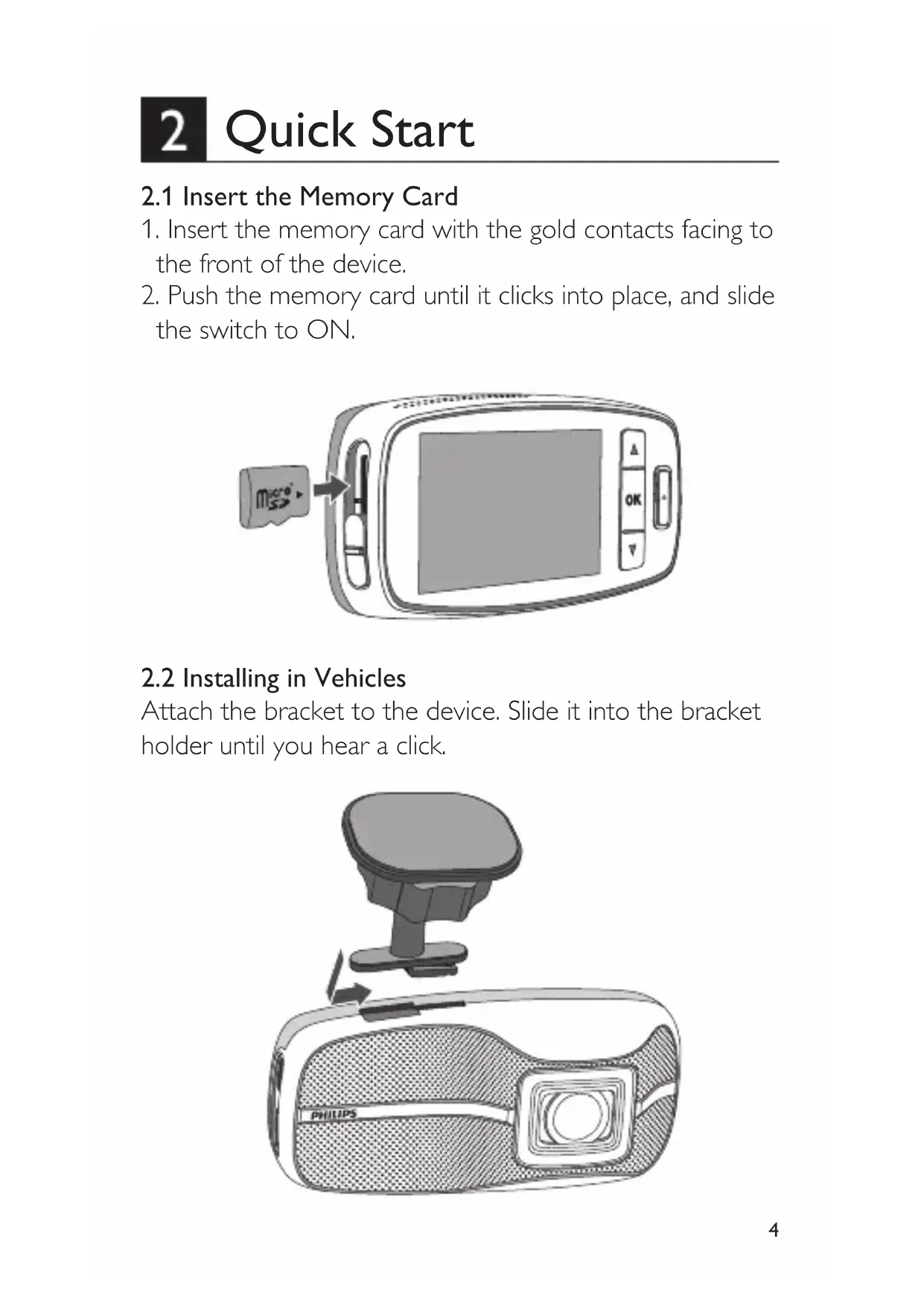

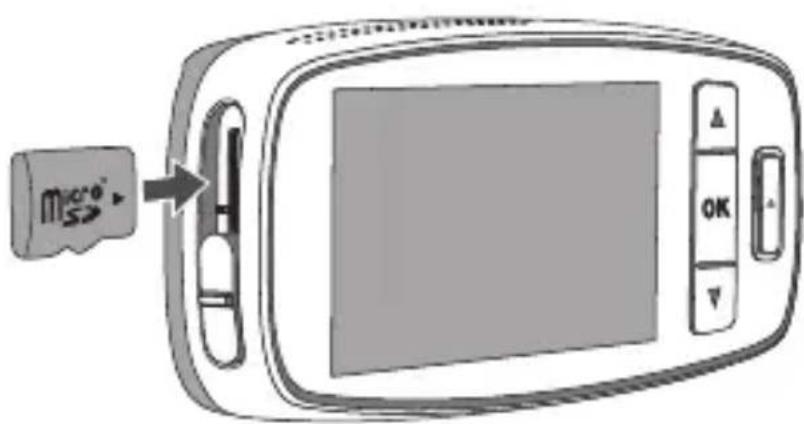

2.1 Insert the Memory Card

1. Insert the memory card with the gold contacts facing to the front of the device.
2. Push the memory card until it clicks into place, and slide the switch to ON.

2.2 Installing in Vehicles

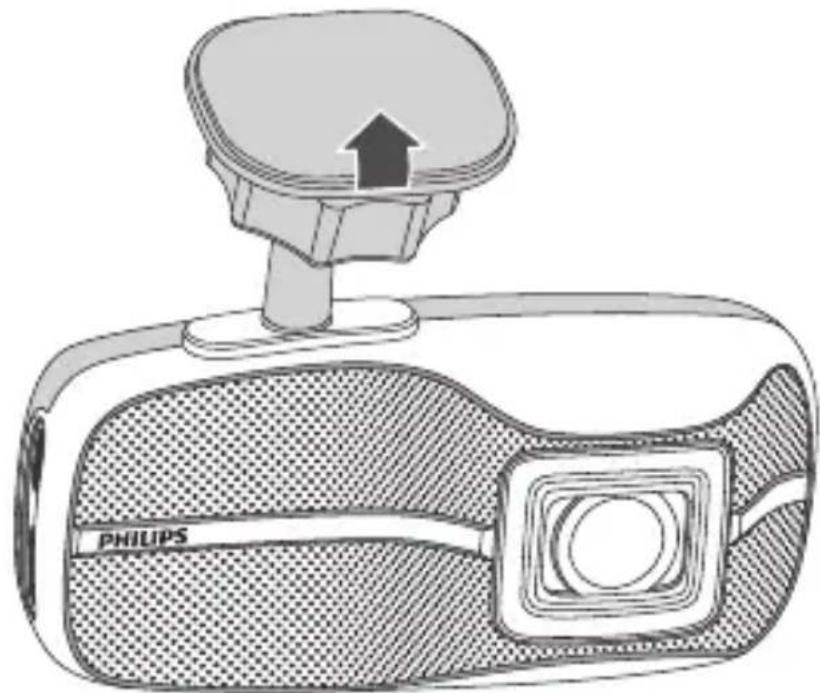

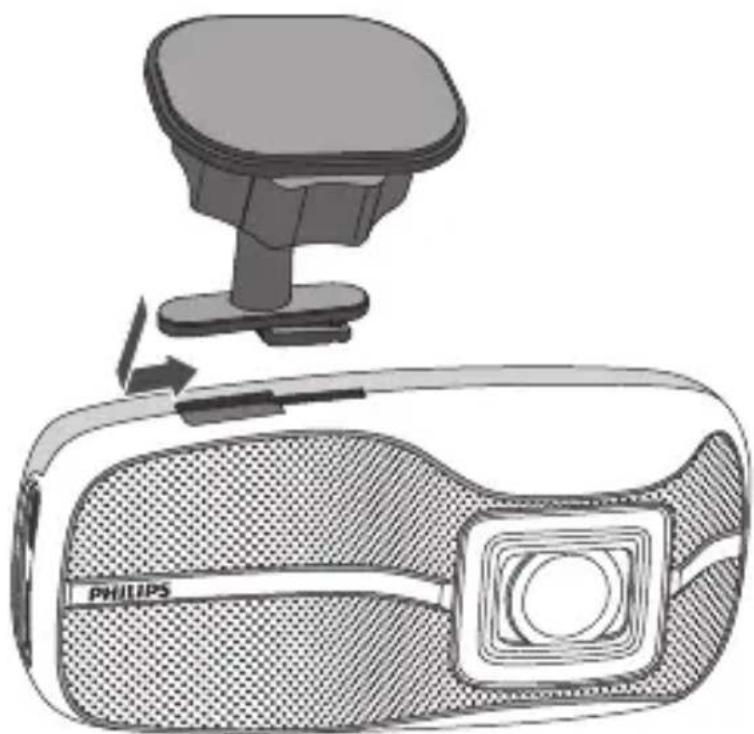

Attach the bracket to the device. Slide it into the bracket holder until you hear a click.

Illustration of a Philips VR headset with a top-mounted device and a side panel, showing no text or symbols on the device itself.

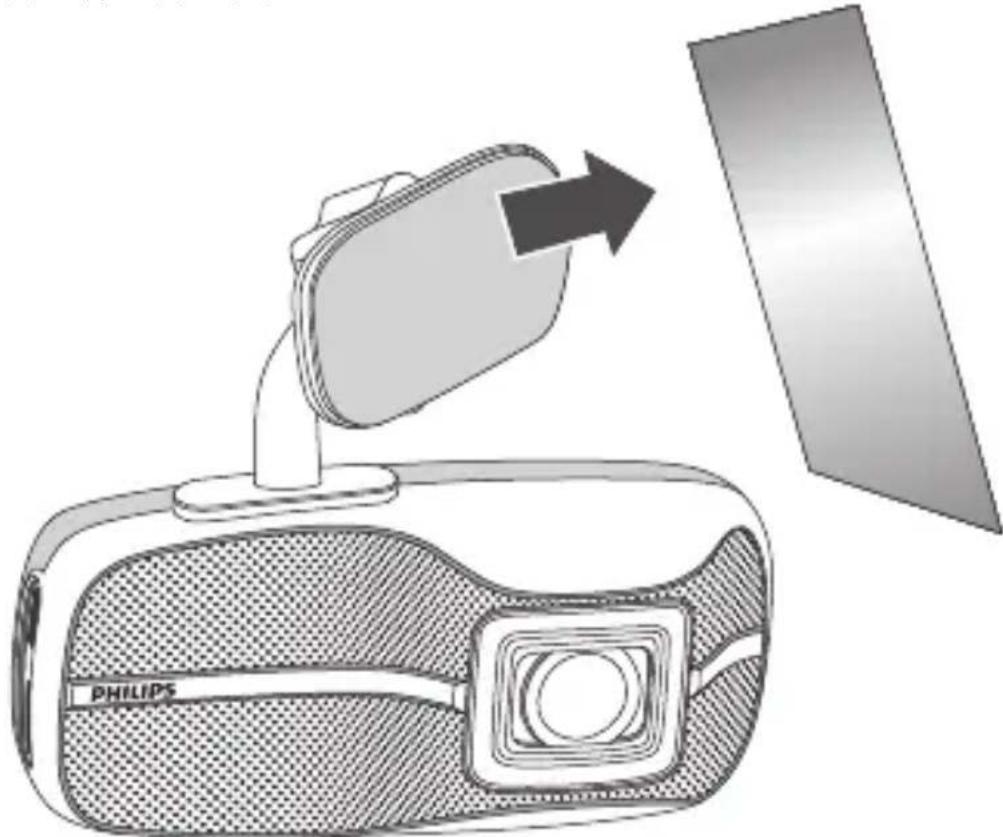

1. Peel off the protective plastic sheet from the adhesive bracket and Lens.

Illustration of a Philips VR headset with a top-mounted device and a circular button (no text or symbols on the device itself)

1. Place and press down the bracket firmly onto your windshield.

Illustration of a Philips device with a camera and screen, showing a directional arrow (no text or symbols on the device itself)

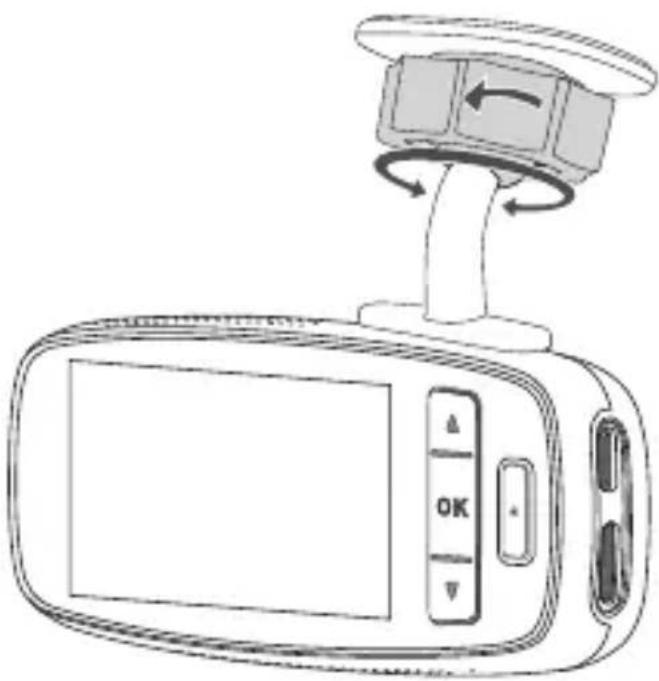

1. Adjust the device position. Loose the knob to swivel the device to proper position. Then tighten the knob to make sure the device is securely locked in place.

Line drawing of a digital camera with scroll wheel and control panel (no text or symbols)

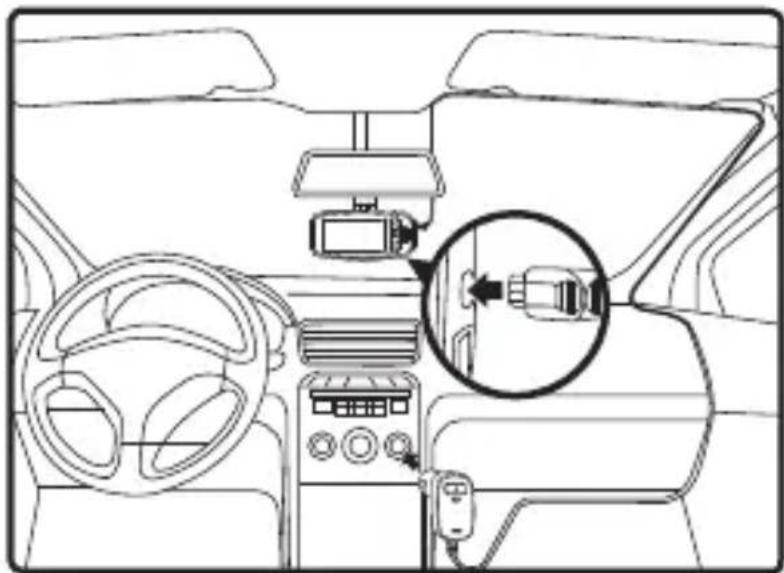

1. Connect the Micro USB interface of the car charger to the Micro USB port of the device.

2. Plug the car charger to the cigarette lighter socket of your vehicle.

Interior view of a car dashboard and steering wheel, showing dashboard, steering wheel, and camera (no text or symbols)

2.3 Automatic Power On/Off

1. Once the power of the vehicle is on, the device automatically turns on.

2. If you disconnect the car charger, the device automatically turns off.

2.4 Manual Power On/Off

1. To turn on the device, slide the switch to ON.
2. To turn off the device, slide the switch to OFF.

2.5 Manual Record Start/Stop

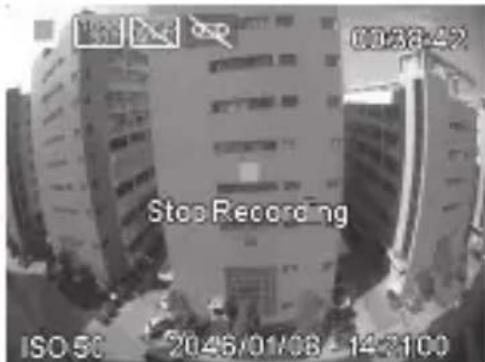

1. When device in automatic recording status, press ▲ to stop recording.

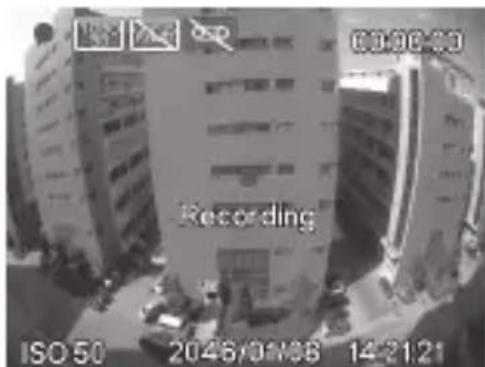

1. When device in stop recording status, press ▲ to start recording video again.

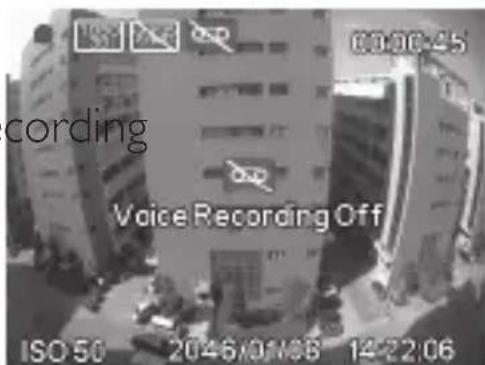

2.6 Manual Voice Recording Off/On

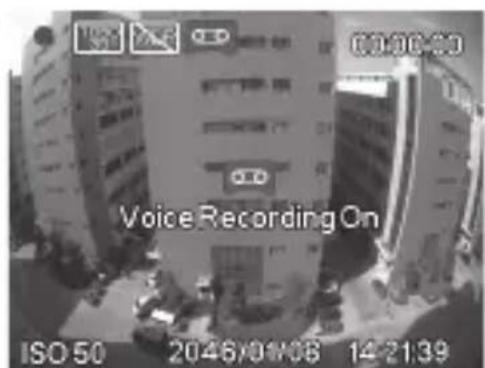

1. When device set voice recording on in system setting, press

▼ to switch voice recording to Off.

1. When device set voice recording Off in system setting, press

▼ to switch voice recording to On.

2.7 Remove the Memory Card

Slide the switch to Off, and push to eject the memory card out of the slot.

2.8 About Micro SD Card

1. Please use Micro SD card with the size/memory at least 8GB, Class6(up to 32GB)
2. Be sure to format Micro SD card using the device before the initial usage.
3. The following information is the card capacity and Recording time:

Micro SD Card Capacity	Video Resolution
	(720P/30FPS)	(720P/60FPS)	(1080P/30FPS)
16GB 260 minutes 170 minutes 160 minutes
32GB 520 minutes 340 minutes 320 minutes

Notes:

1. If car power supply doesn't stop automatically, it is recommended to disconnect the car charger manually to avoid car battery power lost.
2. Please use our dedicated car charger to avoid non-compliance with the device.
3. Once connected to a PC through USB, the device only allows data transfer.

3 User Interface Overview

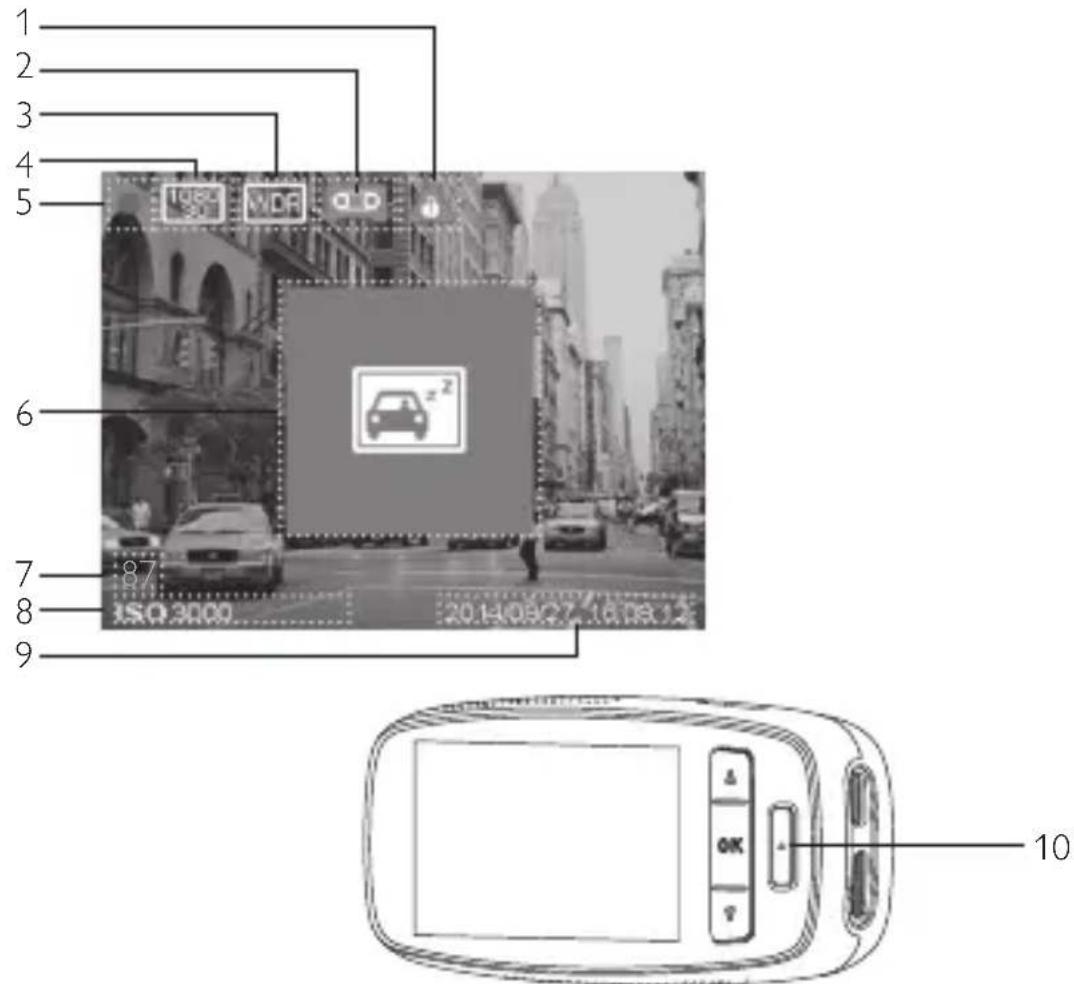

No.	Description
1	Emergency recording indicator
2	Voice recording ON/OFF switch
3	WDR(Wide dynamic range) indicator
4	Resolution indicator
5	Recording/stop indicator
6	Driver fatigue alert icon
7	Fatigue index
8	ISO value
9	Date/Time stamp
10	3-color LED indicatorBlue: Recording statusRed: Emergency recording statusGreen: non-recording status( in start-up, menu operation or other abnormal status)

4 System Setting

Press on OK to show the menu list, and set different functions of the device.

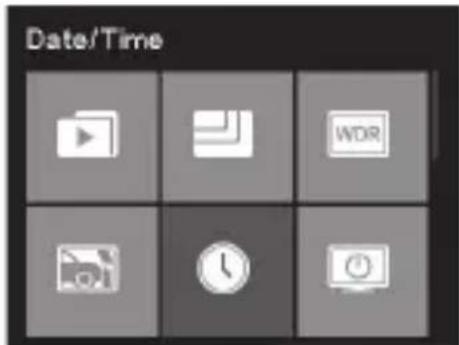

4.1 Set Date and Time

1. Press OK to open the on screen display menu.

1. Press ▲/▼ to select Date/Time and press OK to enter date and time setting Menu.

1. To adjust date and time field, press OK to select the field.

2. Press ▲/▼ to select the value.

3. Repeat steps 3-4 to adjust other fields.

4. Press Ⓔ to save your changes.

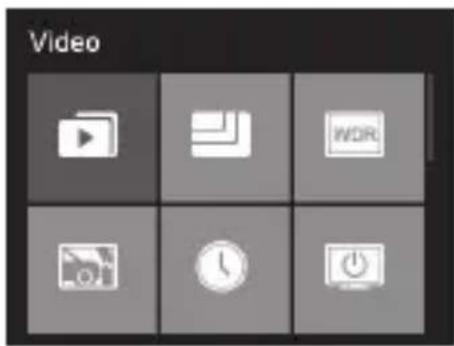

4.2 Function Settings

No.	Function Menu	Icon	Description
1	Video		Operate normal and emergency video file, users can play, pause, delete, lock, and unlock the video files.
2	Resolution Set the video		resolution to Full HD 1080P(FHD), HD Premium(60FPSHD+) and HD Premium(HD+).
3	WDR (Wide Dynamic Range)		Switch on/off WDR function.

4 Collision Detection		Select the level of event detection sensitivity to high sensitivity/ middle sensitivity/low sensitivity/off.The Collison Detection function will automatically detect any collision events, and create an emergency video clip. The emergency video clip will show 30 seconds before and after the event detection. The video file will be saved into the Emergency Record folder.
5 Date/Time Set date and	time for the device
6 LCD Auto Off		Set the time before the monitor is turned off automatically, or set the monitor always on.
7 Format Format your TF card(Micro SD). Please format your card using the device before you use it for the first time.
8 Language English, French, German, Italian, Spanish, Portuguese, Polish and Russian.
9 Voice Recording		Switch on/off voice recording function.
10 EV Value Manually adjust the exposure level.
11 Date Stamp Switch on/off date and time marking on the video.
12 Motion Detection		Switches to ON to trigger Motion Detection mode.the function will detect movements in the field of front view.When any movement is detected, continuous 20 seconds recording starts immediately. if any movement is detected in the 20 seconds, recording will last additional 20 seconds from the trigger time.
13 Driver Fatigue Alert		Switch on/off driver fatigue alert function.
14 Default Reset all devices	settings to factory default settings.
15 About Firmware		and related product information.

5 Operating Instructions

5.1 Recording Videos

5.1.1 Video Recording

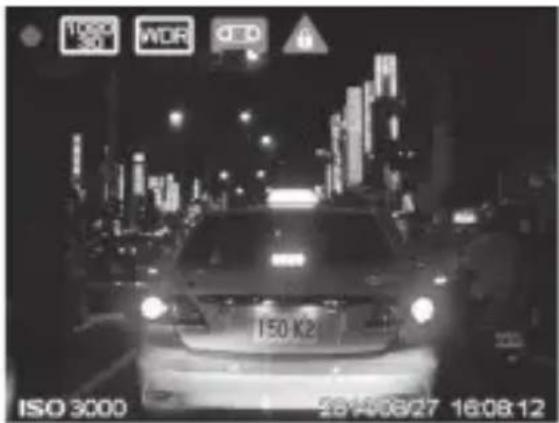

When the power of the vehicle is on, the device automatically turns on and starts recording. Recording will automatically stop when the power of the vehicles is off. Or, press ▲ to stop recording manually at any time.

5.1.2 Emergency Recording

1. When the Collision Detection function is activated, the device will automatically detect any collision events, and create an emergency video file. The emergency video clip will show 30 seconds before and after the event detection. The video file will be saved into the Emergency Records folder.

2. During video recording, you can manually create an Emergency Recording, to secure a video file of any event that might happen, with the EasyCapture buttons ^® located on the device or on the cigarette-lighter adaptor.

3. Press ⚠ to start the manual Emergency Recording.

4. 🔒 icon appears on the top right side of the screen, indicating Emergency Recording is ongoing.

5. The system automatically creates emergency video files. The video files are saved into the Emergency Records folder.

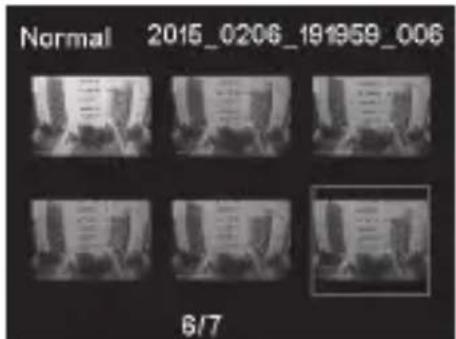

5.2 Playback Videos

1. Press OK to enter Menu.

2. Press ▲/▼ to select Video and press OK.

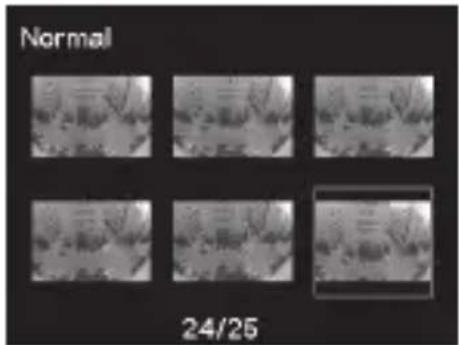

1. Press ▲/▼ to select Normal Recording and press OK.

1. Press ▲/▼ to browse for the desired video file and press OK, and then select Play to play the desired video.

1. During playing video, press OK to pause. Press ▲ to fast forward, press ▼ to fast backward, press emergency button to return.

5.3 Deleting Videos

1. Press ▲/▼ to browse for deleting the desired video file and press OK, and then select Delete to remove video file.

1. Select Delete All to delete all unlocked video files.

1. A confirmation message appears on the screen, press ▲/▼ to select YES and press OK to confirm deletion.

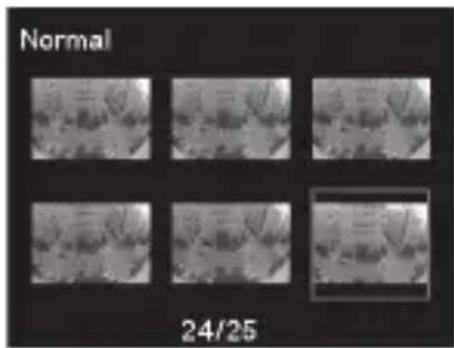

5.4 Protecting Videos

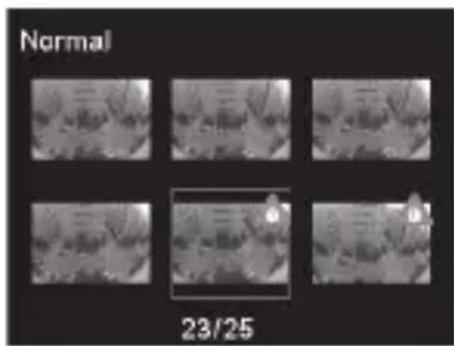

To secure videos against being overwritten.

1. Press ▲/▼ to browse for the video files and press OK.

1. Press ▲/▼ to select Lock and press OK.

1. Return to video list automatically, and selected video is protected.

1. Use same method to unlock video files.

6

Add-on Functions

6.1 Driver Fatigue Alert

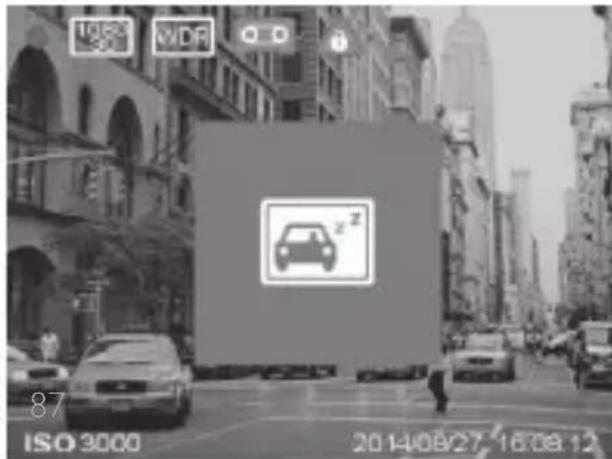

To help car drivers manage the evolution of their fatigue, a fatigue index displays the evolution of driver's fatigue, taking into account physiological and journey related parameters such as time of the day and time spent driving. The device will alert the driver when fatigue index reaches 80, and also every two hours of driving.

When switch on, fatigue index will be displayed on the screen. When fatigue index is less than 60, the value in green color is displayed on screen. Before fatigue index reaches 80, yellow value is displayed on screen with an alert sound. When fatigue index is above 80, red value is displayed on screen with 3 alert sounds and an fatigue icon pop up to alert user.(System time need set correctly when user switch on driver fatigue alert function).

6.2 EasyCapture Function

Philips EasyCapture ensures you always have an emergency recording button to hand, to capture and save everything that happens on the road: one clearly identified on the device, and one on the cigarette lighter adaptor. Simply press the EasyCapture button (nr 13, product overview),

to create and protect up to 6 minutes video clip before and after you pressed the emergency button. The recording file will be protected and cannot be deleted unless you unlock the file in Emergency file folder by manual operation or Emergency file folder is full. The number of recording files is depending on the size of the SD-card.

7 Technical Specifications

Functions	Automatic recordingCollision detection & emergency file protectionSeamless loop recordingAuto exposureAuto white balanceDate and time stampAuto LCD offDriver fatigue alert with fatigue indexEasyCapture emergency recording buttonsWide angleAdvanced night view
Image Sensor 2.1 Mega-pixels CMOS
Video Resolution	Full HD(1920x1080p) @30fpsHD Premium(1280x720p)@60fpsHD Premium(1280x720p)@30fps
Display 2.7" LCD
Aperture Range F/#2.0
Fixed Lens 7G wide angle lens, FOV 156 (Diagonal)
File Format	MOVPCM audio compression /H.264 video compression
Random Access Memory 64Mx16bit (1Gbits) DDR3 SDRAM
Internal Memory 32Mb SPI Flash
Recording Media (external memory)	Micro SD card (class 6 or higher, up to 32GB)
Recording Time	160min @16GB for full HD320min @32GB for full HD
RTC 5days
Operating Temperature	-10°C ~ 65°C
Storage Temperature	-20°C ~ 70°C

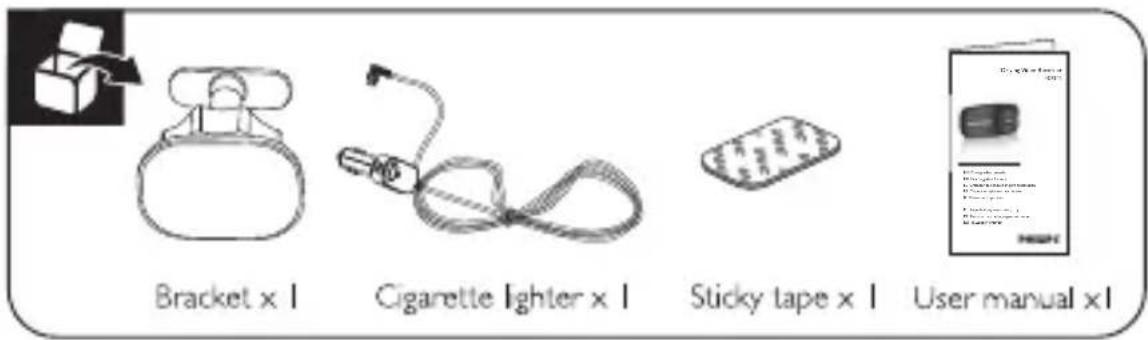

Accessories	Micro USB Car Charger, 3M Mount Bracket, Quick Guide
Interface	Micro USB 2.0, HDMI, Micro SD Slot, Microphone, Speaker
Languages	English, French, German, Italian, Spanish, Portuguese, Polish and Russian
Power	12-24V/5V 1A car adapter with EasyCapture record button

Dimensions (LxWxH) 106.7 × 50.0 × 32.5mm

Inhaltsverzeichnis

Diagram of a Philips VR headset with a top-mounted sensor and a side panel showing the brand logo (no text or symbols on the device itself)

Illustration of a Philips device with a mechanical component and a circular button (no text or symbols)

Line drawing of a digital camera with scroll wheel and control panel (no text or symbols)

Interior view of a car dashboard and steering wheel with a close-up inset showing a close-up of the steering wheel (no text or symbols present)

Illustration of a Philips VR headset with a top-mounted device and a side panel, showing no text or symbols on the device itself.

Illustration of a Philips medical device with a cap and mesh cover, showing a mechanical component with an upward arrow (no text or symbols on the device itself)

Line drawing of a digital camera with scroll wheel and control panel (no text or symbols)

Interior view of a car dashboard and steering wheel, showing dashboard, steering wheel, and camera (no text or symbols)

Diagram of a Philips VR headset with a top-mounted sensor and a side panel showing the brand logo (no text or symbols on the device itself)

Illustration of a Philips medical device with a funnel and mesh cover (no text or symbols)

Illustration of a Philips device with a camera and screen, showing a directional arrow (no text or symbols)

Line drawing of a digital camera with scroll wheel and control panel (no text or symbols)

Interior view of a car dashboard and infotainment system (no text or symbols visible)

Illustration of a Philips VR headset with a top-mounted sensor and a button, showing no text or symbols on the device itself.

Illustration of a Philips medical device with a cap and belt, showing internal components and a directional arrow (no text or symbols beyond the label)

Line drawing of a digital camera with scroll wheel and control panel (no text or symbols)

Interior view of a car dashboard and steering wheel, showing dashboard, steering wheel, and camera (no text or symbols)

Illustration of a Philips VR headset with a mechanical lever and base panel (no text or symbols)

Illustration of a Philips VR headset with a top-mounted sensor and a circular button (no text or symbols)

Illustration of a Philips device with a camera and screen, showing a directional arrow (no text or symbols on the device itself)

Line drawing of a digital camera with scroll wheel and control panel (no text or symbols)

Interior view of a car dashboard and steering wheel, showing dashboard, steering wheel, and camera (no text or symbols)

2.3 Accensione automatica On/Off

Illustration of a Philips VR headset with a top-mounted device and a side panel, showing no text or symbols on the device itself.

Illustration of a Philips VR headset with a top-mounted sensor and a circular button (no text or symbols)

Illustration of a Philips device with a camera and screen, showing a directional arrow (no text or symbols on the device itself)

Line drawing of a digital camera with scroll wheel and control panel (no text or symbols)

Interior view of a car dashboard with steering wheel, dashboard, and camera unit (no text or symbols visible)

Illustration of a Philips VR headset with a top-mounted device and a side panel, showing no text or symbols on the device itself.

Illustration of a Philips medical device with a cap and belt, showing internal components and a directional arrow (no text or symbols beyond the label)

Line drawing of a digital camera with scroll wheel and control panel (no text or symbols)

Interior view of a car dashboard and steering wheel, showing dashboard, steering wheel, and camera (no text or symbols)

2.3 Automático On/Off

Diagram of a Philips VR headset with a top-mounted device and a side panel, showing no text or symbols on the device itself.

Illustration of a Philips VR headset with a top-mounted sensor and a circular button (no text or symbols)

Line drawing of a digital camera with scroll wheel and control panel (no text or symbols)

Interior view of a car dashboard and steering wheel with a close-up inset showing a device (no text or symbols)

All rights reserved.

Document order number: 3211 008 21261

EAC FC

00 800 7445 4775
