Product type	Combined radial saw
Brand	Silverline
Model	262705
Rated voltage	230-240 V ~ 50 Hz
Power consumption	1400 W
No-load speed	5000 min⁻¹
Max. blade diameter	210 mm
Blade bore	25.4 mm
Max. cutting depth	50 mm
Straight cut capacity (l x h)	120 mm x 50 mm
45° mitre cut capacity (L/R) x 0°	80 mm x 50 mm
0° x 45° (L) bevel cut capacity	120 mm x 30 mm
Combined cut capacity 45°L x 45°R	80 mm x 30 mm
Mitre cut range	0° to 45° left and right
Bevel cut range	0° to 45° left
Protection rating	IP20
Protection class	II (double insulation)
Weight	6 kg
Power cable length	2.0 m
Sound pressure level LPA	89 dB(A)
Sound power level LWA	102 dB(A)
Vibration level (main handle)	6.0 m/s²
Supplied accessories	24-tooth blade, Allen keys, rear stabiliser, dust bag
Warranty	3 years (upon registration)

Frequently Asked Questions - 262705 SILVERLINE

What type of blade can I use on this saw?

Use blades of 210 mm diameter with a bore of 25.4 mm. The supplied blade is carbide (TCT) with 2.8 mm thickness and 24 teeth. Never use high-speed steel (HSS) blades or damaged blades.

How do I adjust the mitre cut?

Loosen the mitre lock knob (20), turn the table (17) to the desired angle (0° to 45° left/right) using the indicator (9) and scale (11). Retighten the knob before cutting. Detents help set common angles.

How do I adjust the bevel cut?

Loosen the bevel angle knob (31), tilt the cutting head to the left (0° to 45°) using the carrying handle (38) and align the indicator (32) with the scale (30). Retighten the knob. Lock the mitre angle first if necessary.

How do I change the saw blade?

Unplug the tool. Raise the cutting head, remove the pivot guard screw, lift the guard. Lock the shaft with the button (37), unscrew the fixing nut (24) clockwise (left-hand thread). Replace the blade respecting the rotation direction, then screw counterclockwise. Reassemble the guard and check its operation.

How do I mount the saw on a workbench?

Use the mounting holes (10, 15, 21, 28) to fix the saw to a workbench or a board at least 13 mm thick with self-locking nuts and washers (not supplied). Do not overtighten. For a portable version, mount the saw on a board and clamp the board to the work surface.

Why is my saw vibrating excessively?

Possible causes are: warped or damaged blade (replace it), incorrectly mounted blade (reinstall it correctly), or a tool defect (contact a Silverline authorised service centre).

What regular maintenance is required?

Always unplug the tool. Clean the ventilation slots regularly with dry compressed air. Lightly lubricate moving parts with a suitable lubricant. Check screw tightness and the power cable condition. Replace carbon brushes when worn (side caps).

Can I cut metal with this saw?

No, this saw is designed for wood and composite materials. Do not use metal or masonry blades unless the blade is specifically designed for those materials and compatible with the saw.

How do I adjust the bevel angle to 0°?

Set the cutting head to 0° on the bevel scale and lower it, lock with the pin (36). Check squareness with a square between the table and the blade. If necessary, adjust the hex bolts at the base of the cutting head (thin nuts) to tilt the blade until it is 90° to the table.

What should I do if the saw won't start?

Check the plug fuse and replace it if needed. The carbon brushes may be worn (have them replaced by an authorised centre). If the problem persists, the tool may be faulty: contact a Silverline authorised service centre.

USER MANUAL 262705 SILVERLINE

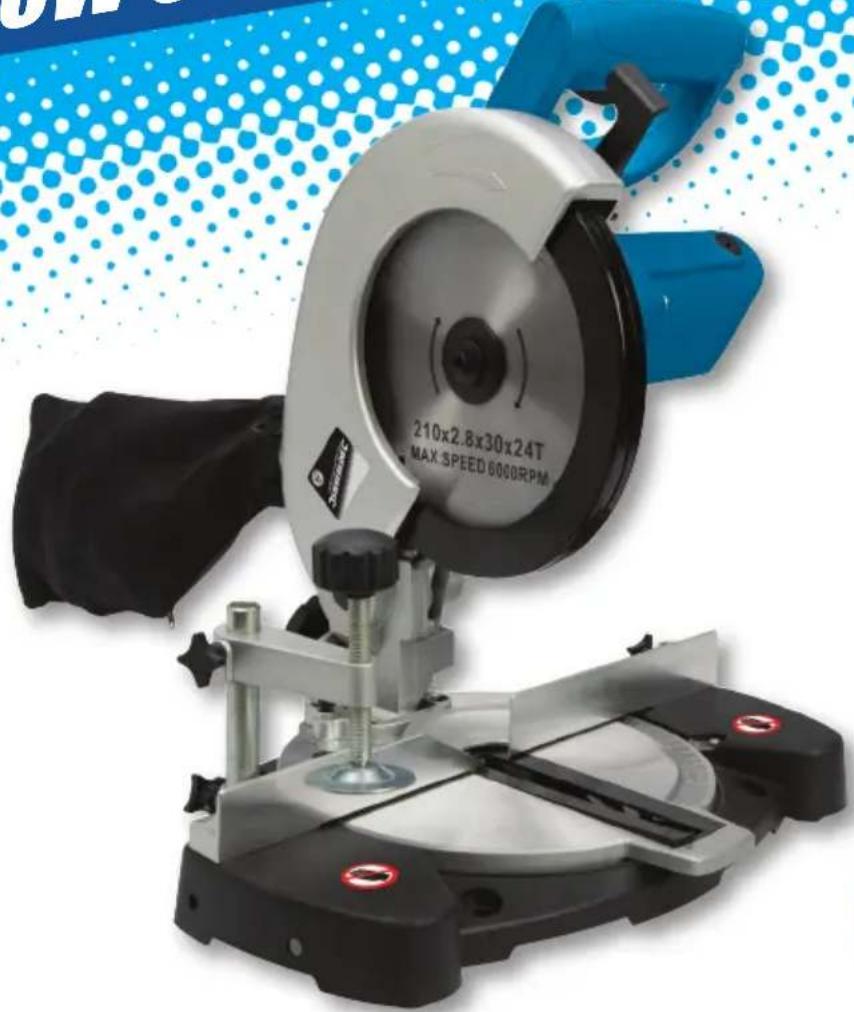

SILVERLINEC® 1400W Compound Mitre Saw 210mm

Product photo of a cutting tool with a blue and white patterned background (no visible text or symbols)

Year Guarantees REGISTER ONLINE*

GB 1400W Compound Mitre Saw

Close-up of a robotic arm operating a mechanical device with a tool (no visible text or symbols)

Close-up of a mechanical assembly with metallic components and bolts (no visible text or symbols)

Close-up of a blue and silver cutting tool with a circular cutter blade (no visible text or symbols)

38 37 36 35 34 33 32 31 30 29 28

Close-up of a mechanical component with metallic blades and a circular head (no visible text or symbols)

Close-up of a mechanical assembly with metallic components and bolt holes (no visible text or symbols)

VI VII 2018-03-06/2018 CLOTHING & DUCTURE

RANGE JSILVERLINEC® Sound Mitre Saw

1400W Compound Mitre Saw 210mm

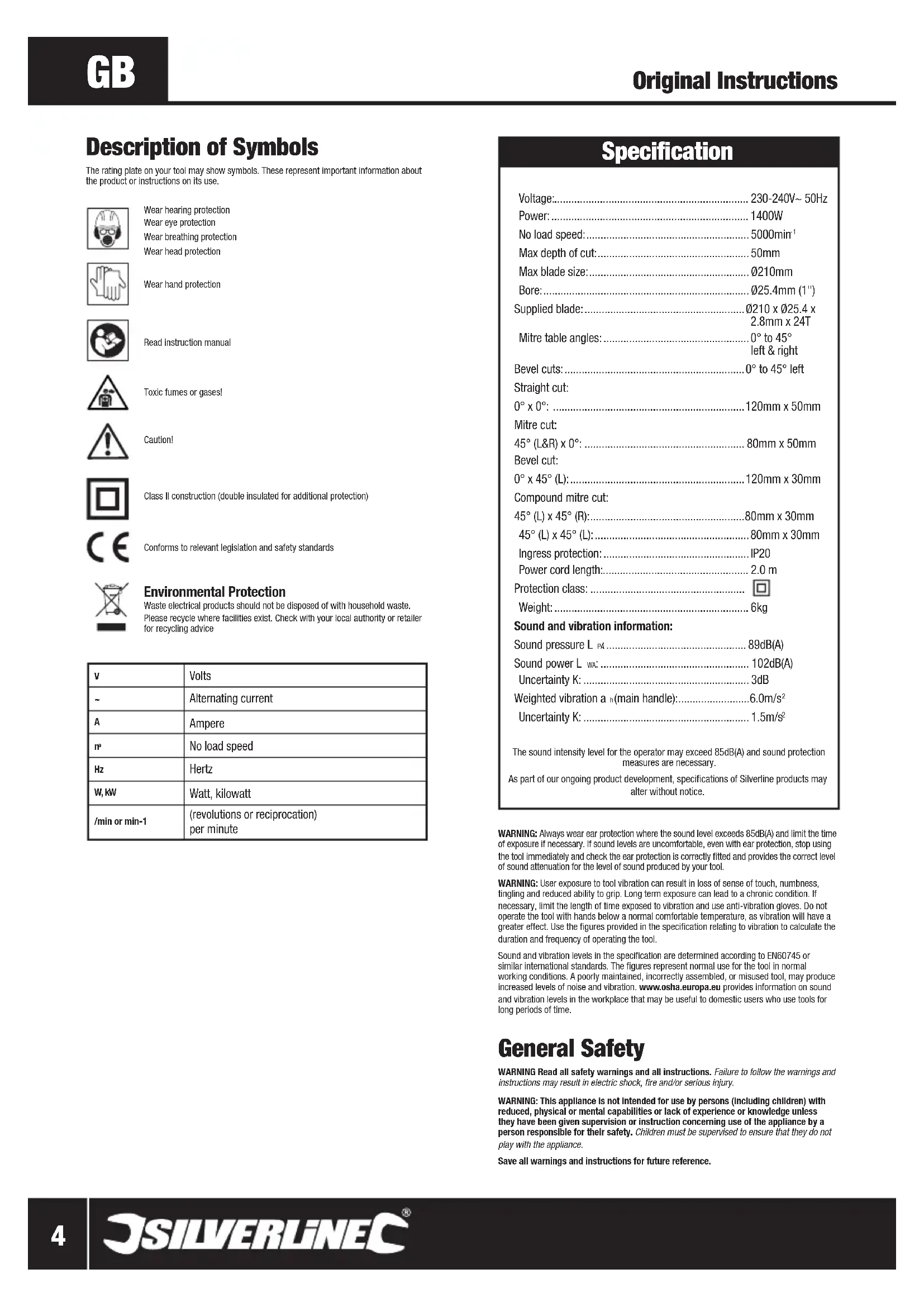

English 4

Français ...... 10

Deutsch 16

Español ...... 22

Italiano 28

Nederlands......34

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.

Wear hearing protection

Wear eye protection

Wear breathing protection

Wear head protection

Wear hand protection

Read instruction manual

Toxic fumes or gases!

Caution!

Class II construction (double insulated for additional protection)

Conforms to relevant legislation and safety standards

Environmental Protection

Waste electrical products should not be disposed of with household waste.

Please recycle where facilities exist. Check with your local authority or retailer for recycling advice

V	Volts
~	Alternating current
A	Ampere
r^2	No load speed
Hz	Hertz
W, kW	Watt, kilowatt
/min or min-1	(revolutions or reciprocation) per minute

Specification

Voltage: 230-240V\~50Hz

Power: 1400W

No load speed: 5000min ^-1

Max depth of cut: 50mm

Max blade size: 0210mm

Bore: 025.4mm (1")

Supplied blade: 0210 x 025.4 x

2.8mm x 24T

Mitre table angles: 0° to 45°

left & right

Bevel cuts: 0° to 45° left

Straight cut:

0° × 0°: 120mm × 50mm

Mitre cut:

45° (L&R) x 0°: 80mm x 50mm

Bevel cut:

0° × 45° (L): 120mm × 30mm

Compound mitre cut:

45°(L) × 45°(R):......80mm × 30mm

45^ (L) × 45^ (L): 80mm x 30mm

Ingress protection: IP20

Power cord length: 2.0 m

Protection class: ____

Weight: 6kg

Sound and vibration information:

Sound pressure L PA 89dB(A)

Sound power L wa: 102dB(A)

Uncertainty K: 3dB

Weighted vibration a n(main handle):....6.0m/s²

Uncertainty K: 1.5m/s²

The sound intensity level for the operator may exceed 85dB(A) and sound protection measures are necessary.

As part of our ongoing product development, specifications of Silverline products may alter without notice.

WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.

WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness, tingling and reduced ability to grip. Long term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool.

Sound and vibration levels in the specification are determined according to EN60745 or similar international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration. www.osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time.

General Safety

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: This appliance is not intended for use by persons (including children) with reduced, physical or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control

Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock

Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards

Power Tool Use & Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation

WARNING: When used in Australia or New Zealand, it is recommended that this tool is ALWAYS supplied via Residual Current Device (RCD) with a rated residual current of 30mA or less.

Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained

Circular Saw Safety

WARNING: Before connecting a tool to a power source (mains switch power point receptacle, outlet, etc.) be sure that the voltage supply is the same as that specified on the nameplate of the tool. A power source with a voltage greater than that specified for the tool can result in serious injury to the user, and damage to the tool. If in doubt, do not plug in the tool. Using a power source with a voltage less than the nameplate rating is harmful to the motor.

a) Do not allow anyone under the age of 18 years to operate this saw
b) When operating the saw, use safety equipment including safety goggles or shield, ear protection, dust mask and protective clothing including safety gloves

c) Hand-held power tools may produce vibration. Vibration can cause disease. Gloves may help to maintain good blood circulation in the fingers. Hand-held tools should not be used for long periods without a break

d) Always use recommended blades with correct size and shape of arbor holes e.g. diamond or round. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control

e) Whenever possible, use a vacuum dust extraction system to control dust/waste

f) Power tools must always be held by the insulated gripping surfaces when performing an operation, ensuring protection if the cutting tool makes contact with its own cord or hidden wiring. Contact with a 'live' wire will make exposed metal parts of the power tool 'live' and shock the operator if the insulated gripping surfaces are not used

g) Ensure hands are kept away from the cutting area and blade. Keep one hand on the auxiliary handle or motor housing. If both hands are holding the tool they cannot be cut by the blade

h) Do not attempt to cut material thicker than detailed in the Specifications section of this manual

i) Adjust the cutting depth to the thickness of the workpiece i.e. less than a full tooth of the blade should be visible below the workpiece

j) Ensure that work is correctly supported. Large panels may sag under their own weight and bind the saw blade. Supports must be placed under the panel on both sides, close to the line of cut and near the edge of the panel

k) Ensure all supports and power cables are completely clear of the cutting path

I) Always secure the workpiece to a stable platform, ensuring body exposure is minimised, avoiding blade binding, or loss of control

m) For accuracy of cut, and to avoid blade binding, always use a rip fence or straight edge guide

n) Never hold a workpiece in your hand or across your legs whilst cutting

o) Always stand at an angle to the tool when operating

p) Be aware that the blade will project from the underside of the workpiece

q) Do not reach beneath the workpiece where the guard cannot protect you from the blade

r) Note the direction of rotation of the motor and the blade

s) Inspect the workpiece and remove all nails and other embedded objects prior to starting work

t) Do not apply any sideways or twisting force to the blade whilst cutting

u) If a cut does not extend to the edge of the workpiece, or if the blade binds in the cut, allow the blade to come to a complete stop and lift the saw out of the workpiece

v) Do not attempt to free a jammed blade before first disconnecting the machine from power

w) Do not move the saw backwards at any time whilst cutting

x) Beware of projected waste. In some situations, waste material may be projected at speed from the cutting tool. It is the user's responsibility to ensure that other people in the work area are protected from the possibility of projected waste

y) If you are interrupted when operating the saw, complete the process and switch off before diverting your attention

z) The blade bolt and washers were specially designed for your saw. For optimum performance and safety of operation never use damaged or incorrect bolt/blade washers

aa) Check the lower guard for proper closing before each use. Do not operate the saw if the lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If the saw is accidentally dropped, the lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut

bb) Always observe that the lower guard is covering the blade before resting the saw on a surface after use. An unprotected, coasting blade will cause the saw to move backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after the trigger switch is released

cc) Periodically check that all nuts, bolts and other fixings have not loosened, tighten where necessary

The tool must be used only for its prescribed purpose. Any use other than those mentioned in this manual will be considered a case of misuse. The user, and not the manufacturer, shall be liable for any damage or injury resulting from such cases of misuse.

The manufacturer shall not be liable for any modifications made to the tool nor for any damage resulting from such modifications.

Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors.

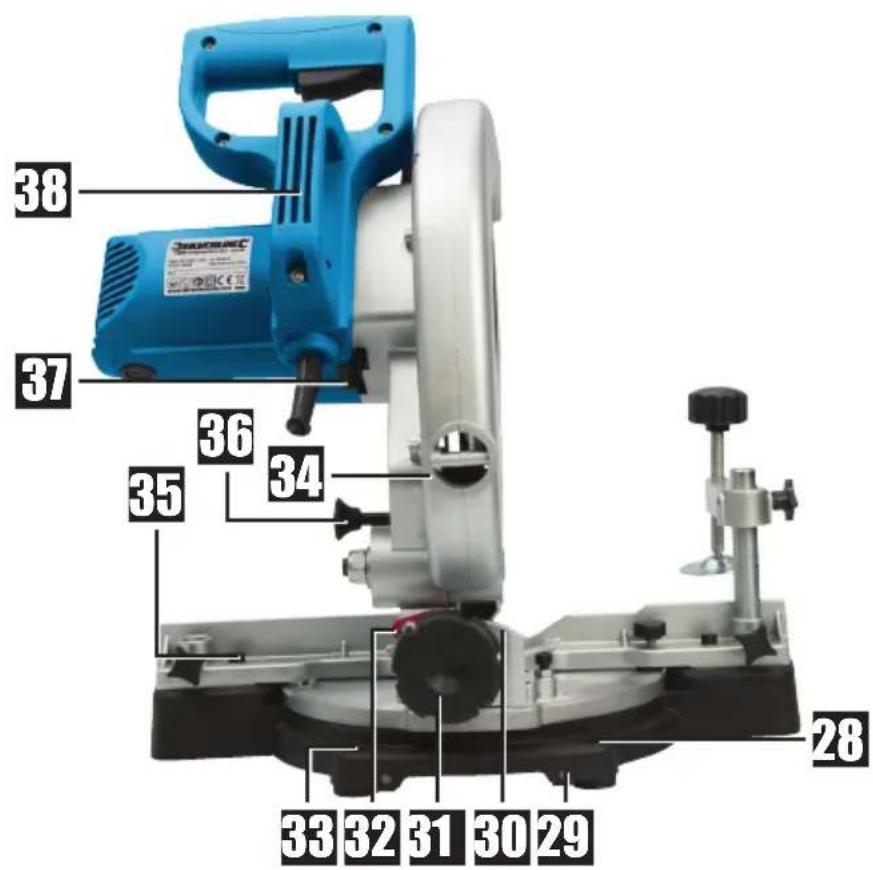

Product Familiarisation

1	Operating Handle
2	On/Off Trigger Switch
3	Release Lever
4	Brush Access Cover
5	Motor Vents
6	Clamp
7	Clamp Mounting (R)
8	Fence
9	Mitre Angle Indicator
10	Bench Mounting Hole
11	Mitre Angle Gauge
12	Table Insert Screw
13	Blade Channel
14	Table Insert (kerf plate)
15	Bench Mounting Hole
16	Base
17	Mitre Base
18	Clamp Mounting (L)
19	Fence Bolt (L)
20	Mitre Angle Locking Knob
21	Bench Mounting Hole
22	Rotating Blade Guard
23	Saw Blade
24	Blade Securing Bolt
25	Dust Bag
26	Rotation Indicator
27	Fixed Blade Guard
28	Bench Mounting Hole
29	Stabiliser Mounting Holes
30	Bevel Angle Gauge
31	Bevel Angle Locking Knob
32	Bevel Angle Indicator
33	Bench Mounting Hole
34	Dust Port
35	Fence Bolt (R)
36	Latching Pin
37	Spindle Lock
38	Carrying Handle

Accessories (not shown):

• Hex Key (x2)
• Rear Stabiliser
• Rear Stabiliser Fittings

Intended Use

- Mains powered portable or bench-mounted power tool for cutting through wood and other materials. Straight, bevel, mitre and compound (mitre+bevel) cuts. The included saw blade is suitable for wood and man-made composite wood materials.

Unpacking Your Tool

• Carefully unpack and inspect your new tool. Familiarise yourself with all its features and functions
• Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool

Before Use

WARNING: Ensure the tool is disconnected from the power supply before attaching or changing any accessories, or making any adjustments.

Bench mounting

IMPORTANT: It is recommended to mount the saw to a bench or board. Although the saw can be used without mounting to a bench or board there is a greater safety risk in use.

• Mount the saw to a level, horizontal bench or work table using bolts, washers and locking nuts (not supplied) through the Bench Mounting Holes (10, 15, 21 & 28)
• DO NOT over-tighten or the base may cracked and damaged, or use bolts that are not a good fit for the Bench Mounting Holes
• Alternatively, mount the saw on 13mm or thicker board, and clamp the board to the work support; this makes it easy to re-locate the saw, clamping it to a work support wherever needed
• When using a board it may be necessary to countersink the washers and nuts so the board is level on the surface it is used on

CAUTION: Make sure the mounting surface is not warped as an uneven surface can cause binding and inaccurate sawing

Fitting the rear stabiliser

- When the saw is not fitted to a bench or board, always fit the rear stabiliser into the two Stabiliser Mounting Holes (29). The stabiliser helps prevent the saw from tipping in use. Use the fittings provided to attach the stabiliser

Dust Extraction

• The Dust Bag (25) fits over the Dust Port (34). For most efficient operation, empty the dust bag when it is no more than half full; this allows better air flow through the bag
• Optimal dust extraction is achieved by connecting a dust extraction system or vacuum cleaner to the Dust Port. A third party adapter may be required.

Transportation

- When transporting the saw, only use the Carrying Handle (38) if the saw is detached from a board or bench and no material is clamped to the base. When the saw is mounted to another surface, move by holding the board or bench only and keep the tool upright. The saw can be stored and transported with the cutting head lowered and secured by the Latching Pin (36); however there is a small risk that vibration in transit could cause the Latching Pin to move allowing the cutting head to rise

Fitting and removing the blade

WARNING: Never attempt to use a blade larger than the stated capacity of the saw, as it might come into contact with the blade guards. Never use a blade that is too thick to allow the outer blade washer to engage with the flats on the spindle; it will prevent the blade screw from properly securing the blade on the spindle. Do not use the saw to cut metal or masonry unless the saw blade is specifically designed for that material. Ensure any spacers and spindle rings that may be required suit the spindle and the blade fitted.

WARNING: Never fit and use a blade that is visibly damaged, deformed or has dull or missing teeth.

WARNING: Never fit and use a blade made from high speed steel (HSS).

IMPORTANT: Wear gloves when handling blades.

IMPORTANT: Even if the blade is pre-fitted, if this is the first use of the tool always check the blade is securely fitted before use.

1. Ensure the cutting head is in its upper position
2. Disconnect the lower guard operating arm by removing the rotating blade guard screw (Image I & II)
3. Press the Release Lever (3) and move the Rotating Blade Guard (22) up and into the Fixed Blade Guard (27) (Image III)
4. Press the Spindle Lock and rotate the blade until the spindle locks
5. Use the supplied Hex Key to remove the Blade Securing Bolt (24) and blade flange
6. The mounting has a LH thread so rotate the hex key clockwise to unscrew the bolt

7. Move the saw blade to the left slightly to clear the mounting and remove from the Fixed Blade Guard

8. Check the saw blade that will be fitted to ensure it is not heavily worn, bent or damaged and no teeth are missing

9. Check the arrow marking of the blade matches the Rotation Indicator (26). The teeth must point down towards the workpiece
10. Check the blade mounting is clean and clear of swarf and dust and fit the blade into the recess of the Fixed Blade Guard and onto the blade mounting
11. Press the Spindle Lock and re-fit the blade flange and Blade Securing Bolt and tighten securely anti-clockwise without over-tightening. Do not leave the hex key in the bolt after tightening
12. Rotate the Rotating Blade Guard back over the blade and re-fit the blade guard screw to the lower guard operating arm (Image II & I)
13. Check the normal operation of the Rotating Blade Guard by pressing the Release Lever and moving the cutting head up and down with the Operating Handle
14. Re-connect to mains power and run the saw for a short time to make sure the blade is rotating and operating correctly

Operation

WARNING: ALWAYS wear eye protection, adequate respiratory and hearing protection, as well as suitable gloves, when working with this tool.

Adjusting the mitre angle

The Mitre Angle Locking Knob (20) is used to lock the table at the desired mitre angle. The mitre saw cuts from 0^ to 45^ both left and right. To adjust the mitre angle:

1. Loosen the Mitre Angle Locking Knob
2. Rotate the mitre angle with the Operating Handle (1) to the desired position using the Mitre Angle Indicator (9) and Mitre Angle Gauge (11). The mitre table features positive click stops at 0, 5, 10, 15, 22.5, 30, 35, 40 and 45° both left and right for quick setting of common mitre angles
3. Retighten the Mitre Angle Locking Knob to lock the angle setting

WARNING: Be sure to tighten the Mitre Angle Locking Knob before making a cut. Failure to do so could result in the table moving during the cut and cause serious personal injury.

Adjusting the bevel angle

The Bevel Angle Locking Knob (31) is used to set the blade at the desired bevel angle. The mitre saw bevel cuts from 0° to 45° to the left only. To adjust the bevel angle:

1. Ensure the Mitre Angle Locking Knob (20) is tight
2. Loosen the Bevel Angle Locking Knob (31)
3. Tilt the cutting head with the Carrying Handle (38)
4. Use the Bevel Angle Indicator (32) and Bevel Angle Gauge (30) to set the correct angle
5. Retighten the Bevel Angle Locking Knob to secure in position

WARNING: Be sure to tighten the Bevel Angle Locking Knob before making a cut. Failure to do so could result in the saw arm moving during the cut and cause serious personal injury.

Switching on and off

• To turn the saw on, depress and hold the On/Off Trigger Switch (2)

• To turn the saw off, release the On/Off trigger switch

Making a cut

• A compound mitre cut involves using a mitre angle and a bevel angle at the same time. It is used to make picture frames, cut mouldings, make boxes with sloping sides, and for roof framing
  • Always make a test cut on a piece of scrap wood before cutting the workpiece.

• Pull on the Release Lever (3) and lift the cutting head to its full height

• Loosen the Mitre Angle Locking Knob (20)

• Rotate the Mitre Base (17) until the Mitre Angle Indicator (9) aligns with the desired angle on the Mitre Angle Gauge (11)

• Retighten the Mitre Angle Locking Knob

WARNING: Be sure to tighten the Mitre Angle Locking Knob before making a cut. Failure to do so could result in the table moving during the cut, causing serious personal injury.

1. Loosen the Bevel Angle Locking Knob (31) and move the cutting head to the left or right to the desired bevel angle (between 0° and 45°). Tighten the Bevel Angle Locking Knob

2. Place the workpiece flat on the table with one edge securely against the Fence (8). If the board is warped, place the convex side against the fence. If the concave side is placed against the fence, the board could break and jam the blade

3. When cutting long pieces of timber, support the opposite end of the timber with a roller stand or a work surface that is level with the saw table

4. Use the Clamp (6) to secure the workpiece wherever possible. NOTE: It is possible to remove the Clamp by loosening the Clamp Mounting (7 & 18) and moving it to the other side of the table. Make sure the Clamp Mounting is tight before using the Clamp

5. Before turning on the saw, perform a dry run of the cutting operation to check that there are no problems

6. Hold the Operating Handle (1) firmly and squeeze the On/Off Trigger Switch (2). Allow the blade to reach maximum speed

7. Press the Release Lever (3) and slowly lower the blade into and through the workpiece

8. Release the On/Off Trigger Switch and allow the saw blade to stop rotating before raising the blade out of the workpiece. Wait until the blade stops before removing the workpiece

Accessories

- A range of accessories and consumables, including saw blades, additional clamps and personal protective equipment, is available from your Silverline stockist. Spare parts can be obtained from toolsparesonline.com

Maintenance

WARNING: ALWAYS disconnect from the power supply before carrying out any inspection, maintenance or cleaning.

Bevel Angle 0° Adjustment

Checking angle

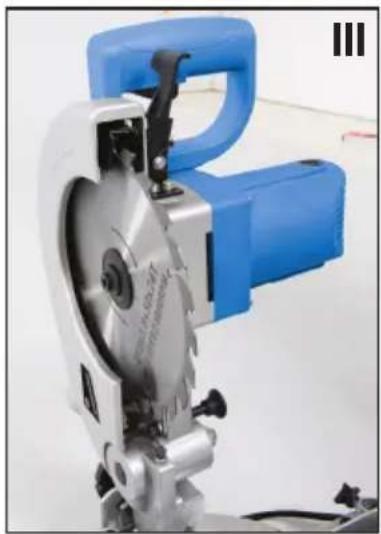

1. Loosen the Bevel Angle Locking Knob (31) and position the cutting head at the maximum height with the Bevel Angle Indicator at 0° on the Bevel Angle Gauge (30). Tighten the Bevel Angle Locking Knob
2. Lower the cutting head so the exposed blade is in the Blade Channel (13) and lock in this position with the Latching Pin (36)
3. Recheck that the cutting head is upright and the Bevel Angle Indicator is still at 0°

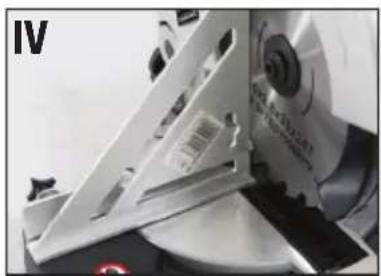

4. Place a set square on the table with one short edge against the Mitre Base (17) and the other short edge against the blade (avoiding the TCT tips) - see Image IV

Note: If the blade is not square with the Mitre Base, adjustment is required

Changing angle

1. There are two Hex Bolts at the base of the cutting head section (the left bolt is indicated on Image V). These allow adjustment to move the cutting head assembly to tilt to the right or left so the blade vertical angle will change
2. Turn the thin nut (locking nut) on the required bolt thread so it is at a higher position, and make a small adjustment to the bolt with the provided hex key (the adjustment should be very small).
3. Re-tighten the thin nut
4. You may need to adjust the bevel angle by loosening the Bevel Angle Locking Knob so you can move the cutting head to the left to access the bolt you need

5. Return the cutting head to its upright position and recheck the angular alignment against the square

6. Repeat the above steps until a 90° angle is achieved

7. Tighten the Bevel Angle Locking Knob

8. A minor adjustment can be made with the Bevel Angle Indicator (32) so it is set to 0^ when the set square is at a 90^ angle (Image IV)

Mitre Angle 0°Adjustment

The major adjustment of the mitre angle 0^ position is achieved by altering the Fence (8) position

1. Loosen the Mitre Angle Locking Knob (20)
2. Rotate the mitre angle with the Operating Handle (1) to the desired 0^ position using the Mitre Angle Indicator (9) and Mitre Angle Gauge (11)
3. Retighten the Mitre Angle Locking Knob to lock the angle setting
4. Lower the cutting head so the exposed blade is in the Blade Channel (13) and lock in this position with the Latching Pin (36)

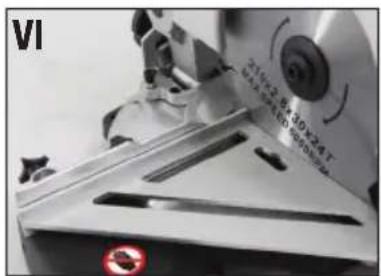

5. Use a set square to check the 90° angle between the Fence (8) and the Saw Blade (23) - see Image VI
6. Adjust the position of the Fence by loosening Fence Bolt (L) (19) and Fence Bolt (R) (35) so the Fence is at exactly 90^ using the set square
7. Re-tighten the two Fence Bolts
8. Re-check that the Mitre Angle Indicator is still at 0^ . A very minor adjustment can be made of the Mitre Angle Indicator by loosening the screw and making a small adjustment to the indicator direction
9. Release the Latching Pin and allow the cutting head to return to its top position

Replacing the Table Insert

IMPORTANT: If the table insert is damaged or heavily worn, it must be replaced to ensure safe operation of the tool.

1. To replace the Table Insert (14) loosen the Fence Bolt (L) (19) and unscrew and remove Fence Bolt (R)(35) and angle the Fence (8) away from the Table Insert. Unscrew the Table Insert Screw (12) and remove the Table Insert
2. Clean the Blade Channel (13) and fit the new Table Insert. Refit and tighten the Table Insert Screw
3. Move the Fence back to the correct position and refit the Fence Bolt (R). Ensure the Fence is at the correct angle with a square before tightening the two Fence Bolts
4. To ensure the fence is at the right angle, with the tool powered off, bring down the blade and use a square to make sure the blade and fence are at exactly 90^

General inspection

• Regularly check that all the fixing screws are tight
- Inspect the supply cord of the tool, prior to each use, for damage or wear. Repairs should be carried out by an authorised Silverline service centre. This advice also applies to extension cords used with this tool

Cleaning

• Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the machine's service life. Clean the body of your machine with a soft brush, or dry cloth. If available, use clean, dry, compressed air to blow through the ventilation holes
• Clean the tool casing with a soft damp cloth using a mild detergent. Do not use alcohol, petrol or strong cleaning agents

- Never use caustic agents to clean plastic parts

Lubrication

- Slightly lubricate all moving parts at regular intervals with a suitable spray lubricant

Brushes

• Over time the carbon brushes inside the motor may become worn
- Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking
- To replace the brushes, remove the brush access plugs from both sides of the machine. Remove the worn brushes and replaced with new. Replace brush access plugs. Alternatively, have the machine serviced at an authorised service centre

Storage

- The cutting head can be lowered and secured by the Latching Pin (36) to make the saw a smaller size for storage. Store this tool carefully in a secure, dry place out of the reach of children

Disposal

Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.

• Do not dispose of power tools, or other waste electrical and electronic equipment (WEEE), with household waste
• Contact your local waste disposal authority for information on the correct way to dispose of power tools

Troubleshooting

Problem Possible cause Solution
No operation	Plug fuse Replace fuse
	Worn brushes Have brushes replaced by an authorised Silverline service centre
	Power tool fault Contact an authorised Silverline service centre
Cutting performance poor	Teeth worn or damaged Replace blade
	Incorrect saw blade type Replace blade with correct type for material being sawed
	Incorrect blade specification Ensure blade meets the required blade specification for this mitre saw
	Incorrectly fitted blade Remove blade and refit exactly as per the instructions in this manual
Power tool vibrating excessively in use	Saw blade distorted, bent or damaged Replace blade immediately
	Saw blade incorrectly mounted Re-fit blade exactly as per the instructions in this manual
	Machine fault Contact an authorised Silverline service centre
Mitre or Bevel angle difficult to adjust Build-up of sawdust Vacuum up sawdust

Silverline Tools Guarantee

This Silverline product comes with a 3 year guarantee

Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-

• Your personal details
  • Details of the product and purchase information

Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

The guarantee claim must be submitted during the guarantee period.

You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.

You must provide precise details of the fault requiring correction.

Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.

Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized repair agents.

The repair or replacement of the product will not extend the period of guarantee

Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.

The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.

The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.

Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.

Use of the product for anything other than normal domestic purposes.

Change or modification of the product in any way.

Use of parts and accessories which are not genuine Silverline Tools components.

Faulty installation (except installed by Silverline Tools).

Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.

Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.

Battery Guarantee

Silverline batteries are guaranteed for 30 days. If a defect occurs on a registered battery during the term of the Battery Guarantee, due to material or manufacturing fault, then Silverline will replace it free of charge. This guarantee does not apply to commercial use nor does it extend to normal wear and tear or damage as a result of accident, abuse or misuse.

CE Declaration of Conformity

The undersigned: Mr Darrell Morris

as authorised by: Silverline Tools

Declares that

Identification code: 262705

Description: 1400W Compound Mitre Saw

Conforms to the following directives and standards:

• Machinery Directive 2006/42/EC

• Low Voltage Directive 2006/95/EC

• EMC Directive 2004/108/EC

• RoHS Directive 2011/65/EU

• EN61029-2-9:2009, EN61029-1:2009+A11:2010, EN60825-1:2007

• EN55014-1:2006/+A1:2009+A2:2011, EN55014-2:1997/+A1:2001/+A2:2008

• EN61000-3-2:2006/+A1:2009/+A2:2009, EN61000-3-3:2008

Notified body: Intertek Testing Services, Shanghai.

The technical documentation is kept by: Powerbox International Ltd

Date: 27/06/14

Signed:

Mr Darrell Morris

Managing Director

Name and address of the manufacturer:

Powerbox International Limited, Company No. 06897059. Registered address: Central House, Church Street, Yeovil, Somerset BA20 1HH, United Kingdom.

Hand-Arm-Vibration a (Hauptgriff): 6,0 m/s ^2

Silverline Tools Service Centre

PO Box 2988

Yeovil

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

Signor Darrell Morris

Central House, Church Street, Yeovil, Somerset BA20 1HH, Regno Unito.

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

Close-up of a blue and silver cutting tool with a black cloth, showing blade and base components (no text or symbols visible)

3 Year Guarantee

*Register online within 30 days. Terms & Conditions apply

Garantie de 3 ans
