USER MANUAL 28716 UNOLD

Instructions for use Model 28716

Technical Specifications 14
Important Safeguards. 14
Tips for perfect coffee enjoyment 15
Your new coffee machine 16
Before preparing the first coffee 17
Preparing coffee without timer 17
Adjusting the clock 18
Preparing coffee with timer 18
Cleaning and care 19
Dscaling. 20
Cleaning of the coffee grounds tray. 20
Guarantee Conditions 60
Waste Disposal / Environmental Protection 64

Jug Graduated glass jug with lid

Volume: 1.35 litres = approx. 10 cups

Filter size: Permanent filter, optionally paper filter size 1 x 4

Dimensions: Approx. 21,8 × 32,0 × 40,0 cm

Weight: Approx. 5,0 kg

Power cord length: Approx. 120 cm

Features:

Coffee beans container with aroma protection lid, capacity 240 g Swivelling permanent filter with drip-stop Integrated grinder (coffee is automatically transported to the filter) Ground amount per cup and grinding degree adjustable Pre-programming/timer Clock function Time pre-selection of up to 24 hours LCD display with blue backlight illumination Pre-selection of the number of cups from 2 to 10 Acoustic alarm when brewing is finished Automatic shut-off after 2 hours Automatic commutation to heat maintenance mode when brewing is finished Integrated water tank with water level indicator Temperature maintenance plate with non-stick surface Indicator light Cable storage

Accessories: Coffee measuring spoon, cleaning brush, instruction manual, permanent filter

Technical details subject to change.

IMPORTANT SAFEGUARDS

1. Please read the following information and keep it for future reference.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Children should be supervised in order to ensure that they do not play with the appliance.
4. Keep the appliance out of reach of children.

5. Connect the appliance only to an AC power supply with the voltage indicated on the rating plate.

6. Do not operate this appliance with an external timer or remote control system.

7. For electrical safety reasons, never immerse the appliance or the lead cable in water or other liquids.
8. For electrical safety reasons, do not clean the appliance in a dish-washer.
9. The switch and cable should never come into contact with water or other liquids. In case this ever happens, all components must be completely dry before operating the appliance again.
10. Never touch the appliance or lead cable with wet hands.
11. This appliance is intended for domestic and similar use such as:

• staff kitchen areas in shops, offices and other working environments;
  agricultural enterprises;

• by clients in hotels, motels and other accommodation facilities;

• bed and breakfast accommodations, holiday homes.

• For safety reasons, never place the appliance on hot surfaces, a metal tray or a wet surface.

• Do not place the appliance or lead cable near open flames during operation.
• Always use the coffee machine on a level, uncluttered and heat-resistant surface.
• The appliance may only be used to prepare coffee, never for heating/keeping hot milk or any other liquid.
• Make sure that the lead cable does not hang over the edge of the worktop or table, since this can cause accidents, for example if small children pull on the cable.
• Route the lead cable so that it is prevented from being pulled or tripped over.
• Never wrap the lead cable around the appliance and avoid bending it, in order to prevent cable damages.
• Use the coffee machine only indoors.
• Make sure that there are only coffee beans in the coffee beans container as foreign material may destroy the grinder.
• To prevent overheating, never cover the appliance during operation.

• Always use fresh, clear water to prepare coffee and fill the water tank at least up to the MIN mark (2 cups) but only up to the MAX mark.

• Only switch the appliance on after having filled the water tank with water.

• For multiple use, please let the appliance cool off for 5 minutes between each operation.
  d25. Do not use the coffee jug in the microwaves, as it is not suitable for this use.
• Do not move the appliance as long as it is in operation, to prevent injuries.
• Make sure that all users, especially children, are aware of the danger of injury from escaping steam and hot splashing water. Risk of burns!
• Do not use the appliance with accessories of other manufacturers or brands, to prevent damage.
• Disconnect the appliance from the wall socket after use and prior to cleaning. Never leave the appliance unattended when it is connected to the wall socket.
• Check the appliance, the wall socket and the lead cable regularly for wear or damage. In case the lead cable or other parts present damages, please send the appliance or the lead cable to our after sales service for inspection and repair. Unauthorised repairs can constitute serious risks for the user and void the warranty.
• If the lead cable is damaged, it must be replaced by the manufacturer or its after-sales service or a similarly qualified person in order to avoid any hazard.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

TIPS FOR PERFECT COFFEE ENJOYMENT

1. Make sure that your coffeemaker is clean and descaled at all times. (see chapter Cleaning and descaling on page 20).

2. Keep coffee beans and ground coffee in a tightly closed can and store in a cool, dark place, but not in the refrigerator.

3. Use only fresh water.

4. Coffee tastes best freshly brewed. If coffee is kept warm too long, it can become bitter.

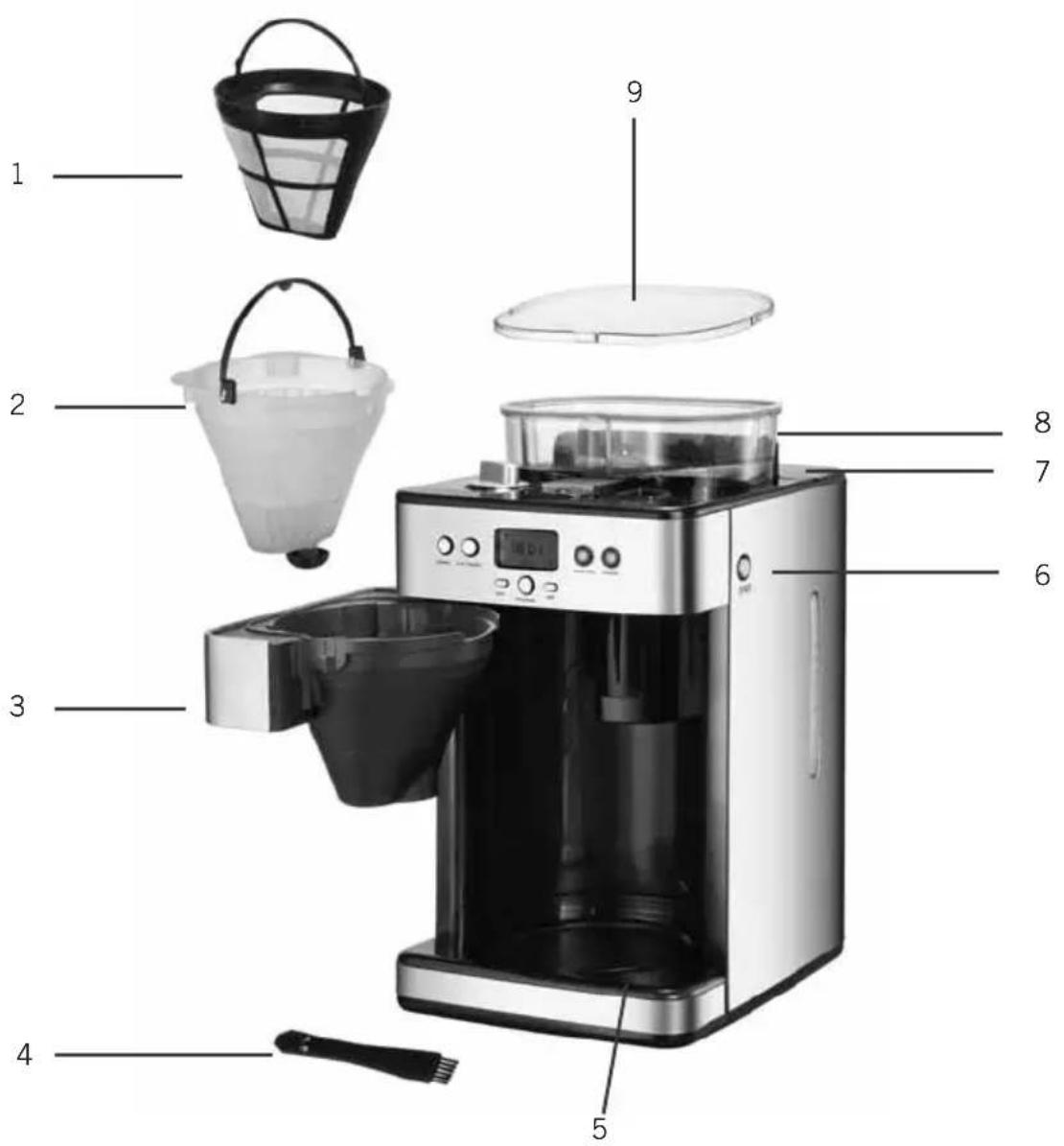

1 Permanent filter
2 Filter holder
3 Swivelling flap for filter
4 Brush for coffee ground container
5 Temperature maintenance plate

6 Flap opening button
7 Lid for water tank
8 Coffee beans container
9 Lid for coffee beans container

BEFORE PREPARING THE FIRST COFFEE

Before preparing the first coffee, please make the coffee machine work once or twice without any coffee powder in order to remove possible manufacturing residues. Even if the appliance has not been used for a while, we recommend one operation without any coffee powder.

1. Remove all packaging materials and any transport safety devices.
2. Clean the glass jug, the permanent filter and the filter holder as described in the chapter „Cleaning and care".
3. Clean the exterior of the appliance with a damp cloth.
4. Fill the water tank with tap water up to the MAX/10 cups mark. Make sure that there are no coffee beans in the coffee beans container

5. Connect the plug to the wall socket.

6. The appliance indicates that it is ready for operation by beeping repeatedly.

7. The "filter" indicator flashes and is only inactive while preparing coffee and in the programming mode.
8. Push the button ,MÜHLE AUS" and ,EIN/ AUS" once and let the water run through until the appliance indicates by beeping again that the process has been finished.
9. Pour this water away.
10. Switch the appliance off pushing the button "EIN/AUS".

PREPARING COFFEE WITHOUT TIMER

1. Prepare the appliance as described in chapter "Before preparing the first coffee".
2. Fill the water tank with the desired amount of clear, fresh water. To do so, you may use the graduated glass jug, which also indicates the number of cups. A minimum of two cups (270 ml) has to be poured in. The maximum amount is of 10 cups (1,350 ml). Make sure not to overfill the water tank as the excess of water will leak from the back of the appliance.
3. The amount of water poured in is always slightly higher than the amount of coffee, as the coffee powder absorbs some water.
4. Open the flap of the coffee machine pushing the button "OFFNEN" [open] on the right side of the appliance.
5. Insert the permanent filter in the filter basket. Alternatively you may use paper filter bags size 4.
6. When using the permanent filter, coffee grounds may accumulate in the glass jug. This has technical reasons and is not due to a defect of the appliance.
7. Attention: When using the permanent filter, please make sure that the handle of the permanent filter points to the front of the coffee machine after inserting the filter. Otherwise the handle overlaps the filter and hinders the water from flowing on to the coffee powder.
8. Remove the lid of the coffee beans container. Fill the coffee beans container with coffee beans. When buying coffee beans, make sure that they are suitable for coffee

grinders. Please do not use coffee beans for fully automatic coffee machines, as the coffee will not have a satisfactory taste due to the different coffee roasting.

1. Remember that the coffee beans container always has to be half full. The maximum capacity is of approx. 240g
2. Do not overfill the coffee beans container, in order to avoid damage to the grinder.
3. Close the coffee beans container with the lid.
4. Adjust the grinding selector to the desired degree of grinding. You can select between coarse, medium and fine in nine steps.
5. Connect the plug to the wall socket.
6. The appliance indicates the readiness for operation by beeping two times.
7. In case the clock is not yet adjusted, you may adjust it now, but you can also prepare coffee without adjusting the clock. For more information on how to adjust the clock, see chapter "Adjusting the clock" on page 10.

8. Select the desired number of cups pushing the button "2-10 TASSEN" [2 - 10 cups] until the desired number of cups lights up. You may choose between 2, 4, 6, 8 and 10 cups. Please make sure to select exactly the number of cups that have been poured in. If you poured in water for two cups, you have to select two cups, if you poured in water for four cups, you have to select four cups and so on. This guarantees the optimum coffee taste. The coffee machine grinds exactly the right amount of coffee beans.

9. Now you may select the strength of the coffee by pushing the button "STÄRKE" [strength]. You may choose between light, medium and strong.

10. If you desire, you may also prepare coffee from coffee powder. For this purpose, please push the button "MÜHLE AUS" [MÜHLE OFF]. The backlight of the button flashes blue as long as the button is active. The coffee machine will not grind any coffee beans, until the button is pushed again. Fill the permanent filter with the desired amount of coffee powder, using 5 - 7g (approx. 1 coffee measuring spoon) of medium fine ground coffee per cup according to the desired strength. Too finely ground coffee may clog the pores of the filter and cause spilling.
11. Press the flap slightly until it latches into place.
12. Put the glass jug with the lid closed on the heating plate.

13. Push the button "EIN/AUS" [ON/OFF] again and the appliance will start to prepare coffee.

14. You may remove the jug at any time during the brewing process. The drip-stop avoids the coffee dripping from the filter. Put the jug back on the filter within 30 seconds in order to continue the brewing process and to avoid spilling from the filter.

15. The appliance indicates that the coffee is ready by beeping five times. Switch the appliance off pushing the button "EIN/AUS" [ON/OFF]. The heating plate will continue working as long as the coffee machine is not switched off, in order to maintain the temperature of the coffee remaining in the jug. After two hours the appliance is automatically switched off.
16. After having poured out all the coffee, do not leave the empty coffee jug on the hot heating plate.
17. Remove the permanent filter and empty the coffee grounds.

ADJUSTING THE CLOCK

1. When the coffee machine is connected to the mains, the display indicates 12:00.
2. Push the buttons "STD" and "MIN" until the current time is indicated.

3. Now you see the current time and may begin to prepare coffee.

4. The time is not saved if a mains failure of more than 120 seconds occurs. In case the appliance has been disconnected from the mains you will have to adjust the time again.

PREPARING COFFEE WITH TIMER

1. Prepare the appliance as described in chapter "Before preparing the first coffee".
2. Fill the water tank with the desired amount of clear, fresh water. To do so, you may use the graduated glass jug, which also indicates the number of cups. A minimum of two cups (270 ml) has to be poured in. The maximum amount is of 10 cups (1,350 ml). Make sure not to overfill the water tank as the excess of water will leak from the back of the appliance.
3. The amount of water poured in is always slightly higher than the amount of coffee, as the coffee powder absorbs some water.
4. Open the flap of the coffee machine pushing the button "OFFNEN" [open] on the right side of the appliance.

5. Insert the permanent filter in the filter basket. Alternatively you may use paper filter bags size 4.

6. When using the permanent filter, coffee grounds may accumulate in the glass jug. This has technical reasons and is not due to a defect of the appliance.

7. Attention: When using the permanent filter, please make sure that the handle of the permanent filter points to the front of the coffee machine after inserting the filter. Otherwise the handle overlaps the filter and hinders the water from flowing on to the coffee powder.

8. Remove the lid of the coffee beans container. Fill the coffee beans container with coffee beans. When buying coffee beans, make sure that they are suitable for coffee grinders. Please do not use coffee beans for fully automatic coffee machines, as the coffee will not have a satisfactory taste due to the different coffee roasting.

9. Remember that the coffee beans container always has to be half full. The maximum capacity is of approx. 240g

10. Do not overfill the coffee beans container, in order to avoid damage to the grinder.
11. Close the coffee beans container with the lid.
12. Adjust the grinding selector to the desired degree of grinding. You can select between coarse, medium and fine in nine steps.
13. Connect the plug to the wall socket.
14. The appliance indicates the readiness for operation by beeping two times.
15. Check if the clock is adjusted to the actual time as described in the chapter "Adjusting the clock". Push the button "PROG" until the backlight of this button flashes blue.
16. Select the desired number of cups pushing the button "2-10 TASSEN" [2 - 10 cups] until the desired number of cups lights up. You may choose between 2, 4, 6, 8 and 10 cups. Please make sure to select exactly the number of cups that have been poured in. If you poured in water for two cups, you have to select two cups, if you poured in water for four cups, you have to select four cups and so on. This guarantees the optimum coffee taste. The coffee machine grinds exactly the right amount of coffee beans.
17. Now you may select the strength of the coffee by pushing the button "STÄRKE" [strength]. You can select between coarse, medium and fine in nine steps.
18. If you desire, you may also prepare coffee from coffee powder. For this purpose, please push the button "MÜHLE AUS" [MÜHLE OFF]. The backlight of this button flashes blue as long as the button is active. The coffee machine will not grind any coffee beans, until the button is pushed again. Fill the permanent filter with the desired amount of coffee powder, using 5 - 7g (approx. 1 coffee measuring spoon) of medium fine ground coffee per cup according to the desired strength. Too finely ground coffee may

clog the pores of the filter and cause spilling.

1. Press the flap slightly until it latches into place.
2. Put the glass jug with the lid closed on the heating plate.
3. Now select the desired time at which the coffee machine shall start preparing the coffee by pushing the buttons "STD" and "MIN".
4. Then push the button "PROG" again. The blue backlight illumination indicates that the appliance is in timer mode and will start preparing coffee at the desired time.
5. At starting time the appliance starts preparing coffee.
6. You may remove the jug at any time during the brewing process. The drip-stop avoids the coffee dripping from the filter. Put the jug back on the filter within 30 seconds in order to continue the brewing process and to avoid spilling from the filter.
7. The appliance indicates that the coffee is ready by beeping five times. Switch the appliance off pushing the button "EIN/AUS" [ON/OFF]. The heating plate will continue working as long as the coffee machine is not switched off, in order to maintain the temperature of the coffee remaining in the jug. After two hours the appliance is automatically switched off.
8. The programming remains as long as the appliance is connected to the mains. If you wish to prepare coffee at the set time, you simply need to press the "Program" button again.
9. After having poured out all the coffee, do not leave the empty coffee jug on the hot heating plate.
10. Remove the permanent filter and empty the coffee grounds.

CLEANING AND CARE

1. Before cleaning, always turn the appliance off and unplug it from the wall socket.
2. Allow the appliance to cool off before cleaning it.

3. Do not immerse the appliance and the lead cable in water or other liquids or wash them in the dishwasher.

4. Open the lid of the appliance and remove the permanent filter. Dispose of the coffee grounds.

5. Above the filter water may condense. After preparing coffee, clean the bottom side of the lid with a dry cloth.

6. Clean the casing and the temperature maintenance plate with a damp cloth and some washing-up liquid. Do not use any abrasive scrubbing agents, steel wool, metal objects, disinfectants or hot cleaning agents, since they can damage the appliance.

7. Glass jug, lid, filter holder and filter may be cleaned with water to which you may add a bit of washing-up liquid.

8. The appliance must be completely dry before using it again.

DESCALING

1. Regular descending maintains the efficiency of your coffee machine, increases its service life and reduces the energy consumption.
2. Use commercial descending products following the corresponding instructions for use.
3. Fill the water tank with descending solution up to the MAX mark.
4. Alternatively, you may use citric acid. Add 25 to 50g of citric acid to one litre of water.
5. Put the coffee jug on the temperature maintenance plate.

6. Push the button "EIN/AUS" and the approximately one third of the water run through.

7. Switch the appliance off pushing the button "EIN/AUS" again and leave the descending solution to act approx. 15 to 30 minutes. With resistant calcinations you may leave the solution to act over night.

8. Push the button "EIN/AUS" again and let the rest of the descending solution run through.
9. Pour the descending solution away and operate the appliance at least twice with clear water.

1. Before cleaning, always turn the appliance off and unplug it from the wall socket.
2. Allow the appliance to cool off before cleaning it.
3. We recommend to clean the coffee grounds tray every once a week or every fortnight, depending on how frequently the appliance is used.

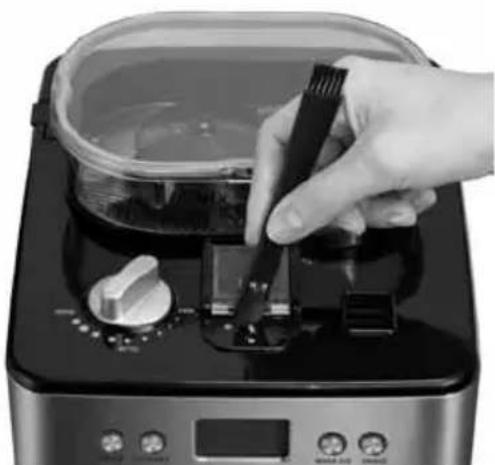

4. Open the lock of the coffee ground tray using the delivered brush. Turn the brush upside down and insert the thin end of the brush in the opening of the lock. Turn the lock from 念 to 念 to open the lid.

5. Check if the filter holder and a filter or the permanent filter are inserted.

6. Remove the bean residues from the lowest part in the front of the tray using the brush.
7. Close the lid of the coffee grounds tray, press the lid down and lock it using the thin end of the brush.
8. The bean residues fall into the filter the next time the coffee machine is used. Therefore, prepare a small amount of coffee and pour it away.
9. Dispose of the bean residues.

SPÉCIFICATION TECHNIQUE

Puissance: 1.000 W, 230 V~, 50 Hz

Ingombro: 21,8 x 32,0 x 40,0 cm (B/T/H) circa

Peso: 5,0 kg circa

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option.

Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

CONDITIONS DE GARANTIE

E-Mail [e-mail]

SCHWEIZ

MENAGROS SA

Route der Servion

CH-1083Mezières

Telefon [phone]

Telefax [phone]

E-Mail [e-mail]

Internet www.menagros.ch

POLEN

"Quadra-net" Sp. z o.o.

Skadowa 5

61-888 Poznan Skadowa 5

Internet www.quadra-net.pl

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal.

Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products.

By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

TRAITEMENT DES DÉCHETS / PROTECTION DE L'ENVIRONNEMENT
