Product type	Radio doorbell galvanic transmitter
Brand	Humantechnik
Model	Lisa
Dimensions (L x W x H)	50 x 41 x 147 mm (with antenna 201 mm)
Weight (with battery)	145 g
Power supply	9 V battery or 230 V power adapter (optional)
Radio frequency	868.35 MHz
Maximum range	80 m (depending on conditions)
Number of channels	10 adjustable channels
Battery life	Approximately 1 year (7 emissions/day)
Doorbell input voltage	3 to 15 V (AC or DC)
Operating temperature	0 °C to 40 °C
Package contents	Transmitter, 2 galvanic cables (1 m), 9 V battery, instruction manual, warranty card
Main functions	Wireless transmission of doorbell signals, personal assistance button, signal emitted for 22 seconds
Care and cleaning	Soft, slightly damp cloth, no alcohol or solvents
Safety	Do not expose to water, excessive heat or vibrations. Mains voltage not allowed on the thin cable.
Warranty	Free repair under conditions, requires original packaging and warranty card
Recycling	Device must be taken to a WEEE collection point, do not throw in household waste

Frequently Asked Questions - Lisa Humantechnik

How to install the battery in the Lisa transmitter?

Slide the battery compartment cover on the back of the device to the right, connect a 9 V battery to the plug, place it in its compartment and close. Connecting may trigger reception signals.

How to set the radio channel on the transmitter?

Use a small screwdriver to turn the channel selector on the right side of the device to the desired number (0 to 9). All transmitters and receivers must be on the same channel.

What voltage can be connected to the doorbell input?

The input accepts a voltage of 3 to 15 V, DC or AC. Never connect the cable to 230 V mains, risk of electric shock and damage.

What to do if the transmitter does not work after connection?

Check the polarity of the cables (swap them if necessary) and ensure the doorbell voltage is sufficient. If the problem persists, contact a qualified electrician.

How to test the transmitter without doorbell cable?

Press the personal assistance button. The LED should light up and a signal is sent to all receivers on the same channel. This verifies operation.

Can the transmitter be mains powered?

Yes, optionally, a power adapter (not supplied) can be connected to the socket on the left side of the device. Then plug the adapter into a 230 V outlet.

What is the maximum radio range of the Lisa transmitter?

The range can reach 80 m under optimal conditions. Buildings, vegetation, computer screens and cordless phones can reduce range.

Where to place the transmitter for better range?

Keep it away from electronic devices (TV, computers, cordless phones) and metal surfaces. Avoid metal objects that shield the signal.

How to clean the transmitter?

Use a soft, slightly damp cloth. Never use alcohol, thinner or other organic solvents. Protect the device from heat, moisture and vibrations.

What to do in case of a warranty defect?

Contact your dealer or the manufacturer. Return the device in its original packaging with the completed warranty card or a copy of the invoice. The warranty covers free repair and return shipping.

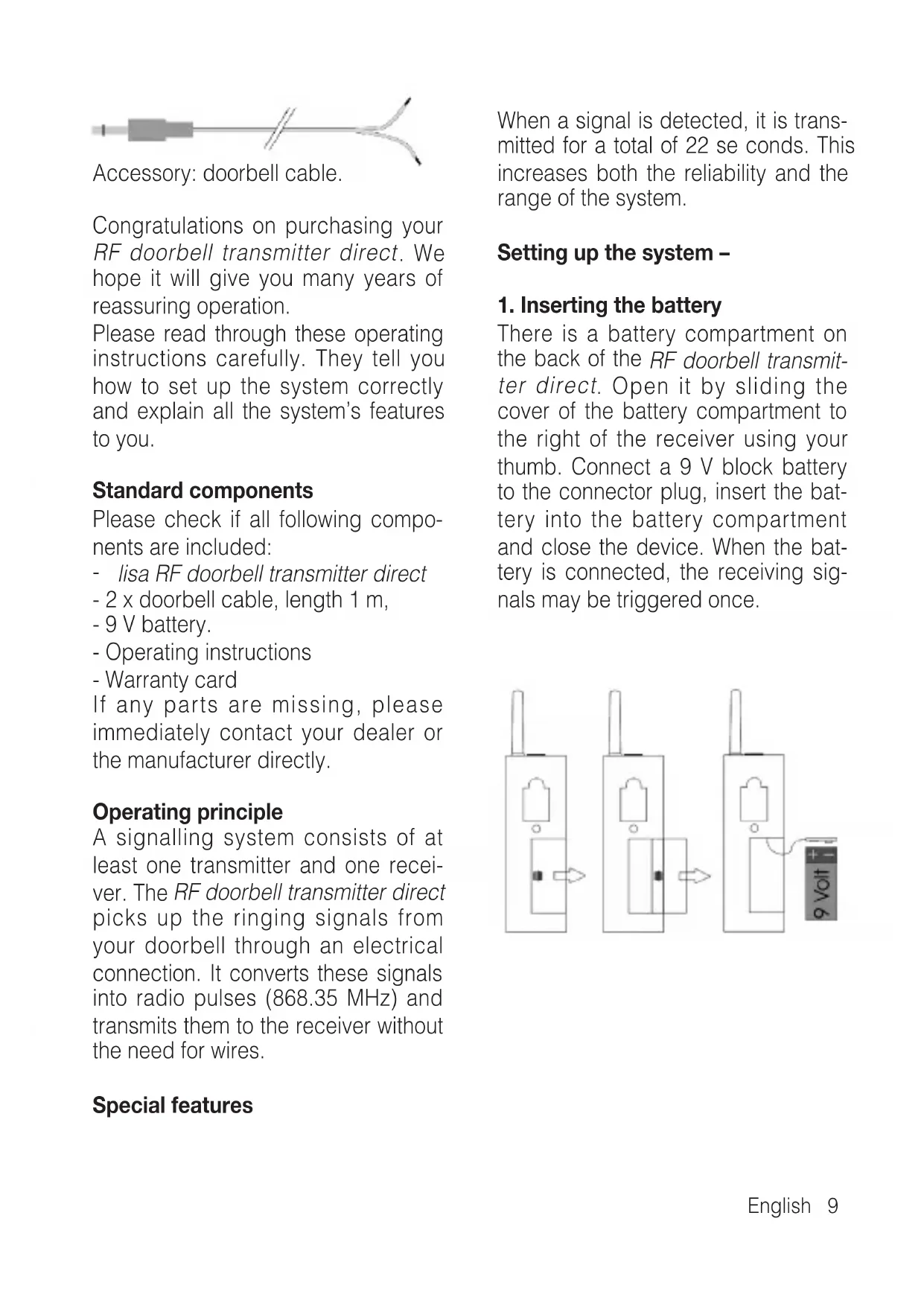

USER MANUAL Lisa Humantechnik

Accessory: doorbell cable.

Congratulations on purchasing your RF doorbell transmitter direct. We hope it will give you many years of reassuring operation.

Please read through these operating instructions carefully. They tell you how to set up the system correctly and explain all the system's features to you.

Standard components

Please check if all following components are included:

• lisa RF doorbell transmitter direct
• 2 x doorbell cable, length 1 m,
• 9 V battery.
• Operating instructions
  Warranty card

If any parts are missing, please immediately contact your dealer or the manufacturer directly.

Operating principle

A signalling system consists of at least one transmitter and one receiver. The RF doorbell transmitter direct picks up the ringing signals from your doorbell through an electrical connection. It converts these signals into radio pulses (868.35 MHz) and transmits them to the receiver without the need for wires.

Special features

When a signal is detected, it is transmitted for a total of 22 se cond. This increases both the reliability and the range of the system.

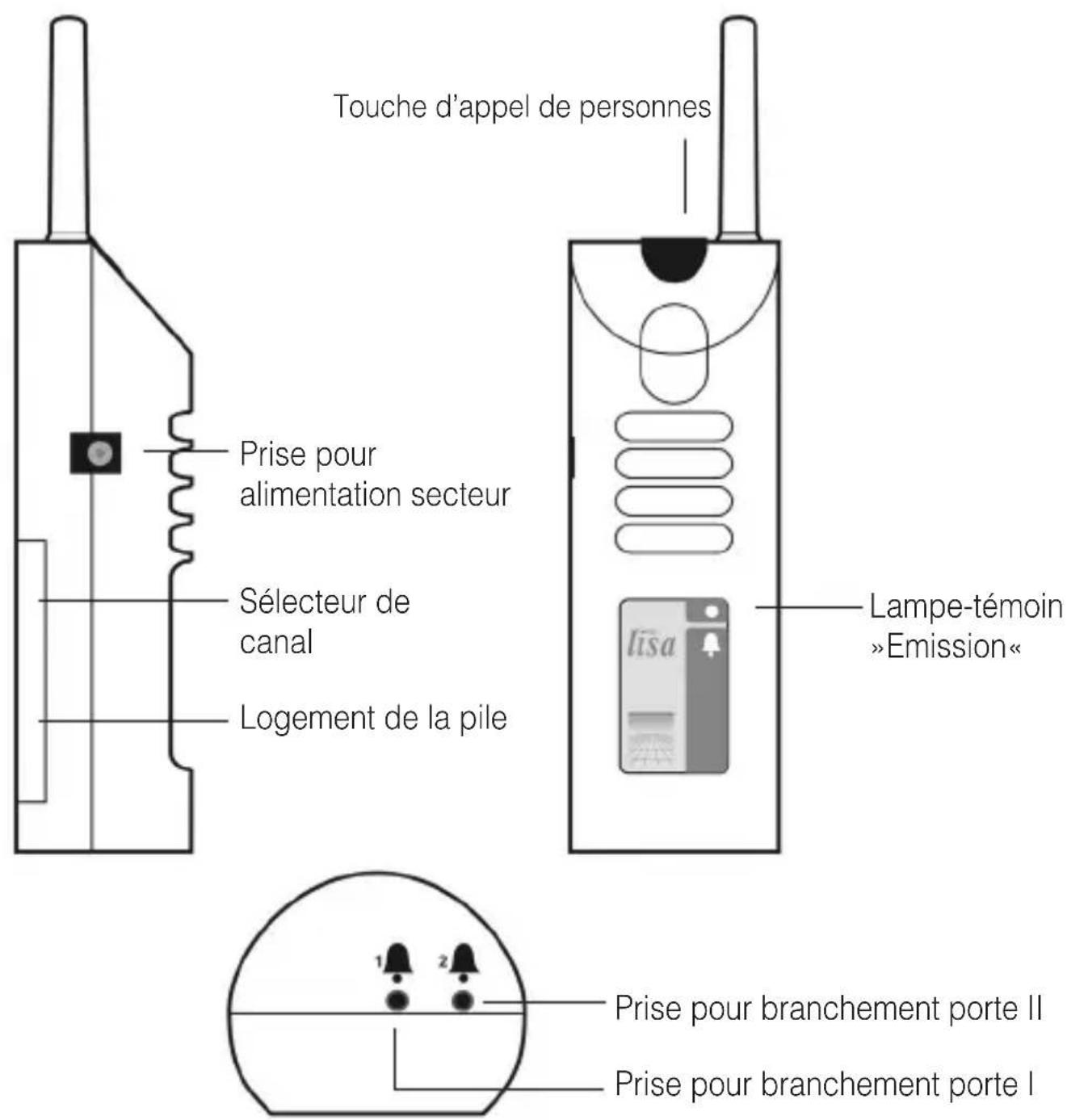

Setting up the system -

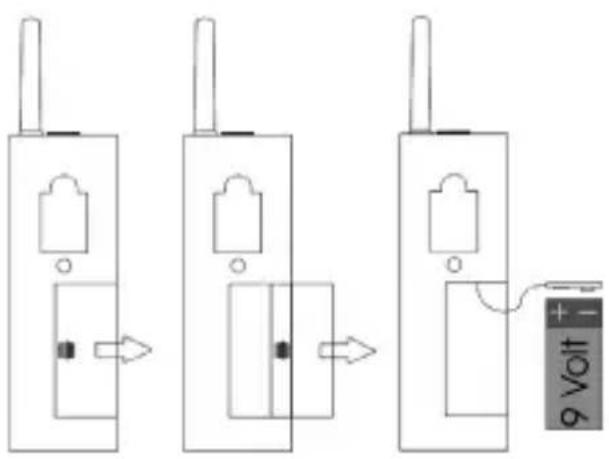

1. Inserting the battery

There is a battery compartment on the back of the RF doorbell transmitter direct. Open it by sliding the cover of the battery compartment to the right of the receiver using your thumb. Connect a 9 V block battery to the connector plug, insert the battery into the battery compartment and close the device. When the battery is connected, the receiving signals may be triggered once.

2. Setting the correct radio channel

A special digital transmission process ensures that the radio signals are picked up without errors. This process also makes it possible to set 10 different radio channels.

When supplied from the factory, all RF doorbell transmitters direct are set to channel 0.

It is only necessary to set units to other channels if you have several different users operating units in the same building.

Set the required channel by using a small screwdriver to turn the channel selector switch, which is located towards the top of the battery compartment, to the required channel number.

All transmitters and receivers must be set to the same channel.

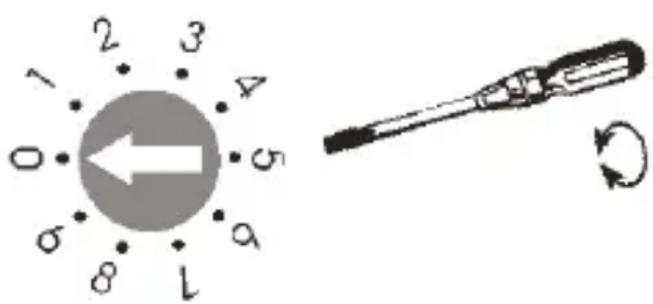

Fig. Setting the correct radio channel.

3. Installing the doorbell cable

Plug the 2.5 mm jack plug of the doorbell cable into the socket on the underside of the RF doorbell transmitter direct. Connect the two bare wires to your doorbell.

4. Systems with two different door chimes

If your intercom is capable of differentiating between 2 different door chimes (e.g. the door to your flat and the entrance door to the building), you can convey the 2 door chimes to the RF doorbell transmitter direct using 2 connection cables.

To do this, connect the 2.5 mm jack plugs of the 2 connection cables into the sockets on the RF doorbell transmitter direct. Route the cables to the 2 doorbells and connect the 2 pairs of bare wires to the doorbell switches.

Important: The triggering system is only suitable for connection to low-voltage doorbell systems. The input voltage must be at least 3 volts and no more than 15 volts. It is possible to connect to either alternating or direct current voltage.

Never connect the thin cable to mains voltage (230V± 10%)

Risk of fatal injury and irreparable damage to the transmitter!

Possible reasons for the unit not functioning

• If your doorbell system uses direct current voltage, you have not connected the wires with the correct polarity. Swap over the wires.

• The doorbell voltage of your system is too low. Either contact an electrician to have the doorbell system converted or use the RF doorbell transmitter acoustic.

Person call button

Pressing the person call button on the RF doorbell transmitter direct causes a signal to be triggered on every receiver which is set to the same radio channel as the transmitter. The person call button lamp lights up to indicate this. This makes it possible to call people who are in different rooms. Also, this button can be used for checking the system is functioning even when the doorbell cable is not connected.

Mains operation

You can also operate your RF doorbell transmitter direct via the plug-in power supply unit. To connect the PSU, insert the connector on the end of the PSU cable into the corresponding socket on the left-hand side of the device. Then plug the power supply unit into the normal 230 V socket in your house.

Radio range

The radio signals are designed to have a range of 80 meters under optimum conditions. The following conditions may result in a reduced range:

• Signal transmission through building structures or vegetation
• Interference from TVs, computer monitors and mobile phones.

Under certain circumstances, this may prevent the receiver from functioning at all.

• Positioning of the transmitter at an unfavourable distance from surfaces which reflect radio waves, for example floors and walls.

This may lead to the signal wave being weakened or even cancelled out by the reflected wave.

Metallic objects reduce the range due to the shielding effect of the metal.
- Particularly in towns and cities, there may be many other sources of radio waves which can disrupt the original signal.
- Having units operating at similar frequencies located close to one another may also result in mutual interference.

Positioning the radio transmitter

Bear in mind the following points when positioning the radio transmitter, in order to achieve the greatest possible range from the radio transmitter:

• The radio transmitter should not be set up close to devices which emit powerful interference signals, such as TVs, computer monitors or mobile phones.
• The radio transmitter should not be placed on metallic objects, since otherwise the radio range will be restricted by metallic shielding.

Maintenance and care

The RF doorbell transmitter direct does not require any maintenance. If the unit does become dirty, simply wipe it clean with a soft, damp cloth. Never use spirits, thinners or other organic solvents.

Do not set up the RF doorbell transmitter direct where it will be exposed to full sunlight for long periods. In addition, it must be protected against excessive heat, moisture and severe mechanical shocks.

Note: This product is not protected against splash water. Do not place any container s filled with water, such as flower vases, or anything with an open flame, such as a lit candle, on or near the product.

Please make sure that the batteries are not exposed to excessive heat from such as sunlight, fire or anything similar.

Warranty

The RF doorbell transmitter direct is a very reliable product. Should a malfunction occur despite the unit having been set up and operated correctly, please contact your dealer or the manufacturer directly.

This warranty covers the repair of the product and returning it to you free of charge. It is essential that you send in the product in its original packaging, so do not throw the packaging away. The warranty does not apply to damage caused by incorrect handling or attempts to repair the unit by people not authorised to do so (destruction of the seal on the unit). Repairs will only be carried out under warranty if the completed warranty card is returned accompanied by a copy of the dealer's invoice/till receipt.

Always specify the product number in any event.

Battery life

Under normal conditions (7 transmissions a day), the transmitter battery should last for about 1 year. Press the person call button on the transmitter to test the battery charge status. If the Send signal LED on the transmitter does not come on, the battery needs to be replaced!

Disposal of used electric and electronic units (applicable in the countries of the Euro pear

Union and other European countries with a separate collection system). The symbol on the product or the packaging indicates that this product is not to be handled as ordinary household waste but has to be returned to a collecting point for the recycling of electric and electronic units.

You protect the environment and health of your fellow men by the correct disposal of this products. Environment and health are endangered by a faulty disposal. Material recycling helps to reduce the consumption of raw material. You will receive further information on the recycling of this product from your local community, your communal disposal company or your local dealer.

Technical data

Power supply: 9 V block battery or via a plug-in PSU

Battery life: approx. 1 year

Frequency: 868.35 MHz

Operating range: 0^ - 40^

Height

(including the antenna): 147mm (201 mm)

Width: 50 mm

Depth: 41 mm

Weight (including battery): 145 g

This product complies with European Union norms.

You can obtain EC compliance declarations from your dealer, or directly from the manufacturer of this product.

Technical specifications subject to change without notice.
