Owner's Manual

WARNING

TO PREVENT FIRE OR SHOCK HAZARD. DO NOT USE THIS PLUG WITH AN EXTENON CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PRESENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PRVENT ELECTRICAL SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT FULLY INSERT.

This lightnig flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the produce enclosure that may be sufficient magnitude to constitute a risk of ele shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Warning: To reduce the risk of electric shock, do not rem cover (or back) no user serviceable parts inside. Refer serving to qualified service personnel.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacture's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug h blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protest the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug the apparatus during lightening sort or when unused for long periods of time. Refer all servicing to qualified personnel. Serving is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus has been exposed to rain or moisture, does not operate r

2. dropped. This appliance shall not be exposed to dripping or splashing water and that no object filled with liquid

3. such as vases shall be placed on the apparatus.

4. Caution-to prevent electrical shock, match wide blade plug wide slot fully insert.

5. Please keep a good ventilation environment around the entire unit.

Printed October, 2008 v1.2

Samson Technologies Corp.

45 Gilpin Avenue

Hauppauge, New York 11788-8816

Phone: 1-800-3-SAMSON (1-800-372-6766)

Fax: [phone]

www.samsontech.com

Table of Contents

ENGLISH

Introduction. 1

MediaOne Series Features....2

Front View Layout 3

MediaOne Series Layout....3

MediaOne Series Rear Panel Layout. . . . . . . . 4

Setting up the MediaOne Series. 5

Connecting the MediaOne Series ..... 7

Operating the MediaOne Series 8

MediaOne Series Rear Control Panel ..... 8

Connecting to the Resolv sub88 Subwoofer . . .11

MediaOne Series Wiring Guide .....12

Specifications .61

FRANÇAIS

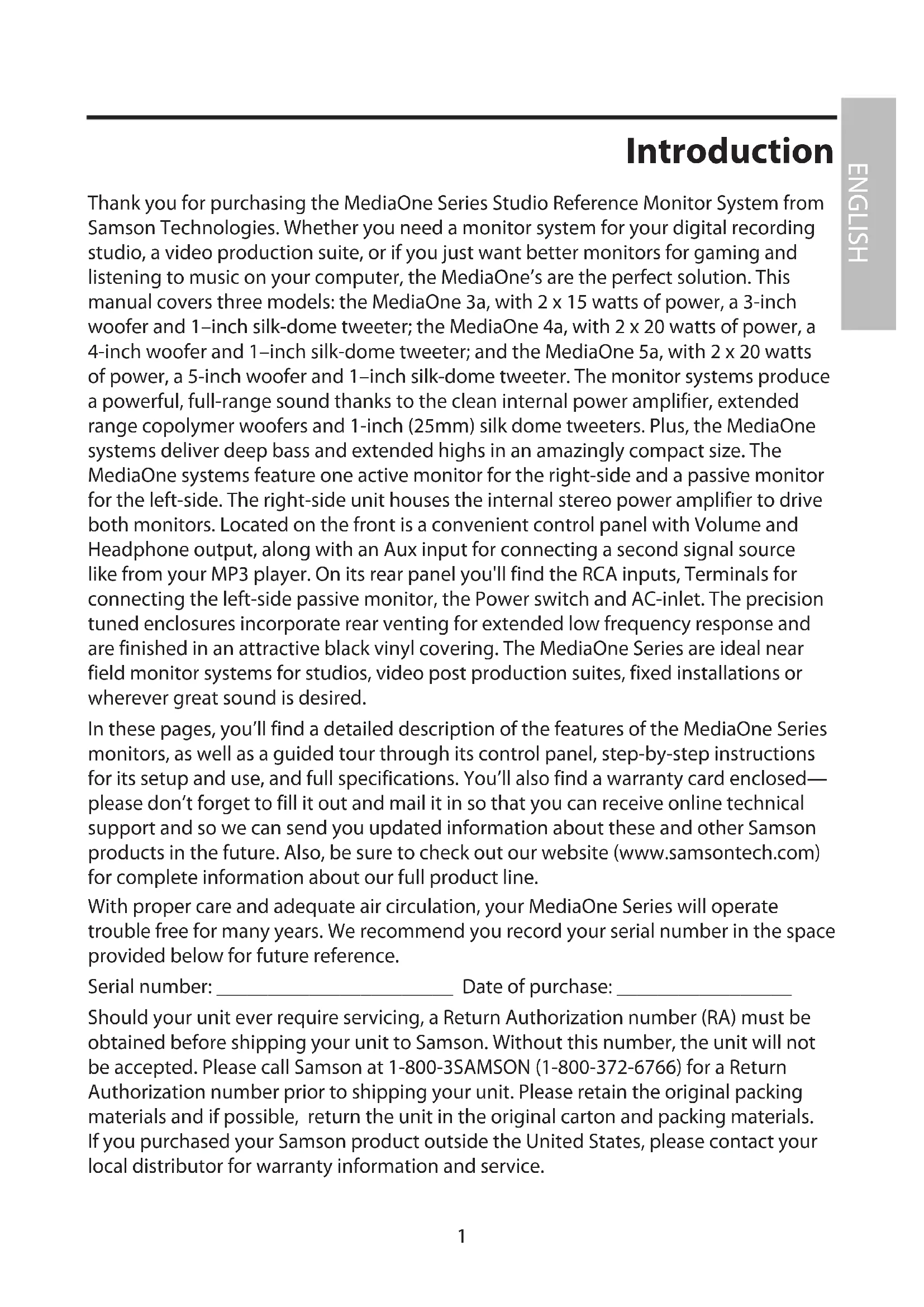

Introduction. 13

Thank you for purchasing the MediaOne Series Studio Reference Monitor System from Samson Technologies. Whether you need a monitor system for your digital recording studio, a video production suite, or if you just want better monitors for gaming and listening to music on your computer, the MediaOne's are the perfect solution. This manual covers three models: the MediaOne 3a, with 2 x 15 watts of power, a 3-inch woofer and 1-inch silk-dome tweeter; the MediaOne 4a, with 2 x 20 watts of power, a 4-inch woofer and 1-inch silk-dome tweeter; and the MediaOne 5a, with 2 x 20 watts of power, a 5-inch woofer and 1-inch silk-dome tweeter. The monitor systems produce a powerful, full-range sound thanks to the clean internal power amplifier, extended range copolymer woofers and 1-inch (25mm) silk dome tweeters. Plus, the MediaOne systems deliver deep bass and extended highs in an amazingly compact size. The MediaOne systems feature one active monitor for the right-side and a passive monitor for the left-side. The right-side unit houses the internal stereo power amplifier to drive both monitors. Located on the front is a convenient control panel with Volume and Headphone output, along with an Aux input for connecting a second signal source like from your MP3 player. On its rear panel you'll find the RCA inputs, Terminals for connecting the left-side passive monitor, the Power switch and AC-inlet. The precision tuned enclosures incorporate rear venting for extended low frequency response and are finished in an attractive black vinyl covering. The MediaOne Series are ideal near field monitor systems for studios, video post production suites, fixed installations or wherever great sound is desired.

In these pages, you'll find a detailed description of the features of the MediaOne Series monitors, as well as a guided tour through its control panel, step-by-step instructions for its setup and use, and full specifications. You'll also find a warranty card enclosed—please don't forget to fill it out and mail it in so that you can receive online technical support and so we can send you updated information about these and other Samson products in the future. Also, be sure to check out our website (www.samsontech.com) for complete information about our full product line.

With proper care and adequate air circulation, your MediaOne Series will operate trouble free for many years. We recommend you record your serial number in the space provided below for future reference.

Serial number: ____ Date of purchase: ____

Should your unit ever require servicing, a Return Authorization number (RA) must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please call Samson at 1-800-3SAMSON (1-800-372-6766) for a Return Authorization number prior to shipping your unit. Please retain the original packing materials and if possible, return the unit in the original carton and packing materials. If you purchased your Samson product outside the United States, please contact your local distributor for warranty information and service.

MediaOne Series Features

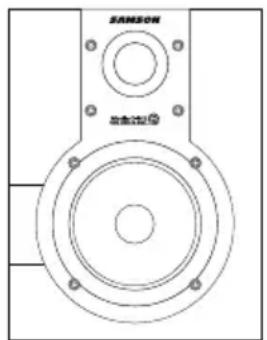

The Samson MediaOne Series reference monitors provide a smooth response that's accurate, and at the same time pleasant to listen to. Here are some of their main features:

• Two-way, active studio reference monitor with ported tuned enclosure providing extremely accurate monitoring for recording studio, post-production and multi-media applications.
• In order to deliver tight and controlled low frequency response, the MediaOne Series employ custom designed, inverted cap, copolymer woofers with butyl surrounds. The MediaOne 3a employs a 3-inch woofer, with a 4-inch woofer on the MediaOne 4a and a 5-inch woofer on the MediaOne 5a.
• The MediaOne's 25mm, silk dome high frequency driver is set in a custom designed wave guide producing a high frequency response that's accurate and natural.
• Convenient front panel, "pop-out" volume control allows you to easily set the level and then lock it in place.
• You can connect a second stereo input from a MP3 player, keyboard, sound card or any other stereo line level signal to the MediaOne Series' front panel 1/8-inch (3.5 mm), stereo Aux Input jack.
• If you need to listen to your mix on headphones, simply plug in to the front panel 1/8-inch (3.5 mm), Headphones output jack. The speakers automatically turn off when you plug into the Headphone output.
• The MediaOne 3a has two by 15 watts of Class A/B internal power and MediaOne 4a and 5a feature two by 20 watts of Class A/B internal power.
• Passive crossovers utilizing a multi-pole design for linear response from bottom to top.
• Convenient RCA inputs accepts standard -10 dBV line level input.
• A/V shielded for multimedia applications providing clean operation near computer monitors.
• 2 meter, 20-gauge speaker cable for Left-side Extension monitor included.
  • Solid MDF (Medium Density Fiberboard) construction, provide maximum SPL.
• Precision tuned rear vented enclosure, attractively finished in black satin vinyl covering.
  • Three-year extended warranty.

MediaOne Series Layout

Front View Layout

SAMSON MediaQ-NE 40000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 1 2 3 4 5 6 7 8

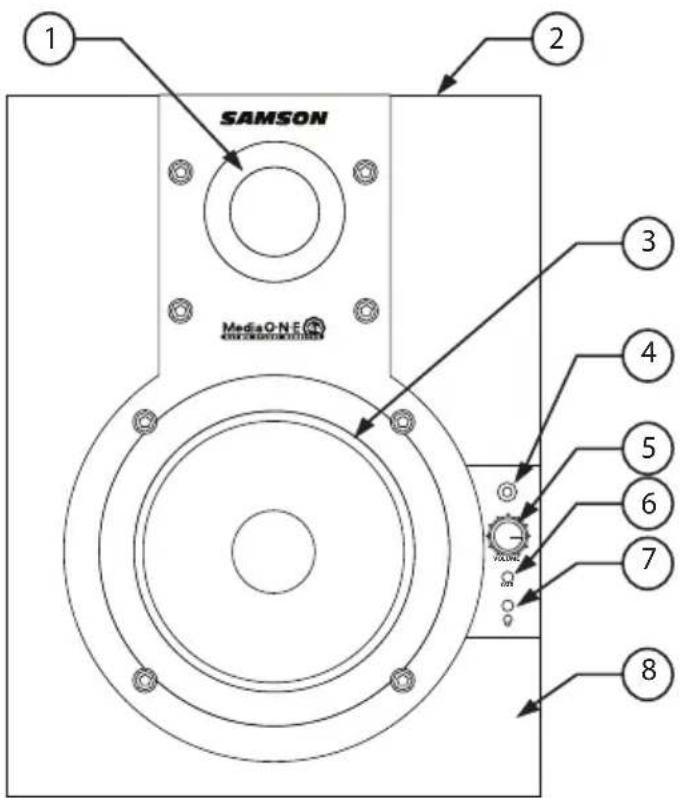

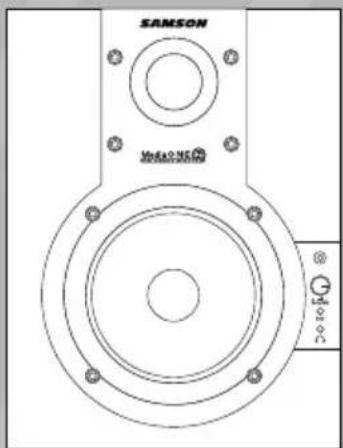

1. Silk Dome Tweeter - Smooth high frequency response produced from a 1-inch silk dome tweeter.
2. TUNED PORT (rear)- Quiet port design offering extended low frequency response.
3. Low Frequency Driver– Each monitor employs custom designed, copolymer, low frequency transducer with butyl surround and large motors. The Media One 3a employs a 3-inch low frequency driver, a 4-inch on the Media One 4a and a 5-inch on the MediaOne 5a.

4. POWER LED (active)- Blue LED illuminates indicating the unit is powered on, ready for operation.

5. VOLUME (Right Cabinet Only) - Controls the overall amount of output level.

6. Aux Input- 1/8-inch (3.5mm) stereo input jack for connecting a second line level signal source.
7. Headphones- 1/8-inch (3.5mm) stereo output jack for connecting headphones. The monitors automatically mute when the headphone is connected
8. ENCLOSURE– Rigid and tight MDF construction for maximum output with beautifully appointed trim rings and sleek black textured vinyl finish.

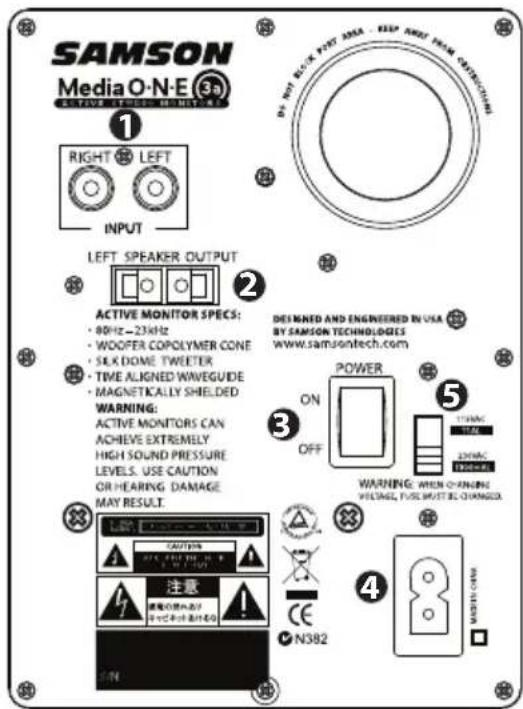

MediaOne Series Rear Panel Layout

MediaOne Series Layout

SAMSON Media O-N-E 5a ACTIVE STUDIO MONITERS 1 RIGHT LEFT INPUT WARNING: ACTIVE MONITORS CAN ACHIEVE EXTREMELY HIGH SOUND PRESSURE LEVELS. USE CAUTION OR HEARING DAMAGE MAY RESULT. 2 LEFT SPEAKER OUTPUT 3 POWER ON OFF 4 CE N382 4 S/N www.samsontech.com DESIGNED AND ENGINEERED IN THE UNITED STATES BY SAMSON TECHNOLOGIES 5 15VAC FLAME 250VAC TEPOWER

MediaOne 4a and 5a MediaOne 3a

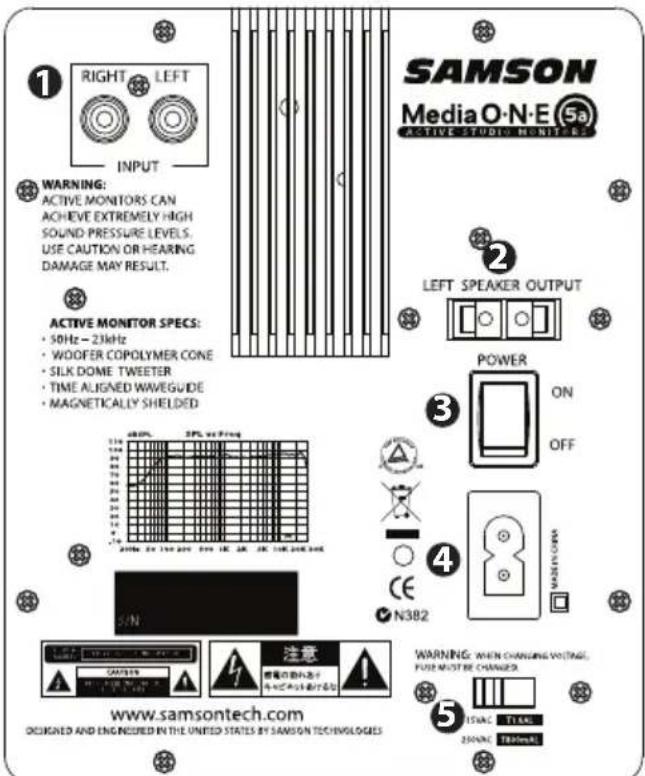

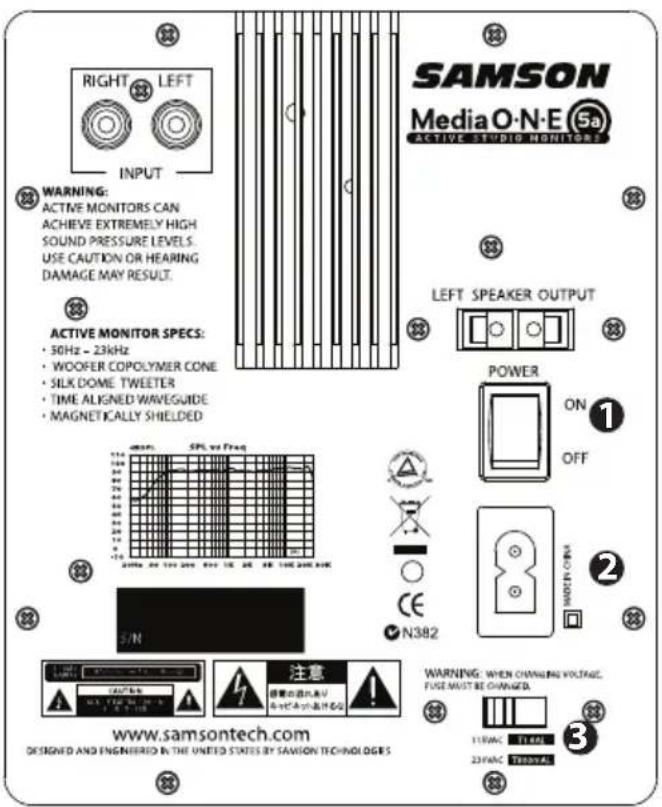

1 RCA INPUT – Used to connect signals from unbalanced, -10dBV devices. The Red connector is the for Right input and the White is for the Left input.
2 LEFT SPEAKER OUTPUT – Push Terminals for connecting the Left-side Extension Speaker.
3 POWER SWITCH – Main power switch. When set to the ON position, the front

Rear Panel Layout (left speaker)

A B B - + SAMSON

SAMSON Media O-N-E (3a) RIGHT LEFT INPUT LEFT SPEAKER OUTPUT ACTIVE MONITOR SPECS: • 80Hz~23kHz • WOOFER COPOLYMER CONE • SILK DOME TWEETER • TIME ALIGNED WAVEGUIDE • MAGNETICALLY SHIELDED WARNING: ACTIVE MONITORS CAN ACHIEVE EXTREMELY HIGH SOUND PRESSURE LEVELS. USE CAUTION OR HEARING DAMAGE MAY RESULT. LECK ELETTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENTLENETTECH DESIGNED AND ENGINEERED IN USA BY SAMSON TECHNOLOGIES www.samsontech.com POWER ON OFF WARNING: WHEN OPENING WELING, FUSE MATERIAL CHANGES CAUTION 注意 N382

panel blue LED illumintes indicating the MediaOne Series is powered up and ready for operation.

4 AC INLET- Connect the supplied IEC power cable here.
5 VOLTAGE SELECTION SWITCH -This switch is used to select the amplifiers operating voltage. NOTE: Bure sure it is set to the correct voltage for your country.

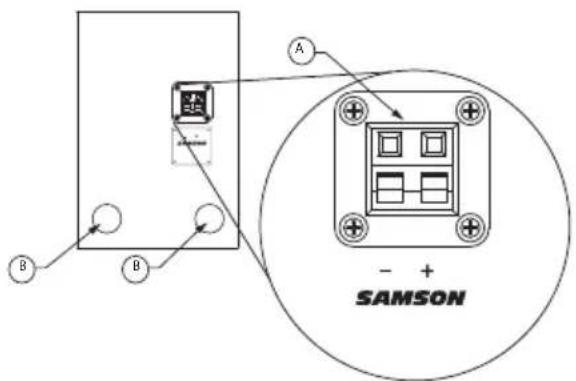

A TERMINAL CUP – Push Terminals for connecting the Left-side Extension Speaker.

B TUNED PORT - Quiet port design offering linear extended low frequency response.

Setting up the MediaOne Series

Background on the MediaOne Series Studio Reference Monitor

The MediaOne Series are near field reference monitors featuring a custom designed, 3, 4 or 5-inch copolymer, low frequency driver and a 25mm silk dome tweeters, employing a Ferro fluid cooled voice coil and neodymium magnet. The monitor's crossover has been carefully designed with high quality components insuring a linear frequency and phase response. The MediaOne Series enclosures are constructed from MDF (Medium Density Fiberboard) and are finished in scuff resistant, textured vinyl covering. The monitor's enclosure also includes a tuned vent port that provides extended low-end response, and with a low turbulence design, the low frequency driver can move freely with minimal effect on the overall impedance. On the rear of one enclosure, you'll find the MediaOne Series' control panel, which features an RCA unbalanced input. On the front panel, you'll find the Volume control, along with an 1/8-inch (3.5mm) Headphone output jack and an 1/8-inch (3.5mm) Aux input. Both inputs are connected to MediaOne Series' internal stereo power module providing 15 watts per channel on the MediaOne 3a, and 20 watts per channel on the MediaOne 4a and 5a through their passive crossovers.

Positioning the MediaOne Series

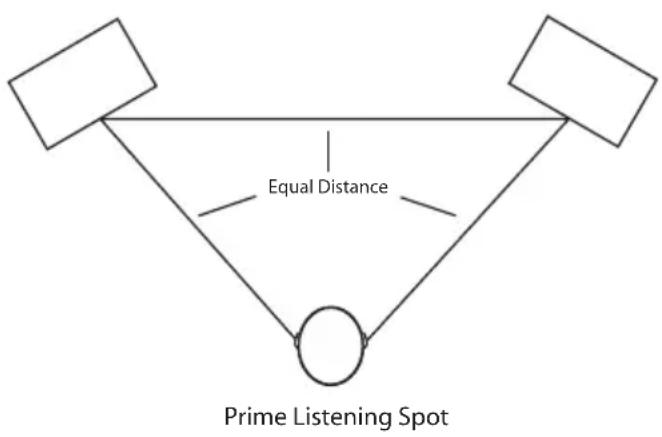

Near field monitoring has become the choice of many engineers in large and small studios because it minimizes the effect of room acoustics. This is especially important in today's project studios since the budget for room acoustics is often close to nothing. By positioning the reference monitors in the near field (close to the listeners), you can greatly reduce the effects of room acoustics. The most important considerations when evaluating the effects of room acoustics are reflective surfaces that are around the monitoring area. These can include flat tabletops, glass mirrors or framed pictures, large open walls and even the surface of your mixing console. Mostly all reflecting sound will eventually reach the listening position, but since it is slightly delayed from the direct source, the result is random cancellation of some frequencies, or comb filtering. If possible, remove any and all reflective surfaces. You may also want to hang some acoustic foam on walls that are close to the monitors. When positioning the monitors, you'll want to set up what is commonly referred to as the "mix triangle". In this ideal configuration, the space between the left and right monitor is equal to the distance from the listener to each monitor, forming an equilateral triangle.

Figure 1.

Setting up the MediaOne Series

Positioning the MediaOne Series - continued

Speaker Orientation

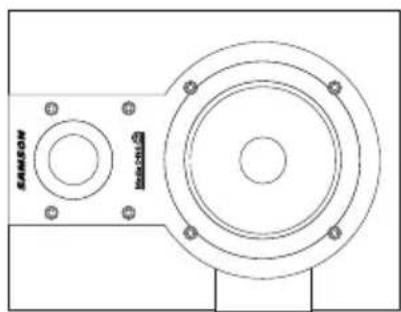

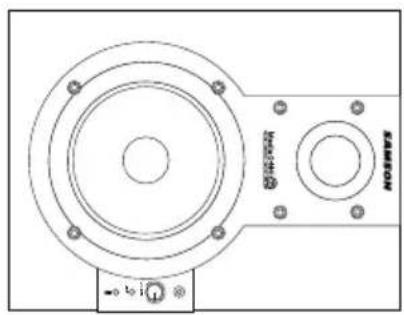

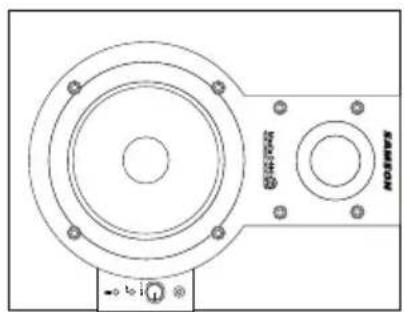

The MediaOne Series can be used in either the vertical or horizontal position. When using the monitors in the horizontal position, be certain to place the left and right side tweeters on the outer most sides. (Figure 2) This will improve the stereo imaging and bass response by increasing the coupling of the low-end drivers.

Technical line drawing of a mechanical component with two circular components and mounting holes (no text or symbols)

Technical diagram of a speaker with concentric rings and two circular components, no text or symbols present

Figure 2.

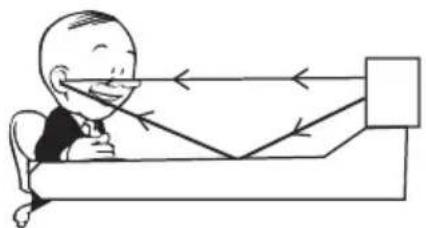

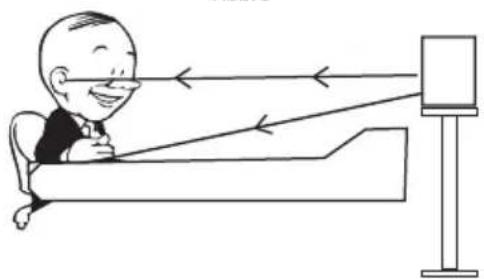

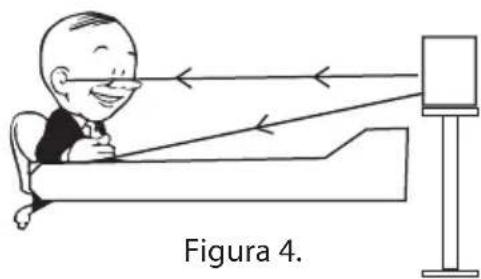

A Moment of Reflection

When choosing the height of your monitor system, be careful to avoid reflections off the surface of the mixing console. (Figure 3.) These reflections arrive at the listening position slightly delayed from the original sound resulting in strange cancellations and overall unpredictable response. Visualize straight lines representing the beams of sound radiating from the monitors and choose a height that reduces the occurrence of reflections that will end up in the prime listening spot. (Figure 4.) In most cases, the ideal position is slightly behind and above the mixing console's meter bridge. Also, allow at least 3-inches from the rear of the cabinet to any wall. This will insure proper operation of the tuned bass ports.

Illustration of a person sitting at a desk with arrows pointing to a rectangular object (no text or symbols present)

Figure 3.

Cartoon illustration of a person sitting in bed with arrows indicating light rays from a screen (no text or symbols)

Figure 4.

Connecting the MediaOne Series

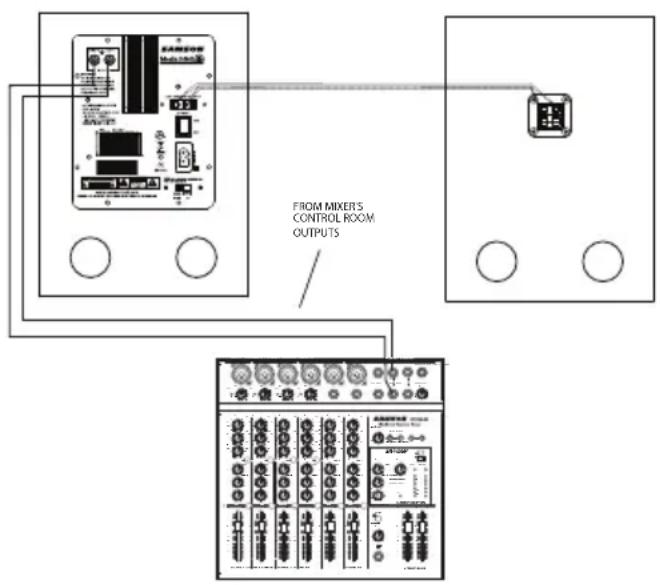

MediaOne Series Quick Connections

Note: Before plugging in and turning on, remember the “last on, first off” rule of power amplifiers (and powered monitors). When powering up your system, be sure that all the wires are connected, turn your mixer and any other outboard gear on, and then last turn your MediaOne Series on. When powering down, turn your MediaOne Series off first and then your mixer and outboard gear.

The MediaOne Series connections can be made via the rear panel RCA Inputs. Follow the simple steps and diagram below for a quick connection using a standard recording console's control room outputs.

• Using the included 20-gauge Extension Speaker cable, connect the Negative (striped)side of the wire to the Black terminal and the positive side to the Red terminal on the Right-side monitor.
• Now, connect the Negative (striped) side of the wire to the Black terminal and the Positive side to the Red terminal on the Left-side monitor.

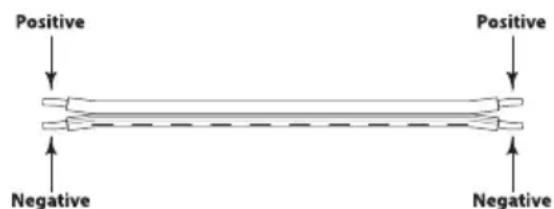

Note: Just about all un-shielded speaker wire will have a marking indicating the negative side. To avoid phase cancelation problems, be sure to maintain the correct connection for the positive and negative sides throughout your system.

• Lower your mixer's master outputs to all the way off.
• Connect the mixer's left and right Control Room outputs to the stereo input on the Right-side MediaOne Series.
• Set the MediaOne Series input Volume control to the 2 o'clock position. NOTE: If you press the Volume Control, it will extend out making it easier to adjust.
• Run an audio signal (like some music from a CD) through your mixer and raise the Control Room level to a comfortable listening level.

Positive Negative Positive Negative

Speaker Cable (Un-Shielded)

FROM MIXERS CONTROL ROOM OUTPUTS

Operating the MediaOne Series

MediaOne Series Rear Control Panel

The MediaOne Series' rear control panel is where you will make your connections for the left side passive monitor, input signals and AC power. The following section details the rear panel connections.

Powering the MediaOne Series

Since the MediaOne Series are active monitors with on-board power amplifiers, it is necessary to connect the right side monitor to an AC power supply. Make sure that the main Power switch is set to the off position and connect the supplied IEC power cable into the AC inlet.

Things that go Hum!

When running power cables, be careful not to run the AC power cords or AC extension cords in parallel to your input cables. This will help reduce any AC hum that can be picked up. If your have to cross an AC line with an audio line, try to cross them at a 90 degree angle for the least amount of induced hum.

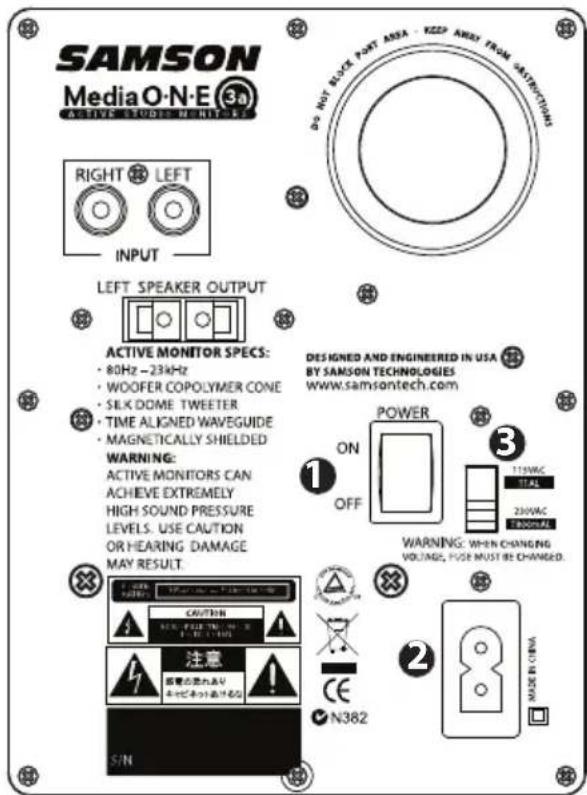

1. Power switch – The POWER switch is used to turn on the MediaOne Series' active electronics. When set to the on position, the front panel blue LED illuminates, indicating the MediaOne Series are powered up and ready for operation.
2. AC Inlet- Connect the supplied IEC power cable here.
3. Voltage switch - The slide switch is used to select the operating voltage. NOTE: Be sure that the switch is set to the correct voltage for your country.

RIGHT LEFT INPUT WARNING: ACTIVE MONITORS CAN ACHIEVE EXTREMELY HIGH SOUND PRESSURE LEVELS. USE CAUTION OR HEARING DAMAGE MAY RESULT. ACTIVE MONITOR SPECS: • 50Hz - 23kHz • WOOFER COPOLYMER CONE • SILK DOME TWEETER • TIME ALIGNED WAVEGUIDE • MAGNETICALLY SHIELDED SAMSON Media O-N-E 5a ACTIVE SEUDIO MONITORS LEFT SPEAKER OUTPUT POWER ON OFF 1 2 N382 注意 www.samsontech.com DESIGNED AND ENGINEERED IN THE UNITED STATES BY SAMSON TECHNOLOGIES WARNING: WHEN CHAWING VOLTAGE, FUSE MUST BE CHANGED. 115WAC 11.60" 23PANC TRAVEL 3

MediaOne 4a and 5a

SAMSON Media O-N-E (3a) RIGHT LEFT INPUT LEFT SPEAKER OUTPUT ACTIVE MONITOR SPECS: • 80Hz ~23kHz • WOOFER COPOLYMER CONE • SILK DOME TWEETER • TIME ALIGNED WAVEGUIDE • MAGNETICALLY SHIELDED WARNING: ACTIVE MONITORS CAN ACHIEVE EXTREMELY HIGH SOUND PRESSURE LEVELS. USE CAUTION OR HEARING DAMAGE MAY RESULT. CAUTION 注意 N382 S/N DESIGNED AND ENGINEERED IN USA BY SAMSON TECHNOLOGIES WWW.samsontech.com POWER ON OFF 115VAC 11AL 230VAC 2000VAE WARNING: WHEN CHANGING VOLTAGE, FIDE MUST BE CHANGED. 2 Made in China

MediaOne 3a

Operating the MediaOne Series

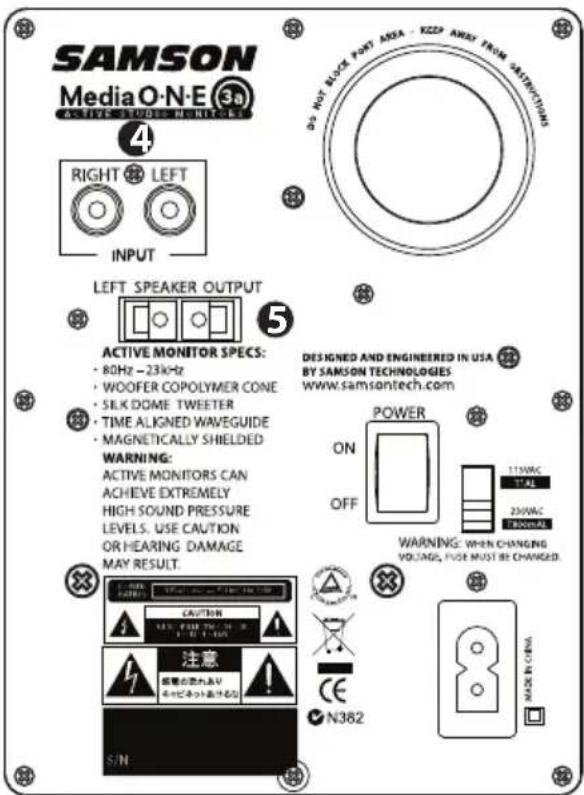

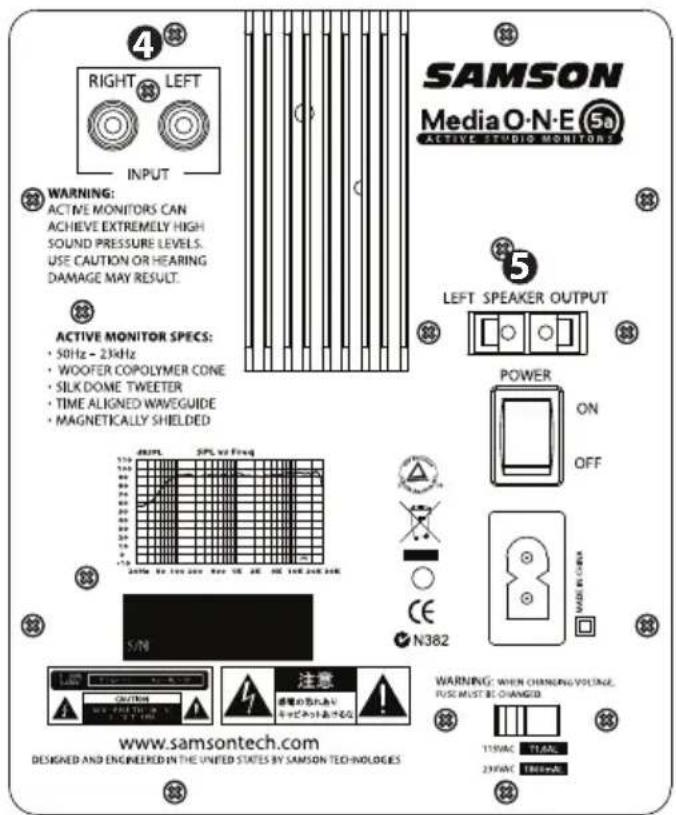

MediaOne Series Rear Control Panel - continued The Ins and The Outs

The MediaOne Series features a stereo pair of input connectors providing easy installation with a variety of audio devices like recording consoles, hard disk recorders, CD players and computer sound cards, to name a few. The following section details the MediaOne Series' input connectors. In addition, there is a detailed cable-wiring diagram on page 12.

1. RCA Input – The RCA input accepts signals from unbalanced -10dBV devices.
2. LEFT SPEAKER OUTPUT – Push Terminals for connecting the Left-side Extension Speaker.

RIGHT LEFT INPUT WARNING: ACTIVE MONITORS CAN ACHIEVE EXTREMELY HIGH SOUND PRESSURE LEVELS. USE CAUTION OR HEARING DAMAGE MAY RESULT. ACTIVE MONITOR SPECS: • 50Hz - 23kHz • WOOTER COPOLYMER CONE • SILK DOME TWEETER • TIME ALIGNED WAVEGUIDE • MAGNETICALLY SHIELDED SAMSON Media O-N-E 5a ACTIVE STUDIO MONITORS LEFT SPEAKER OUTPUT POWER ON OFF WIDE BE CHINA N382 www.samsontech.com DESIGNED AND ENGINEered IN THE UNITED STATES BY SAMSON TECHNOLOGIES WARNING: WHEN CHANDING VOLTAGE, PUSE MUST BE CHANGED 115VAC 11.1A.C. 230VAC 13.1A.C.

MediaOne 4a and 5a

SAMSON Media O-N-E (3a) ACTIVE MONITOR SPECS: • 80Hz -23kHz • WOOFER COPOLYMER CONE • SILK DOME TWEETER • TIME ALIGNED WAVEGUIDE • MAGNETICALLY SHIELDED WARNING: ACTIVE MONITORS CAN ACHIEVE EXTREMELY HIGH SOUND PRESSURE LEVELS. USE CAUTION OR HEARING DAMAGE MAY RESULT. CAUTION 15VAC 20VAC 300NAC 注意 安全的防范及安全 安全防范应是防爆 S/N N382 DO NOT BLOCK PORT AREA - EEEP AWAY FROM 24TH/27/28/29 LEFT SPEAKER OUTPUT DESIGNED AND ENGINEERED IN USA BY SAMSON TECHNOLOGIES WWW.SAMSONTech.com POWER ON OFF 115WAC 1AL 20WAC 300NAC WARNING: WHEN CHANGING VOLTAGE, FUSE MUST BE CHANGED. Made in China

MediaOne 3a

Operating the MediaOne Series

MediaOne Series Front Control Panel

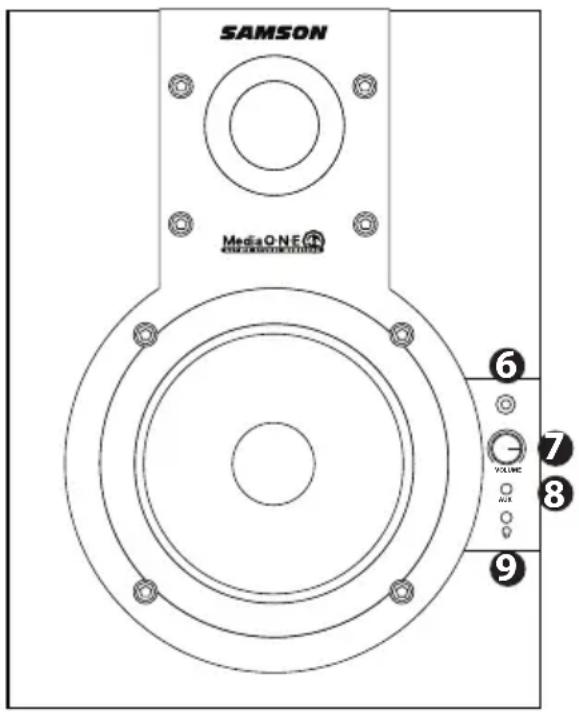

1. Power LED - When the Power switch is set to "on", the light will illuminate indicating the system is powered up and ready for operation.
2. Volume Control - (front Panel) The volume control is used to adjust the overall output level of the MediaOne Series. When operating the unit for the first time, start with the volume control set all the way off. Slowly raise the Volume control to reach a comfortable listening level. NOTE: If you press the Volume Control, it will extend out making it easier to adjust.
3. AUX Input - You can connect a second stereo input from a MP3 player, keyboard, sound card or any other stereo line level signal to the MediaOne Series' front panel 1/8-inch (3.5 mm) Aux Input jack.
4. Headphone Output - If you need to listen to your mix on headphones, simply plug in to the front panel 1/8-inch (3.5mm) Headphones output jack. The speakers automatically turn off when you plug into the Headphone output.

SAMSON MediaONE 6 7 8 9 YXLMC AIA

MediaOne Series with Optional Resolv sub88

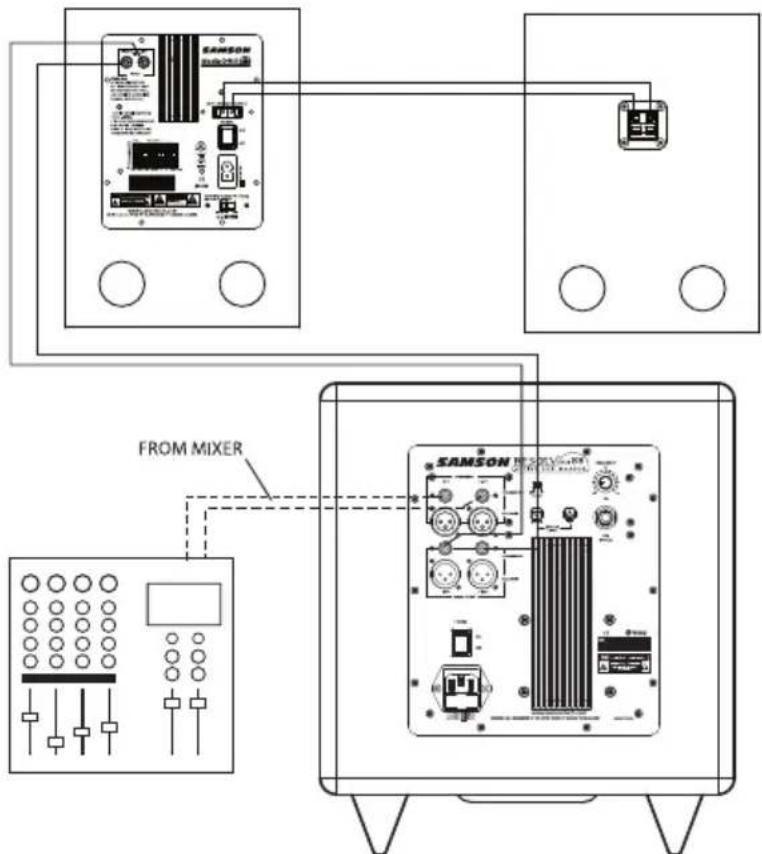

Connecting to the Resolv sub88 Subwoofer

Connecting an optional sub woofer like the Samson Resolv sub88 is easy using the sub88's LINE LEVEL inputs. Below is a typical system set-up using the sub88 with a mixer and a pair of MediaOne as satellites. The sub88's inputs and outputs utilize industry standard RCA connectors. For a detailed wiring diagram, see the section "MediaOne Connections" on page 12. Follow the steps in the diagram below to set up your system.

FROM MIXER SAMSON

• Lower your mixer or computer's master outputs volume control to all the way off.
• Connect the mixer or computer's left output to the sub88's LEFT LINE INPUT and the mixer's right output to the sub88's RIGHT LINE INPUT. Now, connect the sub88's LEFT and RIGHT LINE OUTPUTs to the RCA INPUTs of the right side MediaOne.
• Now adjust the SWEEP control to the desired frequency. A good place to start with the MediaOne Series is about 70 Hz. (10 O'clock). You can also use your ears by adjusting the SWEEP control to the frequency that sounds good to you.
• Run an audio signal (like some music from a CD) through your mixer or computer and raise the level to a comfortable listening level. Now slowly raise the sub88's SUB VOLUME control and listen to the low frequency output. Adjust the sub88 to the level of low frequency output that you like. Now, when you raise and lower your mixer's output, the sub88 and MediaOne Series will track at the same relative volume.

MediaOne Series Connections

MediaOne Series Wiring Guide

There are several ways to interface the MediaOne Series, depending on your exact monitoring set-up. Follow the cable diagrams below for connecting your monitor system.

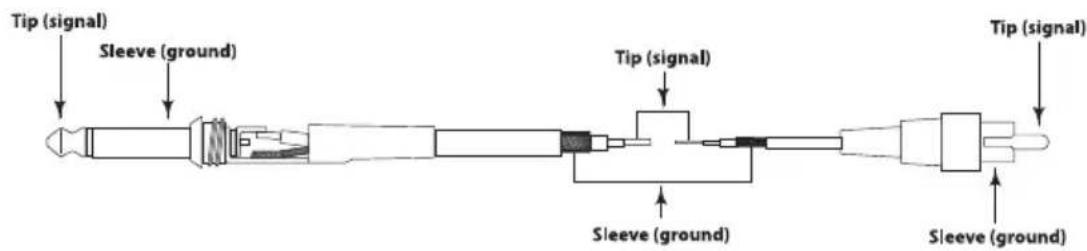

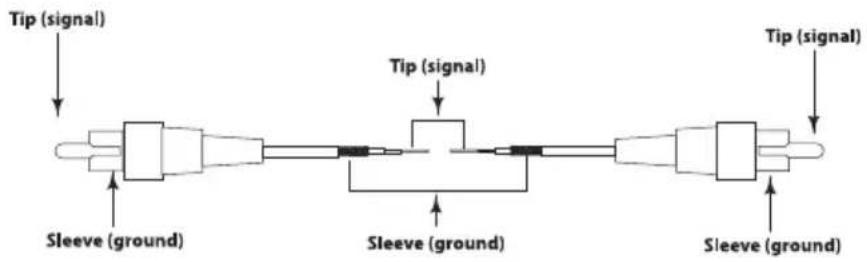

RCA to RCA Cable

Tip (signal) Tip (signal) Tip (signal) Sleeve (ground) Sleeve (ground) Sleeve (ground)

Unbalanced 1/4" to RCA Cable

Tip (signal) Sleeve (ground) Tip (signal) Sleeve (ground) Sleeve (ground) Tip (signal)

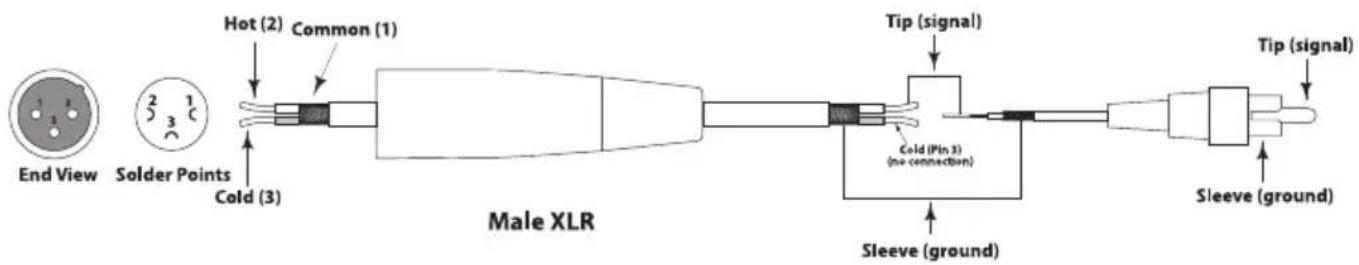

Un-Balanced XLR to RCA Cable

End View Solder Points Hot (2) Common (1) Cold (3) Male XLR Tip (signal) Cold (Pin 3) (no connection) Sleeve (ground) Tip (signal) Sleeve (ground)

Introduction

SAMRON Q220

Technical line drawing of a mechanical component with two circular components and mounting holes (no text or symbols)

SINH RANESH +0 10 i

Figure 2.

Illustration of a person sitting at a desk with arrows pointing to a rectangular object (no text or symbols present)

Figure 3.

Cartoon illustration of a person sitting in bed viewing through a screen with light rays (no text or symbols)

Figure 4.

Pointe (signal) Corps (masse) Pointe (signal) Corps (masse) Corps (masse) Pointe (signal) Corps (masse)

Pointe (signal) Corps (masse) Pointe (signal) Corps (masse) Corps (masse) Pointe (signal) Corps (masse)

Technical line drawing of a speaker with concentric circles and mounting holes (no text or symbols)

SAMRON 2018.25.25 2018.25.25

Technical line drawing of a two-tiered electronic device with circular components and mounting holes (no text or symbols)

Technical line drawing of a speaker with two circular components and a control knob (no text or symbols)

Abb. 2.

Cartoon illustration of a person sitting at a desk with arrows pointing to a blank rectangular block (no text or symbols)

Abb. 3

Cartoon illustration of a man sitting in bed with arrows indicating light rays from a screen (no text or symbols)

Abb. 4

SAMSON MediaONE 6 7 8 9 VOLUME AIR

SAMSON VON DEN SATELLITEN- AUSGÄNGEN DES SUBWOOFERS VOM MISCHER ODER COMPUTER RE-SCILV/DO Current and measures 1000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 SAMSON

SAMSON Qo Ks

Technical line drawing of a mechanical component with two circular components and mounting holes (no text or symbols)

Technical line drawing of a speaker with two circular components and a control knob (no text or symbols)

Figura 2.

Simple line drawing of a person sitting at a desk with arrows pointing to a rectangular object (no text or symbols)

Figura 3.

Illustration of a person sitting in bed with arrows indicating light rays from a screen (no text or symbols)

Figura 4.

Technical line drawing of a mechanical component with two circular components and mounting holes (no text or symbols)

Technical line drawing of a speaker with concentric rings and mounting holes (no text or symbols)

Figura 2.

Illustration of a person sitting at a desk with arrows indicating direction of motion or perspective (no text or symbols)

Figura 3.

Illustration of a person sitting in bed viewing an object with light rays, labeled 'Figura 4.' (no text on diagram itself)

SAMSON MediaONE VOLUME AIR 6 7 8 9

MediaOne 4a....65Hz, 23kHz -10 dB

MediaOne 5a. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50Hz, 23kHz -10 dB

Amplifier Power Rating:

MediaOne 3a. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 x 15 Watts RMS

MediaOne 4a and 5a ..... 2 x20 Watts RMS

Crossover Frequency:

MediaOne 3a. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.3KHz : HPF, 6 dB/oct, LPF 12 dB/oct

MediaOne 4a. . . . . . . . . . . . . . . . . . . . . . . . . . . 3.3KHz : HPF, 6 dB/oct, LPF 12 dB/oct

MediaOne 5a. . . . . . . . . . . . . . . . . . . . . . . . . . . 3.3KHz : HPF, 6 dB/oct, LPF 12 dB/oct

Inputs:

Unbalanced ....-10dBV Line Level

Connectors: RCA (rear panel) 1/8-inch (3.5mm) (front panel)

Enclosure:

Construction: MDF (Medium Density Fiberboard)

Finish: . . . . . . . . . . . . . . . . . . . . . . . Black textured vinyl covering

Dimensions:

MediaOne 3a

Active . . . . . . . . . . . . . . . . . . . . . 5.125"W x 6.75" D x 6.75"H (130 mm W x 172 mm D x 172 mm H)

Passive . . . . . . . . . . . . . . . . . . . . . . . 5.125"W x 6.5" D x 6.75"H (130 mm W x 165 mm D x 172 mm H)

MediaOne 4a

Active. 6.625"W x 9" D x 9.125"H (168 mm W x 229 mm D x 232 mm H)

Passive . . . . . . . . . . . . . . . . . . . . . . . 6.625"W x 7.625" D x 9.125" (H 168 mm W x 194 mm D x 232 mm H)

MediaOne 5a

Active. 8.1"W x 9.7"D x 11" (H 205 mm W x 246.5 mm D x 280 mm H)

Passive . . . . . . . . . . . . . . . . . . . . . . . 8.1" W x 9.2" D x 11" (H 205 mm W x 233.5 mm D x 280 mm H)

Weight:

MediaOne 3a

Active. 5 lbs. / 2.3 kg.

Passive . . . . . . . . . . . . . . . . . . . . . 3 lbs. / 1.4 kg.

MediaOne 4a

Active. 9.5 lbs./4.3 kg.

Passive....6.5 lbs. / 3 kg.

MediaOne 5a

Active. 12.75 lbs. / 5.78 kg.

Passive 9.7 lbs. / 4.38 kg

MediaOne 4a and 5a ..... 2 x20 Watts efficace

Attiva 168 (L) x 229 (P) x 232 (A) mm - 6,625" (L) x 9" (P) x 9,125" (A)

Passiva 168 (L) x 194 (P) x 232 (A) mm - 6,625" (L) x 7,625" (P) x 9,125" (A)

MediaOne 5a

Attiva 205 (L) x 246,5 (P) x 280 (A) mm - 8,1" (L) x 9,7" (P) x 11" (A)

Passiva 205 (L) x 233,5 (P) x 280 (A) mm - 8,1" (L) x 9,2" (P) x 11" (A)

Peso:

MediaOne 3a
