USER MANUAL SAXP208W SAMSON

200-WATT PORTABLE PA SYSTEM

Owner's Manual

Important Safety Information

AVIS RISQUE DE CHOC ÉLECTRONIQUE -NE PAS OUVRIR

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) AS THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private household in the 28 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For Countries not mentioned above, please contact your local authorities for a correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Copyright 2018 v2

Samson Technologies Corp.

278-B DuffyAve

Hicksville, New York 11801

www.samsontech.com

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samson Technologies is under license. Other trademarks and trade names are those of their respective owners."

Important Safety Information

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug the apparatus during lightening storms or when unused for long periods of time.
14. Refer all servicing to qualified personnel. Service is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. This appliance shall not be exposed to dripping or splashing water and that no object filled with liquid such as vases shall be placed on the apparatus.
16. Caution-to prevent electrical shock, match wide blade plug wide slot fully insert.
17. Please keep a good ventilation environment around the entire unit.
18. To prevent injury, this apparatus must be securely attached to the stand in accordance with the installation instructions.
19. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
20. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
21. WARNING: The mains plug/appliance coupler is used as disconnect device, the disconnect device shall remain readily operable.
22. Battery disposal should be drawn to environmental aspects and should be according to local law requirements.
23. No naked flame sources, such as lighted candles, should be placed on the apparatus.

Important Safety Information

FCC Notice

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.

1. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

RF Warning Statement

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

This device complies with RSS-310 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference.

Introduction

Thank you for purchasing the XP208w battery-powered portable sound system, featuring wireless Bluetooth® connectivity. Lightweight and compact, the XP208w features 200 watts of power weighing less than 24lbs, making it an excellent complement to any mobile speaker application. The internal battery provides up to 20 hours of audio on a full charge. The XP208w can also be AC powered (with the included power cord) for continuous audio.

The XP208w is a complete all-in-one solution providing the flexibility of a four-channel mixer (with inputs for a microphone, instrument and line level devices), a line output for linking multiple speakers, and Voiceover priority ducking. For a completely untethered performance, the XP208w includes a Samson XPD2 Handheld Wireless system and an additional USB jack for connecting a second Samson XPD Series system.

Whether you are looking for a sound system for use outdoors, in the classroom, for karaoke, for presentations, or performing live music, the XP208w provides high quality, portable audio in a small self-powered package.

We recommend you keep the following records for reference, as well as a copy of your sales receipt.

Serial number:

Date of purchase:

If you have any questions or comments regarding the XP208w Portable PA System or any other products from Samson, do not hesitate to contact us at [e-mail].

With proper care and maintenance, your XP208w Portable PA System will operate trouble-free for many years. Should your XP208w Portable PA System ever require servicing, a Return Authorization (RA) number must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please visit www.samsontech.com/ra for an RA number prior to shipping your unit. Please retain the original packing materials and, if possible, return the unit in its original carton. If your XP208w Portable PA System was purchased outside of the United States, contact your local distributor.

Features

• Lightweight, 200 watt PA system that weighs 24 pounds
• Internal rechargeable battery for up to 20 hours of continuous use
• Bluetooth connectivity to connect wireless music sources
• Includes Samson XPD2 Handheld Digital USB Wireless System
• 2-way speaker enclosure with 8" woofer and 1" high-frequency driver
• Four channel mixer with microphone, instrument and line level Inputs
• Two USB wireless ports for use with Samson XPD Series USB Digital Wireless
• Variable Reverb control for microphone inputs (including wireless)
  Voiceover control with priority ducking
• Line output to daisy-chain multiple systems together
• Integrated 1 3/8" speaker stand mount
• Telescopic handle and smooth rolling wheels for easy transport

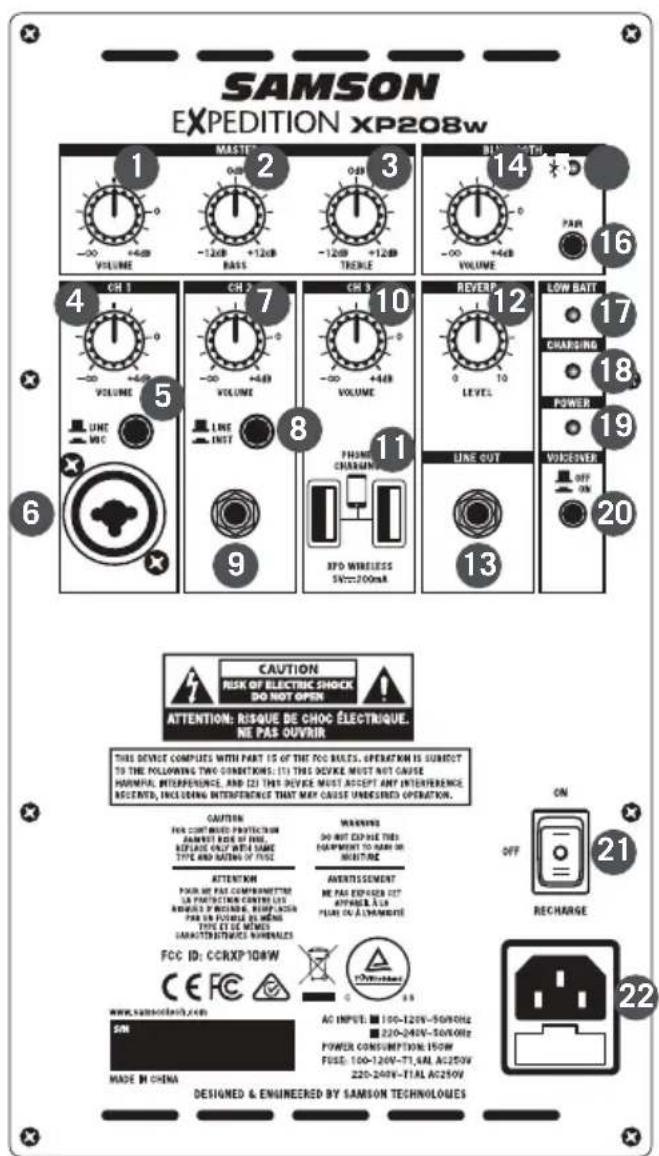

XP208w Controls and Connections

1. MASTER VOLUME - Used to control the overall level of the speaker system.
2. MASTER TREBLE - Controls the high-frequency tone of the entire system.
3. MASTER BASS - Controls the low-frequency tone of the entire system.
4. CH1 VOLUME - Controls the level of the Channel 1 Mic/Line input.
5. LINE/MIC Switch-Adjusts the gain of the CH1 input for a microphone or line level device.
6. CH1 Input - XLR-1/4" input for connecting a microphone or a device with a line level signal.
7. CH2 VOLUME - Controls the level of the Channel 2 input.
8. LINE / INST Switch - This switch changes the input of the CH2 1/4" jack to connect line level devices, to electric instruments (e.g. guitar) with pickups.
9. CH2Input- Connect a line level device or instrument using a 1/4" audio cable.
10. CH3 VOLUME - Controls the level of the two XPD USB wireless inputs.
11. XPD WIRELESS Inputs (2) - Connect Samson XPD digital wireless USB receivers to these inputs. The wireless receiver gets its power from the XP208w, so no additional power supply is needed. The USB connector supplies 5V 200mA at of power to charge a small portable USB device like an MP3 player or smartphone.
12. REVERB - This knob is used to adjust the total amount of reverb added to Channel 1 and Channel 3 (wireless) input channels.
13. LINE OUT - Line level 1/4" output jack to connect the XP208w to the input of a another XP208w to create a dual mono speaker system. The Line Out signal is before the MASTER VOLUME and EQ Controls.
14. BLUETOOTH® VOLUME - Controls the level of the Bluetooth input.
15. Pairing Indicator - Displays the Bluetooth status of the XP208w system.
16. PAIR Button - Press this button to enable pairing mode in order to connect to a Bluetooth audio device.

XP208w Controls and Connections

1. LOW BATTERY Indicator - This LED lights when the XP208w battery is low. When the light is on, it is recommended to plug the XP208w into and AC outlet.
2. CHARGING Indicator - When the XP208w is plugged in and the POWER switch is set to the RECHARGE position, the CHARGING indicator will illuminate RED while it is charging. Once charging is complete the indicator will turn off.
3. POWER Indicator - Lights green when the power switch is in the ON position.
4. VOICEOVER ON/OFF Switch - Turns the VOICEOVER ducking on or off.
5. Power / Recharge Switch - This three position switch is used to turn the XP208w ON, OFF or place the system into RECHARGE mode to charge the internal battery.
6. ACINPUT- Connect the supplied power cord here.

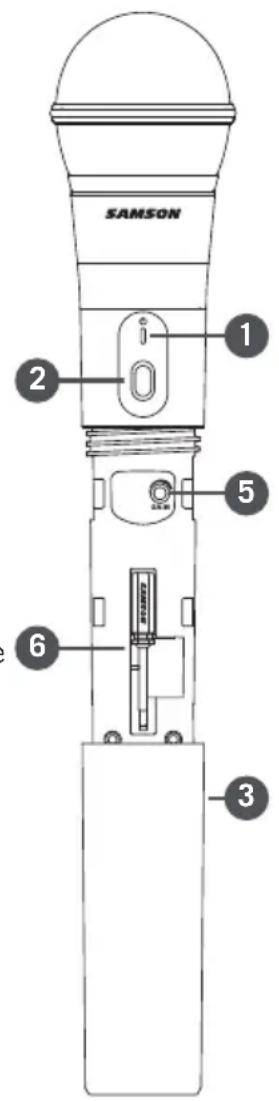

HXD1 Wireless Microphone Controls

1. Status Indicator - This LED displays the operation mode: Amber: Normal Operation Flashing Amber: Pairing / Low Battery
2. Power/Pair Switch - Press less than 5 seconds to turn the unit on or off. Press more than 5 seconds to enter pairing mode.
3. Battery Cover - Unscrew the battery cover and slide down to open the HXD1 battery compartment.

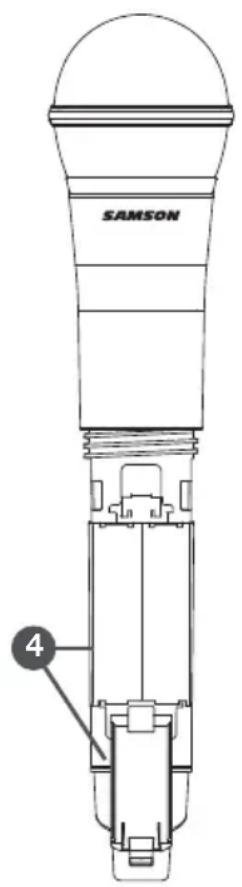

4. Battery Holder - Open the battery holder by pressing the tab and lifting the cover. Insert two standard AA (LR6) batteries here, being sure to observe the plus and minus polarity markings shown.
   WARNING: Do not insert the batteries backwards; doing so can cause severe damage to the HXD1 and will void your warranty.
5. Input GAIN Control - This control adjusts the transmitter input sensitivity.
6. Screwdriver - Used to adjust the input GAIN control.

RXD2 Receiver Controls

1. USB Connector - Plugs into the USB jack on the rear panel of a wirelessly enabled Samson audio device. The receiver can also plug directly into a computer USB port and will be recognized as a USB audio device. The unit passes audio to the device and receives power from the device through this connector. If connecting the LINE output to an analog device, the RXD2 can be powered using a standard 5 Volt adapter.
2. PAIR Switch - Press >5 seconds to enter pairing mode.
3. STATUS Indicator - This LED displays the operation mode: Amber - Normal Operation Flashing Amber - Pairing No Light - Not paired; Transmitter out of range; No Power
4. LINE / Headphone Output - Use this 3.5mm jack when connecting to an analog line input or headphones for monitoring.

Quick Start

1. Set the XP208w power switch to the OFF position, and fully turn all of the LEVEL controls counterclockwise to 0.
2. If an outlet is available, connect the included power cord to the AC input of the speaker, and plug it into an electrical outlet.
3. Set the XP208w power switch to the ON position.
4. Connect your audio sources.
5. Turn the MASTER VOLUME control up and set the input levels, following the steps below.

Making Connections

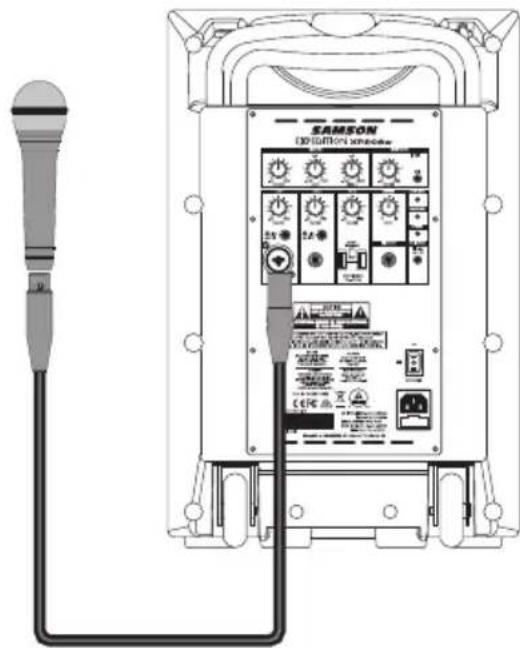

Channel 1 (Microphone / Line Input)

1. Connect a microphone using a standard XLR cable or line level equipment using a 1/4" instrument cable.
2. If connecting a microphone, set the LINE / MIC switch to the down (MIC) position. If connecting a line level device, set the LINE / MIC switch to the up (LINE) position.
3. While speaking into the microphone or playing music from a line level audio source, slowly raise the channel CH1 VOLUME control until you have reached the desired level.

NOTE: If not using the Channel 1 input, turn the VOLUME control all the way down to keep out any unwanted noise.

Channel 2

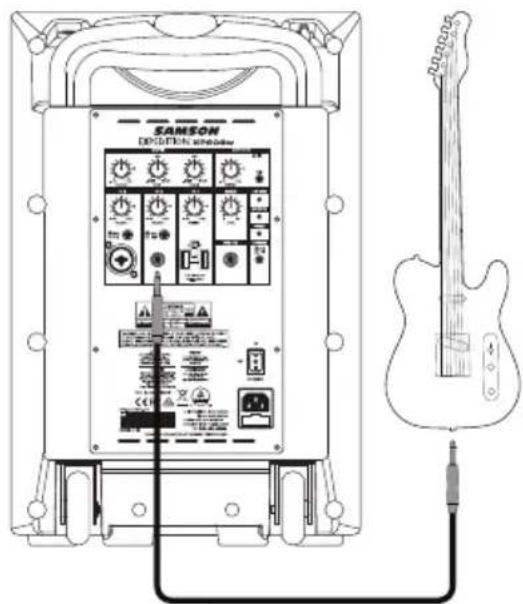

Connecting an electric guitar (INST Input)

1. Connect an electric guitar using a standard 1/4" instrument cable.
2. Push the LINE/INST switch to the INST (down) position.
3. While playing the guitar, slowly raise the channel CH2 VOLUME control until you have reached the desired level.

Note: If connecting an electric guitar it is recommended to use a preamp between the instrument and XP208w to replicate the sound of a guitar amplifier.

Quick Start

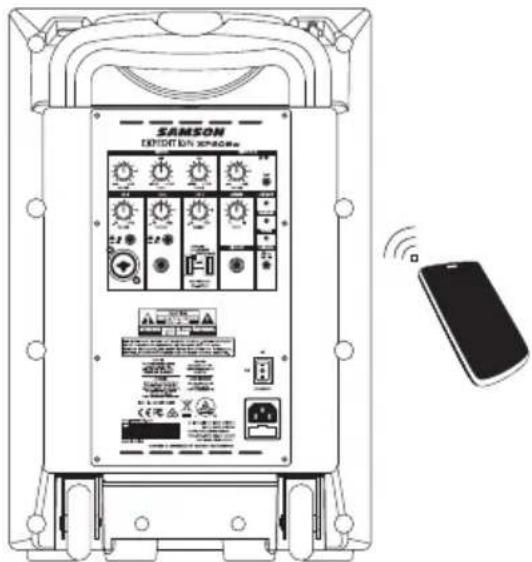

Bluetooth®

1. Turn the BLUETOOTH VOLUME control down counterclockwise to 0.

2. With the XP208w and your Bluetooth device powered on; press the PAIR button on the rear panel of the XP208w to make the speaker discoverable. The Bluetooth indicator will slowly flash blue.

3. In the settings of your Bluetooth device, set it to "discover" available devices.

4. From the Bluetooth device list, select the "SAMSON BLUETOOTH" device.

5. If your device asks for a passkey, enter digits 0000 (four zeros) and press OK. Some devices may also ask you to accept the connection.

6. The XP208w speaker indicates that pairing is complete when the indicator turns steady blue. You can now stream audio from your device to the XP208w speakers.

7. With the volume control on your Bluetooth device turned up, play some music, and slowly raise the XP208w BLUETOOTH VOLUME control until you have reached the desired level.

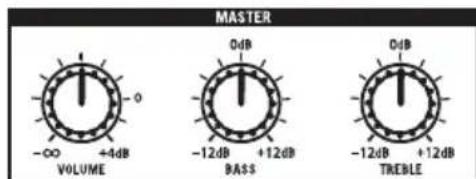

Using the Master EQ

The XP208w feature a 2-band equalizer allowing you to adjust the systems overall high and low frequencies. The frequency response is flat when the knobs are in the vertical or 12 o'clock position. Small movements of the controls can make a big difference. Turning the controls all th

way up can cause distortion. Use your ears when adjusting the EQ to fit your application. We have provided two example settings to help you get started fine tuning your system.

1. Setting the EQ for Music

If you are using the XP208w for music playback, turn up the BASS and TREBLE slightly to produce a "hi-fi" frequency response that accentuates the low and high ranges.

2. Setting the EQ for Vocal

If you are using your XP208w with a microphone for speech only, you can reduce the BASS and raise the TREBLE slightly, which will produce a frequency response that accentuates the vocal range.

Quick Start

XPD2 Wireless Microphone

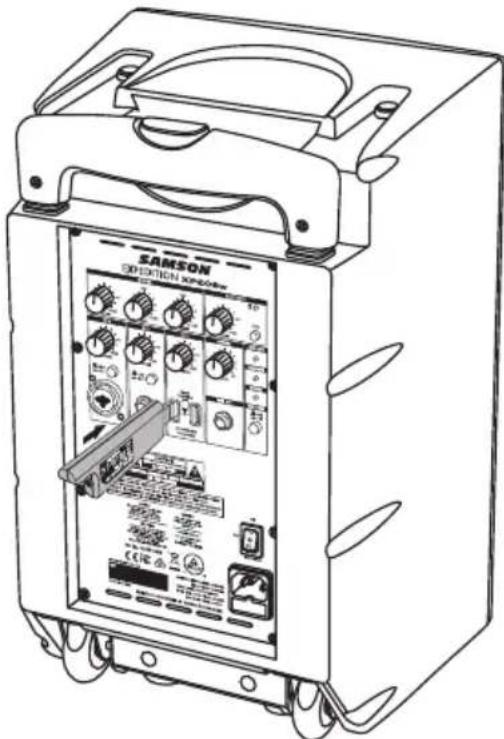

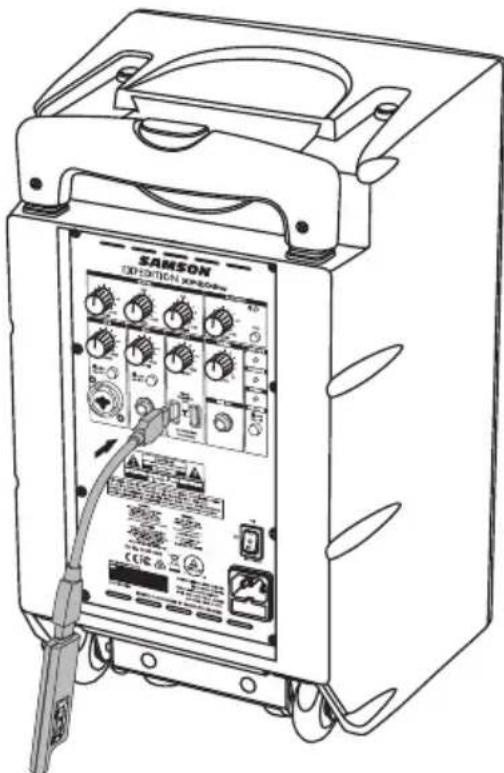

1. Plug the RXD2 USB receiver into one of the USB jacks on rear panel of the XP208w directly (figure 1) or using the included USB extension cable (figure 2).
2. Place a fresh set of AA (LR6) batteries in the transmitter battery holder, taking care to observe the polarity markings.
3. Turn the Channel 3 Wireless Volume knob completely counterclockwise, then turn the power of the XP208w to the ON position.
4. Turn on the power to the HXD1 handheld transmitter by pressing and holding Power switch; the indicator LED will light amber.
5. If the transmitter and receiver have not been previously paired, press and hold the button on the RXD2 receiver for >5 seconds, until it begins to flash. Press and continue to hold the Power button on the transmitter until the LED indicators on both units light steady, indicating that the receiver and transmitter are paired and ready for operation.
6. Speak or sing into the microphone at a normal performance level and raise the Channel 3 Wireless Volume knob on the XP208w until the desired level is reached.
7. If you hear distortion turn down the Channel 3 Wireless Volume on the XP208w. If distortion is still audible, use the supplied screwdriver to turn the Gain control in the HXD1 transmitter slowly counterclockwise until the distortion disappears.

Conversely, if you hear a weak, noisy signal at the desired volume level and with the Wireless level control of the XP208w is set to maximum, use the screwdriver to turn the Gain control in the HXD1 transmitter slowly clockwise until the signal reaches an acceptable level.

Figure 1

Figure 2

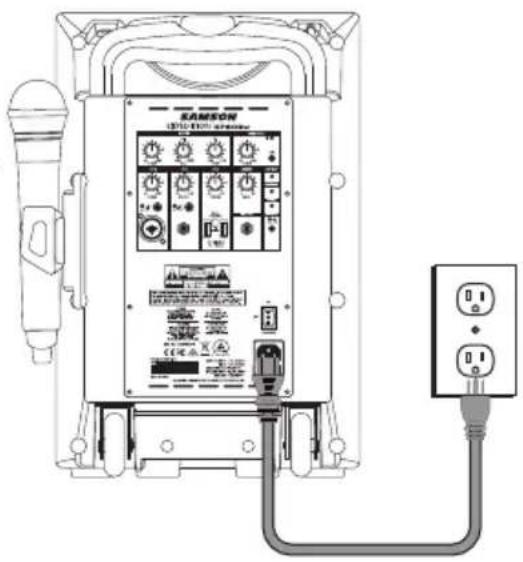

Charging the Battery

The XP208w has an internal, rechargeable battery capable of up to 20 hours of continuous audio on a full charge. Even though the system may have some charge when first taken out of the box, it is recommended to fully charge your XP208w before first using the system.

To charge the battery:

1. Connect the XP208w to an AC power outlet using the included power cable.

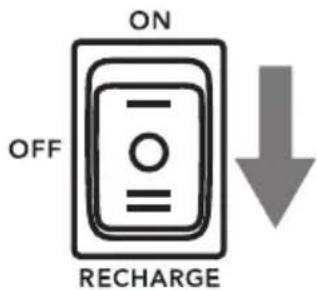

2. Set the power switch to the "RECHARGE" position.
3. While charging the CHARGING indicator will light red.
4. Keep the system plugged in until the CHARGING indicator changes to green, indicating the battery is fully charged.

If you find that the operation time of the XP208w becomes noticeably decreased, even after fully charging, the battery should be replaced. Contact Samson customer service or your local distributor for a replacement battery.

The XP208w utilizes a sealed lead-acid gel cell battery. When not in use, the battery will slowly self-discharge. If you are planning not to use the XP208w for a long period of time, it is advised to fully charge the unit before storing.

It is also important to charge the unit every six months when not used. This will ensure a healthy battery and extend its life. If the battery is left with a very low charge for an extended period of time, it is possible to recharge the battery to working condition, but the charge time can take up to 72 hours.

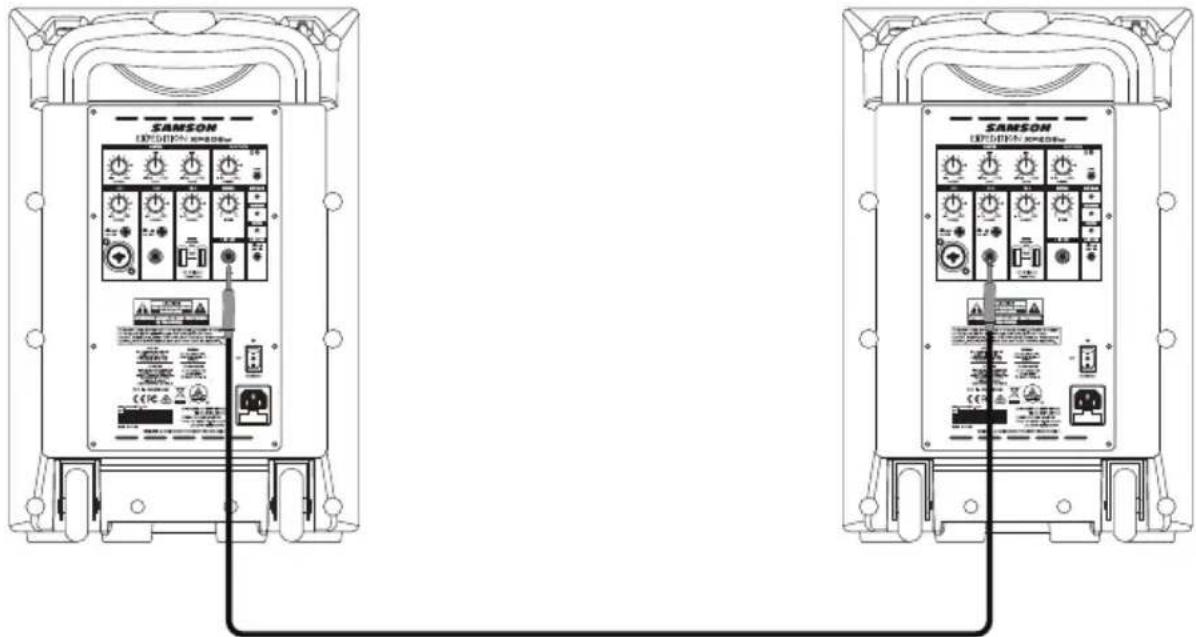

Using the LINE OUT Jack

The XP208w LINE OUT jack allows you to connect the XP208w with any powered speaker to expand your system or link two XP208w systems together to daisy chain the speakers.

Using a standard shielded 1/4" instrument cable, connect the LINE OUT on the XP208w to a line level input of second powered speaker. The XP208w will send a mix of all inputs, including Bluetooth® audio. Each channel VOLUME will control corresponding output level to the LINE OUT jack.

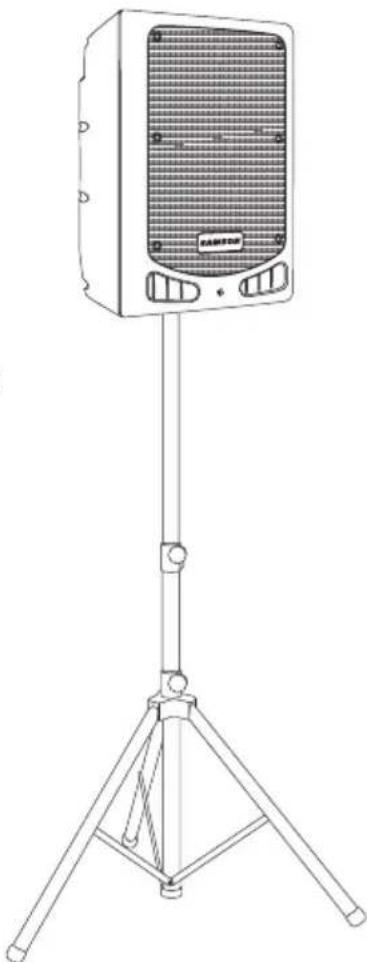

Using a Speaker Stand

The XP208w includes a 1 3/8" (35mm) pole mount receptacle on the bottom of the cabinet. This fits a standard 1-3/8" (35mm) speaker stand. For maximum coverage when using a speaker stand, the speaker should be raised above the heads of the listening audience.

Take care when placing the speaker on a stand, to ensure that it is on a level, steady surface and will not tip over. Use a stand designed to support a speaker with a minimum weight of 30lb.

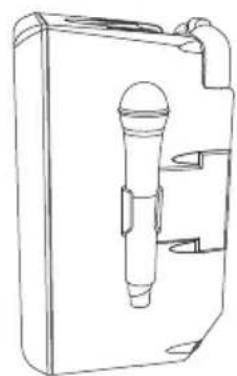

Microphone Holder

The Expedition XP208w includes a handheld microphone holder. To attach the microphone holder, line up the two prongs of the microphone holder with the center two round openings on the side of the XP208w. Slide the microphone holder into the openings until it is flush with the back of the speaker cabinet.

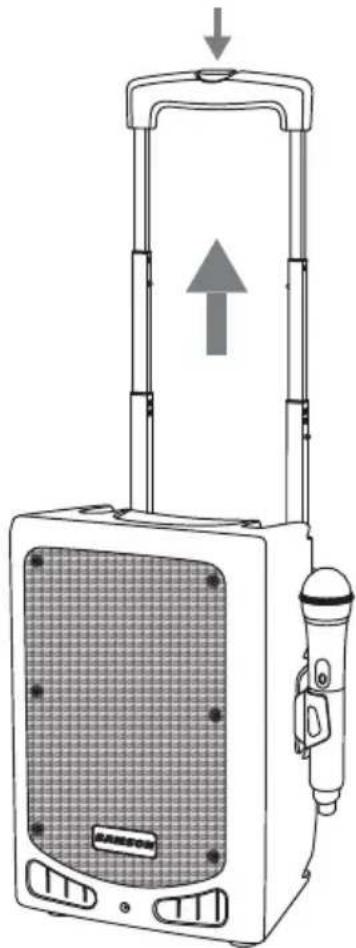

Transporting the XP208w

The Expedition XP208w can be easily transported using the telescopic handle and integrated rolling wheels.

Press button on the top handle to extend.

Grab the handle, tilt the speaker back and roll it away.

Specifications

XP208w

Power Output 200 watts (peak) / 100 watts (continuous)

"Speakers 8" Woofer + 1" HF Driver

Frequency Response 60Hz-18kHz -3dB

Mic/Line Input XLR - 1/4" combo connector

Line/Instrument Input 1/4"

Wireless Inputs USB (2)

Line Output 1/4" TS

Bluetooth Bluetooth V4.0, A2DP

Working Frequency 2.402GHz~2.480GHz

RF Power < 10mW

Built-in Battery 12V / 3.3AH, Rechargeable & Sealed

Operation Up to 20 hours subject to operating conditions

Battery Charging Approx. 6 hours for a single charge

Power Supply AC:100-120V/220-240V, 50~60Hz

Construction Polypropylene

Grill Perforated Steel Grill, powder coated

Mounting Integral 1 3/8" Pole Mount Receptacle

Operating Temperature -10°C ~ +40°C

Dimensions (LxDxH) 10.9" x 9.9" x 16.9"

277mm x 252mm x 429mm

Weight 23.8 lb / 10.8 kg

XPD2 Wireless System

Simultaneous Systems 2

Working Range 100' line of sight

Working Frequency 2.404~2.476 GHz

Modulation type GFSK

Audio Frequency Response 20 Hz - 17 kHz (-1 dB)

T.H.D <0.1% (at 1 kHz, -10 dBu)

Signal to Noise >85 dB

Operating Temperature -10°C ~ +40°C

HXD1 Transmitter

Microphone Element Q6 Dynamic

RF Power < 10 mW EIRP

Power Requirements Two AA (LR6) alkaline batteries

Battery Life 20 hours

Audio Sample Rate 32 kHz

Dimensions 10.2" x 02.1"

260 mm x 054 mm

Weight 0.5 lb / 218 g

RXD2 Receiver

Max. Analog Audio Output Level 9 dBu

Headphone Output 22 mW into 16 Ω or 32 Ω

Operating Voltage 5V DC

Dimensions (LxDxH) 3.5" x 0.9" x .31"

89mm x 23mm x 8mm

Weight 0.35oz / 10g

Batterie integree 12V / 3.5AH, rechargeable et scelled

Dimensions (LxDxH) 10.9" x 9.9" x 16.9"

277 mm x 252 mm x 429 mm

Dimensions 10.2" x 02.1"

260 mm × 54 mm

Poids 0.5 lb / 218 g

Récepteur RXD2

Dimensions (LxDxH) 3.5" x 0.9" x .31"

89 mm x 23 mm x 8 mm

Poids 10g/0,35oz/10,8kg

Line Output 6,35mm TS

Bluetooth Bluetooth V4.0, A2DP

22 mW into 16 Ω or 32 Ω

Channel 1 (ingresso Mic/Line)

Dimensioni (Largh. x Prof. x Alt.) 10,9" x 9,9" x 16,9"

277 mm x 252 mm 429 mm

Peso 23,8libbre10,8kg

Sistema wireless XPD2

Sistemi simultanei 2

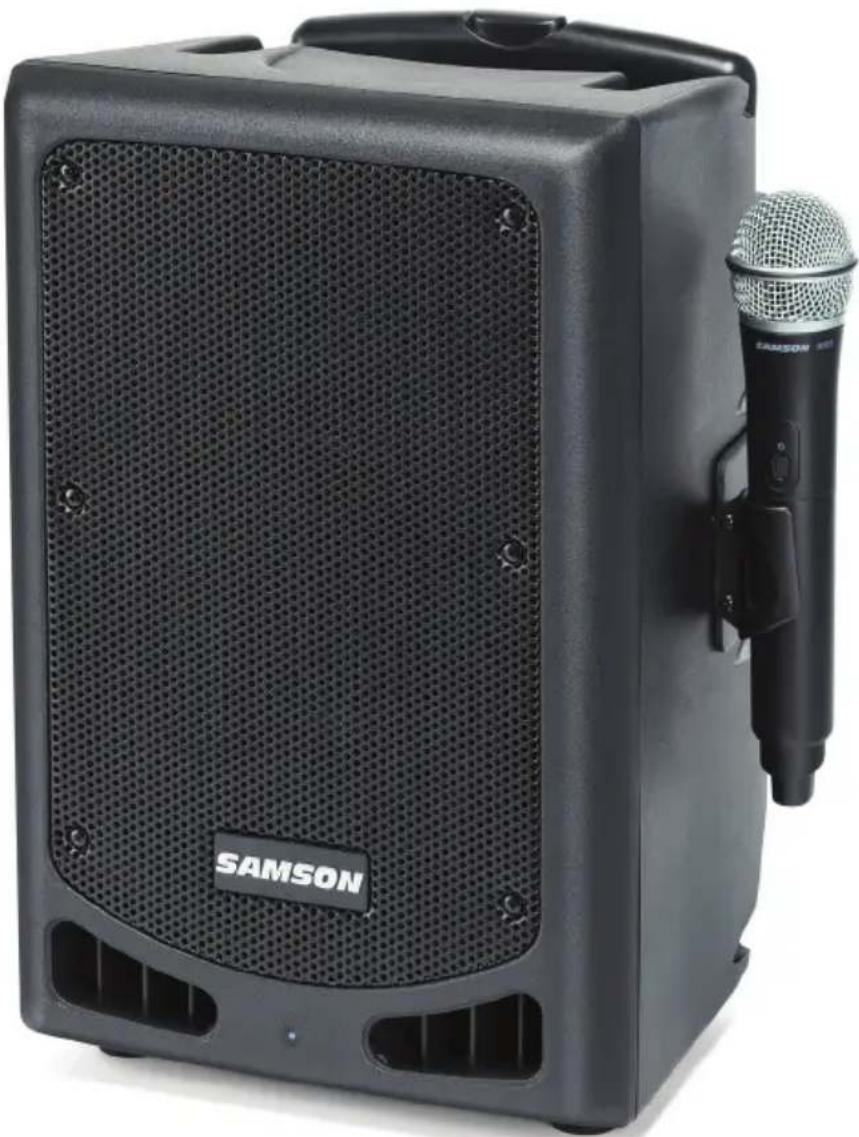

Having Trouble with your XP208w? We can help!

CONTACT OUR SUPPORT TEAM: [e-mail] Our experts can help you resolve any issues.

Follow us:

@samson@samsontech@samson_technologies
