Brand	Panasonic
Model	SH-FX70E
Category	Hi-Fi system (wireless system for surround speakers)
Product type	Digital transmitter (SH-TR70) and wireless system (SE-FX70)
Power supply	AC 220-240 V, 50 Hz
Power consumption (SE-FX70)	43 W (on), approx. 0.3 W (off)
Power consumption (SH-TR70)	1.5 W
Operating frequency	2.4 GHz to 2.4835 GHz
Number of channels	3
RMS output power (surround)	125 W per channel (3 Ω, 1 kHz, 10% THD), total 250 W
DIN output power (surround)	70 W per channel (3 Ω, 1 kHz, 1% THD), total 140 W
Speaker impedance	3 Ω to 6 Ω
Speaker input power	100 W (min)
Operating temperature range	0 °C to 40 °C
Operating humidity range	20% to 80% RH (no condensation)
Main features	Wireless connection for surround speakers (5.1 or 7.1 channels), automatic pairing, compatible with Panasonic home theater systems
Maintenance and cleaning	Clean with a soft dry cloth. Do not use alcohol, thinner or benzene.
Safety	Do not install in a confined space, do not block openings, avoid liquids, do not repair yourself
Included accessories	AC power cord, 2 speaker cables
Compatible countries	AT, BE, BG, CH, CZ, DE, DK, EE, ES, FI, FR, GR, HU, IT, LT, LV, NL, NO, PL, PT, RO, SE, SI, SK, GB, IS, IE

Frequently Asked Questions - SHFX70E PANASONIC

How to install the SH-FX70E wireless system?

Place the main unit on a flat, horizontal surface with at least 5 cm of space around for ventilation. Connect the speaker cables to the corresponding colored jacks (blue and gray). Plug in the AC power cord after all connections. Turn on the wireless system, then the home theater system.

How to establish the wireless link with the home theater system?

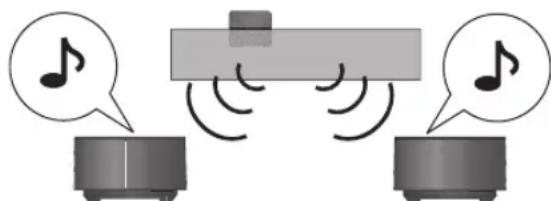

First turn on the wireless system (I power button). The WIRELESS LINK indicator turns red then green when the link is established. Turn on the home theater system and check that the wireless link indicator (e.g. 'W1') is lit steadily. Start playback.

What to do if the wireless link indicator flashes?

This indicates no link between the home theater system and wireless system. Turn off then on the home theater system. If the problem persists, turn off the wireless system, unplug the AC power cord, then plug it back in and turn it on.

Can I use the SH-FX70E with other brands of home theater?

The SH-FX70E is designed for Panasonic DVD home theater audio systems compatible with the SH-FX70. It is not guaranteed to work with other brands.

How to clean the device?

Use a soft dry cloth to clean the device. Never use alcohol, thinner or benzene. If you use a chemically treated cloth, read the instructions first.

What is the output power of the surround speakers?

The RMS output power is 125 W per channel (3 Ω, 1 kHz, 10% THD) i.e. 250 W total. The DIN output power is 70 W per channel (3 Ω, 1 kHz, 1% THD) i.e. 140 W total.

Can I connect additional speakers?

No, do not attempt to connect additional surround speakers to the home theater system. The SH-FX70E is intended for a 5.1 or 7.1 channel configuration with a maximum of two wireless systems.

How to perform pairing for a 7.1 channel configuration?

Use two SH-FX70 systems. Turn on the second additional wireless system. On the home theater system, hold down the search button [▶▶/▶▶] and press [3] on the remote until 'P' is displayed. Then press [I/D SET] on the rear of the second wireless system. The indicator turns green. Confirm by holding [▶▶/▶] and pressing [3] again.

What accessories are included with the SH-FX70E?

Included accessories are: an AC power cord (to be used exclusively with this device) and two speaker cables (one blue, one gray).

Where to find the serial number and certifications?

The product identification label is on the bottom of the device. The device complies with European directives (R&TTE) and the Declaration of Conformity is available at http://www.doc.panasonic.de.

USER MANUAL SHFX70E PANASONIC

POUR RÉDUIRE LES RISQUES D'INCENDIE, D'ÉLECTROCUTION OU DE DOMMAGES AU PRODUIT,

N'EXPOSEZ PAS CET APPAREIL À LA PLUIE, À L'HUMIDITE, À UNE CHUTE DE GOUTTES OU À DES ÉCLABOUSSURES ET NE PLACEZ AUCUN RÉCIPIENT CONTENANT UN LIQUIDE TEL QU'UN VASE AU-DESSUS.
N'TUTILISEZ QUE LES ACCESSOIRES RECOMMANDÉS.
-NE RETIREZ PAS LE COUVERCLE (OU L'ARRIÈRE) : IL N'Y A AUCUNE PIECE REPARABLE PAR L'UTILISATEUR À L'INTÉRIEUR. CONFIEZ TOUTE INTERVENTION À UN PERSONNEL DE DÉPANNAGE QUALIFIÉ.

Conservare Anything to do.

Per l'Europa, contattare: Panasonic Services Europe, a Division of Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsberging 15, 22525 Hamburg, Germany

LS: Surround (sinistra), RS: Surround (destra)

Contact in de EU: Panasonic Services Europe, a Division of Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsberging 15, 22525 Hamburg, Germany

Totale DIN-stroom 140 W

125 W per kanaal (3 Ω), 1 kHz, 10 % THD

70 W per kanaal (3 Ω), 1 kHz, 1% THD

Stroomvoorzlening

(DoC, Declaration of Conformity)

Härmed deklarerar, Panasonic AVC Networks

t.ex. After parkoppling

• Spara den digitalaalandaren till detextra tradlosasystemet for anvandning i framtiden.

Förberedelse

No permitted that the liquidation of the apparatus. No permit to be used in any way without the consent of the operator. This operation can only be performed by a competent expert.

0^ to +40^

Kontakt w krajach UE: Panasonic Services Europe, a Division of Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsberging 15, 22525 Hamburg, Germany

DECLARATION OF CONFORMITY 014943

Document No. AVSG-A08060-01

Manufacturer's Name & Address
Panasonic AVC Networks Singapore Pte. Ltd.
202 Bedok, South Avenue 1, Singapore 469332, The Republic of Singapore
for subsidiary of
Panasonic Corporation.
Kadoma, Osaka, Japan
Object of the declaration
Product Name : Wireless system
Trade Name: Pegasusic
Model No(s) : SH-FX70 (Digital Transmitter SH-TR70 , Wireless System SE-FX70)

---

The object of the declaration described above is in conformity with the requirements of the following EUI legislations and harmonized standards:
EELirrtnn 1000/5/6
B. Dective 1999/SLE
EN Standards EN55013:2001 + A1:2003 + A2:2006, EN55020:2007
EN 61000-3-2:2006. EN 61000-3-2:2007
EN 50065-2002 + A1'2006
EN 3 EN 3
Additional information:

D>

Remark: For translation refer to rear side

Signed for and on behalf of:
(Signature) S. (Printed name) Mr Shinji Nakamura / Director
Date of issue

---

Authorised Representative:

Direction (Address): 202, Bedok South Avenue 1, Singapore 469352. The Republic of Singapore. Representado por D. (Legal Representative Contact): Mr Shinji Nakamura Telephone: [phone] Fax: (Fax): [phone]

Corro Elettronico (e-mail): shinji [e-mail] URL (Web Site): http://www.panasonic.co.jp/global/

Declaramos bajo nuestra excusiva responsabilitad la conformidad del producto: (We declare under our own responsibility the conformity of the product)

Descripción (Product Description): Wireless System

Fabricante (Manufacturer): SH-FX70 Panasonic AVC Networks Singapore Pte. Ltd.
Pays de fabricacion (Country of Origin): SH-FX70: Singapore

Marca (Trade Mark):Panasonic

Modelo (Model): SH-FX70 (Digital Transmitter SH-TR70 & Wireless System SE-FX70)

See refiere this declaration, con la(s) normal(s) u或者其他 documento(s) normale(s):

ined above in this declaration according to the following list of standards)

SH-PX79: EN5010:3+2:2005, EN61000-3-3:1995 +A1:2001 +A2:2005

EN6065:2002+A1:2006 EN301490-1V1-6-005EN501480-17V1-2-1-2002EN200

ENSO1489+V1.8:2005,ENSO1489+V1.2:2002,ENSO300+V1.7:2005

Noviembre de 2000. (and according to the contents of the 99/05/EC Directive of the European Parliament and Council of 9^th March, 1999, transposed to the Spanish legislation through the Real Decree 1890/2000 of 20^th November, 2002)

(Therefore, the product will be identified with the following information)

Referencia al tipo, loe o numero de series (reference to the type, batch or serial number)
Nombre del numero (device name)

Nombre del asparado (service name)
Marca y modelo (trade mark and model)

Nombre del fabricanie (manufacturer name) > Marcado CE (CE marking)

Pursuant to at the directive 2004/108/EC, article 9 (2)

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsberging 15, 22525 Hamburg, Germany

Ge Fr It Du Sw Da Sp Po Cz Hu

RQTX0171-1D

F1208AA1019
