SDME76D - Monitor SONY - Free user manual and instructions

Brand	Sony
Model	SDME76D
Product type	LCD Monitor
Screen size	17 inches (43.2 cm)
Maximum resolution	1280 x 1024 pixels
Panel technology	Active matrix a-Si TFT
Input connectors	1x HD15 (VGA analog), 1x DVI-D (digital)
Horizontal frequency (analog)	28 - 80 kHz
Horizontal frequency (digital)	28 - 64 kHz
Vertical frequency (analog)	56 - 75 Hz
Vertical frequency (digital)	60 Hz
Power supply	100-240 V, 50/60 Hz, 1.0 A max
Power consumption (operation)	38 W max
Power consumption (standby)	1.0 W max
Dimensions (W x H x D)	382 x 403.2 x 193.2 mm
Weight	4.5 kg
Operating temperature	5°C to 35°C
Tilt angle	Adjustable (forward/backward tilt)
OSD functions	Backlight, contrast, brightness, gamma, sharpness, position, color temperature, auto adjustment
Power saving	VESA DPMS, ENERGY STAR, NUTEK
Security	Kensington lock slot
Standards	Plug & Play DDC2B, TCO'03
Included accessories	Power cord, HD15-HD15 cable, DVI-D cable, CD-ROM, quick start guide, warranty card

Frequently Asked Questions - SDME76D SONY

How to adjust brightness and contrast?

Press the MENU button, use the ↓/↑ keys to select the BACKLIGHT or CONTRAST icon, then press OK. Adjust with ↓/↑ and confirm.

What to do if the screen shows 'No video input'?

Check that the video signal cable is properly connected. If the computer is in power saving mode, press a key on the keyboard or move the mouse. Make sure the input selection (INPUT) is correct.

How to switch between inputs on the SDME76D?

Press the INPUT button on the front of the monitor. The message INPUT1: DVI-D or INPUT2: HD15 appears. Each press changes the source.

How to reset monitor settings?

In the main menu, select the RESET icon with ↓/↑, press OK, then choose OK to reset all settings (except language).

What to do if the image flickers or is blurry?

Use the AUTO ADJUSTMENT function in the SCREEN menu to automatically adjust the phase and clock. If necessary, manually adjust CLOCK and PHASE with the ↓/↑ keys.

How to lock the monitor buttons?

In the main menu, select MENU LOCK, then choose ACTIVE. Only the power switch will remain functional. To unlock, select INACTIVE.

The monitor goes into power saving mode, what to do?

The monitor goes into standby if no signal is received. Check that the computer is on and not in sleep mode. If the problem persists, disable power saving in the computer's settings.

How to adjust the position and sharpness of the image in analog mode?

Use the SCREEN menu: select AUTO ADJUSTMENT for automatic adjustment, or manually adjust CLOCK, PHASE, H CENTERING, and V CENTERING with the ↓/↑ keys.

What are the included accessories with the monitor?

Power cord, HD15-HD15 video cable (analog), DVI-D cable (digital), cable tie, CD-ROM (drivers and manual), quick setup guide, warranty card.

How to clean the LCD screen?

Unplug the monitor. Use a soft, dry cloth. If necessary, lightly dampen with a glass cleaner without antistatic additives. Do not use solvents, abrasive pads, or spray products.

USER MANUAL SDME76D SONY

www.tcodevelopment.com

This monitor complies with the TCO'03 guidelines.

Table of Contents

Precautions for Use 4

Names of Parts 5

Connection and Setup 6

Step 1: Attach the Stand 6

Step 2: Connect the Cables 7

Step 3: Connect the Power Cord 7

Step 4: Organize the Cables 7

Step 5: Turn on the Power 8

To Switch the Input (INPUT Button)

This display is designed for use in Japan only and cannot be used in any other country.

Main Specifications

SDM-E76A

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in a way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com).

Further details on specific recycling systems can be found at the following addresses:

• Belgium: www-recupel.be
• Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
• Norway: www.elretur.no
• Sweden: www.el-kretsen.se
• Switzerland: www.swico.ch
• If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.eiae.org/

Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFTLCDColor ComputerDisplay

Operating Instructions (GB)

SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. _ _ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANT

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.roy.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following

specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 x 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Table of Contents

Precautions. 4

Identifying parts and controls 5

Setup 6

Step 1: Use the stand. 6

Step 2: Connect the display to your computer 6

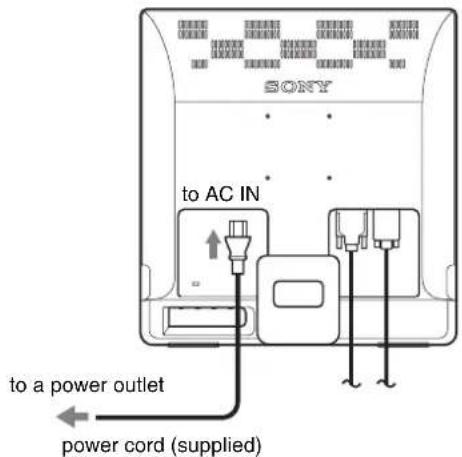

Step 3: Connect the power cord. 7

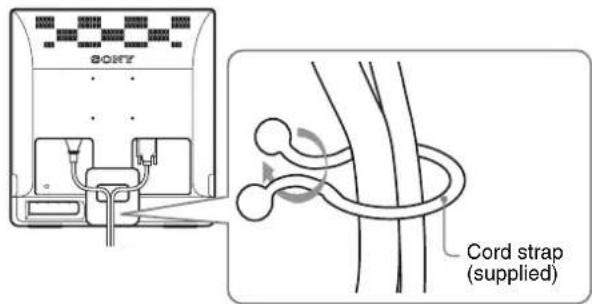

Step 4: Secure the cords. 7

Step 5: Turn on the monitor and computer 7

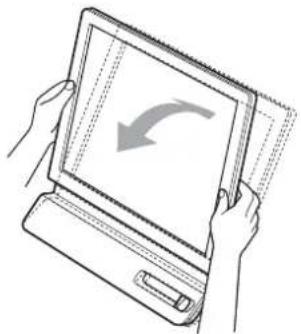

Adjusting the tilt 8

Selecting the input signal (INPUT button) (SDM-E76D/SDM-E96D only) 8

Customizing Your Monitor 9

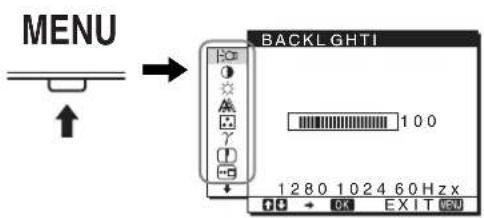

Navigating the menu. 9

Adjusting the backlight (BACKLIGHT) 10

Adjusting the contrast (CONTRAST) 10

Adjusting the black level of an image (BRIGHTNESS) 11

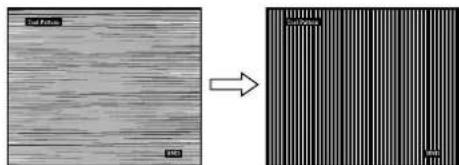

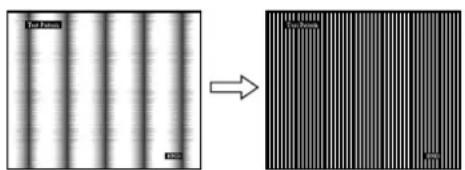

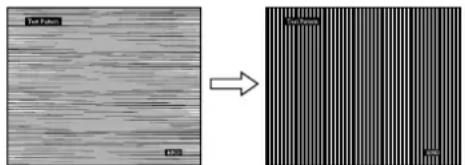

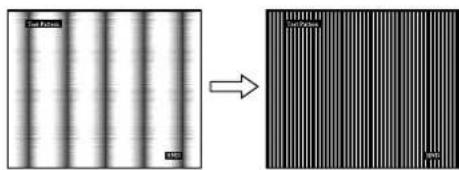

Adjusting the picture's sharpness and centering (SCREEN) (analog RGB signal only). 11

Adjusting the color temperature (COLOR) 13

Changing the gamma setting (GAMMA). 13

Adjusting the sharpness (SHARPNESS) 13

Changing the menu's position (MENU POSITION) 13

Changing the input automatically (INPUT SENSING) (SDM-E76D/SDM-E96D only) 14

Selecting the on-screen menu language (LANGUAGE). 14

Additional settings. 14

Technical Features 16

Power saving function. 16

Automatic picture quality adjustment function (analog RGB signal only) 16

Troubleshooting. 17

On-screen messages 17

Trouble symptoms and remedies 18

Specifications. 20

TCO'03 Eco-document

• Macintosh is a trademark licensed to Apple Computer, Inc., registered in the U.S.A. and other countries.
• Windows is a registered trademark of Microsoft Corporation in the United States and other countries. VESA and DDC are trademarks of the Video Electronics Standards Association. ENERGY STAR is a U.S. registered mark.
• Adobe and Acrobat are trademarks of Adobe Systems Incorporated.
• All other product names mentioned herein may be the trademarks or registered trademarks of their respective companies.
• Furthermore, "TM" and "®" are not mentioned in each case in this manual.

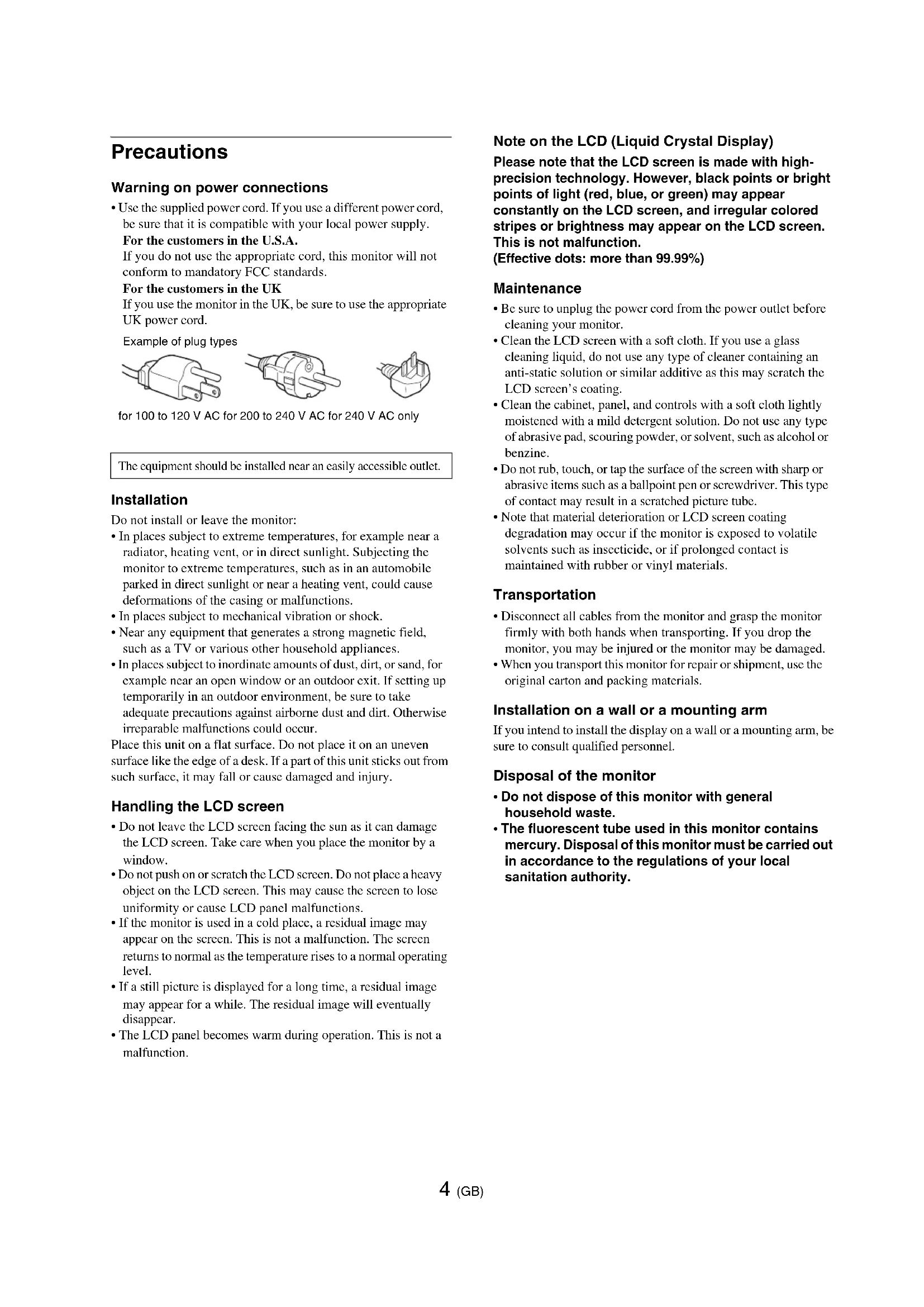

Precautions

Warning on power connections

• Use the supplied power cord. If you use a different power cord, be sure that it is compatible with your local power supply.

For the customers in the U.S.A.

If you do not use the appropriate cord, this monitor will not conform to mandatory FCC standards.

For the customers in the UK

If you use the monitor in the UK, be sure to use the appropriate UK power cord.

Example of plug types

For 100 to 120 V AC, for 200 to 240 V AC, for 240 V AC only.

The equipment should be installed near an easily accessible outlet.

Installation

Do not install or leave the monitor:

• In places subject to extreme temperatures, for example near a radiator, heating vent, or in direct sunlight. Subjecting the monitor to extreme temperatures, such as in an automobile parked in direct sunlight or near a heating vent, could cause deformations of the casing or malfunctions.
• In places subject to mechanical vibration or shock.
• Near any equipment that generates a strong magnetic field, such as a TV or various other household appliances.
• In places subject to inordinate amounts of dust, dirt, or sand, for example near an open window or an outdoor exit. If setting up temporarily in an outdoor environment, be sure to take adequate precautions against airborne dust and dirt. Otherwise irreparable malfunctions could occur.

Place this unit on a flat surface. Do not place it on an uneven surface like the edge of a desk. If a part of this unit sticks out from such surface, it may fall or cause damage and injury.

Handling the LCD screen

• Do not leave the LCD screen facing the sun as it can damage the LCD screen. Take care when you place the monitor by a window.
• Do not push on or scratch the LCD screen. Do not place a heavy object on the LCD screen. This may cause the screen to lose uniformity or cause LCD panel malfunctions.
• If the monitor is used in a cold place, a residual image may appear on the screen. This is not a malfunction. The screen returns to normal as the temperature rises to a normal operating level.
• If a still picture is displayed for a long time, a residual image may appear for a while. The residual image will eventually disappear.
• The LCD panel becomes warm during operation. This is not a malfunction.

Note on the LCD (Liquid Crystal Display)

Please note that the LCD screen is made with high-precision technology. However, black points or bright points of light (red, blue, or green) may appear constantly on the LCD screen, and irregular colored stripes or brightness may appear on the LCD screen. This is not a malfunction.

(Effective dots: more than 99.99%)

Maintenance

• Be sure to unplug the power cord from the power outlet before cleaning your monitor.
• Clean the LCD screen with a soft cloth. If you use a glass cleaning liquid, do not use any type of cleaner containing an anti-static solution or similar additive as this may scratch the LCD screen's coating.
• Clean the cabinet, panel, and controls with a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as alcohol or benzine.
• Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as a ballpoint pen or screwdriver. This type of contact may result in a scratched picture tube.
• Note that material deterioration or LCD screen coating degradation may occur if the monitor is exposed to volatile solvents such as insecticide, or if prolonged contact is maintained with rubber or vinyl materials.

Transportation

• Disconnect all cables from the monitor and grasp the monitor firmly with both hands when transporting. If you drop the monitor, you may be injured or the monitor may be damaged.
• When you transport this monitor for repair or shipment, use the original carton and packing materials.

Installation on a wall or a mounting arm

If you intend to install the display on a wall or a mounting arm, be sure to consult qualified personnel.

Disposal of the monitor

• Do not dispose of this monitor with general household waste.
• The fluorescent tube used in this monitor contains mercury. Disposal of this monitor must be carried out in accordance with the regulations of your local sanitation authority.

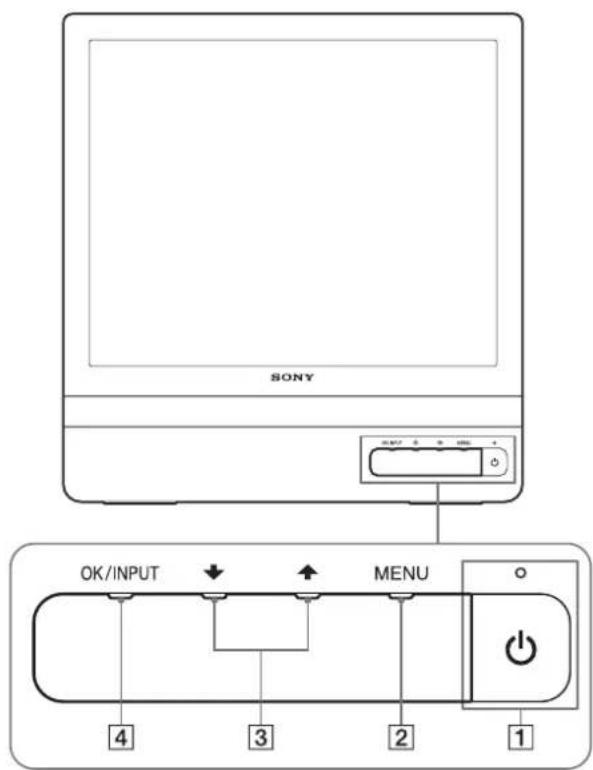

Identifying parts and controls

See the pages in parentheses for further details.

The power switch and the control buttons are on the lower right part of the front of the monitor.

Front of the display

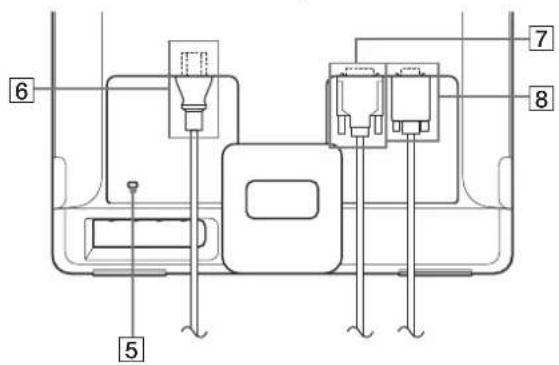

Rear of the display

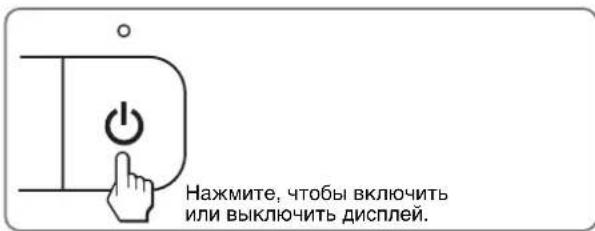

1 (Power) switch and indicator (pages 7, 16)

To turn the display on or off, press the power switch. The power indicator lights up in green when the display is turned on, and lights up in orange when the monitor is in power saving mode.

2 MENU button (pages 9, 10)

This button displays or closes the main menu.

You can also switch on the DDC/CI function by keeping this button pressed for more than 8 seconds.

3 Down/Up buttons (page 10)

These buttons function as the down/up buttons when selecting the menu items and making adjustments.

OK button (page 10)

This button selects the item or executes the settings in the menu.

INPUT button (page 8) (SDM-E76D/SDM-E96D only)

This button switches the video input signal between INPUT1 and INPUT2 when two computers are connected to the monitor.

5 Security Lock Hole

The security lock hole should be applied with the Kensington Micro Saver Security System.

Micro Saver Security System is a trademark of Kensington.

6 AC IN connector (page 7)

Connect the power cord (supplied).

7 DVI-D input connector (digital RGB) for INPUT1 (page 6) (SDM-E76D/SDM-E96D only)

This connector inputs digital RGB video signals that comply with DVI Rev.1.0.

8 HD15 input connector (analog RGB) (page 6)

This connector inputs analog RGB video signals (0.7 Vp-p, positive) and SYNC signals.

Setup

Before using your monitor, check that the following items are included in your carton:

• LCD display, Power cord, HD15-HD15 video signal cable (analog RGB)
• DVI-D video signal cable (digital RGB) (SDM-E76D/SDM-E96D only) Cord strap
• CD-ROM (utility software for Windows/Macintosh, Operating Instructions, etc.) Warranty card
• Quick Setup Guide

Step 1: Use the stand

Use the supplied stand

Open the stand.

Note

The stand is folded at the factory. Be sure not to place the display vertically with the stand as it is. Otherwise, the display may topple over.

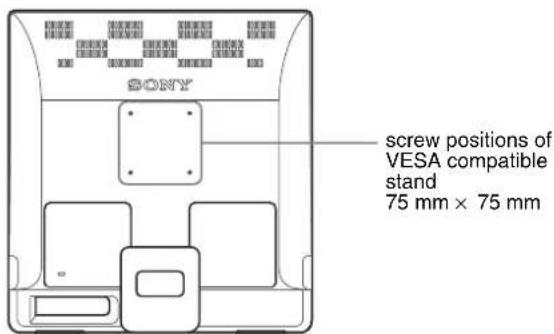

Use the VESA compatible stand

When using a non-supplied VESA compatible mounting arm or stand, use the VESA compatible screws to attach.

You can use the display with or without the supplied stand.

Step 2: Connect the display to your computer

Turn off the monitor and computer before connecting.

Notes

• Do not touch the pins of the video signal cable connector as this might bend the pins.
• Check the alignment of the HD15 connector to prevent bending the pins of the video signal cable connector.

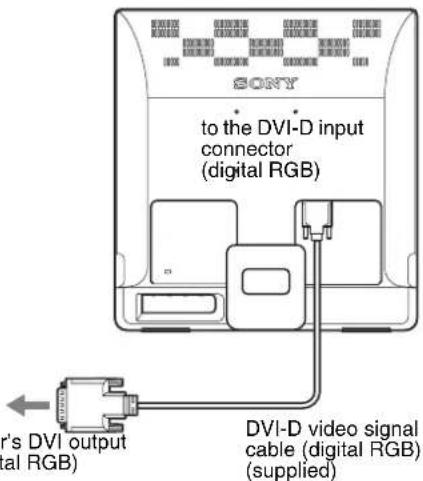

Connect a computer equipped with a DVI output connector (digital RGB) (SDM-E76D/SDM-E96D only)

Using the supplied DVI-D video signal cable (digital RGB), connect the computer to the monitor's DVI-D input connector (digital RGB)

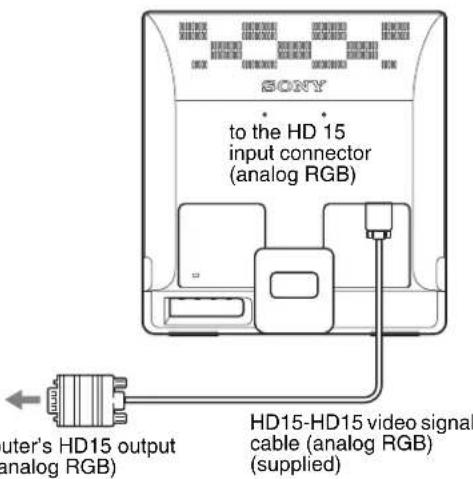

Connect a computer equipped with an HD15 output connector (analog RGB)

Using the supplied HD15-HD15 video signal cable (analog RGB), connect the computer to the monitor's HD15 input connector (analog RGB).

Step 3: Connect the power cord

With the monitor and computer switched off, first connect the power cord to the monitor, then connect it to a power outlet.

Step 4: Secure the cords

Bundle the cables and cords.

Using the supplied cord strap, bundle the cables and cords.

The illustration of the back of the monitor shown here is that of the SDM-E76D.

The same applies for the other models.

Step 5: Turn on the monitor and computer

Press the power switch.

The power indicator of the monitor lights up in green.

Turn on the computer.

The installation of your monitor is complete. If necessary, use the monitor's controls to adjust the picture.

If no picture appears on your screen

• Check that the power cord and the video signal cable are properly connected.
• If NO INPUT SIGNAL appears on the screen:

The computer is in the power saving mode. Try pressing any key on the keyboard or moving the mouse.

• If CABLE DISCONNECTED appears on the screen:

Check that the video signal cable is properly connected.

• If OUT OF RANGE appears on the screen:

Reconnect the old monitor. Then adjust the computer's graphics board within the following ranges.

	Analog RGB Digital RGB(SDM-E76D/SDM-E96D only)
Horizontal frequency	28-80 kHz 28-64 kHz
Vertical frequency	56-75 Hz 60 Hz
Resolution	1280×1024 or less 1280×1024 or less

For more information about the on-screen messages, see "Trouble symptoms and remedies" on page 18.

No need for specific drivers

The monitor complies with the "DDC" Plug & Play standard and automatically detects all the monitor's information. No specific driver needs to be installed to the computer.

The first time you turn on your computer after connecting the monitor, the setup Wizard may appear on the screen. In this case, follow the on-screen instructions. The Plug & Play monitor is automatically selected so that you can use this monitor.

The vertical frequency turns to 60 Hz.

Since flickers are unobtrusive on the monitor, you can use it as it is. You do not need to set the vertical frequency to any particular high value.

Adjusting the tilt

This display can be adjusted within the angles shown below.

Approx. 5° - 25°

Grasp the lower sides of the LCD panel, then adjust screen tilt.

To use the display comfortably

This display is designed so that you can set it up at a comfortable viewing angle. Adjust the viewing angle of your display according to the height of the desk and chair, and so that light is not reflected from the screen to your eyes.

Note

When adjusting the screen tilt, make sure not to knock or drop the display off the desk.

Selecting the input signal (INPUT button) (SDM-E76D/SDM-E96D only)

Press the INPUT button.

The input signal change each time you press this button.

On-screen message

Input signal configuration

(Appears about 5 seconds on

the upper left corner.)

INPUT1: DVI-D input connector

(digital RGB) for INPUT1

INPUT2: HD15 input connector

(analog RGB) for INPUT2

Customizing Your Monitor

Before making adjustments

Connect the monitor and the computer, and turn them on. Wait for at least 30 minutes before making adjustments for the best result.

You can make numerous adjustments to your monitor using the on-screen menu.

Navigating the menu

Press the MENU button to display the main menu on your screen. See page 10 for more information on using the MENU button.

Use the down/up arrow and OK buttons to select the icons in the above main menu illustration. The following 1 to 10 menu appears. Keep pressing down to scroll down until the icons in menu 9 and 10 appear. See page 10 for more information on using the down/up arrow and OK buttons.

1 BACKLIGHT (page 10)

Select the BACKLIGHT menu to adjust the brightness of the backlight.

2 CONTRAST (page 10)

Select the CONTRAST menu to adjust the picture contrast.

3BRIGHTNESS (page 11)

Select the BRIGHTNESS menu to adjust the picture brightness (black level).

4SCREEN A (page

Select the SCREEN menu to adjust the picture's sharpness (phase/pitch) or its centering (horizontal/vertical position).

11)

5COLOR (page 13)

Select the COLOR menu to adjust the color temperature of the picture. This adjusts the tone of the screen. While COLOR is set to sRGB, you cannot adjust CONTRAST, BRIGHTNESS or GAMMA.

6GAMMA (page 13)

Select the GAMMA menu to change the picture's color shade setting.

7 SHARPNESS (page 13)

Select the SHARPNESS menu to adjust to sharpen the edge of images.

8 MENU POSITION (page 13)

Select the MENU POSITION to change the onscreen menu position.

9INPUT SENSING

page 14SDM-E76D/ SDM-E96D only)

The monitor automatically detects an input signal to an input terminal, and changes the input automatically before the monitor goes into the power saving mode.

10LANGUAGE (page

Select LANGUAGE to change the language used on menus or messages.

14)

11Other menus (page 14)

Set the following menu items. - RESET -MENULOCK

Using the MENU, down/up, and OK buttons

1 Display the main menu.

Press the MENU button to display the main menu on your screen.

2 Select the menu you want to adjust.

Press the down/up buttons to display the desired menu. Press the OK button to select the menu item.

3 Adjust the menu.

Press the down/up buttons to make the adjustment, then press the OK button.

When you press the OK button, the setting is stored, then the display returns to the previous menu.

4 Close the menu.

Press the MENU button once to return to normal viewing. If no buttons are pressed, the menu closes automatically after about 45 seconds.

Resetting the adjustments

You can reset the adjustments using the RESET menu. See page 14 for more information on resetting the adjustments.

Controlling the monitor by computer

Press the MENU button down for at least 5 seconds. You will see an on-screen message indicating the current setting. After 3 seconds the DDC/CI setting is switched on or off, as shown below.

On-screen messages (Appear for a while)

DDC-CI:ON (default setting)

Allows the computer to control menu settings.

DDC-CI: OFF Does not allow the computer to control menu settings.

Note

This function applies only to computers that support the DDC/CI (Display Data Channel Command Interface) function.

Adjusting the backlight (BACKLIGHT)

If the screen is too bright, adjust the backlight and make the screen easier to see.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the down/up buttons to select BACKLIGHT and press the OK button.

The BACKLIGHT menu appears on the screen.

3 Press the down/up buttons to adjust the light level and press the OK button.

Adjusting the contrast (CONTRAST)

Adjust the picture contrast.

Note

While COLOR is set to sRGB, you cannot adjust CONTRAST, BRIGHTNESS or GAMMA.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the down/up buttons to select CONTRAST and press the OK button.

The CONTRAST menu appears on the screen.

3 Press the down/up buttons to adjust the contrast and press the OK button.

Adjusting the black level of an image (BRIGHTNESS)

Adjust the picture brightness (black level).

Note

While COLOR is set to sRGB, you cannot adjust CONTRAST, BRIGHTNESS or GAMMA.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the down/up buttons to select (BRIGHTNESS) and press the OK button.

The BRIGHTNESS menu appears on the screen.

3 Press the down/up buttons to adjust the brightness and press the OK button.

Adjusting the picture's sharpness and centering (SCREEN) (analog RGB signal only)

Automatic picture quality adjustment function

When the monitor receives an input signal, it automatically adjusts the picture's position and sharpness (phase/pitch), and ensures that a clear picture appears on the screen (page 16).

Notes

• While the automatic picture quality adjustment function is activated, only the power switch will operate.
• The picture may flicker during this time, but this is not a malfunction. Simply wait a few moments until the adjustment completes.

If the automatic picture quality adjustment function of this monitor seems to not completely adjust the picture

You can make further automatic adjustment of the picture quality for the current input signal. (See AUTO ADJUST below.)

If you still need to make further adjustments to the picture quality

You can manually adjust the picture's sharpness (phase/pitch) and position (horizontal/vertical position).

These adjustments are stored in memory and automatically recalled when the display receives the same input signal. These settings may have to be repeated if you change the input signal after reconnecting your computer.

Make further automatic adjustments to the picture quality for the current input signal (AUTO ADJUST)

Set the optimum phase, pitch and horizontal/vertical position for the current input signal.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the down/up buttons to select (SCREEN) and press the OK button.

The SCREEN menu appears on the screen.

3 Press the down/up buttons to select AUTO ADJUST and press the OK button.

The AUTO ADJUST menu appears on the screen.

4 Press the down/up buttons to select ON or OFF and press the OK button.

• ON: Make the appropriate adjustments of the screen's phase, pitch and horizontal/vertical position for the current input signal and store them.

Note

When the monitor is turned on or the input signal is changed, AUTO ADJUST makes the automatic adjustments.

• OFF: AUTO ADJUST is not available.

Note

AUTO ADJUST works automatically when the input signal is changed.

5 Press the down/up buttons to select and press the OK button.

Return to the menu screen.

Adjust the picture's sharpness and position manually (PITCH/PHASE/H CENTER/VCENTER)

You can adjust the picture's sharpness as follows. This adjustment is effective when the computer is connected to the monitor's HD15 input connector (analog RGB).

1 Set the resolution to 1280 x 1024 on the computer.

2 Load the CD-ROM.

3 Start the CD-ROM

For Windows User

When Auto run operates:

Select the area, language and model, and click DISPLAY ADJUSTMENT TOOL (UTILITY).

4 Click "Adjust" and confirm the current resolution (top value) and recommended resolution (bottom value), and then click "Next".

Test pattern for PITCH appears.

5 Press the MENU button.

The main menu appears on the screen.

6 Press the down/up buttons to select (SCREEN) and press the OK button.

The SCREEN menu appears on the screen.

7 Press the down/up buttons to select PITCH and press the OK button.

The PITCH adjustment menu appears on the screen.

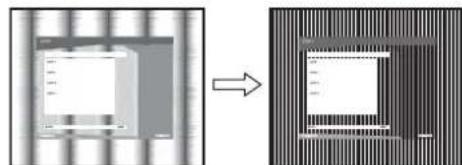

8 Press the down/up buttons until the vertical stripes disappear.

Adjust so that the vertical stripes disappear.

9 Press the OK button.

The main menu appears on the screen.

If horizontal stripes are observed over the entire screen, adjust the PHASE using the following procedures.

10 Click "Next".

Test pattern for PHASE appears.

11 Press the down/up buttons to select PHASE and press the OK button.

The PHASE adjustment menu appears on the screen.

12 Press the down/up buttons until the horizontal stripes are at a minimum.

Adjust so that the horizontal stripes are at a minimum.

13 Press the OK button.

The main menu appears on the screen.

14 Click "Next".

Test pattern for CENTER appears.

15 Press the down/up buttons to select H CENTER or V CENTER and press the OK button.

The H CENTER adjustment menu or V CENTER adjustment menu appears on the screen.

16 Press the down/up buttons to center the test pattern on the screen.

17 Click "Next".

Click "End" or "EXIT" to turn off the test pattern.

When Auto run fails to operate:

1 Open "My Computer" and right click the CD-ROM icon.

Go to "Explorer" and open the CD-ROM icon.

2 Open [Utility] and then select [WINDOWS].

3 Start [WIN Utility.EXE].

Test pattern appears. Go to step 4.

For Macintosh User

1 Open the CD-ROM.

2 Open [Utility] and then select [MAC].

3 Open [MAC UTILITY] and then start [MAC_CLASSICUTILITY] or [MAC OSXUTILITY].

Test pattern appears. Go to step 4.

4 Press the MENU button.

The main menu appears on the screen.

5 Press the down/up buttons to select A (SCREEN) and press the OK button.

The SCREEN menu appears on the screen.

6 Press the down/up buttons to select PHASE and press the OK button.

The PHASE adjustment menu appears on the screen.

7 Press the down/up buttons until the horizontal stripes are at a minimum.

Adjust so that the horizontal stripes are at a minimum.

8 Press the OK button.

The main menu appears on the screen.

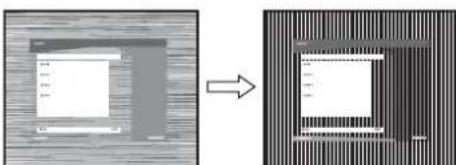

If vertical stripes are observed over the entire screen, adjust the PITCH using the following procedures.

9 Press the down/up buttons to select PITCH and press the OK button.

The PITCH adjustment menu appears on the screen.

10 Press the down/up buttons until the vertical stripes disappear.

Adjust so that the vertical stripes disappear.

11 Press the OK button.

The main menu appears on the screen.

12 Press the down/up buttons to select H CENTER or V CENTER and press the OK button.

The H CENTER adjustment menu or V CENTER adjustment menu appears on the screen.

13 Press the down/up buttons to center the test pattern on the screen.

14 Click "END" on the screen to turn off the test pattern.

Adjusting the color temperature (COLOR)

You can select the color level of the picture's white color field from the default color temperature settings.

Also, if necessary, you can fine tune the color temperature.

You can set the desired color temperature for each mode of the brightness of screen.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the down/up buttons to select (COLOR) and press the OK button.

The COLOR menu appears on the screen.

3 Press the down/up buttons to select the desired color temperature and press the OK button.

Whites will change from a bluish hue to reddish hue as the temperature is lowered from 9300K to 6500K (default setting).

When you select "sRGB," the colors adjust to the sRGB profile. (The sRGB color setting is an industry-standard color space protocol designed for computer products.) If you select "sRGB," the color settings of your computer must be set to the sRGB profile.

Notes

• If a connected computer or other equipment is not sRGB-compliant, color cannot be adjusted to the sRGB profile.
• While COLOR is set to sRGB, you cannot adjust CONTRAST, BRIGHTNESS or GAMMA.

Fine tuning the color temperature (USER ADJUSTMENT)

1 Press the down/up buttons to select ADJUST and press the OK button.

The USER ADJUSTMENT menu appears on the screen.

2 Press the down/up buttons to select R (Red) or B (Blue) and press the OK button. Then press the down/up buttons to adjust the color temperature and press the OK button.

Since this adjustment changes the color temperature by increasing or decreasing the R and B components with respect to G (green), the G component is fixed.

3 Press the down/up buttons to select the check mark, then press the OK button.

The new color setting is stored in memory for USER and automatically recalled whenever USER is selected.

The main menu appears on the screen.

Changing the gamma setting (GAMMA)

You can associate the picture's color shade on the screen with the picture's original color shade.

Note

While COLOR is set to sRGB, you cannot adjust CONTRAST, BRIGHTNESS or GAMMA.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the down/up buttons to select GAMMA and press the OK button.

The GAMMA menu appears on the screen.

3 Press the down/up buttons to select the desired mode and press the OK button.

Adjusting the sharpness (SHARPNESS)

Adjust to sharpen the edge of images, etc.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the down/up buttons to select (SHARPNESS) and press the OK button.

The SHARPNESS menu appears on the screen.

3 Press the down/up buttons to adjust the sharpness and press the OK button.

Changing the menu's position (MENU POSITION)

You can change the menu position if it is blocking an image on the screen.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the down/up buttons to select (MENU POSITION) and press the OK button.

The MENU POSITION menu appears on the screen.

3 Press the down/up buttons to select the desired position and press the OK button.

There are three positions each for the top, center and bottom of the screen.

Changing the input automatically (INPUT SENSING)

(SDM-E76D/SDM-E96D only)

When you select AUTO ON in the INPUT SENSING menu, the monitor automatically detects an input signal to an input terminal, and changes the input automatically before the monitor goes into the power saving mode.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the down/up buttons to select (INPUT SENSING) and press the OK button.

The INPUT SENSING menu appears on the screen.

3 Press the down/up buttons to select the desired mode and press the OK button.

• AUTO ON: When the selected input terminal has no input signal, or when you select an input terminal by the INPUT button on the monitor and the terminal has no input signal, the on-screen message appears (page 17) and the monitor checks the input signal to another input terminal automatically to change the input. When the input is changed, the selected input terminal is displayed on the left upper of the screen. When there is no input signal, the monitor goes into the power saving mode automatically.
• AUTO OFF: The input is not changed automatically. Press the INPUT button to change the input.

Selecting the on-screen menu language (LANGUAGE)

You can change the language used on menus or messages displayed on this monitor.

1 Press the MENU button.

The main menu appears on the screen.

2 Keep pressing the down button until the icon of the desired option item appears.

3 Press the down/up buttons to select (LANGUAGE) and press the OK button.

The LANGUAGE menu appears on the screen.

4 Press the down/up buttons to select a language and press the OK button.

• ENGLISH FRANCAIS: French
• DEUTSCH: German
• ESPANOL: Spanish ITALIANO: Italian
• NEDERLANDS: Dutch SVENSKA: Swedish
• PYZCKN: ：曲本 ·中文： C h i n c s c

Additional settings

You can adjust the following options:

• RESET -MENU LOCK

1 Press the MENU button.

The main menu appears on the screen.

2 Keep pressing the down button until the icon of the desired option item appears. 3 Press the down/up buttons to select the desired option item and press the OK button.

Adjust the selected option item according to the following instructions.

Resetting the adjustment data to the defaults

You can reset the adjustments to the default settings.

1 Press the down/up buttons to select RESET and press the OK button.

The RESET menu appears on the screen.

2 Press the down/up buttons to select the desired mode and press the OK button.

• OK: To reset all of the adjustment data to the default settings. Note that the LANGUAGE setting is not reset by this method.
• CANCEL: To cancel resetting and return to the menu screen.

Locking the menus and controls

You can lock the control of buttons to prevent accidental adjustments or resetting.

1 Press the down/up buttons to select ON (MENU LOCK) and press the OK button.

The MENU LOCK menu appears on the screen.

2 Press the down/up buttons to select ON or OFF and press the OK button.

• ON: Only the power switch will operate. If you attempt any other operation, the MENU LOCK icon appears on the screen.
• OFF: Set (MENU LOCK) to OFF. If you set the ON (MENU LOCK) item to ON, only this menu item can be selected.

Technical Features

Power saving function

This monitor meets the power-saving guidelines set by VESA, ENERGY STAR, and NUTEK. If the monitor is connected to a computer or video graphics board that is DPMS (Display Power Management Standard) for Analog input/DMPM (DVI Digital Monitor Power Management) for Digital input compliant, the monitor will automatically reduce power consumption as shown below.

Power mode Power consumption ( power) indicator
normal operation	38W(max.)	green
	(SDM-E76A/SDM-E76D)
	44W(max.)
	(SDM-E96A/SDM-E96D)
active off* (deep sleep)**	1.0W(max.) orange
power off 1.0W(max.) off

• When your computer enters the "active off" mode, the input signal is cut and NO INPUT SIGNAL appears on the screen. After 5 seconds, the monitor enters the power saving mode. ** "deep sleep" is the power saving mode defined by the Environmental Protection Agency.

Automatic picture quality adjustment function (analog RGB signal only)

When the monitor receives an input signal, it automatically adjusts the picture's position and sharpness (phase/pitch), and ensures that a clear picture appears on the screen.

The factory preset mode

When the monitor receives an input signal, it automatically matches the signal to one of the factory preset modes stored in the monitor's memory to provide a high quality picture at the center of the screen. If the input signal matches the factory preset mode, the picture appears on the screen automatically with the appropriate default adjustments.

If input signals do not match one of the factory preset modes

When the monitor receives an input signal that does not match one of the factory preset modes, the automatic picture quality adjustment function of this monitor is activated to ensure that a clear picture always appears on the screen (within the following monitor frequency ranges):

Horizontal frequency: 28 - 80 kHz

Vertical frequency: 56 - 75 Hz

Consequently, the first time the monitor receives input signals that do not match one of the factory preset modes, the monitor

may take a longer time than normal to display the picture on the screen. This adjustment data is automatically stored in memory so that next time, the monitor will function in the same way as when the monitor receives the signals that match one of the factory preset modes.

Note (SDM-E76D/SDM-E96D only)

There is no need to adjust the digital RGB signals of the DVI-D input connector for INPUT1.

If you adjust the phase, pitch and picture position manually while OFF of AUTO ADJUST is selected

For some input signals, the automatic picture quality adjustment function of this monitor may not completely adjust the picture position, phase, and pitch. In this case, you can set these adjustments manually (page 11). If you set these adjustments manually, they are stored in memory as user modes and automatically recalled whenever the monitor receives the same input signals.

Notes

• While the automatic picture quality adjustment function is activated, only the power switch will operate.
• The picture may flicker during this time, but this is not a malfunction. Simply wait a few moments until the adjustment completes.

Troubleshooting

Before contacting technical support, refer to this section.

On-screen messages

If there is something wrong with the input signal, one of the following messages appears on the screen. To solve the problem, see "Trouble symptoms and remedies" on page 18.

If OUT OF RANGE appears on the screen

This indicates that the input signal is not supported by the monitor's specifications. Check the following items.

Example

INFORMATION

OUT OF RANGE INPUT1: DVI-D xxx.xkHz/xxxxHz

If "xxx.x kHz/xxx Hz" is displayed

This indicates that either the horizontal or vertical frequency is not supported by the monitor's specifications.

The figures indicate the horizontal and vertical frequencies of the current input signal.

If "RESOLUTION > 1280 x 1024" is displayed

This indicates that the resolution is not supported by the monitor's specifications (1280 x 1024 or less).

If NO INPUT SIGNAL appears on the screen

This indicates that no signal is being input.

Example

GO TO POWER SAVE

The monitor will enter the power saving mode after about 5 seconds from the time the message is displayed.

If CABLE DISCONNECTED appears on the screen

This indicates that the video signal cable has been disconnected.

Example

GO TO POWER SAVE

The monitor will enter the power saving mode after about 45 seconds from the time the message is displayed.

Trouble symptoms and remedies

If a problem is caused by the connected computer or other equipment, please refer to the connected equipment's instruction manual.

Symptom Check these items
No picture
If the (1) (power) indicator is not lit, or if the (1) (power) indicator will not light up when the (1) (power) switch is pressed,	·Check that the power cord is properly connected.
If CABLE DISCONNECTED appears on the screen,	·Check that the video signal cable is properly connected and all plugs are firmly seated in their sockets (page 6).·Check that the video input connector's pins are not bent or pushed in.·Check that the input select setting is correct (page 8).·A non-supplied video signal cable is connected. If you connect a non-supplied video signal cable, CABLE DISCONNECTED may appear on the screen before entering the power saving mode. This is not a malfunction.
If NO INPUT SIGNAL appears on the screen, or the (1) (power) indicator is orange,	·Check that the video signal cable is properly connected and all plugs are firmly seated in their sockets (page 6).·Check that the video input connector's pins are not bent or pushed in.·Check that the input select setting is correct (page 8).■ Problems caused by a computer or other equipment connected, and not caused by the monitor·The computer is in the power saving mode. Try pressing any key on the keyboard or moving the mouse.·Check that your graphics board is installed properly.·Change your graphic board to the latest driver. Or match the version of your graphic board to the current OS.·When using a laptop computer, set the output of your computer to video out (for details on video out setting, contact your computer manufacturer).·Check that the computer's power is on.·Restart the computer.
If OUT OF RANGE appears on the screen,	■ Problems caused by a computer or other equipment connected, and not caused by the monitor·Check that the video frequency range is within that specified for the monitor. If you replaced an old monitor with this monitor, reconnect the old monitor and adjust the computer's graphics board within the following ranges:Horizontal: 28-80 kHz (analog RGB), 28-64 kHz (digital RGB for SDM-E76D/SDME96D only)Vertical: 56-75 Hz (analog RGB), 60 Hz (digital RGB for SDM-E76D/SDM-E96D only)Resolution: 1280×1024 or less·Start your OS in Safe mode and restart the computer after setting the resolution. The setting of safe mode varies depending on your OS. For more details, contact your computer manufacturer.
If you are using Windows and replaced an old monitor with this monitor,	·If you replaced an old monitor with this monitor, reconnect the old monitor and do the following. Select "SONY" from the "Manufacturers" list and select the desired model name from the "Models" list in the Windows device selection screen. If the model name of this monitor does not appear in the "Models" list, try "Plug & Play."
If using a Macintosh system,	·If you use the Macintosh adapter (not supplied), check that the Macintosh adapter and the video signal cable are properly connected.
Picture flickers, bounces, oscillates, or is scrambled	Adjust the pitch and phase (page 11).Try plugging the monitor into a different AC outlet, preferably on a different circuit.Problems caused by a computer or other equipment connected, and not caused by the monitorCheck your graphics board manual for the proper monitor setting.Confirm that the graphics mode (VESA, Macintosh 19" Color, etc.) and the frequency of the input signal are supported by this monitor. Even if the frequency is within the proper range, some graphics boards may have a sync pulse that is too narrow for the monitor to sync correctly.Adjust the computer's refresh rate (vertical frequency) to obtain the best possible picture.
Picture is fuzzy	Adjust the brightness and contrast (page 10, 11).Adjust the pitch and phase (page 11).Problems caused by a computer or other equipment connected, and not caused by the monitorSet the resolution to 1280 × 1024 on your computer.
Picture is ghosting	Eliminate the use of video cable extensions and/or video switch boxes. Check that all plugs are firmly seated in their sockets.
Picture is not centered or sized properly	Adjust the pitch and phase (page 11).Adjust the picture position (page 11). Note that some video modes do not fill the screen to the edges.
Picture is too small	Problems caused by a computer or other equipment connected, and not caused by the monitorSet the resolution to 1280 × 1024 on your computer.
Picture is dark	Adjust the brightness using the BRIGHTNESS menu (page 11).Adjust the backlight (page 10).It takes a few minutes for the display to become bright after turning on the monitor.
Wavy or elliptical pattern (moire) is visible	Adjust the pitch and phase (page 11).
Color is not uniform · Adjust the pitch and phase (page 11).
White does not look white · Adjust the color temperature (page 13).
Monitor buttons do not operate (Appears on the screen)	If the menu lock is set to ON, set it to OFF (page 15).
The monitor turns off after a while	Problems caused by a computer or other equipment connected, and not caused by the monitorSet the computer's power saving setting to off.
Resolution displayed on the menu screen is incorrect	Depending on the graphics board setting, the resolution displayed on the menu screen may not coincide with the one set on the computer.

If any problem persists, call your authorized Sony dealer and give the following information:

• Model name: SDM-E76A, SDM-E96A, SDM-E76D or SDM-E96D
• Serial number
• Detailed description of the problem
• Date of purchase
• Name and specifications of your computer and graphics board

Specifications

SDM-E76A

LCD panel Panel type: a-Si TFT Active Matrix

Picture size: 17.0 inch

Input signal format RGB operating frequency*

Horizontal: 28 - 80kHz (analog RGB)

Vertical: 56 - 75Hz (analog RGB)

Resolution Horizontal: Max.1280 dots

Vertical: Max.1024 lines

Input signal levels Analog RGB video signal

0.7 Vp-p, 75 Ω, positive

SYNC signal

TTL level, 2.2kΩ

positive or negative

(Separate horizontal and vertical)

Power requirements 100-240 V, 50-60 Hz

Max. 1.0 A

Operating temperature 5-35 ° C

Dimensions (width/height/depth)

Display (5°)

Approx. 382 × 403.2 × 193.2 mm

(15 1/8 × 15 7/8 × 7 5/8 inches)

3/4 oz)

Mass Approx. 4.5 kg (9 lb 14

Plug & Play DDC2B

Accessories See page 6.

SDM-E96A

LCD panel Panel type: a-Si TFT Active Matrix

Picture size: 19.0 inch

Input signal format RGB operating frequency*

Horizontal: 28 - 80 kHz (analog RGB)

Vertical: 56 - 75 Hz (analog RGB)

Resolution Horizontal: Max.1280 dots

Vertical: Max.1024 lines

Input signal levels Analog RGB video signal

0.7 Vp-p, 75 Ω, positive

SYNC signal

TTL level, 2.2 kΩ

positive or negative

(Separate horizontal and vertical)

Power requirements 100-240 V, 50-60 Hz

Max. 1.0 A

Operating temperature 5-35 C

Dimensions (width/height/depth)

Display (5°)

Approx. 420 × 433.1 × 193.2 mm

(16 5/8 × 17 1/8 × 7 5/8 inches)

Mass Approx. 5.5 kg (12 lb 2 oz)

Plug & Play DDC2B

Accessories See page 6.

• Recommended horizontal and vertical timing condition

Horizontal sync width duty should be more than 4.8% of total horizontal time or 0.8 μs, whichever is larger. Horizontal blanking width should be more than 2.5 μs. Vertical blanking width should be more than 450 μs.

Design and specifications are subject to change without notice.

SDM-E76D

LCD panel Panel type: a-Si TFT Active Matrix

Picture size: 17.0 inch

Input signal format RGB operating frequency*

Horizontal: 28 - 80 kHz (analog RGB)

28-64 kHz (digital RGB)

Vertical: 56 - 75 Hz (analog RGB)

60 Hz (digital RGB)

Resolution Horizontal: Max. 1280 dots

Vertical: Max. 1024 lines

Input signal levels Analog RGB video signal

0.7 Vp-p, 75 Ω, positive

SYNC signal

TTL level, 2.2 kΩ

positive or negative

(Separate horizontal and vertical)

Digital RGB (DVI) signal: TMDS

(Single link)

Power requirements 100-240 V, 50-60 Hz

Max. 1.0 A

Operating temperature 5-35 °C

Dimensions (width/height/depth)

Display (5°)

Approx. 382 × 403.2 × 193.2 mm

(15 1/8 × 15 7/8 × 7 5/8 inches)

3/4 oz)

Mass Approx. 4.5 kg (9 lb 14

Plug & Play DDC2B

Accessories See page 6.

SDM-E96D

LCD panel Panel type: a-Si TFT Active Matrix

Picture size: 19.0 inch

Input signal format RGB operating frequency*

Horizontal: 28 - 80kHz (analog RGB)

28-64 kHz (digital RGB)

Vertical: 56 - 75Hz (analog RGB)

60Hz (digital RGB)

Resolution Horizontal: Max.1280 dots

Vertical: Max.1024 lines

Input signal levels Analog RGB video signal

0.7 Vp-p, 75 Ω, positive

SYNC signal

TTL level, 2.2kΩ

positive or negative

(Separate horizontal and vertical)

Digital RGB (DVI) signal: TMDS

(Single link)

Power requirements 100 - 240V 50 - 60Hz

Max. 1.0 A

Operating temperature 5-35 °C

Dimensions (width/height/depth)

Display (5°)

Approx. 420 × 433.1 × 193.2 mm

(16⁵ / 8× 17¹ / 8× 7⁵ / 8 inches)

Mass

Approx. 5.5kg (12 lb 2 oz)

Plug & Play

DDC2B

Accessories See page 6.

• Recommended horizontal and vertical timing condition

Horizontal sync width duty should be more than 4.8% of total horizontal time or 0.8 µs whichever is larger. Horizontal blanking width should be more than 2.5 µs. Vertical blanking width should be more than 450 µs.

Design and specifications are subject to change without notice.

TCO'03 Eco-document

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14001
• Restrictions on chlorinated and brominated flame retardants and polymers
• Heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in a way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com).

Further details on specific recycling systems can be found at the following addresses:

• Belgium: www-recupel.be
• Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
• Norway: www.elretur.no
• Sweden: www.el-kretsen.se
• Switzerland: www.swico.ch
• If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.eiae.org/

Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFTLCDColor ComputerDisplay

Mode d'emploi

(FR)

SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANT

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following

specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Table of Contents

Precautions. 4

Technical Specifications. 16

Technical Specifications

Vertical frequency: 56-75 Hz

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14001.
• Restrictions on chlorinated and brominated flame retardants and polymers.
• Heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in a way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:
2. Belgium: www.RECupel.be
3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se
6. Switzerland: www.swico.ch
7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

Bedienungsanleitung

(DE)

SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANT

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following

specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3x18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Contents

Horizontal frequency: 28-80 kHz

Vertical frequency: 56-75 Hz

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in a way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

Belgium: www.RECupel.be - Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment) - Norway: www.elretur.no - Sweden: www.el-kretsen.se - Switzerland: www.swico.ch

1. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Monitor

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. _ _ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANT

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following

specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 x 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Indices

Precauciones 4

INPUT1: DVI-D connector DC input DVI-D

Horizontal: 28-80 kHz

(RGB analog)

28-64kHz

(RGB digital)

Vertical: 56 - 75 Hz

(RGB analog)

60 Hz (RGB digital)

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14001.
• Restrictions on chlorinated and brominated flame retardants and polymers.
• Heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in a way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:
2. Belgium: www.recupel.be
3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se
6. Switzerland: www.swico.ch
7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. _ _ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANT

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following

specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 x 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

[MAC_CLASSIC Utility] or [MAC OSX Utility].

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14001.
• Restrictions on chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in a way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:
2. Belgium: www.RECupel.be
3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se
6. Switzerland: www.swico.ch
7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. _ _ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANT

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.roy.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following

specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Adjust the sharpness (SHARPNESS) 13

Change the menu position (MENU POSITION) 13

Automatically change the input signal (INPUT SENSING) (SDM-E76D/SDM-E96D only) 14

Select the on-screen menu language (LANGUAGE) 14

INPUT1: DVI-D connector DVI-D input connector

■ Resetting the adjustments

Adjust the sharpness (SHARPNESS)

Adjust to sharpen the outline of images, etc.

Horizontal resolution: Max. 1280 points Vertical: Max. 1024 lines

Input signal levels Analog RGB video signal 0.7 Vp-p, 75 Ω, positive

SYNC signal TTL level, 2.2 kΩ, positive or negative (Separate horizontal and vertical sync)

Power requirements 100-240 V, 50-60 Hz, Max. 1.0 A

Horizontal resolution: Max. 1280 points

Horizontal resolution: Max. 1280 points

For more information, please visit

www.tcodevelopment.com

Recycling Information

Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in a way that minimizes the impact on the environment, please do the following:

Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14001.
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:
2. Belgium: www-recupel.be
3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se
6. Switzerland: www.swico.ch
7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.eiae.org/

Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFTLCD Color Computer Display

Operating Instructions

(RU)

SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ______ Serial No. ______

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANT

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

BZ02

Manufacturer: Sony Corporation Address: 6-7-35 Kitashinagawa,

Shinagawa-ku, Tokyo 141-0001, Japan

Country of Origin: China

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 x 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Table of Contents 4

Identification of Controls 5

Preparation 6

Step 1: Check the contents of the package 6

Step 2: Connect the display to your computer 6

Step 3: Connect the power cord 7

Step 4: Secure the cords 7

Step 5: Turn on the monitor and computer 7

Tilt Adjustment 8

Selecting the Input Signal (INPUT button) (Only for SDM-E76D/SDM-E96D) 8

Customizing Your Monitor 9

Screen menu changes 9

Backlight setting (BACKLIGHT) 10

Contrast setting (CONTRAST) 11

Black level setting (BLACK LEVEL) 11

Sharpness and phase setting (CLOCK/PHASE) (only for analog RGB signal) 11

Color temperature setting (COLOR) 13

Gamma parameter changes (GAMMA) 14

Sharpness adjustment (SHARPNESS) 14

Menu position selection (POSITION) 14

Automatic input switching (INPUT SELECT) (only for models SDM-E76D/SDM-E96D) 14

Screen menu language selection (LANGUAGE) 14

Additional settings 15

Technical specifications 15

Power saving function 15

Automatic image quality adjustment function (only for analog RGB signal) 15

Troubleshooting 16

Error messages 16

Fault symptoms and corrective actions 17

Technical specifications 20

TCO'03 Eco-document

Precautions

Precautions when connecting to the power supply

• Use the power cable supplied with the monitor. If you use a different power cable, make sure that it is suitable for use with the local power supply.

For customers in the USA

Use of a non-compliant power cable with the monitor will not comply with the mandatory FCC standards.

For customers in the United Kingdom

If you use the monitor in the United Kingdom, use the appropriate cable and power supply for the United Kingdom.

Examples of power plugs

100-120V AC

200-240V AC

TONbKO dIa 240B nepemeHhoro Toka

CetBa po3eKa JIOJIXHa HAXOHTbC B JIERKOIOCTYINOM MecTe B6JIH3N OT pH6opa.

YctaHOBka

Hc yctahabJINBAHTe Hc octrabJITMe MOHTOP:

B MecTaX,IOIIBepKeHHbIX BO3JcHCTBnIO BbICOKHX TeIIePaTpy,HaIIpHMep,pAOM c 6aTapeMn, HaIpeBaTeJIbHbIMN BO3JyXOBIoAMn, HJIN B MecTaX, TBe BO3MOxHO IIIOHaJaHHe IIPrMoRO COJIHeYHO CBeTa. Pa3McIiEHHc MOHTOPa B McCTax,IOIIBepKcHHbIX BO3JeHCTBnIO BbICOKHX TeIIePaTpy,HaIIpHMep,B ABROMoBHIX,IIPiHApKOBAHHbIX B COJIHeCHbIX MecTx,HJIN PAnOM c HAIpeBaTeJIbHbIMN BO3JyXOBIoAMn,MOKeT IIpHBecTH K DeOpMaIHN KOpIyCa HJIN K HeHCIIpaBBocTm. B MecTaX, TJIe BO3MOxHa Bn6paIIH NJIH pe3KHe MExaHHueckKHe BO3JIeHCTBIIH. PraOMCJIIO6bIMO6OpyIOBAHHCM,KOTOPOCH3.IuYAcTCHIBHOc MaTHHTHOe IIOJe,HaIIpHMep,TeJIeBH3OpaMH HINIpyHMN IOMaIHHHMn IIpHi6OpaMH. B Mectax, Ige MOKET cKaJIINBAITcM HMOI IIbIIN, rpr3H HIN IIcCKa, HIIpHMep, pIOM COTKpbITbIM OKHOM HIN BbIXOJOM H3 IOMeHnE. EChYcTpOHTBO IpeHOCHTcIIO yJIHIE, 063aTeJIbHO IIpHMITE COOTBECTBYIOHHe MEPBI IIpeIOCTOPOKHOCTIH IpoTHB CYIeCTBYIOHEn B BO3HyXe IIbIJIN I pr3H. B IIpoTHBOM cIyUae YcTpOHTBO MOxET 6bITb 6c3BO3BpaTHIO IOBpcJcHo.

YcTaHOBHTe CHTeMy Ha POBHyIO IOBepXHocTb. He ycTaHaJIINBaIte cc Ha HEPOBHOIOBepXHocTH: HAIPHMep, Ha KpaIO CTJIA.EcIH YAcTB CNTeMBI BbCTyIIaET 3a KpaI IOBepXHOCTH, Ha KOtOpO IOh OHa ycTaHOBJIeHa, 0To MOKeT cTaTB PiHNHOI NaJeHHN, TpaMBI HIN IOJOMKn YcTPOHCTBa.

06cnyxuBaHne XXK-3KpaHa

He octabJIHTe XXK-3KpaH B MecTax, rHe Ha Hero IIaIae T COJIHc, TaK KaK 3TO MOKeT IIpHBcCTN K ERO IOBpeKJDEHHIO. Co6IOJaIte OCETOPOXHOCTb IIpI pa3MeIeHHM MOHITopa y OKHa. He ToJkaTe H He npapaTaTe KK-3KpaH.He KJIaHTe TKeIbe IpeMeTbHa KK-3KpaH. 3To MoKet IIpHBcTH K NcKpNBHeHHO 9KaPaH Hn Hn HcHnPaBHOCTH KK-1aHeTn.

EeHMOHTOPHCIOJIb3yETCBXOJOIDHomMeCTe,TOHaKpaHe MOKeTIOBHTbC8OCTaTOHHOE H3o6paKeHHe.3To He 8BIAETcIIpH3HaKOM HeHCnPaBHOCTH.3KpaH Bo3BpaIaETcK O6blHOMY BocPOnHBeJeHo,KaTToJbKO TeMIIepaTypa cTAHOBTcH HopMaJIbHOH. EeINB TcueHHN JOJIrOTo BpEmH NTO6paKaactc HHeIOBHXHOe H3o6paKeHne, To Ha 3KpaHe MOKeT HeHaIOJIO IOHBtbcra OCTaTOOHc H3o6paKcHnC. OCTaTOHOC H3o6paKeHne CO BpeMeHem HCye3HeT. KK-HaHJIb HaPepBaCTcB BO Bpempa60Tb.3TO He ABJIECTcI pH3HaKOM HEnCpapBHOCTH.

PpimueaHne no KKd (KndkokpcTaJIInuYeckOMy dncnpeo)

06paTne BHHMaHHe Ha To, qTo KKJn3roTOBnEn no BbICOKOTOuHO TexHOrnn. OdHaKO Ha KK-3KpaHE MOryT NORBAITbCA NOCToAHHbIE YepHbIE NIN RPKNE CBETHbIE TOUKn (KpachIbe, rOly6bIE NIN 3eJeHbIe), a TAKKe CBETHbIE NOLOCb IIN RPKNe PNTHa HENpaBnblHoH ΦopMbI. 3To He ABJIaETcP np3HaKOM HencnpaBHocTH. (3ΦΦEKTNBHe QNCIO ToeK: 6Olee 99,99%)

yxo

- Before cleaning the monitor, be sure to unplug the power cable from the outlet. - Wipe the LCD screen with a soft cloth. When using a liquid cleaner, do not use cleaners containing antistatic solutions or similar additives, as they may damage the LCD screen coating. - Clean the housing, stand, and control buttons with a soft cloth, slightly dampened in a mild detergent solution. Do not use abrasive pads, abrasive pastes, or solvents such as alcohol or benzene. Do not touch the screen, scratch it, or hit it with sharp or hard objects (such as a ballpoint pen or screwdriver). This may cause scratches on the screen surface. - Note that treating the monitor with certain solvents, such as acetone, or prolonged contact with rubber or vinyl materials may cause damage to materials or deterioration of the screen coating.

Transportation

• When transporting, disconnect all cables from the monitor and hold the monitor firmly. Dropping the monitor may cause injury or damage. - When moving the monitor or sending it for repair, use the original cardboard box and packing materials.

WALL MOUNTING ON A LOAD-BEARING BRACKET

If you plan to mount the monitor on a wall, you must install it on a load-bearing bracket. Consult qualified specialists beforehand.

Disposal of the monitor

Do not throw this monitor away with other household waste. - The fluorescent lamp installed in this monitor contains mercury. Disposal of this monitor must be carried out in accordance with local sanitation regulations.

Identification of control parts

See pages in parentheses for detailed information.

The power switch is located in the lower right part of the front panel of the monitor.

Front panel of the monitor

Rear panel of the monitor

1 Power switch / indicator (pp. 7, 15)

To turn the monitor on or off, press the power switch.

When the monitor is on, the power indicator lights green; when the monitor is in power-saving mode, it lights orange.

2 KhONKa MENU (ctp. 9, 10)

TO KHOIIKA IIN OTKpbITb/3aKpbITb JIaBHOro MeHIO. BbITaKaKe MoKeTe BKJIIOHTb cyHKIIIO DDC/CI, yIepKHBaa 3Ty KHOIIKY HaKaToI 6OJIee 8 cek.

3 KhoNkn↓/↑ (ctp.10)

3TH KHOIIKN BbIIOJIHHOT yHKHNI KHOIOK 1/1 npBbIOpe IyHKTOB MeHIO H BIIIOJIHeHH HAcTpoeK.

4KhONka OK (ctp. 10)

Ta KhoIIKa CnyKHT IIyBbIbOpa IyHKTOB IIpHMeHHe HaCTpoE K MeHO. KhoIIKA INPUT (cTp.8) (TOnbKO dJIa SDM-E76D/ SDM-E96D)

CIIOMOJIbIO 3TOI KHOIIKN MOXHO IpeKJIIOHaTb BXOJIHO BNIeOCHnHaJI MEKJy INPUT1 n INPUT2, KOJIa IBA KOMIIbIOTepa IIONKJIIOUeHbIKMOHHTopy.

5OTBepCTne 3auntH0n 6IoknpoBkn

OTBepCTHe 3aHHTHO6IOKINPOBKN Heo6xOHNMO HcNOJIb3OBaTb JIA CHTeM 6e3ONAcHocTH Kensington Micro Saver Security System.

Micro Saver Security System - TOBAPHIN 3HAK KOMIIAHN Kensington.

6ΓHe3do AC IN (ctp.7)

IIOKJIOHTe Ka6eJIb IITaHHB (BXOINT B KOMJIJEKT).

7BxoHoe rHe3D DVI-D (uΦpOBoi RGB) dIa INPUT1 (ctp.6) (TolbKO dIa SDM-E76D/SDM-E96D)

Yepe3 3OT pa3bEM IOaIOCTc IIHpOBoIe BHeoCnHaJI RGB, coOTBeTcTByIOIIne DVI Rev.1.0.

8 BxoHnOe rHe3do HD15 (aHaIorOBbI RGB) (ctp. 6)

Depending on the connector type, analog RGB (0.7 Vp-p, positive) and sync signals are supplied.

Getting started

Before using the monitor, check that the following items are included in the box:

Power cord, Signal cable HD15-HD15 (analog RGB), Signal cable DVI-D (digital RGB) (only for models SDM-E76D/SDM-E96D), Cable holder, CD-ROM (utilities for Windows and Macintosh, operating instructions, etc.), Warranty card, Quick Setup Guide

If there is no picture on the screen

- If the message "CABLE NOT CONNECTED" appears on the screen:

Make sure the power cord and signal cable are connected properly. If the message "NO SIGNAL" appears on the screen: The computer is in power saving mode. Try pressing any key on the keyboard or moving the mouse.

Make sure the signal cable is connected properly.

- If the message "OUT OF RANGE" appears on the screen:

Turn off the monitor. Then adjust the computer's graphics adapter to the following resolutions.

Each time you press the button, the input signal changes.

Screen messages (appear, for example, when the input signal is changed, in the upper left corner.)

INPUT1: DVI-D connector (digital RGB) INPUT1

INPUT2: HD15 input connector (analog RGB) INPUT2

Setting up the monitor's user adjustments

Performing settings

Connect the monitor to the computer, then turn them on.

The settings should be performed within 30 minutes of powering on.

Monitor settings are adjusted using the on-screen menu.

1 Display the main menu.

Press the MENU button to display the main menu.

2 Select the menu to adjust.

Press the / buttons to select the menu. Press the OK button to select the menu item.

3 Adjust the menu settings.

Press the / buttons to adjust the settings, then press the OK button. When the OK button is pressed, the setting is saved, and the display returns to the previous menu.

4 Close the menu.

Press the MENU button once to return to normal viewing mode. If no button is pressed, the on-screen menu automatically disappears after approximately 45 seconds.

Restoring factory settings

You can return to the factory settings through the RESET menu. See page 15 for more detailed information on returning to factory settings.

Controlling the monitor from a computer

Press and hold the MENU button for at least 5 seconds. You will see a message showing the current settings. After 5 seconds, the DDC/CI setting will be enabled or disabled, as shown below.

Adjust the image contrast.

Note

If the COLOR parameter is set to sRGB, you will not be able to adjust CONTRAST, BRIGHTNESS, or GAMMA.

1 Press the MENU button.

The main menu appears.

2 Press the / buttons to select

(CONTRAST), then press the OK button.

The CONTRAST menu appears on the screen.

3 Press the / buttons to adjust

the contrast, then press the OK button.

Adjust the black level of the image (BRIGHTNESS)

Adjust the brightness of the image (black level).

Note

If the COLOR parameter is set to sRGB, you will not be able to adjust CONTRAST, BRIGHTNESS, or GAMMA.

1 Press the MENU button. The main menu appears on the screen. 2 Press the or button to select BRIGHTNESS, then press the OK button. The brightness menu appears on the screen. 3 Press the or button to adjust the brightness, then press the OK button.

Adjusting the sharpness of the image and centering

When the computer is not working:

1 Open "My Computer" and right-click the CD-ROM icon. Select "Explore" and open the CD-ROM icon.

2 Open [Utility] and select [WINDOWS].

Macintosh users

1 Open the CD-ROM drive icon.

2 Open [Utility] and select [MAC].

3 Open [MAC UTILITY] and run [MAC_CLASSICUTILITY] or [MAC OSXUTILITY].

A test pattern will be displayed. Proceed to step 4.

4 Press the MENU button.

The main menu appears on the screen.

5 Press the or button to select SCREEN, then press the OK button.

The SCREEN menu appears on the screen.

6 Press the or button to select PHASE, then press the OK button. The PHASE adjustment menu will be shown on the screen. 7 Press the or button until the horizontal stripes become minimal. Adjust so that the horizontal stripes are minimal.

8 Press the OK button.

The main menu will appear on the screen. If vertical stripes are visible on the screen, adjust the pitch parameter by performing the following steps.

9 Press the down/up arrow buttons to select the pitch, then press the OK button. The pitch adjustment menu will be displayed on the screen. 10 Press the down/up arrow buttons until the vertical stripes disappear. Adjust in this way so that the vertical stripes disappear.

11 Press the OK button.

The main menu will appear on the screen.

12 Press the down arrow button to select HORIZ CENTER or VERT CENTER, then press the OK button. The HORIZ CENTER or VERT CENTER adjustment menu will be displayed on the screen. 13 Press the down/up arrow buttons to move the test pattern to the center of the screen. 14 Press the "END" button on the screen to disable the test pattern.

Color temperature adjustment (LBT)

You can select the white balance level from the following color temperature settings by default. Also, if necessary, you can perform fine adjustment of the color temperature. You can set the desired color temperature for each picture mode.

1 Press the MENU button. The main menu will appear on the screen. 2 Press the down/up arrow buttons to select (LBT), then press the OK button. The LBT menu will appear on the screen. 3 Press the down/up arrow buttons to select the desired color temperature, then press the OK button.

The white balance changes from a bluish to a reddish tint as the color temperature decreases from 9300K to 6500K (default value). If you select "sRGB", the color space profile is set to sRGB. (The sRGB color parameter is considered the standard for color space protocol in computer technology.) If you select "sRGB", the color settings of your computer must be set to the sRGB profile.

Application

If the connected computer or other equipment is not sRGB-compatible, the color cannot be adjusted to the sRGB profile. - If you select the sRGB value for the color parameter, you will not be able to perform contrast, brightness, or gamma adjustments.

Fine adjustment of color temperature (MANUAL ADJUST)

1 Press the down/up arrow buttons to select ADJUST, then press the OK button. The MANUAL ADJUST menu will appear on the screen. 2 Press the down/up arrow buttons to select R (Red) or B (Blue), then press the OK button. Then press the down/up arrow buttons to adjust the color temperature, and then press the OK button.

Since this color temperature adjustment is changed by increasing or decreasing the R component relative to G (Green), the G component remains unchanged.

Press the / buttons to select an element, then press the OK button.

The new setting will be saved in memory and will be recalled from memory each time you select it.

The screen will turn off temporarily.

Changing the gamma parameters (GAMMA)

You can match the color tone on the screen with the original color tone of the image.

Adjustment

If the color space is set to sRGB, you can adjust the contrast, brightness, and gamma.

1 Press the MENU button. The main menu appears on the screen. 2 Press the / buttons to select γ (GAMMA), then press the OK button. The GAMMA menu appears on the screen. 3 Press the / buttons to select the desired mode, then press the OK button.

Sharpness adjustment (SHARPNESS)

Adjust the sharpness of the image edges, etc.

1 Press the MENU button. The main menu appears on the screen. 2 Press the / buttons to select SHARPNESS, then press the OK button. The SHARPNESS menu appears on the screen. 3 Press the / buttons to adjust the sharpness, then press the OK button.

Selecting the menu position (POSITION)

You can change the position of the menu if it obstructs the image on the screen.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the / keys to select, then press the OK key.

The menu appears on the screen.

3 Press the / keys to select the desired position, then press the OK key.

There are three menu layout options: top, center, and bottom of the screen.

AUTOMATIC INPUT SWITCHING (INPUT DETECTION)

(Only for SDM-E76D/SDM-E96D models)

If you select AUTO INPUT in the INPUT DETECTION menu, the monitor will automatically detect the input signal. It will first check the current input, then switch to another input if no signal is detected. If no signal is found on any input, the monitor will enter power saving mode.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the / keys to select

(INPUT DETECTION), then press the OK key.

The INPUT DETECTION menu appears on the screen.

3 Press the / keys to select the desired mode, then press the OK key.

• AUTO INPUT: If there is no input signal on the selected input connector, or if the input connector is selected using the INPUT button on the monitor and there is no input signal on that connector, a message appears on the screen (p.16) and the monitor automatically checks for an input signal on the other input connectors and switches the input. When the input is switched, the selected input connector is displayed in the top left corner of the screen. If there is no input signal, the monitor automatically enters power saving mode.
• AUTOPOWER OFF: Automatic input change is not performed. Press the INPUT button to change the input source.

Selecting the on-screen menu language (LANGUAGE)

You can change the language used in the menus and messages displayed on the monitor screen.

1 Press the MENU button.

The main menu appears on the screen.

2 Press the button to scroll to the desired setting.

3 Press the / buttons to select

(LANGUAGE), then press the OK button.

The LANGUAGE menu appears on the screen.

4 Press the / buttons to select the language, then press the OK button.

• ENGLISH: English
• FRANÇAIS: French
• DEUTSCH: German
• ESPAÑOL: Spanish ITALIANO: Italian
• NEDERLANDS: Dutch SVENSKA: Swedish
• РУССКИЙ: Russian

Additional settings

You can configure additional parameters:

C RESET - BLOCKING

1 Press the MENU button.

The main menu appears on the screen.

2 Press the button to select the desired setting. 3 Press the button to select the desired parameter, then press the OK button.

Set the selected parameter according to the instructions below.

Resetting settings to default values

You can reset the settings to the default values.

1 Press the / button to select → ↔ (RESET), then press the OK button.

The RESET menu appears on the screen.

2 Press the button to select the desired mode, then press the OK button.

OK: Reset all settings to default values. Note that this method cannot reset setting A (LANGUAGE). CANCEL: Cancel the reset and return to the menu screen.

BLOCKING MENU OPERATION

You can block the controls with the buttons to prevent accidental settings changes.

1 Press the / button to select (BLOCKING MENU), then press the OK button.

The screen will show BLOCKING MENU.

2 Press the / button to select ON or OFF, then press the OK button.

ON: Only the power switch works. When performing other operations, the screen will show the (BLOCKING MENU) icon. OFF: Set (BLOCKING MENU) to OFF. If you set (BLOCKING MENU) to ON, you can only select this menu item.

Technical specifications

Energy saving function

This monitor complies with the energy saving standards set by VESA, ENERGY STAR, and NUTEK. If the monitor is connected to a computer or graphics adapter that supports DPMS (Display Power Management Signaling) for analog input or DMPM (Digital Monitor Power Management) for digital input, the monitor will automatically reduce power consumption according to the table below.

Image size: 19.0

LUMINANCE

Input signal format

RGB dot clock

Horizontal deflection:

Image size:

17.0 IOIIOMOB

Input signal format

Operating frequency RGB*

Horizontal scan

28-80 kHz (analog RGB)

28-64 kHz (digital RGB)

Vertical scan:

56-75 Hz (analog RGB)

60 Hz (digital RGB)

Resolution horizontal:

Max. 1280 dots

Vertical:

Max. 1024 lines

Input signal levels

Analog video RGB

0.7 Vp-p, 75 Ω,

positive

sync signal

level TTL, 2.2 kΩ

positive or

negative

(separate horizontal

and vertical)

digital RGB (DVI) (only

TMDS connection)

Power: 100-240 V, 50-60 Hz,

max. 1.0 A

Operating temperature: 5-35 °C

Dimensions (W x H x D)

Display (5°):

Accessories see page 6.

SDM-E96D

Panel type: active matrix

a-Si TFT

Image size:

19.0 inches

Input signal format

RGB operating frequency*

Horizontal scan:

28-80 kHz (analog RGB)

Horizontal resolution:

Max. 1280 dots

Vertical:

Max. 1024 lines

Input signal levels

0.7 Vp-p, 75 Ω,

positive

sync

level TTL, 2.2 kΩ

positive or

negative

(separate horizontal

and vertical)

digital RGB (DVI) (single

link TMDS)

power supply 100-240 V, 50-60 Hz

max. 1.0 A

operating temperature 5-35 °C

dimensions (width/height/depth)

Tilt (5°):

Approximately 420× 433.1×

193.2 mm

Weight approximately 5.5 kg

Plug & Play DDC2B

Accessories: see page 6.

• Recommended horizontal and vertical synchronization modes

The horizontal sync pulse width must be greater than 4.8% of the total horizontal scan period or 0.8 μs, whichever is greater. The interval between horizontal scan signals must be greater than 2.5 μs. The interval between vertical scan signals must be greater than 450 μs.

Design and specifications are subject to change without prior notice.

TCO'03 Eco-document

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on - chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in a way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:
2. Belgium: www.RECupel.be
3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se
6. Switzerland: www.swico.ch
7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

Customer in USA

As a member of EIA, Sony recommends visiting the URL below: http://www.ciac.org/

Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

Bruksanvisning

(SE)

SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANT

If you have any questions about this product, you may call Sony Customer Information Services Center at 1-800-222-7669 or visit http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications: SPECIFICATIONS Plug Type Nema-Plug 5-15p Cord Type SVT or SJT, minimum 3x18 AWG Length Maximum 15 feet Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

(only for analog RGB signal) 15

Troubleshooting 16

On-screen messages 16

3 Start [WIN_U T I L I T I E . E X E].

Test pattern is displayed. Continue to step 4.

For Macintosh users:

Digital RGB signal (DVI): TMDS

(single link)

Digital RGB signal (DVI): TMDS

(single link)

Power supply 100-240 V, 50-60 Hz

Max. 1.0 A

°C

Operating temperature 5-35

Size (width/height/depth)

Screen (5°)

Approximately 420× 433.1× 193.2mm

Weight Approximately 5.5 kg

Plug & Play DDC2B

Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14001.
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in a way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

Belgium: www.RECupel.be - Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment) - Norway: www.elretur.no - Sweden: www.el-kretsen.se - Switzerland: www.swico.ch

1. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

User's Guide.

(NL)

SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. _ _ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANT

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.roy.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following

specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 x 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Contents

Horizontal: 28-80 kHz

(analog RGB)

28-64 kHz

(digital RGB)

Vertical: 56 - 75Hz (analog RGB)

60 Hz (digital RGB)

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14001.
• Restrictions on chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in cooperation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in a way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:
2. Belgium: www.RECupel.be
3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se
6. Switzerland: www.swico.ch
7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

Color LCD Monitor

Operating Instructions (CS)

SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANT

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following

specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 x 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Table of Contents

Precautions before use 4

Identifying parts and controls 5

Installation 6

Step 1: Using the stand 6

Step 2: Connecting the monitor to your computer 6

Step 3: Connecting the power cord 7

Step 4: Bundling the cords 7

Step 5: Turning on the monitor and computer 7

Adjusting the tilt 8

Selecting the input signal (INPUT button) (SDM-E76D/SDM-E96D only) 8

Setting the monitor 8

Navigating the menu 8

Adjust backlight (Backlight) 10

Adjust contrast (Contrast) 10

Adjust the black level of the image (Brightness) 10

3 Open [MAC_UTILITY], then start [MAC_CLASSIC_UTILITY]

or [MAC OSX Utility].

A test pattern appears. Proceed to step 4.

4 Press the MENU button.

The main menu appears on the screen.

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14001.
• Restrictions on chlorinated and brominated flame retardants and polymers.
• Heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in a way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:
2. Belgium: www.recupel.be
3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se
6. Switzerland: www.swico.ch
7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

Operating Instructions

(CZ)

SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANT

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following

specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type: SVT or SJT, minimum 3 × 18 AWG

Length: Maximum 15 feet

Rating: Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Contents

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in a way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

Belgium: www.RECupel.be - Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment) - Norway: www.elretur.no - Sweden: www.el-kretsen.se - Switzerland: www.swico.ch

1. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANT

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following

specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 x 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

3 Start the [WIN_U T I L I T Y.EXE] program.

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on - chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in a way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:
2. Belgium: www.RECupel.be
3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se
6. Switzerland: www.swico.ch
7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

Instruction Manual

(PL)

SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANT

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following

specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Table of contents

3 Run [WIN_UTILITY.EXE].

[MAC_CLASSIC Utility] or [MAC OSX Utility].

Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in a way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

Belgium: www.RECupel.be - Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment) - Norway: www.elretur.no - Sweden: www.el-kretsen.se - Switzerland: www.swico.ch

1. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

Customer in USA

As a member of EIA, Sony recommends visiting the URL below: http://www.ciac.org/

Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANT

If you have any questions about this product, you may call Sony Customer Information Services Center at 1-800-222-7669 or visit http://www.roy.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following

specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Minimum Rating 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Table of Contents

Caution 4

Monitor parts and adjustment elements. 5

Setup. 6

Setup 1: Use the supplied stand. 6

Setup 2: Connect the monitor to your computer. 6

Image size: 17.0

Video signal form

signal

Horizontal: 28 - 80 kHz (analog RGB)

Vertical: 56 - 75 Hz (analog RGB)

LCD panel Panel type:

a-Si TFT with active matrix

Image size: 19.0

LCD panel Panel type:

a-Si TFT with active matrix

Image size: 17.0

LCD panel Panel type:

a-Si TFT with active matrix

Image size: 19.0

Input signal form Working frequency RGB*

signal

Horizontal: 28 - 80kHz (analog

RGB)

28-64kHz

(digital)

Vertical: 56 - 75Hz (analog

RGB)

60Hz (digital RGB)

Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in a way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

Belgium: www.RECupel.be - Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment) - Norway: www.elretur.no - Sweden: www.el-kretsen.se - Switzerland: www.swico.ch

1. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

Kullanim Bilgileri

(TR)

SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. _ _ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANT

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.roy.com/

Declaration of Conformity

Trade Name: SONY

Model: SDM-E76A/SDM-E96A

SDM-E76D/SDM-E96D

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 x 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'03 guidelines.

Contents

Warnings 4

Screen size: 19.0 inches

Input signal format RGB operating frequency*

Horizontal: 28-80 kHz (analog RGB)

28-64 kHz (digital RGB)

Vertical: 56-75 Hz (analog RGB)

60 Hz (digital RGB)

Resolution Horizontal: Max. 1280 dots

Vertical: Max. 1024 lines

Input signal level: RGB video signal

Operating temperature: 5-35

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14001.
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system

started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in a way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:
2. Belgium: www.recycle.be
3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se
6. Switzerland: www.swico.ch
7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.eiae.org/

Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html
