USER MANUAL DVDP39 PROLINE

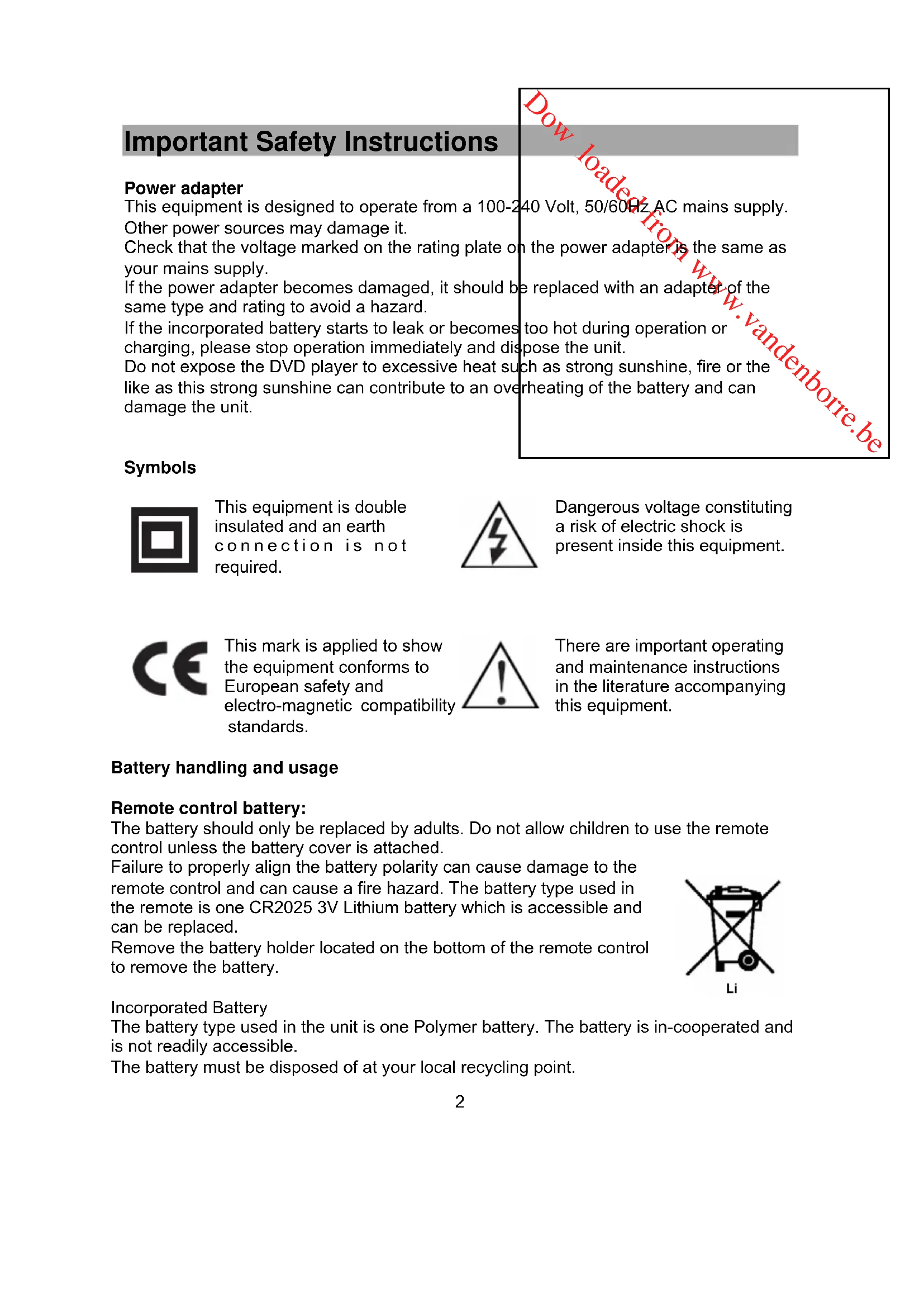

Important Safety Instructions Power adapter This equipment is designed to operate from a 100-240 Volt, 50/60Hz AC mains supply. Other power sources may damage it. Check that the voltage marked on the rating plate on the power adapter is the same as your mains supply. If the power adapter becomes damaged, it should be replaced with an adapter of the same type and rating to avoid a hazard. If the incorporated battery starts to leak or becomes too hot during operation or charging, please stop operation immediately and dispose the unit. Do not expose the DVD player to excessive heat such as strong sunshine, fire or the like as this strong sunshine can contribute to an overheating of the battery and can damage the unit.

Symbols This equipment is double insulated and an earth connection is not required. Dangerous voltage constituting a risk of electric shock is present inside this equipment.

This mark is applied to show the equipment conforms to European safety and electro-magnetic compatibility standards. There are important operating and maintenance instructions in the literature accompanying this equipment. Battery handling and usage Remote control battery: The battery should only be replaced by adults. Do not allow children to use the remote control unless the battery cover is attached. Failure to properly align the battery polarity can cause damage to the remote control and can cause a fire hazard. The battery type used in the remote is one CR2025 3V Lithium battery which is accessible and can be replaced. Remove the battery holder located on the bottom of the remote control to remove the battery. Incorporated Battery The battery type used in the unit is one Polymer battery. The battery is in-cooperated and is not readily accessible. The battery must be disposed of at your local recycling point.Downloaded from www.vandenborre.be

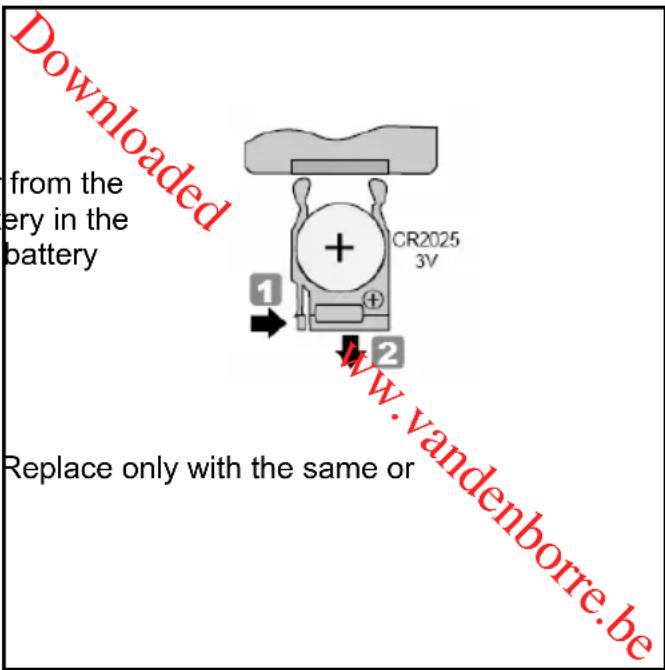

Installing Remote Control Battery Push and pull to slide out the battery holder from the remote control and insert one 3V CR2025 lithium battery in the battery holder with the print face up, then replace the battery holder.

CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

To save power: switch off mains power or pull out the power adapter plug when you are not using the equipment. Never operate the equipment and try to view video while driving a vehicle. To prevent injury, this equipment must be securely attached to the car seats as in accordance with the installation instructions.

Class 1 laser product This product contains a low power laser device. Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam.

This digital video disc player employs a laser system. Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation Exposure. To prevent direct exposure to laser beam, do not open the enclosure. Invisible laser radiation when the enclosure is opened. Never stare directly into the laser beam. Do not install this product in a confined space such as a book case or similar unit.Downloaded from www.vandenborre.be

Notes on Copyrights: z It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. z This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorised by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Notes on Discs Handling Discs Do not touch the play side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc. Storing Discs After playing, store the disc in its case. Do not expose the disc to direct sunlight or source of heat and never leave it in a parked car exposed to direct sunlight. Cleaning Discs Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the centre out. Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.Downloaded from www.vandenborre.be

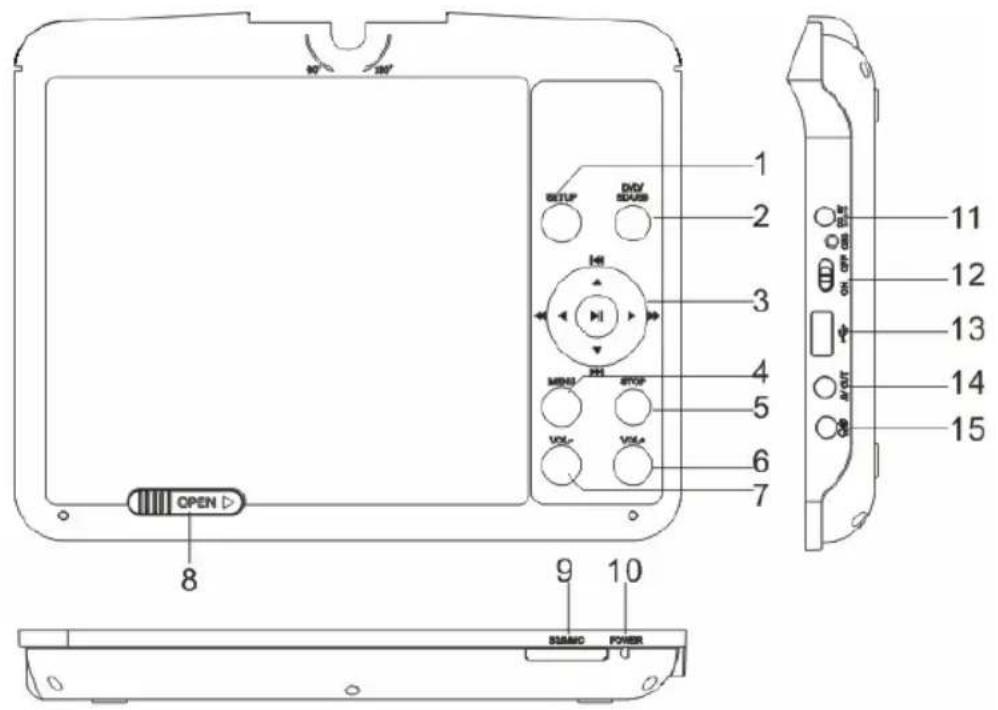

y Press to skip to the previous chapter, track or scene during playback.

y Press to skip to the next chapter, track or scene during playback.

Earphones: Insert a standard 3.5mm earphone into the earphone socket. The speakers will be muted.

Connect earphones with volume set low and increase it if required. Prolonged listening through some earphones at high volume settings can result in hearing damage. Earphones or headphones must comply with EN50332-1 / EN50332-2 to ensure continued protection from excessive sound pressure.

At full power, prolonged listening to the player can damage the ear of the user.

WARNING: To protect your hearing, it is important that any earphones or earphones

used in conjunction with this product are compliant with French Decree of 8 November 2005 implementing Article L.5232-1. This ensures that the sound level does not exceed 100 dB SPL. The prolonged listening at high volume for more than five hours a week can damage your hearing.Downloaded from www.vandenborre.be

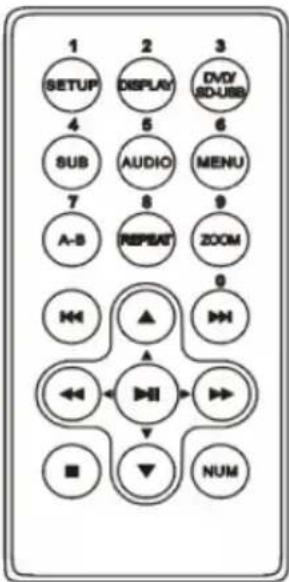

NUM Some function buttons compound with 0-9 number functions. Press NUM to activate the 0-9 number functions but lock these function buttons. Meanwhile “NUM” appears on the screen to remind the customer the number functions are available. To use the function buttons, press NUM until “NUM” disappears on the screen.

Getting Started Connecting Power To connect power from inside a car, connect the supplied car power cord to the DC jack of the unit and to the car cigarette lighter socket. To connect power from household power sources, connect the supplied adapter cable to the DC jack of the unit and to the mains socket. Caution! When you unplug the adapter, always pull the plug from the mains socket. Never pull the cord.Downloaded from www.vandenborre.be

Connecting Audio/Video Cable

1. Connect the single-connector end of the supplied audio/video cable to the AV OUT

2. Connect the triple-connector end of the supplied audio/video cable to the

corresponding jacks of the TV display. NOTE: Match the colour of the AV cable with the jacks of TV display. The yellow cable is for the yellow video jack, the red/white cable is for the red/white audio jacks. Charging the Incorporated Battery of the DVD player The DVD player has an incorporated battery, to charge the battery, connect the supplied adapter cable to the DC jack. The red charge indicator light will flash. When the battery is fully charged, the red charge indicator light will stop flashing. NOTE: It takes appr. 5 hours to fully charge the battery. For the first time use, charge the battery for appr. 8 hours. The fully charged battery can last appr. 2 hours.

Basic Operation Playing a DVD

1. Slide power switch at the side of the player to the ON position to turn the player on.

The power indicator light will come on.

2. Slide OPEN to open the disc tray and insert your chosen disc in the tray, with the

label side facing up

3. Close the tray. Play starts automatically.

NOTE: Some discs do not support menus and start to play automatically. Moving to another CHAPTER/TRACK DVD When a title on a disc has more than one chapter or a disc has more than one track, you can move to another chapter/track as follows:

or briefly during play to select the next or previous chapter/track.

2. To go directly to any chapter / track during DVD playback, input the chapter/track

number. Repeat A-B To repeat a sequence,

1. Press A-B on the remote at the chosen starting point. “

” appears on the screen.

2. Press A-B again at the chosen end point. “ ” appears on the screen and the

repeat sequence begins.

Repeat You can play a title/chapter/all the tracks on a disc repeatedly. Press REPEAT during play to select a desired repeat mode. “ Repeat chapter / title / all” CHAPTER: repeats the current chapter. TITLE: repeats the current title. ALL: repeats all the tracks on a disc. Zoom You can zoom in for video images. Press ZOOM repeatedly to change the size in the following sequence. 2X size → 3X size → 4X size → normal size

1. Press MENU. If the current title has a menu, the menu appears on the screen.

Otherwise, the disc menu will not appear.

2. The MENU offers features such as camera angles, language, subtitle options and

chapters for the title. Selecting the Audio Language For DVDs that contain two or more audio languages, during play press AUDIO on the remote repeatedly until the desired language is selected. Selecting the Subtitle Language For DVDs that contain two or more subtitle languages, during play press SUB on the remote repeatedly until the desired language is selected.

Playing an Audio CD, MP3 Disc Audio CD Once an Audio CD is inserted it will be played automatically. Its play information will show on screen, when you press DISPLAY repeatedly the following timers will be displayed, Single Elapsed, Single Remain (current track), Total Elapsed, Total Remain (All Tracks) and Display Off. Press or to move to the next / previous tracks or press or repeatedly to play (search) the current track at different speeds, each press will select 2X, 4X, 8X, 16X, 32X or back to play, the sound will be muted or distorted during search, press to return to normal play from any selected speed. MP3

1. Press ▲/▼to select a folder and press

to see the folder contents.

1. Press during play.

2. To return to play, press

again. Moving to a Desired Track

or during play to go to the next or previous track or move to the beginning of the current track.

2. You can play any track by inputting its number then press to play it.

Repeat For audio CD only, when REPEAT is pressed the repeat mode icon appears on the screen. Track: repeats the current track. All: repeats all the tracks on a disc. Off: normal play. For MP3, when REPEAT is pressed the repeat mode icon briefly appears on the screen. Select the desired mode in the following modes.

REPEAT ONE→REPEAT FOLDER→REPEAT OFF

1. To repeat a sequence during an audio CD disc play, press A-B at your chosen

A” appears on the screen.

2. Press A-B again at your chosen end point. “

AB” appears on the screen and the sequence begins to play repeatedly.

3. To exit the sequence and return to normal play, press A-B again. “ AB”

disappears on the screen. Adjusting Volume Press VOL+/- on the player to increase or decrease the volume level. Playing a JPEG Disc Viewing a JPEG Disc Using this DVD Player you can view discs with JPEG files.

1. Insert a JPEG disc and close the tray. The file menu appears on the display.

2. Use to highlight the file you want to play and press .

Slide show starts from the selected file.

3. During playing JPEG disc, Press to move to the next page, press to return

during slide show. The player will now go into PAUSE mode.

1. Press ZOOM repeatedly to zoom in and out.

2. When the picture is enlarged, press

to pan through it. To rotate a picture Press repeatedly during play to rotate the picture clockwise.

Digital Card and USB Play Digital cards (MMC/SD card) and USB with mp3&pictures (.jpg) may be played and displayed through the unit. MMC/SD cards may be directly inserted through the card reader slot. The USB socket can be used to supply signals to the unit from USB sources.

1. Switch the unit on.

2. Insert a USB cable into the USB port or a card into the card reader slot on the side

3. Press DVD/SD-USB and the unit would automatically detect the USB/CARD.

4. If USB/CARD is selected, the unit will begin to read the card or USB connected to it.

SETUP Menu Setting General Operation

4. Press to enter the next level of submenu or confirm your selection.

To exit from the menu Press SETUP, the settings will be stored in the player’s memory. General Setup Page The options included in General Setup page are: TV DISPLAY, ANGLE MARK, OSD LANGUAGE, SET SCREEN SAVER and LAST MEMORY.

1. Press SETUP to enter the setup menu.

2. Press to select GENERAL SETUP PAGE.

TV Display Set the aspect ratio of the DVD Player according to the TV you have connected.

1. Press ▲▼repeatedly to highlight TV DISPLAY.

2. Enter its submenu by pressing

3. Press ▲▼repeatedly to highlight the selected item.

to confirm.Downloaded from www.vandenborre.be

• If you have a normal TV and want both sides of the picture to be trimmed or formatted to fit your TV screen. NORMAL/LB

• If you have a normal TV. In this case, a wide picture with black bands on the upper and lower portions of the TV screen will be displayed. WIDE

• If you have a wide-screen TV. Angle Mark It displays current angle setting information on the display, if available on the disc.

1. Press ▲▼repeatedly to highlight ANGLE MARK.

2. Enter its submenu by pressing

3. Press ▲▼repeatedly to highlight the selected item.

• On: Enable Angle Mark.

• Off: Disable the current angle setting display.

OSD Language You can select your own preferred language settings. This DVD system will automatically switch to the selected language whenever you load a disc. If the language selected is not available on the disc, the disc’s default language will be used instead. The OSD language in the system menu will remain once selected.

1. Press ▲▼ repeatedly to highlight OSD LANGUAGE.

2. Enter its submenu by pressing

3. Press ▲▼repeatedly to highlight the selected item.

Set Screen Saver This function is used to turn the screen saver On or Off.

1. Press ▲▼ repeatedly to highlight SET SCREEN SAVER.

2. Enter its submenu by pressing

3. Press ▲▼ repeatedly to highlight the selected item.

• On : In STOP, PAUSE or No DISC mode, if no actions are performed about 5 minutes, the Screen Saver will be activated.

• Off: Screen Saver is disabled.

to confirm.Downloaded from www.vandenborre.be

1. Press ▲▼ repeatedly to highlight LAST MEMORY.

2. Enter its submenu by pressing

3. Press ▲▼ repeatedly to highlight the selected item.

• On : The player returns to the last location memorised on the disc.

• Off : The player does not return to the last location memorised on the disc.

to confirm. Video Quality Setup

1. Press to highlight VIDEO QUALITY SETUP and press to enter the

2. Press ▲▼repeatedly to highlight a submenu from BRIGHTNESS, CONTRAST,

3. Enter its submenu by pressing .

5. Press to confirm.

Password Setup Page This feature is used for Parental Control. Enter your four digit password when a hint is displayed on the screen. The default password is 3308.

1. Press ▼ to highlight PASSWORD.

2. Enter its submenu by pressing

4. Press NUM until ‘NUM’ appears on the screen.

7. Enter the new 4-digit code again to confirm.

• The new 4 digit code will take effect.

9. Press NUM until ‘NUM’ disappears.

Helpful Hints: If the password has been changed, the parental and disc lock code will also be changed. Preference Page (accessible when no disc is inserted) Preference Page The options included in Preference page are: AUDIO, SUBTITLE, DISC MENU, PARENTAL and DEFAULT. Press repeatedly to select the Preference Page.Downloaded from www.vandenborre.be

Audio, Subtitle and Disc menu These options set the Audio, Subtitle and Disc menu language for you. - “Audio” (disc’s soundtrack) - “Subtitle” (disc’s subtitles) - “Disc Menu” (disc’s menu)

1. Press ▲▼ repeatedly to highlight AUDIO.

2. Enter its submenu by pressing

3. Press ▲▼repeatedly to highlight a selected language and press

4. Repeat steps 1 to 3 for Subtitle and Disc language settings.

Parental Some DVDs may have a parental level assigned to the complete disc or to certain scenes on the disc. This feature lets you set a play limitation level. The rating levels are from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children or have certain discs played with alternative scenes.

1. Press▲▼repeatedly to highlight PARENTAL.

2. Enter its submenu by pressing

3. Use ▲▼ repeatedly to highlight a rating level for the disc inserted.

and type in the password to confirm.

• DVDs that are rated above the level you selected will not play unless you enter your four-digit password or choose a higher level rating. Helpful Hint: Some DVDs are not encoded with a rating though the movie rating may be printed on the Disc cover. The rating level feature does not work for such Discs. Rating explanations

Kids material; recommended especially for children and viewers of all ages.

General Audience; recommended as acceptable for viewers of all ages.

Parental Guidance suggested.

Material is unsuitable for children under age 13.

Parental Guidance-Restricted; recommended that parents restrict children under 17 from viewing or allow to view only when supervised by a parent or adult guardian.

No children under age 17; not recommended viewing for children under age 17.

Mature material; should be viewed only by adults due to graphic sexual material, violence or language.Downloaded from www.vandenborre.be

Default Setting the Default function will reset all options and your personal settings to the factory defaults and all your personal settings will be erased.

1. Press ▲▼repeatedly to highlight DEFAULT.

2. Highlight RESET by pressing

to confirm selection. Caution! When this function is activated, all settings except the parental control settings will be reset to factory defaults.

Specifications AC adapter ratings: Input: 100-240V~ 50/60Hz Output: 9V 1.5A 13.5W Max Note: Only used Charging Adaptors with the same rating as above in order to avoid to damage the unit.

Maintenance Cleaning the unit To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine or thinner, as these might damage the surface of the unit. Maintaining the unit The DVD player is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. Depending on the operating environment, regular inspection and maintenance are recommended after every 1,000 hours of use.

Troubleshooting Before calling for service, you can check the following items on symptoms and solutions. No sound or distorted sound: Ensure that the equipment is connected properly. Ensure that the input settings for the TV and stereo system are proper.Downloaded from www.vandenborre.be

No picture: Ensure that the equipment is connected properly. No play: Condensation has formed: wait about 1 to 2 hours to allow the player to dry out. This player can’t play discs other than DVDs, MP3s and CDs. The disc may be dirty and require cleaning. Ensure that the disc is installed with the label side up. No remote control: Check the battery is installed with the correct polarity (+&-). The battery is depleted: replace it with a new one. Point the remote control at the remote control sensor and operate. Remove the obstacles between the remote control and the remote control sensor. Operate the remote control at a distance of not more than 8 meters from the remote control sensor. No key operation (by the unit and/or the remote control) is effective: Turn the unit off and then back to on. Alternatively, turn off the unit, disconnect the AC power cord and the re-connect it. (The player may not be operating properly due to lightning, static electricity or some other external factor.) The Battery does not work: Check whether the battery is out of power or in proper connection.

Play does not commence even when title is selected: Confirm the “Rating” settings. Audio soundtrack and/or subtitle language is not the one selected at the initial settings: If the audio soundtrack and/or subtitle language does not exist on the disc, the language selected at the initial setting will not be seen/ heard. No subtitles: Subtitles appear only with discs which contain them. Alternative audio soundtrack (or subtitle) language fails to be selected: An alternative language is not selected with discs which do not contain more than one language. In the case of some discs, the alternative language cannot be selected by operating AUDIO or SUBTITLE. Try selecting it from the DVD menu if one is available. We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.
