USER MANUAL PDVD7030 Difrnce

Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain

1) Please read the instruction manual carefully and follow all the requirements of safe

operation to operate the device.

2) Do not use this unit near water. Do not place over the unit any container with liquid inside.

3) Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

4) Unplug this unit during lightning storms or when unused for long time.

5) About Cleaning: Unplug the system, use only wet cloth to clean. Do not use liquid

detergent or aerosol.

6) Only use accessories specified by the manufacturer.

7) Refer all servicing to qualified service personnel, servicing is required when the unit

has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the unit, exposed to moisture, does not operate normally. Don't try to repair the machine by yourself because of the danger of high voltage and electric shock.

8) Do not use irregular shaped discs such as heart or star-shaped discs as they may

cause the unit to malfunction.

Hi-voltage, Don't Open it Remind user to be careful to avoid electric shock Thank you for choosing our portable DVD player. It includes a 7” wide screen and a DVD player. The unit applies the latest state of art electronics and is designed for use at home, in hotels and in offices etc for relaxation. The compact size makes carrying easier as well as installation. Please read the manual carefully prior to use and keep it well for later consultation.32 Main Features High brightness color 7” LCD screen Compatible with disc of DVD, VCD, MP3, MPEG4, CD, JPEG, etc. Built-in stereo speaker Built-in rechargeable Lithium polymer battery Support PAL or NTSC system Support Multi-language OSD, speed forward/backward, repeat function Zoom in/out function

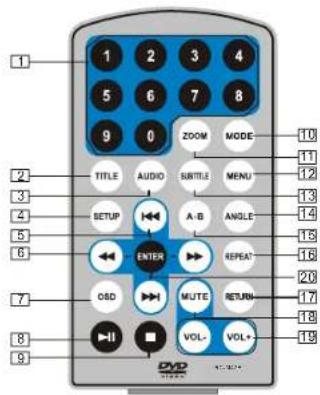

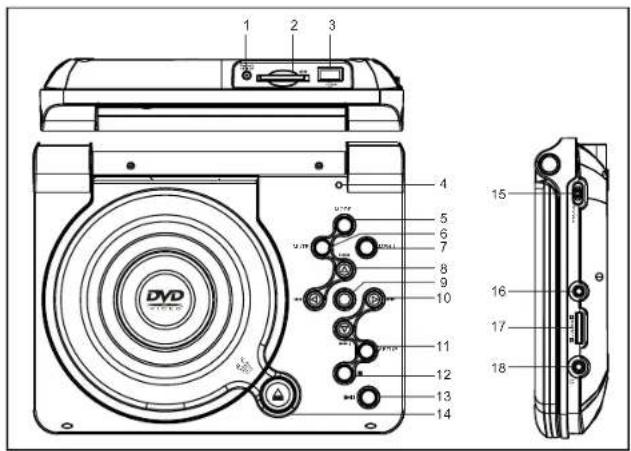

5. Previous/Next button (To go to

previous/next chapter or scene during playing)

6. Fast forward/backward button (To

scan forward/backward at 2, 4, 8, 16, or 32 times ) 7.OSD ( To display disc information during playing such as elapsed and remaining time)

9. Stop ( press once to stop playback, then

press to resume playback from the point where you stopped; press stop button twice to stop playback completely)

10. MODE (To select the source)

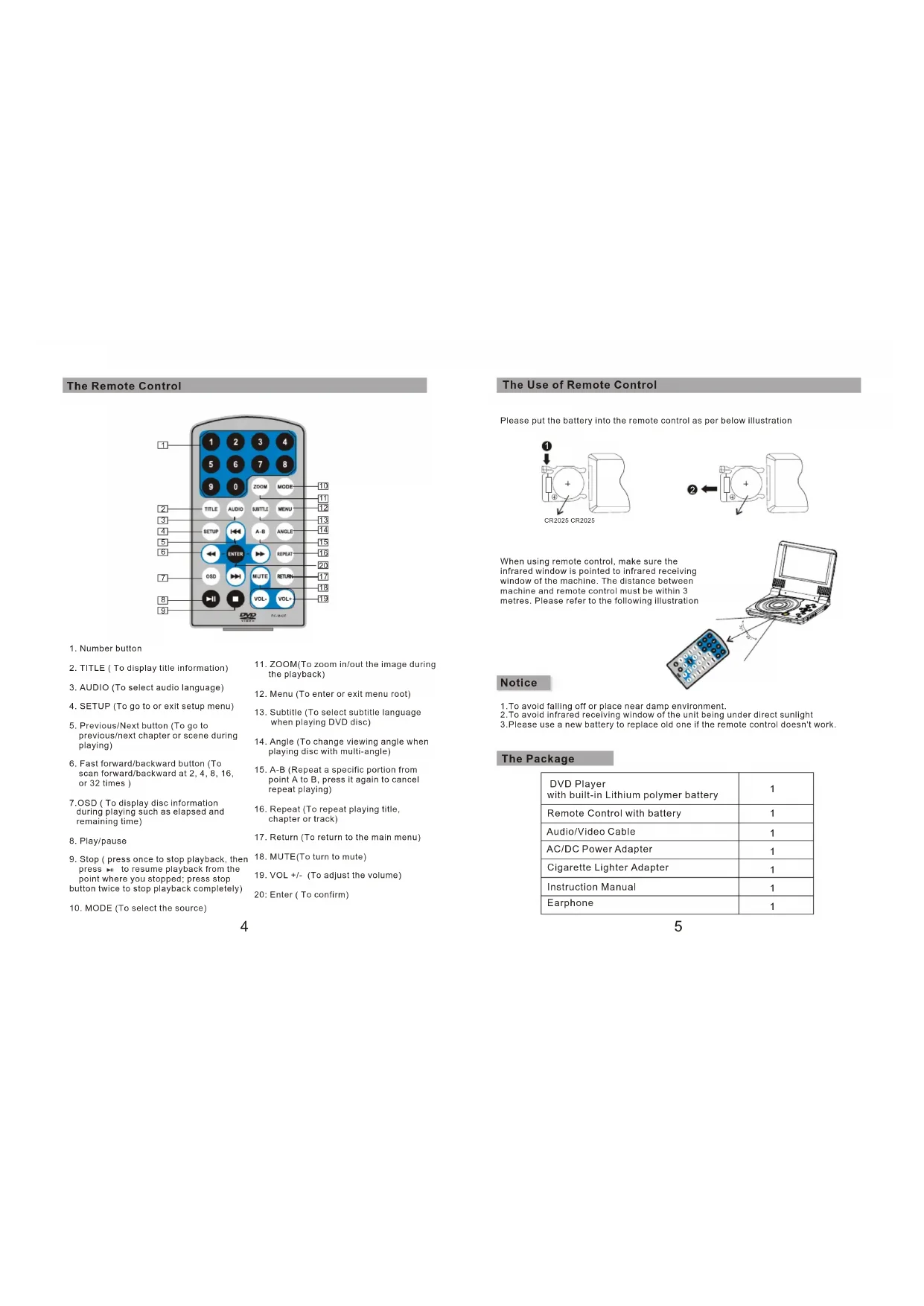

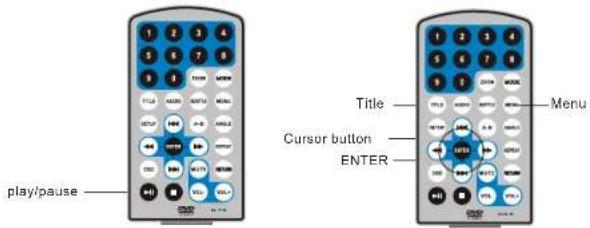

The Use of Remote Control Please put the battery into the remote control as per below illustration DVD Player with built-in Lithium polymer battery Remote Control with battery Audio/Video Cable AC/DC Power Adapter Cigarette Lighter Adapter Instruction Manual Earphone The Remote Control

11. ZOOM(To zoom in/out the image during

when playing DVD disc)

14. Angle (To change viewing angle when

playing disc with multi-angle)

15. A-B (Repeat a specific portion from

point A to B, press it again to cancel repeat playing)

16. Repeat (To repeat playing title,

20: Enter ( To confirm) When using remote control, make sure the infrared window is pointed to infrared receiving window of the machine. The distance between machine and remote control must be within 3 metres. Please refer to the following illustration Notice 1.To avoid falling off or place near damp environment. 2.To avoid infrared receiving window of the unit being under direct sunlight 3.Please use a new battery to replace old one if the remote control doesn't work. The Package RC-M42E

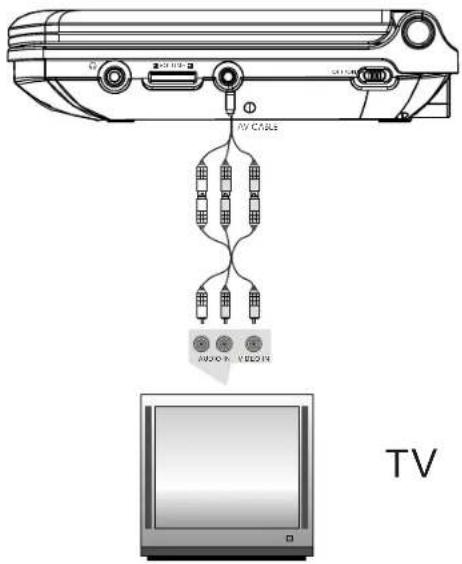

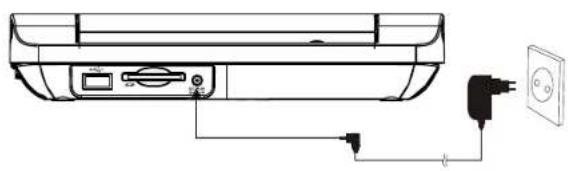

E76 Notice: 1.Car cigarette lighter adaptor can't be used to recharge the battery 2.Car cigarette lighter adaptor is available to use only when the car power supply is 9-12V Connecting to TV You can also connect the unit to a TV to enjoy high quality picture and stereo sound. Please refer to the following illustration: Please use AV cable to connect the machine and the TV. Make sure it is connected correctly. Powering and installation Plug one end of the AC/DC power adaptor into the DC IN 9V jack on the right of the machine, then plug the other end into the AC power receptacle. Please refer to the following illustration If using car cigarette lighter adaptor to connect to the power: Plug one end of the cigarette lighter adaptor into the DC IN 9V jack on the unit, plug the other end into the car cigarette lighter socket. See illustration below.

AUDIO INVIDEO INAV CABLEOFF/ONAV OUT++VOLUME

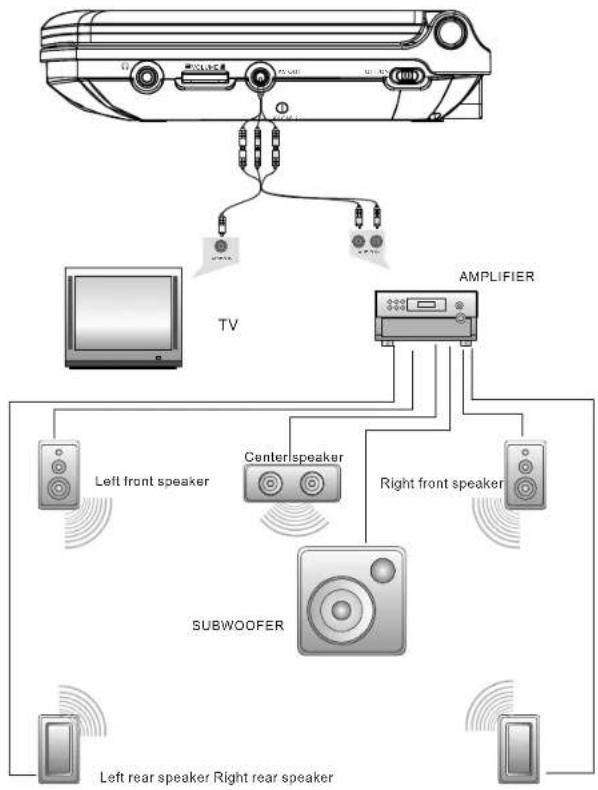

Connecting with external Speaker The unit can be connected with external speaker. Please see the following illustration AMPLIFIER SUBWOOFERLeft front speakerRight front speakerCenter speakerLeft rear speaker Right rear speakerNotice:There is no 5.1 channel in the unit, however, after connecting to APM it is available to output audio in 5.1 channelAUDIO INVIDEO INAV CABLE Playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3, Xvid

1. After connecting power to the unit, turn on the unit by sliding the ON/OFF

2. Open the disc door and insert a disc into the door with the label side facing

3. Close the disc door. The unit will load the disc and start playing.

4. Press once to stop playback; then press to resume playback from

the point where you stopped; press twice to stop playback completely).

5. During playback, press to pause; press it again to resume playback.

6. When the playing is finished, please turn off the power by sliding ON/OFF

7. For some DVD disc with Title or Chapter menu, press “ MENU” button to

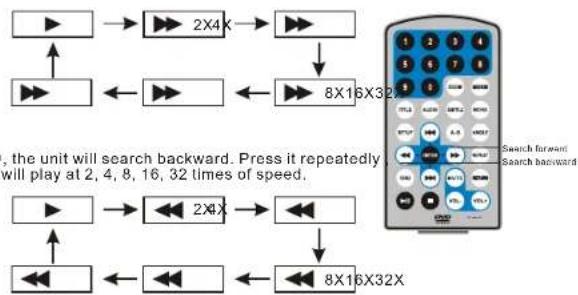

1. Press , the unit will search forward. Press it repeatedly ,the unit will play at 2, 4, 8, 16,

2. Press , the unit will search backward. Press it repeatedly ,

the unit will play at 2, 4, 8, 16, 32 times of speed. Repeat playing When playing disc of DVD, MPEG4, SVCD, VCD, CD, DivX, user can repeat playing one chapter, title or all the whole disc. For DVD disc, press “repeat” button, user can repeat playing one Chapter; press it again to repeat playing Title; press it the third time to repeat playing the whole disc. For MP3 disc, press “repeat” to repeat playing present file; press it again to repeat playing the folder; press it the third time to cancel repeat playing. Search backwardChapter Title All Repeat off repeat one Repeat folder Repeat off When playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3, DivX, user can repeatedly play a specific section. During playback, press “A-B” button at a point A, then press this button again in point B, the unit will automatically repeat playing the part between A-B Press it the third time, the unit will return to normal playback. 1 /4 2 /4 3 /4 4 /4

Number Angle During playing DVD disc with multi-angle, press “Angle” button, the followings will be displayed on screen: Press number buttons to select the angle you desire To return to normal playing, please press “Angle” . The unit will play the disc in the default angle. Notice The function is available only for discs with multi-angle. Angle A-B RC-M42E

Zoom in/ out When playing disc of DVD, MPEG4, SVCD, VCD, DivX, user can zoom in or zoom out the image . During playback, press “Zoom ” button, the image will be enlarged; press it again the image will be enlarged again; press it fourth time, the image will zoom out, press it repeatedly and the image will return to normal status. When the image is enlarged, user can press to move the image Playing JPG file

1. Place a JPG disc into the tray, the unit will start reading and play.

2. Press “MENU” to browse JPG files.

3. Press to select a JPG file and press “ OK ” button to confirm.

4. To rotate the picture counter-clockwise, press “ “; Press “ “ to rotate the picture

5. Press OSD button when viewing pictures, you can select different refresh mode as

follows: a. from top to bottom b. from bottom to top c. from left side to right side d. from right side to left side e. from left top to right bottom f. from right top to left bottom g. from left bottom to right top h. from right bottom to left top

I. from horizontal center to both sides

j. from vertical center to both sides k. from top and bottom to center. l. from right and left to center. m. from four window's top side to bottom side. n. from four window's left side to right side. o. from 4 edges to center.

6. During viewing files, “ “ may appear when pressing or "Subtitle" or "Audio"

or "A-B" or "Title" etc; in this situation these options are unavailable to operate.

7. When viewing JPG files, press " " , pictures will be displayed in thumbnail mode,

press or “ENTER” button to select one picture to view Playing MP3 files 1.Place MP3 disc into the disc door or insert USB disk, SD card to USB port or SD card slot. Press “ ” or “ENTER” button to choose a MP3 file; Press “ ” or “ ENTER” button to play the file selected. 00 36 03 43Dir 001 \Ctyy\

Mp3 TRACK01 Mp3 TRACK02 Mp3 TRACK03 Mp3 TRACK04 Mp3 TRACK05 "Angle”

TV display: Enter this option, user can set screen display format (Nomal/PS, Nomal/LS, Wide) The default is "Wide" Note The function depends on the display ratio with which the DVD disc is recorded. Please choose “Wide(16:9)"when using a16:9 wide screen TV set TV Type: Enter this option to select TV type(PAL,NTSC) The default is PAL. System Setup --General Setup Page--TV Display WideAngle Mark ON TV Type PAL Screen Saver ON OSD Lang ENG Press”Setup”button,the main menu will be displayed on the screen In the General Setup Page, Press button to highlight this item. Press OK button to access. Press button to select the setting. Press OK button to confirm your selection. Press button to exit. Audio: Enter this option, user can select your preferred audio language for DVDs. The default is English. Note The audio language depend on the material on each disc. User can also change the audio language during playback by pressing the Audio button. Subtitle Select your preferred language to show the subtitles on the screen. The default is OFF The subtitle languages depend on the information available on each disc,You can also change the subtitle language during playback by press the SUBTITLE button. Enter this option, user can adjust picture quality of video output. There are items available to be adjusted: Brightness, contrast, Hue and Saturation. For all these items the default is 00 OSD Language: In the option user can set OSD menu language. The default:English Enter this option,you can set a password(four numbers). All parental Control features are password protected. The default is 8888.

6 R 7 NC 178 ADULT--Preference Page--Load Factory SettingAudio ENGSubtitle OFFDisc Menu ENGParentalDefault Reset The unit utilizes long-life Li polymer battery for portable power supply. The battery has no "Memory Effect" and thus can be recharged safely regardless of whether the battery is fully or partially discharged. It's enough to recharge no longer than 6H each time, fully recharged battery can last about 2 hours. The battery can be only recharged when turning power to OFF state, and keep continuous power supply, the red light will be on, and the light will turn yellow when it's fully charged.

1. The normal working temperature is: 0 ~45 ;

2. Always unplug AC/DC power supply for the unit when not in use;

3. Heat will create during playing, it's normal, while avoid long time playing and

4. Avoid having the unit collide with any objects, and place away from all possible heat

sources or damp areas. °C °C The specification and rechargeable battery use Using and Maintaining Rechargeable Battery Specification Compatible disc: DVD/VCD/CD/MP3/MPEG4 Signal system: PAL/NTSC Panel size: 7 inch Frequency response: 20 Hz to 20 kHz Video output: 1 Vp-p/75 Ohm, unbalanced Audio output: 1.4Vrms/10kOhm Audio S/N: Better than 80 dB Dynamic range: Better than 85 dB USB: support USB 1.1 Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm Power source: DC 9-12V Power consumption: 10 W Operating temperature: 5~40°C Weight: 0.753kg Dimensions (W x D x H): 206x 158 x 41mm Battery Type: Li Polymer Precautions related to Battery Recharge

Rechargeable battery use

Troubleshooting PROBLEM SOLUTION No sound or distorted sound Make sure the machine is connected properly. Make sure all cables are securely inserted into the appropriate jacks. The icon appears on screen Can't advance through a movie Picture is distorted No forward or reverse scan You can't advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action. The feature or action cannot be completed at this time because:

1. The disc's software restricts it.

2. The disc's software doesn't support the

feature (e.g., angles)

3. The feature is not available at the moment.

4. You've requested a title or chapter number
