PDVD9000TWIN - Portable DVD Player Difrnce - Free user manual and instructions

Product Type	Portable dual-screen DVD player
Brand	Difrnce
Model	PDVD9000TWIN
Screen Size	23 cm (9 inches) each, 16:9 aspect ratio
Screen Resolution	640 x 234 pixels (QVGA)
Supported Disc Types	DVD-Video, Audio CD, JPEG CD (CD-R/RW for JPEG)
Power Supply	AC adapter 100-240 V AC, 50/60 Hz, output 9 V DC 2 A; 12 V DC car lighter adapter
Power Consumption	Main unit: ≤ 8 W, Screen: ≤ 4 W
Ports	USB port, SD/MMC card reader, 3.5 mm headphone jack, 3.5 mm AV input/output
Main Functions	DVD/CD/JPEG playback, zoom, subtitles, multi-audio, angle, A-B repeat, USB/SD playback, standby
Video Output	1 V peak-to-peak ±0.2 V, 75 ohms, negative sync
Audio Output	1.2 Vrms (1 kHz, 0 dB)
Remote Control	Infrared, CR2025 battery included, range up to 4.5 m
Audio Signal-to-Noise Ratio	90 dB typical
Approximate Dimensions	Approximately 25 x 18 x 4 cm (estimate)
Approximate Weight	Approximately 1.2 kg (estimate)
Maintenance and Cleaning	Unplug before cleaning; use a damp cloth, no liquid or aerosol products
Safety	Do not expose to moisture; do not open the casing; Class 1 laser risk; do not obstruct ventilation slots
Spare Parts and Repairability	Use only parts recommended by the manufacturer; repair by a qualified technician
General Information	Manual available in several languages; parental controls with password (default 8888); battery life approximately 1 year

Frequently Asked Questions - PDVD9000TWIN Difrnce

What to do if the DVD player does not turn on?

Check that the power switch is in the ON position. Make sure the AC adapter is properly connected to the device and to a working power outlet. If using the battery, check that it is charged.

The player does not display any image, what to do?

Check that the TV (or screen) is turned on and set to the correct input mode. Make sure the AV cables are properly connected. Test with another cable if necessary. If the built-in screen does not turn on, check the connection between the main unit and the screen.

Why is there no sound or distorted sound?

Check that the MUTE function is not activated on the player or TV. Try another audio track by pressing the AUDIO button on the remote. Make sure the AV cables are well connected and not damaged.

The remote control does not work, how to fix?

Check that there is no obstacle between the remote and the infrared sensor. Replace the battery (type CR2025) respecting the polarity. Point the remote directly at the sensor, within a range of 4.5 meters and at a maximum angle of 60 degrees.

What to do if the player displays 'BAD DISC' or refuses to read a disc?

Check that the disc is compatible (DVD, CD, CD-JPEG). Clean the disc with a soft cloth from the center outwards. Make sure the disc is not scratched or damaged. If the message WRONG REGION appears, the disc's region code does not match the player (Region 1).

How to connect a USB flash drive or SD card to the player?

Insert the USB flash drive into the USB port or the SD/MMC card into the card reader on the left side. Press the USB/SD button to open the menu. Select USB or SD with the arrow buttons, then press OK to start playback. To return to disc mode, press USB/SD again and select DISC.

How to set parental lock?

Access the settings menu by pressing the DISPLAY/SETUP button twice. Go to the Parental Control tab. The default password is 8888. You can set a level from 1 to 8 (8 = adult). To change the password, select 'Change password' and follow the instructions. Caution: the password cannot be reset if you forget it.

How to clean the player and discs?

For the player, unplug it and wipe the outer surface with a damp cloth (no liquid or aerosol products). For discs, use a soft dry cloth, wiping from the center outward. Never use benzene, thinner, or antistatic sprays.

Can I use this DVD player in a car?

Yes, the player is designed for use in a vehicle. Use the included car lighter adapter. Attach the main unit and screen using the headrest mounts. Never use the device while driving; only a passenger may use it. Make sure the straps are tight and the device does not obstruct airbags.

How to use the A-B repeat function?

During playback, press the A-B button on the remote to mark the start point (A). Press again to mark the end point (B). The section between A and B will loop. To cancel repeat, press A-B a third time.

USER MANUAL PDVD9000TWIN Difrnce

Two black DIFRnce portable devices displaying colorful balloons on their screens, no visible text or symbols on the devices themselves.

Gebruiksaanwijzing

Symbolic icon of a person pushing a large stack of objects within a circular frame (no text or symbols)

Front view of a rectangular electronic device with a blank screen and control buttons at the bottom (no text or symbols visible)

Line drawing of a flat-screen TV or microwave oven with control knob (no text or symbols)

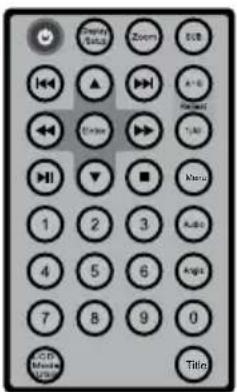

Circuit Switch Zoom USB A-1 Reset OK Cyan ■ Menu 1 2 3 Audio 4 5 6 Agric 7 8 9 0 CO Monitor USB Title

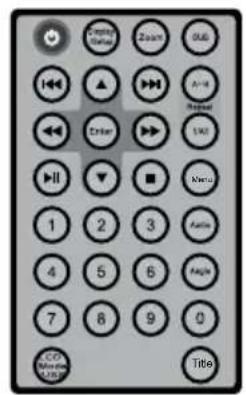

Afstandsbediening

Line drawing of a coiled cable with multiple connectors (no text or symbols)

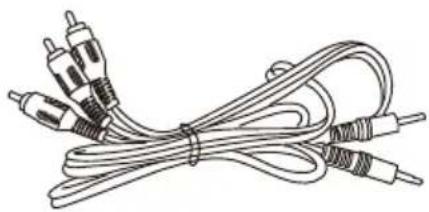

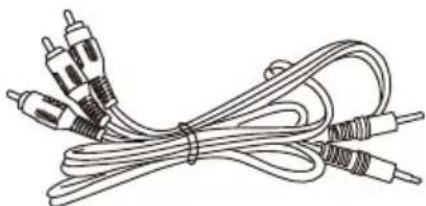

AV Cable

Line drawing of a medical or laboratory device with a coiled tube and connector (no text or symbols)

Auto Adapter

Black electrical adapter with a coiled cable and terminal plug (no text or symbols visible)

AC Adapter

Two identical line drawings of a handheld device with circular ports and connectors (no text or symbols)

Oortelefoon

Black cable with two terminal connectors, no visible text or symbols

Stacked gray rectangular shapes with no text or symbols

Illustration showing three hands holding a CD or DVD disc, with one being open and others holding the disc (no text or symbols present)

Diagram showing four steps of a device control or assembly process with labeled components and directional arrows.

WAARSCHUWING VOOR VOLUME KOPTELEFOON

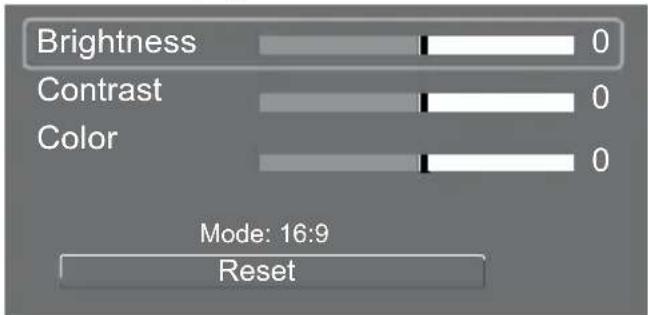

Brightness 0 Contrast 0 Color 0 Mode: 16:9 Reset

VEILIGHEIDSWAARSCHUWING!

Two black DIFRnce portable devices displaying colorful balloons on their screens, no visible text or symbols on the devices themselves.

Abstract recycling symbol composed of three chasing arrows (no text or labels)

Black and white icon of a person climbing a ladder inside a circle (no text or symbols)

Bloc-pile rechargeable 17

Lecture/pause/stop 19

Front view of a rectangular electronic device with a control panel at the bottom (no visible text or symbols)

Appareil principal

Line drawing of a flat-screen monitor with control knob (no text or symbols)

Écran

Timer Spike Zoom SUB ←← ▲ → A→B Reset ←← T→I→ → M ←I ▼ ■ Audio 1 2 3 4 5 6 7 8 9 0 Audio Title

Télécommande

Line drawing of a bundle of audio/video cables with no text or symbols

Câble AV

Line drawing of a medical or laboratory device with a coiled tube and connector (no text or symbols)

Black industrial electrical plug with coiled cable and terminal connector (no text or symbols visible)

Adaptateur C.A.

Two identical line drawings of a handheld device with circular components and connectors (no text or symbols)

Écouteurs

Coiled black cable with two terminal connectors (no text or symbols visible)

Stacked gray rectangular shapes with no text or symbols

Bloc-pile rechargeable

Brightness Contrast Color 0 0 0 Mode: 16:9 Reset

Contactez directement notre support technique

0031(0)348409371

Two black DIFRnce portable devices displaying colorful balloons on their screens, no visible text or symbols on the devices themselves.

Bedienungsanleitung

Simple line drawing of three chasing arrows forming a recycling symbol (no text or labels)

Silhouette of a person climbing a ladder inside a circular frame (no text or symbols)

Front view of a rectangular electronic device with a blank screen and control buttons at the bottom (no text or symbols visible)

Player Monitor

Line drawing of a flat-screen monitor with control knob (no text or symbols)

Display Radio Zones 328 ←▲ ←→ ←→ ←→ ←→ 1 2 3 4 5 6 7 8 9 0 LCD Meats MSP T109

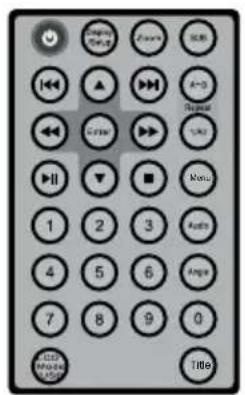

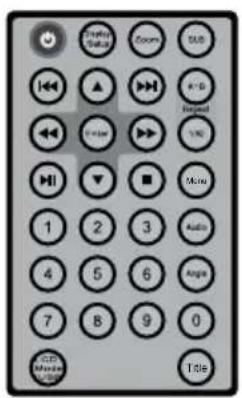

Fernbedienung

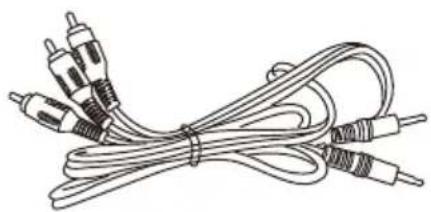

Line drawing of a bundled cable with multiple audio/video connectors (no text or symbols)

AV-Kabel

Line drawing of a medical or laboratory device with a coiled tube and connector (no text or symbols)

Black electrical adapter with coiled cable and power plug (no text or symbols visible)

Two identical line drawings of a handheld device with circular components and a bulb (no text or symbols)

Ohrhörer

Coiled black cable with two terminal connectors (no text or symbols visible)

Two overlapping gray rectangular shapes with no text or symbols

Brightness Contrast Color 0 0 0 Mode: 16:9 Reset

9" Twin Screen Portable LCD DVD Player with USB Port and Card Slot

Two black DIFRANCE portable devices displaying colorful balloons on grass, no visible text or symbols on screens or background.

Instruction Manual

Please read this manual carefully before operation.

PRECAUTIONS

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK) OF THE UNIT. REFER SERVICING ONLY TO QUALIFIED SERVICE PERSONNEL.

For Customer Use:

Enter below the serial number that is located on the bottom of the unit. Retain this information for future reference.

Model No. PDVD9000Twin

Serial No. ____

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and servicing instructions in the literature accompanying the appliance.

WARNING:

To prevent fire or shock hazard, do not expose this device to rain or moisture. Dangerous high voltage is present inside the enclosure. Do not open the cabinet.

Handling the cords on this product will expose you to lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

CAUTION:

This Digital Video Disc player employs a laser system. To prevent direct exposure to the laser beam, do not try to open the enclosure or defeat the safety interlocks. When open and the interlocks are defeated, visible laser radiation is present. To prevent electric shock, match wide blade of plug to wide slot of outlet and fully insert.

Use of controls, adjustments, or performance of procedures other than those specified herein may result in hazardous radiation exposure. DO NOT STARE INTO THE BEAM.

NOTICE:

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited.

FCC Notice:

FCC Statement: this device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules.

PRECAUTIONS

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works.

This player has built-in copyright protection technology that prevents copying from a DVD disc to any media.

If a video recorder is connected to the player, the video output image will be distorted during recording.

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

For recycling or disposal information about this product, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org.

IMPORTANT SAFETY INSTRUCTIONS

Read Instructions: All the safety and operating instructions should be read before the product 1. is operated.

Retain Instructions: The safety and operating instructions should be retained for future refer-2. ence.

Heed Warnings: All warnings on the product and in the operating instructions should be 3. adhered to.

Follow Instructions: All operating and usage instructions should be followed.4.

1. Cleaning: Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Attachments: Use only attachments recommended by the manufacturer. Use of other attach-6. ments may be hazardous.

Water and Moisture: Do not use this product near water (e.g., near a bath tub, washbowl, 7. kitchen sink, laundry tub, in wet basements, or near a swimming pool and the like).

Accessories: Do not place this product on an unstable cart, stand, tri-8. pod, bracket, or table. Use only with carts, stands, tripods, brackets, or tables recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.

A product and cart combination should be moved with care. Quick 9. stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

Symbolic illustration of a person pushing a large object through a circular frame (no text or symbols)

Ventilation: Slots and openings in the cabinet are provided for ventilation 10.

to ensure reliable operation of the product and to protect it from overheating. These openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer instructions have been adhered to.

Power Sources: This product should be operated only from the type of power source indi-11. cated on the rating label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power or other sources, refer to the operating instructions.

1. Grounding or Polarization: This product may be equipped with a polarized alternating-current line plug that has one blade wider than the other. This plug will only fit into the power outlet in one direction. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the direction of the plug. If the plug should still fail to fit, contact an electrician to replace the obsolete outlet. Do not defeat the safety purpose of the polarized plug.

Power-Cord Protection: Power supply cords should be routed so that they are not likely to 13. be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and at the point which they exit from the product.

1. Protective Attachment Plug: The product may be equipped with an attachment plug with overload protection. This is a safety feature. See the operating instructions for replacement or directions to reset the protective device. If replacement of the plug is required, be sure the service technician has used a replacement plug that has the same overload protection as the original plug as specified by the manufacturer.

IMPORTANT SAFETY INSTRUCTIONS

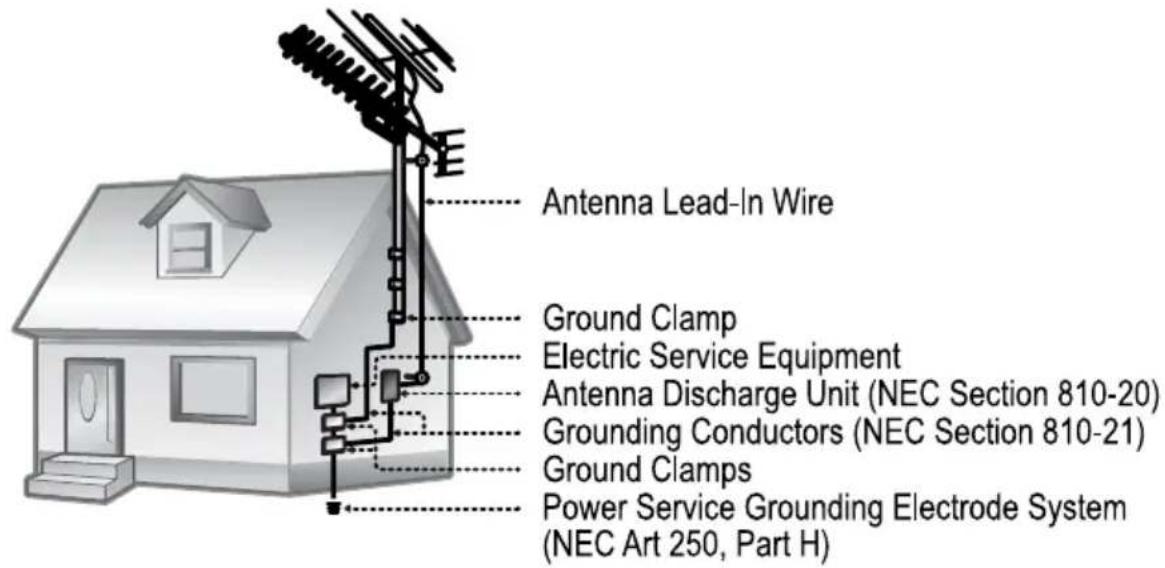

Outdoor Antenna Grounding: If an outside antenna is connected to the product, be sure the 15. antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANS/NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode (see figure).

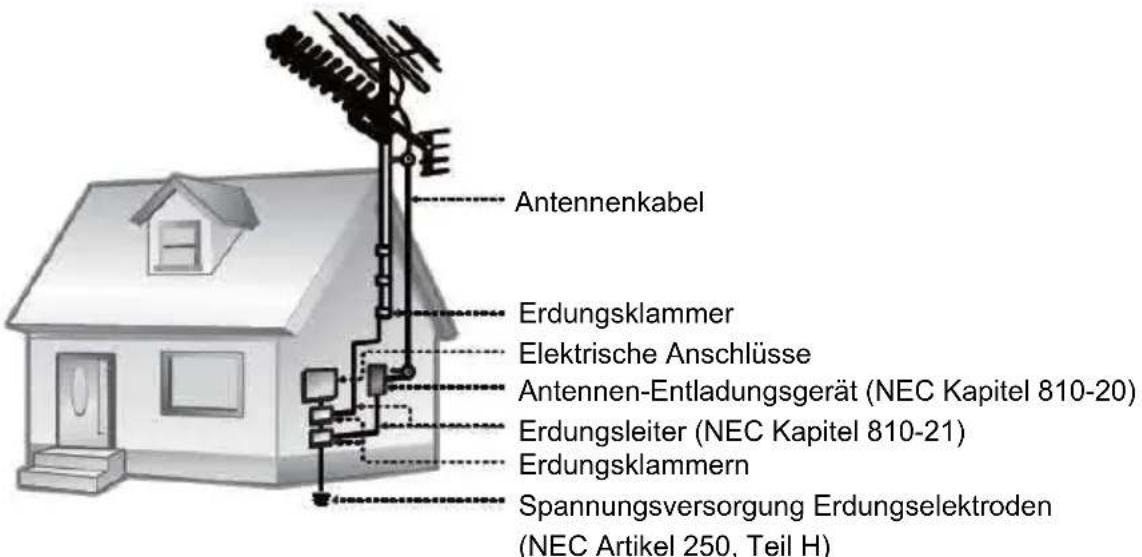

Antenna Lead-In Wire Ground Clamp Electric Service Equipment Antenna Discharge Unit (NEC Section 810-20) Grounding Conductors (NEC Section 810-21) Ground Clamps Power Service Grounding Electrode System (NEC Art 250, Part H)

Lightning: For added protection for this product, unplug it from the wall outlet and disconnect 16. the antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning or power-line surges.

Power Lines: An outside antenna system should not be located in the vicinity of overhead 17. power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal.

Overloading: Do not overload wall outlets, extension cords, or integral convenience recep-18. tacles as this can result in a risk of fire or electric shock.

Object and Liquid Entry: Never push objects of any kind into this product through openings 19. as they may touch dangerous voltage points or shout-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

Servicing: Do not attempt to service this product yourself as opening or removing covers may 20. expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to 21. qualified service personnel under the following conditions: a) when the power-supply or plug is damaged; b) if liquid has been spilled or if objects have fallen into the product; c) if the product has been exposed to rain or water; d) if the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation; e) if the product has been dropped or damaged in any way; f) when the product exhibits a distinct change in performance—this indicates a need for service.

IMPORTANT SAFETY INSTRUCTIONS

Replacement Parts: When replacement parts are required, be sure that your service techni-22. cian has used replacement parts specified by the manufacturer or have the same charac- teristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

1. Safety Check: Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to ensure that the product is in proper operating condition.

Wall or Ceiling Mounting: The product should be mounted to a wall or ceiling only as recom-24. mended by the manufacturer.

Heat: The product should be situated away from heat sources such as radiators, heat regis-25. ters, stoves, or other products (including amplifiers) that produce heat.

Battery shall not be exposed to excessive heat such as the sunshine, fire or the like. Dan-26. ger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

WARNING: Excessive sound pressure from earphones and headphones can cause hearing 27. loss.

WARNING: The mains plug (or direct plug in adaptor) is used as disconnect device, the 28. disconnect device shall remain readily operable.

TABLE OF CONTENTS

PRECAUTIONS 2

IMPORTANT SAFETY INSTRUCTIONS ....4

TABLE OF CONTENTS....7

PACKAGE CONTENTS....9

ABOUT OPTICAL DISCS....10

Disc Requirements....10

Disc Care and Maintenance ....10

Handling a Disc....10

Cleaning a Disc....10

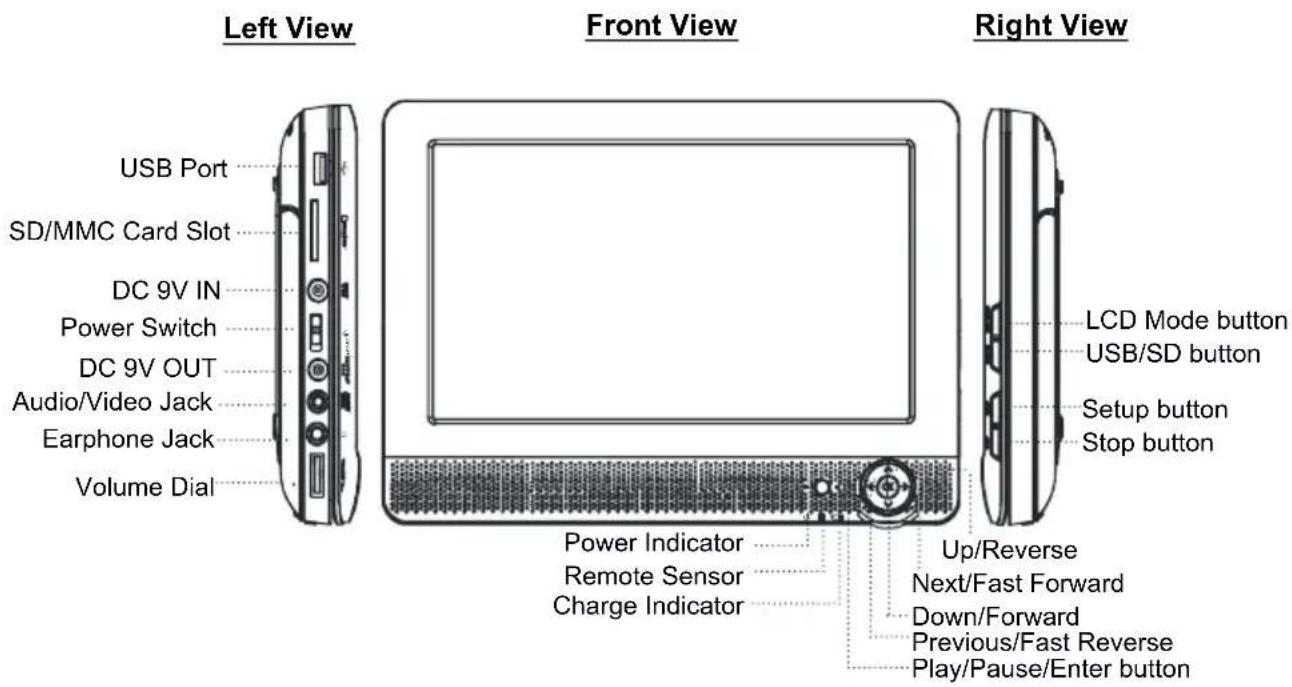

LOCATION OF CONTROLS....11

Left View 11

Front View....11

Right View....11

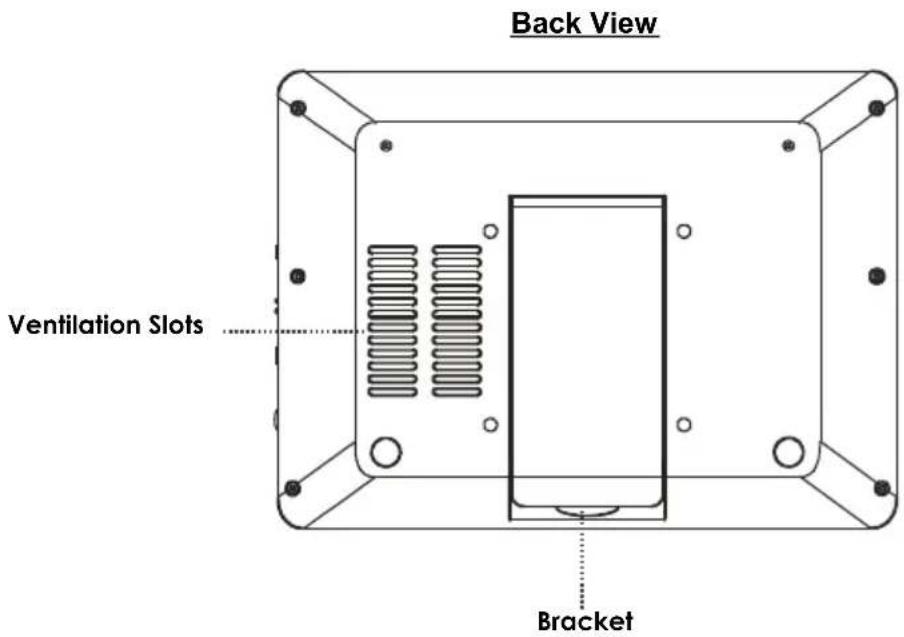

Back View 12

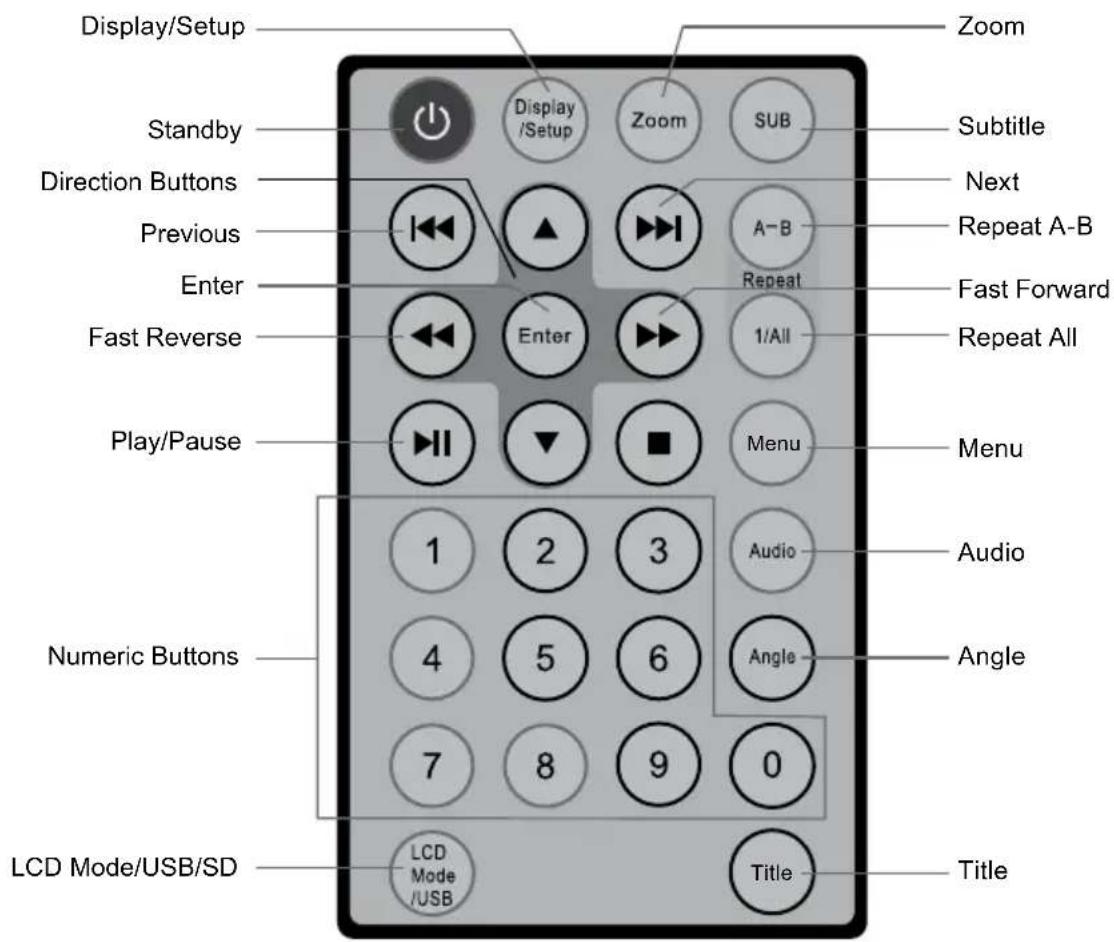

Remote Control....13

GETTING STARTED 14

Using the remote control....14

Power Supply 14

CONNECTIONS 15

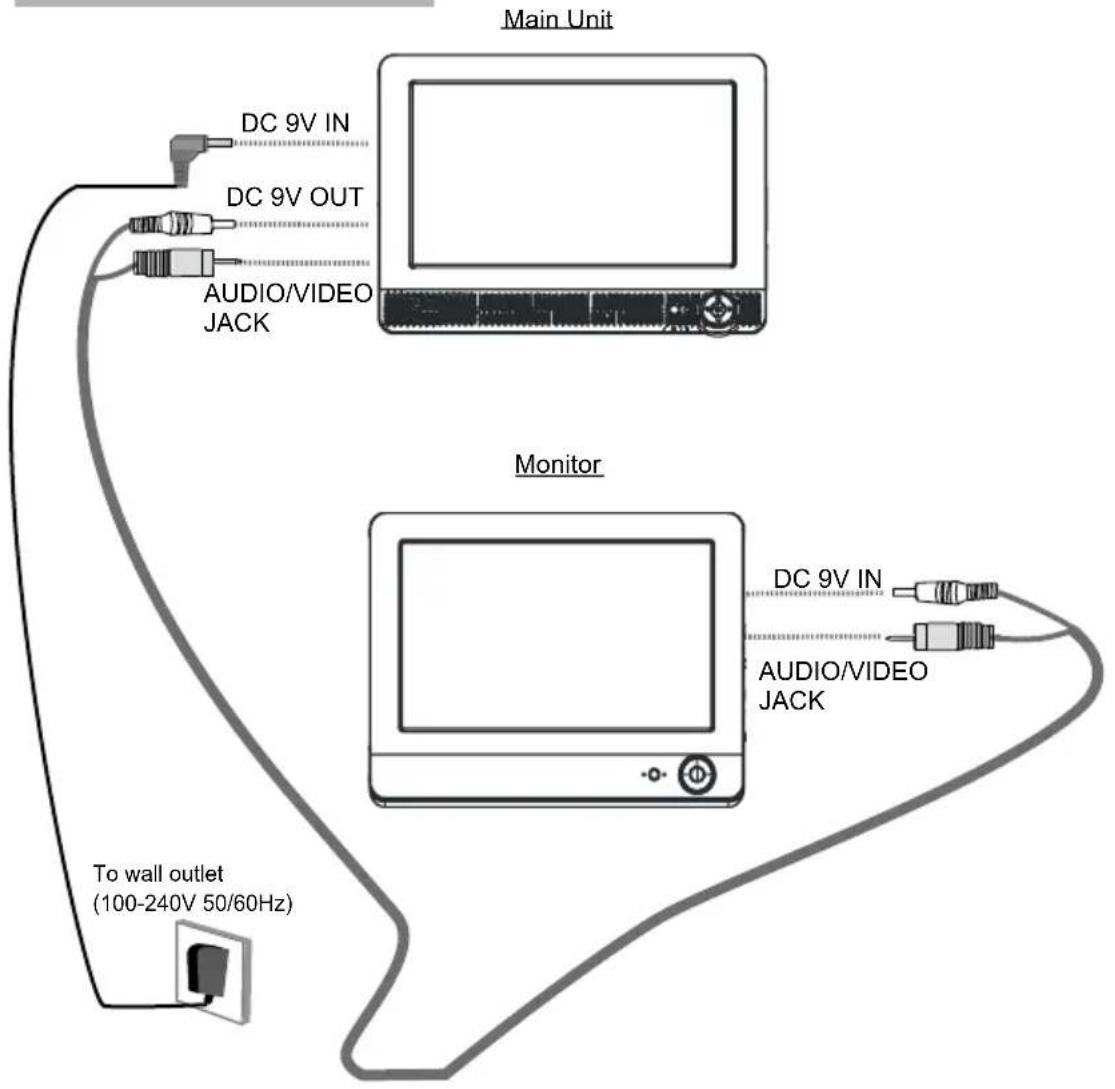

Power, Audio and Video Output Connections ....15

Connecting to a wall outlet 15

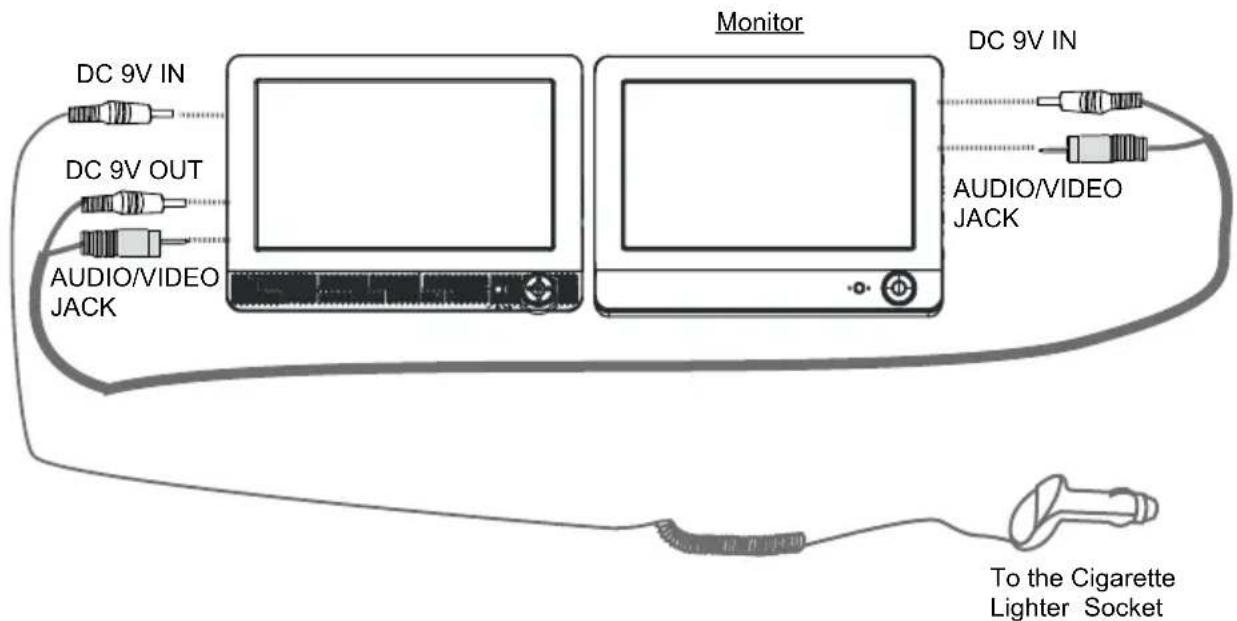

Outputting AV signal from the main unit to the monitor by the DC car cord ....15

Using the car plug....16

Outputting AV signal from the main unit to the monitor 16

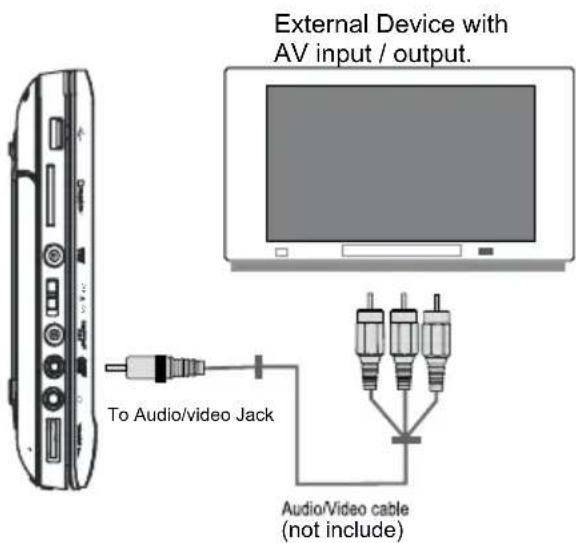

Audio and Video Connectios (external device) 16

Rechargeable Battery Pack....17

Using Headphones/Earphones 18

USB/SD/MMC Card Connection 18

BASIC OPERATIONS....19

Basic Playback....19

Play/Pause/Stop 19

Previous /Next (Skip)....19

Forward/Reverse (Search) 19

Slow/Step....19

Menu Navigation....19

Numeric Keypad 20

Disc Error Messages ....20

Power Management....20

FUNCTION BUTTONS....21

Display/Setup....21

Zoom 21

Multi-Subtitle/Audio/Angle 21

SUB....21

Audio 21

TABLE OF CONTENTS

Angle....21

Menu/Title 21

Menu 21

Title 21

Repeat A-B Mode 21

Repeat Playback Of Chapter/Title/All of a Disc....21

LCD Mode Menu....22

To access the USB/SD mode 22

SETUP 23

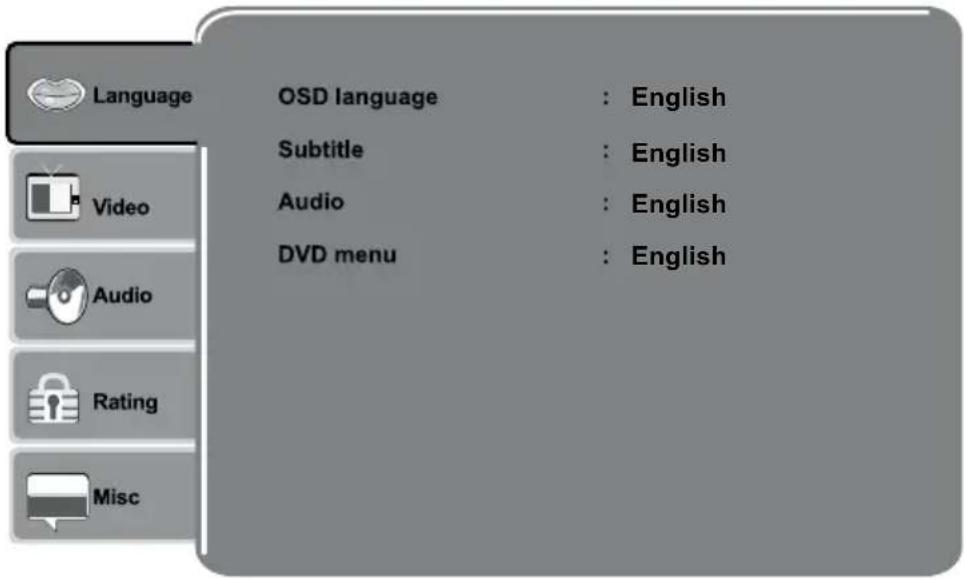

Language Setup....23

Video Setup 23

Audio Setup....24

Rating 24

Misc....24

SPECIFICATIONS 25

PLACEMENT 26

TROUBLESHOOTING....27

PACKAGE CONTENTS

Please make sure the following items are included in the package. If any items are missing, please contact your local dealer.

Front view of a rectangular electronic device with a control panel at the bottom (no visible text or symbols)

Main Unit

Line drawing of a flat-screen TV or electronic device with a control knob (no text or symbols)

Monitor

Control Satal Zoom SUB A+B Ranest Tal Menu 1 2 3 A+B 4 5 6 Ang 7 8 9 0 ECD Movie U23 Tilo

Remote Control

Line drawing of a bundled cable with multiple audio/video connectors (no text or symbols)

AV Cable

Line drawing of a medical or laboratory device with a coiled cable, connector, and bulb (no text or symbols)

Car Adaptor

Black electrical adapter with coiled cable and power plug (no text or symbols visible)

AC Adapter

Two identical line drawings of a handheld device with circular and ring elements (no text or symbols)

Earphones

Black cable with two connectors, one black and one teal, against a white background (no text or symbols visible)

Audio & Video&Power Cable (connecting the main unit and the monitor)

Stacked gray document sheets with no visible text or symbols

Headrest Mounting Bags

ABOUT OPTICAL DISCS

Disc Requirements

This DVD player supports playback of the following discs.

Type	Disc Mark	Content Type	Disc Size	Max. Playback Time
DVD-Video Discs		Audio + Video (moving picture)	12 cm	133 min (SS-SL)
				242 min (SS-DL)
				266 min (DS-SL)
				484 min (DS-DL)
Audio Compact Discs (CDs)		Audio 12 cm	74 min
JPEG CDs -- Still Picture 12 cm --

This unit can play back CD-R and CD-RW discs that contain JPEG picture files. Discs not listed above are not supported by this unit (eg, PC CD-ROM, CD-Extra, CD-G, CD-I, etc.)

Disc Care and Maintenance

Optical discs (DVDs, CDs) contain high-density compressed data and need proper handling.

Handling a Disc

Hold a DVD/CD by its edges. Avoid touching the recorded side of the disc. To remove a DVD/CD from its storage case, press down on the center retention mechanism of the case and lift the disc out.

• Do not subject discs to prolonged exposure to direct sunlight, high humidity, or high temperatures.
  • Do not bend or press discs.
  • To reduce the risk of scratches, always put discs back in their case after use. Store discs vertically in a cabinet.
  • Do not place stickers or labels on either side of a disc.

Cleaning a Disc

Use a dry, soft cloth to wipe off any fingerprints and dusts from the playing surface of the disc. Wipe in a straight line radially from the center to the outside edge of the disc. Small dust particles and light stains will not affect playback quality.

- Never use chemicals such as record sprays, anti-static sprays, benzene, or thinners to clean a disc. Doing so will damage the surface of the disc permanently.

LOCATION OF CONTROLS

Left View USB Port SD/MMC Card Slot DC 9V IN Power Switch DC 9V OUT Audio/Video Jack Earphone Jack Volume Dial Front View Front View Right View LCD Mode button USB/SD button Setup button Stop button Power Indicator Remote Sensor Charge Indicator Up/Reverse Next/Fast Forward Down/Forward Previous/Fast Reverse Play/Pause/Enter button

For your reference:

1. Place a disc with the label side facing up in the CD compartment.
2. To start playback, press the OK (Play/Pause/Enter) button. (Some discs will start playback automatically).
3. To stop playback, press the STOP button.
4. To play next / previous track, press the NEXT/PREVIOUS button.
5. To fast forward/reverse, repeatedly press and hold the NEXT/PREVIOUS button.
6. To slow-reverse/forward through the disc, press the Up/Down direction button.

Left View

USB Port

Connect to USB.

SD/MMC Card Slot

Connect to the SD/MMC card.

DC 9V IN

Connect to the supplied AC Adapter or the DC Car Cord for power supply.

Power Switch

Set the power on/off.

DC 9V OUT

Connect to the sub machine (monitor).

Audio/Video Jack

Input/Output the audio/video signal.

Earphone Jack

Connect to the earphones.

Volume Dial

Adjust the volume level.

Right View

LCD Mode button

Press this button to display the LCD

setting menu.

USB/SD button

Press this button to display the DISC/SD/

USB menu.

Setup button

Press this button to display the player's

Setup menu.

Stop button

Press this button to stop playback.

LOCATION OF CONTROLS

Back View Ventilation Slots Bracket

Using the Stand

1. Lift up the stand from the groove.
2. Support the unit against the stand.

LOCATION OF CONTROLS

Remote Control

Display/Setup Standby Direction Buttons Previous Enter Fast Reverse Play/Pause Numeric Buttons LCD Mode/USB/SD Display/Setup Zoom Subtitle Next Repeat A-B Repeat Fast Forward Repeat All 1/All Menu Audio Angle 0 9 8 7 5 4 3 2 1 Video Title Title LCD Mode/USB

The remote control transmits a directional infrared beam. Be sure to aim the remote control directly at the infrared remote sensor during operation. The sensor may not be able to receive signals properly if the sensor is covered, if there is a large object between the remote control and the sensor, or if it is exposed to direct sunlight or a strong artificial light (e.g., fluorescent or strobe lights). In this case, change the direction of the light or reposition the unit to avoid direct lighting.

GETTING STARTED

Using the Remote Control

To load a battery in the remote:

Pull in the direction of the arrow.1.

Slide the compartment out.2.

Place the battery in the compartment with the positive side (+) facing up.3.

Push the compartment in to close.4.

Simple line drawing of a computer monitor with an arrow pointing to it (no text or symbols)

Pure mechanical diagram showing a piston and cylinder assembly without any text or symbols

4

- Point the remote at the remote sensor of the photo frame at a distance of no more than 15 feet and at an angle no greater than 60 degrees.

Batteries will last for about one year under typical usage.

Replace the batteries if the remote is no longer working.

Do not spill water on the remote control.

Do not use the remote control for other equipment at the same time.

Remove the batteries if the remote control will not be in use for an extended period of time.

Power Supply

This unit should be used with 100-240V 50/60Hz AC wall outlets, only.

Caution:

• Do not connect the power plug to a power outlet other than that which is indicated here and on the label as this may result in the risk of fire or electric shock.
  • Do not handle the power plug with wet hands. Doing so may cause electric shock.

CONNECTIONS

Power, Audio and Video Output Connections

Before connecting the power source, ensure that all the connections are properly done.

Connecting to a wall outlet•

- Outputting audio and video signal from the main unit to the monitor by Audio/Video/Power cable.

AC/DC adaptor for main unit: This AC/DC adaptor should be used with 100-240V\~50/60Hz 0.7A MAX AC wall outlets. DC Out: 9V DC Current: 2A

Main Unit DC 9V IN DC 9V OUT AUDIO/VIDEO JACK Monitor To wall outlet (100-240V 50/60Hz) DC 9V IN AUDIO/VIDEO JACK

CONNECTIONS

Using the car plug

Outputing audio and video signal from the main unit to the monitor.

Monitor DC 9V IN DC 9V OUT AUDIO/VIDEO JACK DC 9V IN AUDIO/VIDEO JACK To the Cigarette Lighter Socket

WARNING: Disconnect this car power adaptor when not in use.

Not for use in 24V vehicles.

Audio and Video Connections (external device)

Main Unit

External Device with AV input / output. To Audio/video Jack Audio/Video cable (not include)

Refer to the owner's manual of the external device as well.1.

Before connecting the power source, 2. ensure that all the connections are properly done.

If the player will not be used for a long period of time, disconnect the power and remove the battery from 3. the remote control.

CONNECTIONS

Rechargeable Battery Pack

• For new or exhausted rechargeable battery pack, we recommend it be recharged for 4 hours.
  • To charge the battery, just connect the AC adaptor.
• If the battery does not work to your expectation, please consult the service center. Do not attempt to replace or repair the battery by yourself unless your are a qualified service person
• The battery can be recharged about 300 times without obvious performance drop.

Note:

Use the special charger. •

Never dispose of in fire or heat up. •

Do not use in high temperature or near heat sources.

• Do not open the cover. Refer servicing only to qualified service personnel.
• Do not charge up the battery pack while the DVD player is working with the battery pack.
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Low Battery Detection

• The unit will access to STANDBY mode automatically when the battery is low.

CONNECTIONS

Using Headphones / Earphones

HEADPHONE VOLUME WARNING

Connect earphones with the volume set low and increase it if required. Prolonged listening through some earphones at high volume settings can result in hearing damage. When headphones/earphones are connected, no sound will be emitted from the unit's speaker.

Caution: Avoid listening to sound at levels which may be harmful to your ears.

Continuous use of earphones at high volume can damage the user's hearing.

USB/SD/MMC Card Connection

Insert a USB or card into the corresponding slot.

Press the USB/SD button to display DISC/ SD/USB menu.1.

Press the Up/Down direction buttons to select USB or SD and press the OK (Play/Pause/Enter) 2. button to start playback.

1. It takes a short while for the unit's reading data. After the device is detected, the screen will display the working menu, press the direction buttons to select the desired file from the menu and press OK (Play/Pause/Enter) button to start playback

To exit USB or SD mode, press USB/SD button, select DISC from the DISC/SD/USB menu and 4. press the OK (Play/Pause/Enter) button. Or just unplug it from the port when it is not at work.

BASIC OPERATIONS

Basic Playback

1. Prepare the connections and power supply.
2. Load a disc.

Press the Open button to open the disc compartment lid. Load a disc with the label-side facing up. Close the lid manually. If a single-sided disc is loaded upside-down, the player will display "BAD DISC".

1. Start playback.

Press Play/Pause button to start playback (some discs may start playing automatically).

Play/Pause/Stop

Press 🏠 to play the disc for the first time.

Press 🏠 during playback to pause. Press again to resume playback.

Press ☐ during playback to stop the disc ("Pre-Stop"). Press to resume playback.

Press ☐ when the disc is "Pre-Stopped" to stop playback completely. (When is pressed, the disc will start playing from the beginning.)

Next/Previous (Skip)

Press 🎨 to skip forward one track (DVD, CD, MP3, etc).

Press 🏠 to skip back one track (DVD, CD, MP3, etc).

Forward/Reverse (Search)

Press ▶ / for a while to fast-forward / reverse through the disc.

• Each successive press of ➤ / ◀ will change the rate of fast-forward / reverse playback.

Slow

To slow-reverse/forward through the disc, press the UP/DOWN direction button.

Each successive press of DOWN/UP direction button will change the rate of slow-motion • playback.

Press 📋 to resume normal playback.

Note:

Audio will be muted during fast-forward, fast-reverse, and slow-motion playback

Menu Navigation

To navigate DVD disc menus or the player's setup menus:

• Press the DIRECTION keys (arrows) to select a desired feature or option in the menu
  • Press ENTER to confirm a selection in the menu.
• For some menu options, you may be able to use the numeric keypad to input data.

BASIC OPERATIONS

Numeric Keypad

• Use the numeric keypad to skip directly to a DVD chapter or CD track. (Some discs may not allow direct access function.)
• Use the numeric keypad to input numeric data in menu option fields when possible.

1 2 3 4 5 6 7 8 9 0

Adjusting the Volume

• Turn the Volume Control dial to adjust the volume level up or down.

Disc Error Messages

The following messages will be displayed on-screen if there is a problem with the format of the loaded disc.

• WRONG REGIONAL DISC. The region code of the disc does not match the player's region code (Region 2).
• WRONG PASSWORD. The parental rating level of the disc is higher than the parental rating level setting of the player. The player will not play the disc.
• BAD DISC. The player is equipped with automatic disc quality detection software. If the player detects a disc that is damaged or has a format problem, it may play the disc at a lower quality or stop play completely, depending on how damaged the disc is.

Note:

DVD disc production quality may vary; some discs may deviate from the industry standard.

Some incorrectly-formatted discs may still play, however, the playback and operational quality of the disc may be substandard.

Power Management

If the player will not be in use for a long period of time, set the Power Switch to the OFF position and unplug the player.

FUNCTION BUTTONS

Display/Setup

Press the DISPLAY button once to show playback information.

Press it twice to enter the player's setup menu. Enter the Setup menu to adjust the player's internal settings, please see the SETUP section for more details.

Zoom

Press ZOOM to change the magnification level of the picture.

During DVD playback, each successive press of ZOOM will change the level of magnification to:

Zoom 1x, Zoom 2x, Zoom 3x, Zoom Off.

In picture mode, each successive press of ZOOM will change the level of magnification to: •

Zoom 1x, Zoom 2x, Zoom 3x, Zoom Off.

When the magnification level is greater than Normal/100%, use the direction keys to pan around the magnified picture.

Note: The picture quality will decrease as the zoom level increases.

Multi-Subtitle / Audio / Angle

During playback of a DVD that has been mastered with subtitles, press SUBTITLE to view the available subtitle tracks. (A DVD may have up to 32 selectable subtitles.)

During playback of a DVD that has been mastered with alternate language/audio tracks, press • AUDIO to hear the alternate tracks. (A DVD may have up to 8 selectable audio tracks.)

During playback of a DVD that has been mastered with multiple angles, press ANGLE to view the available alternate camera angles. (A DVD may have up to 9 selectable angles.)

Menu / Title

Press the MENU button during DVD playback to return to the DVD's Main menu.

Press the TITLE button during DVD playback to return to the DVD's Title menu.

Repeat A-B Mode

To repeat playback of a specific section of a disc (loop):

Press A-B to set the desired start point ("A") of the section to be repeated.1.

Press A-B again to set the desired end point ("B") of the section to be repeated.2.

The section "A-B" will now play repeatedly as a loop. Press A-B again to resume normal 3. playback.

Repeat Playback of Single/Folder/ALL of a Disc

Press REPEAT to change the repeat mode of the player. Each successive press of REPEAT will change the mode as follows:

Repeat Single → Repeat Folder → Repeat All Repeat Off

FUNCTION BUTTONS

LCD Mode

Press this button to display the LCD menu.

Brightness Contrast Color 0 0 0 Mode: 16:9 Reset

1. Press up/down direction button to select the desired item and then make adjustment by left/right direction button.

Press up/down direction button to select Mode and then press the Enter button to toggle the 2. screen ratio between 16:9 and 4:3.

Select RESET and press ENTER to return the settings of 3. brightness, contrast and color to their factory default settings.

To access the USB/SD mode: insert a USB flash drive/SD card into the USB port/SD slot. Press and hold this button for a short while to display the source mode, you can access DVD/SD/USB using this menu. See USB/SD Connection section.

DISC SD USB

DISC / SD/ USB

SETUP

Various features of the player can be adjusted in the SETUP menu.

1. Press ☐ twice to enter the player's setup menu.
2. Press the direction buttons to select the desired item.
3. Press ENTER to confirm.

Language OSD language : English Subtitle : English Audio : English DVD menu : English

Language Setup

Item	Description	Default Setting
OSD	Sets the language of the player's on-screen display.	English
Subtitle	Sets the default subtitle track of loaded DVDs.	English
Audio	Sets the default language audio track of loaded DVDs.	English
DVD Menu	Sets the default menu language of loaded DVDs.	English

Video

Item	Description	Default Setting
Aspect Ratio	Sets the aspect ratio of the display. 4:3 is used with standard television displays; 16:9 is used with widescreen television displays.	16:9
TV System	Sets the player's Video Out signal type. Set this to correspond with your TV's Video System type. NTSC is the standard used in North America.	NTSC

SETUP

Audio Setup

Item	Description	Default Setting
Channel Output	Sets the audio channel mix mode.(Stereo, Lt/Rt)	Stereo

Rating

Item	Description	Default Setting
Parental Control	Sets the maturity rating level of the player. The player will not play any discs rated higher than this setting.This setting is password protected (the initial password is: 8888).	Levels 1 to 8.(8: ADULT is default)
Set Password	Change the Parental Ctrl password. Enter the old password, and then the new password.DO NOT FORGET THE PASSWORD; this password cannot be reset.

Misc

Item	Description	Default Setting
Use Default Settings	Resets all settings to their factory default state. This will not reset the Parental Control password.	Read
Screen saver	The screen saver prevents burn-in damage to the player's screen.	On
Disc Resume	To set the Disc Resume on/off	On

SPECIFICATIONS

Main Unit

Power supply	DC 9.0V 2A (AC adapter Terminal)
Power consumption	<= 8W
Signal system	NTSC /PAL
Video output	1±0.2V (p-p), 75ohm, Negative sync., 3.5 mm mini jack x1
Audio output	1.2 Vrms (1 KHz, 0dB), 3.5 mm mini jack x1
Earphone terminal	3 5mm stereo mini jack x1
Signal /Noise ratio(audio)	90dB typical
Dynamic range(audio)	90dB typical
Panel size	9inch (16:9)
Resolution	640 (H) x 234 (V) (QVGA) Pixels
Laser	Wavelength 650 nm
Operating conditions	Temperature: 0°C to 35°C Operation status : Horizontal

Monitor

Power supply	DC 9.0V 1A (AC adapter Terminal)
Power consumption	<= 4W
Signal system	NTSC/PAL
Video Input	1±0.2V (p-p), 75ohm, Negative sync., 3.5 mm mini jack x1
Audio Input	1.2 Vrms (1 KHz, 0dB), 3.5 mm mini jack x1
Earphone terminal	3 5mm stereo mini jack x1
Panel size	9 inch (16:9)
Resolution	640(H) x 234 (V) (QVGA) Pixels
Operating conditions	Temperature: 0°C to 35°C . Operation status : Horizontal

PLACEMENT

Mounting in the Vehicle

The headrest mounting bags for fitting the main unit and the monitor on to your car headrests.

- The bag has 2 straps that wrap around the headrest tightly and the main unit / monitor slides in and out of the bag.

Mounting Straps

Mounting

About he following steps, please refer to "Using the Car plug" in CONNECTION section.

SAFETY WARNING!

• On no account should this unit be used by the driver of a moving motor vehicle, or left unsecured in the vehicle whilst driving.
• If this unit is being used by a passenger in your vehicle, be sure that it is secured or held safely, and does not obstruct any safety device (i.e. airbag, seat belt etc.) that is fitted.

All passengers should wear seat belts when using this unit in a moving vehicle.

If in doubt, please contact your vehicle manufacturer for further advice.

Using other car power adaptors could damage the unit.

TROUBLESHOOTING

Main Unit Troubleshooting

There is no power to the device.

• Ensure that the Power Switch on the main unit is physically set to the ON position.
  • Ensure that the AC adaptor cord is securely connected to the player and the proper wall outlet.

The device will not play the disc.

Ensure that a supported disc is loaded in the player label-side up.

• Ensure that the disc's rating level does not exceed the player's parental rating level.
  • Ensure that the disc is not damaged or too dirty.
• Clean the disc or try another disc. Moisture may have condensed inside the player. Remove the disc and leave the player on for 1-2 hours and then try again.

There is no picture.

• Ensure that the TV set has been powered on and is set to the correct AV mode.
- Ensure that the connections between the player and the TV are secure and correct.
Check if the connection cables are damaged.

The picture is noisy or distorted.

The disc may be damaged or dirty. Clean the disc or try another one.

Reset your TV's color system.

- Ensure that the player is connected directly to the TV (and not through a VCR, cable box, satellite receiver, etc.)

The picture is not full-screen.

Change the aspect ratio setting of your player from the Setup menu.

Select a different aspect ratio option from the DVD disc menu.

TROUBLESHOOTING

There is no sound or distorted sound.

• Ensure that the TV and amplifier have been turned on and properly set up.
• Ensure that the TV and amplifier connections are secure and correct.
Try a different Audio track of the DVD by pressing AUDIO.
• Ensure that the MUTE function of the TV, Amplifier, or Player is not engaged.

The remote control doesn't work.

• Ensure that the Power Switch has been physically set to the ON position.
• Ensure that there are no obstacles between the remote and the player.
Point the remote at the remote sensor on the main unit.
• Ensure that the batteries in the remote retain a charge and have been installed correctly.
Try replacing the remote's batteries.

The player has malfunctioned.

- Unplug the player. After 30 minutes, plug in and power on the player -- the restore function should reset the player.

Monitor troubleshooting

There is no power to the device.

• Ensure that the Power Switch on the monitor is physically set to the ON position.
• Ensure that the AC adaptor cord is securely connected to the player and the proper wall outlet.

There is no sound or distorted sound.

Ensure that the AV cable connections are secure and correct.

• Ensure that the MUTE function of the monitor is not engaged.

The picture is noisy or distorted.

- Reset the monitor's color system. Ensure that the AV cable connections are secure and correct.
