| Product type | Professional water softener |
| Brand | Miele |
| Model | PG 8090 |
| Dimensions (W x D x H) | 230 x 400 x 572 mm |
| Salt tank capacity | 10 kg |
| Salt consumption per regeneration | 0.5 kg |
| Water consumption per regeneration | 55 L |
| Regeneration duration | 30 minutes |
| Nominal flow rate | 15 L/min (temporarily 20 L/min) |
| Minimum water pressure | 200 kPa (2.0 bar) |
| Maximum water pressure | 600 kPa (6.0 bar) |
| Allowable water temperature | 4 °C to 65 °C |
| Water connection | R 3/4" |
| Resin cartridge | 4 L ± 10% |
| Recommended salt type | Salt tablets or coarse grains (8-15 mm) |
| Operating principle | Ion exchange with automatic regeneration |
| Electrical supply | See connector rating plate |
| Intended use | Softening water exclusively |
| Safety | Installation by a professional mandatory; softened water not drinkable |
| Maintenance | Clean with a damp cloth, without water jet |
Frequently Asked Questions - PG 8090 MIELE
User questions about PG 8090 MIELE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Dishwasher in PDF format for free! Find your manual PG 8090 - MIELE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PG 8090 by MIELE.
USER MANUAL PG 8090 MIELE
Sybron Chemicals - Dow Chemical Comp.
200 kPa (2,0 bar)/600 kPa (6,0 bar)

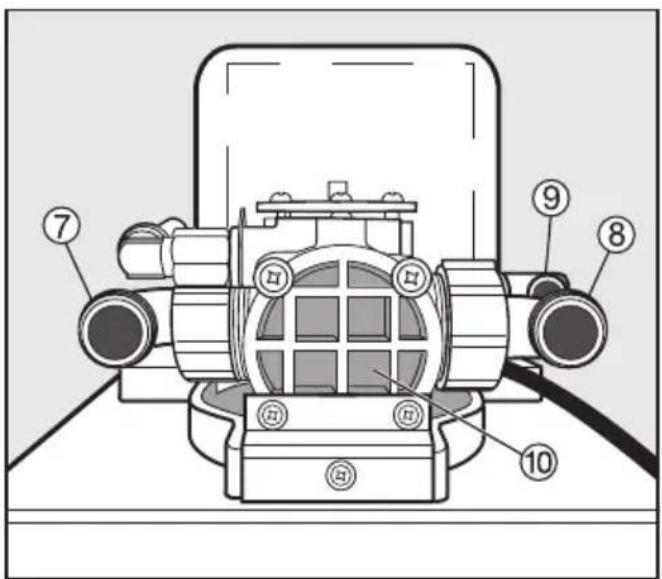

7 Water inlet
8 Water outlet to machine
9 Reactivated water outlet (free outlet)
10 Valve head with resin cartridge

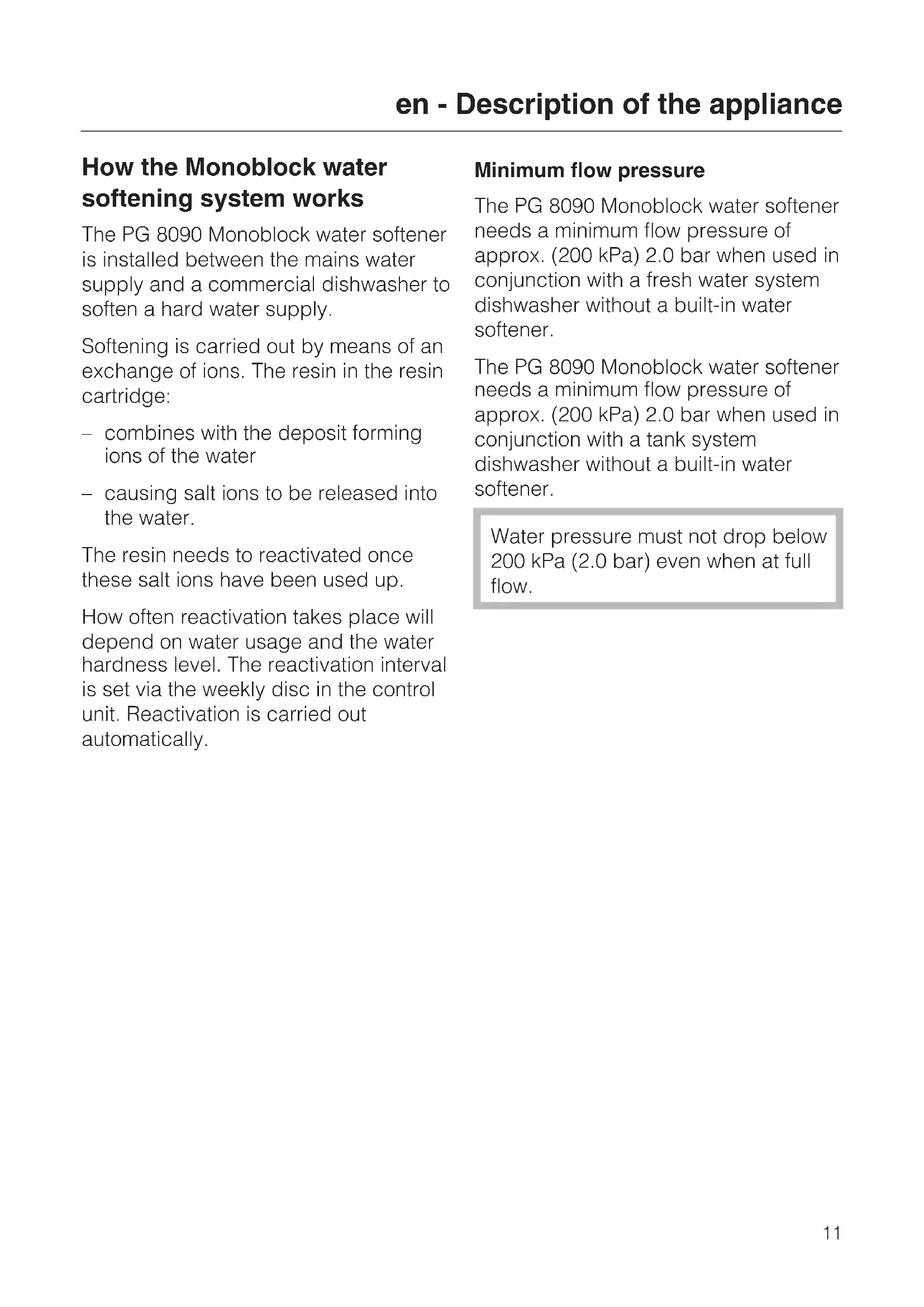

How the Monoblock water softening system works
The PG 8090 Monoblock water softener is installed between the mains water supply and a commercial dishwasher to soften a hard water supply.
Softening is carried out by means of an exchange of ions. The resin in the resin cartridge:
- combines with the deposit forming ions of the water
- causing salt ions to be released into the water.
The resin needs to reactivated once these salt ions have been used up.
How often reactivation takes place will depend on water usage and the water hardness level. The reactivation interval is set via the weekly disc in the control unit. Reactivation is carried out automatically.
Minimum flow pressure
The PG 8090 Monoblock water softener needs a minimum flow pressure of approx. (200 kPa) 2.0 bar when used in conjunction with a fresh water system dishwasher without a built-in water softener.
The PG 8090 Monoblock water softener needs a minimum flow pressure of approx. (200 kPa) 2.0 bar when used in conjunction with a tank system dishwasher without a built-in water softener.
Water pressure must not drop below 200 kPa (2.0 bar) even when at full flow.
Disposing of the packing materials
The packaging is designed to protect the appliance during transportation. The packaging materials used are environmentally friendly for disposal and can normally be recycled.
Ensure that any plastic wrappings, bags, etc are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation.
Rather than just throwing these materials away, please ensure they are recycled.
Disposing your old appliance
Electrical and electronic appliances often contain materials which, if handled or disposed of incorrectly could be potentially hazardous to human health and to the environment. They are, however, essential for the correct functioning of your appliance. Please do not therefore dispose of your old appliance with your general waste.
Please dispose of it at your local community waste collection/recycling centre or contact your dealer for advice. Ensure that it presents no danger to children while being stored for disposal.
This PG 8090 Monoblock water softener conforms to current safety requirements. Incorrect use can, however, lead to personal injury and damage to property.
Before installation and before using the appliance for the first time, read the operating instructions carefully. They contain important notes on installation, safety, operation and care of the appliance.
Keep these instructions in a safe place and ensure that all users are familiar with the contents. Pass them on to any future owner of the appliance.
Correct application
This PG 8090 Monoblock water softener is designed for use, as described in these operating instructions only. Using it for purposes other than those for which it was designed would be unauthorised and could be dangerous.
The manufacturer cannot accept liability for damage resulting from improper use or operation.
Personnel operating the appliance should be trained regularly. Untrained personnel should not be allowed access to the appliance or its controls.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised whilst using it or have been shown how to use it by a person responsible for their safety.
Technical safety
Before setting up the PG 8090 Monoblock water softener check it for any externally visible damage. Do not install and use a damaged appliance. A damaged appliance is dangerous.
The PG 8090 Monoblock water softener should be commissioned and then maintained only by a Miele authorised and trained service technician or other suitably qualified and competent approved person.
- Installation, maintenance and repairs should only be carried out by a suitably qualified and competent person in accordance with local and national safety regulations.
- Installation, maintenance and repairs done by unqualified persons could be dangerous and the manufacturer will not be held liable.
- Faulty components must only be replaced by genuine Miele original parts. The manufacturer can only guarantee the safety of the appliance when Miele replacement parts are used.
A damaged PG 8090 Monoblock water softener can be dangerous. Switch off at the mains immediately and call the Miele Service Department or an authorised Miele Service Dealer.
The PG 8090 Monoblock water softener must only be connected to the mains electricity supply via a socket that conforms with local and national safety regulations.
To ensure safety, national and local Water Authority Regulations (NWC in the UK/DIN EN 1717 in Germany) must be complied with when installing this appliance. When connected to the water supply an approved backflow prevention device (Type C) must be incorporated between the mains water supply and the water softener cartridge. The device must be at least 250mm above the upper edge of the PG 8090 Monoblock water softener. Waste water must be discharged in accordance with national and local water regulations.
Correct use
Please note that when connected to a hot water supply, the maximum permitted temperature of 65^ must not be exceeded.
The water in the appliance must not be used as drinking water.
Never clean the PG 8090 Monoblock water softener or near vicinity with a water hose or a pressure washer.
While the appliance is under guarantee, repairs should only be undertaken by a service technician authorised by the manufacturer. Otherwise the guarantee will be invalidated.
This appliance must only be used in conjunction with machines specified by Miele as being suitable for such use.
Installation
Do not install the Monoblock water softener with an electrical appliance in areas where there is a risk of explosion.
This appliance may only be used in mobile installations such as ships, if a risk assessment of the installation has been carried out by a suitably qualified engineer.
Safety with children
To avoid the risk of injury, keep children away from the appliance at all times. Do not allow them to play with it or use the controls. They will not understand the potential dangers posed by it.
Older children may only use this appliance if its operation has been clearly explained to them and they are able to use it safely, recognising the dangers of misuse. They must be aware of the potential dangers caused by incorrect operation.
Before use
Find out the mains water hardness level in your area.
The Miele authorised service technician will require this information in order to set the correct reactivation interval for the water hardness level.
Please make a note of the water hardness level here.
Hardness level:
The service engineer will connect the Monoblock water softener to the water supply, fill the resin cartidges with water and start the system. The built-in salt valve limits the amount of water going into and out of the unit by means of a float switch to ensure there is sufficient salt available for reactivation.
Only use reactivation salt that is suitable for water softeners.
It is important to use good quality reactivation salt. Only use salt tablets or coarse grained reactivation salt (8 - 15 mm grain).
Never use cooking salt, as it contains particles which do not dissolve in water. These particles can cause a blockage in the Monoblock water softener.
Filling the salt container
Remove the lid.

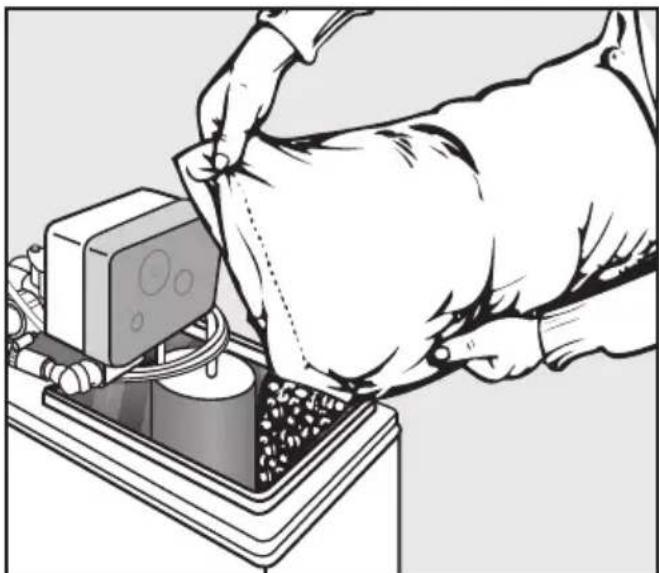

- Fill the salt container with salt tablets or coarse grained reactivation salt via the salt filler inlet.
Capacity: 10 kg
First fill: 10 kg
Do not let any salt get into the salt valve tube. The valve is protected by a cover. Make sure that this is closed.
Close the lid.
To keep evaporation to a minimum make sure that the lid is always replaced securely in position.
The Monoblock water softener is now ready for operation and will deliver softened water.
Please contact the Miele Service Department if you have any concerns.
| External dimensions: | H 572 / W 230 / D 400 mm |
| Hard / Soft water connection: | R 3/4" |
| Resin cartridge: 6 x 13" | |
| Resin content: | 4 l +/- 10 % Sybron Chemicals - Dow Chemical Co. |
| Capacity: | 15 l/min (short periods 20 l/min) |
| Minimum flow pressure: | |
| without/with softener in | |
| Fresh water machines: | 200 kPA (2.0 bar) / 600 kPa (6.0 bar) |
| without/with softener in | |
| Tank system machines: | 200 kPA (2.0 bar) / 600 kPa (6.0 bar) |
| Maximum static pressure: | 600 kPa (6.0 bar) |
| Pressure difference: | maximum 100 kPa (1 bar) at 10 l/min |
| Temperature: 4 °C - 65 °C | |
| Salt consumption: | 0.5 kg NaCl/Reactivate +/- 10 % |
| Water consumption: | 55 l/Reactivate +/- 10 % |
| Reactivation time: | 30 minutes +/- 10 % |
| Capacity/Diff.: +/- 10 % | |
| Salt container: 10 kg | |
| Tablet shape: | round, approx. Ø = 25 mm, h = 14 mm |
| Voltage: | See data plate |
| Connected load: | See data plate |
| Fuse rating: | See data plate |

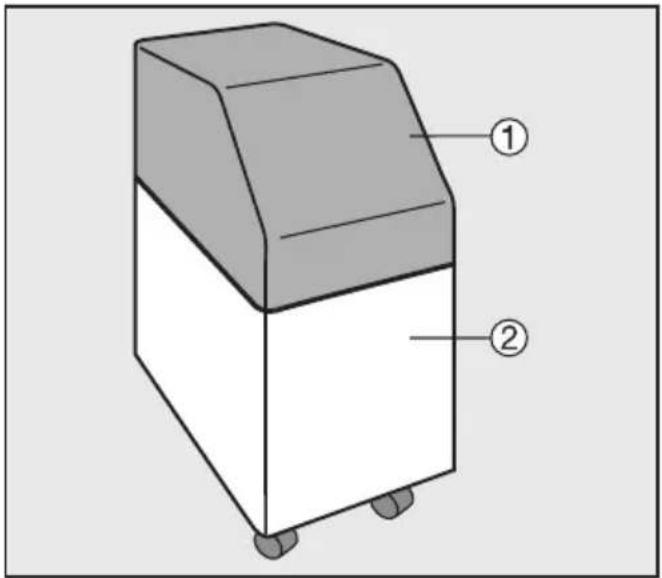

1 Couverage
