YThank you for choosing LD-Systems! We have designed this product to operate reliably over many years. Therefore LD-Systems guarantees for high quality products with its name and many years of experience as a producer. Please, take a few moments to read these instructions carefully, as we want you to enjoy your new LD-Systems products quickly and to the fullest. For information about LD-Systems check out our website WWW.LD-SYSTEMS.COM

1. Please read the attached safety instructions as well as the following instructions carefully.

2. Please keep all the instructions.

3. Please use the device only as intended.

4. Please respect the valid waste management rules. Please deliver the packaging divided into plastic and

paper/ cardboard to the recycling management.

5. Please refer all servicing to qualified personel only if the device is damaged, exposed to liquid/rain or if it does

not operate normally.

6. Please, do not expose to any kind of heat such as ovens, radiators, or any other devices (incl. amplifiers).

Please check for enough distance between amplifiers and walls, racks, etc. to prevent overheating.

7. After connection please check the wiring to prevent any kind of accident or damage.

Please never use any kind of damaged cable and wiring.

8. Only use authorized and stable stands, brackets, shelfs, tables etc.. for installations. Please check for

adequate stability against collapse. CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified personnel. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product´s enclosure that may be of sufficient magnitude to constitute a risk to persons. The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION! HIGH VOLUME! You will operate this system for professional use. Therefore the commercial use of this equipment is liable to the rules and regulations of the Accident Prevention & Insurance Association of your industry sector. Adam Hall as a manufacturer is bound to inform you formally about the existence of eventual sanitary risks. These speakers are able to induce high acoustic sound pressure levels. 85 db is by law the maximum audio pressure level which your ear can be exposed to during a work day. It was set according to the technical exper- tise of the occupational medicine as a basis for the noise rating level. Higher sound levels or longer exposition times could damage your ear. The time of exposition by higher sound pressure levels should be shortened in order to prevent from ear damages. Here are a few reliable warning signals which show that you have exposed yourself for a too long period to excessive sound pressure levels: - You hear bell- or whistling sounds! - You have the impression that you can’t hear high tones anymore! CAUTION

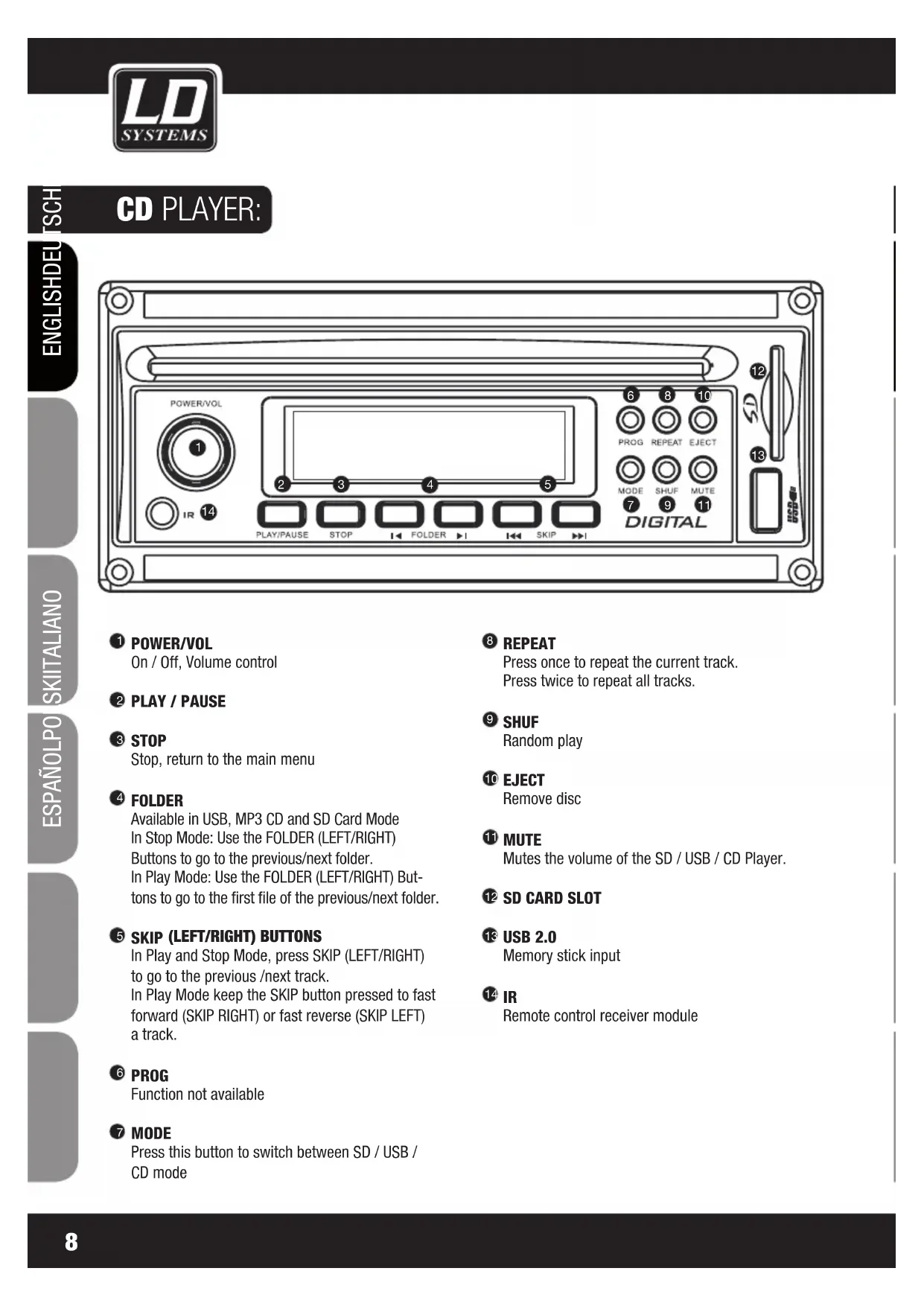

CD PLAYER Digital Slot-In CD Player with USB memory stick input and SD card slot. CD Player with anti-shock function. Supported files (CD Player, USB Player, SD card reader): Audio CD, MP3, WMA.

The Roadboy 6.5 is equipped with one wireless receiver module. You can install a second receiver module if you wish to use a second wireless microphone simultane- ously.

CONTROL PANEL Volume Control: Master, Wired Mic, Line-In EQ: Bass, Treble In & Out Powered output for external speaker LED Indicator: Low Battery power (red), battery char- ging (green blinking), battery fully charged (green).6 ENGLISHDEUTSCHFRANCAIS FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO SYSTEM COMPONENTS: Roadboy Handheld Microphone Remote Control Power Supply7 ITALIANO POLSKI ESPAÑOL FRANCAIS FRANCAIS FRANCAIS FRANCAIS FRANCAIS DEUTSCH ENGLISH OPTIONAL ACCESSORIES: Transport Bag (LDSB21) Belt Pack Transmitter (LDWS1616BP) Headset mic skin colour (LDWS100MH3) Speaker stand (SPS56B) Headset mic black (LDWS100MH1) Additional Receiver (LDRM102R)12

FOLDER Available in USB, MP3 CD and SD Card Mode In Stop Mode: Use the FOLDER (LEFT/RIGHT) Buttons to go to the previous/next folder. In Play Mode: Use the FOLDER (LEFT/RIGHT) But- tons to go to the first file of the previous/next folder.

In Play and Stop Mode, press SKIP (LEFT/RIGHT) to go to the previous /next track. In Play Mode keep the SKIP button pressed to fast forward (SKIP RIGHT) or fast reverse (SKIP LEFT) a track.

PROG Function not available

MODE Press this button to switch between SD / USB / CD mode

REPEAT Press once to repeat the current track. Press twice to repeat all tracks.

Remote control receiver module4

BUTTON: Repeated short press to clear and restore the sound.

AMS / RPT BUTTON: Press once to repeat the current track. Press twice to repeat all tracks.

ST / PROG BUTTON: Function not available The Roadboy 6.5 is equipped with two remote control infrared receiver modules. One on the front and one on the rear panel of the unit. You can therefore use the remote control in front of or behind the speaker.10 ENGLISHDEUTSCHFRANCAIS FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO CD REMOTE CONTROL:

SEL BUTTON: Press this button to switch between SD / USB / CD mode

BUTTON: In Play and Stop Mode, press SKIP (LEFT/RIGHT) to go to the previous /next track. In Play Mode keep the SKIP button pressed to fast forward (SKIP RIGHT) or fast reverse (SKIP LEFT) a track.

OSD BUTTON: Available in Audio CD Mode. Without pressing: Display shows track running time Press once: Display shows remaining time for the current track Press twice: Display shows the CD running time Press three times: Display shows remaining CD time

GAIN SETTINGS Mic: Microphone 0: Guitar with passive pickup -10 dB: Guitar with active pickups

POWER LED Green: operating Red: Battery low Blinking red: IR transmission is in progress

ASC BUTTON (ACTIVATE SYNC) Press this button to activate the infrared connection between transmitter and receiver

IR PORT Receives the infrared frequencies sent by the recei- ver in order to synchronize transmitter and receiver.

WEARING THE BELTPACK TRANSMITTER

Clip the receiver to a belt. For ultimate results, clip the receiver onto a belt by pushing the receiver down onto the belt as far as it goes. For guitarists, attach the guitar strap ”through” the receiver clip.

CHANGING THE BATTERIES

Expected life for two alkaline batteries is approxima- tively 8 hours. When the battery status indicator flashes red the batteries should be changed immediately as show on the left side. Please Insert 2 AA Alkaline batteries (LR6 1,5 V)

IR WINDOW Sends infrared signals to the transmitter (handheld mic) in order to synchronize the frequencies

POWER Power switch and Volume controller

ASC After selecting a transmitting frequency in the receiver, press ASC to sync the transmitter. Hold the IR port of the microphone in front of the IR port of the receiver. (Sync with beltpack: Press ASC on the beltpack and on the receiver to activate sync.

MUTE LEVEL Adjusting the receiver squelch setting: This function suppresses noise when the trans- mitter is off or when the receiver is no longer able to receive a sufficiently strong signal from the transmitter. The squelch setting of the receiver is adjusted at the factory so that the system functions optimally. Normally, no further adjustment is required. If readjustment does become necessary, the squelch level should be set so that no noise is de

tected in the receiver when the transmitter is off. This makes it possible to suppress interference, but it may also reduce system range under some circumstances. If the squelch level is reduced, interference can increasingly affect transmission quality. However, this may increase system range under some circumstances.

Shows if the module receives an audio signal

Shows if the module receives a radio signal

POWER SWITCH This is the general power switch (ON/OFF for the whole system)

LED INDICATOR When red, the system is in operation. Turned ON.

MASTER VOLUME General volume control of the system

BASS BASS / LOW TONE Equalizer

Use this Output to plug a further passive speaker. When using this output the sound comes out of both the Roadboy and the passive speaker. (min 4 Ω)

LED Indicator: Low Battery power (red), battery charging (green blinking), battery fully charged (green).

When Music is playing, turning on the Voice Priority function will automatically decrease the volume of the music when you speak in the microphone. As soon as you stop talking the music volume increases again. It is the so called “Talk Over” function.1

GAIN Use this controller to adjust the microphone sensitivity Left decrease, Right increase. Factory settings should give you complete satisfaction.

H stands for High power signal, L for Low power signal.

IR PORT Receives the infrared frequencies sent by the recei- ver in order to synchronize transmitter and receiver.

POWER/ASC Green light: Power On Green flash: IR transmission in progress Red flash: battery low

Plug the 6.3 mm Jack connector of your microphone cable into the MIC Jack input. You will find this input on the back panel of your Roadboy. Make sure that the other end of your cable is correctly connected to the microphone. If your microphone features an ON / OFF switch, please set it to the ON position. Now use the MIC gain knob to set the balance between the MIC and LINE inputs. Too much MIC level can cause distortion (Overdrive).

USING WIRELESS MODULE

Start by setting the MASTER level knob of your Roadboy on the zero position. Then turn the POWER-VOL knob of the wireless module to twelve o’clock position. Now you can synchronize the transmitter (handheld mic or Belt Pack) with the integrated receiver thanks to the ASC function: Press the ASC button of the wireless receiver modu- le, the ASC LED now flashes red. If you are using a handheld transmitter: The Infrared sensor (IR) is placed in the battery compartment under the capsule. Hold it close to the IR sensor of the wireless receiver module. If you are using a Belt Pack transmitter: You need to activate the ASC function on the Belt Pack also. Then hold the Infrared sensor (IR on the rear side) of the belt pack transmitter close to the IR window of the wireless receiver module. The synchronization lasts a few seconds. If you have installed a second wireless module (opti- onal), make sure that you are not running both modules on the same frequency in order to avoid any interference (see frequency list). A flashing RF light shows that your system is functioning and that the synchronization was successful. You can now increase the MASTER volume of your Roadboy to the desired volume. Maximum distance between the wireless microphone (or Belt Pack transmitter) and the receiver module is around 60 m in an open space.

USING THE „EXT. SPEAKER“ OUTPUT

Use a speaker cable with 6.3 mm Jack connector to connect the external loudspeaker. Use a speaker with impe- dance between 4 and 8 Ohm with a minimal power output of 25 W. CHARGING ROADBOY Plug the power supply (16 V / 3 A) which is included with your Roadboy to operate your system without batteries or in order to charge the batteries. The charging time is 8 hours. The charging procedure stops automatically when the battery is fully charged. You can also keep the Roadboy connected to the AC current and operate it as long as you wish. IMPORTANT! When connecting the battery for the first time or when replacing the battery you MUST mind the polarity! Red = + (plus) // Black = - (minus). When the Roadboy is charged for the first time, charging time should be 15 hours. This increases both battery life and capacity. This procedure should be repeated every 2-3 months. Before this charging procedure the battery should be empty.BASIC SPECIFICATIONS Output power: MAX 25 W RMS / 4 Ω Frequency response: 80 Hz - 15 kHz Maximum sound pressure: 110 dB Speaker: 6.5 - inch full range Power: 200 V - 250 V Switching power supply DC 16 V / 3 A Batteries: 12 V / 2.9 AH THD: <0,5 % Size (W x H x D): 300 x 200 x 230 mm Weight: 5 kg Receiver module: 863 - 865 MHz Operating time: 5 hours CD PLAYER Product type: Compact disc digital audio system with mechanic & electronic anti-shock CD, CD-R, CD-R/W, MP3, WMA, USB, SD, MP3, WMA available. Disc loading: Slot-in Type Supply voltage: DC 12 V (10 ~ 14 V) Power consumption: Within 5 W Dimensions (W x H x D): 160 x 147.4 x 68.5 mm Weight: 1.2 kg RECEIVER Channels: 16 Carrier frequency range: 863 - 865 MHz Audio bandwidth: 60 Hz - 16 kHz THD: <1% Signal/noise ratio: >100 dB Modulation: FM Dimensions: 212 x 160 x 44 mm Net weight: 860 g Power requirements: 12 - 18 V DC / 300 mA, ext. power supply HANDHELD TRANSMITTER Channels: 16 Carrier frequency range: 863 - 865 MHz Capsule type: Dynamic Polar pattern: Cardioid RF Output power: 10 mW Audio bandwidth: 60 Hz - 16 kHz Signal/noise ratio: >102 dB Modulation: FM Dimensions: 235 x 54 mm Net weight: 280 g Power requirements: 2 x „AA“ -batteries Battery Life: >10 hours

BELT PACK TRANSMITTER

Channels: 16 Carrier frequency range: 863 - 865 MHz RF Output power: 6 mW Max. input level: 6 mV Audio bandwidth: 60 Hz - 16 kHz Signal/noise ratio: >102 dB Modulation: FM Dimensions: 85 x 65 x 24 mm Net weight: 80 g Power requirements: 2 x „AA“ -batteries Battery Life: >10 hours, depending on batteries Since all our products are constantly controlled and improved, technical changes are possible without prior notice.

This Limited Warranty applies to the Adam Hall, LD Systems, Defender, Palmer and Eminence branded products. The statutory warranty rights towards the seller are not affected by this guarantee. In fact, it justifies, additional independent warranty claims towards Adam Hall. Adam Hall warrants that the Adam Hall product you have purchased from Adam Hall or from an Adam Hall autho- rized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 5 years from the date of purchase. The Limited Warranty Period starts on the date of purchase. In order to receive warranty services you are required to provide proof of the purchase date. Your dated sales or delivery receipt, showing the date of purchase, is your proof of the purchase date. Should products of the brands named above be in need of repair within the limited war- ranty period, you are entitled to warranty services according to the terms and conditions stated in this document. This Limited Warranty extends only to the original purchaser of this Adam Hall branded product and is not trans- ferable to anyone who obtains ownership of the Adam Hall branded product from the original purchaser. During the Limited Warranty Period, Adam Hall will repair or replace the defective component parts or the product. All component parts or hardware products removed under this Limited Warranty become the property of Adam Hall. In the unlikely event that your Adam Hall product has a recurring failure, Adam Hall, at its discretion, may elect to provide you with a replacement unit of Adam Hall´s choice that is at least equivalent to your Adam Hall branded product in hardware performance. Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam Hall branded product. This Limited Warranty does not apply, - to wear parts (e.g. accumulator) - to any product from which the serial number has been removed or that has been damaged or rendered defec tive as the result of an accident - in case of, misuse, abuse, or other external causes - by operation outside the usage parameters stated in the user´s documentation shipped with the product - by use of spare parts not manufactured or sold by Adam Hall - by modification or service by anyone other than Adam Hall These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam Hall regarding the Adam Hall branded product you have purchased. MANUFACTURER´S DECLARATIONS:

If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Halls’ maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any hardware components that malfunction in conditions of normal use. Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by a third party or made by you for a third party. This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limi- tation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if you have advised Adam Hall of an authorized representative of Adam Hall of the possibility of any such damages. This limitation of liability however, will not apply to claims for personal injury. This Limited Warranty gives you specific legal rights. You may also have other rights that may vary from state to state or from country to country. You are advised to consult applicable state or country laws for a full determina- tion of your rights. REQUESTING WARRANTY-SERVICE To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which you purchased the product.

EG-DECLARATION OF CONFIRMITY

These products meet the essential requirements as well as the further standards of the EU Directives 199/5/EU, 89/336/EU. CORRECT DISPOSAL OF THIS PRODUCT (ELECTRICAL WASTE) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncon- trolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an enviromentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal MANUFACTURER´S DECLARATIONS:

ENGLISHDEUTSCHFRANCAIS FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANOWEEE-DECLARATION Your LD-Systems product was developed and manufactured with high quality materials and components wich can be recycled and/or reused. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal waste at the end of its operational lifetime. Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live.

BATTERIES AND ACCUMULATORS

The supplied batteries or rechargeable batteries can be recycled. Please dispose of them as special waste or return them to your specialist dealer. In order to protect the environment, only dispose exhausted batteries. Adam Hall GmbH, all rights reserved. The technical data and the functional product characteristics can be subject to modifications. The photocopying, the translation, and all other forms of copying of fragments or of the integral- ity of this user’s manual is prohibited.
