USER MANUAL SUB 88 A LD Systems

LDSATG ^2 / SUB SERIES

PASSIVE INSTALLATION SPEAKER: LDSAT42G2(W) / LDSAT242G2(W) / LDSAT442G2(W)

LDSAT62G2(W) / LDSAT82G2(W) / LDSUB88

ACTIVE INSTALLATION SPEAKER: LDSAT82AG2(W) / LDSAT62AG2(W) / LDSUB88A /

LDSUB10A

EN You've made the right choice!

We have designed this product to operate reliably over many years. LD Systems stands for this with its name and many years of experience as a manufacturer of high-quality audio products. Please read this User's Manual carefully, so that you can begin making optimum use of your LD Systems product quickly.

You can find more information about LD-SYSTEMS at our Internet site WWW.LD-SYSTEMS.COM

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall mounts are properly installed and secured.
   Make certain that the equipment is installed securely and cannot fall down.
7. During installation, observe the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below. Do not expose this equipment to flammable materials, fluids or gases. Avoid direct sunlight!
12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.
13. Make certain that objects cannot fall into the device.
14. Use this equipment only with the accessories recommended and intended by the manufacturer.
15. Do not open or modify this equipment.
16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries.
18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in anot her way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.
19. Clean the equipment using a dry cloth.
20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.
21. Plastic bags must be kept out of reach of children.

FOR EQUIPMENT THAT Connects TO THE POWER MAINS

1. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.
2. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.
3. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.
4. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector.
5. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.
6. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment.
7. I i t service centre.
8. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet.
9. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be removed. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables.
10. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

CAUTION: Never remove the cover, because otherwise there may be a risk of electric shock. There are no user serviceable parts inside. Have repairs carried out only by qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.

The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions.

CAUTION - HIGH VOLUME LEVELS WITH AUDIO PRODUCTS!

This equipment is intended for professional use. Therefore, commercial use of this equipment is subject to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks. Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience members.

For this reason, avoid prolonged exposure to volumes in excess of 90 dB.

To prevent possible hearing damage, avoid listening at high volume levels over long periods of time. Even exposure to short bursts of loud noise can result in hearing loss. Please keep the volume constantly at a comfortable level.

APPAREILS RELIÉS AU SECTEUR

Up to four SAT42G2(W) or SAT62G2(W) speakers per power amplifier output can be operated in parallel at 4 ohms. The speaker signal is simply looped through to the next speaker via the connector panel on the rear.

SAT242G2(W), SAT442G2(W) and SAT82G2(W)

Up to two SAT42G2(W), SAT442G2(W) or SAT62G2(W) speakers per power amplifier output can be operated in parallel at 4 ohms. The speaker signal is simply looped through to the next speaker via the connector panel on the rear.

SUB88 in conjunction with SAT42G2(W), SAT62G2(W), SAT242G2(W) or SAT82G2(W)

Connect the speaker cables from the power amplifier (Output Left and Right) to the Input Left and Right

connectors of the subwoofer. Afterwards, connect the SAT Series speakers to the Output Left and Right connectors of the subwoofer. Up to two

SAT42G2(W) or SAT62G2(W) speakers per subwoofer output (Output Left and Right) can be operated in parallel at 4 ohms. One SAT242G2(W)

SAT442G2(W) or SAT82G2(W) speaker per subwoofer output (Output Left and Right) can be operated in this configuration at 4 ohms. We recommend using speaker cable with a conductor cross-section of at least 2 × 1.5 mm^2 .

Active Speakers

It is advisable to always turn on active speakers last and turn them off first in order to avoid the switch-on noises caused by connected mixers, etc. If multiple active speakers areconnected one after the other in series (SAT62AG2), then they should always be switched on in the order in which they are connected and switched off in reverse order.

Turn the active speakers off before you connect them. They can be connected both via 6.3 mm TRS plugs (balanced three-pole / unbalanced two-pole) as well as balanced three-pole XLR plugs. Once you have connected all of the necessary cables and set the volume (MAIN LEVEL) of the active speaker to minimum, you can switch on the audio source (e.g., mixer). Afterwards you can also switch on the active speakers. Start an audio signal and now turn the MAIN LEVEL knob clockwise until the desired volume is attained. Carry out these steps with all connected active speakers. On the following pages of this user manual, you will find a summary of the connectors, controls, and indicators.

SUB 10A in conjunction with passive SAT Series speakers

Connect the passive SAT Series speakers to the speaker outputs (SPEAKER OUT LEFT / RIGHT) of the SUB10A.

Up to four SAT42G2(W) or SAT62G2(W) speakers per speaker output can be operated in parallel. The speaker signal is simply looped through to the next speaker via the connector panel on the rear of the passive speaker.

Up to two SAT242G2(W) or SAT862G2(W) speakers per speaker output can be operated in parallel. The speaker signal is simply looped through to the next speaker via the connector panel on the rear of the passive speaker.

We recommend using speaker cable with a conductor cross-section of at least 2 × 1.5 mm^2 .

SUB10A in conjunction with SAT62AG2(W) and SAT82AG2(W) active speakers

Connect the active speakers to the line outputs (LINE DIRECT OUTPUT) of the SUB10A.

Looping Through the signal

With the SAT62AG2(W) and SAT82AG2(W) active speakers, the audio signal can be looped through to additional systems using a three-pole XLR cable. Accordingly, it is not necessary to connect each device to the audio source individually. Please use high-quality XLR cables for this and ensure that they are connected carefully.

SUB88A

To connect the SUB88A active subwoofer to the SAT62AG2 and SAT82AG2(W) active speakers, the subwoofer must be connected as the last speaker in the chain, since it only has one line input.

EN Balanced XLR line output for looping through the input signal.

EN Toggles between continuous operation (ON) and auto mode (AUTO). In the AUTO position, the amplifier of the speaker system switches on automatically as soon as a signal is received. If there is no signal for several minutes, the amplifier switches to standy mode.

EN The LED lights up red if the unit is switched on and is in AUTO mode, but no signal is present. Once a signal is present, the LED changes colours to green. The LED also lights up green if the unit is switched on and is in ON mode.

EN IEC power socket 220V-240V with built-in fuse holder. IMPORTANT INFORMATION: Replace the fuse only with a fuse of the same type and rating. If the fuse blows repeatedly, please contact an authorised service centre.

LDSUB88 PASSIVE SUBWOOFER / LDSUB88 SUBWOOFER PASSIV / LDSUB88 CAISSON DE BASSES PASSIF / SUBWOOFER PASIVO LDSUB88 / SUBWOOFER PASYWNY LDSUB88 / SUBWOOFER PASSIVO LDSUB88

SUB88 IN (IN LEFT shown) / SUB88 IN (abgebildet IN LEFT) / SUB88 IN (sur l'illustration : IN LEFT) / SUB88 IN (en la figura IN LEFT) / SUB88 IN (na ilustraci j IN LEFT) / SUB88 IN (nell'imagine IN LEFT)

EN Terminal clamps for speaker cables. Connect the positive pole (OUTPUT LEFT +) of the speaker cable coming from the amplifier to the red terminal clamp (IN LEFT +) and the negative pole (OUTPUT LEFT -) of the speaker cable coming from the amplifier to the black terminal clamp (IN LEFT -) of the subwoofer. Connect the SUB88 IN RIGHT and the amplifier OUTPUT RIGHT in the same manner.

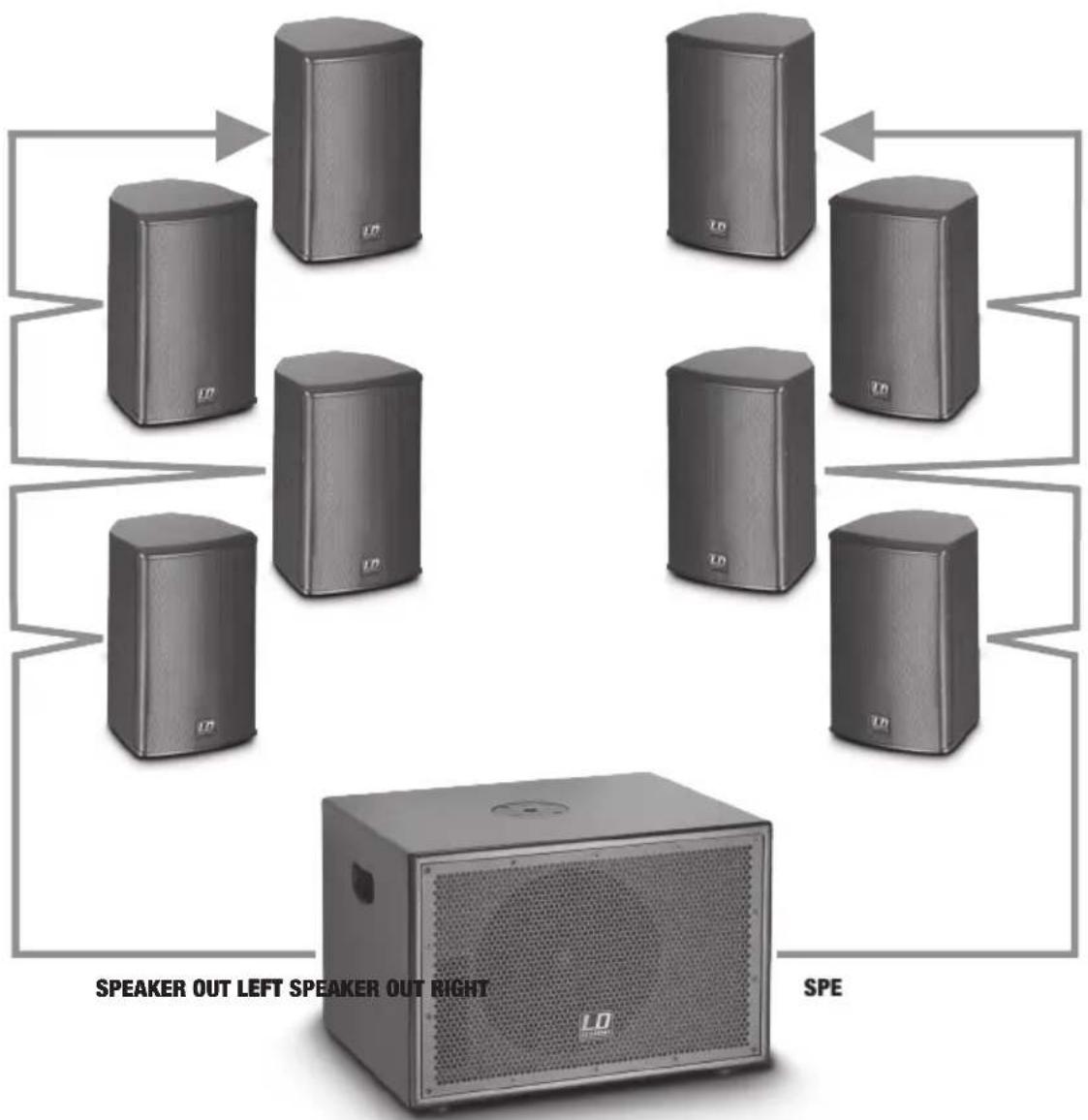

1xLDSUB10A+2x4LDSAT42G2(W)

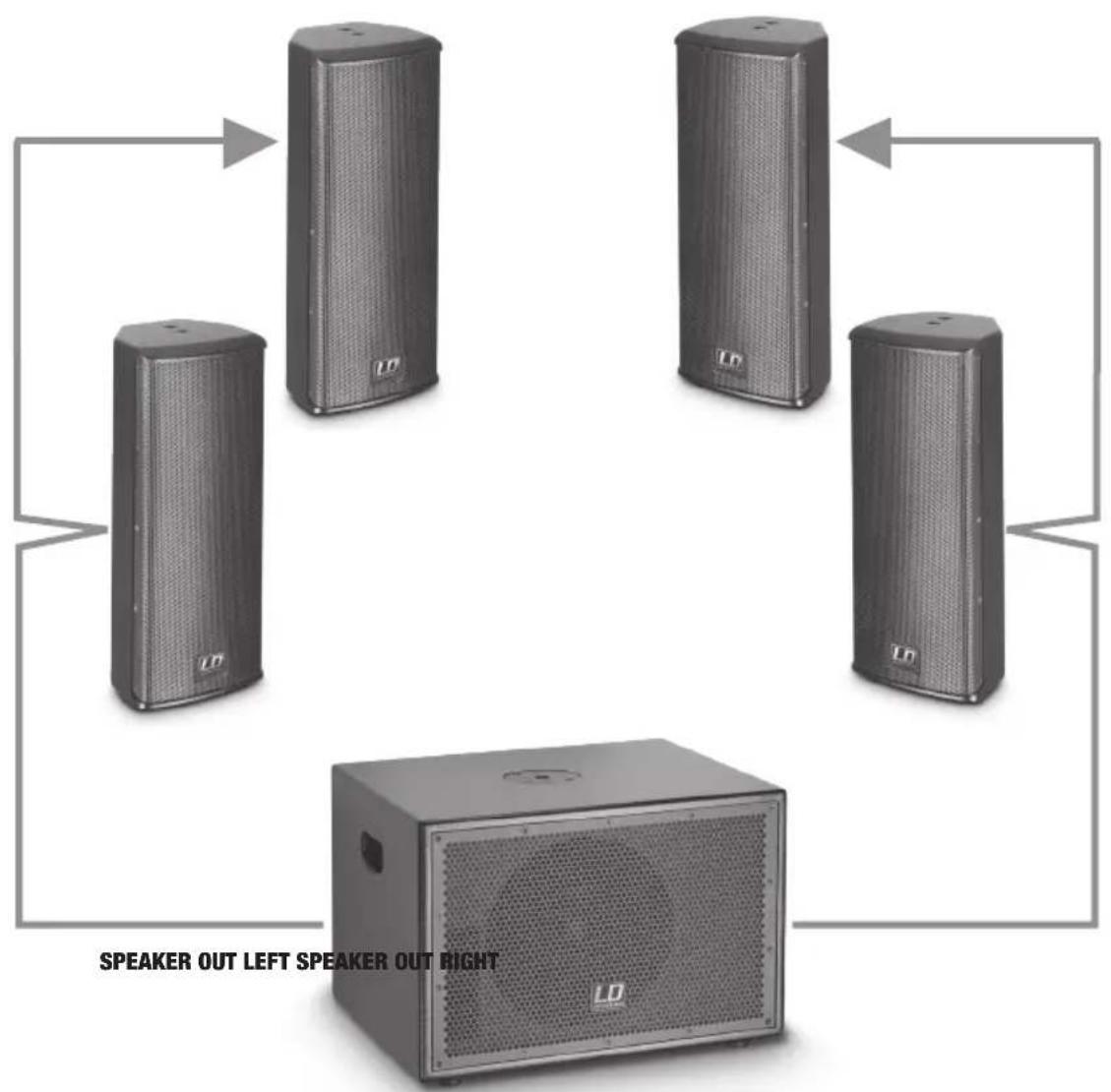

CONFIGURATION EXAMPLE 2 / KONFIGURATIONSBEISPIEL 2 / EXAMPLE DE CONFIGURATION 2 / EJEMPLO DE CONFIGURACION 2 / PRZYKŁADOWA KONFIGURACJA 2 / ESEMPIO DI CONFIGURAZIONE 2

1xLDSUB10A+2x2LDSAT242G2(W)

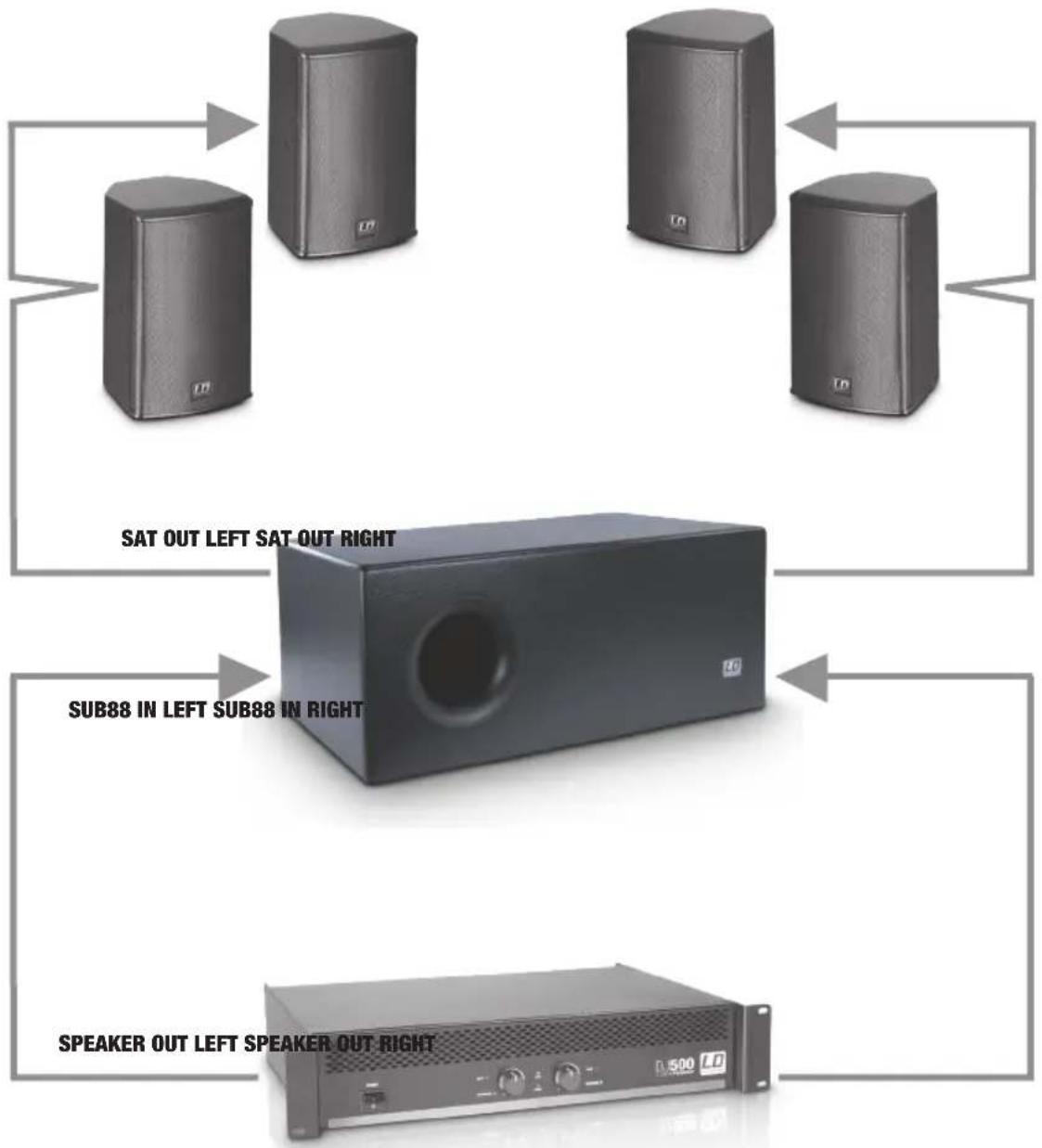

CONFIGURATION EXAMPLE 3 / KONFIGURATIONSBEISPIEL 3 / EXAMPLE DE CONFIGURATION 3 / EJEMPLO DE CONFIGURACION 3 / PRZYKŁADOWA KONFIGURACJA 3 / ESEMPIO DI CONFIGURAZIONE 3

1xLDDJ500+1xLDSUB88+2x2LDSAT62G2(W)

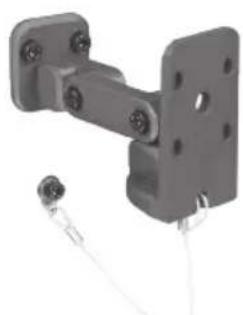

OPTIONAL ACCESSORIES / OPTIONALES ZUBEHÖR / ACCESSOIRES OPTIONNELS / ACCESORIOS OPCIONALES / AKCESORIA OPCJONALNE / ACCESSORI OPZIONALI

SUWMB10B (black) / (schwarz) / (noir) / (negro) / (czarny) / (nero) SUWMB10W (white) / (weiB) / (blanc) / (blanco) / (blya) / (bianco)

EN Universal speaker wall bracket with safety rope. Four snap-lock joints permit mounting of the speaker in virtually any position. Maximum load: 10 kg
DE Universelle Laufsprecher-Wandhalterung mit Sicherungsseil. 4 gerasterte Gelenke ermögen es, den Laufsprecher in nahezu jeder Position zu montieren. Maximale Traglast: 10kg
FR Fixation murale universelle pour enceinte, avec élingue de sécurité 4 articulations permettent d'orienter l'enceinte dans pratiquement n'importe qu'elle position. Charge maximale: 10 kg
ES Soporte universal de pared para altovoz con cable de seguridad. Sus 4 articulaciones permiten situar el altovoz en casoequalquierposicion.Maximacapacidaddecarga:10kg
PL Uniersalny scienny uchwyt glosnikowy z lin bepieczenstwa. 4 przyguby z blokada umozliwaj monta glosnika w sprawie kaźdej pozycji. Nosnosc maksymalna: 10 kg
IT Supporto da muro universale per altoparlante con cavo di sicurezza. Quattro giunti articolati consentono di montare l'altoparlante praticamente in qualsiasi posizione. Portata massima: 10 kg

SPECIFICATIONS / SPEZIFKATIONEN / CARACTERISTIQUES / ESPECIFICACIONES / SPECYFIKACJE / SPECIFICHE

EN

LDSAT42G2(W) LDSAT242G2(W) LDSAT62G2(W) LDSAT82G2(W) LDSAT442G2(W)
Product type	Installation Speakers	Installation Speakers	Installation Speakers	Installation Speakers	installation speakers
Type: passive passive passive passive
Woofer size: 4" / 101 mm 2 x 4" / 2 x 101 mm 6,5" / 165 mm 8" / 203 mm 4 x 4" / 4 x 101 mm
Woofer magnet: ferrite ferrite ferrite ferrite ferrite
Woofer brand: custom made custom made custom made custom made custom made
HF driver size: 1" / 25 mm 1" / 25 mm 1" / 25 mm 1" / 25 mm 1" / 25 mm
HF driver magnet: ferrite ferrite ferrite ferrite ferrite
HF driver brand:	custom made custom made custom made custom made custom made
Dispersion angle (H x V):	60 x 60°	60 x 60°	60 x 60°	60 x 60°	120°x 30°
Power output (RMS):	60 W	100 W	80 W	120 W	200 W
Frequency response:	75 Hz - 20,000 Hz	75 Hz - 20,000 Hz	55 Hz - 20,000 Hz	50 Hz - 20,000 Hz	75 Hz - 20,000 Hz
Sound-pressure level (1 W/1 m):	85 dB 88 dB	89 dB 93 dB	94 dB
Max SPL:	103 dB	108 dB	108 dB	114 dB	114 dB
Impedance:	16 ohms	8 ohms	16 ohms	8 ohms	8 ohms
Protection:	HF driver	HF driver	HF driver	HF driver	HF driver
Speaker inputs:	1	1	1	1	1
Speaker input connections:	Clamp connector	Clamp connector	Clamp connector	Clamp connector	clamp connector
Cabinet material:	12 mm MDF	12 mm MDF	12 mm MDF	15 mm MDF	12 mm MDF
Cabinet surface:	textured coating	textured coating	textured coating	textured coating	textured coating
Cabinet colour:	black (LDSAT42G2) / white (LDSAT42G2W)	black (LDSAT242G2) / white (LDSAT242G2W)	black (LDSAT62G2) / white (LDSAT62G2W)	black (LDSAT82G2) / white (LDSAT82G2W)	black (LDSAT442G2) / white (LDSAT442G2W)
Cabinet type:	closed	closed	bass reflex	bass reflex	dosed
Dimensions (W x H x D):	140 x 230 x 125 mm	140 x 378 x 135 mm	200 x 320 x 200 mm	274 x 410 x 243 mm	140 x 670 x 155 mm
Weight:	5 kg / pair	4.15 kg	8.2 kg / pair	7 kg	8 kg
Other features:	Wall bracket included	Wall bracket included	Wall bracket included	Wall bracket included	wall bracket included

	LDSAT62AG2(W)		LDSAT82AG2(W)
Product type: Installation Speakers		installation speakers
Type: active	active
Woofer size: 6,5" / 165 mm		8" / 203.2 mm
Woofer magnet: ferrite		ferrite
Woofer brand: custom made		custom made
HF driver size:	1" / 25 mm	1" / 25 mm
HF driver magnet:	ferrite		ferrite
HF driver brand:	custom made		custom made
Amplifier:	Class A/B class A/B
Dispersion angle (H x V):	60 x 60°	60° x 60°
Power output (RMS): 50 W		80 W
Frequency response: 55 Hz - 20,000 Hz			50 Hz - 20,000 Hz
Max SPL: 108 dB	114 dB
Protection:	HF driver, overcurrent		overcurrent, HF drivers
Controls:	Power switch (on/off), volume control, switchable auto-power mode		volume, power switch (on/off), power mode (on/auto)
Indicators:	Power		Power, Limit
Line input connectors:	XLR, 6.3 mm TRS (comb)		6.3 mm TRS, XLR
Line output connectors:	XLR		XLR
Power supply: transformer transformer
Operating voltage:	220 V AC - 240 V AC, 50 - 60 Hz		220 V AC - 240 V AC, 50 - 60 Hz
	110 V AC - 120 V AC, 50 - 60 Hz (US)		110 V AC - 120 V AC, 50 - 60 Hz (US)
Power consumption (max.)	80 W		175 W
Cabinet material: 12 mm MDF		12 mm MDF
Cabinet surface: textured coating		textured coating
Cabinet colour: black (LDSAT62AG2) / white (LDSAT62AG2W)			black (LDSAT82AG2) / white (LDSAT82AG2W)
Cabinet type: bass reflex		bass reflex
Dimensions (W x H x D): 200 x 320 x 200 mm			274 x 410 x 243 mm
Weight:	5.25 kg		8.6 kg
Other features:	Wall bracket included		wall bracket included

LDSUB88

Product type: Installation Subwoofoers

Type: passive

Woofer size: 2 x 8" / 2 x 203 mm

Woofer magnet: ferrite

Woofer brand: custom made

Power output (RMS): 200 (2x100)W

Frequency response: 40 Hz - 120 Hz

Sound-pressure level (1 W/1 m): 92 dB

Max SPL: 115 dB

Impedance: 2 x 8 ohms

Speaker inputs: 2

Speaker input connections: Clamp connector

Speaker outputs: 2

Speaker output connections: Clamp connector

Cabinet material: 15 mm MDF

Cabinet surface: textured coating

Cabinet colour: black

Cabinet type: band pass

Dimensions (W x H x D): 600 x 250 x 350 mm

Weight: 13.3 kg

Other features: internal low-pass filter (120 Hz)

LDSUB10A

Product type:

Type: active

Woofer size: 10^ / 254mm

Woofer magnet: ferrite

Woofer brand: custom made

Woofer voice coil: 2^ / 50.8mm

Max.SPL (continuous): 118 dB

Protection: overcurrent, limiter, short-circuit

Input sensitivity: 0.3 V RMS

Controls: Subwoofer volume, power switch (on/off), volume, subwoofer phase reverse

Indicators: Power

Line inputs: 2

Line input connectors: 6.3mm TRS, XLR

Line outputs: 2 x Direct Output

Line output connectors: XLR

Speaker outputs: 2

Speaker output con- Terminal posts nections:

Power supply: transformer

Operating voltage: 220 V AC - 240 V AC, 50 - 60 Hz 110 V AC - 120 V AC, 50 - 60 Hz (US)

Power consumption 600 W (max.):

Cabinet material: 15 mm MDF

Cabinet surface: textured coating

Cabinet type: bass reflex

Dimensions (W x H x D): 505 x 345 x 425 mm

Weight: 21 kg

Other features: M20 threaded flange, ergonomic recessed handles, speaker outputs with high-pass filter (170 Hz, -18 dB)

LDSUB88A

Product type: Installation Subwoofer

Type: active

Woofer size: 2 × 8'' / 2 × 203 mm

Woofer magnet: ferrite

Woofer brand: custom made

Protection: overload

Controls: Phase 180^ volume, low-pass filter (70 - 140 Hz)

Indicators: Limit, Signal, Power

Line inputs: 1

Line input connectors: XLR, 6.3 mm TRS (comb)

Power supply: transformer

Operating voltage: 220 V AC - 240 V AC, 50 - 60 Hz 110 V AC - 120 V AC, 50 - 60 Hz (US)

Power consumption 200 W (max.):

Cabinet material: 15 mm MDF

Cabinet surface: textured coating

Cabinet colour: black

Cabinet type: band pass

Dimensions (W x H x D): 600 x 250 x 350 mm

Weight: 15 kg

Max.SPL (continuous): 118 dB

Marcadelwoofer:CustomMade

Amplificador:Clase AB

SPL (1 W a 1 m): 92 dB

SPL maximo: 115 dB

EN MANUFACTURER'S DECLARATIONS

MANUFACTURER'S WARRANTY & LIMITATIONS OF LIABILITY

You can find our current warranty conditions and limitations of liability at: https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS LD SYSTEMS.pdf To request warranty service for a product, please contact Adam Hall GmbH, Adam-Hall-Str. 1, 61267 Neu Anspach / Email: [e-mail] / +49 (0)6081 / 9419-0.

CORRECT DISPOSAL OF THIS PRODUCT

(valid in the European Union and other European countries with a differentiated waste collection system)

This symbol on the product, or on its documents indicates that the device may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity. Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial waste for disposal.

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation

CE Compliance

Adam Hall GmbH states that this product meets the following guidelines (where applicable):

R&TTE (1999/5/EC) or RED (2014/53/EU) from June 2017

Low voltage directive (2014/35/EU)

EMV directive (2014/30/EU)

RoHS (2011/65/EU)

The complete declaration of conformity can be found at www.adamhall.com.

Furthermore, you may also direct your enquiry to [e-mail].

(Valid in the European Union and other European countries with waste separation)
