USER MANUAL DAVE 8 ROADIE LD Systems

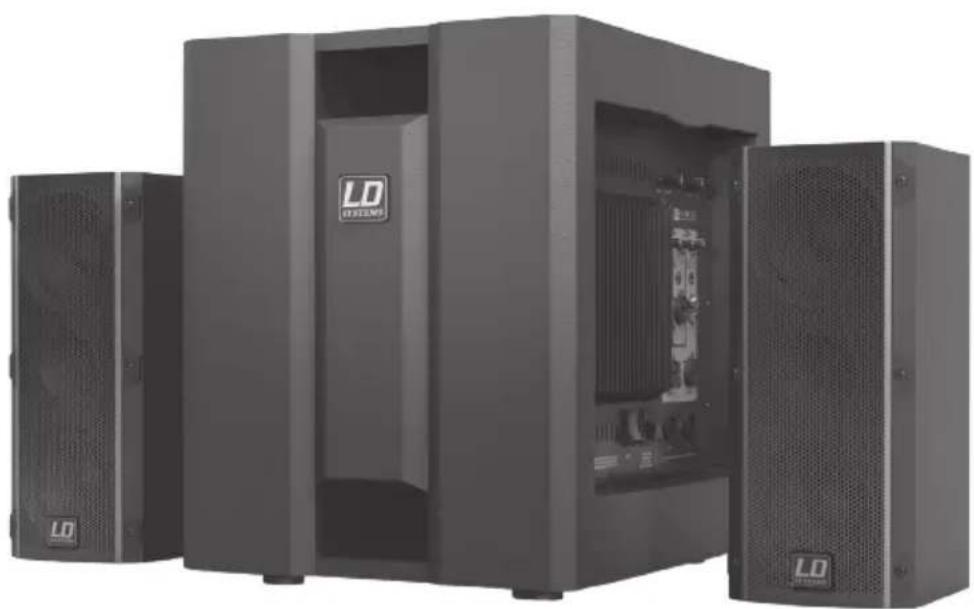

LD Dave8roaDie portabLe 8“ powereD muLtimeDia system with 3-channel mixer2 ENGLISHDEUTSCHFRANCAIS FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo You‘ve made the right choice! We have designed this product to operate reliably over many years. LD Systems stands for this with its name and many years of experience as a manufacturer of high-quality audio products. Please read this User‘s Manual carefully, so that you can begin making optimum use of your LD Systems product quickly. You can find more information about LD SYSTEMS at our Internet site WWW.lD-SYStemS.COM Introduction The LD Systems DAVE 8 Roadie complete PA system with its powerful 350-watt (RMS) power amplifier delivers astounding performance for mobile applications. The system is equipped with a high-performance 8" band-pass subwoofer (150 W RMS) and two satellite speakers (4" + 1", 100 W) and was designed as a flexible mini PA system especially for musicians. The DAVE 8 Roadie features 3 different inputs which can be used simultaneously: One channel has a combo connector (XLR/jack) for dynamic microphones. One channel offers dual RCA inputs for computers and a combo connector (XLR/jack) for mixers or keyboards. Finally, the third channel has a 3.5 mm stereo jack connector and a 6.3 mm mono jack connector for MP3 players and guitars – with a selector switch for activating the desired in- put. The built-in Class A / B power amplification module in the subwoofer powers both the subwoofer and the satellites.3 ITALIANOPOLSKIESPAÑOL FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH LD Dave8roaDie portabLe 8" powereD muLtimeDia system with 3-channel mixer4 ENGLISHDEUTSCHFRANCAIS FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo PreVentiVe measures:

1. Please read these instructions carefully.

2. Keep all information and instructions in a safe place.

3. Follow the instructions.

4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.

5. Use the equipment only in the intended manner and for the intended purpose.

6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall

mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.

7. During installation, observ e the applicable safety regulations for your country.

8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make

certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.

9. Never place sources of ignition, e.g., burning candles, on the equipment.

10. Ventilation slits must not be blocked.

11. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment -

in this case, observe the special instructions noted below. Do not expose this equipment to flammable materials, fluids or gases.

12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with

liquids, such as vases or drinking vessels, on the equipment.

13. Make certain that objects cannot fall into the device.

14. Use this equipment only with the accessories recommended and intended by the manufacturer.

15. Do not open or modify this equipment.

16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to

17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and

18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or

if it has been damaged in anot her way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.

19. Clean the equipment using a dry cloth.

20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate

plastic and paper/cardboard.

21. Plastic bags must be kept out of reach of children.

For equiPment that connectS to the Power mainS:

22. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to

an outlet with a protective ground. Never deactivate the protective ground of a power cord.

23. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do

not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.

24. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match

the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

25. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the

mains outlet and/or power adapter and the equipment connector.

26. When connecting the equipment, make certain that the power cord or power adapter is always freely

accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want5 ITALIANOPOLSKIESPAÑOL FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH ENGLISH SaFetY: to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.

27. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this

can shorten the useful life of the equipment.

28. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repea-

tedly, please contact an authorised service centre.

29. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter

from the power outlet.

30. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be

unlocked before it can be removed. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables.

31. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or

before extended periods of disuse. CAUTION

RISK OF ELECTRIC SHOCK

caution: Never remove the cover, because otherwise there may be a risk of electric shock. There are no user serviceable parts inside. Have repairs carried out only by qualified service personnel. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock. The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions. caution – hiGh Volume leVelS with auDio ProDuctS! This equipment is intended for professional use. Therefore, commercial use of this equipment is subject to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks. Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB. caution! imPortant inFormation aBout liGhtinG ProDuctS

1. Do not look into the beam from a distance of less than 40 cm.

2. Do not stare into the beam for extended periods at short-to-medium distances.

3. Do not view the beam directly with optical instruments such as magnifiers.

4. Under some circumstances, stroboscopic effects may trigger epileptic seizures in sensitive individuals! For this

reason, persons who suffer from epilepsy should always avoid places where strobe lights are used.6 ENGLISHDEUTSCHFRANCAIS FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo

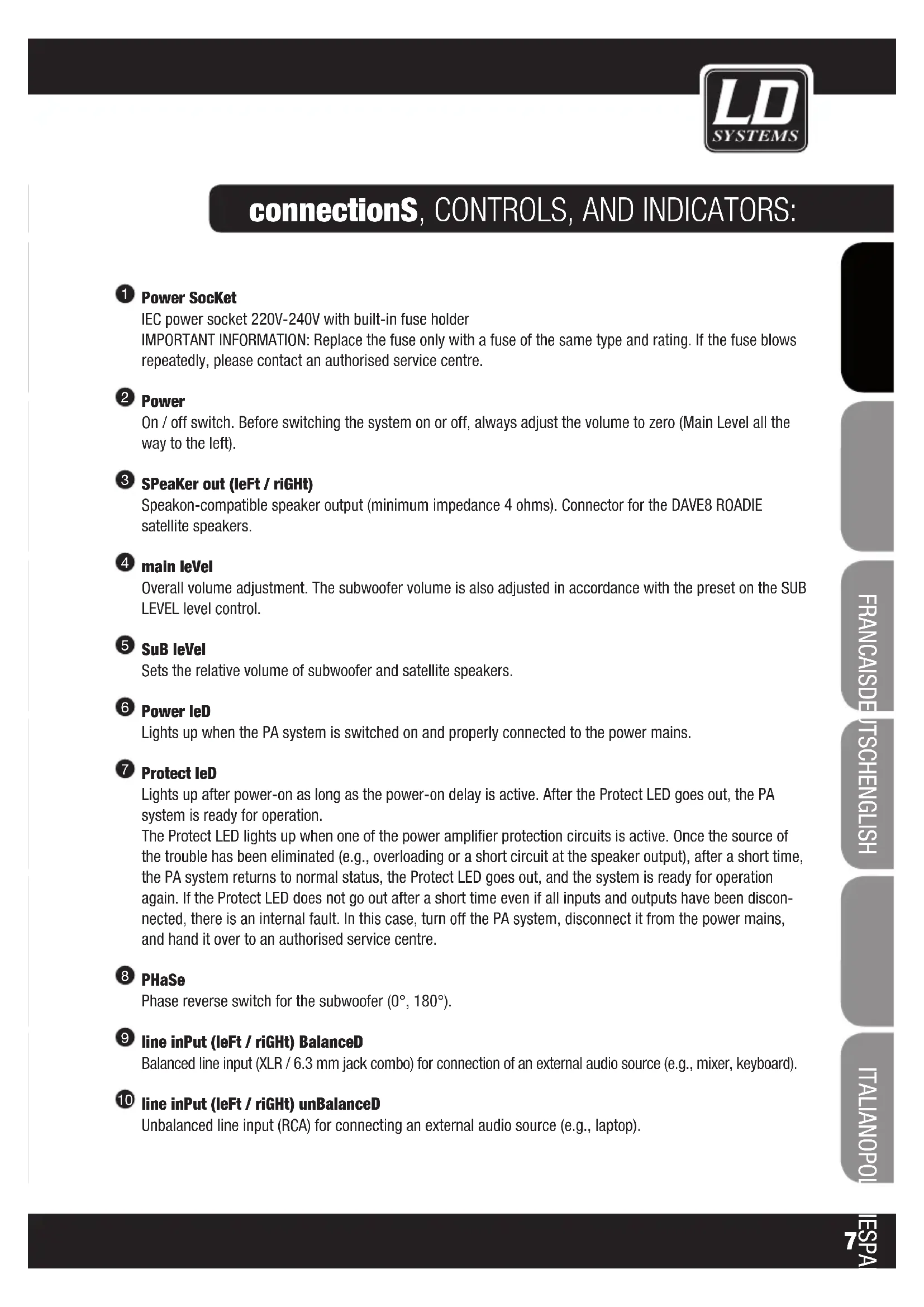

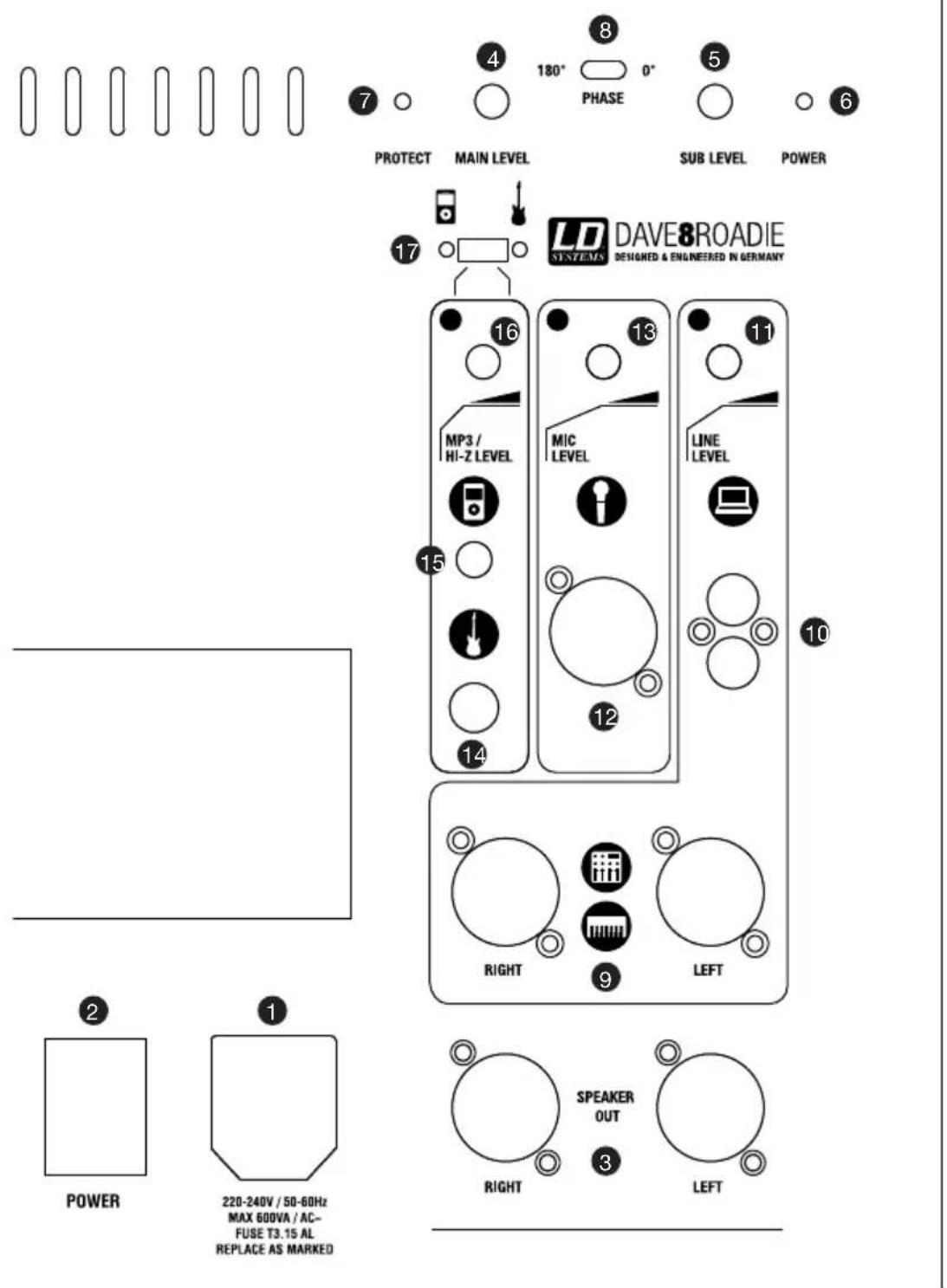

Power SocKet IEC power socket 220V-240V with built-in fuse holder IMPORTANT INFORMATION: Replace the fuse only with a fuse of the same type and rating. If the fuse blows repeatedly, please contact an authorised service centre.

Power On / off switch. Before switching the system on or off, always adjust the volume to zero (Main Level all the way to the left).

main leVel Overall volume adjustment. The subwoofer volume is also adjusted in accordance with the preset on the SUB LEVEL level control.

SuB leVel Sets the relative volume of subwoofer and satellite speakers.

Power leD Lights up when the PA system is switched on and properly connected to the power mains.

Protect leD Lights up after power-on as long as the power-on delay is active. After the Protect LED goes out, the PA system is ready for operation. The Protect LED lights up when one of the power amplifier protection circuits is active. Once the source of the trouble has been eliminated (e.g., overloading or a short circuit at the speaker output), after a short time, the PA system returns to normal status, the Protect LED goes out, and the system is ready for operation again. If the Protect LED does not go out after a short time even if all inputs and outputs have been discon- nected, there is an internal fault. In this case, turn off the PA system, disconnect it from the power mains, and hand it over to an authorised service centre.

line inPut (leFt / riGht) BalanceD Balanced line input (XLR / 6.3 mm jack combo) for connection of an external audio source (e.g., mixer, keyboard).

line leVel Line in volume control

mic inPut Balanced microphone input (XLR/ 6.3 mm jack combo) It is possible to use an unbalanced microphone cable (mono jack). The microphone input has a built-in 100Hz subsonic filter to suppress low-frequency noise. NOTE: There is no phantom power on the microphone input.

3.5 mm jack input for MP3 players. When using this input, Switch 17 must be set to the left-hand position

(MP3 player symbol). This switches the channel to stereo.

mP3 / hi-Z Switch In the left-hand position, the MP3 input is active; in the right-hand position, the HI-Z input is active.9 ITALIANOPOLSKIESPAÑOL FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH troubLeShootinG: connectionS, ControLs, anD inDiCators: ProBlem DiSPlaY Solution System is not operational although it is switched on. Power switch and power LED do not light up. Check mains connection. Disconnect the system from the mains! Check the primary fuse of the system and replace it if necessary. If the fuse trips repea- tedly, disconnect the system from the power mains and hand it over to an authorised service centre. Power switch, power LED and Protect LED light up. System is overloaded. Reduce volume. Protect LED goes out after a short time; the system is operational again. Protect LED remains lit even after reduction of the volume. Disconnect the speaker cable for the satellites from the system (possible short circuit). Protect LED goes out after a short time; replace speaker cable. Protect LED remains lit even after reduction of the volume and replacement of the speaker cable. Internal fault. Turn of the system, disconnect it from the power mains, and hand it over to an authorised service centre. HI-Z input is in use, but the guitar is inaudible, although both the HI-Z and Main Level knobs are turned up. Switch 17 is in the left-hand position (MP3 symbol). Reduce the volume of the guitar channel and move the switch to the right-hand position (guitar symbol). MP3 input is in use, but the MP3 player is inaudible, although both the MP3 and Main Level knobs are turned up. Switch 17 is in the right-hand position (guitar symbol). Reduce the volume of the MP3 channel and move the switch to the left-hand position (MP3 symbol). Microphone signal distorted. Reduce the microphone channel volume and increase the overall volume (Main Level). Reduce the volume of any additionally connec- ted audio source (e.g., keyboard) by the same amount.10 ENGLISHDEUTSCHFRANCAIS FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo troubLeShootinG: ProBlem DiSPlaY Solution Guitar/MP3 signal distorted. Reduce the guitar/MP3 channel volume and increase the overall volume (Main Level). Reduce the volume of any additionally connected audio source (e.g., keyboard, microphone) by the same amount. Reduce the volume of the audio source (e.g., guitar, MP3 player) and increase the channel and/or overall volume. Signal from line input distorted. Reduce the line channel volume and increase the overall volume (Main Level). Reduce the volume of any additionally connected audio source (e.g., keyboard, microphone) by the same amount. Reduce the volume of the audio source (e.g., mixer increase the channel and/or overall volume. Overall signal distorted. Reduce overall volume (MAIN LEVEL).11 ITALIANOPOLSKIESPAÑOL FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH acceSSorieS (optionaL) : lDDaVe8Set1 Transport set to fit DAVE 8 XS and DAVE 8 Roadie. This set consists of a transport bag incl. casters for the DAVE8 subwoofer and a transport / carrying bag for the two DAVE8 satellites. lDDaVe8Set2 This set consists of two speaker stands for DAVE 8 Roadie satellite speakers, two speaker cables, and a transport bag. lDSatwmB10B/w Wall mount for DAVE 8 satellites12 ENGLISHDEUTSCHFRANCAIS FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo Product type: Complete PA System Type: active Colour: black Max. SPL (continuous): 117 dB Max. SPL (peak): 123 dB Frequency response: 45 - 19000 Hz Dispersion angle (H x V): 60° x 60° Subwoofer Woofer size: 8" Woofer size: 203 mm Woofer magnet: ferrite Woofer brand: custom made Woofer voice coil: 1,5" Woofer voice coil: 38.1 mm Cabinet type: band pass Housing material: MDF Cabinet surface: painted Dimensions (W x H x D): 352 x 430 x 434 Subwoofer weight: 20.7 kg Features: Limiter, M20 threaded flange, carrying handles Mid/Hi System Midrange size: 2 x 4" Midrange size: 2 x 101.6 mm Midrange magnet: ferrite Midrange brand: custom made Midrange voice coil: 1" Midrange voice coil: 25.4 mm Horn: radial Tweeter size: 1" Tweeter size: 25.4 mm Tweeter magnet: ferrite Tweeter brand: custom made Tweeter voice coil: 1" Tweeter voice coil: 25.4 mm Mid/Hi system impedance: 4 ohms Speaker inputs: 1 Speaker input connections: Speakon-compatible Mid/Hi system cabinet type: closed SPECIFICATIONS: SPECIFICATIONS:13 ITALIANOPOLSKIESPAÑOL FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH SPECIFICATIONS: SPECIFICATIONS: Mid/Hi system cabinet material: MDF Mid/Hi system cabinet surface: painted Dimensions (W x H x D): 150 x 350 x 170 mm Mid/Hi system weight: 4.2 kg Mid/Hi system features: 16 mm stand mount, metal front grille, carrying handles Amplifier module (integrated in subwoofer) Amplifier: Class A/B Amplifier power system (RMS) 350W Amplifier power system (peak): 700W Amplifier power subwoofer (RMS): 150 W Amplifier power subwoofer (peak): 300 W Amplifier power Mid/Hi (RMS): 100 W Amplifier power Mid/Hi (peak): 200 W Protection: Short circuit, overvoltage, limiter Cooling system: Heatsink for cooling Controls: Main Level, Mic Level, Line Level, MP3/ Hi-Z level, Input Switch (Hi-Z / MP3), Sub level, 180 ° Phase Reverse, ON / OFF Indicators: Power, Protect Power supply: transformer Operating voltage: 220 V AC - 240 V AC Power consumption / max. 600 VA Line inputs: 2 Line input connectors: XLR/ 6.3 mm jack combo, RCA Microphone inputs: 1 Microphone input connectors: XLR/ 6.3 mm jack combo HI-Z inputs: 1 (alternative to MP3 player input) HI-Z input connectors: 6.3 mm jack MP3 player inputs: 1 (alternative to HI-Z input) MP3 player input connectors: 3,5 mm stereo jack Speaker outputs: 2 Speaker output connections: Speakon-compatible Other features: 100-Hz high-pass filter in microphone channel14 ENGLISHDEUTSCHFRANCAIS FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo manuFacturer‘S WARRANTY This warranty covers the Adam Hall, LD Systems, Defender, Palmer, and Cameo brands. It applies to all products distributed by Adam Hall. This warranty declaration does not affect the statutory warranty claims against the manufacturer, but expands them with additional warranty claims vis-a-vis Adam Hall. Adam Hall warrants that the Adam Hall product that you have purchased from Adam Hall or from an Adam Hall authorized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 5 years (please inquire on a product-by-product basis) from the date of purchase. The warranty period begins on the date on which the product was purchased, proof of which must be produced (through presentation of the invoice or the delivery note with the date of purchase) in the event of a warranty claim. Should products of the brands named above be in need of repair within the limited warranty period, you are entitled to warranty service according to the terms and conditions stated here. During the Limited Warranty Period, Adam Hall will repair or replace the defective component parts or the product. In the event of repair or replacement during the Limited Warranty Period, the replaced original parts and/or pro- ducts become property of Adam Hall. In the unlikely event that the product which you purchased has a recurring failure, Adam Hall has the right, at its discretion, to replace the defective product with another product, provided that the new product is at least equi- valent to the product being replaced with regard to the technical specifications. Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam Hall branded product. The manufacturer‘s warranty does not cover – expendable parts (e. g., rechargeable batteries) - products from which the serial number has been removed or with a serial number that has been damaged as a result of an accident - damage due to improper use, user error or other external reasons - damage to devices operated outside the usage parameters stated in the documentation included with the product - damage due to the use of replacement parts not manufactured, sold or recommended by Adam Hall, - damage due to modification or servicing by anyone other than Adam Hall. These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam Hall regarding the Adam Hall branded product you have purchased. manuFacturer´S DeCLarations:15 ITALIANOPOLSKIESPAÑOL FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH manuFacturer´S DeCLarations: limitation OF LIABILITY If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Halls’ maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any components that malfunction under conditions of normal use. Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by a third party or made by you for a third party. This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim, and cannot be rescinded or changed by anyone. This limitation of liability will be effective even if you have advised Adam Hall or an authorized representative of Adam Hall of the possibility of any such damages, but not, however, in the event of claims for damages in connection with personal injuries. This manufacturer‘s warranty grants you specific rights; depending on jurisdiction (nation or state), you may be be entitled to additional claims. You are advised to consult applicable state or national laws for a full determina- tion of your rights. REQUESTING warrantY SerVice To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which you purchased the product. ec Declaration oF ConFormity The equipment marketed by Adam Hall complies (where applicable) with the essential requirements and other relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional information can be found at www.adamhall.com.16 ENGLISHDEUTSCHFRANCAIS FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo manuFacturer´S DeCLarations: ProPer DiSPoSal OF THIS PRODUCT (Valid in the European Union and other European countries with waste separation) This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity. Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal . enVironmental Protection anD enerGY Conservation Energy conservation is an active contribution to environmental protection. Please turn off all unneeded electrical devices. To prevent unneeded devices from consuming power in standby mode, disconnect the mains plug. Adam Hall GmbH, all rights reserved. The technical data and the functional product characteristics can be subject to modifications. The photocopying, the translation, and all other forms of copying of fragments or of the integrlity of this user’s manual is prohibited.17 ITALIANOPOLSKIESPAÑOL FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISHENGLISHDEUTSCHFRANCAIS FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo
