USER MANUAL SAT 62 A G2 LD Systems

1. Please read these instructions carefully.

2. Keep all information and instructions in a safe place.

3. Follow the instructions.

4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.

5. Use the equipment only in the intended manner and for the intended purpose.

6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.

7. During installation, observ e the applicable safety regulations for your country.

8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.

9. Never place sources of ignition, e.g., burning candles, on the equipment.

10. Ventilation slits must not be blocked.

11. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below. Do not expose this equipment to flammable materials, fluids or gases. Avoid direct sunlight! 12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.

13. Make certain that objects cannot fall into the device.

14. Use this equipment only with the accessories recommended and intended by the manufacturer.

15. Do not open or modify this equipment.

16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards. 17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries. 18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in anot her way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.

19. Clean the equipment using a dry cloth.

20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.

21. Plastic bags must be kept out of reach of children.

You‘ve made the right choice! We have designed this product to operate reliably over many years. LD Systems stands for this with its name and many years of experience as a manufacturer of high-quality audio products. Please read this User‘s Manual carefully, so that you can begin making optimum use of your LD Systems product quickly. You can find more information about LD-SYSTEMS at our Internet site WWW.LD-SYSTEMS.COM

Avete fatto la scelta giusta! Quest‘apparecchio è stato sviluppato e prodotto secondo elevati standard qualitativi che garantiscono un funzionamento regolare per molti anni. Per questo motivo LD Systems, con il suo nome e la pluriennale esperienza, rappresenta un‘azienda produttrice di prodotti audio di qualità. Leggete attentamente questo manuale d‘uso per utilizzare al meglio il vostro nuovo prodotto LD Systems. Per maggiori informazioni su LD SYSTEMS, consultate la nostra pagina web WWW.LD-SYSTEMS.COM3 FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS 22. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord. 23. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature. 24. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equip- ment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician. 25. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector. 26. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equip- ment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands. 27. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment. 28. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised service centre. 29. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet. 30. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be removed. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables. 31. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse. CAUTION

CAUTION: Never remove the cover, because otherwise there may be a risk of electric shock. There are no user serviceable parts inside. Have repairs carried out only by qualified service personnel. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock. The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions. CAUTION – HIGH VOLUME LEVELS WITH AUDIO PRODUCTS! This equipment is intended for professional use. Therefore, commercial use of this equipment is subject to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks. Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB. To prevent possible hearing damage, avoid listening at high volume levels over long periods of time. Even exposure to short bursts of loud noise can result in hearing loss. Please keep the volume constantly at a comfortable level.

Passive Speakers SAT42G2(W) and SAT62G2(W) Up to four SAT42G2(W) or SAT62G2(W) speakers per power amplifier output can be operated in parallel at 4 ohms. The speaker signal is simply looped through to the next speaker via the connector panel on the rear. SAT242G2(W) , SAT442G2(W) and SAT82G2(W) Up to two SAT42G2(W) , SAT442G2(W) or SAT62G2(W) speakers per power amplifier output can be operated in parallel at 4 ohms. The speaker signal is simply looped through to the next speaker via the connector panel on the rear. SUB88 in conjunction with SAT42G2(W), SAT62G2(W), SAT242G2(W) or SAT82G2(W) Connect the speaker cables from the power amplifier (Output Left and Right) to the Input Left and Right connectors of the subwoofer. Afterwards, connect the SAT Series speakers to the Output Left and Right connectors of the subwoofer. Up to two SAT42G2(W) or SAT62G2(W) speakers per subwoofer output (Output Left and Right) can be operated in parallel at 4 ohms. One SAT242G2(W) , SAT442G2(W) or SAT82G2(W) speaker per subwoofer output (Output Left and Right) can be operated in this configuration at 4 ohms. We recommend using speaker cable with a conductor cross-section of at least 2 x 1.5 mm². Active Speakers It is advisable to always turn on active speakers last and turn them off first in order to avoid the switch-on noises caused by connected mixers, etc. If multiple active speakers areconnected one after the other in series (SAT62AG2), then they should always be switched on in the order in which they are connected and switched off in reverse order. Turn the active speakers off before you connect them. They can be connected both via 6.3 mm TRS plugs (balanced three-pole / unbalanced two-pole) as well as balanced three-pole XLR plugs. Once you have connected all of the necessary cables and set the volume (MAIN LEVEL) of the active speaker to minimum, you can switch on the audio source (e.g., mixer). Afterwards you can also switch on the active speakers. Start an audio signal and now turn the MAIN LEVEL knob clockwise until the desired volume is attained. Carry out these steps with all connected active speakers. On the following pages of this user manual, you will find a summary of the connectors, controls, and indicators. SUB 10A in conjunction with passive SAT Series speakers Connect the passive SAT Series speakers to the speaker outputs (SPEAKER OUT LEFT / RIGHT) of the SUB10A. Up to four SAT42G2(W) or SAT62G2(W) speakers per speaker output can be operated in parallel. The speaker signal is simply looped through to the next speaker via the connector panel on the rear of the passive speaker. Up to two SAT242G2(W) or SAT862G2(W) speakers per speaker output can be operated in parallel. The speaker signal is simply looped through to the next speaker via the connector panel on the rear of the passive speaker. We recommend using speaker cable with a conductor cross-section of at least 2 x 1.5 mm². SUB10A in conjunction with SAT62AG2(W) and SAT82AG2(W) active speakers Connect the active speakers to the line outputs (LINE DIRECT OUTPUT) of the SUB10A. Looping Through the signal With the SAT62AG2(W) and SAT82AG2(W) active speakers, the audio signal can be looped through to additional systems using a three-pole XLR cable. Accordingly, it is not necessary to connect each device to the audio source individually. Please use high-quality XLR cables for this and ensure that they are connected carefully.10 SUB88A To connect the SUB88A active subwoofer to the SAT62AG2 and SAT82AG2(W) active speakers, the subwoofer must be connected as the last speaker in the chain, since it only has one line input.

IEC power socket 220V-240V with built-in fuse holder. IMPORTANT INFORMATION: Replace the fuse only with a fuse of the same type and rating. If the fuse blows repeatedly, please contact an authorised service centre.

On / off switch. Before switching the active speaker on or off, always adjust the volume to zero (MAIN LEVEL all the way to the left).

Balanced line input (XLR / 6.3 mm TRS combo) for connecting an external audio source (e.g., mixer).

Balanced XLR line output for looping through the input signal.

Toggles between continuous operation (ON) and auto mode (AUTO). In the AUTO position, the amplifier of the speaker system switches on automatically as soon as a signal is received. If there is no signal for several minutes, the amplifier switches to standy mode.

The LED lights up red if the unit is switched on and is in AUTO mode, but no signal is present. Once a signal is present, the LED changes colours to green. The LED also lights up green if the unit is switched on and is in ON mode.

Lights up if the speaker is operating in the clipping range. Brief flashing is not a cause for concern, since the internal audio limiter compensates for over-modulation. Permanent illumination should be avoided by reducing the input level.

Overall volume of the system (subwoofer and connected passive speakers).

Sets the relative volume of subwoofers and satellite speakers.

Balanced XLR line output (left / right) for looping through the input signal.

Balanced line input (XLR / 6.3 mm TRS combo, left / right) for connecting an external audio source (e.g., mixer).

Terminal posts for speaker cables. Connection of speakers or speaker systems with a total impedance of at least 4 ohms per channel. Connect the positive pole (+) of the speaker cable to the red terminal clamp (+) and the negative pole (-) of the speaker cable to the black terminal clamp (-) of the respective channel. Optionally, speaker cables with banana plugs can also be used.

IEC power socket 220V-240V with built-in fuse holder. IMPORTANT INFORMATION: Replace the fuse only with a fuse of the same type and rating. If the fuse blows repeatedly, please contact an authorised service centre.

On / off switch. Before switching the active speaker on or off, always adjust the volume to zero (MAIN LEVEL all the way to the left).

IEC power socket 220V-240V with built-in fuse holder. IMPORTANT INFORMATION: Replace the fuse only with a fuse of the same type and rating. If the fuse blows repeatedly, please contact an authorised service centre.

On / off switch. Before switching the active speaker on or off, always adjust the volume to zero (SUB LEVEL all the way to the left).

Balanced line input (XLR / 6.3 mm TRS combo) for connecting an external audio source (e.g., mixer).

Lights up when the subwoofer is switched on and properly connected to the power mains.

The LED lights up when an audio signal is present at the line input.

Lights up if the speaker is operating in the clipping range. Brief flashing is not a cause for concern, since the internal audio limiter compensates for over-modulation. Permanent illumination should be avoided by reducing the input level.

Connect the positive pole (+) of the speaker cable coming from the amplifier to the red terminal clamp (+) and the negative pole (-) of the speaker cable coming from the amplifier to the black terminal clamp (-).

Terminal clamps for speaker cables.Connect the positive pole (OUTPUT LEFT +) of the speaker cable coming from the amplifier to the red terminal clamp (IN LEFT +) and the negative pole (OUTPUT LEFT -) of the speaker cable coming from the amplifier to the black terminal clamp (IN LEFT -) of the subwoofer. Connect the SUB88 IN RIGHT and the amplifier OUTPUT RIGHT in the same manner.

Terminal clamps for speaker cables.Connect the positive pole (+) of the speaker cable to the red terminal clamp (SAT OUT LEFT +) and the negative pole (-) of the speaker cable to the black terminal clamp (SAT OUT LEFT -) of the respective channel. Connect the SATG2 Series speakers to the other side of the speaker cable in the same manner. IMPORTANT: Observe the remarks rearding the LDSUB88 subwoofer and the passive LDSATG2 Series speakers in the „OPERATING INSTRUCTIONS“ section of this user manual!

u-shaped mounting bracket

M6 socket screw x 16

NOTE: Speaker brackets for wall mounting are included with all SATG2 Series speakers. With the LDSAT242G2(W) speaker, a bracket for horizontal mounting is included in addition to the bracket for vertical mounting.

Universal speaker wall bracket with safety rope. Four snap-lock joints permit mounting of the speaker in virtually any position. Maximum load: 10 kg

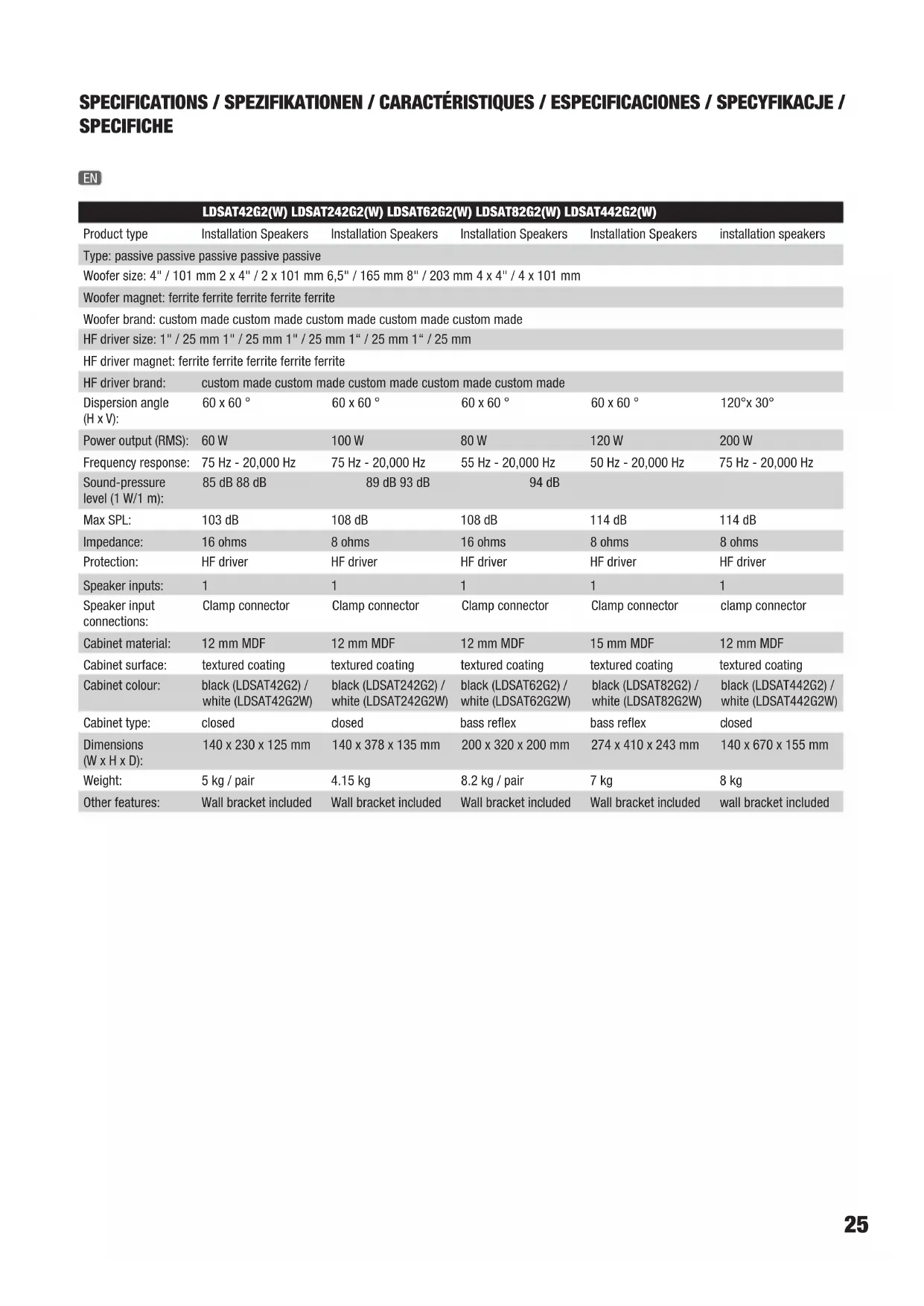

SPECIFICHE LDSAT42G2(W) LDSAT242G2(W) LDSAT62G2(W) LDSAT82G2(W) LDSAT442G2(W) Product type Installation Speakers Installation Speakers Installation Speakers Installation Speakers installation speakers Type: passive passive passive passive passive Woofer size: 4" / 101 mm 2 x 4" / 2 x 101 mm 6,5" / 165 mm 8" / 203 mm 4 x 4" / 4 x 101 mm Woofer magnet: ferrite ferrite ferrite ferrite ferrite Woofer brand: custom made custom made custom made custom made custom made HF driver size: 1" / 25 mm 1" / 25 mm 1" / 25 mm 1“ / 25 mm 1“ / 25 mm HF driver magnet: ferrite ferrite ferrite ferrite ferrite HF driver brand: custom made custom made custom made custom made custom made Dispersion angle (H x V): 60 x 60 ° 60 x 60 ° 60 x 60 ° 60 x 60 ° 120°x 30° Power output (RMS): 60 W 100 W 80 W 120 W 200 W Frequency response: 75 Hz - 20,000 Hz 75 Hz - 20,000 Hz 55 Hz - 20,000 Hz 50 Hz - 20,000 Hz 75 Hz - 20,000 Hz Sound-pressure level (1 W/1 m): 85 dB 88 dB 89 dB 93 dB 94 dB Max SPL: 103 dB 108 dB 108 dB 114 dB 114 dB Impedance: 16 ohms 8 ohms 16 ohms 8 ohms 8 ohms Protection: HF driver HF driver HF driver HF driver HF driver Speaker inputs: 1 1 1 1 1 Speaker input connections: Clamp connector Clamp connector Clamp connector Clamp connector clamp connector Cabinet material: 12 mm MDF 12 mm MDF 12 mm MDF 15 mm MDF 12 mm MDF Cabinet surface: textured coating textured coating textured coating textured coating textured coating Cabinet colour: black (LDSAT42G2) / white (LDSAT42G2W) black (LDSAT242G2) / white (LDSAT242G2W) black (LDSAT62G2) / white (LDSAT62G2W) black (LDSAT82G2) / white (LDSAT82G2W) black (LDSAT442G2) / white (LDSAT442G2W) Cabinet type: closed closed bass reflex bass reflex closed Dimensions (W x H x D): 140 x 230 x 125 mm 140 x 378 x 135 mm 200 x 320 x 200 mm 274 x 410 x 243 mm 140 x 670 x 155 mm Weight: 5 kg / pair 4.15 kg 8.2 kg / pair 7 kg 8 kg Other features: Wall bracket included Wall bracket included Wall bracket included Wall bracket included wall bracket included EN26 LDSUB88 Product type: Installation Subwoofers Type: passive Woofer size: 2 x 8" / 2 x 203 mm Woofer magnet: ferrite Woofer brand: custom made Power output (RMS): 200 (2x100)W Frequency response: 40 Hz - 120 Hz Sound-pressure level (1 W/1 m): 92 dB Max SPL: 115 dB Impedance: 2 x 8 ohms Speaker inputs: 2 Speaker input connections: Clamp connector Speaker outputs: 2 Speaker output connections: Clamp connector Cabinet material: 15 mm MDF Cabinet surface: textured coating Cabinet colour: black Cabinet type: band pass Dimensions (W x H x D): 600 x 250 x 350 mm Weight: 13.3 kg Other features: internal low-pass filter (120 Hz) LDSAT62AG2(W) LDSAT82AG2(W) Product type: Installation Speakers installation speakers Type: active active Woofer size: 6,5" / 165 mm 8" / 203.2 mm Woofer magnet: ferrite ferrite Woofer brand: custom made custom made HF driver size: 1“ / 25 mm 1“ / 25 mm HF driver magnet: ferrite ferrite HF driver brand: custom made custom made Amplifier: Class A/B class A/B Dispersion angle (H x V): 60 x 60 ° 60° x 60° Power output (RMS): 50 W 80 W Frequency response: 55 Hz - 20,000 Hz 50 Hz - 20,000 Hz Max SPL: 108 dB 114 dB Protection: HF driver, overcurrent overcurrent, HF drivers Controls: Power switch (on/off), volume control, switcha- ble auto-power mode volume, power switch (on/off), power mode (on/auto) Indicators: Power Power, Limit Line input connectors: XLR, 6.3 mm TRS (combo)

Line output connectors: XLR XLR Power supply: transformer transformer Operating voltage: 220 V AC - 240 V AC,

110 V AC – 120 V AC, 50 – 60 Hz (US) Power consumption (max.) 80 W 175 W Cabinet material: 12 mm MDF 12 mm MDF Cabinet surface: textured coating textured coating Cabinet colour: black (LDSAT62AG2) / white (LDSAT62AG2W) black (LDSAT82AG2) / white (LDSAT82AG2W) Cabinet type: bass reflex bass reflex Dimensions (W x H x D): 200 x 320 x 200 mm 274 x 410 x 243 mm Weight: 5.25 kg 8.6 kg Other features: Wall bracket included wall bracket included27 LDSUB88A Product type: Installation Subwoofers Type: active Woofer size: 2 x 8" / 2 x 203 mm Woofer magnet: ferrite Woofer brand: custom made Amplifier: Class A/B Power output (RMS): 150 W Frequency response: 40 Hz - 120 Hz Sound-pressure level (1 W/1 m): 92 dB Max SPL: 115 dB Protection: overload Controls: Phase 180°, volume, low-pass filter (70 - 140 Hz) Indicators: Limit, Signal, Power Line inputs: 1 Line input connectors: XLR, 6.3 mm TRS (combo) Power supply: transformer Operating voltage: 220 V AC - 240 V AC,

110 V AC – 120 V AC, 50 – 60 Hz (US) Power consumption (max.): 200 W Cabinet material: 15 mm MDF Cabinet surface: textured coating Cabinet colour: black Cabinet type: band pass Dimensions (W x H x D): 600 x 250 x 350 mm Weight: 15 kg LDSUB10A Product type: Type: active Woofer size: 10" / 254 mm Woofer magnet: ferrite Woofer brand: custom made Woofer voice coil: 2" / 50.8 mm Amplifier: Class A/B Power output (RMS): 360 (3x120)W Subwoofer frequency range: 40 Hz - 120 Hz Max. SPL (continuous): 118 dB Protection: overcurrent, limiter, short-circuit Input sensitivity: 0.3 V RMS Controls: Subwoofer volume, power switch (on/off), volume, subwoofer phase reverse Indicators: Power Line inputs: 2 Line input connectors: 6.3 mm TRS, XLR Line outputs: 2 x Direct Output Line output connectors: XLR Speaker outputs: 2 Speaker output con- nections: Terminal posts Power supply: transformer Operating voltage: 220 V AC - 240 V AC,

110 V AC – 120 V AC, 50 – 60 Hz (US) Power consumption (max.): 600 W Cabinet material: 15 mm MDF Cabinet surface: textured coating Cabinet type: bass reflex Dimensions (W x H x D): 505 x 345 x 425 mm Weight: 21 kg Other features: M20 threaded flange, ergonomic recessed handles, speaker outputs with high-pass filter (170 Hz, -18 dB)28
