1. Overview

Please observe the illustrations on the fold-out page.

Soundbar Remote control

1	LEDs
	Red: Standby mode
	Green: LINE IN
	Orange: OPTICAL IN
	White: AUX IN
	Blue: Bluetooth
2	POWER button
3	SOURCE button
4	VOLUME -/+ button
5	PAIR button
6	LINE IN socket
7	Power unit
8	Stereo cinch cable
9	Sockets AUX IN L/R
10	SUB OUT socket
11	OPTICAL IN socket
12	DC IN ② ④ ⑥ ⑧

13	Send LED
14	Button $
15	MUTE button
16	OPTICAL button
17	AUX button
18	MUSIC, MOVIE, DIALOG buttons
19	VOLUME -/+ button
20	▶I button
21	BASS -/+ buttons
22	Battery compartment
23	▶I button
24	I←按钮
25	TREBLE -/+ buttons
26	LINE IN button
27	POWER按钮

28	Screw
29	Rawlplugs
30	Drilling template (no image)

Thank you for your trust!

Congratulations on the purchase of your new soundbar.

For a safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to initial commissioning.
• Above all, observe the safety instructions!
  The device should only be used as described in these operating instructions.
• Keep these operating instructions for future reference.
  If you pass the device on to someone else, please include these operating instructions. The operating instructions are a part of the product.

We hope you enjoy using your new soundbar!

The Bluetooth® brand and corresponding logos are the property of Bluetooth SIG, Inc.

2. Intended purpose

This is a consumer electronics device. The soundbar is intended for playing sound from audio devices.

The device is designed for private home use and must not be used for commercial purposes. The device must only be used indoors.

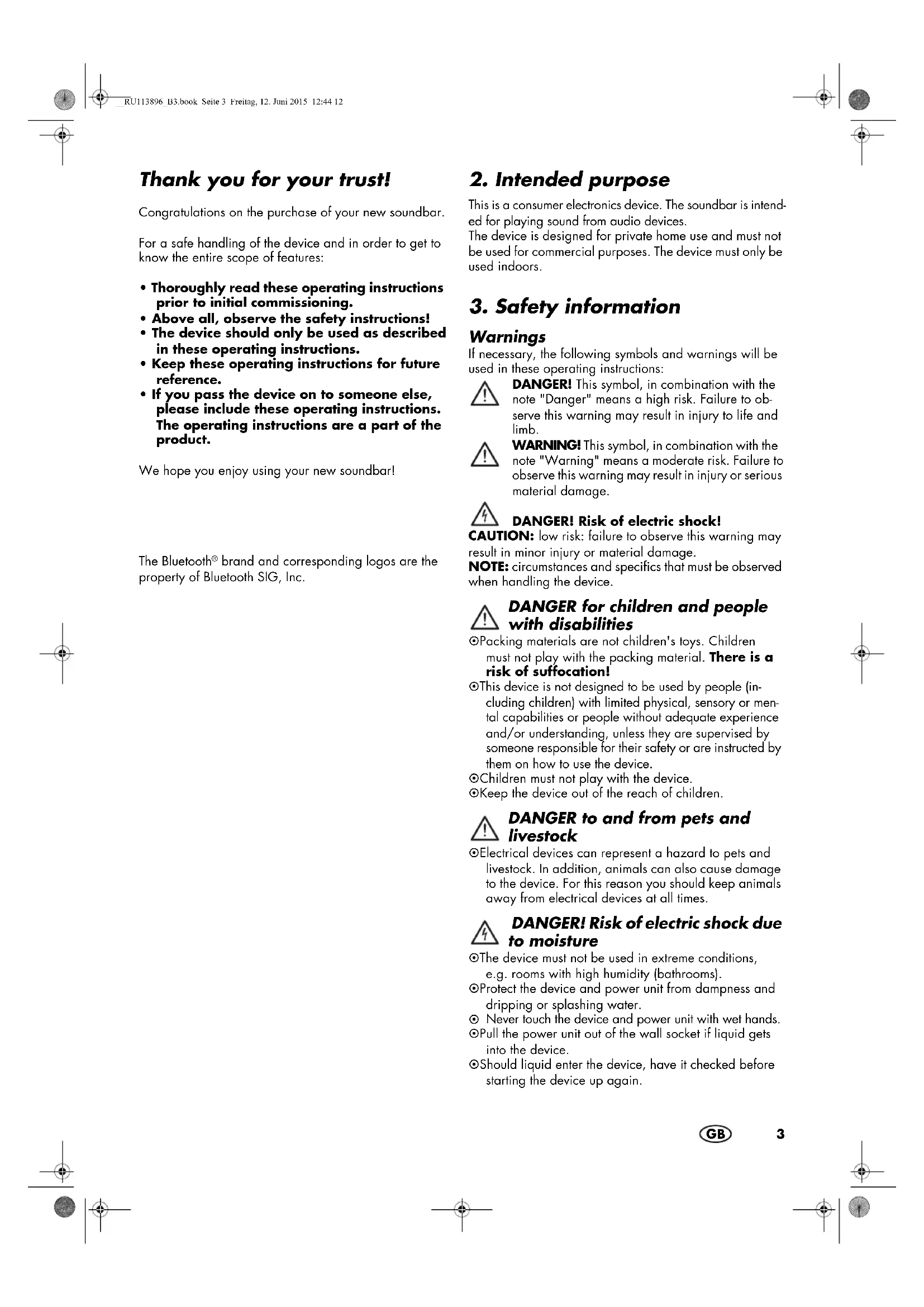

3. Safety information

Warnings

If necessary, the following symbols and warnings will be used in these operating instructions:

DANGER! This symbol, in combination with the note "Danger" means a high risk. Failure to observe this warning may result in injury to life and limb.

WARNING! This symbol, in combination with the note "Warning" means a moderate risk. Failure to observe this warning may result in injury or serious material damage.

DANGER! Risk of electric shock!

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

DANGER for children and people with disabilities

Packing materials are not children's toys. Children must not play with the packing material. There is a risk of suffocation!

This device is not designed to be used by people (including children) with limited physical, sensory or mental capabilities or people without adequate experience and/or understanding, unless they are supervised by someone responsible for their safety or are instructed by them on how to use the device.

Children must not play with the device.

Keep the device out of the reach of children.

DANGER to and from pets and livestock

⑥ Electrical devices can represent a hazard to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times.

DANGER! Risk of electric shock due to moisture

The device must not be used in extreme conditions, e.g. rooms with high humidity (bathrooms).
Protect the device and power unit from dampness and dripping or splashing water.
- Never touch the device and power unit with wet hands.
Pull the power unit out of the wall socket if liquid gets into the device.
Should liquid enter the device, have it checked before starting the device up again.

4

DANGER! Risk of electric shock

Never put the device into operation if there are visible damages to the device, the power unit or the cable or if the device has been dropped before. Do not use the device again, but have it checked by a specialist workshop.
- Never open the casing of the device or power unit.
Connect the cable to the device before plugging the power unit into a wall socket.
Only connect the power unit to a properly installed, easily accessible wall socket, the voltage of which corresponds to the specifications on the rating plate. The wall socket must continue to be easily accessible after the device is plugged in.
Ensure that the cable cannot be damaged by sharp edges or hot surfaces.
Ensure that the cable is not trapped or crushed.
- When removing the power unit from the wall socket, always pull the power unit and never the cable.
Pull the power unit out of the wall socket, ... if there is a fault, before connecting the device to the power unit, before you clean the device and during thunderstorms.
In order to fully disconnect from the power supply, the mains plug must be removed from the socket. Even when switched off, a small amount of electricity is consumed when the mains plug is plugged in.
To avoid any risk, do not make modifications to the device. Repairs must be carried out by a specialist workshop or the Service Centre.

Batteries

DANGER OF EXPLOSION! Be sure to observe the correct polarity when inserting the battery.

Clean the battery and if necessary the device terminals before you insert the batteries.
Batteries can be life-threatening if swallowed. Therefore you should store batteries and the remote control out of the reach of young children. If a battery has been swallowed, medical assistance must be sought immediately.
Batteries must not be charged or reactivated by other means, nor must they be dismantled, thrown into a fire or short-circuited.
- Remove the batteries from the remote control if you do not intend to use the remote control for a prolonged period of time, or if the battery runs out of power. The battery might leak and damage the remote control.
Do not subject batteries to extreme conditions, e.g. do not place the remote control on radiators or expose it to direct sunlight. Otherwise, there is an increased danger of batteries leaking.

If battery acid has leaked, avoid contact with the skin, eyes and mucous membranes. In case of contact with the acid, rinse the affected area at once with plenty of clean water and seek medical assistance immediately.

#

WARNING! Risk of material damage

If you notice any irregularities (e.g. unusual noises, strange smells or smoke developing), pull the power unit out of the wall socket immediately. Do not use the device any longer.

If the device is moved from a cold location to a warm location, condensate may form in the device. Leave the device switched off for a few hours.

Protect the device against damage, e.g. from: -Heat, direct sunlight and open flames - Impacts and similar violent effects

Candles and other open flames must be kept away from this product at all times in order to prevent the spread of fire.

Do not cover the power unit to prevent overheating.

Do not use any astringent or abrasive cleaning agents.

The device is fitted with non-slip plastic feet. As furniture is coated with a wide array of varnishes and synthetics, and is also treated with different care products, it cannot be fully ruled out that some of these materials contain ingredients that could attack and soften the non-slip plastic feet. If necessary, place a non-slip mat under the device.

• Please ensure the following when mounting on a wall:

• The fixing material must be matched to the properties of the wall. If necessary, use fixing material other than that supplied.

• Make sure that in the installation location there are no pipes or cables in the wall (e.g. electricity, water, gas).

• If necessary, have the wall mounting carried out by an expert.

4. Items supplied

1Soundbar

1Power unit 7

Remote control

1CR2025 3 V battery (inserted)

1 Stereo cinch cable 8

2Screws 28

2Rawlplugs 29

1Drilling template 30

1Operating instructions

In the case of incomplete delivery, please contact the responsible service centre of the manufacturer (see "Warranty of HOYER Handel GmbH" on page 8).

Please observe the illustrations on the fold-out page.

5. Before using for the first time

• Remove all packing material.
• Check that the device is undamaged.

5.1 Remote control

Initial use

• Remove the transport lock from the battery compartment and remote control.

Changing the battery

DANGER OF EXPLOSION! If the battery is not correctly replaced. Replace only with the same or an equivalent type.

1. FIGURE A: open the battery compartment lid by unlocking it and sliding it in the direction of the arrow.
2. Replace the old battery with a new one.

WARNING! Ensure the correct polarity of the battery. The plus sign on the battery must be visible.

1. Close the battery compartment again.

5.2 Setting up / Wall mounting

NOTE: if you connect the device to a television set, place the device as centrally as possible below the set.

Setting up

1. Place the device on a level surface.
2. Connect the power unit 7 to the device.

Wall mounting

WARNING! Risk of material damage!

Please ensure the following when mounting on a wall:

• The fixing material must be matched to the properties of the wall. If necessary, use fixing material other than that supplied.
• Make sure that in the installation location there are no pipes or cables in the wall (e.g. electricity, water, gas)

• If necessary, have the wall mounting carried out by an expert.

• FIGURE B: drill 2 holes at the same height at a distance of 40cm apart. Use the attached drilling template 30 where appropriate.

• Insert the rawlplugs 29 into the drill holes.
• Tighten the screws 28 in the rawlplugs 29.
• Insert all of the cables used into the connections (see "Connections" on page 5).

NOTE: in the case of wall mounting, use a jack max. 3 cm in length for the optical input OPTICAL IN 11 (and if necessary a TOSLINK angle adapter) to prevent the cable from kinking and avoid possible damage.

1. Connect the power unit 7 to the device.
2. Suspend the device on the screws 28 with the wall brackets on the back.

5.3 Connections

CAUTION: make sure that the soundbar and the devices to be connected are switched off before you connect them. Please also read the operating instructions for the devices which you are connecting.

Input Use	Remote control button	LED colour
AUX IN 9	Connection with stereo cinch cable 8, e.g. television set, CD player	AUX 17 white
LINE IN 6	Connection with 3.5 mm stereo jack cable, e.g. MP3 player, telephone	LINE IN 26 green
OPTICAL IN 11	Connection with TOSLINK cable, e.g. television set, DVD player	OPTICAL 16 orange
Bluetooth	Radio connection, e.g. smartphone	$ 14 blue

• A subwoofer can be connected to the cinch socket of the SUB OUT 10 output. This is automatically controlled by the device.

5.4 How to use

NOTE: the device remains in standby mode after being switched off. As the device still uses some electricity in this mode, unplug the power unit 7 from the wall socket to disconnect the device from the mains.

• Connect the power unit 7 with an easily accessible wall socket. The red LED 1 on the device lights up. The device is now in standby mode.

6. Operation

NOTES:

• All adjustments can be conveniently carried out with the remote control. The basic functions can also be carried out with the buttons on the device. Operation of the device in the instructions is usually described with the remote control.
  The device switches to standby mode... if no Bluetooth connection is established within 20 minutes or if it does not receive a signal for 20 minutes.
• Press the POWER 27 button to switch on the device from standby mode.

6.1 Selecting the type of connection

1. Press one of the buttons AUX 17, LINE IN 26, OP-TICAL 16 or \ 14$ to switch to the desired connection (see “Connections” on page 5).
2. On the audio device you can now start playback and select and control the music tracks.

NOTE: in order to use the optical input, you need to set the output of your audio device to "PCM downmix".

6.2 Sound settings

NOTES:

Changes to the sound settings are acknowledged with brief flashing of the LED 1, until the minimum/maximum value has been reached.
- Controlling the levels of the treble and bass is exclusively possible in the "Music" settings, after pressing the MUSIC 18, button.

Controlling the volume

During playback, press the VOLUME - / + 19 buttons.

Muting the device

1. Press MUTE 15 to switch off the sound. The LED 1 flashes.
2. To switch the sound back on, press MUTE again or one of the VOLUME - / + 19 buttons. The LED 1 lights up.

Adjusting the tone quality

• Press one of the buttons 18, to select the pre-sets for the tone quality for music (MUSIC), films (MOVIE) or language (DIALOG).
  Press the MUSIC 18: button

• Use the TREBLE - / + 25 buttons to adjust the treble sounds.

• Use the BASS - / + 21 buttons to adjust the bass sounds.

6.3 Establishing a Bluetooth connection

NOTES:

The identification of the device is "SSB 36 A1".
- After it has been switched over to Bluetooth, the device automatically attempts to establish a connection with the last paired device.
- Please observe that the establishment process of the connection may vary slightly depending on the device and the software used.

1. Press the \ 14$ button to switch over to a Bluetooth connection. LED 1 flashes blue.
2. Switch on the audio device (e.g. smartphone) and start the Bluetooth connection.
3. Press the PAIR 5 button on the device for approximately 1 second. The blue LED 1 flashes rapidly. The audio device will now receive the device identification "SSB 36 A1".
4. Establish the connection with the soundbar on the audio device. If you are asked for a password, enter "0000". Both devices are now interconnected. LED 1 now lights up in blue and a beep is heard.

NOTE: it is possible that audio devices remember the identification of the device. In this case, it may not be necessary to establish the connection manually again if the Bluetooth function is activated.

1. Now play a song on the audio device. The sound is played back from the soundbar.
2. With the 1424, 120 and /II 23 buttons you can select and control the music tracks.

7. Cleaning and storing

DANGER! Risk of electric shock!

Pull the power unit 7 out of the wall socket before you clean the device. Make sure that no liquid gets into the device.

• Clean the device with a slightly damp cloth. Solvents, spirits, thinners etc. must not be used, as they can damage the surface of the device.
• When not using the device, store it in a place where neither high temperatures nor moisture can affect it. Remove the battery from the remote control.

8. Disposal

This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This

applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but have to be taken to a collection point for recycling electric and electronic devices. This disposal is free of charge. Protect the environment and dispose of waste properly. Further information can be obtained from your local disposal service or city/

municipal administration. Batteries must not be discarded with your household waste. Spent batteries must be disposed of properly. Special containers are available for this purpose in shops selling batteries and at municipal collection points.

(Rechargeable) batteries marked with the following letters contain harmful substances such as: Cd (cadmium), Hg (mercury), Pb (lead).

Packaging

The packaging is made from recyclable materials. Dispose of the packaging sorted by materials. When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

9. Troubleshooting

If the soundbar fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

DANGER! Risk of electric shock!

Do not attempt to repair the device yourself under any circumstances.

Fault Possible Causes/Action
No function	• Has the device been connected to the power supply? Is LED 1 lit up?
No Bluetooth connection	• Is the Bluetooth function of the audio device active? • Did you switch off the device?
No music play-back	• Is the volume set too low on the audio device? • Have you selected the correct con- nection? • When selecting the optical input for the audio device, has "PCM down-mix" been set as the output mode?
Interference noise during operation	• If any interference noise occurs, re- move any mobile telephones, tablets or other devices with electromagnetic fields from the immediate area of the Soundbar.

1. Technical specifications

Model: SSB 36 A1
Power rating: 2x 18 W RMS
Soundbar: Input:	18.0 =¥ Θ-Ω- A,
Protection class of the loudspeaker: III	10
Power unit Dongguan City Gangqi Electronic Co, Ltd GQ30-180130-AG:	Input: 100-240 V ~ 50/60 Hz, 1.0 A max. Output: 18.0 =¥ , Θ-Ω- A
Protection class of the power unit:	II ☐
Bluetooth: Range:	v3.0 up to 10 m
Input: LINE IN AUX IN L/R OPTICAL IN Output: SUB OUT	1x 3.5 mm stereo jack socket 2x cinch sockets 1x TOSLINK socket 1x cinch socket
Remove control battery:	CR2025 3 V
Dimensions (WxDxH):	approx. 94 x 9.5 x 7.8 cm (excluding wall bracket)
Weight:	approx. 1.4 kg
Ambient conditions:	only approved for indoor use 10 °C to 35 °C Relative humidity 40 to 85 %

Subject to technical modification.

Declaration of conformity

A complete declaration of conformity can be requested from HOYER Handel GmbH, see Service Centre.

11. Warranty of HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us - at our discretion - free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects. This warranty does not include product parts that are subject to standard wear and therefore can be considered wear parts; the same applies to damages at fragile parts, e.g. switches, rechargeable batteries or parts made of glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 113896 and the purchase receipt as a purchase verification for all inquiries.

• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

• Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.

Service Centre

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

{0,08 EUR/Min., (peak)}

0,06 EUR/Min., (off peak)]

E-Mail: [e-mail]

IAN: 113896

Supplier

Please note that the following address is no service address. First contact the aforementioned Service Centre.

HOYER Handel GmbH

Kühnhöfe 5

22761 Hamburg

Germany

Sisälto

Chere cliente, cher client,
